Acer PD123 User Manual

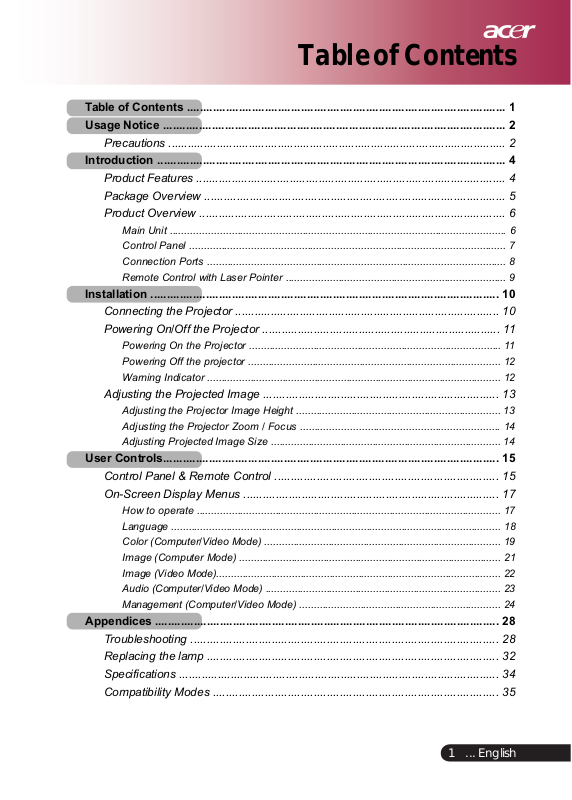

Table of Contents
Table of Contents .................................................................................................. 1
Usage Notice ......................................................................................................... 2
Precautions ......................................................................................................... 2
Introduction ........................................................................................................... 4
Product Features ................................................................................................ 4
Product Overview ............................................................................................... 6
Main Unit .................................................................................................................. 6
Control Panel ........................................................................................................... 7
Connection Ports ..................................................................................................... 8
Remote Control with Laser Pointer ........................................................................... 9
Installation ........................................................................................................... 10
Connecting the Projector .................................................................................. 10
Powering On/Off the Projector .......................................................................... 11
Powering On the Projector ...................................................................................... 11
Powering Off the projector ...................................................................................... 12
Warning Indicator ..................................................................................................... 12
Adjusting the Projected Image ......................................................................... 13

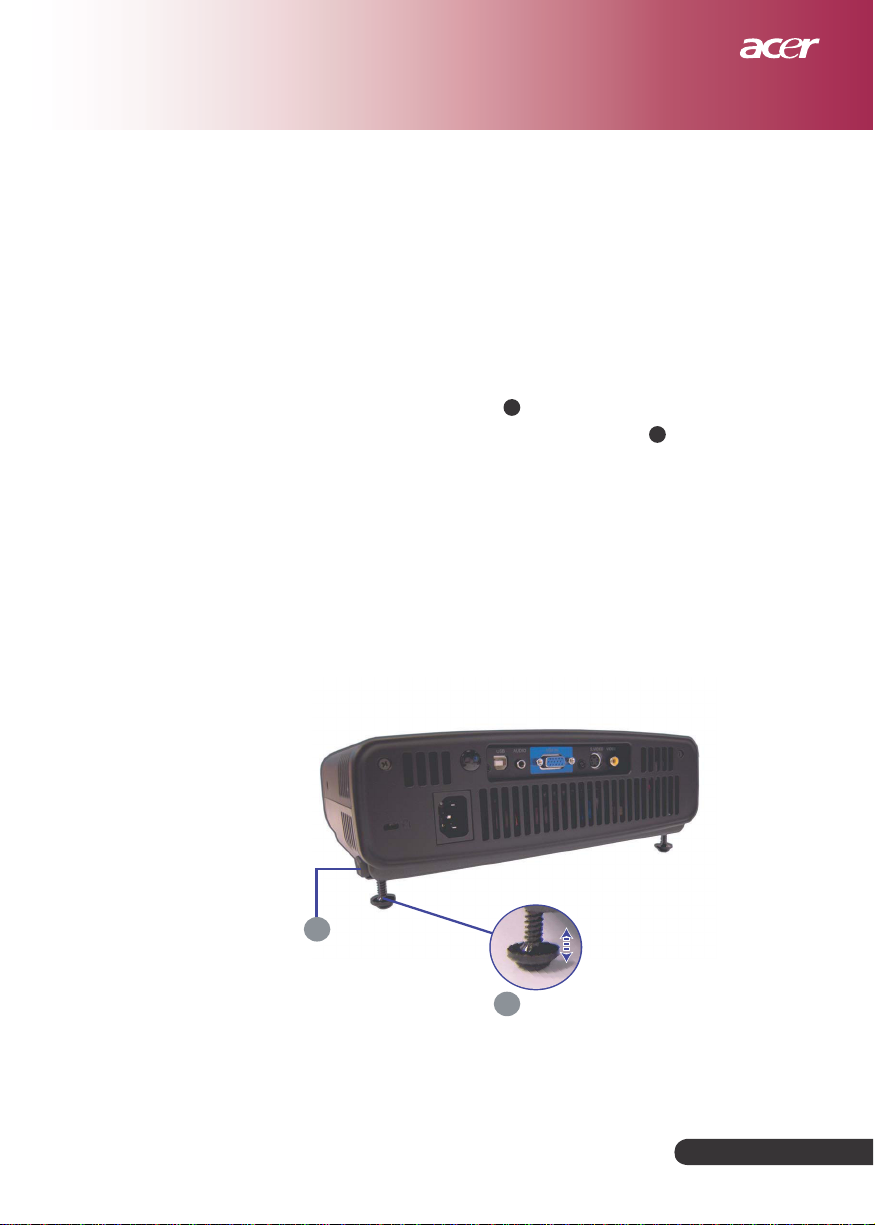

Adjusting the Projector Image Height ...................................................................... 13

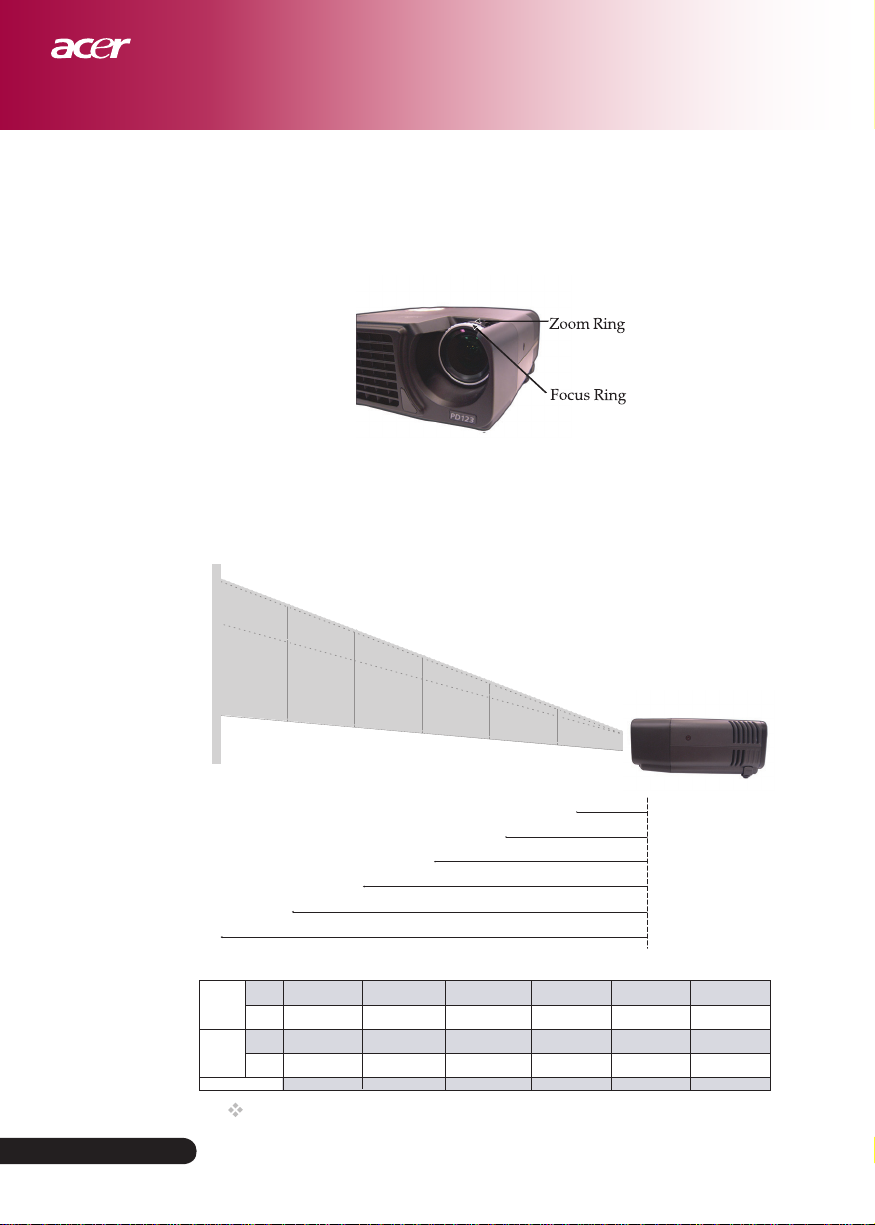

Adjusting the Projector Zoom / Focus .................................................................... 14
Adjusting Projected Image Size ............................................................................... 14
User Controls....................................................................................................... 15
Control Panel & Remote Control ..................................................................... 15
On-Screen Display Menus ............................................................................... 17
How to operate ........................................................................................................ 17

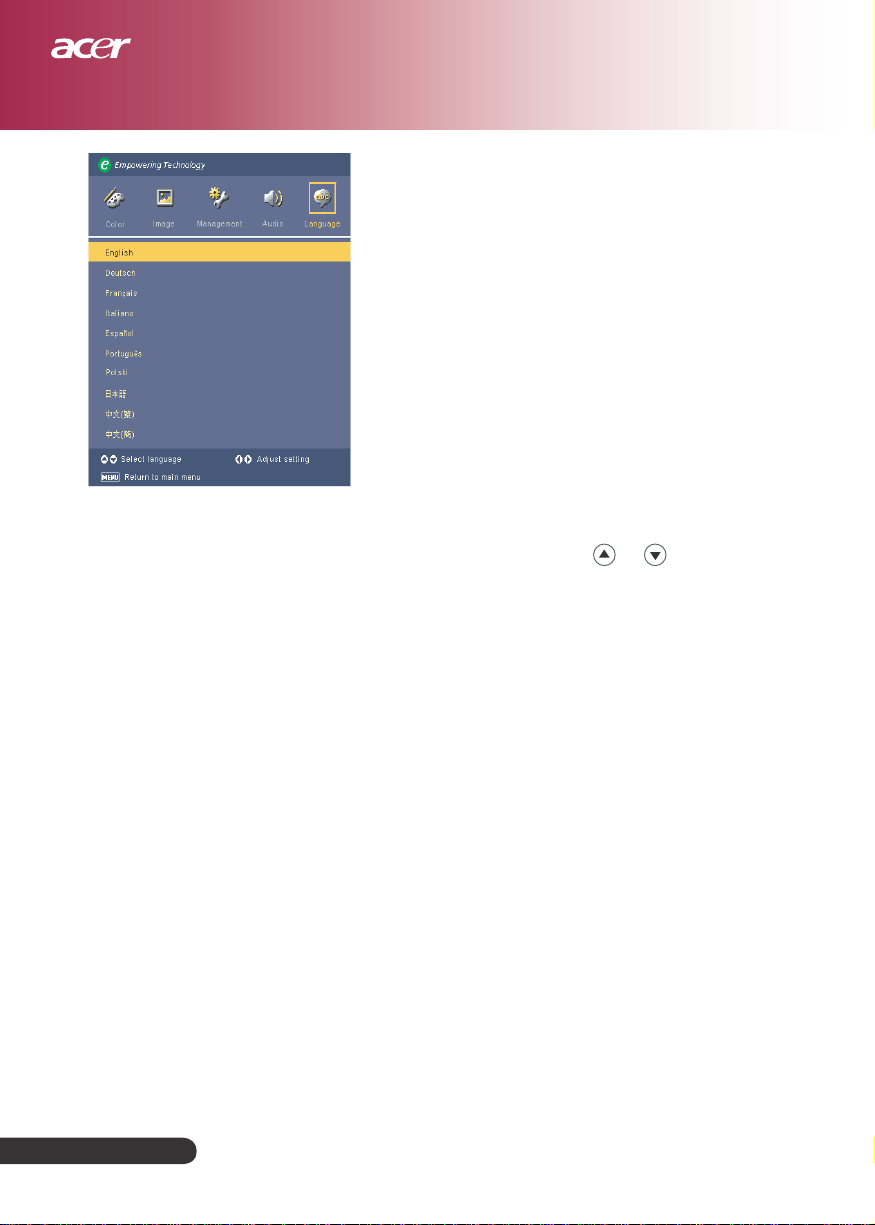

Language ................................................................................................................. 18

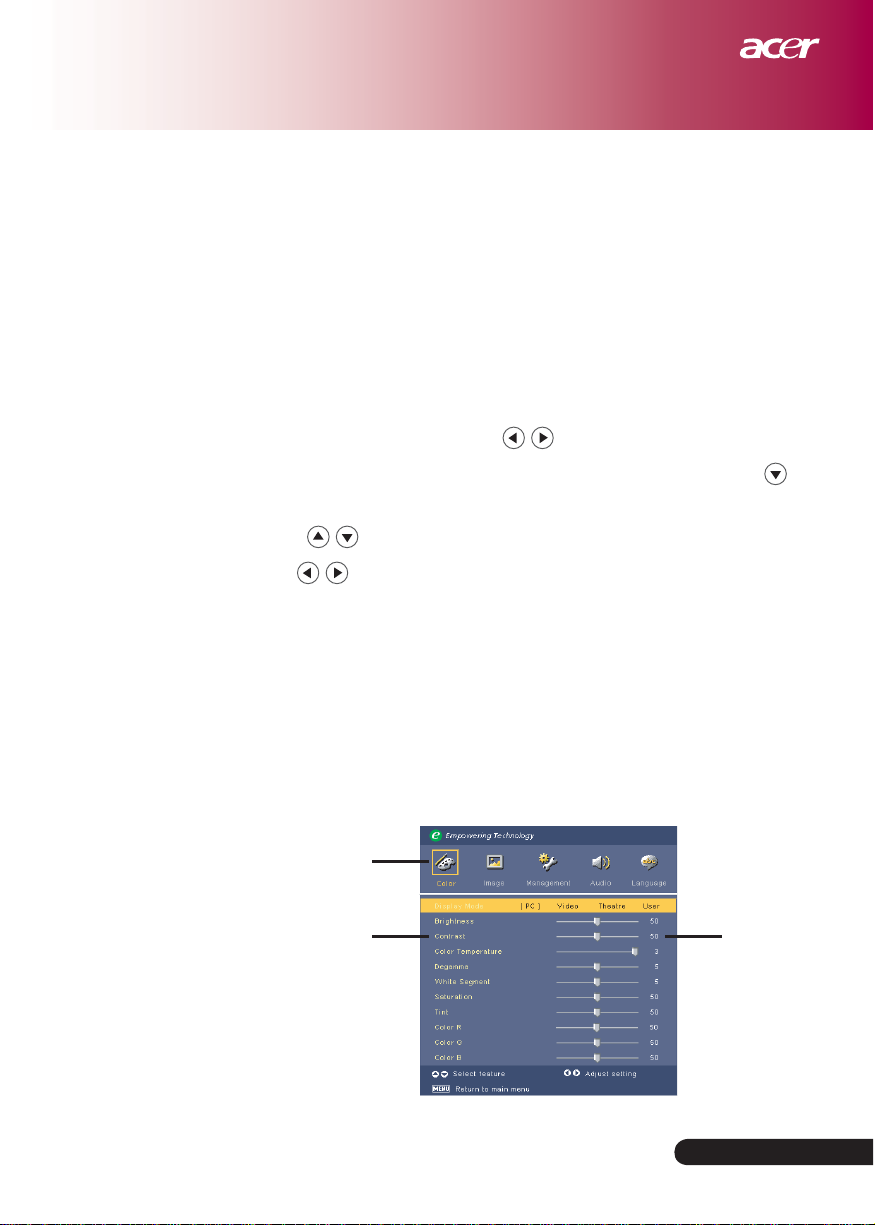

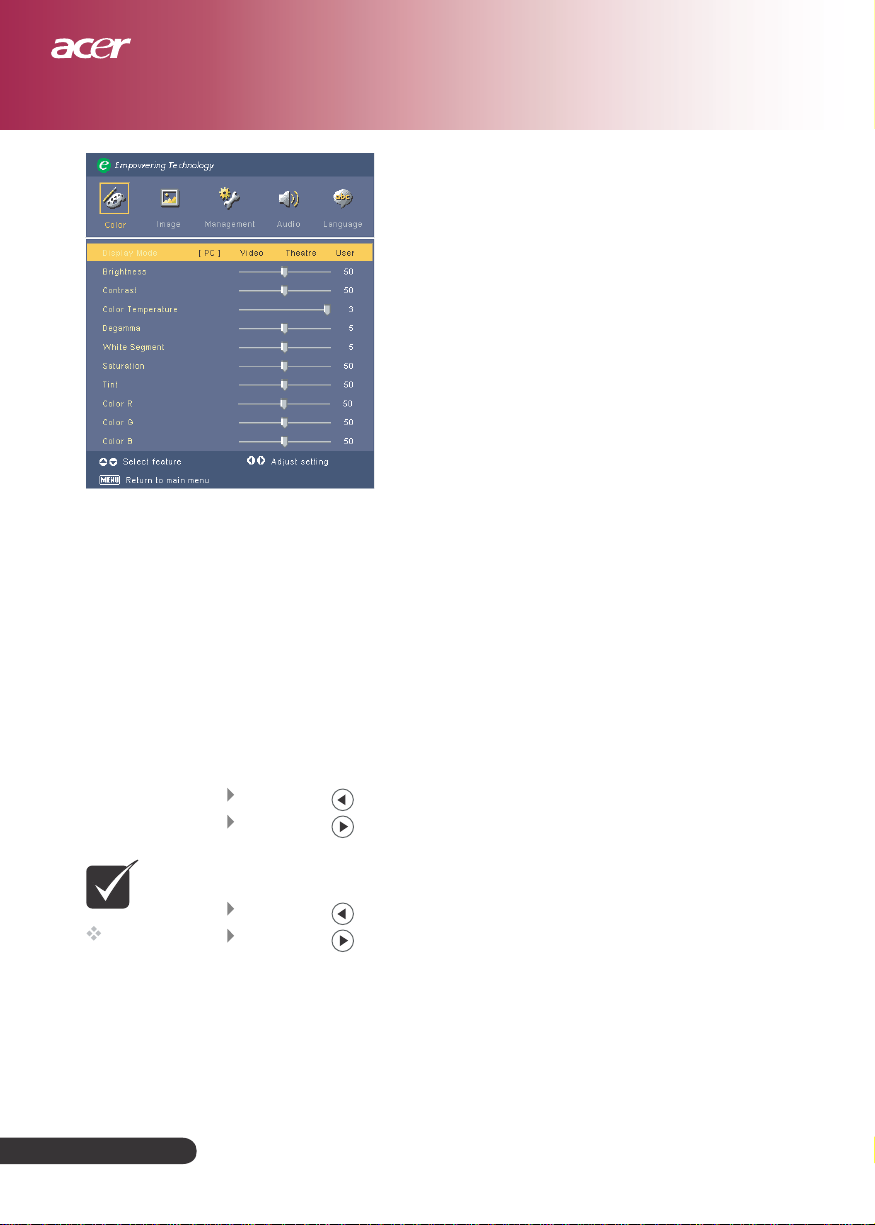

Color (Computer/Video Mode) ................................................................................. 19

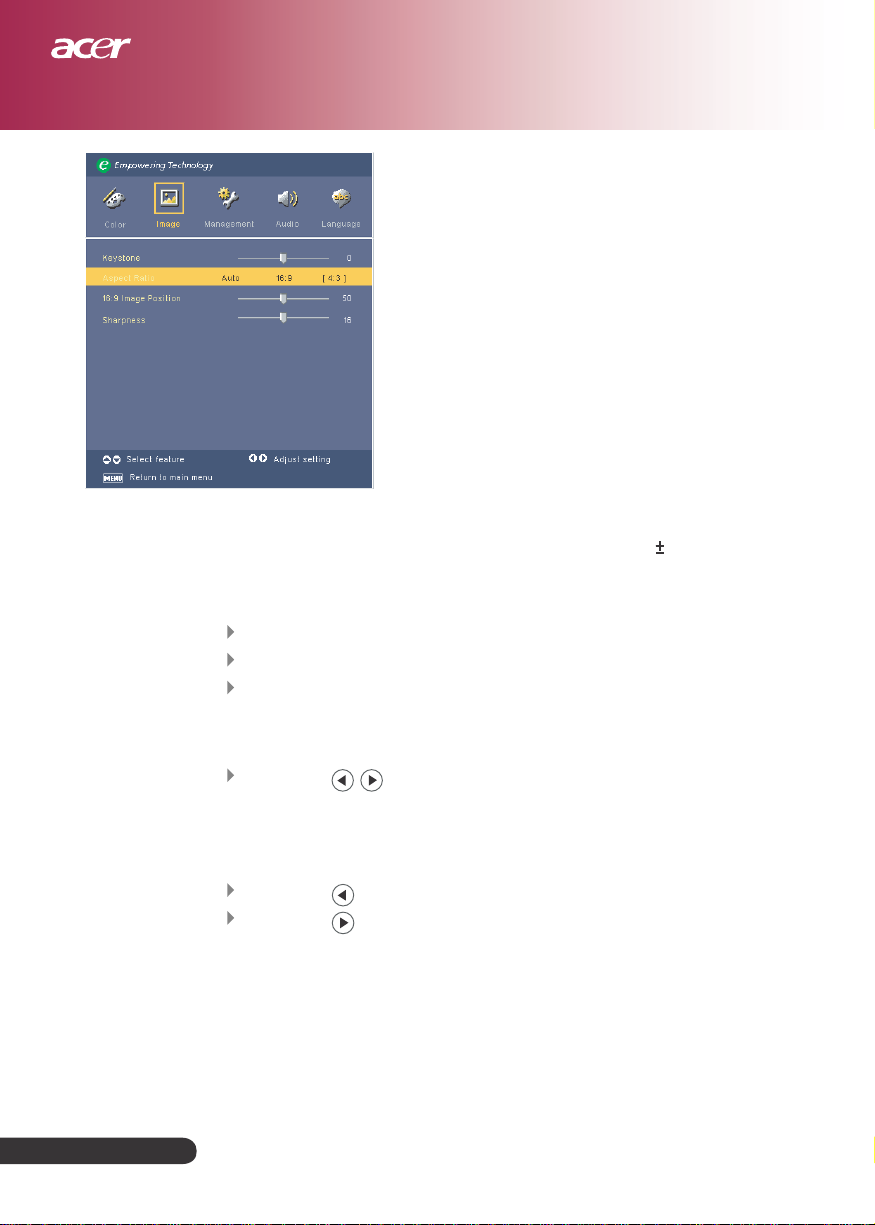

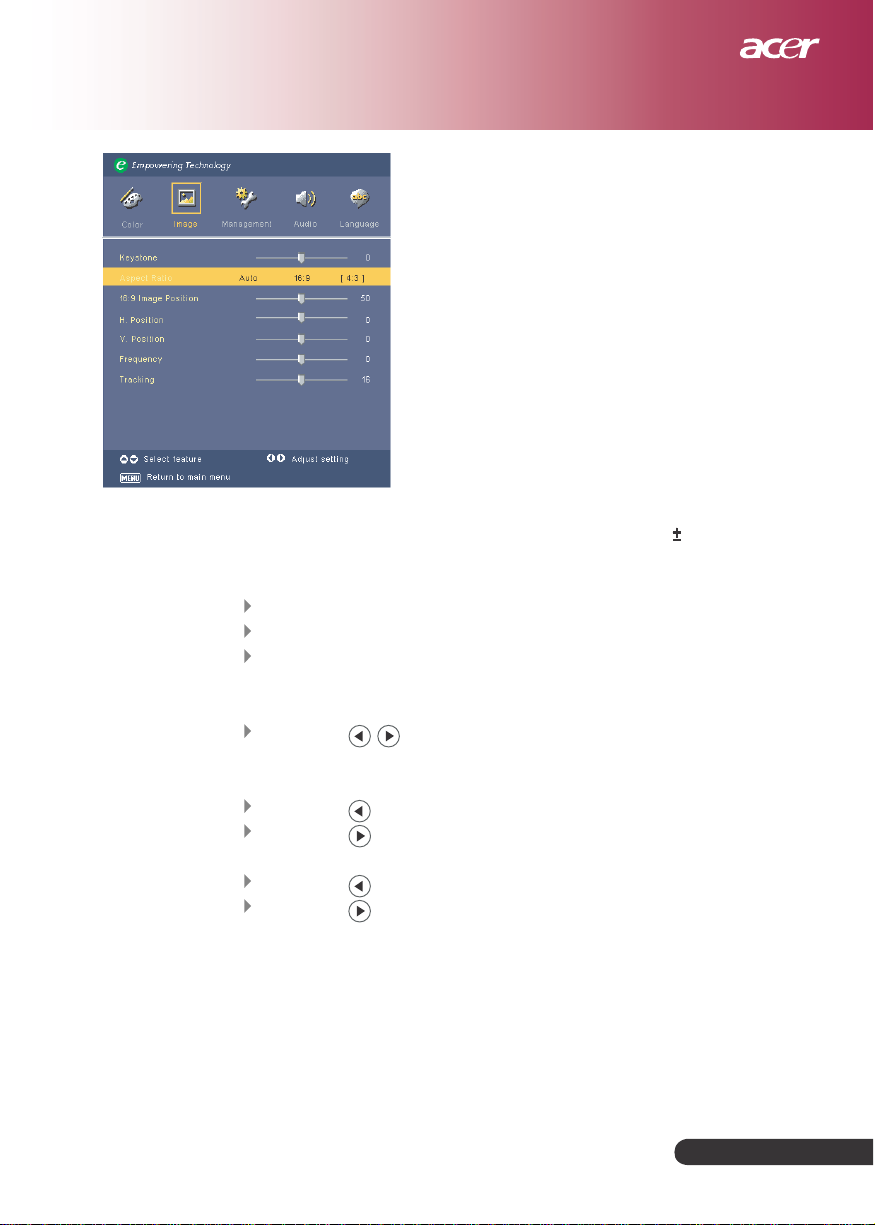

Image (Computer Mode) .......................................................................................... 21
Image (Video Mode).................................................................................................. 22

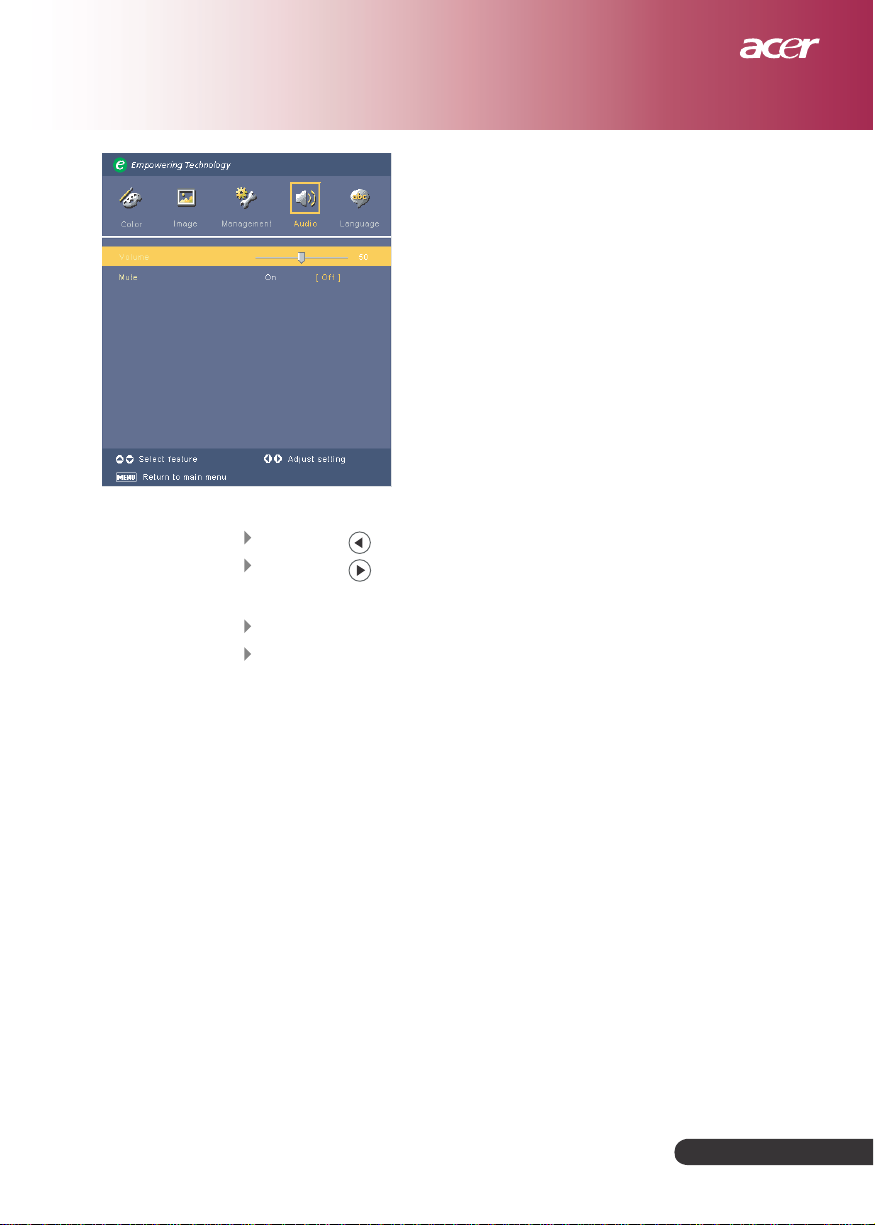

Audio (Computer/Video Mode) ................................................................................. 23

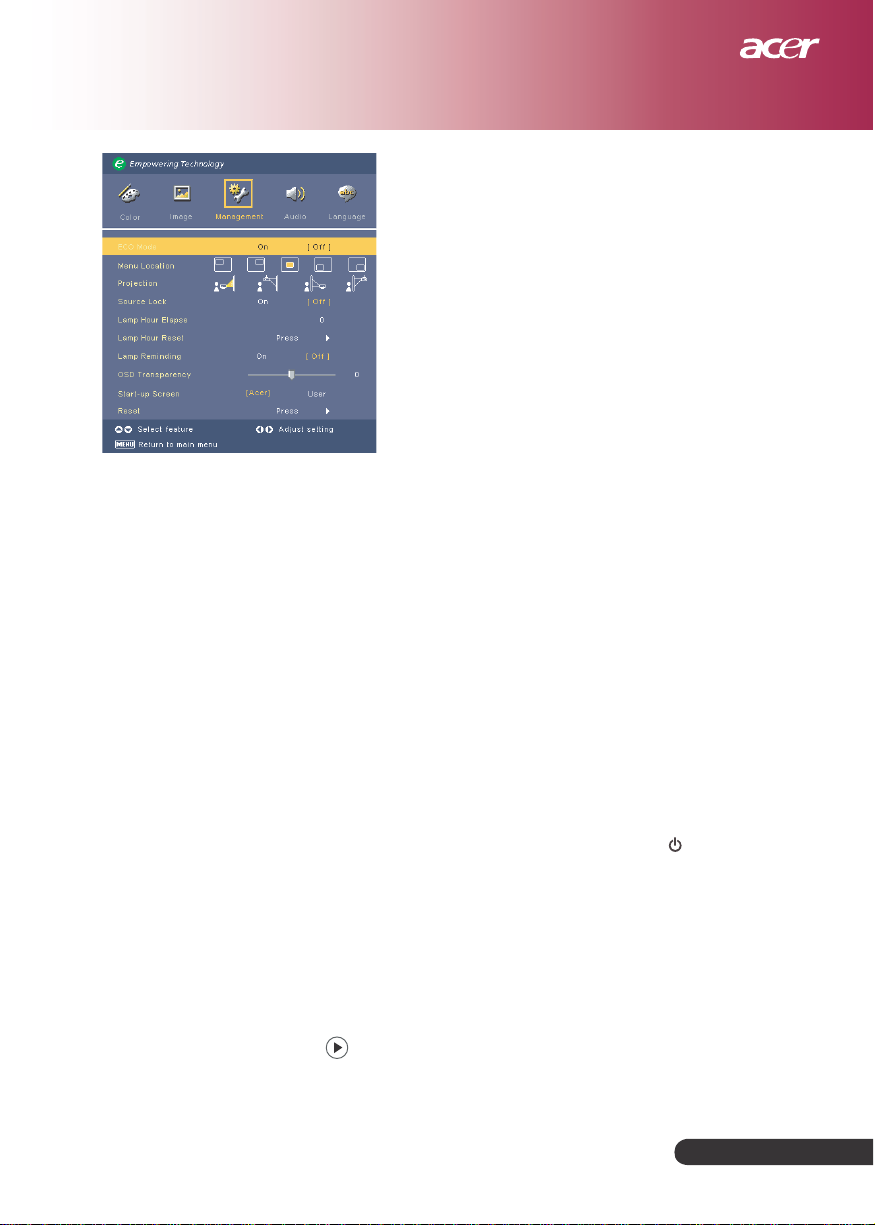

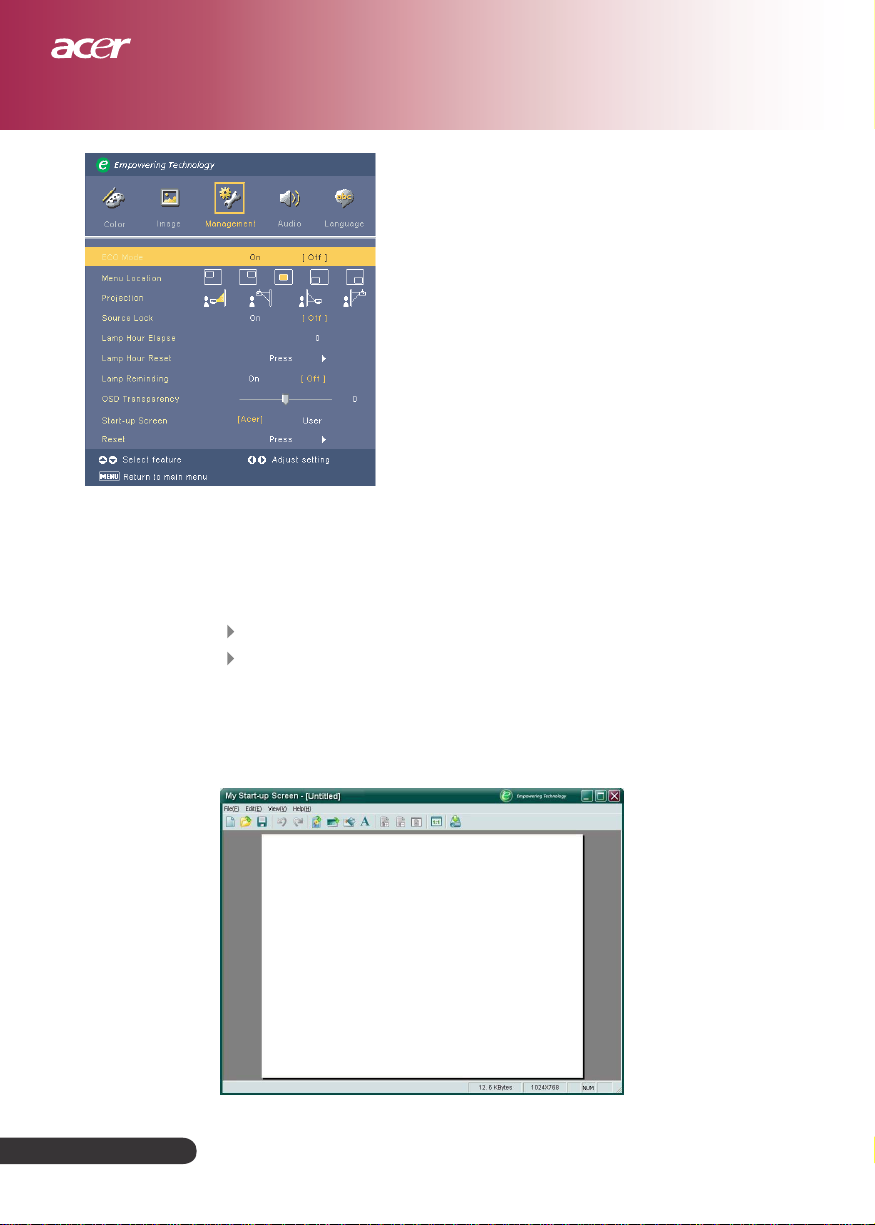

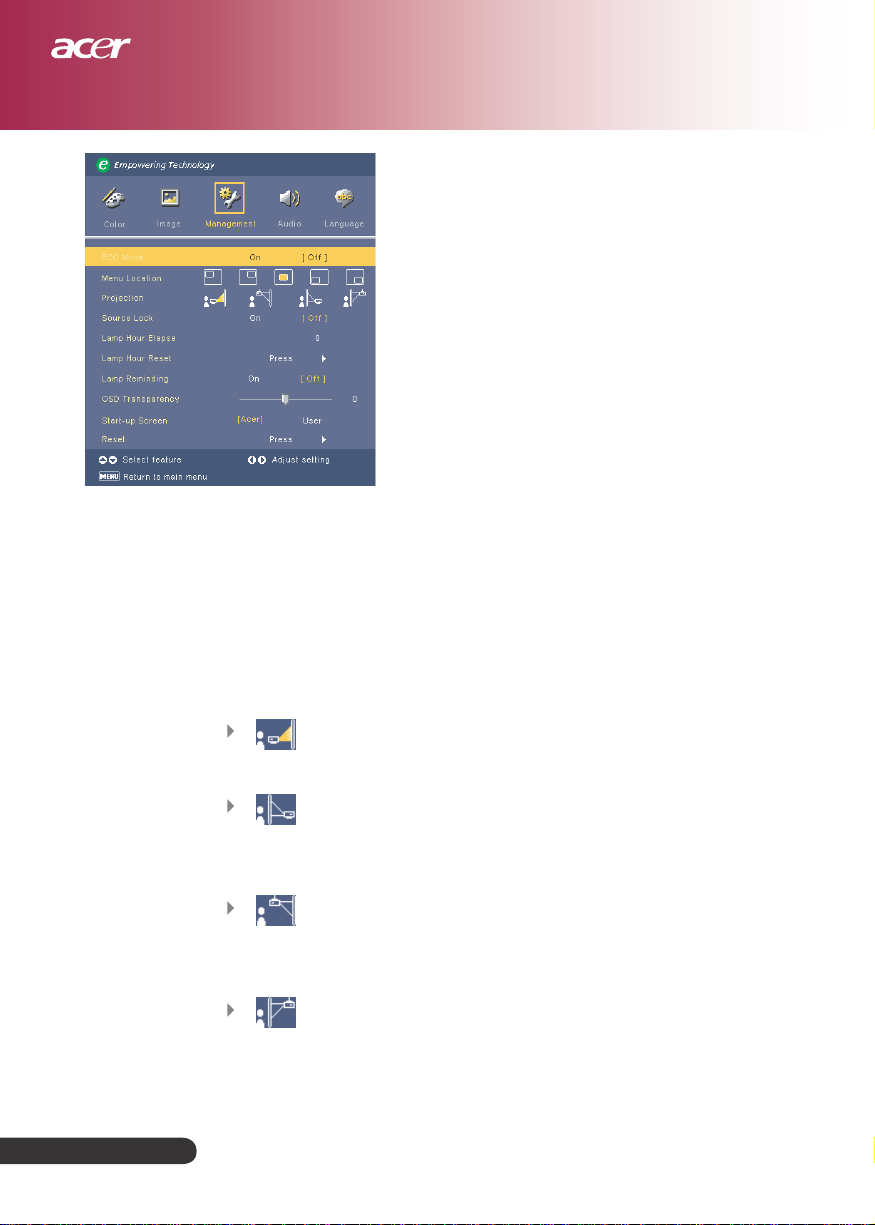

Management (Computer/Video Mode) ..................................................................... 24
Appendices .......................................................................................................... 28
Troubleshooting ............................................................................................... 28

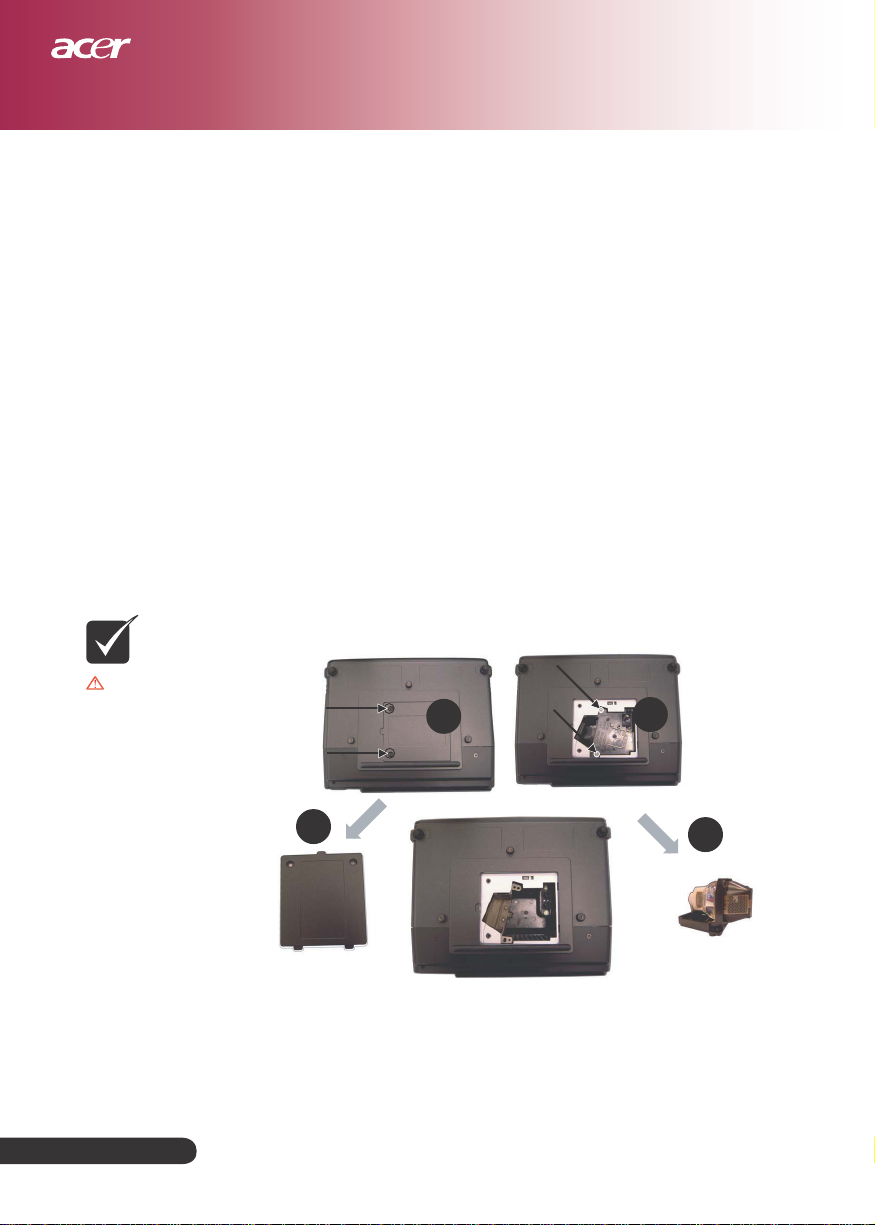

Replacing the lamp .......................................................................................... 32
Specifications ................................................................................................... 34
Compatibility Modes ........................................................................................ 35
... English
1
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit.
Warning- Do not look into the projector’s lens when the
Warning- To reduce the risk of fire or electric shock, do not
Warning- Please do not open or disassemble the product as
Warning- When changing the lamp, please allow unit to cool
Warning- This product will detect the life of the lamp itself.
lamp is on. The bright light may hurt your eyes.
expose this product to rain or moisture.
this may cause electric shock.
down, and follow all changing instructions.
Please be sure to change the lamp when it shows warning messages.
English...
Warning- Reset the “Lamp Hour Reset” function from the
On Screen Display “Management” menu after replacing the lamp module (refer to page 25).
Warning- When switching the projector off, please ensure
the projector completes its cooling cycle before disconnecting power.
Warning- Turn on the projector first and then the signal
sources.
Warning- Do not use lens cap when projector is in operation. Warning- When the lamp reaches the end of its life, it will
burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”.
2
Usage Notice
Do:
Turn off the product before cleaning. Use a soft cloth moistened with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit. Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place in direct sunlight.
... English
3
Introduction
Product Features
This product is an XGA single chip 0.55” DLPTM projector. Outstanding features include:
True XGA, 1024 x 768 addressable pixels Single chip DLPTM technology NTSC/PAL/SECAM and HDTV compatible (480i/p, 576i/p, 720p, 1080i) Full function remote control with laser pointer User friendly multilingual on screen display menu Advanced digital keystone correction and high quality full screen image re-scaling User friendly control panel SXGA+, SXGA compression and VGA, SVGA re-sizing Mac compatible
English...
4
Introduction
Package Overview
This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.
Projector with lens cap Power Cord
Composite Video Cable
S-Video Cable
2 x Battery
User’s Guide
USB Cable
Audio Cable
123
Carrying Case
VGA to Component
/ HDTV
VGA Cable
Remote Control with
Laser Pointer
Quick Start Card
... English
5
Introduction
Product Overview
Main Unit
English...
1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens
5. Elevator Button
6. Elevator Foot
7. Connection Ports
8. Power Socket
9. Remote Control Receiver
6
Control Panel
1
2
Introduction
3
4
7
1. Menu
2. Temp Indicator LED
3. Lamp Indicator LED
4. Source
5. Re-Sync
6. Power and Indicator LED (Power LED)
7. Four Directional Select Keys
6
5
... English
7
Introduction
Connection Ports
2
3 4
1
6
1. USB Connector
2. Audio Input Connector
3. PC Analog Signal/HDTV/Component Video Input Connector
4. S-Video Input Connector
5. Composite Video Input Connector
6. Power Socket
5
English...
8
Introduction
Remote Control with Laser Pointer
12
16
15
14 13
12
11
10
1. Laser Pointer
2. Transmit Indicator Light
3. Empowering Key
4. Menu
5. Page Up
6. Page Down
7. Keystone -
8. Source
3
4
5
6 7
8
9
9. Freeze
10. Hide
11. Re-Sync
12. Mute
13. Laser
14. Keystone +
15. Four Directional Select Keys
16. Power
... English
9
Installation
Connecting the Projector
USB
2
1
RGB
S-Video Output
3
4
5
DVD Player,
6
7
Settop Box,
HDTV receiver
English...
Video Output
1.............................................................................................. Power Cord
2. ..................................................................................................... USB Cable
3. ............................................................................................ Audio Cable
4. .................................................................................................... VGA Cable
5. ............................................................................................... S-Video Cable
6................................................................. VGA to Component / HDTV
7. .............................................................................. Composite Video Cable
10
Installation
Powering On/Off the Projector
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely connected. The Power LED will flash blue.
3. Turn on the lamp by pressing “
1
And the Power LED will turn steady blue.
4. Turn on your source (computer, notebook, video player ,etc.). The projector will detect your source automatically.
the screen displays “No Signal”, please make sure the signal cables are securely connected. If you connect multiple sources at the same time, using the “Source” button on the remote control or control panel to switch.
” button on the control panel.
N
OTE
Turn on the projector first and
then the signal sources.
Power
... English
11
