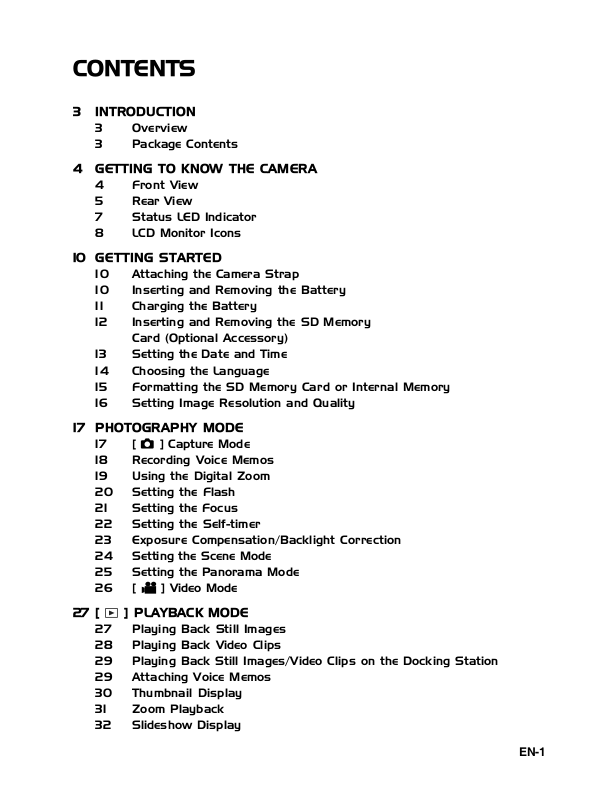

CONTENTS
3 INTRODUCTION
3 Overview
3 Package Contents
4 GETTING TO KNOW THE CAMERA
4 Front View
5 Rear View
7 Status LED Indicator
8 LCD Monitor Icons
10 GETTING STARTED
10 Attaching the Camera Strap
10 Inserting and Removing the Battery
11 Charging the Battery
12 Inserting and Removing the SD Memory
Card (Optional Accessory)
13 Setting the Date and Time
14 Choosing the Language
15 Formatting the SD Memory Card or Internal Memory
16 Setting Image Resolution and Quality
17 PHOTOGRAPHY MODE
17 [ ] Capture Mode
18 Recording Voice Memos
19 Using the Digital Zoom
20 Setting the Flash
21 Setting the Focus
22 Setting the Self-timer
23 Exposure Compensation/Backlight Correction
24 Setting the Scene Mode
25 Setting the Panorama Mode
26 [ ] Video Mode
27 [ ] PLAYBACK MODE
27 Playing Back Still Images
28 Playing Back Video Clips
29 Playing Back Still Images/Video Clips on the Docking Station
29 Attaching Voice Memos
30 Thumbnail Display
31 Zoom Playback
32 Slideshow Display
EN-1
33 Protecting Images
35 DPOF Settings
37 Resizing an Image
38 Compressing an Image
39 Erasing Images
41 CONNECTING TO A PICTBRIDGE COMPLIANT PRINTER
43 MENU OPTIONS
43 Capture Menu (Capture)
45 Capture Menu (Function)
47 Video Menu (Capture)
48 Video Menu (Function)
49 Playback Menu
50 Setup Menu (In Photography Mode)
51 Setup Menu (In Playback Mode)
52 TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR
COMPUTER
53 Connecting the Camera to Your Computer
54 Downloading Images and Video Files
55 CAMERA SPECIFICATIONS
EN-2
INTRODUCTION
Overview
Congratulations on your purchase of the new digital camera.
Capturing high-quality digital images is fast and easy with this state-of-the-art smart
camera. Equipped with a 7.40-megapixel CCD, this camera is capable of capturing
images with a resolution of up to 3072 x 2304 pixels.
Package Contents
Carefully unpack your camera and ensure that you have the following items.
Common Product Components:
J Digital camera
J User’s manual
J Docking station
J USB cable
J AC power adapter
J Rechargeable lithium-ion battery
Common (Optional) Accessories:
J SD memory card
J Software CD-ROM
J Camera pouch
J Camera strap
EN-3
GETTING TO KNOW THE CAMERA
Front View
# Name Description
1. Shutter button Focuses and locks the exposure of the camera when pressed
2. POWER button Turns the camera power on and off.
3. Microphone Records audio clips.
4. Flash Provides flash illumination.
5. Lens 3x optical zoom lens allows you to capture telephoto and
6. Self-timer LED Blinks during Self-timer mode until image is captured.
(AF auxiliary LED) Lights for auto focusing when capture in dark place.
halfway down, and capture the image when pressed all the
way down.
wide-angle images.
EN-4
Rear View
13
# Name Description
1. LCD monitor Provides menu information to operate the camera, and
2. Mode switch Sets the camera mode.
Capture mode Selects this when capturing still images.
Video mode Selects this when recording video clips.
Playback mode Performs image playback and deletion.
3. Status LED Displays the camera current state.
4. Zoom in button Zooms the lens to telephoto position.
Zoom out button Zooms the lens to wide-angle position.
5. MENU button Toggles OSD menu on and off.
6. Erase button Allows you to erase the image.
7. Display button Changes the information displayed on the LCD monitor.
8. Speaker Produces camera sounds and plays recorded audio.
9. Strap holder Camera strap attachment.
10. SET /Direction button Allows you to scroll through menus and image, and then
11. Battery / SD memory Allows access to the battery and insert or remove the
card cover memory card.
12. Camera connector Connects with the docking station.
13. Tripod socket Allows tripod mounting.
previews the image before capturing it and review it
afterwards.
select choices.
EN-5
SET /Direction button
5
# Name Description
1. S button Scrolls upwards.
Focus button Allows you to choose the appropriate focus setting.
2. X button Scrolls right.
Flash button Allows you to choose the appropriate flash setting.
3. T button Scrolls downwards.
4. W button Scrolls left.
5. SET button Enters the menu page and confirms the chosen setting.
Self-timer button Allows you to toggle the self-timer on and off, selects the
desired self-timer mode.
Exposure Allows you to toggle the exposure compensation /
/ Backlight correction backlight correction on compensation and off.
button
EN-6
Docking station
With the docking station, you can position
your camera and play back your images
and video clips on your desktop. You also
need the docking station to charge the
camera battery with an AC power adapter,
USB
and connect to a USB cable.
# Name Description
1. Docking station connector Connects with the camera.
2. PHOTO button Allows you to playback images or video clips on the
LCD monitor.
3. Status LED Displays the cradle current state.
4. USB button Allows you to enter USB mode.
5. DC IN 5V terminal Allows you to connect to an AC power adapter to
charge the battery or act as power supply during
playback or USB mode.
6. USB terminal Allows you to connect to a USB cable.
Status LED Indicator
Camera status LED
Color
Green
Red
Orange
State
On
On
On
During photography
The digital camera is ready to record images (or video clips).
Accessing files in progress.
Flash charging in progress.
Cradle status LED
Color State During battery charging
Red On Charging process in progress.
Green On Charging process is completed.
EN-7
LCD Monitor Icons
A
Capture mode [ ]
1. Zoom status
2. Voice memo
3. Remaining battery status
[
] Full battery power
[
] Medium battery
[
[
4. Flash mode
5. [
6. Focus area (When the
7. Capture mode
8. Image size
9. Possible number of shots
10. Quality
11. Date and time
power
] Low battery power
] No battery power
[Blank] Auto flash
[
] Red-eye
Reduction
[
] Forced Flash
[
] Flash Off
] Histogram
shutter button is pressed
halfway)
[Blank] Single
[
] Continuous
[ AEB] AEB
[
] 3072 x 2304
[
] 2560 x 1920
[
] 1600 x 1200
[
] 640 x 480
[
] Fine
[
] Normal
[
] Economy
12. Self-timer icon
[
10s] 10 sec.
[
2s ] 2 sec.
[
10+2s ] 10+2 sec.
13. Unsteady hold warning
icon
14. [
] Exposure
compensation
[
] Backlight
15. Metering
16. White balance
17. Focus mode
correction
[Blank] Average
[
] Spot
[ Blank ] Auto
[
] Incandescent
[
] Fluorescent 1
[
] Fluorescent 2
[
] Daylight
[
] Cloudy
[
] Manual
[Blank] Auto focus
[
] Macro
[
] Infinity
A
18. Scene mode
[
] Auto
[
] Panorama
[
] Portrait Man
[
] Portrait Lady
[
] Landscape
[
] Sports
[
] Night Portrait
[
] Night
[
] Candlelight
[
] Fireworks
[
] Macro
[
] Sunset
[
] Sunrise
[
] Splash Water
[
] Flowing Water
[
] Sepia
[
] Black & White
[
]Snow
[
] Beach
[
] Pets
[
]Manual
J Each press of the button switches one step in the sequence of OSD full
display, OSD full with Histogram, OSD display off.
EN-8
Video mode [ ]
07:30
10S
1
100-0011
35 46
Total
Play
0:10
0:06
1
2
9
78
1. [ ] Video mode
2. Zoom status
3. Remaining battery status
4. Image size
5. Possible recording time / elapsed time
6. Quality
7. Recording indicator
8. Self-timer icon
9. Focus icon
Playback mode [ ] -Still image playback
1. Playback mode
2. File number
3. Folder number
4. Protect icon
5. Voice memo
6. DPOF icon
6
Playback mode [ ]-Video playback
1. Video status bar
2. Elapsed time
3. File number
4. Folder number
5. Protect icon
6. Video mode
7. Playback mode
8. Sound off icon (When the S button is pressed
during video playback)
9. Total recorded time
EN-9
GETTING STARTED
Attaching the Camera Strap
Attach the camera strap as shown in the illustration.
Inserting and Removing the Battery
We highly recommend using specified rechargeable lithium-ion battery (3.7V) to fully
demonstrate this camera’s function. Charge the battery before using the camera.
Make sure that the power of the camera is off before inserting or removing the battery.
Inserting the Battery
1. Open the battery / SD memory card cover.
2. Insert the battery in the correct orientation
shown.
Tilt the battery lock lever in the direction
of the arrow and orient the battery so that
its label is facing to the rear side of the
camera, and then insert the battery.
3. Close the battery / SD memory card cover.
Removing the Battery
Open the battery / SD memory card cover and then
release the battery lock lever. When the battery has
come out a little, slowly pull it out the rest of the way.
EN-10
Charging the Battery
You need to use the docking station and AC power adapter to charge the battery.
Make sure that the power of the camera is off and then insert the battery before
starting.
1. Position the camera on the docking station.
2. Insert one end of the AC power adapter into
the DC IN 5V terminal of the docking station.
3. Insert the other end of the AC power adapter
into a wall outlet.
J The docking station LED lights red while
the battery is charging and turns into
green when the battery is fully charged.
J It is recommended to fully discharge or
exhaust the battery before being charged.
J Charging time varies according to the
ambient temperature and the status of battery.
J This camera must be used with specified battery, docking station and AC power
adapter for battery charging. Damage caused by the use of an incorrect adapter
is not covered under the warranty.
J The battery may feel warm after it has been charged or immediately after being
used. This is normal and not a malfunction.
J When using the camera in cold areas, keep the camera and battery warm by
holding them inside your outer cloth.
J We recommend the battery should be charged 8 hours as first time use.
USB
EN-11
Inserting and Removing the SD Memory Card (Optional
Accessory)
The digital camera comes with 32 MB of internal memory (approx. 26 MB for image
storage), allowing you to store captured still images or video clips in the digital camera.
However, you can also expand the memory capacity by using an SD memory card so
that you can store more files.
Inserting the SD memory card
1. Open the battery/SD memory card cover.
2. Insert the SD memory card in the correct
orientation shown.
J Hold the SD memory card with its front
side of the SD memory card (printed arrow)
facing the rear side of the camera, and
then insert the card as far as it can go.
3. Close the battery/SD memory card cover.
Removing the SD memory card
Open the battery/SD memory card cover, press lightly on the edge of the SD memory
card and it will eject.
J To prevent valuable data from being
accidentally erased from an SD memory card
you can slide the write-protected tab (on
the side of the SD memory card) to “LOCK”.
J To save, edit or erase data on an SD
memory card, you must unlock the card.
J Be sure to format an SD memory card with this digital camera before using it.
EN-12
Setting the Date and Time
SET:Adj.
Capture
20 : 00
2006 / 01 / 01
Date/Time
SET:Enter
The date/time needs to be set if/when:
Camera is turned on for the first time.
Camera is turned on after leaving the camera without the battery for an extended
period of time.
When the date and time information is not displayed on the LCD monitor, follow these
steps to set the correct date and time.
1. Slide the mode switch to [ ] or [ ].
2. Press the MENU button and select [Setup] menu
with the Xbutton.
3. Select [Date/Time] with the S / T buttons and
press the SET button.
The Date/Time setting screen will be displayed.
4. Select the item’s field with the W / X buttons and
adjust the value for the date and time with the S
/ T buttons.
The date and time is set in the order year-
month-day-hour-minute.
The time is displayed in 24-hours format.
5. After confirming all settings are correct, press the
SET button.
EN-13
Choosing the Language
Specify in which language menus and messages are to be displayed on the LCD
monitor.
1. Slide the mode switch to [ ] or [ ] or [ ].
2. Press the MENU button and select [Setup] menu
with the X button.
3. Select [Language] with the S / T buttons and
press the SET button.
The Language setting screen will be displayed.
4. Select the displayed language with the S / T
buttons and press the SET button.
The setting will be stored.
[ ] / [ ] Mode
Play
SET:Adj.
EN-14
MENU:Exit
[ ] Mode
SET:Adj.
Formatting the SD Memory Card or Internal Memory
This utility formats the internal memory (or memory card) and erases all stored images
and data.
1. Slide the mode switch to [ ].
2. Press the MENU button and select [Setup] menu
with X button.
3. Select [Format] with the S / T buttons, then press
the SET button.
4. Select [Execute] with the S / T buttons, and
press the SET button.
To cancel formatting, select [Cancel] and press
the SET button.
FORMAT CARD?
SET:Adj.
SET:Enter
J To format the internal memory, do not insert an SD memory card into the
camera. Otherwise, you will format the SD memory card.
J Formatting the SD memory card also erases the protected images. All data
other than images are also erased. Before formatting the card, make sure
that all the images are unnecessary.
J Formatting is an irreversible action and data cannot be recovered at a later time.
J An SD memory card having any problem cannot be properly formatted.
EN-15
Setting Image Resolution and Quality
Capture
SET:Adj.MENU:Exit
Resolution and quality settings determine the pixel size (dimension), image file size,
and compression ratio for your images. These settings affect the number of images
that can be stored. As you get to know the camera, it is recommended that you try
each quality and resolution setting to get an appreciation for the effects that these
settings will have on your images.
Higher resolution and higher quality images offer the best photographic results but
produce large file sizes. Therefore, few images will take up a lot of memory space.
High resolution and quality settings are recommended for printed output and situations
requiring the finest detail. Lower resolution/quality images take up less memory space
and may be quite suitable for sharing images via e-mail, in a report, or on a web page.
To change image resolution or image quality, perform these steps below:
1. Slide the mode switch to [ ] or [ ].
2. Press the MENU button.
J [Capture] menu is displayed.
3. Select [Size] with the S / T buttons, and
press the SET button.
4. Select the desired setting with the S / T
buttons, and press the SET button.
5. Select [Quality] with the S / T buttons, and
press the SET button.
6. Select the desired setting with the S / T
buttons, and press the SET button.
7. To exit from the menu, press the MENU
button.
Capture
SET:Adj.MENU:Exit
[ ] Mode
[ ] Mode
EN-16
PHOTOGRAPHY MODE
[ ] Capture Mode
Your camera is equipped with a 2.5" full color LTPS LCD monitor to help you compose
images, playback recorded images/video clips or adjust menu settings.
1. Press the POWER button to turn the power
on.
2. Slide the mode switch to [ ].
3. Compose your image in the LCD monitor.
4. Press the shutter button.
J Pressing the shutter button down halfway
automatically focuses and adjusts the
exposure, and pressing the shutter
button down fully captures the images.
J The focus area frame turns blue when the
camera is in focus and the exposure is
calculated.
J When the focus or exposure is not suitable,
the frame of the focus area turns yellow.
J If the photographic preview is set to “On”,
the captured image will be displayed while
the image is being recorded onto the SD
memory card.
1
Press down halfway
2
Press down fully
EN-17
Loading...
