Acer BT500 User Manual

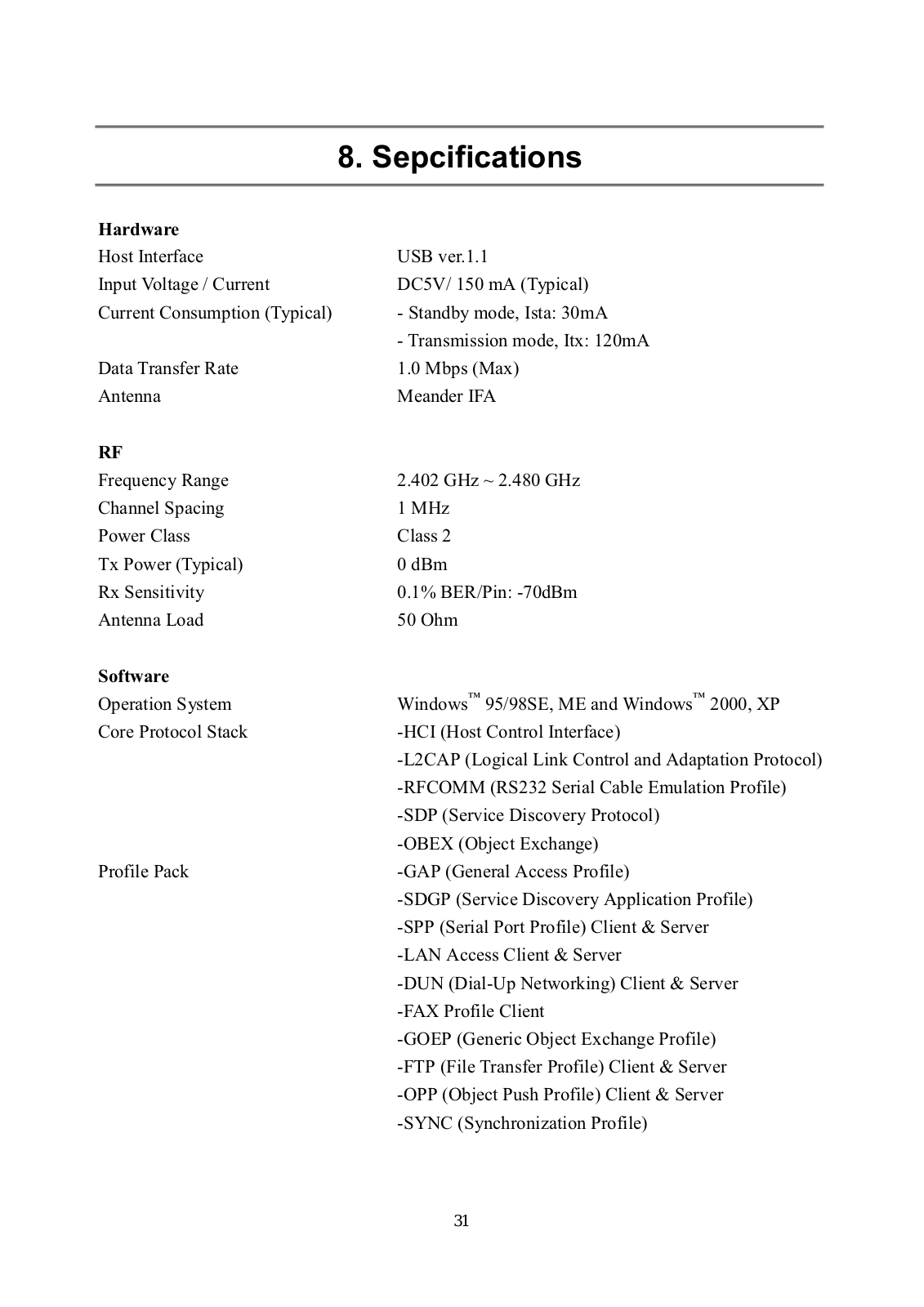

Specifications and Main Features

  • Bluetooth version: 1.1
  • Data Speed: Up to 1 Mbps
  • Wireless Range: Up to 10 meters
  • Frequency Range: 2.402 GHz ~ 2.480 GHz
  • Channel Spacing: 1 MHz
  • Power Class: Class 2
  • Transmission Power: 0 dBm
  • Receiver Sensitivity: 0.1% BER at -70 dBm
  • Antenna: Meander IFA
  • Current Consumption:
  • Standby mode: 30 mA
  • Transmission mode: 120 mA
  • USB Version: 1.1
  • Supported Operating Systems: Windows 95/98SE, ME, 2000, and XP
  • Protocol Stack:
  • HCI (Host Control Interface)
  • L2CAP (Logical Link Control and Adaptation Protocol)
  • RFCOMM (RS232 Serial Cable Emulation Profile)
  • SDP (Service Discovery Protocol)
  • OBEX (Object Exchange)
  • GAP (General Access Profile)
  • SDGP (Service Discovery Application Profile)
  • SPP (Serial Port Profile) Client & Server
  • LAN Access Client & Server
  • DUN (Dial-Up Networking) Client & Server
  • FAX Profile Client
  • GOEP (Generic Object Exchange Profile)
  • FTP (File Transfer Profile) Client & Server
  • OPP (Object Push Profile) Client & Server
  • SYNC (Synchronization Profile)

Frequently Asked Questions

  • Q: What is the maximum data transfer rate of the Bluetooth USB Adapter?

A: The maximum data transfer rate is up to 1 Mbps.

  • Q: I am using a Bluetooth USB Adapter wirelessly, how far can I go?

A: With the Bluetooth USB Adapter, you can go up to 10 metres wirelessly.

  • Q: Is it possible to connect Bluetooth USB Adapter to operating systems other than those which I have already mentioned?

A: The OS has to be Windows 95/98SE, ME, 2000 and XP.

  • Q: This is the specification of my Android tablet, and I would like to know which Bluetooth Class 2 Class do you have on this adapter?

A: Class 2 is supported.

  • Q: With a Bluetooth USB Adapter, what kinds of services will I be able to use?

A: You can use Dial-up networking, File transfer, LAN Access, and many more.

  • Q: How much energy does the device spend when in standby mode?

A: The typical current consumption in standby mode is 30 mA.

  • Q: Can the Bluetooth USB Adapter be used with devices that do not meet the specifications of the Bluetooth 1.1 version?

A: Since the adapter conforms to bluetooth 1.1 specs, it is optimally used for such devices only. Older or other specs usage is only for testing and may not be ideal.
