Acer AO533 User Manual [en, ru, de, es, fr, it, cs, pl]

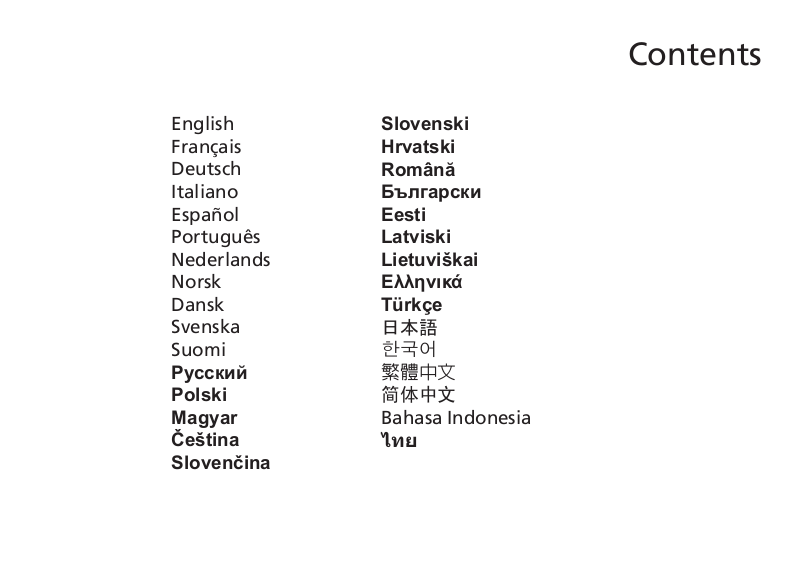

Contents

English
Français
Deutsch
Italiano
Español
Português
Nederlands
Norsk
Dansk
Svenska
Suomi

Русский

Polski
Magyar

Čeština
Slovenčina

Slovenski
Hrvatski
Română
Български
Eesti
Latviski
Lietuviškai
Ελληνικά
Türkçe

日本語

한국어

繁體中文

简体中文

Bahasa Indonesia

ไทย

Series

Quick Guide

Series

© 2010 All Rights Reserved

Aspire One Series Quick Guide
Original Issue: 04/2010

Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________

Aspire One Series Notebook PC

Quick Guide

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type: Aspire one series; AO533 series

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Series

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article3.1(a)HealthandSafety

-. EN60950-1

-. EN62311

• Article3.1(b)EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Quick Guide

• Article3.2SpectrumUsages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMCDirective2004/108/ECasattestedbyconformitywiththefollowingharmonizedstandards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

LowVoltageDirective2006/95/ECasattestedbyconformitywiththefollowingharmonizedstandard:

-. EN60950-1

RoHSDirective2002/95/EContheRestrictionoftheUseofcertainHazardousSubstancesinElectricalandElectronicEquipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead

0.1%

Polybrominated Biphenyls (PBB’s)

0.1%

Mercury

0.1%

Polybrominated Diphenyl Ethers (PBDE’s)

0.1%

Hexavalent Chromium

0.1%

Cadmium

0.01%

Directive2009/125/ECwithregardtoestablishingaframeworkforthesettingofecodesignrequirementsforenergy-related
product.

Easy Lai /Manager
Regulation Center, Acer Inc.

Apr. 23, 2010

Date

Year to begin affixing CE marking 2010.

Series

Just for starters

1 2 3

4 5 6

3-2

3-1

2-1

2-2

Illustrations are for reference only. Actual product specifications may vary.

Ensure that the battery is
properly locked in place, as
illustrated in 2-2.

1

Quick Guide

Firstthingsfirst

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Yourguides

To help you use your Acer notebook, we have designed a set of guides*:

First off, the Quick Guide helps you get started with setting up your computer.

For more on how your computer can help you to be more productive, please refer to the AcerSystem User Guide. This guide
contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In
addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem
User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the
installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

*IMPORTANTNOTICE:Pleasenotethattheguidesmentionedherein,whetherinprintedorelectronicform,areforyour
referenceonlyandexceptasprovidedinthespecificwarrantyinformationcontainedintheAcerSystemUserGuide
nothingcontainedintheseguidesshallconstitutearepresentationorwarrantybyAcerwithregardtotheproductyou
purchased.Acerexpresslydisclaimsanyliabilityforerrorscontainedintheguides.

2

Series

Networkconfiguration

This guide will help you configure your LAN and wireless network settings to enable you to connect to the Internet.

SettingupLANconnection

Simply plug in the LAN cable to the Ethernet (RJ-45) port. Please refer to "Rightview"onpage6 for the location of the Ethernet
port.

Settingupawirelessconnection

1. Press <Fn> + <F3> to access the communication manager. Here you can turn on the Wi-Fi connection by clicking on the red
button next to Wi-Fi.

Note: 3G and Bluetooth are also accessible through the communication manager. Communication devices vary by model.

2. Click the icon on your system tray and choose the wireless access point you want to connect to.

Insertinga3GSIMcard(onlyforcertainmodels)

Remove the battery and carefully insert a 3G SIM card into the 3G SIM card slot. Please refer to "Rear&baseviews"onpage6
for the location of the 3G SIM card slot.

3

Quick Guide

Your Aspire One tour

After setting up your computer as illustrated in the Just
for starters section, let us show you around your new Acer
notebook.

Topview

# Icon Item Description

1

Acer Crystal Eye
webcam

Web camera for video communication
(configuration may vary by model).

2

Microphone Internal microphone for sound recording.

3

Display screen Also called Liquid-Crystal Display (LCD),

displays computer output (configuration
may vary by model).

4

Power button Turns the computer on and off.

5

Keyboard For entering data into your computer.

6

Power indicator1Indicates the computer's power status.

Battery indicator1Indicates the computer's battery status.

1. Charging: The light shows amber when
the battery is charging.

2. Fully charged: The light shows blue when

in AC mode.
HDD indicator Indicates when the hard disk drive is active.
Communication

indicator

1

Indicates the status of 3G/Wireless LAN

communication.

Blue light on Orange light on Not lit
3G on / WiFi on

3G on / WiFi off

3G off / WiFi on 3G off / WiFi off

7

Click buttons (left
and right)

The left and right buttons function like the

left and right mouse buttons.

8

Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

9

Palmrest Comfortable support area for your hands

when you use the computer.

1. The front panel indicators are visible even when the computer cover is closed.

4

Series

Closedfrontview

# Icon Item Description

1

Status indicators Light-Emitting Diodes (LED) that light up to

show the status of the computer's functions
and components.

Leftview

2

DC-in jack Connects to an AC adapter.

3

External display
(VGA) port

Connects to a display device (e.g., external
monitor, LCD projector).

4

USB 2.0 port Connects to USB 2.0 devices (e.g., USB

mouse, USB camera).

5

Quick Guide

Rightview

# Icon Item Description

5

Multi-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard

(MMC), Memory Stick (MS), Memory Stick
PRO (MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card. Only
one card can operate at any given time.

6

Microphone-in jack Accepts inputs from external microphones.
Headphone/speaker/

line-out jack

Connects to audio line-out devices
(e.g., speakers, headphones).

7

USB 2.0 port Connects to USB 2.0 devices (e.g., USB

mouse).

8

Kensington lock slot Connects to a Kensington-compatible

computer security lock.

9

Ethernet (RJ-45) port Connects to an Ethernet 10/100-based

network.

Rear&baseviews

10

Battery bay Houses the computer's battery pack.

11

3G SIM card slot Accepts a 3G SIM card for 3G connectivity.

(only for certain models)

12

Battery release latch Releases the battery for removal.

13

Battery lock Locks the battery in position.

14

Ventilation slots and
cooling fan

Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the opening
of the fan.

15

Speaker Emits audio from your computer.

6

Series

Environment

Temperature:

Operating: 5 °C to 35 °C
Non-operating: -20 °C to 65 °C

Humidity(non-condensing):

Operating: 20% to 80%
Non-operating: 20% to 80%

7

Gamme

Guide rapide

Gamme

Guide rapide

© 2010 Tous droits réservés

Guide rapide de la gamme Aspire One
Première publication : 04/2010

Ordinateur notebook de la gamme Aspire One

Numéro de modèle : ___________________________
Numéro de série : ______________________________
Date d'achat : _________________________________
Lieu d'achat : __________________________________

Guide rapide

Guide rapide

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

Gamme

Guide rapide

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Guide rapide

Guide rapide

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

Gamme

Guide rapide

Pour partir du bon pied

1 2 3

2-2

3-2

2-1

Assurez que la batterie est
correctement verrouillée en
place, comme illustré à 2-2.

4 5 6

Les illustrations sont mises uniquement à titre de référence. Les caractéristiques réelles des produits peuvent changer.

3-1

1

Guide rapide

Guide rapide

Pour commencer

Nous désirons vous remercier d’avoir fait d’un notebook Acer votre choix pour répondre à vos besoins informatiques mobiles.

Vos guides

Pour vous aider à utiliser votre notebook Acer, nous avons conçu plusieurs guides* :

Tout d’abord, le Guide rapide vous aide à configurer votre ordinateur.

Pour plus d’information sur l’aide que peut vous apporter votre ordinateur pour être plus productif, veuillez vous reporter
au Guide utilisateur AcerSystem. Ce guide contient des informations détaillées sur des sujets tels que les utilitaires systèmes,
la récupération des données, les options d’extension et le dépannage. De plus, il contient des informations de garantie et les
réglementations générales et les avis de sécurité pour votre notebook. Il est disponible au format PDF (Portable Document
Format) et est préchargé sur votre notebook.

Remarque : L'affichage du fichier nécessite Adobe Reader. Si Adobe Reader n’est pas installé dans votre ordinateur, le clic
sur Guide utilisateur AcerSystem va exécuter le programme d’installation d’Adobe Reader. Suivez les instructions à l’écran
pour terminer l’installation. Pour des instructions sur l’utilisation de Adobe Reader, accédez au menu Aide et Support.

* AVIS IMPORTANT : Veuillez noter que les guides mentionnés ici, que ce soit imprimés ou au format électronique, sont
pour votre référence seulement et à l’exception de ce qui est indiqué dans les informations spécifiques à la garantie
contenue dans AcerSystem User Guide, rien de ce qui est contenu dans ces guides ne constitue une déclaration ou
garantie par Acer en ce qui concerne le produit que vous avez acheté. Acer rejette expressément toute responsabilité
pour les erreurs contenues dans les guides.

2

Gamme

Guide rapide

Configuration réseau

Ce guide vous aide à configurer les paramètres de votre réseau local et de votre réseau sans fil pour pouvoir vous connecter à
Internet.

Configurer la connexion réseau

Branchez simplement le câble réseau dans le port Ethernet RJ-45. Veuillez vous reporter « Vue droite » à la page 6 pour
l’emplacement du port Ethernet.

Configurer une connexion sans fil

1. Appuyez <Fn> + <F3> pour accéder au gestionnaire de communication Ici vous pouvez activer la connexion Wi-Fi en cliquant
sur le bouton rouge à côté de Wi-Fi.

Remarque : 3G et Bluetooth sont également accessibles via le gestionnaire de communication. Les périphériques de

communication varient en fonction du modèle.

2. Cliquez sur l’icône

sur votre barre des tâches et choisissez le point d’accès sans fil auquel vous souhaitez vous connecter.

Insérer une carte SIM 3G (seulement pour certains modèles)

Retirez la batterie et insérez avec soin une carte SIM 3G dans le connecteur de carte SIM 3G. Veuillez consulter « Vue arrière &
Vue de la base » à la page 6 pour l’emplacement du connecteur de carte SIM 3G.

3

Guide rapide

Guide rapide

Visite guidée de votre

Aspire One

Après avoir configuré votre ordinateur comme illustré
la section Pour partir du bon pied, nous allons vous
faire explorer votre nouveau notebook Acer.

Vue supérieure

# Icône Élément Description
1

2
3

4

5
6

7

8

9

1. Les indicateurs du panneau avant sont visibles même lorsque l’écran LCD est fermé.

Webcam
Acer Crystal Eye

Microphone Microphone interne pour l’enregistrement sonore.
Écran d’affichage Également appelé écran LCD (Liquid Crystal Display),

Bouton
Marche/Arrêt

Clavier Pour l’entrée des informations dans votre ordinateur.
Indicateur

d’alimentation
Indicateur de

1

batterie

Indicateur du
disque dur

Indicateur de
communication

Boutons
(gauche et droit)

Touchpad Périphérique de pointage sensible au touché qui

Repose mains Zone de support confortable pour vos mains lorsque

Webcam pour communication video (la configuration
peut varier en fonction des modèle).

affiche les données de l’ordinateur (la configuration
peut varier en fonction des modèle).

Met l’ordinateur sous tension et hors tension.

Indique l’état d’alimentation de l’ordinateur.

1

Indique l’état de la pile de l’ordinateur.

1. Charge : La lumière est orange lorsque la pile se
recharge.

2. Pleine charge : La diode est bleue en mode secteur.

Indique l’activité du disque dur.

Indique l’état de la communication réseau sans fil/3G.

Lumière bleue

1

allumée
3G activé /

WiFi activé
3G activé /
WiFi désactivé

Le bouton gauche et le bouton droit fonctionnent
comme le bouton gauche et le bouton droit d’une
souris.

fonctionne comme une souris.

vous utilisez l’ordinateur.

Lumière orange
allumée

3G désactivé /
WiFi activé

Pas allumé

3G désactivé /
WiFi désactivé

4

Gamme

Guide rapide

Vue frontale fermée

# Icône Élément Description
1

Indicateurs d’état Diodes électroluminescentes (DEL) qui

s’allume pour indiquer l’état des fonctions
et composants de l’ordinateur.

Vue gauche

2
3

4

Prise d’alimentation Se connecte à l’adaptateur secteur.
Port d’affichage

(VGA) externe

Port USB 2.0 Se connecte à des périphériques USB 2.0

Se connecte à un périphérique d’affichage
(p.ex. un moniteur externe, un projecteur
LCD).

(p.ex. une souris USB, une caméra USB).

5

Guide rapide

Vue droite

# Icône Élément Description
5

6

7

8

9

Lecteur de cartes
multiples en un

Prise d’entrée
microphone

Prise de sortie audio/
haut-parleurs/casque

Port USB 2.0 Se connecte à des périphériques USB 2.0

Fente pour cadenas
Kensington

Port Ethernet RJ-45 Se connecte à un réseau Ethernet 10/100 Base.

Accepte une carte mémoire Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick (MS),
Memory Stick Pro (MS PRO), et xD-Picture (xD).
Remarque : Poussez pour retirer/installer la
carte. Seule une carte peut fonctionner à un
moment donné.

Accepte les entrées de microphones externes.

Se connecte à des périphériques audio en sortie
(p.ex. haut-parleurs ou un casque stéréo).

(p.ex. une souris USB).
Se connecte à un cadenas de sécurité pour

ordinateur Kensington.

Vue arrière & Vue de la base

10

11

12

13
14

15

Baie de la batterie Contient la batterie de l’ordinateur.

Connecteur de carte
SIM 3G

Loquet de libération
de la batterie

Verrou de la batterie Verrouille la batterie en position.

Fentes de ventilation
et ventilateur de
refroidissement

Haut-parleur Émet le son de votre ordinateur.

Accepte une carte SIM 3G pour la connectivité
3G (seulement pour certains modèles).

Libère la batterie pour le retrait.

Permettent à l’ordinateur de rester froid, même
après une longue utilisation.
Remarque : Ne couvrez pas et ne bloquez pas
l’ouverture du ventilateur.

Guide rapide

6

Gamme

Environnement

Température :

En marche : 5°C à 35°C
À l’arrêt : -20°C à 65°C

Humidité (sans condensation) :

En marche : 20% à 80%
À l’arrêt : 20% à 80%

7

Kurzanleitung

Serie

Serie

Kurzanleitung

© 2010 Alle Rechte vorbehalten

Kurzanleitung für Aspire One Serie
Originalausgabe: 04/2010

Notebook-PC der Aspire One Serie

Modellnummer: _______________________________
Seriennummer: ________________________________
Kaufdatum: ___________________________________
Kaufort: ______________________________________

Kurzanleitung

Kurzanleitung

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

Serie

Kurzanleitung

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Kurzanleitung

Kurzanleitung

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

Serie

Kurzanleitung

Für den Anfang

1 2 3

2-2

3-2

2-1

Stellen Sie sicher, dass der Akku
wie in Abbildung 2-2 gezeigt an
seinem Platz festsitzt.

4 5 6

Abbildung nur Referenz und kann zum Produkt variieren. Das tatsächliche Produkt kann sich von den Abbildungen
unterscheiden.

1

3-1

Kurzanleitung

Kurzanleitung

Das Wichtigste zuerst

Wir möchten uns bei Ihnen dafür bedanken, dass Sie sich in Bezug auf mobilen Computerbedarf für ein Acer-Notebook
entschieden haben.

Hilfen

Als Hilfe für Sie bei der Verwendung des Acer-Notebooks haben wir einen Satz von Richtlinien aufgestellt*:

Zuallererst hilft Ihnen die Kurzanleitung dabei, Ihren Computer das erste Mal in Betrieb zu nehmen.

Für weitere Informationen dazu, wie Ihnen Ihr Computer helfen kann, noch produktiver zu arbeiten, lesen Sie bitte
die AcerSystem Benutzeranleitung. Dieses Benutzerhandbuch enthält detaillierte Informationen zu Themen wie z. B.
Systemprogramme, Datenwiederherstellung, Erweiterungsoptionen und Problembehebung. Darüber hinaus enthält es
Informationen zur Garantie und allgemeine Bestimmungen und Sicherheitshinweise zu Ihrem Notebook. Das Benutzerhandbuch
steht in PDF (Portable Document Format) zur Verfügung und ist bereits in Ihrem Notebook installiert.

Hinweis: Zum Betrachten der Datei muß Adobe Reader installiert sein. Wenn Adobe Reader nicht auf Ihrem Computer
installiert ist, wird durch Klicken auf AcerSystem Benutzerhandbuch zuerst das Setup-Programm von Adobe Reader
ausgeführt. Folgen Sie zur Durchführung der Installation den Anweisungen auf dem Bildschirm. Hinweise über die
Verwendung von Adobe Reader finden Sie im Menü Hilfe und Support.

* WICHTIGER HINWEIS: Denken Sie daran, dass die beschriebenen Anleitungen, ob in ausgedruckter oder
elektronischer Form, nur zur Erläuterung dienen. Mit Ausnahme der Informationen zur Garantie, die in der AcerSystem
Benutzeranleitung enthalten ist, gibt Acer mit diesen Anleitungen keine Versprechungen oder Garantien hinsichtlich
des von Ihnen gekauften Produktes. Acer übernimmt ausdrücklich keine Haftung für Fehler, die in diesen Anleitungen
enthalten sein können.

2

Serie

Kurzanleitung

Netzkonfiguration

Diese Anleitung hilft Ihnen bei der Konfiguration Ihrer LAN- und Drahtlos-Netzeinstellungen, damit Sie eine Verbindung mit
dem Internet herstellen können.

Herstellung einer LAN-Verbindung

Schließen Sie einfach das LAN-Kabel an den Ethernet (RJ-45)-Anschluss an. Siehe „Rechte Seite“ auf Seite 6, um den Ort der
Ethernet-Schnittstelle zu erfahren.

Einrichten einer Drahtlosverbindung

1. Drücken Sie auf <Fn> + <F3>, um auf den Kommunikationsmanager zuzugreifen Dort können Sie anschließend die WLAN­Verbindung durch Klicken auf die rote Schaltfläche neben WLAN aktivieren.

Hinweis: Über den Kommunikationsmanager gelangen Sie auch nach 3G und Bluetooth. Kommunikationsgeräte können sich

je nach Modell unterscheiden.

2. Klicken Sie auf das Symbol
Verbindung herstellen möchten.

auf der Systemleiste und wählen Sie den Drahtlos-Zugriffspunkt aus, zu dem Sie eine

Einsetzen einer 3G-SIM-Karte (Nur für bestimmte Modelle)

Entfernen Sie den Akku und setzen Sie eine 3G-SIM-Karte vorsichtig in den 3G-SIM-Karteneinschub hinein. Unter „Rückseite &
Unterseite“ auf Seite 6 erfahren Sie den Ort des 3G SIM-Karteneinschubs.

3

Kurzanleitung

Kurzanleitung

Eine Tour durch das
Aspire One

Nachdem Sie Ihren Computer wie im Abschnitt Für den
Anfang gezeigt aufgestellt haben, lassen Sie uns nun
Ihr neues Acer-Notebook vorstellen.

Ansicht von oben

# Symbol Element Beschreibung
1

2
3

4
5
6

7

8

9

1. Die Statusanzeigen auf der Vorderseite sind selbst dann zu sehen, wenn die
Computerklappe geschlossen ist.

Acer Crystal Eye
webcam

Mikrofon Internes Mikrofon für die Tonaufnahme.
Anzeigebildschirm Wird auch als LCD (Liquid-Crystal-Display)

Ein/Aus-Taste Schaltet den Computer ein und aus.
Tastatur Dient der Eingabe von Daten in den Computer.
Stromanzeige

Akkuanzeige

HDD-Anzeige Leuchtet auf, wenn die Festplatte aktiv ist.
Anzeige für

Kommunikation

Anklicktasten
(links und rechts)

Touchpad Berührungssensibles Zeigegerät, das die

Handablage Bequemer Ablagebereich für Ihre Hände

Web-Kamera für Videokommunikation
(konfiguration kann sich von Modell zu Modell
unterscheiden).

bezeichnet. Zeigt die Ausgabe des Computers
an (konfiguration kann sich von Modell zu
Modell unterscheiden).

1

Zeigt den Ein/Aus-Status des Computers an.

1

Zeigt den Akkustatus des Computers an.

1. Aufladung: Die Leuchte erscheint gelb, wenn
der Akku aufgeladen wird.

2. Voll aufgeladen: Die Leuchte erscheint blau,
wenn Netzstrom verwendet wird.

Leuchtet auf, um den Status der WLAN-

1

Kommunikation anzuzeigen.

Blaue Leuchte
ein

3G ein/WiFi ein
3G ein/WiFi aus

Die linken und rechten Tasten funktionieren
wie die linken und rechten Tasten einer Maus.

gleichen Funktionen besitzt wie eine Computer­Maus.

während der Bedienung des Computers.

Orangefarbene
Leuchte ein

3G aus/WiFi ein 3G aus/WiFi aus

Leuchtet nicht

4

Serie

Kurzanleitung

Geschlossene Vorderseite

# Symbol Element Beschreibung
1

Statusanzeigen Diese LEDs (Light-Emitting Diodes)

leuchten auf, um Ihnen den Status der
Funktionen und Komponenten des
Computers anzuzeigen.

Linke Seite

2
3

4

DC-Eingangsbuchse Hier schließen Sie das Netzteil an.
Anschluss für

externe Anzeige
(VGA)

USB 2.0-Anschluss Hier schließen Sie USB 2.0-Geräte

Dient dem Anschluss eines
Anzeigegerätes (z. B. einem externen
Monitor oder LCD-Projektor).

(z. B. USB-Maus oder USB-Kamera) an.

5

Kurzanleitung

Rechte Seite

# Symbol Element Beschreibung
5

6

7

8

9

Mehrere-in-1­Kartenleser

Mikrofon-Eingangs­Buchse

Lautsprecher/
Kopfhörer/Ausgabe­Buchse

USB 2.0-Anschluss Hier schließen Sie USB 2.0-Geräte (z. B. USB-

Steckplatz für
Kensington-Schloss

Ethernet (RJ-45)­Anschluss

Eignet sich für Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick (MS),
Memory Stick PRO (MS PRO) und xD-Picture
Card (xD).
Hinweis: Drücken Sie hier, um die Karte
zu entfernen/einzusetzen. Es kann nicht
mehr als eine Karte gleichzeitig verwendet
werden.

Eignet sich für Eingaben aus externen
Mikrofonen.

Zum Anschluss von Audioausgabe-Geräten
(z.B. Lautsprechern, Kopfhörern).

Maus) an.
Hier können Sie ein Kensington-kompatibles

Sicherheitsschloss für den Computer
anbringen.

Zum Anschluss eines Ethernet
10/100-basierten Netzwerks.

Rückseite & Unterseite

10

11

12

13
14

15

Akkufach Enthält den Akku des Computers.

3G-SIM­Karteneinschub

Verriegelung des
Akkus

Akkuverschluss Sichert den Akku an seiner Position.

Belüftungsschlitze
und Ventilator

Lautsprecher Gibt Ton vom Computer aus.

Eignet sich für eine 3G-SIM-Karte, um
3G-Konnektivität zu ermöglichen (Nur für
bestimmte Modelle).

Entsperrt den Akku für die Herausnahme.

Schützt den Computer vor Überhitzung,
selbst bei längerem Einsatz.
Hinweis: Verdecken oder schließen Sie nicht
die Öffnungen des Ventilators.

Kurzanleitung

6

Serie

Umgebung

Temperatur:

Betrieb: 5°C bis 35°C
Nichtbetrieb: -20°C bis 65°C

Luftfeuchtigkeit (nicht kondensierend):

Betrieb: 20% bis 80%
Nichtbetrieb: 20% bis 80%

7

Serie

Guida rapida

Serie

Guida rapida

© 2010 Tutti i diritti riservati

Guida rapida per Serie Aspire One
Prima edizione: 04/2010

PC Notebook Serie Aspire One

Numero di modello: ___________________________
Numero di serie: _______________________________
Data di acquisto: ______________________________
Luogo d'acquisto: _____________________________

Guida rapida

Guida rapida

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

Serie

Guida rapida

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Guida rapida

Guida rapida

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

Serie

Guida rapida

Per i principianti

1 2 3

2-2

2-1

Verificare che la batteria sia
bloccata in posizione, come
illustrato in 2-2.

4 5 6

Le illustrazioni sono di solo riferimento. Le specifiche dei prodotti possono differire.

3-2

3-1

1

Guida rapida

Guida rapida

Avvertenze preliminari

Grazie per aver scelto il notebook Acer, la scelta ideale per poter lavorare in piena libertà anche in movimento.

Le guide disponibili

Sono state realizzate delle guide per assistere l’utente nell’uso del notebook Acer*:

Innanzitutto, la Guida rapida aiuta a semplificare la configurazione del computer.

Per altre nozioni su come il vostro computer può aiutarvi a diventare ancora più produttivi, consultate la AcerSystem User
Guide. Questa guida contiene informazioni dettagliate su argomenti come utilità del sistema, ripristino dei dati, opzioni di
espansione e ricerca guasti. Contiene inoltre informazioni sulla garanzia, le norme e gli standard di riferimento e le avvertenze
per la sicurezza del vostro notebook. È disponibile nel formato PDF e viene fornita già caricata nel notebook.

Nota: Per visualizzare il file, è necessario che sul computer sia installato Adobe Reader. Se Adobe Reader non è installato
sul computer, fare clic su AcerSystem User Guide per eseguire il programma di installazione di Adobe Reader. Per
completare l'installazione, attenersi alle istruzioni visualizzate sullo schermo. Per istruzioni sull'uso di Adobe Reader,
consultare il menu Guida in linea e supporto tecnico.

* AVVISO IMPORTANTE: Notare che le guide menzionate in precedenza, sia informa stampata che elettronica, sono
solo per riferimento e a eccezione delle informazioni specifiche sulla garanzie contenute nella AcerSystem User Guide,
nulla di ciò che è contenuto nelle presenti guide costituisce una rappresentazione o una garanzia da parte di Acer
con riferimento al prodotto acquistato. Acer declina espressamente qualsiasi responsabilità per errori contenuti nelle
presenti guide.

2

Serie

Guida rapida

Configurazione rete

Questa guida aiuta ad eseguire la configurazione delle impostazioni di rete LAN e wireless per poter eseguire l’accesso a
Internet.

Configurazione della connessione LAN

Semplicemente collegare il cavo LAN alla porta Ethernet (RJ-45). Fare riferimento a "Vista da destra" a pagina 6 per la posizione
della porta Ethernet.

Configurare una connessione wireless

1. Premere<Fn> + <F3> per accedere a Manager Comm Da qui è possibile attivare la connessione Wi-Fi facendo clic sul pulsante
rosso accanto a Wi-Fi.

Nota: È possibile effettuare l’accesso a 3G e a Bluetooth anche da Manager Comm. I dispositivi di comunicazione possono

variare da un modello all’altro.

2. Fare clic sull’icona

nella barra delle applicazioni e scegliere l’access point wireless a cui connettersi.

Inserire una carta 3G SIM (solo per alcuni modelli)

Rimuovere la batteria e inserire con attenzione la carta 3G SIM nello slot carta 3G SIM. Per la posizione dello slot carta 3G SIM,
fare riferimento a "Vista posteriore & base" a pagina 6.

3

Guida rapida

Guida rapida

Presentazione di Aspire One

Dopo aver configurato il computer come illustrato nella
sezione Per i principianti, far riferimento alla presente
documentazione per la presentazione del nuovo
notebook Acer.

Vista dall’alto

# Icona Elemento Descrizione
1

2
3

4
5
6

7

8

9

1. Gli indicatori del pannello frontale sono visibili anche quando il coperchio del
computer è chiuso.

Webcam
Acer Crystal Eye

Microfono Microfono interno per la registrazione di audio.
Display Grande display a cristalli liquidi (Liquid-

Tasto di accensione Accende/spegne il computer.
Tastiera Per l’immissione di dati sul computer.
Indicatore di

alimentazione
Indicatore batteria1Indicano lo stato della batteria del computer.

Indicatore disco
rigido

Indicatore
comunicazione

Tasti clic
(sinistra e destra)

Touchpad Dispositivo di puntamento sensibile al tocco con

Poggiapolsi Comoda area su cui poggiare i polsi durante

4

Webcam per comunicazioni video
(la configurazione può variare in relazione al
modello).

Crystal Display; LCD), per una visualizzazione
confortevole (la configurazione può variare in
relazione al modello).

Indicano lo stato di accensione/alimentazione del

1

computer.

1. In carica: Luce di colore giallo quando la
batteria è in ricarica.

2. Completamente carica: Luce di colore blu
quando è nella modalità AC.

Si accende quando l'hard disk è attivo.

Indica lo stato della trasmissione wireless LAN/3G.

1

Luce blu Luce arancione Spento
3G attivo/

WiFi attivo
3G attivo/
WiFi disattivo

I tasti destra e sinistra hanno le stesse funzioni dei
tasti destra e sinistra del mouse.

funzioni simili a quelle di un comune mouse.

l’utilizzo del computer.

3G disattivo/
WiFi attivo

3G disattivo/
WiFi disattivo

Serie

Guida rapida

Vista frontale in dettaglio

# Icona Elemento Descrizione
1

Indicatori di stato LED (Light-Emitting Diodes) che si

illuminano per mostrare lo stato di
funzioni e componenti del computer.

Vista da sinistra

2
3

4

Jack CC-in Per il collegamento all’adattatore CA.
Porta display esterno

(VGA)

Porta USB 2.0 Effettua il collegamento ai dispositivi USB

Effettua il collegamento a un dispositivo
di visualizzazione (ad es., monitor esterno,
proiettore LCD).

2.0 (ad es., mouse USB, fotocamera USB).

5

Guida rapida

Vista da destra

# Icona Elemento Descrizione
5

6

7

8

9

Lettore di schede
multiplo

Jack ingresso microfono Accetta ingressi proveniente da microfoni

Jack auricolare/
altoparlante/line-out

Porta USB 2.0 Connette a dispositivi USB 2.0 (p.e., mouse

Slot blocco Kensington Per il collegamento al blocco di sicurezza dei

Porta Ethernet (RJ-45) Effettua il collegamento a una rete con

Supporta Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick (MS),
Memory Stick Pro (MS PRO), e xD-Picture
Card (xD).
Nota: Premere per rimuovere/installare la
scheda. è possibile utilizzare una sola scheda
di memoria alla volta.

esterni.
Effettua il collegamento ai dispositivi audio

line-out (ad es., altoparlanti, auricolari).

USB).

computer Kensington-compatibili.

Ethernet 10/100.

Vista posteriore & base

10

11

12

13
14

15

Alloggiamento della
batteria

Slot carta 3G SIM Accetta una carta 3G SIM per connettività 3G

Gancio di rilascio della
batteria

Blocco batteria Blocca la batteria al suo posto.

Aperture per la
ventilazione e ventola
di raffreddamento

Altoparlanti Emette l’audio dal computer.

Contiene il pacco batteria del computer.

(solo per alcuni modelli).
Per togliere la batteria.

Permettono il raffreddamento del computer,
anche dopo un uso prolungato.
Nota: Non coprire e non ostruire l’apertura
della ventola.

Guida rapida

6

Serie

Condizioni operative

Temperatura:

Di esercizio: 5°C e 35°C
Non di esercizio: -20°C e 65°C

Umidità (senza condensa):

Di esercizio: 20% e 80%
Non di esercizio: 20% e 80%

7

Serie

Guía rápida

Serie

Guía rápida

© 2010 Reservados todos los derechos

Guía rápida de la Serie Aspire One
Versión original: 04/2010

Ordenador portátil Serie Aspire One

Número de modelo: ___________________________
Número de serie: ______________________________
Fecha de compra: ______________________________
Lugar de compra: ______________________________

Guía rápida

Guía rápida

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

Serie

Guía rápida

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Guía rápida

Guía rápida

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

Serie

Guía rápida

Sólo para principiantes

1 2 3

2-2

3-2

2-1

Asegúrese de que la batería
queda bien fijada en su sitio, tal y
como se muestra en la figura 2-2.

4 5 6

Las ilustraciones son sólo una referencia. Las especificaciones reales del producto pueden ser diferentes.

3-1

1

Guía rápida

Guía rápida

Primero lo más importante

Le agradecemos que haya elegido el ordenador portátil de Acer para satisfacer sus necesidades de informática móvil.

Sus guías

Para ayudarle a utilizar su ordenador portátil de Acer, hemos diseñado un conjunto de guías*:

En primer lugar, la Guía Rápida le ayuda a empezar a configurar su ordenador.

Si desea más información sobre cómo puede su ordenador ayudarle a ser más productivo, consulte AcerSystem User Guide. Esta
guía contiene información detallada sobre temas como utilidades del sistema, recuperación de datos, opciones de ampliación y
solución de problemas. Además, contiene información sobre garantías y las normativas generales y advertencias de seguridad
para su ordenador portátil. Está disponible en PDF (Formato de Documento Portátil) y viene precargada en su ordenador
portátil.

Nota: Para ver los archivos debe tener Adobe Reader instalado en su ordenador. Si no tiene instalado Adobe Reader en
su ordenador, haga clic en AcerSystem User Guide para ejecutar en primer lugar el programa de instalación de Adobe
Reader. Siga las instrucciones en pantalla para completar la instalación. Para obtener instrucciones sobre cómo utilizar
Adobe Reader, acceda al menú de Soporte y Ayuda.

* AVISO IMPORTANTE: Tenga en cuenta que las guías mencionadas, en forma electrónica o impresa, sirven únicamente
de referencia y salvo que se especifique en la información de garantía específica que se incluye en AcerSystem User
Guide, nada de lo contenido en estas guías constituirá una representación o garantía de Acer en relación con el producto
adquirido. Acer rechaza expresamente cualquier responsabilidad por errores contenidos en las guías.

2

Serie

Guía rápida

Configuración de red

Esta guía le ayudará a configurar los ajustes de red inalámbrica y LAN para que pueda conectarse a Internet.

Configurar una conexión LAN

Basta con conectar el cable LAN al puerto de Ethernet (RJ-45). Consulte "Vista derecha" en la página 6 para la ubicación del
puerto Ethernet.

Configurar una conexión inalámbrica

1. Pulse <Fn> + <F3> para acceder al administrador de comunicación. Aquí puede activar la conexión Wi-Fi haciendo clic en el
botón rojo que hay junto a Wi-Fi.

Nota: También se puede acceder a 3G y Bluetooth a través del administrador de comunicación. Los dispositivos de

comunicación varían según el modelo.

2. Haga clic en el icono

en la bandeja del sistema y seleccione el punto de acceso inalámbrico que desee conectar.

Insertar una tarjeta SIM 3G (sólo en determinados modelos)

Extraiga la batería e inserte con cuidado una tarjeta SIM 3G en la ranura para tarjeta SIM 3G. Consulte "Vista trasera & Vista de
la base" en la página 6 para ver dónde se encuentra la ranura para tarjeta SIM 3G.

3

Guía rápida

Guía rápida

Presentación de su
Aspire One

Después de configurar su ordenador tal y como se
indica en la sección Sólo para principiantes, permítanos
enseñarle su nuevo ordenador portátil de Acer.

Vista superior

# Icono Elemento Descripción
1

2
3

4

5
6

7

8

9

1. Los indicadores del panel frontal son visibles aunque se cierre la tapa del ordenador.

Webcam
Acer Crystal Eye

Micrófono Micrófono interno para la grabación del sonido.

Visualización en
pantalla

Botón de
encendido

Teclado Para introducir datos en su ordenador.
Indicador de

encendido
Indicador de

1

batería

Indicador de
disco duro

Indicador de
comunicación

Botones de clic
(izquierdo y
derecho)

Teclado táctil Dispositivo apuntador táctil que funciona como un ratón

Soporte para las
palmas

Cámara Web para comunicación de vídeo
(la configuración puede variar según el modelo).

También denominada pantalla de cristal líquido (LCD)
es el dispositivo de salida visual del ordenador (la
configuración puede variar según el modelo).

Enciende o apaga el ordenador.

Proporciona información sobre el estado de energía del

1

ordenador.
Proporciona información sobre el estado de la batería.

1. Carga: La luz se vuelve ámbar cuando se carga la
batería.

2. Carga completa: La luz se vuelve azul en modo de CA.

Indica si la unidad de disco duro está activa.

Indica el estado de la comunicación LAN inalámbrica/3G.

1

Luz azul encendida Luz naranja

Función 3G activada /
WiFi activada
Función 3G activada /
WiFi desactivada

Los botones izquierdo y derecho funcionan como los
botones izquierdo y derecho del ratón.

de ordenador.
Área de soporte que permite reposar cómodamente las

palmas de las manos cuando se utiliza el ordenador.

encendida

Función 3G
desactivada /
WiFi activada

Apagado

Función 3G
desactivada /
WiFi desactivada

4

Serie

Guía rápida

Vista frontal cerrada

# Icono Elemento Descripción
1

Indicadores de
estado

Diodos luminosos (LED) que se encienden
para mostrar el estado de las funciones y
componentes del ordenador.

Vista izquierda

2

3

4

Conector de entrada
de DC

Puerto de
visualización externo
(VGA)

Puerto USB 2.0 Permite conectar a dispositivos USB 2.0

Permite conectar a un adaptador de CA.

Permite conectar a un dispositivo de
visualización (p.ej., monitor externo,
proyector de LCD).

(p.ej., ratón USB, cámara USB).

5

Guía rápida

Vista derecha

# Icono Elemento Descripción
5

6

7

8

9

Lector de tarjetas
multifunción

Conector de entrada
para micrófono

Auriculares/altavoz/
conector de línea de
salida

Puerto USB 2.0 Permite conectar a dispositivos USB 2.0

Ranura de bloqueo
Kensington

Puerto Ethernet (RJ-45) Permite conectar a una red basada en

Admite la tarjeta Secure Digital (SD),
MultiMedia (MMC), Memory Stick (MS),
Memory Stick PRO (MS PRO), xD-Picture (xD).
Nota: Presionar para extraer/instalar la
tarjeta. Sólo puede funcionar una tarjeta en
un momento dado.

Permite la entrada de audio de micrófonos
externos.

Conexión para dispositivos de salida de audio
(p.ej., altavoces, auriculares, etc.).

(p.ej., ratón USB).
Permite conectar a un candado de seguridad

para ordenador compatible con Kensington.

Ethernet 10/100.

Vista trasera & Vista de la base

10

11

12

13
14

15

Compartimiento de la
batería

Ranura para tarjeta
SIM 3G

Pestillo de liberación
de la batería

Bloqueo de la batería Permite que la batería quede trabada.

Ranuras de ventilación
y ventilador de
refrigeración

Altavoz Emite el audio del ordenador.

Aloja la batería del ordenador.

Acepta una tarjeta SIM 3G para conectividad
3G (sólo en determinados modelos).

Libera la batería para poder sacarla.

Permite que el ordenador esté frío, incluso
tras un uso prolongado.
Nota: No tape ni obstruya la apertura del
ventilador.

Guía rápida

6

Serie

Medio ambiente

Temperatura:

Encendido: entre 5°C y 35°C
Apagado: entre -20°C y 65°C

Humedad (sin condensación):

Encendido: entre 20% y 80%
Apagado: entre 20% y 80%

7

Série

Guia rápido

Série

Guia rápido

© 2010 Todos os Direitos Reservados

Guia rápido da Série Aspire One
Edição Original: 04/2010

Computador Portátil Série Aspire One

Número de modelo: ___________________________
Número de série: ______________________________
Data da aquisição: _____________________________
Local de aquisição: _____________________________

Guia rápido

Guia rápido

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

Série

Guia rápido

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Guia rápido

Guia rápido

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

Série

Guia rápido

Para começar

1 2 3

2-2

2-1

Certifique-se de que a bateria
está fixa no respectivo lugar,
tal como indicado em 2-2.

4 5 6

As ilustrações são apenas uma referência. As especificações reais do produto podem variar.

3-2

3-1

1

Guia rápido

Guia rápido

Primeiro que tudo

Gostaríamos de lhe agradecer por ter escolhido um computador portátil Acer para preencher as suas necessidades de
computador móvel.

Os seus manuais

Para o ajudar a usar o seu computador portátil Acer, preparámos uma série de manuais*:

Antes de mais, o Guia Rápido ajuda-o a ligar e configurar o seu computador.

Para mais detalhes sobre como o seu computador o pode ajudar a ser mais produtivo, consulte o AcerSystem User Guide
(Manual do Utilizador AcerSystem). Esse manual contém informações pormenorizadas sobre temas como utilitários do
sistema, recuperação de dados, opções de expansão e solução de problemas. Além disso, contém a informação da garantia
e as regulamentações gerais e notas de segurança para o seu computador portátil. Está disponível no formato PDF (Portable
Document Format) e vem já instalado no seu computador.

Nota: É necessário o Adobe Reader para visualizar o ficheiro. Se o Adobe Reader não estiver instalado no seu computador,
ao clicar em AcerSystem User Guide é executado o programa de instalação do Acrobat Reader. Siga as instruções do ecrã
para finalizar a instalação. Para obter instruções sobre como utilizar o Adobe Reader, vá ao menu Ajuda e Suporte.

* AVISO IMPORTANTE: Os guias aqui mencionados, seja em formato impresso ou electrónico, são apenas de natureza
informativa e, exceptuando quando referido nas informações de garantia específicas, incluídas no AcerSystem User
Guide, nada do que consta destes guias constitui uma representação ou garantia da Acer relativamente ao produto que
adquiriu. A Acer declina expressamente qualquer responsabilidade por erros contidos nos guias.

2

Série

Guia rápido

Configuração de rede

Este guia ajudá-lo(a)-á a configurar as definições da sua LAN e rede sem fios para que possa ligar-se à Internet.

Configurar uma ligação LAN

Basta ligar o cabo LAN ao porto Ethernet (RJ-45). Consulte "Vista direita" na página 6 para saber a localização do porto
Ethernet.

Configurar uma ligação sem fios

1. Prima <Fn> + <F3> para aceder ao gestor de comunicação. Aqui poderá activar a ligação WI-Fi clicando no botão vermelho
junto de Wi-Fi.

Nota: Também pode aceder a 3G e Bluetooth através do gestor de comunicação. Os dispositivos de comunicação variam

consoante o modelo.

2. Clique no

ícone no seu tabuleiro de sistema e escolha o ponto de acesso sem fios ao qual se deseja ligar.

Inserir um cartão SIM 3G (apenas em certos modelos)

Retire a bateria e insira com cuidado o cartão SIM 3G na respectiva ranhura. Consulte “Vista traseira & Vista da base” na página
6 quanto à localização da ranhura para o cartão SIM 3G.

3

Guia rápido

Guia rápido

Visita guiada ao seu
Aspire One

Depois de configurar o seu computador como ilustrado
na secção Para começar, deixe-nos dar-lhe a conhecer o
seu novo portátil Acer.

Vista de cima

# Ícone Item Descrição
1

2
3

4

5
6

7

8

9

1. Os indicadores no painel dianteiro são visíveis mesmo com a tampa do monitor
fechada.

Webcam
Acer Crystal Eye

Microfone Microfone interno para gravação de som.
Ecrã Também chamado ecrã de cristais líquidos (LCD),

Botão de
alimentação

Teclado Para introduzir informações no seu computador.
Indicador de

alimentação
Indicador da

1

bateria

Indicador HDD Indica quando o disco rígido está activo.
Indicador de

comunicação

Botões de clique
(esquerdo e
direito)

Teclado táctil Dispositivo apontador sensível ao toque, que

Descanso de mãos Área confortável de apoio para as suas mãos

Webcam para comunicação por vídeo
(a configuração pode variar consoante o modelo).

permite visualizar a informação do computador
(a configuração pode variar consoante o modelo).

Liga e desliga o computador.

Indica o estado da alimentação do computador.

1

Indica o estado da bateria do computador.

1. A carregar: A luz é âmbar quando a bateria está
a carregar.

2. Carga completa: A luz é azul no modo CA.

Indica o estado de comunicação Sem Fios LAN/3G.

1

Luz azul ligada Luz laranja

3G ligado/
WiFi ligado
3G ligado/
WiFi desligado

Os botões esquerdo e direito funcionam como os
botões esquerdo e direito de um rato.

funciona como um rato de computador.

enquanto utiliza o computador.

ligada

3G desligado/
WiFi ligado

Sem luz

3G desligado/
WiFi desligado

4

Série

Guia rápido

Vista frontal, fechado

# Ícone Item Descrição
1

Indicadores de
estado

Díodos Emissores de Luz (LED) que se
acendem para mostrar o estado das funções e
componentes do computador.

Vista esquerda

2

3

4

Tomada de
entrada CC

Ligação a ecrã
externo (VGA)

Entrada USB 2.0 Liga a dispositivos USB 2.0 (por ex. rato USB,

Liga a um adaptador CA.

Liga a um dispositivo de visualização
(por exemplo, monitor externo, projector LCD).

câmara USB).

5

Guia rápido

Vista direita

# Ícone Item Descrição
5

6

7
8

9

Leitor de cartões
vários-em-um

Conector de entrada
do microfone

Tomada de
auscultadores/
altifalante/saída

Entrada USB 2.0 Liga a dispositivos USB 2.0 (por ex. rato USB).
Ranhura de bloqueio

Kensington
Entrada Ethernet

(RJ-45)

Aceita cartõesSecure Digital (SD),
MultiMediaCard (MMC), Memory Stick (MS),
Memory Stick PRO (MS PRO), xD-Picture
Card (xD).
Nota: Empurre para remover/instalar o cartão.
Apenas pode ser utilizado um cartão de cada
vez.

Aceita entradas de microfones externos.

Liga a dispositivos de saída de áudio
(por exemplo, altifalantes, auscultadores).

Liga a um cadeado de segurança Kensington
(ou compatível).

Liga a uma rede Ethernet de base 10/100.

Vista traseira & Vista da base

10

11

12

13
14

15

Baía da bateria Contém a bateria do computador.

Ranhura para o cartão
SIM 3G

Patilha de libertação
da bateria

Bloqueio da bateria Bloqueia a bateria, mantendo-a no sítio.

Ranhuras de
ventilação e ventoinha
de arrefecimento

Altifalante Emite áudio do seu computador.

Aceita um cartão SIM 3G para conectividade
3G (apenas em certos modelos).

Liberta a bateria para remoção.

Permite ao computador manter-se fresco,
mesmo após uso prolongado.
Nota: Não tape nem obstrua a abertura da
ventoinha.

Guia rápido

6

Série

Ambiente

Temperatura:

Funcionamento: 5°C a 35°C
Não em funcionamento: -20°C a 65°C

Humidade (não condensação):

Funcionamento: 20% a 80%
Não em funcionamento: 20% a 80%

7

Snelgids

Serie

Serie

Snelgids

© 2010 Alle rechten voorbehouden

Snelgids voor de Aspire One Serie
Oorspronkelijke uitgave: 04/2010

Aspire One Serie Notebook PC

Modelnummer: ________________________________
Serienummer: _________________________________
Aankoopdatum: _______________________________
Plaats van aankoop: ___________________________

Snelgids

Snelgids

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

Serie

Snelgids

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Snelgids

Snelgids

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

Serie

Snelgids

Aan de slag

1 2 3

2-2

2-1

Zorg dat de accu correct is
geplaatst, zoals is aangegeven
in 2-2.

4 5 6

Illustraties zijn alleen ter verwijzing. Daadwerkelijke productspecificaties kunnen afwijken.

3-2

3-1

1

Snelgids

Snelgids

Om te beginnen

Bedankt dat u hebt gekozen voor een notebook van Acer als oplossing voor uw mobiele computereisen.

Uw gidsen

Om u te helpen met het werken op het Acer notebook hebben we een aantal gidsen ontworpen*:

Allereerst helpt de Snelgids u bij het instellen van uw computer.

Als u meer wilt weten over hoe uw computer u kan helpen productiever te werken, raadpleeg dan de AcerSystem User Guide.
Deze Gebruikershandleiding bevat gedetailleerde informatie over onderwerpen zoals systeemfuncties, gegevensherstel,
uitbreidingsopties en probleem oplossen. Daarnaast bevat het informatie over garantie en de algemene voorwaarden en
veiligheid voor uw notebook. Het is als Portable Document Format (PDF) beschikbaar en is al van te voren op uw notebook
gezet.

Opmerking: Als u het bestand wilt inzien, dient Adobe Reader te zijn geïnstalleerd. Als Adobe Reader nog niet op uw
computer is geïnstalleerd, wordt, als u op AcerSystem User Guide klikt, eerst het installatieprogramma van Adobe Reader
gestart. Volg de instructies op het scherm om het programma te installeren. Gebruiksaanwijzingen bij Adobe Reader
vindt u in het menu Help en Ondersteuning.

* BELANGRIJKE MEDEDELING: Neem voor kennisgeving aan dat de hier genoemde gidsen, hetzij gedrukt of in
elektronische vorm, slechts ter naslag dienen en dat niets in deze gidsen een vertegenwoordiging of garantie van de
kant van Acer impliceert met betrekking tot het door u gekochte product, met uitzondering van de specifieke
garantie-informatie in de AcerSystem User Guide. Acer wijst uitdrukkelijke elke aansprakelijkheid af voor fouten in de
gidsen.

2

Serie

Snelgids

Netwerkconfiguratie

Deze handleiding helpt u bij het configureren van de instellingen voor LAN en draadloos netwerk zodat u verbinding met
internet kunt maken.

Lan-verbinding instellen

Steek gewoon de lan-kabel in de ethernetpoort (RJ-45). Zie "Rechterkant" op pagina 6 voor de plek van de ethernet-poort.

Een draadloze verbinding instellen

1. Druk op <Fn> + <F3> om communicatiebeheer te openen. Hier kunt u de Wi-Fi-verbinding inschakelen door op de rode knop
naast Wi-Fi te drukken.

Opmerking: Via communicatiebeheer zijn ook 3g en Bluetooth toegankelijk. Communicatieapparaten kunnen verschillen per

model.

2. Klik op het pictogram

in het systeemvak en kies het draadloos toegangspunt waarmee u verbinding wilt maken.

Een 3G-simkaart plaatsen (alleen voor bepaalde modellen)

Verwijder de batterij en plaats voorzichtig een 3g-sim-kaart in de 3g-sim-kaartsleuf. Zie "Achterkant & Onderkant" op pagina 6
voor de plek van de 3g-sim-kaartsleuf.

3

Snelgids

Snelgids

Rondleiding door de

Aspire One

Na het instellen van de computer zoals aangegeven
in het onderdeel Aan de slag, bent u nu klaar voor
een rondleiding door het nieuwe Acer notebook.

Bovenkant

# Pictogram Item Beschrijving
1

2
3

4
5
6

7

8

9

1. De statusindicatoren aan de voorkant zijn zelfs zichtbaar als het scherm gesloten is.

Acer Crystal Eye
webcam

Microfoon Interne microfoon voor geluidsopname.
Beeldscherm Ook wel Liquid-Crystal Display (LCD)

Aan/uit knop Schakelt de computer aan en uit.
Toetsenbord Om gegevens in te voeren in de computer.
Stroomindicator1Geeft de vermogenstatus van de computer

Accu-indicator1Geeft de batterijstatus van de computer aan.

HDD-indicator Licht op wanneer de harde schijf actief is.
Communicatie-

indicator

Kliktoetsen
(links en rechts)

Touchpad Tastgevoelig aanwijsapparaat dat functioneert

Polssteun Comfortabele ondersteuning voor uw handen

1

Webcam voor videocommunicatie
(configuratie kan per model verschillen).

genoemd, geeft de output van de computer
weer (configuratie kan per model verschillen).

aan.

1. Opladen: Het licht is oranje wanneer de
accu wordt opgeladen.

2. Volledig opgeladen: Het licht is blauw in de
AC-modus.

Geeft de status van draadloze lan/3g­communicatie aan.

Blauw lampje
aan

3G aan/WiFi aan
3G aan/WiFi uit

De toetsen links en rechts functioneren als de
linker en rechter muistoetsen.

als een computermuis.

wanneer u de computer gebruikt.

Oranje lampje
aan

3G uit/WiFi aan 3G uit/WiFi uit

Brandt niet

4

Serie

Snelgids

Voorkant gesloten

# Pictogram Item Beschrijving
1

Statusindicatoren Light-Emitting Diodes (leds)

die oplichten om de status van
functies en componenten van de
computer aan te geven.

Linkerkant

2
3

4

Gelijkstroomaansluiting Aansluiting voor een adapter.
Externe weergavepoort

(VGA)

USB 2.0-poort Aansluiting voor usb

Aansluiting voor een beeldscherm
(bijv. een externe monitor, LCD­projector).

2.0-apparaten (bijv. usb-muis, usb­camera).

5

Snelgids

Rechterkant

# Pictogram Item Beschrijving
5

6

7

8

9

Meer-in-één­kaartlezer

Aansluiting voor
Microfoon-in

Aansluiting voor
hoofdtelefoon/
luidspreker/lijn-uit

USB 2.0-poort Aansluiting voor usb 2.0-apparaten

Sleuf voor
Kensington-slot

Ethernetpoort (RJ-45) Aansluiting voor een op Ethernet

Accepteert Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick
(MS), Memory Stick PRO (MS PRO) en
xD-Picture Card (xD).
Opmerking: Duwen om de kaart te
verwijderen/plaatsen. Er kan één kaart
tegelijk worden gebruikt.

Aansluitingen voor externe microfoon.

Aansluiting voor lijn-uit audioapparaten
(bijv. luidsprekers, hoofdtelefoon).

(bijv. usb-muis).
Aansluiting voor een Kensington-

compatibel computerbeveiligingsslot.

10/100-gebaseerd netwerk.

Achterkant & Onderkant

10

11

12
13
14

15

Batterijnis Bevat de batterij van de computer.

3g-sim-kaartsleuf Accepteert een 3g-sim-kaart voor

Batterijvergrendeling Maakt de batterij los.

Batterijgrendel Vergrendelt de accu op z’n plaats.

Ventilatiesleuven en
koelventilator

Luidspreker Laat het geluid van de computer horen.

3g-verbindingsmogelijkheden (alleen
voor bepaalde modellen).

Zorgen dat de computer koel blijft, zelfs
na langdurig gebruik.
Opmerking: Dek de opening van de
ventilator nooit af.

Snelgids

6

Serie

Omgeving

Temperatuur:

In gebruik: 5°C tot 35°C
Niet in gebruik: -20°C tot 65°C

Vochtigheidsgraad (geen condensvorming):

In gebruik: 20% tot 80%
Niet in gebruik: 20% tot 80%

7

Hurtigguide

-serien

-serien

Hurtigguide

© 2010 Med enerett

Hurtigguide for Aspire One-serien
Opprinnelig utgave: 04/2010

Notebook-PC i Aspire One-serien

Modellnummer: _______________________________
Serienummer: _________________________________
Innkjøpsdato: _________________________________
Innkjøpssted: __________________________________

Hurtigguide

Hurtigguide

Federal Communications Commission
Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

The following local Manufacturer/Importer is responsible for this declaration:

Product name: Notebook PC

Brand: Acer

Model number: PAV01

Machine type:

Name of Responsible Party: Acer America Corporation

Address of responsible party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.

Contact person: Acer Representative

Phone No.: 1-254-298-4000

Fax No.: 1-254-298-4147

April 23, 2010

Aspire one series; AO533 series

-serien

Hurtigguide

CE Declaration of Conformity

We,

Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And,

Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland

Hereby declare that:

Product: Notebook Computer
Trade Name: Acer
Model Number: PAV01
Machine Type: Aspire one series; AO533 series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the
necessary steps have been taken and are in force to assure that production units of the same product will continue comply with
the requirements.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

• Article 3.1(a) Health and Safety

-. EN60950-1

-. EN62311

• Article 3.1(b) EMC

-. EN301 489-1

-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN301 489-7

-. EN301 489-17

-. EN301 489-24

Hurtigguide

Hurtigguide

• Article 3.2 Spectrum Usages

-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).

-. EN300 328

-. EN301 511

-. EN301 893 (Applicable to 5GHz high performance RLAN).

-. EN301 908-1

-. EN301 908-2

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

-. EN55022, AS/NZS CISPR22, Class B

-. EN55024

-. EN61000-3-2 Class D

-. EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead
Mercury
Hexavalent Chromium

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related
product.

0.1%

0.1%

0.1%

Polybrominated Biphenyls (PBB’s)
Polybrominated Diphenyl Ethers (PBDE’s)
Cadmium

0.1%

0.1%

0.01%

Easy Lai /Manager
Regulation Center, Acer Inc.

Year to begin affixing CE marking 2010.

Apr. 23, 2010

Date

-serien

Hurtigguide

Før vi begynner

1 2 3

2-2

2-1

Kontroller at batteriet er låst på
plass som vist i 2-2.

4 5 6

Bildene er kun til illustrasjon. De faktiske produkt spesifikasjonene kan variere.

3-2

3-1

1

Hurtigguide

Hurtigguide

Begynne med begynnelsen

Vi vil gjerne takke deg for at du har valgt en Acer-notebook til dine mobile databehandlingsbehov.

Dine veiledere

Som hjelp til bruk av Acer-notebooken har vi utarbeidet et sett av guider*:

Den første er hurtigguiden, som hjelper deg i gang med oppsettet av datamaskinen.

Hvis du vil vite mer om hvordan datamaskinen kan hjelpe deg med å bli mer produktiv, vennligst slå opp i AcerSystem User
Guide. Denne guiden innholder detaljert informasjon om emner som systemverktøy, datagjenvinning, utbyggingsalternativer
og feilsøking/problemløsing. I tillegg finner du garantiopplysninger, generell informasjon og sikkerhetsmerknader for
notisbokmaskinen din. Boken er tilgjengelig som PDF-fil (Portable Document Format) og leveres forhåndslastet på maskinen.

Merk: Visning av filen krever Adobe Reader. Hvis Adobe Reader ikke er installert på datamaskinen, vil klikking på
AcerSystem User Guide føre til at installeringsprogrammet for Adobe Reader kjøres først. Følg instruksjonene på skjermen
for å fullføre installeringen. Hvis du vil ha instruksjoner i bruk av Adobe Reader, se menyen Hjelp og støtte.

* VIKTIG MERKNAD: Vennligst merk at guidene som nevnes her, enten de er i trykt eller elektronisk form, er beregnet på
dine referanseformål. Med unntak av det som er nevnt i den bestemte garantiinformasjonen i AcerSystem User Guide,
er det ingenting i disse guidene som utgjør en påstand eller en garanti fra Acer om produktet du har kjøpt.
Acer fraskriver seg uttrykkelig ethvert ansvar for feil som måtte forekomme i disse guidene og håndbøkene.

2

-serien

Hurtigguide

Nettverkskonfigurasjon

Denne guiden vil hjelpe deg med å konfigurere innstillinger for LAN og trådløst nettverk slik at du kan koble deg til Internett.

Sette opp en LAN-tilkobling

Plugg inn LAN-kabelen i Ethernet-porten (RJ-45). Se "Høyre visning" på side 6 hvis du vil finne Ethernet-portens plassering.

Sette opp en trådløs tilkobling

1. Trykk på <Fn> + <F3> for å få tilgang til kommunikasjonsstyring. Her kan du slå på Wi-Fi-tilkoblingen ved å klikke på den
røde knappen ved siden av Wi-Fi.

Merk: 3G og Bluetooth er også tilgjengelige gjennom kommunikasjonsstyring. Kommunikasjonsenheter kan variere avhengig

av modell.

2. Klikk på ikonet i systemskuffen, og velg det trådløse tilgangspunktet du vil koble deg til.

Sette inn et 3G SIM-kort (bare for visse modeller)

Fjern batteriet og sett forsiktig inn et 3G SIM-kort i 3G SIM-kortsporet. Under "Bakre visning & Bunnvisning" på side 6 kan du se
3G SIM-kortsporets plassering.

3

Hurtigguide

Hurtigguide

Din Aspire One-omvisning

Etter at du har satt opp datamaskinen som illustrert i
avsnittet Før vi begynner, vil vi nå gjerne vise deg den nye
Acer-notebooken.

Visning ovenfra

# Ikon Element Beskrivelse
1

2
3

4
5
6

7

8

9

1. Frontpanelindikatorene er synlige selv når datamaskindekselet er lukket.

Acer Crystal Eye­webkamera

Mikrofon Intern mikrofon for lydinnspilling.
Skjerm Kalles også LCD-skjerm (Liquid-Crystal

Av/på-knapp Slår datamaskinen av og på.
Tastatur Legger inn data i datamaskinen.
Strømindikator1Angir datamaskinens strømstatus.

Batteriindikator1Angir datamaskinens batteristatus.

Harddiskindikator Lyser når harddisken er aktiv.
Kommunikasjon-

sindikator

Klikkeknapper
(venstre og høyre)

Pekeplate Pekeenhet som reagerer på berøring og

Håndleddshviler Komfortabelt støtteområde for hendene når

1

Webkamera til videokommunikasjon
(konfigurasjonen kan variere mellom
modellene).

Display; LCD), viser utdata fra datamaskinen
(konfigurasjonen kan variere mellom
modellene).

1. Lading: Lampen lyser gult når batteriet
lades.

2. Helt oppladet: Lampen lyser blått i
nettstrømmodus.

Angir statusen for trådløs LAN/3G­kommunikasjon.

Blått lys på Oransjelys på Ikke tent
3G på/WiFi på

3G på/WiFi av

Venstre og høyre knapp fungere på samme
måte som venstre og høyre museknapp.

fungerer som en mus.

du bruker datamaskinen.

3G av/WiFi på 3G av/WiFi av

4

-serien

Hurtigguide

Lukket frontvisning

# Ikon Element Beskrivelse
1

Statusindikatorer Lamper (LED) som tennes for å vise

statusen for datamaskinens funksjoner og
komponenter.

Venstre visning

2
3

4

Strømtilkobling Kobler til en batterieliminator.
Port for ekstern

skjerm (VGA)
USB 2.0-port Kobler til USB 2.0-enheter (f.eks. USB-mus,

Kobler til en skjermenhet (f.eks. ekstern
skjerm, LCD-projektor).

USB-kamera).

5

Hurtigguide

Høyre visning

# Ikon Element Beskrivelse
5

6

7
8

9

Multi-i-1-kortleser Godtar Secure Digital (SD), MultiMediaCard

Mikrofonplugg Mottar inndata fra eksterne mikrofoner.
Hodetelefon/

høyttalere/line-out­port

USB 2.0-port Kobler til USB 2.0-enheter (f.eks. USB-mus).
Spor for Kensington-

lås
Ethernet-port (RJ-45) Kobler til et Ethernet 10/100-basert

(MMC), Memory Stick (MS), Memory Stick
Pro (MS PRO), og xD-Picture Card (xD).
Merk: Skyv inn for å fjerne/installere kortet.
Bare ett kort kan være i bruk til enhver tid.

Kobler til utdataenheter for lyd
(f.eks. høyttalere, hodetelefon).

Kobler til en Kensington-kompatibel
sikkerhetslås for datamaskinen.

nettverk.

Bakre visning & Bunnvisning

10

11

12
13
14

15

Batterirom Huser datamaskinens batterier.

3G SIM-kortspor Godtar et 3G SIM-kort for 3G-tilkoblinger

Batterifrigivelsesbolt Frigir batteriet for fjerning.
Batterilås Låser batteriet på plass.
Ventilasjonsåpninger

og kjølevifte

Høyttaler Spiller av lyd fra datamaskinen.

(bare for visse modeller).

Gir datamaskinen mulighet til å holde seg
kjølig, selv etter lang tids bruk.
Merk: Ikke dekk til eller blokker viftens
åpning.

Hurtigguide

6

-serien

Miljø

Temperatur:

Drift: 5°C til 35°C
Ikke i bruk: -20°C til 65°C

Luftfuktighet (ikke-kondenserende):

Drift: 20% til 80%
Ikke i bruk: 20% til 80%

7

Hurtig-guide

Seriens

Seriens

Hurtig-guide

© 2010 Alle rettigheder forbeholdes

Aspire One Seriens Hurtig-guide
Oprindeligt udgivet: 04/2010

Aspire One seriens notebook-pc

Modelnummer: ________________________________
Serienummer: _________________________________
Købsdato: _____________________________________
Købt hos: _____________________________________
