Acer AF705, VQ730 Schematic

Download
Page 1
AF705 VQ730
ACER Service Guide 17-inch CRT Monitor
Page 2
Page 3
1. DISPLAY ALIGNMENT
A. TIMING & DISPLAY SIZE
For all presetting mode shall be within the limitation:
H. WIDTH 310 ± 5mm
V. HEIGHT 232 ± 3 mm
The external control range of the data area, shall be as follows;
Max. horizontal size : full the screen
Max. vertical size : full the screen
B. PICTURE POSITION
For all presetting mode shall be within the limitation:
H.PHASE SCREEN CENTE ± 4 mm
V.CENTER SCREEN CENTE ± 3 mm
C. LINEARITY
The linearity of an image displayed on the CRT must meet the following requirements, with reference to figure
4.05 for both X and Y and axis.
The measured value of linearity shall be less than 6%(p) or 8%(s) when calculated using all lattices and shall be less than 5%(p) or 6%(s) when calculated using adjcent lattices.
Xmax-Xmin
OR Ymax-Ymin
Xmax+Xmin Ymax+Ymin
Where: Xmax,Xmin,be Calculated Same Line
Ymax,Ymin,be Calculated Same Row
D. ALIGNMENT PROCEDURE
●
Warm up the monitor for at least 30 minutes before adjustment.
● Set the front of CRT to the east.
●
Turn all VR set to center position.
D-1. H.V
1. Use front control key adjust the display size about 300mm, adjust VR801 Let the Plus of C824 is
28.14V in Timing 68kmode FULL WHITE PATTERN, it can be got a stable H.V.
Page 4
E. GEOMETRIC DISTORTION
E-1 Raster Rotation Signal No.1 to 6
| a - b | ≤ 2.0 mm
E-2 Pincushion Signal No.1 to 6
Top : d1 ≤2.0 mm
Bottom : b1 ≤ 2.0 mm
Leftside : a1 ≤ 1.5 mm
Rightside : c1 ≤ 1.5 mm
E-3 Barrel Signal No.1 to 6
Top : d2 ≤ 2.0 mm
Bottom : b2 ≤ 2.0 mm
Leftside : a2 ≤1.0 mm
Rightside : c2 ≤ 1.0 mm
E-4 Trapezoid Signal No.1 to 6
Top : d ≤ 2.5 mm
Bottom : b ≤2.5 mm
Leftside : a ≤ 2.5 mm
Rightside : c ≤ 2.5 mm
E-5 . Parallelogram Signal No.1 to 6
a ≤ 0.5 degree
Bezel
a1
a2
b
a
d1
c1
b1
d2
b2
a
c
a
c2
d
b
E-6 Overall Distortion Signal No.6 only
Top : d ≤ 2.5 mm
Bottom : b ≤2.5 mm
Leftside : a ≤ 2.5 mm
Rightside : c ≤ 2.5 mm
d
b
a
c
Page 5
F. WHITE BALANCE ALIGNMENT
F. 1. 1 Select timing #6 (VESA 68K 1024X768) with crosshatch pattern, adjust both horizontal and vertical
??
OSD’s size control to get display size within 310x232p±2mm.
F.1.2 Disconnect R.G.B. signal inputs, adjust OSD’s brightness and G1 control to it’s maximum position.
??
F.1.3 Auto alignment(P103 must be short) Use automatic alignment equipment and program to get color temperature within specified coordinates.
F.1.4 Manual alignment P103 must be short in order to into factory mode. Select OSD function to color temperature adjustment.
F.1.5 For 9300( 7500 ; 6500 ) color coordinate ( notes: set the minimum value of R.G.B. bias is 0, set the value of sub-contrast “SC” is 0 ).
F.1.6 Disable the video pattern( for a raster pattern ), set the maximum value of contrast and brightness is 255, adjust G1 to Y=0.01 cd/mm
F.1.7 Adjust bias G to get Y=1.8 ± 0.06 cd/mm
Adjust bias B to get y=297 ( y=315 for 7500 ; y=329 for 6500 ) ± 5
Adjust bias R to get x=283 ( x=295 for 7500 ; x=313 for 6500 ) ± 3
F.1.8 Fine tune the bias G and R for x=283 , y=297 ( x=299, y=315 for 7500; x=313, y=329 for 6500 ) ± 3.
F. 1. 9 Select 7500 and 6500 color coordinate separately. Repeat item 2.5.5 ~ 2.5.8 to meet specificity.
F.1.10 Adjust brightness control to get raster is <= 0.25cd/mm, change pattern to 2 inch square.
F.1.11 Enable G signal output of pattern generator, adjust gain G to get Y=98 ± 1 cd/mm
F.1.12 Enable B signal output, adjust gain B to get y=297 ( y=315 for 7500 ; y=329 for 6500 ) ± 2
Enable B signal output, adjust gain R to get x=283 ( x=299 for 7500 ; x=313 for 6500 )
F.1.13 Fine tune the gain G and R for x=283 , y=297
??
( x=299, y=315 for 7500; x=313, y=329, for 6500 )
F.1.14 Check 150 >Y> 130 cd/mm, if not , adjust G to get Y>130 cd/mm, then repeat item 2.5.12
F.1.15 Change pattern to fall white, adjust SB to get 92< Y <113 cd/mm .
F.1.16 Select 7500 and 6500 color coordinate separately. Repeat item 2.5.11 ~ 2.5.15 to meet specificity. 7500 X=300 Y=315 6500 X=313 Y=329
±
2
±
1
Page 6
G. PRESET TIMING
Preset Timing Chart
[ H-SYNC ]
[ VIDEO ]
[ V-SYNC ]
[ VIDEO ]
Signal Name Clock
No
1 VGA
640*480(60)
2 VESA
800*600(85)
3 VESA
1024*768(85)
4 VESA
800*600(75)
5 VESA
1024*768(75)
6 VESA
1280*1024(60)
(MHz)
25.175 31.469 59.940
56.250 53.674 85.061
94.500 68.677 84.997
49.500 46.875 75.000
78.750 60.023 75.029
108.00 63.981 60.020
Ts h
Tsv
Fh
(kHz)
Fv
(Hz)
Tbh
Tbv
Th
(uSec)
(dot)
31.778 (800)
18.631 (1048)
14.561 (1376)
21.333 (1056)
16.66 (1312)
15.630 (1688)
Ts h
(uSec)
(dot)
3.813 (96)
1.138 (64)
1.016 (96)
1.616 (80)
1.219 (96)
1.037 (112)
Tfh
(uSec)
(dot)
0.636 (16)
1.138 (64)
0.508 (48)
0.323 (16)
0.203 (16)
0.444 (48)
Th
Tdh
Tv
(uSec)
1.907 (48)
2.702 (152)
2.201 (208)
3.232 (160)
2.235 (176)
2.296 (248)
Tdv
Tbh
(dot)
Tdh
(uSec)
(dot)
25.422 (640)
14.222 (800)
10.836 (1024)
16.162 (800)
13.003 (1024)
11. 85 2 (1280)
Tv
(mSec)
(line)
16.683 (525)
11. 75 6 (631)
11. 76 5 (808)
13.333 (625)
13.328 (800)
16.661 (1066)
Tsv
(mSec)
(line)
0.064 (2)
0.056 (3)
0.044 (3)
0.064 (3)
0.050 (3)
0.047 (3)
Tfh
Tfv
Tfv
(mSec)
(line)
0.318 (10)
0.019 (1)
0.015 (1)
0.021 (1)
0.017 (1)
0.016 (1)
Tbv
(mSec)
(line)
1.049 (33)
0.503 (27)
0.524 (36)
0.448 (21)
0.466 (28)
0.594 (38)
Tdv
(mSec)
(line)
15.253 (480)
11.179 (600)
11.183 (768)
12.800 (600)
12.795 (768)
16.005 (1024)
Hs Vs
- -
+ +
+ +
+ +
+ +
+ +
Page 7
2. CONTROL AND CONNECT LAYOUT
A. Main PCB
Page 8
B. VIDEO PCB
Page 9
C. PIN ASSIGNMENT
C-1. Connect Table
P102 P105-P202 P104-P203
1 DETECT V-OUT AFC
2 DDC-SCL OSD-SDA GHD
3 DDC-SDA OSD-SCL G1
4 GND H-out HEATER
5 V-sync GND 5V
6 H-sync 80V
7 5V from PC 12V
8 ABL
9
10
C-2. Connect Function
P803 : H-CENTER CONN
P501 : TILT CONN
P103: PRESET CONN
P902 : DEGAUSSING COIL CONN
P804 : X-RAY TEST PAD
Page 10
3. INTRODUCTION:
C708 is a 17” multisync color monitor. The horizontal frequency range is from 30khz to 70khz, and the refresh rate is from 50hz to 160hz. The circuit includes four major parts, the power supply circuit, the deflection circuit, the video circuit and the digital control circuit. is the function block diagram.
A. POWER SUPPLY
Transfer AC source to DC source that supply all the circuit power. It includes:
(1) +13.5V: For horizontal and vertical deflection circuit.
(2) –11.5V: For vertical deflection circuit.
(3) +7.2V: For CRT heater, parts of video pre-amp circuit.
(4) +53V: For B
(5) +80V: For video circuit
(6) 9.2V: for MIRCO- P
Fig 2 is the function block diagram of power CKT.
B. DEFLECTION:
Produce YOKE deflection current of horizontal and vertical, CRT H.V and bias that makes screen raster.
+
Boost circuit.
C. VIDEO:
amplify the video signal and add the signal to the cathode of CRT to produce video on the screen.

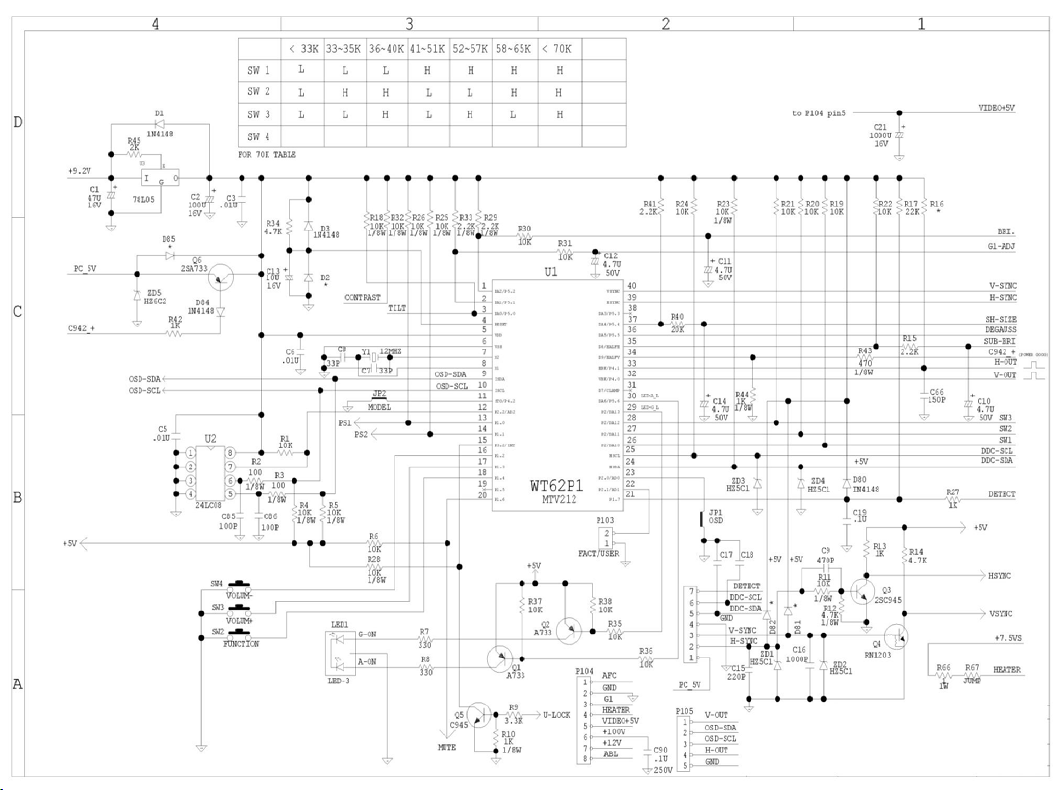

D. DIGITAL CONTROLLOR:
With the EEPROM and PROGRAM, the micro-processor (u-P) control all the picture performance.
From the key control, the user can change the H-size, V-size, V-center, H-phase.
Page 11
R
13.5V
G
B
5V
5V
Power generator
-12V
9.2V 53V 80V
LM1269
Vid e o Pr e-A MP
OSD generator
UP WT62P1
EE-P-ROM
24C08
OSD DATA
NT6827
5V
12V
53V
LM2467
Video Output AMP.
12V 80V
13.5V
-12V
B+
generator
R,G,B out
Heater 6.3V
TDA8172
Vertical Output AMP.
B++16V
+
-
V-sawtooth
TDA4856
H.V Sync Processor
12V 12V
H-center
ADJ.
13.3V
CRT &
DY
ASSY.
V-s c a n to DY
H-Driver &
H-Scan Stage
G1 ADJ. Voltage generator
D/A Output
from uP
-145V
H.V. 25KV to CRT
Dynamic Focus to CRT
G2 Voltage 550V to CRT
FBT
H.V generator
B++16V
+
-
Page 12
Fig2
Page 13
4. POWER SUPPLY
A. RECTIFIER AND FILTER CKT:
The 90Vac-265Vac input line voltage is rectified by BD901, and smoothed by C906 to provide DC operating voltage for the circuit.
B. FLYBACK AND PWM CKT :
When power is initially applied to the circuit,C909 charges through R903, Q902.When the voltage across C909 reaches a level of 16V, U901 is enabled, turning on Q903 and turning off Q902 to complete start-up action.
During the On-time of Q901, energy is stored in T900. At this time the polarity of the output windings is such that all output rectifiers are reverse biased and no energy is transferred. Primary current is sensed by R907 and compared to a DC level that is determined by voltage feedback. When this level is reached, Q901 is turned off and the polarity of all T900 windings reverses , forward biasing the output rectifiers. All the energy stored is now transferred to the output capacitors. Many cycles of this store/release action are needed to charge the outputs to their respective voltages.
The voltage across C946 is fed through a voltage divider,R970, R971, R973, C975, R976, R977 and VR901 to the error amplifier U904 compared to an internal 2.5V reference, then determine the feed back level of U901 pin 1.
C. SNUBBER CKT:
Energy stored in the leakage inductance of T900 cause a voltage spike which be added to the normal reset voltage across T900 when Q901 turn off. The clamp consisting of D905, R904 and C907 limits this voltage excursion from exceeding the Vds rating of Q901.
D. SYNCHRONIZED CKT:
The oscillator frequency is defined by R919, C916. The equation is approximately: Fosc=1.8/ (R919*C916). The external signal “SYN+ & SYN−”
E. POWER SAVING CKT:
The monitor has ON and OFF states. The monitor enters OFF mode if H-sync and/or V-sync are removed. When in the OFF State, PS1 should below simultaneously to turn off +13.5Vs outputs. PS2 should enter PWM Pulse to pre- CRT- heater. In this state, input power should be less than 5W and LED-1 LED illuminate yellow.
Page 14
F. DEGAUSS CKT:
The DEGUSS signal which comes from micro-p to control degauss coil act or not.
When DEGUSS is high, Q950 will be saturated to make RL901 working, AC line provides a degaussing current to degauss coil.
G. OVERLOAD PROTECTION CKT:
The primary current flows through the current sensing resistor R907.
The sensing voltage through the R907, R911, C914 to U901 pin3, If the current up, the U901 pin 3 voltage will be follow up, When the voltage>1 V, the U901 duty-cycle shall be limited, Made the output voltage down in the meanwhile make the U901 VCC the U901 pin 7 fall down under 10 voltage in the then, U901 stop action, made over load for protection.
voltage down,
Page 15
5. DEFLECTION
A. SYNC RPOCESSOR:
H-sync & V-sync input to U1(up), then up output the H-out, V-out signal to U401 TDA4856. The H-out, V-out always are positive.
B. HORIZONTAL PROCESSOR
Fig 3 is the block diagram of IC TDA4856.
The IC TDA4856 output vertical sawtooth and H-Drive signal to produce, H.V deflection. Meanwhile TDA4856 output. BDRV signal (IC pin 6) that can control B
C. VERTICAL OUTPUT
Fig 4 is the block diagram of IC TDA8172.
Input vertical sawtooth signal from TDA4856 to TDA8172, then TDA8172 produce vertical deflection current.
D. HORIZONTAL OUTPUT STAGE
F<33K 33K<F<36K 36K<F<41K 41K<F<52K 52K<F<58K 58K<F<65K 65K<F
SW1 L L L H H H H
SW2 L H H L L H H
SW3 L L H L H L H
E. FLYBLACK TRANSFORMER
In the primary of F.B.T, there is about 1000Vpp in the LC resonant interval, It convert to the secondary of F.B.T to produce about 25.3KV for CRT anode voltage.
+
voltage.
Page 16
Page 17
Fig4
Page 18
6. VIDEO AMP. CIRCUIT
A. VIDEO PRE. AMP.
The video pre-amp IC is U201(LM1269). The input signal is 0.7Vpp, then pre-amp IC U201 amplify the video signal to 3~4Vpp. The U201 is controlled by up via I block diagram.
B. VIDEO AMPLIFIER
The video amplifier is U203(LM2467), it amplify video signal to about 40Vpp. Video output signal add to cathode by AC coupling, Fig6 is the block diagram.. The DC bias is controlled by the IC U204(LM2480), Fig7 is the block diagram..
Fig 6 is the block diagram
2
C bus, Fig5 is the
Fig5
Page 19
Fig6
Fig7
Page 20
7. TROUBLESHOOTING
A. POWER SUPPLY CHECK
Page 21
B. MONITOR CHECK FLOW CHART
B-1. No Raster
Page 22
B-2. No Picture
Page 23
B-3. No Vertical Deflection ( rester become a horizontal line)
Page 24
A. FRU BOM
A-1 Main PCBA-- 456A6630011
A-2 Video PCBA—452A6030001
B. BOM LIST
The item of parts marked with yellow are recommended and Unique parts list, and items marked with Blue are top 20 failures provided by our PE if component level repair is required.
Page 25
Li
Leve
ne
l
1 1 5224A830003
2 2 51A11830011 40.16 1 VIDEO ASSY
3 3 452A6030001 9.86 1 PCBA CRT/B
4 4 442A6030001 3.13 1 AIS CRT/B
5 5
6 5
7 5
8 5
9 5
10 5
11 5
12 5
13 5
14 5
15 5
16 5
17 5
18 5
19 5
20 5
21 5
22 5
23 5
24 5
25 5
26 5
27 5
Part
BC101SS82T 2 0.10 9 DIODE
BC11N4148T 8 0.02 1 DIODE
BC1FR1040T 0 0.04 1 DIODE
BC4HZ5C10 T8 0.05 1 ZENER DIODE
CA001A601T 8 0.03 13 CERAMIC CAP.
CA001D600T 2 0.02 2 CERAMIC CAP.
CA010CCM0 T6 0.04 7 CERAMIC CAP.
CA010DEK0 T0 0.04 1 CERAMIC CAP.
CA018ELK0 T0 0.07 1 CER CAP
CA022E601T 4 0.03 1 CERAMIC CAP.
CB0010AM0 T0 0.05 3 CAPACITOR (N.P.)
CB0100A43T 2 0.04 1 CAPACITOR
CB0220A42T 5 0.07 2 CAPACITOR
CB047A6M0 TH 0.03 1 CAPACITOR
CB10003M0T H 0.04 3 CAPACITOR
CC033AI71T 0 0.03 1 RES FUSE
CC0560111T 6 0.01 1 RESISTOR
CC0680011T 1 0.01 3 RESISTOR
CC0750211T 3 0.01 3 RESISTOR
CC0820211T 5 0.01 3 RESISTOR
CC1000111T 2 0.01 1 RESISTOR
CC1000211T 8 0.01 14 RESISTOR
CC1001011T 1 0.01 1 RESISTOR
Model
MF708C0200 3 150.66 1 DIS ABO
Unit Price
USD
Usage Description
Spec
MF708C MPRII 15"CP
MF708C MPRII
VQ-730 MC708 LG
VQ-730 MC708 LG
1SS82
1N4148
FR104 DO-41
HZ5C1
.1U 50V Z Y5V P5
100P 50V +-5% NPO
.01U 500V M Z5U P5
1000P 1KV K Y5P P5
180P 2KV K Y5P P5
220P 50V +-5% NPO
1U 100V M A P5
10U 100V +-20% 85C
22U 100V +-20% 85C
4.7U 50V M A P5
100U 16V M A P5
1/2W 3.3 +-5% S
1/4W 56 +-5%
1/2W 68 +-5%
1/8W 75 +-5%
1/8W 82 +-5%
1/4W 100 +-5%
1/8W 100 +-5%
1/2W 1K +-5%
Page 26
28 5 CC1001111T7 0.01 2 RESISTOR
CC1001211T
29 5
2 0.01 4 RESISTOR CC1002091T
30 5
0 0.02 1 RES MOF CC1002211T
31 5
7 0.01 1 RESISTOR CC1003111T
32 5
6 0.01 1 RESISTOR CC1202211T
33 5
2 0.01 1 RESISTOR CC1504211T
34 5
0 0.01 1 RESISTOR CC3300211T
35 5
0 0.01 2 RESISTOR CC3301211T
36 5
4 0.01 4 RESISTOR CC3303211T
37 5
3 0.01 3 RESISTOR CC4702211T
38 5
1 0.01 1 RESISTOR CC5601211T
39 5
6 0.01 2 RESISTOR
40 5 CJ001B600T2 0.09 2 MYLAR CAP.
CJ068D6JNT
41 5
0 0.09 1 FILM CAP CL4100056T
42 5
0 0.05 3 PEAKING COIL DA1C708V11
43 5
0 0.61 1 PCB DC1100006T
44 5
0 0.41 3 SPARK GAP DC1510005T
45 5
0 0.02 1 BEAD DC1510009T
46 5
0 0.02 4 BEAD DC38200000
47 5
2 0.01 1 EYELET XX0900T211
48 5
9 0.01 1 JUMPER WIRE XX0900T212
49 5
7 0.01 8 JUMPER WIRE XX0900T213
50 5
5 0.01 2 JUMPER WIRE XX0900T214
51 5
3 0.01 2 JUMPER WIRE XX0900T217
52 5
8 0.01 1 JUMPER WIRE XX0900T219
53 5
4 0.01 1 JUMPER WIRE AB01269000
54 4
0
1.76 1 IC
AB02467000
55 4
0
3.36 1 IC
1/4W 1K +-5%
1/8W 1K +-5%
1/2W 10K +-5%
1/8W 10K +-5%
1/4W 100K +-5%
1/8W 12K +-5%
1/8W 1.5M +-5%
1/8W 330 +-5%
1/8W 3.3K +-5%
1/8W 330K +-5%
1/8W 47K +-5%
1/8W 5.6K +-5%
.01U 50V +-5% MEF
.0068U 50V J PEN P
.68uH +-10% (SP030
C708 VQ-730 REV1
MITSUBISHI DSP-201
URITE F10 RHW 3.5X
NWE W5 3.5X6X1.0+T
SL 4X2.5X3
D=0.6MM P5.0
D=0.6MM P7.5
D=0.6MM P10
D=0.6MM P12.5
D=0.6MM P20
D=0.6MM P30
LM1269 TO220-24 VI
LM2467 TO220-9
Page 27
AB02480000
56 4
0 0.60 1 IC AB06827000
57 4
0 2.00 1 IC CA001BU310
58 4
1 0.23 1 CERAMIC CAP. CB10003M0T
59 4
H 0.04 1 CAPACITOR DC03000880
60 4
5 0.03 1 WAFER CONN. DC03000890
61 4
2 0.10 1 WAFER CONN. DC03001560
62 4
7 0.04 1 WAFER CONN. DC03003130
63 4
2 0.01 1 WAFER CONN. DC04004490
64 4
65 4
1 0.88 1 SOCKET DC09000130
2 0.01 1
TERMINAL CHASSIS GND
ECC7082100
66 4
0 0.60 1 SVB_SHIELD ECC7082200
67 4
0 0.40 1 SVB_COVER ECN5034310
68 4
0 0.69 1 VIDEO HEAT SINK LCC7084400
69 4
0 0.23 1 IC HEATSINK MAA7000620
70 4
2 0.02 1 SCREW NA10180090
71 4
0 0.22 1 WIRE SET NA20140010
72 4
0 0.19 1 NET WIRE SET
73 3 456A6630011 33.85 1 PCBA DEF&POW/B
74 4 446A6630011 9.75 1 AIS DEF&POW/B
BB1042300T
75 5
4 0.11 3 TRANSISTOR BB1073302T
76 5
4 0.06 10 TRANSISTOR BB30945P1T
77 5
5 0.06 10 TRANSISTOR BB3121300T
78 5
9 0.14 1 TRANSISTOR BB3162700T
79 5
0 0.18 1 TRANSISTOR BB3190608T
80 5
4 0.16 1 TRANSISTOR BB5094100T
81 5
8 0.62 1 TRANSISTOR BBX042000T
82 5
9 0.11 1 TRANSISTOR BBX120300T
83 5
1 0.08 1 TRANSISTOR
LM2480 DIP-8
NT6827 DIP-16 OSD
.01U 2KV +80 -20%
100U 16V M A P5
JST B6B-XH-A 2.5
JST B8B-XH-A 2.5
JST B5B-XH-A 2.5
Y.Y 7551 (J88)
CRT DH720D 22.5D 1
CS-11-029 (J88)
C70821
C70822
N50343
C70844 26X8.5X15MM
M3X0.5+8P-NI & WAS
4.3DX180X5T 1007#1
4.3DX140X5T 112/.1
VA-730 MF708 CPT M
VA-730 MF708 CPT M
HBF423 PNP TO-92
2SA733-P
2SC945-P
2SC1213A NPN TO-92
2SC1627
2SC1906
2SK941 1N TO-92 W/
BF420
RN1203 (TE4,M)
Page 28
84 5
85 5
86 5
87 5
88 5
89 5
90 5
91 5
92 5
93 5
94 5
95 5
96 5
97 5
98 5
99 5
100 5
101 5
102 5
103 5
104 5
105 5
106 5
107 5
108 5
109 5
110 5
BBX120600T 8 0.08 2 TRANSISTOR
RN1206 (TE4,M)
BC11N4148T 8 0.02 21 DIODE
1N4148
BC1ER1010T 0 0.12 2 DIO
HER101 DO-15 EVERW
BC1ER1060T 0 0.16 2 DIODE
HER106G DO-41
BC1F40071T 0 0.21 2 DIO
UF4007 DO-41 PANJI
BC1FR1040T 0
0.04 2 DIODE
FR104 DO-41
BC1FR1051T 0 0.04 1 DIO
FR105 DO-41 EVERWE
BC40HZ6C2 T1 0.05 1 ZENER DIODE
HZ6C-2
BC40HZ9A2 T6 0.05 1 ZENER DIODE
HZ9A-2
BC4HZ5C10 T8 0.05 5 ZENER DIODE
HZ5C1
BCSN58171T 0 0.17 1 SCHOTTKY DIODE
1N5817 DO-41 PANJI
CA001A601T 8 0.03 3 CERAMIC CAP.
.1U 50V Z Y5V P5
CA001B631T 8 0.01 16 CERAMIC CAP.
.01U 50V -20 +80%
CA001D600T 2 0.02 4 CERAMIC CAP.
100P 50V +-5% NPO
CA010CCM0 T6 0.04 1 CERAMIC CAP.
.01U 500V M Z5U P5
CA010D6K0 T8 0.01 3 CERAMIC CAP.
1000P 50V K Y5P P5
CA010DCKH T0 0.02 1 CERAMIC CAP.
1000P 500V K Y5P P
CA010DEK0 T0 0.04 1 CERAMIC CAP.
1000P 1KV K Y5P P5
CA015E602T 0 0.02 1 CERAMIC CAP.
150P 50V +-5% NPO
CA022D6K0 T0 0.02 1 CER CAP
2200P 50V K Y5P P5
CA022DEK0 T8 0.07 1 CERAMIC CAP.
2200P 1KV K Y5P P5
CA022E6K0T 3 0.01 2 CERAMIC CAP.
220P 50V K Y5P P5
CA022F6J0T 9 0.02 1 CERAMIC CAP.
22P 50V J NPO P5
CA033ECK0 T1 0.02 1 CERAMIC CAP.
330P 500V K Y5P P5
CA033F601T 6 0.01 2 CERAMIC CAP.
33P 50V +-5% NPO P
CA047E6K0T 7 0.01 2 CERAMIC CAP.
470P 50V K Y5P P5
CA082E6K0T 0 0.02 1 CERAMIC CAP.
820P 50V K Y5P P5
Page 29
111 5
112 5
113 5
114 5
115 5
116 5
117 5
118 5
119 5
120 5
121 5
122 5
123 5
124 5
125 5
126 5
127 5
128 5
129 5
130 5
131 5
132 5
133 5
134 5
135 5
136 5
137 5
CB0010642T 9 0.03 3 CAPACITOR
1U 50V +-20% 85C P
CB0010648T 2 0.05 1 CAPACITOR (N.P)
1U 50V +-20% 85C P
CB0010A41T 9 0.03 1 CAPACITOR
1U 100V M B P5 (TM
CB0100642T 8 0.03 2 CAPACITOR
10U 50V M A P5
CB0100AM0 T0 0.04 1 CAPACITOR
10U 100V M B P5 (T
CB02206M0T H 0.03 2 CAPACITOR
22U 50V M A P5
CB0220A42T 5 0.07 1 CAPACITOR
22U 100V +-20% 85C
CB022A645T 0 0.03 2 CAPACITOR
2.2U 50V +-20% 85C
CB022BAM0 T0 0.03 1 ELE CAP
.22U 100V M A P5
CB04703M0T H 0.03 3 CAPACITOR
47U 16V M A P5
CB047A641T 4 0.03 5 CAPACITOR
4.7U 50V M B P5
CB047A6M3 T0 0.06 1 ELE CAP
4.7U 50V +-20% 85C
CB10003M0T H 0.04 4 CAPACITOR
100U 16V M A P5
CB10004M1T H 0.04 3 CAPACITOR
100U 25V M A P5
CB47004M1T 7 0.13 1 CAPACITOR
470U 25V M A P5
CC0010011T 9 0.01 1 RESISTOR
1/2W 1 +-5%
CC0010491T 1 0.02 1 RESISTOR (MOF)
1W 1 +-5%
CC005A471T 3 0.07 1 RESISTOR (FUSE)
1W .5 +-5%
CC0100171T 0 0.03 4 RESISTOR (FUSE)
1/4W 10 +-5%
CC015A491T 0 0.03 2 RES MOF
1W 1.5 +-5%
CC0220011T 8 0.01 1 RESISTOR
1/2W 22 +-5%
CC0220111T 3 0.01 4 RESISTOR
1/4W 22 +-5%
CC0220211T 9 0.01 1 RESISTOR
1/8W 22 +-5%
CC022A111T 3 0.01 1 RESISTOR
1/4W 2.2 +-5%
CC0470111T 7 0.01 3 RESISTOR
1/4W 47 +-5%
CC0470491T 4 0.03 1 RESISTOR (MOF)
1W 47 +-5%
CC1000071T 5 0.03 1 RESISTOR (FUSE)
1/2W 100 +-5%
Page 30
CC1000111T
138 5
2 0.01 6 RESISTOR CC1000211T
139 5
8 0.01 5 RESISTOR CC1000491T
140 5
0 0.03 1 RESISTOR (M0F)
141 5 CC1001111T7 0.01 3 RESISTOR
CC1001125T
142 5
2 0.01 2 RESISTOR (M.F.) CC1001211T
143 5
2 0.01 6 RESISTOR CC1002111T
144 5
1 0.01 14 RESISTOR CC1002211T
145 5
7 0.01 33 RESISTOR CC1003211T
146 5
1 0.01 1 RESISTOR CC1003225T
147 5
7 0.01 1 RESISTOR (M.F.)
148 5 CC1201111T2 0.01 1 RESISTOR
CC1201211T
149 5
8 0.01 1 RESISTOR CC1202111T
150 5
7 0.01 1 RESISTOR CC1202211T
151 5
2 0.01 1 RESISTOR CC1500491T
152 5
3 0.03 2 RESISTOR (MOF) CC1502011T
153 5
0 0.01 1 RESISTOR CC1502211T
154 5
1 0.01 1 RESISTOR CC1503011T
155 5
4 0.01 1 RESISTOR CC1602111T
156 5
8 0.01 1 RESISTOR CC1800011T
157 5
9 0.01 1 RESISTOR CC1802111T
158 5
3 0.01 1 RESISTOR CC1803211T
159 5
3 0.01 1 RESISTOR CC1822125T
160 5
6 0.01 1 RESISTOR (M.F.) CC2002211T
161 5
9 0.01 3 RESISTOR
162 5 CC2201111T4 0.01 3 RESISTOR
CC2201211T
163 5
0 0.01 5 RESISTOR CC2202111T
164 5
9 0.01 1 RESISTOR CC2202211T
165 5
4 0.01 1 RESISTOR
1/4W 100 +-5%
1/8W 100 +-5%
1W 100 +-5%
1/4W 1K +-5%
1/4W 1K +-1%
1/8W 1K +-5%
1/4W 10K +-5%
1/8W 10K +-5%
1/8W 100K +-5%
1/8W 100K +-1%
1/4W 1.2K +-5%
1/8W 1.2K +-5%
1/4W 12K +-5%
1/8W 12K +-5%
1W 150 +-5%
1/2W 15K +-5%
1/8W 15K +-5%
1/2W 150K +-5%
1/4W 16K +-5%
1/2W 180 +-5%
1/4W 18K +-5%
1/8W 180K +-5%
1/4W 18.2K +-1%
1/8W 20K +-5%
1/4W 2.2K +-5%
1/8W 2.2K +-5%
1/4W 22K +-5%
1/8W 22K +-5%
Page 31
CC2203011T
166 5
8 0.01 1 RESISTOR CC2204111T
167 5
8 0.01 3 RESISTOR CC2212125T
168 5
8 0.01 1 RESISTOR (M.F.) CC2212225T
169 5
3 0.01 1 RESISTOR (M.F.)
170 5 CC2401111T0 0.01 1 RESISTOR
CC2401211T
171 5
5 0.01 1 RESISTOR
172 5 CC2701111T8 0.01 1 RESISTOR
CC2701225T
173 5
0 0.01 1 RESISTOR (M.F.)
174 5 CC3001111T1 0.01 1 RESISTOR
CC3300211T
175 5
0 0.01 2 RESISTOR
176 5 CC3301111T9 0.01 3 RESISTOR
CC3301211T
177 5
4 0.01 4 RESISTOR CC3302111T
178 5
3 0.01 1 RESISTOR CC3602111T
179 5
1 0.01 1 RESISTOR CC3900211T
180 5
6 0.01 2 RESISTOR
181 5 CC3901111T5 0.01 1 RESISTOR
CC3901211T
182 5
1 0.01 1 RESISTOR CC3902111T
183 5
0 0.01 1 RESISTOR CC3902211T
184 5
5 0.01 1 RESISTOR CC3903211T
185 5
0 0.01 1 RESISTOR CC4700011T
186 5
1 0.01 1 RESISTOR CC4700111T
187 5
7 0.01 1 RESISTOR CC4700211T
188 5
2 0.01 1 RESISTOR
189 5 CC4701111T1 0.01 3 RESISTOR
CC4701211T
190 5
7 0.01 4 RESISTOR CC4702111T
191 5
6 0.01 2 RESISTOR CC4702211T
192 5
1 0.01 1 RESISTOR CC4703011T
193 5
5 0.01 2 RESISTOR CC4703111T
194 5
1 0.01 1 RESISTOR
1/2W 220K +-5%
1/4W 2.2M +-5%
1/4W 22.1K +-1%
1/8W 22.1K +-1%
1/4W 2.4K +-5%
1/8W 2.4K +-5%
1/4W 2.7K +-5%
1/8W 2.7K +-1%
1/4W 3K +-5%
1/8W 330 +-5%
1/4W 3.3K +-5%
1/8W 3.3K +-5%
1/4W 33K +-5%
1/4W 36K +-5%
1/8W 390 +-5%
1/4W 3.9K +-5%
1/8W 3.9K +-5%
1/4W 39K +-5%
1/8W 39K +-5%
1/8W 390K +-5%
1/2W 470 +-5%
1/4W 470 +-5%
1/8W 470 +-5%
1/4W 4.7K +-5%
1/8W 4.7K +-5%
1/4W 47K +-5%
1/8W 47K +-5%
1/2W 470K +-5%
1/4W 470K +-5%
Page 32
CC4703491T
195 5
0 0.03 1 RES MOF CC5102211T
196 5
7 0.01 1 RESISTOR CC5362125T
197 5
0 0.01 1 RES MF CC5600011T
198 5
1 0.01 1 RESISTOR
199 5 CC5601111T1 0.01 1 RESISTOR
CC6492125T
200 5
0 0.01 1 RESISTOR (M.F.) CC8060225T
201 5
0 0.01 1 RES MF CC8200111T
202 5
1 0.01 1 RESISTOR CC8201211T
203 5
1 0.01 1 RESISTOR CC8203111T
204 5
4 0.01 1 RESISTOR CJ010B6JNT
205 5
0 0.09 2 FILM CAP CJ010C6JNT
206 5
1 0.09 1 FILM CAP CJ010D6GNT
207 5
0 0.14 1 FILM CAP CJ022B6JNT
208 5
0 0.13 3 FILM CAP CJ047B6JNT
209 5
0 0.23 1 FILM CAP CJ047C6JNT
210 5
0 0.09 1 FOLM CAP CJ047D6JNT
211 5
0 0.09 2 FILM CAP CJ068C6JNT
212 5
0 0.09 1 FILM CAP CJ082D6JNT
213 5
0 0.09 1 FILM CAP DA1C708V01
214 5
0 3.29 1 PCB DC1100010T
215 5
0 0.64 1 SPARK GAP DC1510003T
216 5
2 0.02 3 BEAD DC1510005T
217 5
0 0.02 1 BEAD DC38200000
218 5
2 0.01 19 EYELET DC38200020
219 5
0 0.01 11 EYELET X61A663000
220 5
1 2.36 1 AIS DEF&POW/B AB0043102T
221 6
0 0.23 1 IC
222 6 BB3004401T 0.10 1 TRANSISTOR
1W 470K +-5%
1/8W 51K +-5%
1/4W 53.6K +-1%
1/2W 560 +-5%
1/4W 5.6K +-5%
1/4W 64.9K +-1%
1/8W 806 +-1%
1/4W 820 +-5%
1/8W 8.2K +-5%
1/4W 820K +-5%
.1U 50V J MEF P5(J
.01U 50V J PPN P5(
.001U 50V G PPN P5
.22U 50V J MEF P5(
.47U 50V J MEF P5(
.047U 50V J MEF P5
.0047U 50V J PEN P
.068U 50V J MEF P5
.0082U 50V J PEN P
C708 VA-730 REV1
MITSUBISHI DSP-152
FER RI TE RH3.5X8.
URITE F10 RHW 3.5X
SL 4X2.5X3
LY 4X3X3.5
VA-730 MF708
KA431AZ TO-92 REGU
KSP44 NPN TO-92
Page 33
BB30945P1T
223 6
5 0.06 2 TRANSISTOR BBX120300T
224 6
1 0.08 2 TRANSISTOR BC11N4148T
225 6
8 0.02 6 DIODE BC1ER1040T
226 6
0 0.14 1 DIODE BC1ER1071T
227 6
0 0.20 1 DIODE BC1ER2030T
228 6
0 0.25 2 DIODE BC1F202G0T
229 6
0 0.24 1 DIODE BC1FR1071T
230 6
0 0.04 1 DIODE BC4HZ2020T
231 6
7 0.05 1 ZENER DIODE BC9T169D0T
232 6
7 0.23 1 SCR CA001A601T
233 6
8 0.03 2 CERAMIC CAP. CA010D6K0
234 6
T8 0.01 3 CERAMIC CAP. CA033E6K0T
235 6
0 0.01 1 CERAMIC CAP. CA033EEK0
236 6
T0 0.04 2 CERAMIC CAP. CB0100642T
237 6
8 0.03 1 CAPACITOR CB02206M0T
238 6
H 0.03 1 CAPACITOR CB04703M0T
239 6
H 0.03 1 CAPACITOR CB10004M1T
240 6
H 0.04 2 CAPACITOR CB2200441T
241 6
6 0.08 1 CAPACITOR CC002A471T
242 6
2 0.07 1 RESISTOR (FUSE) CC0100011T
243 6
8 0.01 2 RESISTOR CC0220111T
244 6
3 0.01 1 RESISTOR CC022A111T
245 6
3 0.01 1 RESISTOR CC0470111T
246 6
7 0.01 1 RESISTOR CC0470211T
247 6
2 0.01 1 RESISTOR CC0750011T
248 6
2 0.01 1 RESISTOR
249 6 CC0820111T 0.01 1 RESISTOR
250 6 CC1001211T 0.01 4 RESISTOR
2SC945-P
RN1203 (TE4,M)
1N4148
HER104 DO-41
HER107G DO-41
HER203G DO-41 EVER
UF202G DO-41 PANJI
FR107 DO-41
HZ20-2
BT169D TO-92
.1U 50V Z Y5V P5
1000P 50V K Y5P P5
330P 50V K Y5P P5
330P 1KV K Y5P P5
10U 50V M A P5
22U 50V M A P5
47U 16V M A P5
100U 25V M A P5
220U 25V M B P5
1W .2 +-5%
1/2W 10 +-5%
1/4W 22 +-5%
1/4W 2.2 +-5%
1/4W 47 +-5%
1/8W 47 +-5%
1/2W 75 +-5%
1/4W 82 +-5%
1/8W 1K +-5%
Page 34
2
CC1002111T
251 6
1 0.01 1 RESISTOR CC1002211T
252 6
7 0.01 2 RESISTOR CC1003211T
253 6
1 0.01 1 RESISTOR CC1004011T
254 6
5 0.01 3 RESISTOR CC1004211T
255 6
6 0.01 1 RESISTOR CC2002211T
256 6
9 0.01 3 RESISTOR CC2201211T
257 6
0 0.01 1 RESISTOR CC2202011T
258 6
3 0.01 1 RESISTOR CC2202491T
259 6
0 0.03 1 RESISTOR (MOF) CC2400211T
260 6
0 0.01 1 RESISTOR CC2702011T
261 6
7 0.01 1 RESISTOR CC3001211T
262 6
6 0.01 1 RESISTOR CC3002211T
263 6
1 0.01 1 RESISTOR CC3302491T
264 6
1 0.03 1 RESISTOR (MOF) CC4700011T
265 6
1 0.01 1 RESISTOR
266 6 CC4701111T1 0.01 1 RESISTOR
CC4701211T
267 6
7 0.01 4 RESISTOR CC6800011T
268 6
8 0.01 1 RESISTOR CC8200491T
269 6
8 0.03 1 RESISTOR (MOF) CJ022B6JNT
270 6
0 0.13 1 FILM CAP CJ033C6JNT
271 6
0 0.09 1 FILM CAP CJ033D6JNT
272 6
0 0.09 1 FILM CAP CJ068CBJ5T
273 6
0 0.11 1 FILM CAP DC1510003T
274 6
2 0.02 1 BEAD XX0900T212
275 6
7 0.01 1 JUMPER WIRE XX0900T211
276 5
9 0.01 32 JUMPER WIRE XX0900T212
277 5
7 0.01 25 JUMPER WIRE
1/4W 10K +-5%
1/8W 10K +-5%
1/8W 100K +-5%
1/2W 1M +-5%
1/8W 1M +-5%
1/8W 20K +-5%
1/8W 2.2K +-5%
1/2W 22K +-5%
1W 22K +-5%
1/8W 240 +-5%
1/2W 27K +-5%
1/8W 3K +-5%
1/8W 30K +-5%
1W 33K +-5%
1/2W 470 +-5%
1/4W 4.7K +-5%
1/8W 4.7K +-5%
1/2W 680 +-5%
1W 820 +-5%
.22U 50V J MEF P5(
.033U 50V J MEF P5
.0033U 50V J PEN P
.068U 250V J MEF P
FER RI TE RH3.5X8.
D=0.6MM P7.5
D=0.6MM P5.0
D=0.6MM P7.5
Page 35
XX0900T213
278 5
279 5
280 5
281 5
282 5
283 5
284 5
285 4
286 4
287 4
288 4
289 4
290 4
291 4 BB108570001
292 4 BB206490010
293 4 BB355210000
294 4 BB406690012
295 4 BB506300305
296 4 BB506400300
297 4
298 4
299 4
300 4
301 4
302 4
303 4
304 4
305 4
306 4
5 0.01 40 JUMPER WIRE XX0900T214
3 0.01 28 JUMPER WIRE XX0900T215
1 0.01 20 JUMPER WIRE XX0900T216
0 0.01 19 JUMPER WIRE XX0900T217
8 0.01 16 JUMPER WIRE XX0900T218
6 0.01 4 JUMPER WIRE XX0900T219
4 0.01 5 JUMPER WIRE AB02408000
2 0.60 1 IC AB04856000
0 4.08 1 IC AB06116140
0 AB07805030
0 AB07812030
0 AB08172000
7
BC1ER3040N 3
BC1SC02300 1
BC5LA46B00 0
BD112P0M10 0
CB0220H420 8
CB0470A412 4
CB0470B430 1
CB10013M00 H
CC0010491M 2
CC068A491 M4
2.80 1 IC
1.00 1 IC
0.88 1 IC
1.44 1 IC
0.52 1 TRANSISTOR
0.49 1 TRANSISTOR
1.93 1 TRANSISTOR
0.43 1 TRANSISTOR
0.64 2 TRANSISTOR
1.00 1 TRANSISTOR
0.42 1 DIODE
1.87
0.37
0.47 1 CRYSTAL
0.13 1 CAPACITOR
0.15 1 CAPACITOR
0.42 1 CAPACITOR
0.18 2 CAPACITOR
0.03 1 RESISTOR (MOF)
0.04 1 RESISTOR (MOF)
1
1
DIODE
LED
D=0.6MM P10
D=0.6MM P12.5
D=0.6MM P15
D=0.6MM P17.5
D=0.6MM P20
D=0.6MM P25
D=0.6MM P30
EE 8K DP A
TDA4856 DIP-32 DEF
WT6116-N400CM-97A
KA78R05 TO-220F-4L
KA78R12 TO-220F-4L
TDA8172
HSB857-C PNP TO-22
2SB649A-C (TO-126)
2SC5521 NPN TO-3PF
2SD669A-C (TO-126)
IRFS630A 1N TO-220
IRFS640A 1N TO-220
ER304-F17 DO-201AD
ESC023M-15 TO-3PF
LA46B/YSG-S4 YEL/G
12MHZ HC-49/U +-50
22U 160V M A P5
47U 100V +-20% 105
47U 250V +-20% 85C
1000U 16V M A P5
1W 1 +-5%
1W 6.8 +-5%
Page 36
CC068A591
4
307
308 4
309 4 CC680085103
310 4 CF220010409
311 4
312 4 CJ012BFJ500
313 4 CJ015CEJ000
314 4
315 4 CJ027BFJ500
316 4 CJ036BF0000
317 4 CJ047CBJ000
318 4 CJ047CEJ500
319 4 CJ068DEJ500
320 4
321 4 CL270000100
322 4 CL370000104
323 4 CL370000201
324 4 CL370000309
325 4
326 4
327 4
328 4
329 4
330 4
331 4
332 4
333 4 DC03J001901
334 4
335 4
336 4
337 4 DG20000560
338 4
M0 CC0820591M
3
CJ010AB000 3
CJ022A7JN0 0
CJ075DWJ01 9
DC02012940 0
DC02013600 0
DC02013610 0
DC03001340 0
DC03001851 0
DC03002050 3
DC03003130 1
DC03009110 9
DC09000130 1
DC24000200 5
DEB1100000 9
DG30001480 0
0.04 3 RESISTOR (MOF)
0.04 1 RESISTOR (MOF)
0.23 1 RESISTOR (CEMENT)
0.10 1 TRIMMER RES.
0.41 1 MYLAR CAP.
0.47 1 MYLAR CAP.
0.41 1 FILM CAP
0.41 1 FILM CAP
0.47 1 FILM CAP
0.42 1 MYLAR CAP.
0.10 2 MYLAR CAP.
0.56 1 FILM CAP
0.40 1 FILM CAP
0.47 1 MYLAR CAP.
0.39
0.44 1 CHOKE COIL
0.43
0.19 1 CHOKE COIL
0.43 1 HOUSING CONN. SET
0.62 1 HOUSING CONN. SET
0.17 1 HOUSING CONN. SET
0.08 1 WAFER CONN.
0.12
0.01
0.01 1 WAFER CONN
0.01 1 WAFER CONN.
0.07 1 WAFER CONN.
0.01 3
1.43
0.08
0.62 1 X'FORMER
9.13 1 X'FORMER
2
1
1
1
1
3
COIL (LINE)
CHOKE COIL
WAFER CONN.
WAFER CONN.
TERMINAL CHASSIS GND
RELAY
TACT SWITCH
2W 6.8 +-5%
2W 82 +-5%
5W 680 +-5% (SQM)
1/10W 2KB VZ068TL1
1.0U 250V +-5% MPP
.12U 400V J MPA P1
.015U 1KV J MPM P1
2.2U 63V J MEF P15
.27U 400V J MPP P2
.36U 400V +-5% MPP
.047U 250V J MEF P
.047U 1KV J MPM P2
.0068U 1KV J MPM P
.0075U 1.6KV J MPM
M773 12.5uH A @-4A
H763 145uH +-7% 16
H763 120uH +-7% 16
H763 6mH +-7% 10X1
M777 MB P3-CRT P30
V798 MB P104-CRT P
V798 MB G2-CRT G2
JST B7B-XH-A 2.5
YUEAN-YUH 1081-04
YUEAN-YUH 2540-02
Y.Y 7551
YUEAN-YUH 2540-03
JST B3B-EH 2.5
CS-11-029
DC12V OMI-SH-212L
PM564 KSM0632B
N703 HDT EI-22
N703 0003-08C
Page 37
DG60000310
4
339
340 4
341 4
342 4
343 4
344 4
345 4
346 4
347 4
348 4
349 4
350 4
351 4
352 4
353 4
354 4
355 4
356 4
357 5
358 5
359 5
360 5
361 5 BB527610001
362 5
363 5
364 5
365 5
366 5 CA001CBMY
0 ECM5703200
1 EEH7634100
4 EEM5714100
3 FCM7684200
0 FCN5034600
0 KA000001ZZ
4 KA000600ZZ
0 LCV7982200
0 LCV7984100
0 LCV7984200
0 MAA7000620
2 MAA7006440
0 MAB7000840
6 MAB7008140
0 MAB7T0015
01 MAB7T0024
01 X62A663000
1 AB00817000
0 AB03842040
4 AB07805030
0 BB20772Q50
5
BC1ER3040N 3
BC1F54024N 0
BC1GBU4J00 0
CA001BE110 1
0.62 1 X'FORMER
0.33 1 REAR BRACKET (M570)
0.05 1 EEPROM SHIELD
0.08 1 6861UP SHIELD
0.08
0.10
0.02 1 LOCKING CABLE TIE
0.01 2 LOCKING CABLE TIE
2.13 1 HEAT SINK
0.39 1 HEAT SINK
0.60 1 HEAT SINK
0.02 5 SCREW
0.02 2 SCREW
0.01 2 SCREW
0.02
0.01
0.01 2 SCREW
8.98 1 PCBA DEF&POW/B
0.33 1 IC
0.58 1 IC
1.00 1 IC
0.38 2 TRANSISTOR
1.73 1 TRANSISTOR
0.42 1 DIODE
0.36 1 DIODE
0.80 1 DIO
0.11 2 CERAMIC CAP.
0.12
3
1
2
1
1
PCB HOLDER POWER SWITCH
EXPANDI
SCREW
SCREW
CER CAP
V700 FOCUS EI-22
M57032
H76341
M57141
M76842
GIN LIAN SI-02
142MM
W2.5XL120 WHITE
V79822 L141XW90XH8
V79841 L16XW16XH35
V79842 L50XW18.5XH
M3X0.5+8P-NI & WAS
M4X0.7+8CF-MC(EX.L
TPB-3+8C-MC
TPB-3+8CF-MC(EX.LO
TPB-3+8V-UC
TPB-4+8C-MC
VA-730 MF708
LTV-817M-B DIP-4 P
KA3842A DIP-8 PWM
KA78R05 TO-220F-4L
2SB772-Q
2SK2761-01MR 1N TO
ER304-F17 DO-201AD
UF5402G-F17 DO-201
GBU4J BRIDGE 4A/60
.01U 1KV +-20% Z5U
1000PF 250V AC M Y
Page 38
H0
CA022DBM
367 5
368 5
369 5
370 5
371 5
372 5
373 5
374 5
375 5
376 5
377 5
378 5
379 5 CF250000703
380 5
381 5 CL310004716
382 5 CL900042003
383 5
384 5
385 5
386 5
387 5
388 5
389 5
390 5
391 5
392 5 LC040056608
393 5 MAA2009640
394 5
Y07 CA047DBM
Y27 CB0470P410
5 CB10013M0T
4 CB10014M00
6 CB1500FM01
9 CB22013M00
8 CB4700AM0
04 CC0080867U
0 CC0090884U
0 CC033BL91
M0 CC4702591N
8
CJ047BXMX 10
DC02014480 0
DC03003920 0
DC04000500 1
DC10000150 2
DC15000700 8
DC24000360 0
DEA2200020 0
DG10001550 0
DX23P1521C 1
NA10130140 1
0.12
0.27 2 CERAMIC CAP. (Y1)
0.40 1 CAPACITOR
0.16 1 CAPACITOR
0.26 2 CAPACITOR
1.72 1 CAPACITOR
0.30 1 CAPACITOR
0.57 1 CAPACITOR
0.31 1
0.65
0.04
0.04 1 RESISTOR (MOF)
0.10 1 TRIMMER RES.
0.39 2 FILM CAP
0.08 3 CHOKE COIL
0.68 2 LINE FILTER
0.48 1 H-CON SET
0.05
0.41
0.05 2 FUSE HOLDER
0.14 1 CORE
1.10 1 RELAY
0.41 1 PUSH SW
1.88 1 X'FORMER
0.13 1 FUSE
0.41 1 HEAT SINK
0.02 1 SCREW
0.07 1 WIRE SET
1
1
1
1
1
CERAMIC CAP.
RESISTOR (THERMISTOR
RESISTOR (POSISTOR)
RES MOF
WAFER CONN.
POWER SOCKET
2200P 250VAC M Y5V
4700P 250VAC M 2E3
47U 200V M B P5 (T
1000U 16V M A P5
1000U 25V M B P5
150U 400V M A P10
2200U 16V M A P5
470U 100V M B P7.5
5A 8 +-15% 15SP008
5W 9 +-30% DISK KI
3W .33 +-5% S
2W 47K +-5%
1/10W 500 VZ068TL1
.47U 275VAC M MKP
H799 5UH +-10% @1A
F562 EE-25
C908 MB P903-P903A
LEOCO 3941-3 (W/O
POWER 0714 (INALWA
CQ-203LR
TOKIN FR19/10/10-4
DC12V OSA-SS-212DM
N503 PS02-KNAY1EAA
C708 POWER ERL-35
3.15A 250V S SEMKO
MK-503 36X11.2X55
M3X0.5+12P-MC (ADD
1.8DX130X1.8D 1617
Page 39
NA10195021
5
395
396 4
397 2 51A11930002
398 3
399 3
400 3
401 2
402 2
403 2
404 2 ELF70848000
405 2 FAF70811500
406 2
407 2
408 2
409 2
410 2
411 2
412 3
413 3
414 3
415 3
416 3
417 3
418 3
419 3
420 3
421 1 62006830021
422 2 EJ4F7080400
423 2
0 XX0900T214
3
AC50002412 0
DC02014790 0
KA000600ZZ 0
CLA7F00000 0
DC02013510 0
DC19003023 0
KA000600ZZ 0
KA006700ZZ 1
MAA7006440 0
MAB7000840 6
NA20060020 0
X66AE83000 1
EXH9714110 0
FBC7083100 0
FBC7084100 0
FCC7082100 0
FCC7082200 0
FCM5704200 7
FHH5664800 4
MAB2008540 7
MAB7007640 0
HB4F708030 0
0.11 1 WIRE SET
0.01 1 JUMPER WIRE

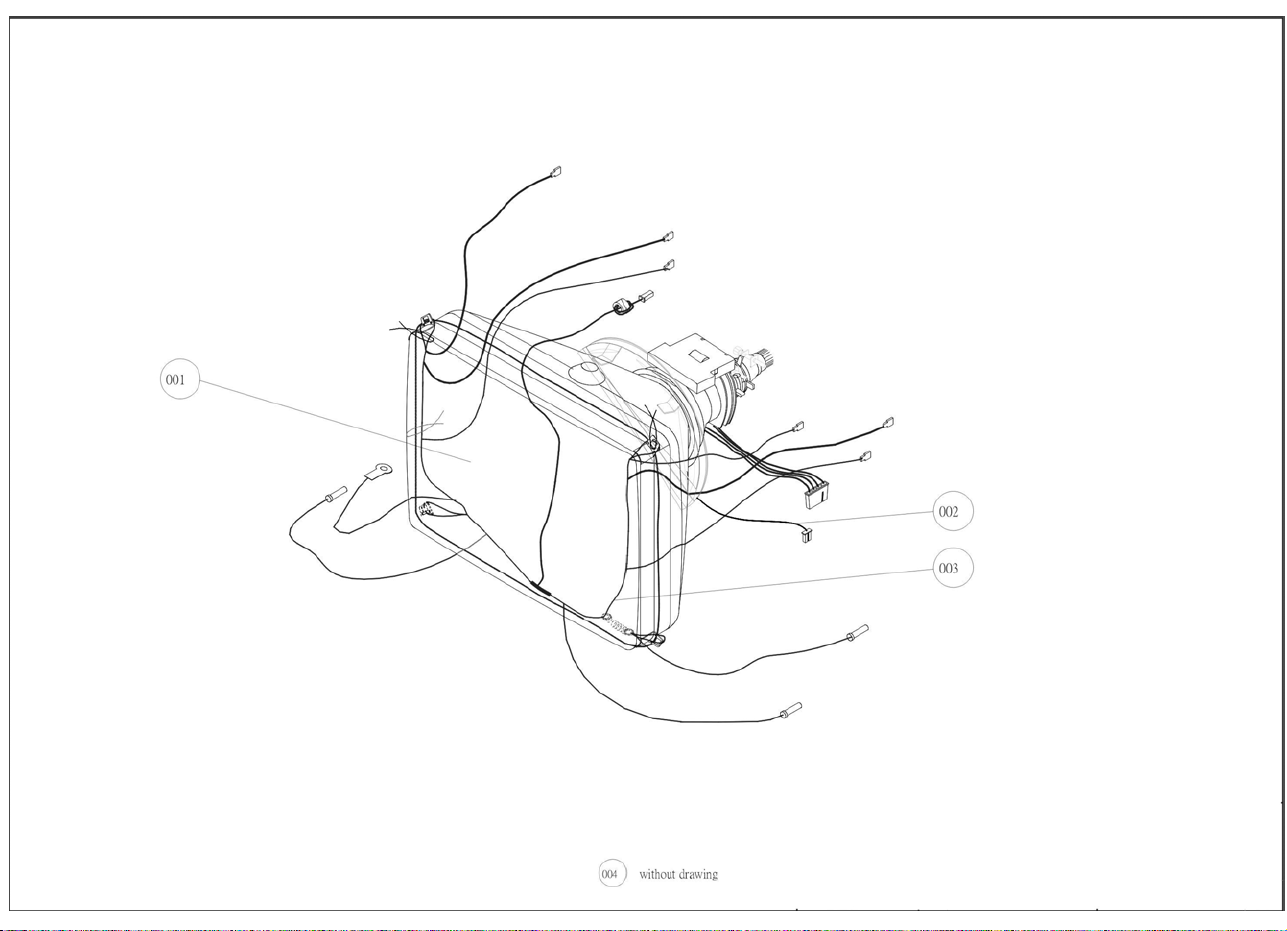

103.87 1 CRT&YOKE ASSY
74.18 1 CRT&YOKE
1.54 1 H-CON SET
0.01 11 LOCKING CABLE TIE
3.02 1 DEGAUSSING COIL
0.33 1 HOUSING CONN. SET
4.08 1 CB ASSY
0.13 2 MYLAR
3.88 1 BEZEL(ABO)
0.01 11 LOCKING CABLE TIE
0.02
0.02
0.01 1 SCREW
0.30 1 NET SET
1.59 1 MEC PARTS CCE
0.11 1 BUTTON SPRING
0.20 1 FUNCTION KN0B
0.10 1 POWER KNOB
0.44 1 GUIDE(L)
0.44 1 GIODE(R)
0.08
0.09
0.02 4 TAPING SCREW
0.04 4 SCREW
4.15 1 PACKING ABO-CHINA
0.23 1 RATING NP
3.27 1 CARTON
3
1
1
4
LOCKING CABLE TIE
SCREW
LED LENS (M570)
RUBBER WASHER
4.3DX195X10T 1015#
D=0.6MM P12.5
MF708C MPRII
M41AJR53X76 P(LL)
C708 CRT-GND AROUN
W2.5XL120 WHITE
F768 CRT AROUND .5
M557 MB-CRT E-CAN.
C708 20276/2CORE 1
F70848(10X15X2.5)
F70811(ABS)(WG017)
W2.5XL120 WHITE
W2.5XL203 WHITE (Y
M4X0.7+8CF-MC(EX.L
TPB-3+8C-MC
D3.96X60XW5.6 112C
MF708C UR+TCO99 WG
DJ72-K008 3332452
C70831
C70841
C70821
C70822
M57042
H56648
TPB-4.0+20C-MC
TPB-5+22P-MC WASHE
MF708G UR+MPRII WG
N-F708-ABO UFGC MP
C-F708-ABO W/W CHN
Page 40
HDABOF708
424 2
425 2
426 2
427 2
428 1
429 1
430 2
431 2 FAV70015000
432 2
433 2 FJF70813000
434 2 FJF70814000
435 2
Line Leve
1 1 5224A830031
2 2 51A11830031 39.80 1 VIDEO ASSY
3 3 452A6030001 9.86 1 PCBA CRT/B
4 4 442A6030001 3.13 1 AIS CRT/B
5 5
6 5
7 5
8 5
9 5
10 5
11 5
12 5
13 5
14 5 CA022E601T 0.03 1 CERAMIC CAP.
15 5
16 5 CB0100A43T 0.04 1 CAPACITOR
00 HGTMM6A0
104 HGTMPRII11
8 HK3TX17M0
09 GA0900000C
0 X66AE73001
1 FAC7081200
0
FHV7994100 0
MAB2008540 7
Part
l
BC101SS82T 2 0.10 9 DIODE
BC11N4148T 8 0.02 1 DIODE
BC1FR1040T 0 0.04 1 DIODE
BC4HZ5C10 T8 0.05 1 ZENER DIODE
CA001A601T 8 0.03 13 CERAMIC CAP.
CA001D600T 2 0.02 2 CERAMIC CAP.
CA010CCM0 T6 0.04 7 CERAMIC CAP.
CA010DEK0 T0 0.04 1 CERAMIC CAP.
CA018ELK0 T0 0.07 1 CER CAP
CB0010AM0 T0 0.05 3 CAPACITOR (N.P.)
Model
MF708G0100 1 151.11 1 DIS ABO
1.12 1 USER'S MANUAL
0.03 2 LABEL
0.05 1 STATIC LABEL
0.49 1 PE BAG
1.77
9.11
8.65 1 BACK COVER
2.81 1 BASE ASSY
0.49 1 SPONGE
1.51 1 EPS FOAM(L)
1.51 1 EPS FOAM(R)
0.02 4 TAPING SCREW
Round
1
1
Usage Description
POWER CORD SET
MEC PACKING MIM
U-F708-ABO EFGSIDP
LOW RADIATION MPR
MPRII+ENERGY STAR
X17M L995XW430XH20
SP506X1.8MXIS14 RV
MF708C UR+MPRII WG
C70812
V70015 TOOLING 4
V79941
F70813
F70814
TPB-4.0+20C-MC
MF708G MPRII 17"LG
MF708G MPRII
VQ-730 MC708 LG
VQ-730 MC708 LG
1SS82
1N4148
FR104 DO-41
HZ5C1
.1U 50V Z Y5V P5
100P 50V +-5% NPO
.01U 500V M Z5U P5
1000P 1KV K Y5P P5
180P 2KV K Y5P P5
220P 50V +-5% NPO
1U 100V M A P5
10U 100V +-20% 85C
Spec
Page 41
2
CB0220A42T
17 5
5 0.07 2 CAPACITOR CB047A6M0
18 5
TH 0.03 1 CAPACITOR CB10003M0T
19 5
H 0.04 3 CAPACITOR CC033AI71T
20 5
0 0.03 1 RES FUSE CC0560111T
21 5
6 0.01 1 RESISTOR CC0680011T
22 5
1 0.01 3 RESISTOR CC0750211T
23 5
3 0.01 3 RESISTOR CC0820211T
24 5
5 0.01 3 RESISTOR CC1000111T
25 5
2 0.01 1 RESISTOR CC1000211T
26 5
8 0.01 14 RESISTOR CC1001011T
27 5
1 0.01 1 RESISTOR
28 5 CC1001111T7 0.01 2 RESISTOR
CC1001211T
29 5
2 0.01 4 RESISTOR CC1002091T
30 5
0 0.02 1 RES MOF CC1002211T
31 5
7 0.01 1 RESISTOR CC1003111T
32 5
6 0.01 1 RESISTOR CC1202211T
33 5
2 0.01 1 RESISTOR CC1504211T
34 5
0 0.01 1 RESISTOR CC3300211T
35 5
0 0.01 2 RESISTOR CC3301211T
36 5
4 0.01 4 RESISTOR CC3303211T
37 5
3 0.01 3 RESISTOR CC4702211T
38 5
1 0.01 1 RESISTOR CC5601211T
39 5
6 0.01 2 RESISTOR
40 5 CJ001B600T2 0.09 2 MYLAR CAP.
41 5 CJ068D6JNT 0.09 1 FILM CAP
CL4100056T
42 5
0 0.05 3 PEAKING COIL DA1C708V11
43 5
0 0.61 1 PCB
22U 100V +-20% 85C
4.7U 50V M A P5
100U 16V M A P5
1/2W 3.3 +-5% S
1/4W 56 +-5%
1/2W 68 +-5%
1/8W 75 +-5%
1/8W 82 +-5%
1/4W 100 +-5%
1/8W 100 +-5%
1/2W 1K +-5%
1/4W 1K +-5%
1/8W 1K +-5%
1/2W 10K +-5%
1/8W 10K +-5%
1/4W 100K +-5%
1/8W 12K +-5%
1/8W 1.5M +-5%
1/8W 330 +-5%
1/8W 3.3K +-5%
1/8W 330K +-5%
1/8W 47K +-5%
1/8W 5.6K +-5%
.01U 50V +-5% MEF
.0068U 50V J PEN P
.68uH +-10% (SP030
C708 VQ-730 REV1
Page 42
44 5
45 5
46 5
47 5
48 5
49 5
50 5
51 5
52 5
53 5
54 4
55 4
56 4
57 4
58 4
59 4
60 4
61 4
62 4
63 4
64 4
65 4
66 4
67 4
68 4
69 4
70 4
DC1100006T 0 0.41 3 SPARK GAP
MITSUBISHI DSP-201
DC1510005T 0 0.02 1 BEAD
URITE F10 RHW 3.5X
DC1510009T 0 0.02 4 BEAD
NWE W5 3.5X6X1.0+T
DC38200000 2 0.01 1 EYELET
SL 4X2.5X3
XX0900T211 9 0.01 1 JUMPER WIRE
D=0.6MM P5.0
XX0900T212 7 0.01 8 JUMPER WIRE
D=0.6MM P7.5
XX0900T213 5 0.01 2 JUMPER WIRE
D=0.6MM P10
XX0900T214 3 0.01 2 JUMPER WIRE
D=0.6MM P12.5
XX0900T217 8 0.01 1 JUMPER WIRE
D=0.6MM P20
XX0900T219 4 0.01 1 JUMPER WIRE
D=0.6MM P30
AB01269000 0 1.76 1 IC
LM1269 TO220-24 VI
AB02467000 0 3.36 1 IC
LM2467 TO220-9
AB02480000 0 0.60 1 IC
LM2480 DIP-8
AB06827000 0
2.00 1 IC
NT6827 DIP-16 OSD
CA001BU310 1 0.23 1 CERAMIC CAP.
.01U 2KV +80 -20%
CB10003M0T H 0.04 1 CAPACITOR
100U 16V M A P5
DC03000880 5 0.03 1 WAFER CONN.
JST B6B-XH-A 2.5
DC03000890 2 0.10 1 WAFER CONN.
JST B8B-XH-A 2.5
DC03001560 7 0.04 1 WAFER CONN.
JST B5B-XH-A 2.5
DC03003130 2 0.01 1 WAFER CONN.
Y.Y 7551 (J88)
DC04004490 1 0.88 1 SOCKET
DC09000130 2 0.01 1
TERMINAL CHASSIS GND
CRT DH720D 22.5D 1
CS-11-029 (J88)
ECC7082100 0 0.60 1 SVB_SHIELD
C70821
ECC7082200 0 0.40 1 SVB_COVER
C70822
ECN5034310 0 0.69 1 VIDEO HEAT SINK
N50343
LCC7084400 0 0.23 1 IC HEATSINK
C70844 26X8.5X15MM
MAA7000620 2 0.02 1 SCREW
M3X0.5+8P-NI & WAS
Page 43
NA10180090
71 4
0 0.22 1 WIRE SET NA20140010
72 4
0 0.19 1 NET WIRE SET
73 3 456A6630031 33.49 1 PCBA DEF&POW/B
74 4 446A6630031 9.72 1 AIS DEF&POW/B
BB1042300T
75 5
4 0.11 3 TRANSISTOR BB1073302T
76 5
4
0.06 10 TRANSISTOR
BB30945P1T
77 5
5 0.06 10 TRANSISTOR BB3121300T
78 5
9 0.14 1 TRANSISTOR BB3162700T
79 5
0 0.18 1 TRANSISTOR BB3190608T
80 5
4 0.16 1 TRANSISTOR BB5094100T
81 5
8 0.62 1 TRANSISTOR BBX042000T
82 5
9 0.11 1 TRANSISTOR BBX120300T
83 5
1 0.08 1 TRANSISTOR BBX120600T
84 5
8 0.08 2 TRANSISTOR BC11N4148T
85 5
8 0.02 21 DIODE BC1ER1010T
86 5
0 0.12 2 DIO BC1ER1060T
87 5
0 0.16 2 DIODE BC1F40071T
88 5
0 0.21 2 DIO BC1FR1040T
89 5
0 0.04 2 DIODE BC1FR1051T
90 5
0 0.04 1 DIO BC40HZ6C2
91 5
T1 0.05 1 ZENER DIODE BC40HZ9A2
92 5
T6 0.05 1 ZENER DIODE BC4HZ5C10
93 5
T8 0.05 5 ZENER DIODE BCSN58171T
94 5
0 0.17 1 SCHOTTKY DIODE CA001A601T
95 5
8 0.03 3 CERAMIC CAP. CA001B631T
96 5
8 0.01 16 CERAMIC CAP. CA001D600T
97 5
2 0.02 4 CERAMIC CAP.
4.3DX180X5T 1007#1
4.3DX140X5T 112/.1
VA-730 MF708 LG MP
VA-730 MF708 LG MP
HBF423 PNP TO-92
2SA733-P
2SC945-P
2SC1213A NPN TO-92
2SC1627
2SC1906
2SK941 1N TO-92 W/
BF420
RN1203 (TE4,M)
RN1206 (TE4,M)
1N4148
HER101 DO-15 EVERW
HER106G DO-41
UF4007 DO-41 PANJI
FR104 DO-41
FR105 DO-41 EVERWE
HZ6C-2
HZ9A-2
HZ5C1
1N5817 DO-41 PANJI
.1U 50V Z Y5V P5
.01U 50V -20 +80%
100P 50V +-5% NPO
Page 44
98 5
99 5
100 5
101 5
102 5
103 5
104 5
105 5
106 5
107 5
108 5
109 5
110 5
111 5
112 5
113 5
114 5
115 5
116 5
117 5
118 5
119 5
120 5
121 5
122 5
123 5
124 5
CA010CCM0 T6 0.04 1 CERAMIC CAP.
.01U 500V M Z5U P5
CA010D6K0 T8 0.01 3 CERAMIC CAP.
1000P 50V K Y5P P5
CA010DCKH T0 0.02 1 CERAMIC CAP.
1000P 500V K Y5P P
CA010DEK0 T0 0.04 1 CERAMIC CAP.
1000P 1KV K Y5P P5
CA015E602T 0 0.02 1 CERAMIC CAP.
150P 50V +-5% NPO
CA022D6K0 T0 0.02 1 CER CAP
2200P 50V K Y5P P5
CA022DEK0 T8 0.07 1 CERAMIC CAP.
2200P 1KV K Y5P P5
CA022E6K0T 3 0.01 2 CERAMIC CAP.
220P 50V K Y5P P5
CA022F6J0T 9 0.02 1 CERAMIC CAP.
22P 50V J NPO P5
CA033ECK0 T1 0.02 1 CERAMIC CAP.
330P 500V K Y5P P5
CA033F601T 6 0.01 2 CERAMIC CAP.
33P 50V +-5% NPO P
CA047E6K0T 7 0.01 2 CERAMIC CAP.
470P 50V K Y5P P5
CA082E6K0T 0 0.02 1 CERAMIC CAP.
820P 50V K Y5P P5
CB0010642T 9 0.03 3 CAPACITOR
1U 50V +-20% 85C P
CB0010648T 2 0.05 1 CAPACITOR (N.P)
1U 50V +-20% 85C P
CB0010A41T 9 0.03 1 CAPACITOR
1U 100V M B P5 (TM
CB0100642T 8 0.03 2 CAPACITOR
10U 50V M A P5
CB0100AM0 T0 0.04 1 CAPACITOR
10U 100V M B P5 (T
CB02206M0T H 0.03 2 CAPACITOR
22U 50V M A P5
CB0220A42T 5 0.07 1 CAPACITOR
22U 100V +-20% 85C
CB022A645T 0 0.03 2 CAPACITOR
2.2U 50V +-20% 85C
CB022BAM0 T0 0.03 1 ELE CAP
.22U 100V M A P5
CB04703M0T H 0.03 3 CAPACITOR
47U 16V M A P5
CB047A641T 4 0.03 5 CAPACITOR
4.7U 50V M B P5
CB047A6M3 T0 0.06 1 ELE CAP
4.7U 50V +-20% 85C
CB10003M0T H 0.04 4 CAPACITOR
100U 16V M A P5
CB10004M1T H 0.04 3 CAPACITOR
100U 25V M A P5
Page 45
CB47004M1T
125 5
7 0.13 1 CAPACITOR CC0010011T
126 5
9 0.01 1 RESISTOR CC0010491T
127 5
1 0.02 1 RESISTOR (MOF) CC005A471T
128 5
3 0.07 1 RESISTOR (FUSE) CC0100171T
129 5
0 0.03 4 RESISTOR (FUSE) CC015A491T
130 5
0 0.03 2 RES MOF CC0220011T
131 5
8 0.01 1 RESISTOR CC0220111T
132 5
3 0.01 4 RESISTOR CC0220211T
133 5
9 0.01 1 RESISTOR CC022A111T
134 5
3 0.01 1 RESISTOR CC0470111T
135 5
7 0.01 3 RESISTOR CC0470491T
136 5
4 0.03 1 RESISTOR (MOF) CC1000071T
137 5
5 0.03 1 RESISTOR (FUSE) CC1000111T
138 5
2 0.01 6 RESISTOR CC1000211T
139 5
8 0.01 5 RESISTOR CC1000491T
140 5
0 0.03 1 RESISTOR (M0F)
141 5 CC1001111T7 0.01 3 RESISTOR
CC1001125T
142 5
2 0.01 2 RESISTOR (M.F.) CC1001211T
143 5
2 0.01 6 RESISTOR CC1002111T
144 5
1 0.01 14 RESISTOR CC1002211T
145 5
7 0.01 33 RESISTOR CC1003211T
146 5
1 0.01 1 RESISTOR CC1003225T
147 5
7 0.01 1 RESISTOR (M.F.)
148 5 CC1201111T2 0.01 1 RESISTOR
CC1201211T
149 5
8 0.01 1 RESISTOR CC1202111T
150 5
7 0.01 1 RESISTOR CC1202211T
151 5
2 0.01 1 RESISTOR
470U 25V M A P5
1/2W 1 +-5%
1W 1 +-5%
1W .5 +-5%
1/4W 10 +-5%
1W 1.5 +-5%
1/2W 22 +-5%
1/4W 22 +-5%
1/8W 22 +-5%
1/4W 2.2 +-5%
1/4W 47 +-5%
1W 47 +-5%
1/2W 100 +-5%
1/4W 100 +-5%
1/8W 100 +-5%
1W 100 +-5%
1/4W 1K +-5%
1/4W 1K +-1%
1/8W 1K +-5%
1/4W 10K +-5%
1/8W 10K +-5%
1/8W 100K +-5%
1/8W 100K +-1%
1/4W 1.2K +-5%
1/8W 1.2K +-5%
1/4W 12K +-5%
1/8W 12K +-5%
Page 46
CC1500491T
152 5
3 0.03 2 RESISTOR (MOF) CC1502011T
153 5
0 0.01 1 RESISTOR CC1502211T
154 5
1 0.01 1 RESISTOR CC1503011T
155 5
4 0.01 1 RESISTOR CC1602111T
156 5
8 0.01 1 RESISTOR CC1800011T
157 5
9 0.01 1 RESISTOR CC1802111T
158 5
3 0.01 1 RESISTOR CC1803211T
159 5
3 0.01 1 RESISTOR CC1822125T
160 5
6 0.01 1 RESISTOR (M.F.) CC2002211T
161 5
9 0.01 3 RESISTOR
162 5 CC2201111T4 0.01 3 RESISTOR
CC2201211T
163 5
0 0.01 5 RESISTOR CC2202111T
164 5
9 0.01 1 RESISTOR CC2202211T
165 5
4 0.01 1 RESISTOR CC2203011T
166 5
8 0.01 1 RESISTOR CC2204111T
167 5
8 0.01 3 RESISTOR CC2212125T
168 5
8 0.01 1 RESISTOR (M.F.) CC2212225T
169 5
3 0.01 1 RESISTOR (M.F.)
170 5 CC2401111T0 0.01 1 RESISTOR
CC2401211T
171 5
5 0.01 1 RESISTOR
172 5 CC2701111T8 0.01 1 RESISTOR
CC2701225T
173 5
0 0.01 1 RESISTOR (M.F.)
174 5 CC3001111T1 0.01 1 RESISTOR
CC3300211T
175 5
0 0.01 2 RESISTOR
176 5 CC3301111T9 0.01 3 RESISTOR
CC3301211T
177 5
4 0.01 4 RESISTOR CC3302111T
178 5
3 0.01 1 RESISTOR CC3602111T
179 5
1 0.01 1 RESISTOR
1W 150 +-5%
1/2W 15K +-5%
1/8W 15K +-5%
1/2W 150K +-5%
1/4W 16K +-5%
1/2W 180 +-5%
1/4W 18K +-5%
1/8W 180K +-5%
1/4W 18.2K +-1%
1/8W 20K +-5%
1/4W 2.2K +-5%
1/8W 2.2K +-5%
1/4W 22K +-5%
1/8W 22K +-5%
1/2W 220K +-5%
1/4W 2.2M +-5%
1/4W 22.1K +-1%
1/8W 22.1K +-1%
1/4W 2.4K +-5%
1/8W 2.4K +-5%
1/4W 2.7K +-5%
1/8W 2.7K +-1%
1/4W 3K +-5%
1/8W 330 +-5%
1/4W 3.3K +-5%
1/8W 3.3K +-5%
1/4W 33K +-5%
1/4W 36K +-5%
Page 47
CC3900211T
180 5
6 0.01 2 RESISTOR
181 5 CC3901111T5 0.01 1 RESISTOR
CC3901211T
182 5
1 0.01 1 RESISTOR CC3902111T
183 5
0 0.01 1 RESISTOR CC3902211T
184 5
5 0.01 1 RESISTOR CC3903211T
185 5
0 0.01 1 RESISTOR CC4700011T
186 5
1 0.01 1 RESISTOR CC4700111T
187 5
7 0.01 1 RESISTOR CC4700211T
188 5
2 0.01 1 RESISTOR
189 5 CC4701111T1 0.01 3 RESISTOR
CC4701211T
190 5
7 0.01 4 RESISTOR CC4702111T
191 5
6 0.01 2 RESISTOR CC4702211T
192 5
1 0.01 1 RESISTOR CC4703011T
193 5
5 0.01 2 RESISTOR CC4703111T
194 5
1 0.01 1 RESISTOR CC4703491T
195 5
0 0.03 1 RES MOF CC5102211T
196 5
7 0.01 1 RESISTOR CC5362125T
197 5
0 0.01 1 RES MF CC5600011T
198 5
1 0.01 1 RESISTOR
199 5 CC5601111T1 0.01 1 RESISTOR
CC6492125T
200 5
0 0.01 1 RESISTOR (M.F.) CC8060225T
201 5
0 0.01 1 RES MF CC8200111T
202 5
1 0.01 1 RESISTOR CC8201211T
203 5
1 0.01 1 RESISTOR
204 5 CC8203111T 0.01 1 RESISTOR
CJ010B6JNT
205 5
0 0.09 2 FILM CAP CJ010C6JNT
206 5
1 0.09 1 FILM CAP CJ022B6JNT
207 5
0 0.13 3 FILM CAP
1/8W 390 +-5%
1/4W 3.9K +-5%
1/8W 3.9K +-5%
1/4W 39K +-5%
1/8W 39K +-5%
1/8W 390K +-5%
1/2W 470 +-5%
1/4W 470 +-5%
1/8W 470 +-5%
1/4W 4.7K +-5%
1/8W 4.7K +-5%
1/4W 47K +-5%
1/8W 47K +-5%
1/2W 470K +-5%
1/4W 470K +-5%
1W 470K +-5%
1/8W 51K +-5%
1/4W 53.6K +-1%
1/2W 560 +-5%
1/4W 5.6K +-5%
1/4W 64.9K +-1%
1/8W 806 +-1%
1/4W 820 +-5%
1/8W 8.2K +-5%
1/4W 820K +-5%
.1U 50V J MEF P5(J
.01U 50V J PPN P5(
.22U 50V J MEF P5(
Page 48
208 5
209 5
210 5
211 5
212 5
213 5
214 5
215 5
216 5
217 5
218 5
219 5
220 6
221 6
222 6
223 6
224 6
225 6
226 6
227 6
228 6
229 6
230 6
231 6
232 6
233 6
234 6
CJ047B6JNT 0 0.23 1 FILM CAP
.47U 50V J MEF P5(
CJ047C6JNT 0 0.09 1 FOLM CAP
.047U 50V J MEF P5
CJ047D6JNT 0 0.09 3 FILM CAP
.0047U 50V J PEN P
CJ068C6JNT 0 0.09 1 FILM CAP
.068U 50V J MEF P5
CJ082D6JNT 0 0.09 1 FILM CAP
.0082U 50V J PEN P
DA1C708V01 0 3.29 1 PCB
C708 VA-730 REV1
DC1100010T 0 0.64 1 SPARK GAP
MITSUBISHI DSP-152
DC1510003T 2 0.02 3 BEAD
FER RI TE RH3.5X8.
DC1510005T 0 0.02 1 BEAD
URITE F10 RHW 3.5X
DC38200000 2 0.01 19 EYELET
SL 4X2.5X3
DC38200020 0 0.01 11 EYELET
LY 4X3X3.5
X61A663000 1 2.36 1 AIS DEF&POW/B
VA-730 MF708
AB0043102T 0 0.23 1 IC
KA431AZ TO-92 REGU
BB3004401T 5 0.10 1 TRANSISTOR
KSP44 NPN TO-92
BB30945P1T 5 0.06 2 TRANSISTOR
2SC945-P
BBX120300T 1 0.08 2 TRANSISTOR
RN1203 (TE4,M)
BC11N4148T 8 0.02 6 DIODE
1N4148
BC1ER1040T 0 0.14 1 DIODE
HER104 DO-41
BC1ER1071T 0 0.20 1 DIODE
HER107G DO-41
BC1ER2030T 0 0.25 2 DIODE
HER203G DO-41 EVER
BC1F202G0T 0 0.24 1 DIODE
UF202G DO-41 PANJI
BC1FR1071T 0 0.04 1 DIODE
FR107 DO-41
BC4HZ2020T 7 0.05 1 ZENER DIODE
HZ20-2
BC9T169D0T 7 0.23 1 SCR
BT169D TO-92
CA001A601T 8 0.03 2 CERAMIC CAP.
.1U 50V Z Y5V P5
CA010D6K0 T8 0.01 3 CERAMIC CAP.
1000P 50V K Y5P P5
CA033E6K0T 0 0.01 1 CERAMIC CAP.
330P 50V K Y5P P5
Page 49
235 6
236 6
237 6
238 6
239 6
240 6
241 6
242 6
243 6
244 6
245 6
246 6
247 6
248 6
249 6
250 6
251 6
252 6
253 6
254 6
255 6
256 6
257 6
258 6
259 6
260 6
261 6
CA033EEK0 T0 0.04 2 CERAMIC CAP.
330P 1KV K Y5P P5
CB0100642T 8 0.03 1 CAPACITOR
10U 50V M A P5
CB02206M0T H 0.03 1 CAPACITOR
22U 50V M A P5
CB04703M0T H 0.03 1 CAPACITOR
47U 16V M A P5
CB10004M1T H 0.04 2 CAPACITOR
100U 25V M A P5
CB2200441T 6 0.08 1 CAPACITOR
220U 25V M B P5
CC002A471T 2 0.07 1 RESISTOR (FUSE)
1W .2 +-5%
CC0100011T 8 0.01 2 RESISTOR
1/2W 10 +-5%
CC0220111T 3 0.01 1 RESISTOR
1/4W 22 +-5%
CC022A111T 3 0.01 1 RESISTOR
1/4W 2.2 +-5%
CC0470111T 7 0.01 1 RESISTOR
1/4W 47 +-5%
CC0470211T 2 0.01 1 RESISTOR
1/8W 47 +-5%
CC0750011T 2 0.01 1 RESISTOR
1/2W 75 +-5%
CC0820111T 0 0.01 1 RESISTOR
1/4W 82 +-5%
CC1001211T 2 0.01 4 RESISTOR
1/8W 1K +-5%
CC1002111T 1 0.01 1 RESISTOR
1/4W 10K +-5%
CC1002211T 7 0.01 2 RESISTOR
1/8W 10K +-5%
CC1003211T 1 0.01 1 RESISTOR
1/8W 100K +-5%
CC1004011T 5 0.01 3 RESISTOR
1/2W 1M +-5%
CC1004211T 6 0.01 1 RESISTOR
1/8W 1M +-5%
CC2002211T 9 0.01 3 RESISTOR
1/8W 20K +-5%
CC2201211T 0 0.01 1 RESISTOR
1/8W 2.2K +-5%
CC2202011T 3 0.01 1 RESISTOR
1/2W 22K +-5%
CC2202491T 0 0.03 1 RESISTOR (MOF)
1W 22K +-5%
CC2400211T 0 0.01 1 RESISTOR
1/8W 240 +-5%
CC2702011T 7 0.01 1 RESISTOR
1/2W 27K +-5%
CC3001211T 6 0.01 1 RESISTOR
1/8W 3K +-5%
Page 50
CC3002211T
262 6
263 6
264 6
265 6 CC4701111T1 0.01 1 RESISTOR
266 6
267 6
268 6
269 6
270 6
271 6
272 6
273 6
274 6
275 5
276 5
277 5
278 5
279 5
280 5
281 5
282 5
283 5
284 4
285 4
286 4
287 4
288 4
1 0.01 1 RESISTOR CC3302491T
1 0.03 1 RESISTOR (MOF) CC4700011T
1 0.01 1 RESISTOR
CC4701211T 7 0.01 4 RESISTOR
CC6800011T 8 0.01 1 RESISTOR
CC8200491T 8 0.03 1 RESISTOR (MOF)
CJ022B6JNT 0 0.13 1 FILM CAP
CJ033C6JNT 0 0.09 1 FILM CAP
CJ033D6JNT 0 0.09 1 FILM CAP
CJ068CBJ5T 0 0.11 1 FILM CAP
DC1510003T 2 0.02 1 BEAD
XX0900T212 7 0.01 1 JUMPER WIRE
XX0900T211 9 0.01 32 JUMPER WIRE
XX0900T212 7 0.01 25 JUMPER WIRE
XX0900T213 5 0.01 40 JUMPER WIRE
XX0900T214 3 0.01 28 JUMPER WIRE
XX0900T215 1 0.01 20 JUMPER WIRE
XX0900T216 0 0.01 19 JUMPER WIRE
XX0900T217 8 0.01 16 JUMPER WIRE
XX0900T218 6 0.01 4 JUMPER WIRE
XX0900T219 4 0.01 5 JUMPER WIRE
AB02408000 2 0.60 1 IC
AB04856000 0 4.08 1 IC
AB06116140 0
AB07805030 0
AB07812030 0
2.80 1 IC
1.00 1 IC
0.88 1 IC
1/8W 30K +-5%
1W 33K +-5%
1/2W 470 +-5%
1/4W 4.7K +-5%
1/8W 4.7K +-5%
1/2W 680 +-5%
1W 820 +-5%
.22U 50V J MEF P5(
.033U 50V J MEF P5
.0033U 50V J PEN P
.068U 250V J MEF P
FER RI TE RH3.5X8.
D=0.6MM P7.5
D=0.6MM P5.0
D=0.6MM P7.5
D=0.6MM P10
D=0.6MM P12.5
D=0.6MM P15
D=0.6MM P17.5
D=0.6MM P20
D=0.6MM P25
D=0.6MM P30
EE 8K DP A
TDA4856 DIP-32 DEF
WT6116-N400CM-97A
KA78R05 TO-220F-4L
KA78R12 TO-220F-4L
Page 51
AB08172000
289 4
290 4 BB108570001
291 4 BB355210000
292 4 BB506300305
293 4 BB506400300
294 4
295 4
296 4
297 4
298 4
299 4
300 4
301 4
302 4
303 4
304 4
305 4
306 4 CC680085103
307 4 CF220010409
308 4
309 4 CJ012BFJ500
310 4 CJ015CEJ000
311 4
312 4 CJ027BFJ500
313 4 CJ036BF0000
314 4 CJ047CBJ000
315 4 CJ047CEJ500
316 4 CJ068DEJ500
317 4
318 4 CL270000100
319 4 CL370000104
7
BC1ER3040N 3
BC1SC02300 1
BC5LA46B00 0
BD112P0M10 0
CB0220H420 8
CB0470A412 4
CB0470B430 1
CB10013M00 H
CC0010491M 2
CC068A491 M4
CC068A591 M0
CC0820591M 3
CJ010AB000 3
CJ022A7JN0 0
CJ075DWJ01 9
1.44
0.52 1 TRANSISTOR
1.93 1 TRANSISTOR
0.64 2 TRANSISTOR
1.00
0.42 1 DIODE
1.87 1 DIODE
0.37
0.47 1 CRYSTAL
0.13 1 CAPACITOR
0.15 1 CAPACITOR
0.42 1 CAPACITOR
0.18
0.03 1 RESISTOR (MOF)
0.04 1 RESISTOR (MOF)
0.04 3 RESISTOR (MOF)
0.04 1 RESISTOR (MOF)
0.23 1 RESISTOR (CEMENT)
0.10 1 TRIMMER RES.
0.41
0.47
0.41
0.41 1 FILM CAP
0.47 1 FILM CAP
0.42 1 MYLAR CAP.
0.10 2 MYLAR CAP.
0.56 1 FILM CAP
0.40 1 FILM CAP
0.47 1 MYLAR CAP.
0.39 2 COIL (LINE)
0.44 1 CHOKE COIL
1
1
1
2
1
1
1
IC
TRANSISTOR
LED
CAPACITOR
MYLAR CAP.
MYLAR CAP.
FILM CAP
TDA8172
HSB857-C PNP TO-22
2SC5521 NPN TO-3PF
IRFS630A 1N TO-220
IRFS640A 1N TO-220
ER304-F17 DO-201AD
ESC023M-15 TO-3PF
LA46B/YSG-S4 YEL/G
12MHZ HC-49/U +-50
22U 160V M A P5
47U 100V +-20% 105
47U 250V +-20% 85C
1000U 16V M A P5
1W 1 +-5%
1W 6.8 +-5%
2W 6.8 +-5%
2W 82 +-5%
5W 680 +-5% (SQM)
1/10W 2KB VZ068TL1
1.0U 250V +-5% MPP
.12U 400V J MPA P1
.015U 1KV J MPM P1
2.2U 63V J MEF P15
.27U 400V J MPP P2
.36U 400V +-5% MPP
.047U 250V J MEF P
.047U 1KV J MPM P2
.0068U 1KV J MPM P
.0075U 1.6KV J MPM
M773 12.5uH A @-4A
H763 145uH +-7% 16
Page 52
4 CL370000201
320
321 4 CL370000309
DC02012940
322 4
323 4
324 4
325 4
326 4
327 4
328 4
329 4
330 4
331 4
332 4
333 4
334 4
335 4
336 4
337 4
338 4
339 4
340 4
341 4
342 4
343 4 KA000600ZZ
344 4
345 4
346 4
347 4 MAA7000620
0 DC02013600
0 DC02013610
0 DC03001010
9 DC03001340
0 DC03001851
0 DC03002050
3 DC03003130
1 DC03009110
9 DC09000130
1 DC24000200
5 DEB1100000
9 DG20000560
0 DG30001480
0 DG60000310
0 ECM5703200
1 EEH7634100
4 EEM5714100
3 FCM7684200
0 FCN5034600
0 KA000001ZZ
4
LCV7982200 0
LCV7984100 0
LCV7984200 0
0.43 1 CHOKE COIL
0.19 1 CHOKE COIL
0.43 1 HOUSING CONN. SET
0.62 1 HOUSING CONN. SET
0.17 1 HOUSING CONN. SET
0.02
0.08 1 WAFER CONN.
0.12 1 WAFER CONN.
0.01 1 WAFER CONN.
0.01 1 WAFER CONN
0.01
0.01 3
1.43 1 RELAY
0.08 3 TACT SWITCH
0.62 1 X'FORMER
9.13
0.62 1 X'FORMER
0.33 1 REAR BRACKET (M570)
0.05 1 EEPROM SHIELD
0.08 1 6861UP SHIELD
0.08
0.10 1
0.02 1 LOCKING CABLE TIE
0.01 2 LOCKING CABLE TIE
2.13 1 HEAT SINK
0.39 1 HEAT SINK
0.60
0.02 5 SCREW
1
1
1
3
1
WAFER CONN.
WAFER CONN. TERMINAL CHASSIS
GND
X'FORMER
PCB HOLDER POWER SWITCH
EXPANDI
HEAT SINK
H763 120uH +-7% 16
H763 6mH +-7% 10X1
M777 MB P3-CRT P30
V798 MB P104-CRT P
V798 MB G2-CRT G2
JST B2B-XH-A 2.5
JST B7B-XH-A 2.5
YUEAN-YUH 1081-04
YUEAN-YUH 2540-02
Y.Y 7551
YUEAN-YUH 2540-03
CS-11-029
DC12V OMI-SH-212L
PM564 KSM0632B
N703 HDT EI-22
N703 0003-08C
V700 FOCUS EI-22
M57032
H76341
M57141
M76842
GIN LIAN SI-02
142MM
W2.5XL120 WHITE
V79822 L141XW90XH8
V79841 L16XW16XH35
V79842 L50XW18.5XH
M3X0.5+8P-NI & WAS
Page 53
MAA7006440
4
348
349 4
350 4
351 4
352 4
353 4
354 5
355 5
356 5
357 5
358 5 BB527610001
359 5
360 5
361 5
362 5
363 5
364 5
365 5
366 5
367 5
368 5
369 5
370 5
371 5
372 5
373 5
374 5
0 MAB7000840
6 MAB7008140
0 MAB7T0015
01 MAB7T0024
01 X62A663000
1 AB00817000
0 AB03842040
4 AB07805030
0 BB20772Q50
5
BC1ER3040N 3
BC1F54024N 0
BC1GBU4J00 0
CA001BE110 1
CA001CBMY H0
CA022DBM Y07
CA047DBM Y27
CB0470P410 5
CB10013M0T 4
CB10014M00 6
CB1500FM01 9
CB22013M00 8
CB4700AM0 04
CC0080867U 0
CC0090884U 0
CC033BL91 M0
0.02
0.01 2 SCREW
0.02 2 SCREW
0.01
0.01 2 SCREW
8.98 1 PCBA DEF&POW/B
0.33 1 IC
0.58 1 IC
1.00
0.38 2 TRANSISTOR
1.73 1 TRANSISTOR
0.42 1 DIODE
0.36 1 DIODE
0.80 1 DIO
0.11
0.12 1 CER CAP
0.12 1 CERAMIC CAP.
0.27 2 CERAMIC CAP. (Y1)
0.40 1 CAPACITOR
0.16
0.26 2 CAPACITOR
1.72 1 CAPACITOR
0.30 1 CAPACITOR
0.57 1 CAPACITOR
0.31
0.65 1 RESISTOR (POSISTOR)
0.04 1 RES MOF
2
1
1
2
1
1
SCREW
SCREW
IC
CERAMIC CAP.
CAPACITOR
RESISTOR (THERMISTOR
M4X0.7+8CF-MC(EX.L
TPB-3+8C-MC
TPB-3+8CF-MC(EX.LO
TPB-3+8V-UC
TPB-4+8C-MC
VA-730 MF708
LTV-817M-B DIP-4 P
KA3842A DIP-8 PWM
KA78R05 TO-220F-4L
2SB772-Q
2SK2761-01MR 1N TO
ER304-F17 DO-201AD
UF5402G-F17 DO-201
GBU4J BRIDGE 4A/60
.01U 1KV +-20% Z5U
1000PF 250V AC M Y
2200P 250VAC M Y5V
4700P 250VAC M 2E3
47U 200V M B P5 (T
1000U 16V M A P5
1000U 25V M B P5
150U 400V M A P10
2200U 16V M A P5
470U 100V M B P7.5
5A 8 +-15% 15SP008
5W 9 +-30% DISK KI
3W .33 +-5% S
Page 54
CC4702591N
5
375
376 5 CF250000703
377 5
378 5 CL310004716
379 5 CL900042003
380 5
381 5
382 5
383 5
384 5
385 5
386 5
387 5
388 5
389 5 LC040056608
390 5
391 5
392 5
393 4
394 2 51A11930021
395 3
396 3
397 3
398 2
399 2
400 2
401 2 ELF70848000
402 2 FAF70811500
403 2
8
CJ047BXMX 10
DC02014480 0
DC03003920 0
DC04000500 1
DC10000150 2
DC15000700 8
DC24000360 0
DEA2200020 0
DG10001550 0
DX23P1521C 1
MAA2009640 2
NA10130140 1
NA10195021 0
XX0900T214 3
AC50002592 0
DC02014790 0
KA000600ZZ 0
CLA7F00000 0
DC02013510 0
DC19003023 0
KA000600ZZ 0
0.04
0.10 1 TRIMMER RES.
0.39 2 FILM CAP
0.08 3 CHOKE COIL
0.68 2 LINE FILTER
0.48 1 H-CON SET
0.05
0.41 1 POWER SOCKET
0.05 2 FUSE HOLDER
0.14 1 CORE
1.10 1 RELAY
0.41
1.88 1 X'FORMER
0.13 1 FUSE
0.41 1 HEAT SINK
0.02 1 SCREW
0.07 1 WIRE SET
0.11
0.01 1 JUMPER WIRE
104.67 1 CRT&YOKE ASSY
74.75 1 CRT&YOKE
1.54 1 H-CON SET
0.01 11 LOCKING CABLE TIE
3.02
0.33 1 HOUSING CONN. SET
4.08 1 CB ASSY
0.13 2 MYLAR
3.88 1 BEZEL(ABO)
0.01 11 LOCKING CABLE TIE
1
1
1
1
1
RESISTOR (MOF)
WAFER CONN.
PUSH SW
WIRE SET
DEGAUSSING COIL
2W 47K +-5%
1/10W 500 VZ068TL1
.47U 275VAC M MKP
H799 5UH +-10% @1A
F562 EE-25
C908 MB P903-P903A
LEOCO 3941-3 (W/O
POWER 0714 (INALWA
CQ-203LR
TOKIN FR19/10/10-4
DC12V OSA-SS-212DM
N503 PS02-KNAY1EAA
C708 POWER ERL-35
3.15A 250V S SEMKO
MK-503 36X11.2X55
M3X0.5+12P-MC (ADD
1.8DX130X1.8D 1617
4.3DX195X10T 1015#
D=0.6MM P12.5
MF708G MPRII
M41QEE903X03(U)K L
C708 CRT-GND AROUN
W2.5XL120 WHITE
F768 CRT AROUND .5
M557 MB-CRT E-CAN.
C708 20276/2CORE 1
F70848(10X15X2.5)
F70811(ABS)(WG017)
W2.5XL120 WHITE
Page 55
KA006700ZZ
2
404
405 2
406 2
407 2
408 2
409 3
410 3
411 3
412 3
413 3
414 3
415 3
416 3
417 3
418 1 62006830021
419 2 EJ4F7080400
420 2
421 2
422 2
423 2
424 2
425 1
426 1
427 2
428 2 FAV70015000
429 2
430 2 FJF70813000
431 2 FJF70814000
1 MAA7006440
0 MAB7000840
6 NA20060020
0 X66AE83002
1 EXH9714110
0 FBC7083100
0 FBC7084100
0 FCC7082100
0 FCC7082200
0 FCM5704200
7 LC10T00000
2 MAB2008540
7 MAB7007640
0
HB4F708030 0
HDABOF708 00
HGTMM6A0 104
HGTMPRII11 8
HK3TX17M0 09
GA0900000C 0
X66AE73001 1
FAC7081200 0
FHV7994100 0
0.02
0.02 1 SCREW
0.01 1 SCREW
0.30
1.61 1 MEC PARTS ABO
0.11 1 BUTTON SPRING
0.20 1 FUNCTION KN0B
0.10 1 POWER KNOB
0.44
0.44 1 GIODE(R)
0.08 1 LED LENS (M570)
0.10 4 RUBBER WASHER
0.02 4 TAPING SCREW
0.04
4.15
0.23
3.27 1 CARTON
1.12 1 USER'S MANUAL
0.03 2 LABEL
0.05 1 STATIC LABEL
0.49
1.77 1 POWER CORD SET
9.11 1 MEC PACKING MIM
8.65 1 BACK COVER
2.81 1 BASE ASSY
0.49 1 SPONGE
1.51 1 EPS FOAM(L)
1.51 1 EPS FOAM(R)
3
1
1
4
1
1
1
LOCKING CABLE TIE
NET SET
GUIDE(L)
SCREW
PACKING ABO-CHINA
RATING NP
PE BAG
W2.5XL203 WHITE (Y
M4X0.7+8CF-MC(EX.L
TPB-3+8C-MC
D3.96X60XW5.6 112C
MF708G MPRII WG017
DJ72-K008 3332452
C70831
C70841
C70821
C70822
M57042
4-S35-009 SHORE:70
TPB-4.0+20C-MC
TPB-5+22P-MC WASHE
MF708G UR+MPRII WG
N-F708-ABO UFGC MP
C-F708-ABO W/W CHN
U-F708-ABO EFGSIDP
LOW RADIATION MPR
MPRII+ENERGY STAR
X17M L995XW430XH20
SP506X1.8MXIS14 RV
MF708C UR+MPRII WG
C70812
V70015 TOOLING 4
V79941
F70813
F70814
Page 56
432
2
MAB2008540 7
0.02
4
TAPING SCREW
TPB-4.0+20C-MC
Page 57
3
2
Page 58
Page 59
Page 60
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
3 0 3 0 3 0
0 0 1 0 11 02 1 RE M A R K S
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 456A6630001 PCBA DEF&POW/B VA-730 MF708 CPT TCO 1D
# 456A6630011 PCBA DEF&POW/B VA-730 MF708 CPT MPRII 1E
# 456A6630021 PCBA DEF&POW/B VA-730 MF708 SAM MPRII 1E
1 446A6630001 AIS DEF&POW/B VA-730 MF708 CPT TCO 1 - - - - ZZZ
2 446A6630011 AIS DEF&POW/B VA-730 MF708 CPT MPRII - 1 - - - ZZZ
3 446A6630021 AIS DEF&POW/B VA-730 MF708 SAM MPRII - - 1 - - ZZZ
4 AB006210000 IC WT62P1 DIP-40 MICRO-P OTP 1 1 1 - - U1
5 AB024080002 IC EE 8K DP A 1 1 1 - - U2
6 AB048560000 IC TDA4856 DIP-32 DEF. PROCES. 1 1 1 - - U401
7 AB078050300 IC KA78R05 TO-220F-4L 1 1 1 - - U3
8 AB078120300 IC KA78R12 TO-220F-4L 1 1 1 - - U402
9 AB081720007 IC TDA8172 1 1 1 - - U601
10 BB108570001 TRANSISTOR HSB857-C PNP TO-220 1 1 1 - - Q801
11 BB206490010 TRANSISTOR 2SB649A-C (TO-126) 1 1 1 - - Q842
12 BB355210000 TRANSISTOR 2SC5521 NPN TO-3PFM 1 1 1 - - Q501
13 BB406690012 TRANSISTOR 2SD669A-C (TO-126) 1 1 1 - - Q843
14 BB506300305 TRANSISTOR IRFS630A 1N TO-220F 2 2 2 - - Q809 Q810
15 BB506400300 TRANSISTOR IRFS640A 1N TO-220F 1 1 1 - - Q513
16 BC1ER3040N3 DIODE ER304-F17 DO-201AD P20 1 1 1 - - D501
17 BC1SC023001 DIODE ESC023M-15 TO-3PF 1 1 1 - - D801
18 BC5LA46B000 LED LA46B/YSG-S4 YEL/GRN W/HOLDER 1 1 1 - - LED1
19 BD112P0M100 CRYSTAL 12MHZ HC-49/U +-50PPM 30PF 1 1 1 - - Y1
20 CB0220H4208 CAPACITOR 22U 160V M A P5 1 1 1 - - C818
21 CB0470A4124 CAPACITOR 47U 100V +-20% 105C P5(10X16) 1 1 1 - - C851
22 CB0470B4301 CAPACITOR 47U 250V +-20% 85C P5 1 1 1 - - C510
23 CB10013M00H CAPACITOR 1000U 16V M A P5 2 2 2 - - C21 C605
24 CC0010491M2 RESISTOR (MOF) 1W 1 +-5% S3 1 1 1 - - R609
25 CC068A491M4 RESISTOR (MOF) 1W 6.8 +-5% S3 1 1 1 - - R601
26 CC068A591M0 RESISTOR (MOF) 2W 6.8 +-5% S3 3 3 3 - - R528 R535 R536
27 CC0820591M3 RESISTOR (MOF) 2W 82 +-5% S3 1 1 1 - - R520
28 CC680085103 RESISTOR (CEMENT) 5W 680 +-5% (SQM) 1 1 1 - - R529
29 CF220010409 TRIMMER RES. 1/10W 2KB VZ068TL1-B2K (HDK) 1 1 1 - - VR801
30 CJ010AB0003 MYLAR CAP. 1.0U 250V +-5% MPP P25 1 1 1 - - C809
31 CJ012BFJ500 MYLAR CAP. .12U 400V J MPA P15 TSC 1 1 1 - - C808
32 CJ015CEJ000 FILM CAP .015U 1KV J MPM P15 1 1 1 - - C816
33 CJ022A7JN00 FILM CAP 2.2U 63V J MEF P15(J67) 1 1 1 - - C811
34 CJ027BFJ500 FILM CAP .27U 400V J MPP P20 TSC 1 1 1 - - C807
35 CJ036BF0000 MYLAR CAP. .36U 400V +-5% MPP P20 1 1 1 - - C806
36 CJ047CBJ000 MYLAR CAP. .047U 250V J MEF P10 2 2 2 - - C511 C608
37 CJ047CEJ500 FILM CAP .047U 1KV J MPM P20 1 1 1 - - C802
38 CJ068DEJ500 FILM CAP .0068U 1KV J MPM P15 TSC 1 1 1 - - C803
39 CJ075DWJ019 MYLAR CAP. .0075U 1.6KV J MPM P17.5 TSC 1 1 1 - - C801
40 CL270000100 COIL (LINE) M773 12.5uH A @-4A 9X12X4 18.5 2 2 2 - - L801 L802
Page 61
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------------
3 0 3 0 30
0 0 1 01 1 02 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
41 CL370000104 CHOKE COIL H763 145uH +-7% 16X18X10 1 1 1 - - L501
42 CL370000201 CHOKE COIL H763 120uH +-7% 16X18X10 1 1 1 - - L805
43 CL370000309 CHOKE COIL H763 6mH +-7% 10X12X5 1 1 1 - - L803
4 4 D A 1C 7 08 V 21 0 P C B C 7 08 VC - 73 0 R E V1 1 - - - - Z Z Z
45 DC020129400 HOUSING CONN. SET M777 MB P3-CRT P303 1 1 1 - - P105
46 DC020136000 HOUSING CONN. SET V798 MB P104-CRT P302 8P 1 1 1 - - P104
47 DC020136100 HOUSING CONN. SET V798 MB G2-CRT G2 1P 1 1 1 - - G2
48 DC030013400 WAFER CONN. JST B7B-XH-A 2.5 1 1 1 - - P102
49 DC030018510 WAFER CONN. YUEAN-YUH 1081-04 (J88) 1 1 1 - - P801
50 DC030020503 WAFER CONN. YUEAN-YUH 2540-02 1 1 1 - - P103
5 1 D C 03 0 03 1 30 1 W A FE R C O N N Y .Y 75 5 1 1 1 1 - - G 1
52 DC030091109 WAFER CONN. YUEAN-YUH 2540-03 1 1 1 - - P803
53 DC03J001901 WAFER CONN. JST B3B-EH 2.5 1 1 1 - - P501
54 DC090001301 TERMINAL CHASSIS GND CS-11-029 3 3 3 - - GND1 GND2 GND3
55 DC240002005 RELAY DC12V OMI-SH-212L 1 1 1 - - RL801
56 DEB11000009 TACT SWITCH PM564 KSM0632B 3 3 3 - - SW2 SW3 SW4
57 DG200005600 X'FORMER N703 HDT EI-22 1 1 1 - - T501
58 DG300014800 X'FORMER N703 0003-08C 1 1 1 - - FBT
59 DG600003100 X'FORMER V700 FOCUS EI-22 1 1 1 - - T801
60 ECM57032001 REAR BRACKET (M570) M57032 1 1 1 - - ZZZ
61 EEC70833000 FBT SHIELD C70833(T=0.3) 1 - - - - ZZZ
6 2 E E H7 6 34 1 00 4 E E PR O M S H I E L D H 76 3 41 1 1 1 - - & U 2
6 3 E E M5 7 14 1 00 3 6 8 61 U P S H I E L D M 57 1 41 1 1 1 - - & U 1
64 FCM56847000 PCB SUPPORT GIN LIAN PS-08GA 3 - - - - ZZZ ZZZ ZZZ
65 FCM76842000 PCB HOLDER M76842 3 3 3 - - &1 &2 &3
66 FCN50346000 POWER SWITCH EXPANDING GIN LIAN SI-02 1 1 1 - - ZZZ
67 FHM79046108 RUBBER WASHER M79046 T=2mm SHORE:45 2 - - - - 316 ZZZ
68 KA000001ZZ4 LOCKING CABLE TIE 142MM 1 1 1 - - ZZZ
69 KA000600ZZ0 LOCKING CABLE TIE W2.5XL120 WHITE 2 2 2 - - ZZZ ZZZ
70 LCV79822000 HEAT SINK V79822 L141XW90XH80mm 1 1 1 - - &Q501
71 LCV79841000 HEAT SINK V79841 L16XW16XH35mm 1 1 1 - - &Q513
72 LCV79842000 HEAT SINK V79842 L50XW18.5XH40mm 1 1 1 - - &U601
73 MAA70006202 SCREW M3X0.5+8P-NI & WASHER DIM 6 5 5 5 - - &D801 &Q501 &Q513 &Q801 &U601
74 MAA70064400 SCREW M4X0.7+8CF-MC(EX.LOCK WASHER) 2 2 2 - - &I/0A &I/O
75 MAB70008406 SCREW TPB-3+8C-MC 1 - - - - ZZZ
2 2 2 - - Z Z Z Z Z Z
76 MAB70081400 SCREW TPB-3+8CF-MC(EX.LOCK WASHER) 2 2 2 - - ZZZ ZZZ
77 MAB7T001501 SCREW TPB-3+8V-UC 1 1 1 - - ZZZ
78 MAB7T002401 SCREW TPB-4+8C-MC 2 2 2 - - SINK1 SINK2
79 NA100601200 WIRE SET 5TX60X5T 1617#22 BLK 1 - - - - 315
80 NA101400800 WIRE SET 4.3DX140X5T 1617#22 BLK J88 1 - - - - ZZZ
81 X62A6630001 PCBA DEF&POW/B VA-730 MF708 1 1 1 - - ZZZ
82 XX0900T2143 JUMPER WIRE D=0.6MM P12.5 1 1 1 - - W37
Page 62
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ --------------------------
3 0 30 3 0
0 0 1 0 11 02 1 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 446A6630001 AIS DEF&POW/B VA-730 MF708 CPT TCO
# 446A6630011 AIS DEF&POW/B VA-730 MF708 CPT MPRII
# 446A6630021 AIS DEF&POW/B VA-730 MF708 SAM MPRII
1 BB1042300T4 TRANSISTOR HBF423 PNP TO-92 3 3 3 - - Q807 Q850 Q851
2 BB1073302T4 TRANSISTOR 2SA733-P 10 10 10 - - Q1 Q2 Q404 Q507 Q508 Q509
Q512 Q6 Q808 Q840
3 BB30945P1T5 TRANSISTOR 2SC945-P 10 10 10 - - Q3 Q401 Q402 Q403 Q5 Q505
Q 5 06 Q 5 1 0 Q 5 1 1 Q514
4 BB3121300T9 TRANSISTOR 2SC1213A NPN TO-92 1 1 1 - - Q802
5 BB3162700T0 TRANSISTOR 2SC1627 1 1 1 - - Q841
6 BB3190608T4 TRANSISTOR 2SC1906 1 1 1 - - Q820
7 BB5094100T8 TRANSISTOR 2SK941 1N TO-92 W/D 1 1 1 - - Q502
8 BBX042000T9 TRANSISTOR BF420 1 1 1 - - Q601
9 BBX120300T1 TRANSISTOR RN1203 (TE4,M) 1 1 1 - - Q4
10 BBX120600T8 TRANSISTOR RN1206 (TE4,M) 2 2 2 - - Q503 Q504
11 BC11N4148T8 DIODE 1N4148 21 21 21 - - D1 D3 D401 D402 D403 D404
D405 D406 D503 D506 D507 D508
D509 D510 D520 D602 D80 D811
D 8 4 D 8 4 0 D 8 4 1
12 BC1ER1010T0 DIO HER101 DO-15 EVERWELL 2 2 2 - - D805 D806
13 BC1ER1060T0 DIODE HER106G DO-41 2 2 2 - - D504 D505
14 BC1F40071T0 DIO UF4007 DO-41 PANJIT 2 2 2 - - D807 D820
1 5 B C 1F R 10 4 0T 0 D I OD E FR 1 04 DO - 41 2 2 2 - - D 6 0 1 D 8 1 0
16 BC1FR1051T0 DIO FR105 DO-41 EVERWELL 1 1 1 - - D809
17 BC40HZ6C2T1 ZENER DIODE HZ6C-2 1 1 1 - - ZD5
18 BC40HZ9A2T6 ZENER DIODE HZ9A-2 1 1 1 - - ZD401
1 9 B C 4H Z 5C 1 0T 8 Z E NE R D I O D E HZ 5 C1 5 5 5 - - Z D 1 Z D 2 Z D 3 Z D 4 Z D 4 0 2
20 BCSN58171T0 SCHOTTKY DIODE 1N5817 DO-41 PANJIT 1 1 1 - - D502
21 CA001A601T8 CERAMIC CAP. .1U 50V Z Y5V P5 3 3 3 - - C19 C513 C514
2 2 CA001B631T8 CERAMIC C AP . .0 1 U 50V -20 +80% Z5V P 5 1 6 1 6 16 - - C3 C402 C404 C407 C5 C503
C 5 07 C 5 1 5 C 6 C 601 C604 C609
C 8 10 C 8 1 5 C 8 4 1 C 862
23 CA001D600T2 CERAMIC CAP. 100P 50V +-5% NPO P5 4 4 4 - - C418 C419 C85 C86
24 CA010CCM0T6 CERAMIC CAP. .01U 500V M Z5U P5 1 1 1 - - C814
25 CA010D6K0T8 CERAMIC CAP. 1000P 50V K Y5P P5 3 3 3 - - C408 C506 C520
26 CA010DCKHT0 CERAMIC CAP. 1000P 500V K Y5P P5 1 1 1 - - C16
27 CA010DEK0T0 CERAMIC CAP. 1000P 1KV K Y5P P5 1 1 1 - - C861
28 CA015E602T0 CERAMIC CAP. 150P 50V +-5% NPO P5 1 1 1 - - C66
29 CA022D6K0T0 CER CAP 2200P 50V K Y5P P5 1 1 1 - - C505
30 CA022DEK0T8 CERAMIC CAP. 2200P 1KV K Y5P P5 1 1 1 - - C805
31 CA022E6K0T3 CERAMIC CAP. 220P 50V K Y5P P5 2 2 2 - - C15 C528
32 CA022F6J0T9 CERAMIC CAP. 22P 50V J NPO P5 1 1 1 - - C527
33 CA033ECK0T1 CERAMIC CAP. 330P 500V K Y5P P5 1 1 1 - - C509
Page 63
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ------------------------
3 0 30 3 0
0 0 1 0 11 02 1 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
34 CA033F601T6 CERAMIC CAP. 33P 50V +-5% NPO P5 2 2 2 - - C7 C8
35 CA047E6K0T7 CERAMIC CAP. 470P 50V K Y5P P5 1 1 1 - - C9
36 CA082E6K0T0 CERAMIC CAP. 820P 50V K Y5P P5 1 1 1 - - C822
37 CB0010642T9 CAPACITOR 1U 50V +-20% 85C P5 3 3 3 - - C824 C852 C853
38 CB0010648T2 CAPACITOR (N.P) 1U 50V +-20% 85C P5 1 1 1 - - C821
39 CB0010A41T9 CAPACITOR 1U 100V M B P5 (TM) 1 1 1 - - C843
40 CB0100642T8 CAPACITOR 10U 50V M A P5 2 2 2 - - C13 C840
41 CB0100AM0T0 CAPACITOR 10U 100V M B P5 (TM) 1 1 1 - - C854
42 CB02206M0TH CAPACITOR 22U 50V M A P5 2 2 2 - - C812 C813
43 CB0220A42T5 CAPACITOR 22U 100V +-20% 85C P5 1 1 1 - - C842
44 CB022A645T0 CAPACITOR 2.2U 50V +-20% 85C P5 (SK) 2 2 2 - - C512 C855
4 5 C B 02 2 BA M 0T 0 E L E C AP . 22 U 1 0 0V M A P 5 1 1 1 - - C4 1 6
46 CB04703M0TH CAPACITOR 47U 16V M A P5 3 3 3 - - C1 C417 C431
47 CB047A641T4 CAPACITOR 4.7U 50V M B P5 5 5 5 - - C10 C11 C12 C14 C508
48 CB047A6M3T0 ELE CAP 4.7U 50V +-20% 85C P5 (N.P.) 1 1 1 - - C522
49 CB10003M0TH CAPACITOR 100U 16V M A P5 4 4 4 - - C2 C403 C405 C820
50 CB10004M1TH CAPACITOR 100U 25V M A P5 3 3 3 - - C401 C501 C603
51 CB47004M1T7 CAPACITOR 470U 25V M A P5 1 1 1 - - C602
52 CC0010011T9 RESISTOR 1/2W 1 +-5% S1 1 1 1 - - R614
53 CC0010491T1 RESISTOR (MOF) 1W 1 +-5% S3 1 1 - - - R66
54 CC005A471T3 RESISTOR (FUSE) 1W .5 +-5% 1 1 1 - - R504
55 CC0100171T0 RESISTOR (FUSE) 1/4W 10 +-5% 4 4 4 - - R403 R801 R802 R809
56 CC015A491T0 RES MOF 1W 1.5 +-5% 2 2 2 - - R505 R506
57 CC0220011T8 RESISTOR 1/2W 22 +-5% S1 1 1 1 - - R543
58 CC0220111T3 RESISTOR 1/4W 22 +-5% S1 4 4 4 - - R510 R512 R570 R849
59 CC0220211T9 RESISTOR 1/8W 22 +-5% S1 1 1 1 - - R816
60 CC022A111T3 RESISTOR 1/4W 2.2 +-5% S1 1 1 1 - - R607
61 CC039B421TZ RESISTOR (M.F.) 1W .39 +-5% - - 1 - - R66
62 CC0470111T7 RESISTOR 1/4W 47 +-5% S1 3 3 3 - - R515 R846 R848
63 CC0470491T4 RESISTOR (MOF) 1W 47 +-5% S3 1 1 1 - - R807
64 CC1000071T5 RESISTOR (FUSE) 1/2W 100 +-5% 1 1 1 - - R808
6 5 CC1000111T2 RESISTOR 1/4W 100 +-5% S1 6 6 6 - - R418 R419 R526 R531 R835 R845
66 CC1000211T8 RESISTOR 1/8W 100 +-5% S1 5 5 5 - - R2 R3 R401 R402 R817
67 CC1000491T0 RESISTOR (M0F) 1W 100 +-5% S3 1 1 1 - - R806
68 CC1001111T7 RESISTOR 1/4W 1K +-5% S1 3 3 3 - - R405 R557 R558
69 CC1001125T2 RESISTOR (M.F.) 1/4W 1K +-1% 2 2 2 - - R522 R838
70 CC1001211T2 RESISTOR 1/8W 1K +-5% S1 6 6 6 - - R10 R13 R27 R409 R42 R44
7 1 CC1002111T1 R E SI S T OR 1 / 4 W 10K + - 5% S 1 1 4 1 4 1 4 - - R423 R424 R507 R511 R513 R518
R527 R532 R611 R810 R823 R831
R 8 36 R 8 7 4
72 CC1002211T7 RESISTOR 1/8W 10K +-5% S1 33 33 33 - - R1 R11 R18 R19 R20 R21
R22 R23 R24 R25 R26 R28
R30 R31 R32 R35 R36 R37
R 3 8 R 4 R4 1 7 R 4 21 R 42 2 R4 28
R 4 29 R 5 R 5 14 R 51 6 R5 2 1 R 5 33
R6 R610 R812
73 CC1003211T1 RESISTOR 1/8W 100K +-5% S1 1 1 1 - - R427
Page 64
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
3 0 3 0 30
0 0 1 01 1 02 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
74 CC1003225T7 RESISTOR (M.F.) 1/8W 100K +-1% S2 1 1 1 - - R828
75 CC1201111T2 RESISTOR 1/4W 1.2K +-5% S1 1 1 1 - - R844
76 CC1201211T8 RESISTOR 1/8W 1.2K +-5% S1 1 1 1 - - R548
77 CC1202111T7 RESISTOR 1/4W 12K +-5% S1 1 1 1 - - R832
78 CC1202211T2 RESISTOR 1/8W 12K +-5% S1 1 1 1 - - R425
79 CC1500491T3 RESISTOR (MOF) 1W 150 +-5% S3 2 2 2 - - R502 R805
80 CC1502011T0 RESISTOR 1/2W 15K +-5% S1 1 1 1 - - R847
81 CC1502211T1 RESISTOR 1/8W 15K +-5% S1 1 1 1 - - R819
82 CC1503011T4 RESISTOR 1/2W 150K +-5% S1 1 1 1 - - R861
83 CC1602111T8 RESISTOR 1/4W 16K +-5% - 1 - - - R811
84 CC1800011T9 RESISTOR 1/2W 180 +-5% S1 1 1 - - - R608
85 CC1802111T3 RESISTOR 1/4W 18K +-5% S1 1 - 1 - - R811
1 1 1 - - R 8 54
86 CC1803211T3 RESISTOR 1/8W 180K +-5% S1 1 1 1 - - R420
87 CC1822125T6 RESISTOR (M.F.) 1/4W 18.2K +-1% 1 1 1 - - R523
88 CC2002211T9 RESISTOR 1/8W 20K +-5% S1 3 3 3 - - R40 R45 R525
89 CC2201111T4 RESISTOR 1/4W 2.2K +-5% S1 3 3 3 - - R508 R509 R530
90 CC2201211T0 RESISTOR 1/8W 2.2K +-5% S1 5 5 5 - - R15 R29 R33 R41 R813
91 CC2202111T9 RESISTOR 1/4W 22K +-5% S1 1 1 1 - - R612
92 CC2202211T4 RESISTOR 1/8W 22K +-5% S1 1 1 1 - - R17
93 CC2203011T8 RESISTOR 1/2W 220K +-5% S1 1 1 1 - - R830
94 CC2204111T8 RESISTOR 1/4W 2.2M +-5% S1 3 3 3 - - R870 R871 R872
95 CC2212125T8 RESISTOR (M.F.) 1/4W 22.1K +-1% 1 1 1 - - R416
96 CC2212225T3 RESISTOR (M.F.) 1/8W 22.1K +-1% S2 1 1 1 - - R524
97 CC2401111T0 RESISTOR 1/4W 2.4K +-5% S1 1 1 1 - - R603
98 CC2401211T5 RESISTOR 1/8W 2.4K +-5% S1 1 1 1 - - R602
99 CC2402111T4 RESISTOR 1/4W 24K +-5% S1 - - 1 - - R834
100 CC2701111T8 RESISTOR 1/4W 2.7K +-5% S1 1 1 1 - - R852
101 CC2701225T0 RESISTOR (M.F.) 1/8W 2.7K +-1% 1 1 1 - - R413
102 CC3001111T1 RESISTOR 1/4W 3K +-5% 1 1 1 - - R856
103 CC3300211T0 RESISTOR 1/8W 330 +-5% S1 2 2 2 - - R7 R8
104 CC3301111T9 RESISTOR 1/4W 3.3K +-5% S1 3 3 3 - - R407 R415 R9
105 CC3301211T4 RESISTOR 1/8W 3.3K +-5% S1 4 4 4 - - R406 R426 R430 R544
106 CC3302111T3 RESISTOR 1/4W 33K +-5% S1 1 1 1 - - R827
107 CC3602111T1 RESISTOR 1/4W 36K +-5% 1 1 1 - - R843
108 CC3900211T6 RESISTOR 1/8W 390 +-5% S1 2 2 2 - - R604 R605
109 CC3901111T5 RESISTOR 1/4W 3.9K +-5% 1 1 1 - - R842
110 CC3901211T1 RESISTOR 1/8W 3.9K +-5% S1 1 1 1 - - R412
111 CC3902111T0 RESISTOR 1/4W 39K +-5% S1 1 1 - - - R834
112 CC3902211T5 RESISTOR 1/8W 39K +-5% S1 1 1 1 - - R818
113 CC3903211T0 RESISTOR 1/8W 390K +-5% S1 1 1 1 - - R408
114 CC4700011T1 RESISTOR 1/2W 470 +-5% S1 1 1 1 - - R860
115 CC4700111T7 RESISTOR 1/4W 470 +-5% S1 1 1 1 - - R822
116 CC4700211T2 RESISTOR 1/8W 470 +-5% S1 1 1 1 - - R43
117 CC4701111T1 RESISTOR 1/4W 4.7K +-5% S1 3 3 3 - - R12 R410 R851
118 CC4701211T7 RESISTOR 1/8W 4.7K +-5% S1 4 4 4 - - R14 R34 R517 R545
119 CC4702111T6 RESISTOR 1/4W 47K +-5% 2 2 2 - - R613 R873
Page 65
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ --------------------------
3 0 3 0 30
0 0 1 01 1 02 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
120 CC4702211T1 RESISTOR 1/8W 47K +-5% S1 1 1 1 - - R404
121 CC4703011T5 RESISTOR 1/2W 470K +-5% S1 2 2 2 - - R850 R857
122 CC4703111T1 RESISTOR 1/4W 470K +-5% S1 1 1 1 - - R855
123 CC4703491T0 RES MOF 1W 470K +-5% 1 1 1 - - R540
124 CC5102211T7 RESISTOR 1/8W 51K +-5% S1 1 1 1 - - R538
125 CC5362125T0 RES MF 1/4W 53.6K +-1% 1 1 1 - - R837
126 CC5600011T1 RESISTOR 1/2W 560 +-5% S1 1 1 1 - - R519
127 CC5601111T1 RESISTOR 1/4W 5.6K +-5% S1 1 1 1 - - R853
128 CC6492125T0 RESISTOR (M.F.) 1/4W 64.9K +-1% 1 1 1 - - R820
129 CC8060225T0 RES MF 1/8W 806 +-1% 1 1 1 - - R414
130 CC8200111T1 RESISTOR 1/4W 820 +-5% S1 1 1 1 - - R821
131 CC8201211T1 RESISTOR 1/8W 8.2K +-5% S1 1 1 1 - - R829
132 CC8203111T4 RESISTOR 1/4W 820K +-5% S1 1 1 1 - - R833
133 CJ010B6JNT0 FILM CAP .1U 50V J MEF P5(J67) 2 2 2 - - C410 C516
134 CJ010C6JNT1 FILM CAP .01U 50V J PPN P5(J67) 1 1 1 - - C413
135 CJ010D6GNT0 FILM CAP .001U 50V G PPN P5(J67) 1 1 - - - C607
136 CJ022B6JNT0 FILM CAP .22U 50V J MEF P5(J67) 3 3 3 - - C409 C412 C606
137 CJ047B6JNT0 FILM CAP .47U 50V J MEF P5(J67) 1 1 1 - - C502
138 CJ047C6JNT0 FOLM CAP .047U 50V J MEF P5(J67) 1 1 1 - - C530
139 CJ047D6JNT0 FILM CAP .0047U 50V J PEN P5(J67) 2 2 2 - - C414 C504
- - 1 - - C6 0 7
140 CJ068C6JNT0 FILM CAP .068U 50V J MEF P5(J67) 1 1 1 - - C406
141 CJ082D6JNT0 FILM CAP .0082U 50V J PEN P5(J67) 1 1 1 - - C411
142 DA1C708V010 PCB C708 VA-730 REV1 1 1 1 - - ZZZ
143 DC1100010T0 SPARK GAP MITSUBISHI DSP-152M-A21F 1 1 1 - - SG1
144 DC1510003T2 BEAD FER RI TE RH3.5X8.3X0.8 3 3 3 - - L804 L806 R537
145 DC1510005T0 BEAD URITE F10 RHW 3.5X8.3X0.8-CT R 1 1 1 - - L502
1 4 6 DC382000002 EYELET SL 4X2.5X3 19 19 19 - - E1 E10 E11 E12 E13 E14
E 1 5 E 1 6 E 1 7 E2 E22 E24
E 27 E 28 E 29 E 3 E 30 E5
E 6
147 DC382000200 EYELET LY 4X3X3.5 11 11 11 - - E18 E20 E21 E25 E26 E8
E 9 T 1 T 2 T3 T4
148 X61A6630001 AIS DEF&POW/B VA-730 MF708 1 1 1 - - ZZZ
149 XX0900T2119 JUMPER W I RE D = 0 .6 M M P 5 .0 3 2 3 2 3 2 - - J801 J802 J803 W121 W133 W173
W 17 4 W1 7 5 W 1 85 W 18 6 W1 8 7 W188
W189 W190 W193 W194 W195 W196
W 19 7 W1 9 8 W 1 99 W 20 0 W2 0 1 W202
W 20 3 W2 0 4 W 2 05 W 47 W 51 W60
W 6 1 W 6 2
150 XX0900T2127 JUMPER WIRE D=0.6MM P7.5 25 25 25 - - JP960 W101 W106 W111 W112 W113
W114 W125 W13 W130 W145 W146
W 15 7 W 1 5 8 W 4 1 W4 2 W45 W54
W 70 W 7 1 W 8 2 W 8 7 W93 W94
W 9 8
151 XX0900T2135 JUMPER WIRE D=0.6MM P10 40 40 40 - - W116 W126 W129 W136 W137 W138
W 14 0 W1 4 1 W 1 48 W 14 9 W1 5 W153
W 1 54 W 16 W 16 9 W1 7 0 W 1 8 W30
Page 66
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ --------------------------
3 0 3 0 30
0 0 1 01 1 02 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
W 31 W 34 W 43 W 49 W 50 W52
W 5 3 W 5 5 W 5 6 W 5 7 W 5 8 W64
W 6 7 W 6 9 W 7 2 W 7 3 W 7 4 W75
W 7 8 W 8 1 W 8 8 W 9 7
1 5 2 XX0900T2143 JUMPER WIRE D=0.6MM P12.5 28 28 28 - - W117 W118 W120 W124 W127 W128
W 1 31 W 13 4 W1 5 1 W 1 55 W 16 4 W26
W 3 2 W 3 8 W 5 9 W 6 3 W 6 5 W76
W 77 W 80 W 83 W 86 W 89 W90
W 9 1 W 9 2 W 9 5 W 9 6
153 XX0900T2151 JUMPER WIRE D=0.6MM P15 20 20 20 -JP4 W108 W109 W115 W119 W122
W 1 23 W 13 2 W1 3 5 W 1 43 W 14 4 W147
W 15 0 W 1 7 1 W 1 7 8 W 1 8 3 W184 W66
W 84 W 85
154 XX0900T2160 JUMPER W I RE D = 0 .6 M M P 1 7. 5 1 9 19 1 9 - - R67 W142 W152 W156 W159 W160
W163 W165 W166 W167 W168 W176
W 1 7 7 W 1 7 9 W 1 8 0 W 1 8 1 W 1 8 2 W29
W 79
155 XX0900T2178 JUMPER WIRE D=0.6MM P20 16 16 16 - - R501 W10 W103 W105 W107 W11
W 11 0 W1 2 W1 4 W1 7 W1 9 W4
W 6 W7 W 8 W 9
156 XX0900T2186 JUMPER WIRE D=0.6MM P25 4 4 4 - - W139 W161 W162 W68
157 XX0900T2194 JUMPER WIRE D=0.6MM P30 5 5 5 - - W100 W102 W104 W172 W99
Page 67
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
3 0
001 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# X62A6630001 PCBA DEF&POW/B VA-730 MF708
1 AB008170000 IC LTV-817M-B DIP-4 PHOTO COUPLER 1 - - - - U900
2 AB038420404 IC KA3842A DIP-8 PWM 1 - - - - U901
3 AB078050300 IC KA78R05 TO-220F-4L 1 - - - - U905
4 BB20772Q505 TRANSISTOR 2SB772-Q 2 - - - - Q940 Q942
5 BB527610001 TRANSISTOR 2SK2761-01MR 1N TO-220F 1 - - - - Q901
6 BC1ER3040N3 DIODE ER304-F17 DO-201AD P20 1 - - - - D942
7 BC1F54024N0 DIODE UF5402G-F17 DO-201AD P20 1 - - - - D941
8 BC1GBU4J000 DIO GBU4J BRIDGE 4A/600V PANJIT 1 - - - - BD901
9 CA001BE1101 CERAMIC CAP. .01U 1KV +-20% Z5U P10 2 - - - - C907 C925
10 CA001CBMYH0 CER CAP 1000PF 250V AC M Y5V P10 TDK 1 - - - - C927
11 CA022DBMY07 CERAMIC CAP. 2200P 250VAC M Y5V P10 1 - - - - C934
12 CA047DBMY27 CERAMIC CAP. (Y1) 4700P 250VAC M 2E3 P10 2 - - - - C900 C960
13 CB0470P4105 CAPACITOR 47U 200V M B P5 (TM) 1 - - - - C947
14 CB10013M0T4 CAPACITOR 1000U 16V M A P5 2 - - - - C940 C949
15 CB10014M006 CAPACITOR 1000U 25V M B P5 2 - - - - C944 C970
16 CB1500FM019 CAPACITOR 150U 400V M A P10 22X35 1 - - - - C906
17 CB4700AM004 CAPACITOR 470U 100V M B P7.5 1 - - - - C946
18 CC0080867U0 RESISTOR (THERMISTOR) 5A 8 +-15% 15SP008 KINK P7.5 1 - - - - RT901
19 CC0090884U0 RESISTOR (POSISTOR) 5W 9 +-30% DISK KINK P7.5 1 - - - - PR901
20 CC033BL91M0 RES MOF 3W .33 +-5% S 1 - - - - R907
21 CC4702591N8 RESISTOR (MOF) 2W 47K +-5% S3 1 - - - - R904
22 CF250000703 TRIMMER RES. 1/10W 500 VZ068TL1-B500 1 - - - - VR901
23 CJ047BXMX10 FILM CAP .47U 275VAC M MKP P15 (X2) 2 - - - - C901 C902
24 CL310004716 CHOKE COIL H799 5UH +-10% @1A 3 - - - - L941 L942 L943
25 CL900042003 LINE FILTER F562 EE-25 2 - - - - L901 L902
26 DC020144800 H-CON SET C908 MB P903-P903A 1 - - - - P904
27 DC030039200 WAFER CONN. LEOCO 3941-3 (W/O PIN2) 1 - - - - P902
28 DC040005001 POWER SOCKET POWER 0714 (INALWAYS) 1 - - - - P901
29 DC100001502 FUSE HOLDER CQ-203LR 2 - - - - &F901 &F901
30 DC150007008 CORE TOKIN FR19/10/10-4000H 1 - - - - &P901
31 DC240003600 RELAY DC12V OSA-SS-212DM5 DPST 1 - - - - RL901
32 DEA22000200 PUSH SW N503 PS02-KNAY1EAAB DPDT 1 - - - - SW901
33 DG100015500 X'FORMER C708 POWER ERL-35 350uH 16PIN 1 - - - - T901
34 DX23P1521C1 FUSE 3.15A 250V S SEMKO SLOW N503 1 - - - - F901
35 LC040056608 HEAT SINK MK-503 36X11.2X55 1 - - - - HQ901
36 MAA20096402 SCREW M3X0.5+12P-MC (ADD WASHER) 1 - - - - &Q901
37 NA101301401 WIRE SET 1.8DX130X1.8D 1617#22 BLK(J88) 1 - - - - GNDP
38 NA101950210 WIRE SET 4.3DX195X10T 1015#18 Y/G (J88) 1 - - - - &P901
Page 68
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
3 0
0 0 1 RE M AR K S
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# X61A6630001 AIS DEF&POW/B VA-730 MF708
1 AB0043102T0 IC KA431AZ TO-92 REGULATOR 1 - - - - U904
2 BB3004401T5 TRANSISTOR KSP44 NPN TO-92 1 - - - - Q902
3 BB30945P1T5 TRANSISTOR 2SC945-P 2 - - - - Q903 Q950
4 BBX120300T1 TRANSISTOR RN1203 (TE4,M) 2 - - - - Q941 Q943
5 BC11N4148T8 DIODE 1N4148 6 - - - - D911 D912 D913 D914 D930 D950
6 BC1ER1040T0 DIODE HER104 DO-41 1 - - - - D908
7 BC1ER1071T0 DIODE HER107G DO-41 1 - - - - D943
8 BC1ER2030T0 DIODE HER203G DO-41 EVERWELL 2 - - - - D940 D970
9 BC1F202G0T0 DIODE UF202G DO-41 PANJIT 1 - - - - D944
1 0 B C 1F R 10 7 1T 0 D I OD E FR 1 07 DO - 41 1 - - - - D 9 0 5
11 BC4HZ2020T7 ZENER DIODE HZ20-2 1 - - - - ZD930
1 2 B C 9T 1 69 D 0T 7 S C R B T 16 9 D T O- 9 2 1 - - - - Q 9 3 0
13 CA001A601T8 CERAMIC CAP. .1U 50V Z Y5V P5 2 - - - - C917 C932
14 CA010D6K0T8 CERAMIC CAP. 1000P 50V K Y5P P5 3 - - - - C913 C914 C922
15 CA033E6K0T0 CERAMIC CAP. 330P 50V K Y5P P5 1 - - - - C928
16 CA033EEK0T0 CERAMIC CAP. 330P 1KV K Y5P P5 2 - - - - C962 C983
17 CB0100642T8 CAPACITOR 10U 50V M A P5 1 - - - - C923
18 CB02206M0TH CAPACITOR 22U 50V M A P5 1 - - - - C924
19 CB04703M0TH CAPACITOR 47U 16V M A P5 1 - - - - C951
20 CB10004M1TH CAPACITOR 100U 25V M A P5 2 - - - - C930 C952
21 CB2200441T6 CAPACITOR 220U 25V M B P5 1 - - - - C909
22 CC002A471T2 RESISTOR (FUSE) 1W .2 +-5% 1 - - - - R902
23 CC0100011T8 RESISTOR 1/2W 10 +-5% S1 2 - - - - R964 R983
24 CC0220111T3 RESISTOR 1/4W 22 +-5% S1 1 - - - - R909
25 CC022A111T3 RESISTOR 1/4W 2.2 +-5% S1 1 - - - - R908
26 CC0470111T7 RESISTOR 1/4W 47 +-5% S1 1 - - - - R918
27 CC0470211T2 RESISTOR 1/8W 47 +-5% S1 1 - - - - R977
28 CC0750011T2 RESISTOR 1/2W 75 +-5% S1 1 - - - - R950
29 CC0820111T0 RESISTOR 1/4W 82 +-5% S1 1 - - - - R919
30 CC1001211T2 RESISTOR 1/8W 1K +-5% S1 4 - - - - R911 R936 R974 R976
31 CC1002111T1 RESISTOR 1/4W 10K +-5% S1 1 - - - - R920
32 CC1002211T7 RESISTOR 1/8W 10K +-5% S1 2 - - - - R922 R946
33 CC1003211T1 RESISTOR 1/8W 100K +-5% S1 1 - - - - R929
34 CC1004011T5 RESISTOR 1/2W 1M +-5% S1 3 - - - - R901 R927 R928
35 CC1004211T6 RESISTOR 1/8W 1M +-5% S1 1 - - - - R926
36 CC2002211T9 RESISTOR 1/8W 20K +-5% S1 3 - - - - R932 R947 R948
37 CC2201211T0 RESISTOR 1/8W 2.2K +-5% S1 1 - - - - R972
38 CC2202011T3 RESISTOR 1/2W 22K +-5% S1 1 - - - - R971
39 CC2202491T0 RESISTOR (MOF) 1W 22K +-5% 1 - - - - R984
40 CC2400211T0 RESISTOR 1/8W 240 +-5% 1 - - - - R930
Page 69
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 456A66 REV. 1E
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ---------------------------
3 0
0 0 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
41 CC2702011T7 RESISTOR 1/2W 27K +-5% S1 1 - - - - R970
42 CC3001211T6 RESISTOR 1/8W 3K +-5% S1 1 - - - - R975
43 CC3002211T1 RESISTOR 1/8W 30K +-5% S1 1 - - - - R912
44 CC3302491T1 RESISTOR (MOF) 1W 33K +-5% S3 1 - - - - R903
45 CC4700011T1 RESISTOR 1/2W 470 +-5% S1 1 - - - - R973
46 CC4701111T1 RESISTOR 1/4W 4.7K +-5% S1 1 - - - - R951
47 CC4701211T7 RESISTOR 1/8W 4.7K +-5% S1 4 - - - - R923 R931 R941 R944
48 CC6800011T8 RESISTOR 1/2W 680 +-5% S1 1 - - - - R942
49 CC8200491T8 RESISTOR (MOF) 1W 820 +-5% S3 1 - - - - R945
50 CJ022B6JNT0 FILM CAP .22U 50V J MEF P5(J67) 1 - - - - C977
51 CJ033C6JNT0 FILM CAP .033U 50V J MEF P5(J67) 1 - - - - C916
52 CJ033D6JNT0 FILM CAP .0033U 50V J PEN P5(J67) 1 - - - - C912
53 CJ068CBJ5T0 FILM CAP .068U 250V J MEF P5 TSC 1 - - - - C975
54 DC1510003T2 BEAD FER RI TE RH3.5X8.3X0.8 1 - - - - L903
55 XX0900T2127 JUMPER WIRE D=0.6MM P7.5 1 - - - - R943
En d of R ep o r t
Page 70
Page 71
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 452A60 REV. 1D
C NO. PART NO. DESCRIPTION SPECIFICATION ---------------------------------------------
3 0
0 0 1 RE M AR K S
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 452A6030001 PCBA CRT/B VQ-730 MC708 LG 1D
1 442A6030001 AIS CRT/B VQ-730 MC708 LG 1 - - - - ZZZ
2 AB012690000 IC LM1269 TO220-24 VIDEO AMP 1 - - - - U201
3 AB024670000 IC LM2467 TO220-9 1 - - - - U203
4 AB024800000 IC LM2480 DIP-8 1 - - - - U204
5 AB068270000 IC NT6827 DIP-16 OSD 1 - - - - U202
6 CA001BU3101 CERAMIC CAP. .01U 2KV +80 -20% Z5U P10 1 - - - - C237
7 CB10003M0TH CAPACITOR 100U 16V M A P5 1 - - - - C205
8 DC030008805 WAFER CONN. JST B6B-XH-A 2.5 1 - - - - P201
9 DC030008902 WAFER CONN. JST B8B-XH-A 2.5 1 - - - - P203
10 DC030015607 WAFER CONN. JST B5B-XH-A 2.5 1 - - - - P202
11 DC030031302 WAFER CONN. Y.Y 7551 (J88) 1 - - - - G2
12 DC040044901 SOCKET CRT DH720D 22.5D 17" 1 - - - - SOCK1
13 DC090001302 TERMINAL CHASSIS GND CS-11-029 (J88) 1 - - - - GND
14 ECC70821000 SVB_SHIELD C70821 1 - - - - ZZZ
15 ECC70822000 SVB_COVER C70822 1 - - - - ZZZ
16 ECN50343100 VIDEO HEAT SINK N50343 1 - - - - ZZZ
17 LCC70844000 IC HEATSINK C70844 26X8.5X15MM 1 - - - - &U201
18 MAA70006202 SCREW M3X0.5+8P-NI & WASHER DIM 6 1 - - - - &U203
19 NA101800900 WIRE SET 4.3DX180X5T 1007#18 BLK 1 - - - - ZZZ
20 NA201400100 NET WIRE SET 4.3DX140X5T 112/.12 TUBE 1 - - - - ZZZ
Page 72
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 452A60 REV. 1D
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ --------------------------
3 0
0 0 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 442A6030001 AIS CRT/B VQ-730 MC708 LG
1 BC101SS82T2 DIODE 1SS82 9 - - - - D207 D208 D209 D210 D211 D212
D 2 13 D 21 4 D2 1 5
2 BC11N4148T8 DIODE 1N4148 1 - - - - D220
3 BC1FR1040T0 DIODE FR104 DO-41 1 - - - - D216
4 BC4HZ5C10T8 ZENER DIODE HZ5C1 1 - - - - ZD201
5 CA001A601T8 CERAMIC C A P . . 1 U 50V Z Y5V P 5 1 3 - - - - C201 C202 C203 C204 C207 C212
C 21 7 C2 1 9 C 2 20 C 22 1 C2 2 2 C225
C 2 38
6 CA001D600T2 CERAMIC CAP. 100P 50V +-5% NPO P5 2 - - - - C214 C215
7 CA010CCM0T6 CERAMIC CAP. .01U 500V M Z5U P5 7 - - - - C224 C229 C230 C231 C232 C233
C 23 9
8 CA010DEK0T0 CERAMIC CAP. 1000P 1KV K Y5P P5 1 - - - - C234
9 CA018ELK0T0 CER CAP 180P 2KV K Y5P P5 1 - - - - C236
10 CA022E601T4 CERAMIC CAP. 220P 50V +-5% NPO P5 1 - - - - C213
11 CB0010AM0T0 CAPACITOR (N.P.) 1U 100V M A P5 3 - - - - C226 C227 C235
12 CB0100A43T2 CAPACITOR 10U 100V +-20% 85C P5 1 - - - - C228
13 CB0220A42T5 CAPACITOR 22U 100V +-20% 85C P5 2 - - - - C223 C240
14 CB047A6M0TH CAPACITOR 4.7U 50V M A P5 1 - - - - C206
15 CB10003M0TH CAPACITOR 100U 16V M A P5 3 - - - - C211 C216 C218
16 CC033AI71T0 RES FUSE 1/2W 3.3 +-5% S 1 - - - - R239
17 CC0560111T6 RESISTOR 1/4W 56 +-5% 1 - - - - R227
18 CC0680011T1 RESISTOR 1/2W 68 +-5% S1 3 - - - - R234 R235 R236
19 CC0750211T3 RESISTOR 1/8W 75 +-5% S1 3 - - - - R201 R202 R203
20 CC0820211T5 RESISTOR 1/8W 82 +-5% S1 3 - - - - R224 R225 R226
21 CC1000111T2 RESISTOR 1/4W 100 +-5% S1 1 - - - - R219
2 2 CC1000211T8 RESISTOR 1/8W 100 +-5% S1 14 - - - - R204 R205 R206 R207 R208 R209
R 2 10 R 22 1 R2 2 2 R 2 44 R 24 6 R248
R 2 49 R 25 0
23 CC1001011T1 RESISTOR 1/2W 1K +-5% S1 1 - - - - R237
24 CC1001111T7 RESISTOR 1/4W 1K +-5% S1 2 - - - - R214 R223
25 CC1001211T2 RESISTOR 1/8W 1K +-5% S1 4 - - - - R215 R240 R241 R242
26 CC1002091T0 RES MOF 1/2W 10K +-5% 1 - - - - R238
27 CC1002211T7 RESISTOR 1/8W 10K +-5% S1 1 - - - - R211
28 CC1003111T6 RESISTOR 1/4W 100K +-5% S1 1 - - - - R245
29 CC1202211T2 RESISTOR 1/8W 12K +-5% S1 1 - - - - R217
30 CC1504211T0 RESISTOR 1/8W 1.5M +-5% S1 1 - - - - R220
31 CC3300211T0 RESISTOR 1/8W 330 +-5% S1 2 - - - - R213 R255
32 CC3301211T4 RESISTOR 1/8W 3.3K +-5% S1 4 - - - - R228 R229 R230 R256
33 CC3303211T3 RESISTOR 1/8W 330K +-5% S1 3 - - - - R231 R232 R233
34 CC4702211T1 RESISTOR 1/8W 47K +-5% S1 1 - - - - R243
Page 73
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 452A60 REV. 1D
C NO. PART NO. DESCRIPTION SPECIFICATION --------------------------------------------
3 0
0 0 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
35 CC5601211T6 RESISTOR 1/8W 5.6K +-5% S1 2 - - - - R216 R218
36 CJ001B600T2 MYLAR CAP. .01U 50V +-5% MEF P5 2 - - - - C209 C210
* 37 CJ068D6JNT0 FILM CAP .0068U 50V J PEN P5(J67) 1 - - - - C241
38 CL4100056T0 PEAKING COIL .68uH +-10% (SP0305) 3 - - - - L205 L206 L207
39 DA1C708V110 PCB C708 VQ-730 REV1 1 - - - - PCB
40 DC1100006T0 SPARK GAP MITSUBISHI DSP-201M-C04F 3 - - - - SPG1 SPG2 SPG3
41 DC1510005T0 BEAD URITE F10 RHW 3.5X8.3X0.8-CT R 1 - - - - L208
42 DC1510009T0 BEAD NWE W5 3.5X6X1.0+T 4 - - - - L201 L209 L210 L211
4 3 D C 38 2 00 0 00 2 E Y EL E T S L 4 X 2. 5 X3 1 - - - - & G 2
4 4 X X 09 0 0T 2 11 9 J U MP E R W I R E D= 0 .6 M M P 5 .0 1 - - - - W2 1 7
4 5 XX0900T2127 JUMPER W IR E D = 0 . 6 M M P 7 .5 8 - - - - W201 W202 W203 W207 W209 W213
W 2 14 W 21 5
46 XX0900T2135 JUMPER WIRE D=0.6MM P10 2 - - - - W206 W212
4 7 X X 09 0 0T 2 14 3 J U MP E R W I R E D= 0 .6 M M P 1 2. 5 2 - - - - W 20 4 W2 0 8
4 8 X X 09 0 0T 2 17 8 J U MP E R W I R E D= 0 .6 M M P 2 0 1 - - - - W 2 1 1
4 9 X X 09 0 0T 2 19 4 J U MP E R W I R E D= 0 .6 M M P 3 0 1 - - - - W 2 0 5
En d of R ep o r t
Page 74
=============================================================================================================
QUANTITY REQUIRED DWG.NO. MF708C REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ---------------------------
0 1
0 0 1 RE M AR K S
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# MF708A01001 MF708A MIM UR+MPRII(220V)(WG017) 17"SAM
1 GA020000100 PWR CORD SP022X1.8MXIS14 H05VV-F BLK 1 - - - - 301
2 5224A830021 DIS MIM MF708A UR+MPRII 17"SAM S.S 1 - - - - 351
3 62006830011 PACKING MIM MF708C UR+MPRII WG017 1 - - - - 352
4 X66AE730011 MEC PACKING MIM MF708C UR+MPRII WG017 1 - - - - 353
=============================================================================================================
QUANTITY REQUIRED DWG.NO. MF708C REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
0 1 0 1 02 0 2
0 0 1 00 2 00 1 0 0 2 R EM A RK S
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# MF708C01001 MF708C CCE UR+TCO99(220V)(WG017) 17"CPT
# MF708C01002 MF708C TEO(RE) UR+TCO99(220V)(WG017)
# MF708C02001 MF708C MIM UR+MPRII(220V)(WG017) 17"CPT
# MF708C02002 MF708C TEO(RU) UR+MPRII(220V)(WG017)
1 GA020000100 PWR CORD SP022X1.8MXIS14 H05VV-F BLK 1 1 1 - - 301
2 GA0400801C0 PWR CORD SP60X1.8MXIS14 H05/1.0 BLK 10A - - - 1 - 301
3 5224A830001 DIS CCE MF708C UR+TCO99 WG017 17" S.S 1 - - - - 351
4 5224A830002 DIS TEO(RE) MF708C UR+TCO99 17"CPT S.S - 1 - - - 351
5 5224A830011 DIS MIM MF708C UR+MPRII WG017 17" S.S - - 1 - - 351
6 5224A830012 DIS TEO(RU) MF708C UR+MPRII 17"CPT S.S - - - 1 - 351
7 62006830001 PACKING CCE MF708C UR+TCO99 WG017 1 - - - - 352
8 62006830002 PACKING TEO(RE) MF708C UR+TCO99 WG017 - 1 - - - 352
9 62006830011 PACKING MIM MF708C UR+MPRII WG017 - - 1 - - 352
10 62006830012 PACKING TEO(EU) MF708C UR+MPRII WG017 - - - 1 - 352
11 X66AE730001 MEC PACKING CCE MF708C UR+TCO99 WG017 1 1 - - - 353
12 X66AE730011 MEC PACKING MIM MF708C UR+MPRII WG017 - - 1 1 - 353
En d of R ep o r t
Page 75
=============================================================================================================
QUANTITY REQUIRED DWG.NO. X66AE7 REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
3 0 3 0
0 0 1 01 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# X66AE730001 MEC PACKING CCE MF708C UR+TCO99 WG017
# X66AE730011 MEC PACKING MIM MF708C UR+MPRII WG017
1 FAC70812000 BACK COVER C70812 - 1 - - - 201
2 FAC70812100 BACK COVER C70812(PC+ABS) 1 - - - - 201
3 FAV70015000 BASE ASSY V70015 TOOLING 4 1 1 - - - 202
4 FHV79941000 SPONGE V79941 1 1 - - - 203
5 FJF70813000 EPS FOAM(L) F70813 1 1 - - - 204
6 FJF70814000 EPS FOAM(R) F70814 1 1 - - - 205
7 MAB20085407 TAPING SCREW TPB-4.0+20C-MC 4 4 - - - 206 206 206 206
En d of R ep o r t
=============================================================================================================
QUANTITY REQUIRED DWG.NO. X66AE8 REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ---------------------------
3 0 30
001 011 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# X66AE830001 MEC PARTS CCE MF708C UR+TCO99 WG017
# X66AE830011 MEC PARTS MIM MF708A UR+MPRII WG017
1 FCC70821000 GUIDE(L) C70821 1 1 - - - 002
2 FHH56648004 RUBBER WASHER H56648 4 - - - - 007 007 007 007
3 FHM98042100 RUBBER WASHER M98042 - 4 - - - 007 007 007 007
4 MAB20085407 TAPING SCREW TPB-4.0+20C-MC 4 4 - - - 011 011 011 011
5 MAB70076400 SCREW TPB-5+22P-MC WASHER DIM 16.3 4 4 - - - 012 012 012 012
6 FBC70841000 POWER KNOB C70841 1 1 - - - 013
7 FBC70831000 FUNCTION KN0B C70831 1 1 - - - 014
8 FCC70822000 GIODE(R) C70822 1 1 - - - 015
9 FCM57042007 LED LENS (M570) M57042 1 1 - - - 016
10 EXH97141100 BUTTON SPRING DJ72-K008 3332452 1 1 - - - 017
En d of R ep o r t
Page 76
=============================================================================================================
QUANTITY REQUIRED DWG.NO. X66AE7 REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ --------------------------
3 0 3 0
0 0 1 01 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# X66AE730001 MEC PACKING CCE MF708C UR+TCO99 WG017
# X66AE730011 MEC PACKING MIM MF708C UR+MPRII WG017
1 FAC70812000 BACK COVER C70812 - 1 - - - 201
2 FAC70812100 BACK COVER C70812(PC+ABS) 1 - - - - 201
3 FAV70015000 BASE ASSY V70015 TOOLING 4 1 1 - - - 202
4 FHV79941000 SPONGE V79941 1 1 - - - 203
5 FJF70813000 EPS FOAM(L) F70813 1 1 - - - 204
6 FJF70814000 EPS FOAM(R) F70814 1 1 - - - 205
7 MAB20085407 TAPING SCREW TPB-4.0+20C-MC 4 4 - - - 206 206 206 206
En d of R ep o r t
=============================================================================================================
QUANTITY REQUIRED DWG.NO. X66AE8 REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ---------------------------
3 0 30
001 011 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# X66AE830001 MEC PARTS CCE MF708C UR+TCO99 WG017
# X66AE830011 MEC PARTS MIM MF708A UR+MPRII WG017
1 FCC70821000 GUIDE(L) C70821 1 1 - - - 002
2 FHH56648004 RUBBER WASHER H56648 4 - - - - 007 007 007 007
3 FHM98042100 RUBBER WASHER M98042 - 4 - - - 007 007 007 007
4 MAB20085407 TAPING SCREW TPB-4.0+20C-MC 4 4 - - - 011 011 011 011
5 MAB70076400 SCREW TPB-5+22P-MC WASHER DIM 16.3 4 4 - - - 012 012 012 012
6 FBC70841000 POWER KNOB C70841 1 1 - - - 013
7 FBC70831000 FUNCTION KN0B C70831 1 1 - - - 014
8 FCC70822000 GIODE(R) C70822 1 1 - - - 015
9 FCM57042007 LED LENS (M570) M57042 1 1 - - - 016
10 EXH97141100 BUTTON SPRING DJ72-K008 3332452 1 1 - - - 017
En d of R ep o r t
Page 77
Page 78
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 51A118 REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ---------------------------
3 0 3 0 30
0 0 1 01 1 02 1 R E MA R KS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 51A11830001 VIDEO ASSY MF708C TCO99
# 51A11830011 VIDEO ASSY MF708C MPRII
# 51A11830021 VIDEO ASSY MF708A MPRII
1 452A6030001 PCBA CRT/B VQ-730 MC708 LG 1 1 1 - - 001
2 456A6630001 PCBA DEF&POW/B VA-730 MF708 CPT TCO 1 - - - - 002
3 456A6630011 PCBA DEF&POW/B VA-730 MF708 CPT MPRII - 1 - - - 002
4 456A6630021 PCBA DEF&POW/B VA-730 MF708 SAM MPRII - - 1 - - 002
En d of R ep o r t
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 51A119 REV. 0C
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ --------------------------
3 0 30 3 0
001 002 011 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 51A11930001 CRT&YOKE ASSY MF708C TCO99
# 51A11930002 CRT&YOKE ASSY MF708C MPRII
# 51A11930011 CRT&YOKE ASSY MF708A MPRII
1 AC500024110 CRT&YOKE M41AJR53X76(LL) K (TCO) CPT 1 - - - - 001
2 AC500024120 CRT&YOKE M41AJR53X76 P(LL) K(MPRII) CPT - 1 - - - 001
3 AC500024230 CRT&YOKE M41QCJ761X172(TCO/DFX) K SAM - - 1 - - 001
4 DC020147900 H-CON SET C708 CRT-GND AROUND W5.6 1 1 1 - - 003
5 KA000600ZZ0 LOCKING CABLE TIE W2.5XL120 WHITE 11 11 11 - - 004 004 004 004 004 004
0 0 4 0 0 4 0 0 4 0 0 4 004
En d of R ep o r t
83
Page 79
Page 80
Page 81
Page 82
Page 83
=============================================================================================================
QUANTITY REQUIRED DWG.NO. 5224A8 REV. 0B
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ -------------------------
3 0 3 0 30 3 0 3 0
001 002 011 012 021 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- -----
# 5224A830001 DIS CCE MF708C UR+TCO99 WG017 17" S.S
# 5224A830002 DIS TEO(RE) MF708C UR+TCO99 17"CPT S.S
# 5224A830011 DIS MIM MF708C UR+MPRII WG017 17" S.S
# 5224A830012 DIS TEO(RU) MF708C UR+MPRII 17"CPT S.S
# 5224A830021 DIS MIM MF708A UR+MPRII 17"SAM S.S
1 CLA7F000000 DEGAUSSING COIL F768 CRT AROUND .5X120TS 1 1 1 1 1 301
2 DC190030200 CB ASY C708 20276/2CORE 1.5M BLK LOCK 1 1 1 1 1 303
3 FAF70811100 BEZEL F70811(PC+ABS) 1 - - - - 304
4 FAF70811200 BEZEL(MIM) F70811(ABS)(WG017)(DEVIL) - - 1 - 1 304
5 FAF70811300 BEZEL(TEO-RU) F70811(ABS)(WG017)(RELISYS) - - - 1 - 304
6 FAF70811400 BEZEL(TEO-RE) F70811(PC+ABS)(WG017)(RELISYS) - 1 - - - 304
7 ELF70848000 MYLAR F70848(10X15X2.5) 2 2 2 2 2 305 305
8 KA000600ZZ0 LOCKING CABLE TIE W2.5XL120 W H I T E 1 1 1 1 11 1 1 11 306 306 306 306 306 306
3 0 6 3 0 6 3 0 6 3 0 6 306
9 KA006700ZZ1 LOCKING CABLE TIE W2.5XL203 WHITE (YJ-203S) 3 3 3 3 3 309 309 309
10 NA200600200 NET SET D3.96X60XW5.6 112C TUBECOREJ88 1 1 1 1 1 311
11 DC020135100 HOUSING CONN. SET M557 MB-CRT E-CAN. TCO SAM. 1 1 1 1 1 314
12 MAA70064400 SCREW M4X0.7+8CF-MC(EX.LOCK WASHER) 1 1 1 1 1 317
1 3 M A B7 0 00 8 40 6 S C RE W TP B -3 + 8C - MC 1 1 1 1 1 3 1 8
14 51A11830001 VIDEO ASSY MF708C TCO99 1 1 - - - 351
15 51A11830011 VIDEO ASSY MF708C MPRII - - 1 1 - 351
16 51A11830021 VIDEO ASSY MF708A MPRII - - - - 1 351
17 51A11930001 CRT&YOKE ASSY MF708C TCO99 1 1 - - - 352
18 51A11930002 CRT&YOKE ASSY MF708C MPRII - - 1 1 - 352
19 51A11930011 CRT&YOKE ASSY MF708A MPRII - - - - 1 352
20 X66AE830001 MEC PARTS CCE MF708C UR+TCO99 WG017 1 1 1 1 - 353
21 X66AE830011 MEC PARTS MIM MF708A UR+MPRII WG017 - - - - 1 353
En d of R ep o r t
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
