Acer ADSL SURF USB MODEM User Manual
Acer ADSL Surf USB
Modem
.
Acer European Support: http://support.acer-euro.com
Installation Guide
Installation Guide and User Manual
1
Table of Contents
.
1. About The Manual
2. Specification
3. Preface
Chapter 1 : ADSL Overview
Chapter 2 : NDISLAN (RFC 1483) Driver for Windows 98 (Original
Edition), 98SE, ME, XP and 2000
2
Installation Guide and User Manual
1. About This Manual
.
This manual provides a comprehensive user’s guide and installation manual for Acer
ADSL Surf USB Modem. It has been organized in such a way to make it easy to be
followed by users worldwide. In order to ensure optimal comprehension, the following list
provides brief descriptions of the formatting styles used throughout this manual.
q Commands : Commands are always referred to by using the word “ Click ” before
them. These commands are always shown as bold- faced words. For example, click
Next , click OK, or click Cancel.
q Names of Windows ( Dialog Boxes ) : The names of the windows ( also referred to
as dialog boxes ) that appear on the PC screen are always referred to in quotes. For
example, the “ Setup Complete ” window.
q Names of Options in Windows : The names of options to choose from inside the
windows that appear on the PC screen are always referred to in italics. For example,
choose the “Yes, I want to restart my computer” option from the window.
q Notes : In some cases, preparatory or cautionary information is needed before
proceeding to the next step in an installation process. This kind of information is
provided in the form of notes, which are always referred to in bold-faced and italicized
letters.
3
Installation Guide and User Manual
2. Specifications
ADSL Modem:
l DMT Data Rates :
u Up to 8Mb downstream
u Up to 1024Kbps upstream
l Compliant Standards :
u ITU G.992.1 (Annex A , Annex B)
u G.992.2
u ANSI T1.413 Issue 2
u ETSI TR328
l RFC Protocols :
u RFC 1483 ( Multi-Protocol Encapsulation Over ATM (ALL5 ) )
u RFC 2364 ( Point-To-Point Protocol Over ATM ( ALL5 ) )
u RFC 2516 ( Point-To-Point Protocol Over Ethernet )
Bus Type
Type B USB
Cables & Connectors
1 RJ-45/11 cable & 1 Type A/B USB cable
Graphical User Interface

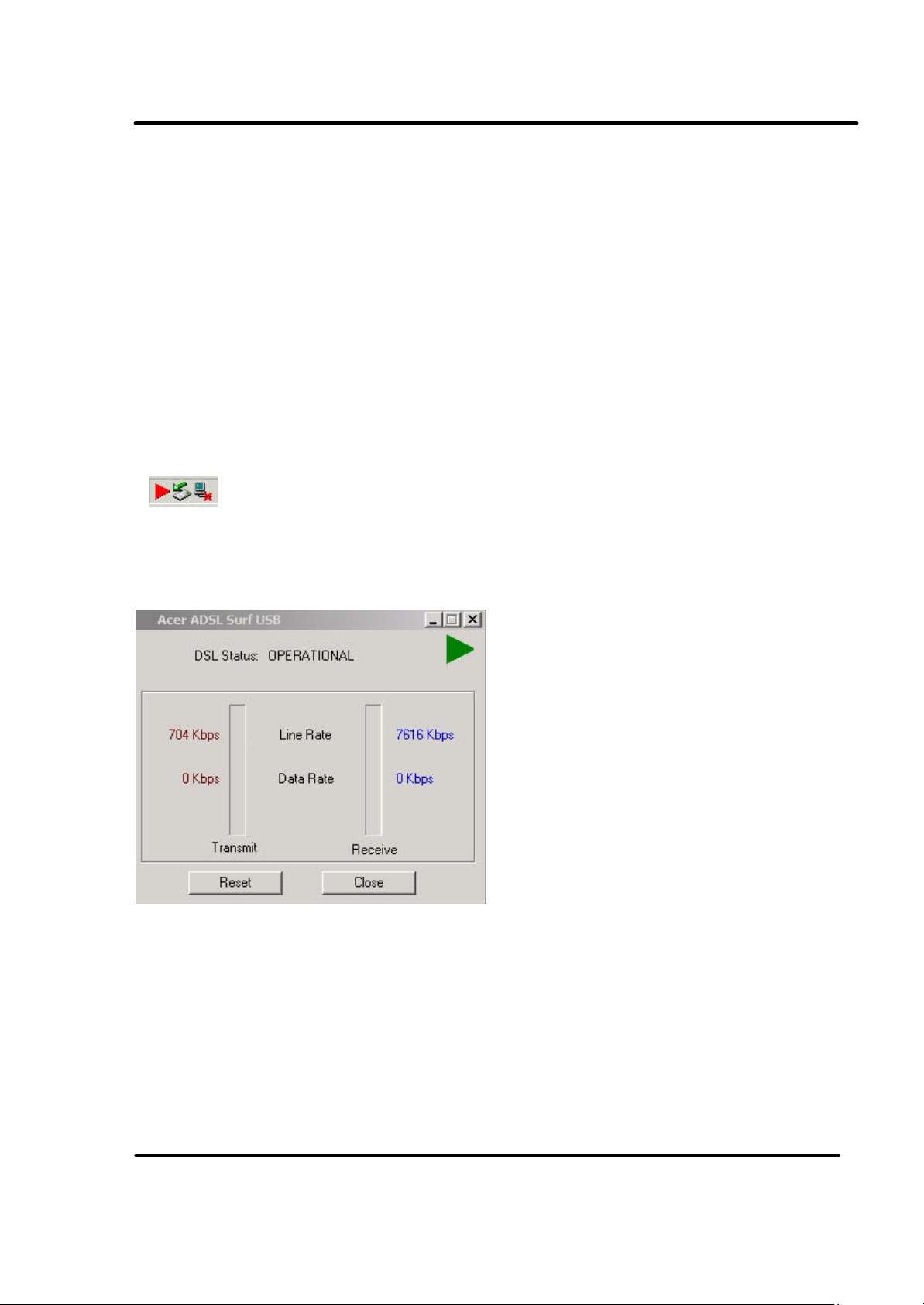

DSL GUI is a tool that enables users to monitor USB Modem and ADSL line status, and
to change the Modem configuration.
Operating System Support
Windows 98 (Original Edition), 98SE, Windows ME, Windows 2000 and Windows XP
Physical Description
Dimension : 14.6cm (L) x 9.55cm (W) x 3.0cm (H)
4
Installation Guide and User Manual
Operating Environment
Operating + 0? ~ + 50?
Non-operating - 20? ~ + 70?
Humidity
Operating 20%~80% RH
Non-operating 10%~80% RH
Standard Approval
CE CLASS B
FCC PART 15 CLASS B
FCC PART 68
EN60950
K.21
Status LED
1 LED indicates ADSL Detect/Connect
1 LED indicates Power/R eady
5
Installation Guide and User Manual
