Abit CX6E User Manual
Copyright and Warranty Notice
The information in this document is subject to change without notice and does not
represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to
the quality, accuracy or fitness for any particular part of this document. In no event
shall the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising from any defect or error in this manual or product.
Product names appearing in this manual are for identification purpose only and
trademarks and product names or brand names appearing in this document are
property of their respective owners.
This document contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or
transcribed without the expressed written permission of the manufacturer and
authors of this manual.
If you do not properly set the motherboard settings causing the motherboard to
malfunction or fail, we cannot guarantee any responsibility.
CX6 Motherboard User’s Manual
Table of Contents
Chapter 1. Introduction of CX6 Features 1-1
1-1. Features of this Motherboard 1-1
1-2. Specifications 1-6
1-3. Layout Diagram 1-9
1-4. The System Block Diagram 1-10
Chapter 2. Installing the Motherboard 2-1
2-1. Installing the Motherboard to the Chassis 2-2
2-2. Installation of the Pentium
II/III CPU 2-3
2-3. Installing System Memory 2-4
2-4. Connectors, Headers and Switches 2-7
Chapter 3. Introduction of The BIOS 3-1
3-1. CPU Soft Menu™ II 3-4
3-2. Standard CMOS Features Setup Menu 3-8
3-3. Advanced BIOS Features Setup Menu 3-13
3-4. Advanced Chipset Features Setup Menu 3-18
3-5. Integrated Peripherals 3-21
3-6. Power Management Setup Menu 3-27
3-7. PnP/PCI Configurations 3-35
3-8. PC Health Status 3-38
3-9. Load Fail-Safe Defaults 3-40
3-10. Load Optimized Defaults 3-40
3-11. Set Password 3-41
3-12. Save & Exit Setup 3-42
3-13. Exit Without Saving 3-43
MN-170-2A0-41 Rev. 1.00
Appendix A Intel INF Installation Utility for Windows® 98 SE

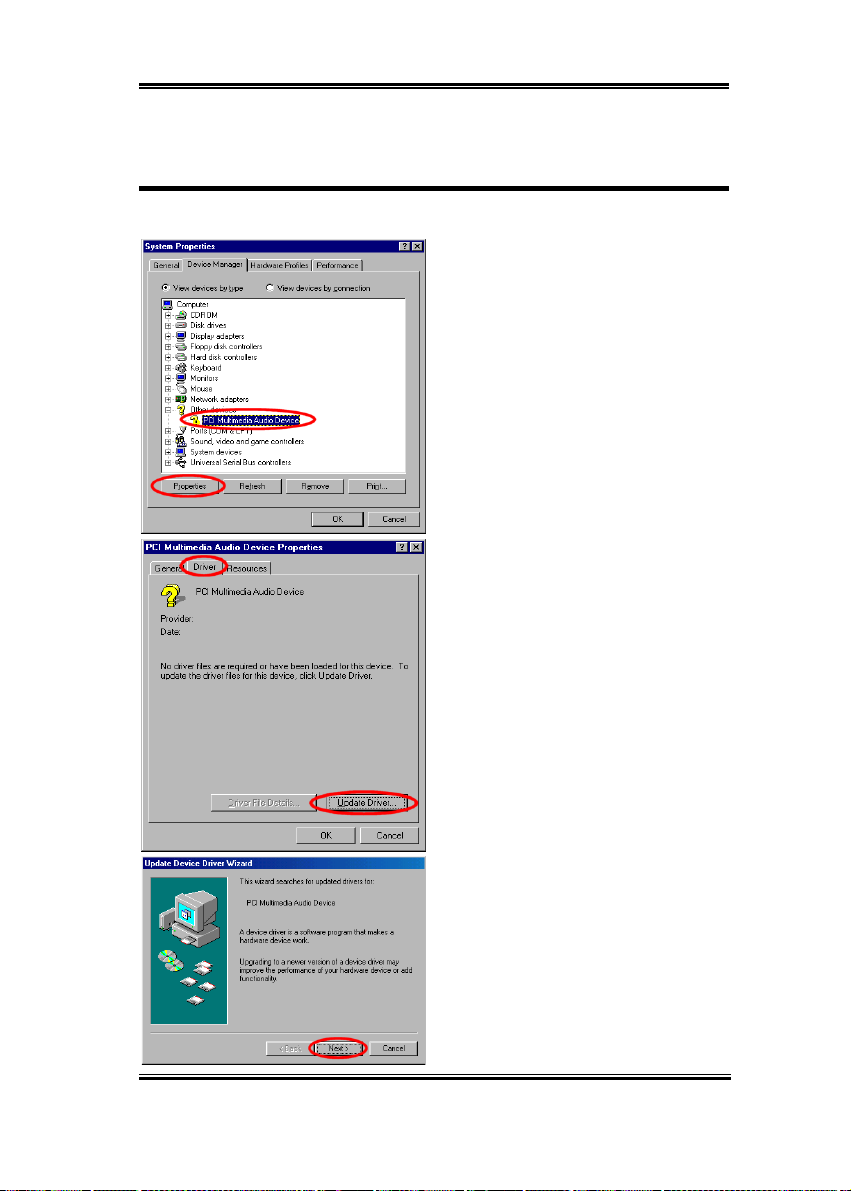

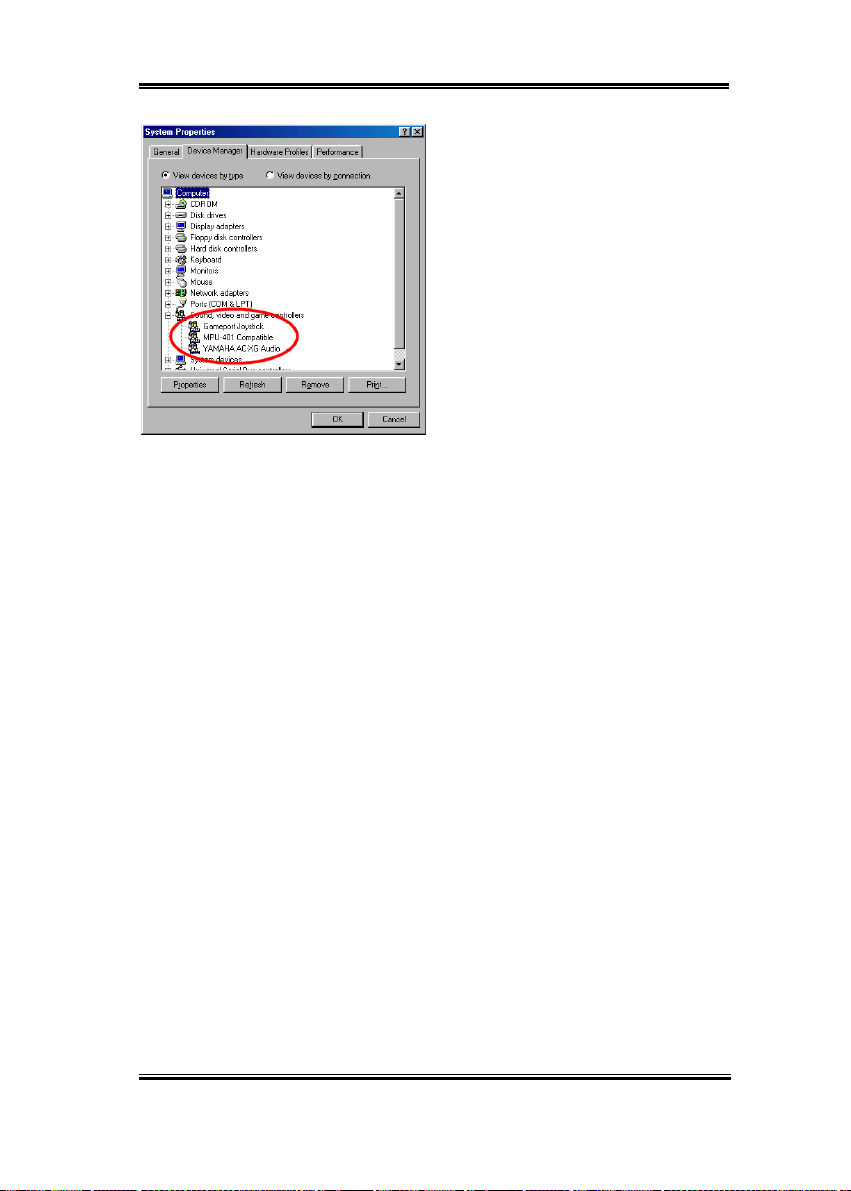

Appendix B Installing the Audio Driver for Windows
Appendix C Installing the Audio Drivers for the Windows
®
98 SE
®
NT
Appendix D BIOS Flashing User Instructions
Appendix E Installing the HighPoint XStore Pro Utility
Appendix F Hardware Monitoring Function (Installing the
Winbond Hardware Doctor Utility)
Appendix G Installation Guide for Suspend to RAM
Appendix H Troubleshooting (Need Assistance?)
Appendix I How to Get Technical Support
Introduction of CX6 Features 1-1
Chapter 1. Introduction of CX6 Features
1-1.Features of this Motherboard
This motherboard is designed for the new generation of CPUs. It supports the Intel SLOT1
structure (Pentium
II/III processor), up to 1GB of memory, super I/O, and Green PC
functions. The motherboard provides high performance for server systems and meets the
requirements for future multimedia desktop systems.
The CX6 uses the new generation Intel
integration of the system. What are the main features of the Intel
®
820 chipset (
) for more efficiency and high
Camino
®
Camino chipset? Its
structure is shown in Figure 1-2.
➠
133 MHz System Bus
!
➠
AGP 4x Graphics
!
!
➠
RDRAM Memory
!
!
!
The Intel
®
The Intel
"
820 platform supports the new 133 MHz system bus
Up to 33% increased peak bandwidth over the Intel
®
440BX platform.
Up to 1GB/Sec transfer rate
Twice the peak bandwidth of AGP 2x of the 440BX AGPset
"
Broad industry support for AGP 4x from all leading graphics IHVs
NVIDIA, 3Dfx, S3, ATI, Intel, Matrox, etc.
"
Provides memory bandwidth to keep up with ever increasing application demands
Faster processors, graphics, and I/O
"
RDRAM delivers up to 3x the effective bandwidth of PC100 SDRAM
1.6 GByte/sec for PC800 RDRAM
"
RDRAM provides the required headroom for further application improvement
Constant Computing
"
More realistic environments
"
Platform longevity and stability
"
®
820 chipset is a combination of three chips: the FW82820, FW82801 and
FW82802. The FW82820 is called MCH chip (Memory Controller Hub), FW82801 is
called ICH chip (I/O Controller Hub), FW82802 is called FWH chip (FirmWare Hub).
MCH (Memory Controller Hub)
The MCH provides the host interface, DRAM interface, I/O interface, and AGP interface in
a Camino platform. Camino MCH is optimized for the Katmai or Coppermine processor. It
supports a single channel of direct Rambus memory technology. Its AGP interface is fully
compliant with AGP 2.0 specification. Communication to ICH is over a private interface or
the hub interface (link). The Camino MCH contains the following functionality:
User’s Manual
1-2 Chapter1
Supports the Katmai and Coppermine processors at 100/133MHz for Slot 1
➠
Supports an IOQ (In-Order Queue) depth of 6
➠
GTL+ host bus supporting 32-bit host addressing
➠
Single Direct Rambus channel optimized for 300, 356 and 400 MHz operation
➠
1GB DRAM supported with 256Mbit memory technology
➠
AGP 2.0 interface with 1x/2x/4x data transfer and 2x/4x fast write capability
➠
The hub interface (link) to ICH
➠
Fully optimized data paths and buffering
➠
Distributed arbitration for highly concurrent operation
➠
ACPI 1.0 power management compliant
➠
ICH (I/O Controller Hub)
The ICH is a highly integrated multifunctional component supporting the following
functions and capabilities:
PCI Rev. 2.2 compliant with support for 33MHz PCI operations
➠
Supports up to 6 Req/Gnt pairs (PCI Slots)
➠
Integrated IDE controller with Ultra DMA/66 support
➠
USB host interface with support for 2 USB ports
➠
AC '97 2.1 compliant link for audio and telephony CODECs
➠
Firmware Hub (FWH) interface support
➠
FWH (FirmWare Hub)
The FWH component is part of several integrated Intel® chipsets. The FWH is key to
enabling future security and manageability infrastructures for the PC platform. The device
operates under the FWH interface/protocol. The hardware features of this device include a
andom Number Generator (RNG), five General Purpose Inputs (GPIs), register-based
R
block locking, and hardware-based locking. An integrated combination of logic features and
non-volatile memory enables better protection for the storage/update of platform code/data,
adds platform flexibility through additional GPIs and allows for quicker introduction of new
security/manageability features into the current and future Intel
®
architecture platform. It's
available in 8Mbit (82802AC), 4Mbit (82802AB), and 2Mbit (82802AA) densities. It uses
the 32L PLCC or 40L TSOP industry standard packages.
AMR (Audio/Modem Riser)
The CX6 has one AMR slot onboard, called the Audio/Modem Riser
(AMR)
slot. The
Audio/Modem Riser is an open industry-standard specification that defines a hardware
CX6
Introduction of CX6 Features 1-3
scalable Original Equipment Manufacturer (OEM) motherboard riser board and interface,
which supports both audio and modem functions. The specification's main objective is to
reduce the baseline implementation cost of audio and modem functionality. In accordance
with PC user's demands for feature-rich PCs, combined with the industry's current trend
towards lower cost PCs, all of theses functions are built into the motherboard. But
motherboard integration of the modem subsystem has been problematic to date, in large part
due to FCC and other international telecom certification processes that may delay the
introduction of a motherboard. Resolving the homologation/certification issue for modems
is one of the AMR specification's key objectives.
In the future, not only OEM motherboards will have an AMR design, the AMR card will
appear in the market and you can make a choice in buying this kind of card according to your
budget. But your motherboard must have an AMR slot to be able to plug an AMR card. The
CX6 insures this expansibility for this issue.
Yamaha YMF752-S audio chip
YMF752 is an AC’97 Audio CODEC LSI, which is fully compliant with the industry
standard “Audio CODEC ’97” component specification (Revision 2.1).
YMF752 includes a SRC (Sampling Rate Converter) for support variable sampling rate,
which can work the A/D and D/A converter at different rate. YMF752 has an AC-Link serial
interface, which can be used with digital controller LSI. Therefore, YMF752 is the best
audio solution for both laptops and desktop PCs as well as AMR (Audio Modem Riser) and
MDC (Mobile Daughter Card).
YMF752 also supports low power consumption while normal operating and allows for
controlling the power down mode.
Direct Rambus Technology
During the past few years, computer main memory has become the speed bottleneck that has
blocked improved system performance. This is true despite the fact that DRAM densities
have been accelerating sharply from yesterday's 1Kbit per chip to today's 64Mbit devices.
While that aspect of DRAM technology has advanced by a factor of 1,000 in the past 10
years, the time it takes to access main memory has improved by only a factor of five. The
result is that memory bandwidth, the number of bytes per second that can be moved across
memory I/O, has been hobbled. That sluggish performance improvement is now a severe
drag on systems powered by microprocessors that have improved CPU performance 200
fold in the same timeframe.
User’s Manual
1-4 Chapter1
DRAM synchronization has set the stage for system designers to move from a 66MHz to a
100 MHz system bus, partially closing the speed gap between processor and memory. But
even as engineering teams wrestle with this design challenge, microprocessors are
advancing to speeds of 300MHz, 400MHz, and beyond.
Memory technologists are now developing new DRAM architectures that are expected to be
fast enough to unleash the power of tomorrow's processors. These architectures add special
registers to each DRAM pin and special controller functions to the DRAM array core.
Currently, the most fully developed of these architectures is Direct Rambus DRAM (Direct
RDRAM) which uses a special controller, layout, and bus to achieve high I/O bandwidth.
While other firms were employing techniques such as SRAM caches, parallel arrays of
DRAMs, and expensive frame buffers to increase memory bandwidth, Rambus, Inc. took an
entirely different tack. Rambus targeted a two-byte wide data path, 800MHz transfer rate,
and a 95% protocol efficiency. The development resulted in a new chip-to-chip bus, termed
the Direct Rambus Channel (DRC) which includes a controller and one or more Direct
RDRAMs connected together via a common bus. Using a limited number of high-speed
signals to carry all address, data, and control information, DRC links main memory to
system devices that have a need to access memory, including microprocessors, DSPs,
graphics processors, and ASICs. Low voltage swing signaling is used with conventional
PCB technology to permit data transfer up to 800Mbits/s/pin, resulting in the 1.6GB/s peak
bandwidth that will be required for Intel's projected 1999 high-end systems.
Table 1-1 Direct Rambus Technology Features
Frequency
Maximum Device Bandwidth
Data Width
Protocol Efficiency for 32-byte Transfers
Voltage
800 MHz
1.6 Gbytes/sec
16 or 18 bits
95-100%
2.5/1.8V
STR (Suspend to RAM)
The CX6 supports the STR function. The STR function enables a PC to achieve the S3 state
during idle periods, then quick “wake up” and retrieve the last “state” of the system before it
went to sleep. When idle, STR-enabled systems consume only a small fraction of the power
used for full operation. Instead of shutting down the system to save power when not in use
and then having to reboot later, users can let the STR function take over and not have to
worry about using power to run all the electronics, fans and disks. When needed, a PC with
STR function can restore all applications and features to an operational state within a few
seconds.
CX6
Introduction of CX6 Features 1-5
Ultra DMA/66
The CX6 supports Ultra ATA/66 IDE devices. Ultra ATA/66 is the new standard for IDE
devices. It enhances existing Ultra ATA/33 technology by increasing both performance and
data integrity. This new high-speed interface doubles the Ultra ATA/33 burst data transfer
rate to 66.6 Mbytes/sec. The result is maximum disc performance using the current PCI
local bus environment. You can connect either Ultra ATA/33 IDE devices or Ultra ATA/66
IDE devices to the IDE connectors on this motherboard.
PC Health
The CX6 has built-in hardware monitoring functions, that can monitor and protect your
computer insuring a safe computing environment.
Sets You Free From the Y2K Threat
The potential threat of Year 2000 (Y2K) problems are making everyone very nervous. The
Y2K issue applies to almost any device, firmware, or software that operates on or with year
based dates. This problem is caused by a design flaw in the Real Time Clock (RTC) unit.
The RTC only changes the last two digits of the year code, but not the century information.
As a result, when it comes to 12:00 AM January 1, 2000 the RTC will switch from
December 31 11:59 PM 1999 to 12:00 AM January 1 1900.
Y2K compliance deals with the date change over from 31 December 1999 to 1 January 2000,
and with recording and reporting of all dates from the RTC including leap year dates. This
motherboard is free from the Y2K problem because its BIOS are Y2K compliant.
Please Note
If the operating system or application software cannot handle Year 2000 dates, you will
still be facing the Y2K threat because it is not a hardware problem that relates to the
motherboard itself. According to Award BIOS, it is BIOS source code released after 31
May 1995 complies with all known Y2K issues; however, it may still fail the 2000.exe
test. Award has modified its BIOS source code to accommodate the requirements of
2000.exe. Award BIOS source code issued later than 18 November 1996 passes the
NTSL 2000.exe test program.
User’s Manual
1-6 Chapter1
1-2. Specifications
1. CPU
Supports Intel Pentium
#
Supports Intel Pentium
#
Supports Intel
#
Supports Intel
#
Supports 100 and 133MHz CPU external clock speeds
#
2. Chipset
®
Intel
#
#
#
#
820 chipset (FW82820, FW82801 and FW82802AB)
Supports Ultra DMA 33/66 IDE protocol
Supports Advanced Configuration and Power Management Interface (ACPI)
Supports AGP 1X/2X/4X (Sideband) 1.5V/3.3V device
3. Memory (System Memory)
Two 184-pin RIMM sockets support Direct Rambus Memory module
#
Supports up to 1GB. (1GB uses 256Mbit technology)
#
Supports PC600, PC700 and PC800 RDRAM
#
Supports ECC
#
4. Yamaha YMF752-S audio chip
YMF752 is an AC’97 Audio CODEC LSI, which is fully compliant with the industry
standard “Audio CODEC ’97” component specification (Revision 2.1).
AC’97 Revision 2.1 Compliant
#
Exceeds PC’98/’99 Audio Performance Requirements
#
Analog Inputs:
#
• 4 Stereo Inputs: LINE, CD, AUX
• 1 Monaural Inputs: PC BEEP Inputs
• 1 Independent Microphone Inputs
PC BEEP can directly output to Line Out
#
Internal +20dB amplifier circuitry for microphone
#
Analog Outputs:
#
• Stereo LINE Output with volume control
• True LINE Level with volume control
• Monaural Output with volume control
Supports 3D Enhancement (Wide Stereo)
#
Supports Variable Sampling Rate (48k/44.1k/22.05k/16k/11.025k/8kHz)
#
The A/D and D/A converter can be worked at different sampling rate.
#
®
III Coppermine with 128/256K
®
III Katmai
Pentium III 450 ~ 800 MHz Processor cartridge.
Pentium II 350 ~ 450 MHz Processor cartridge.
CX6
Introduction of CX6 Features 1-7
Programmable Power Down Mode
#
Supports EAPD (External Amplifier Power Down)
#
Power Supplies: Analog 5.0V, Digital 3.3V
#
5. System BIOS
™
CPU SOFT MENU
#
AWARD BIO S
#
Supports Plug-and-Play (PnP)
#
Supports Advanced Configuration Power Interface (ACPI)
#
Supports Desktop Management Interface (DMI)
#
Year 2000 compliant
#
II, can easily set the processor parameters
6. Multi I/O Functions
2x Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66 devices
#
PS/2 Keyboard and PS/2 Mouse Connectors
#
1x Floppy Port ( up to 2.88MB)
#
1x Parallel Port (EPP/ECP)
#
2x Serial Ports
#
2x USB Connectors
#
7. Miscellaneous
ATX form factor
#
One AGP slot, five PCI slots and one AMR slot
#
Supports PS/2 keyboard and PS/2 mouse wake-up functions
#
Supports STR (Suspend to DRAM)
#
Supports STD (Suspend to Disk)
#
Built-in Wake on LAN header
#
Built-in IrDA TX/RX header
#
Built-in Wake On Ring header
#
Built-in SMBus header
#
Hardware monitoring：Included fan speed, voltages, CPU and system environment
#
temperature
One Thermal Sensor Cable included
#
Board size: 305 * 210mm
#
User’s Manual
1-8 Chapter1
$$$$
Supports Wake On LAN, Keyboard or Mouse, but your ATX power supply 5V
standby power must be able to provide at least a 720mA current capacity.
Otherwise, you may fail to boot up the system
Specifications and information contained in this manual are subject to change without
%
notice.
All brand names and trademarks are the property of their respective owners.
%
Important Notice
If you want to change your CPU, be sure to first cut off the AC power of your computer,
don’t attempt while computer is in “Shutdown” only mode. Furthermore, you also need
to use the CCMOS1 jumper to clear the CMOS after you change your CPU (refer to
section 2-4).
CX6
Introduction of CX6 Features 1-9
1-3. Layout Diagram
Figure 1-1. Motherboard component location
User’s Manual
1-10 Chapter1
1-4. The System Block Diagram
CX6
Figure 1-2. System diagram of the Intel 820 chipset
Installing the Motherboard 2-1
Chapter 2. Installing the Motherboard
This CX6 motherboard not only provides all standard equipment for classic personal
computers, but also provides great flexibility for meeting future upgrade demands. This
chapter will introduce step by step all the standard equipment and will also present, as
completely as possible, future upgrade capabilities. This motherboard is able to support all
Intel
Pentium II/III processors and Intel Celeron
details, see specifications in Chapter 1.)
This chapter is organized according the following features:
processor now on the market. (For
2-1 Installing the Motherboard to the Chassis
2-2 Installation of the Pentium
2-3 Installing System Memory
2-4 Connectors, Headers and Switches
&&&&
&&&&
&&&&&&&&
Before you install or unplug any connectors or add-on cards, please remember to turn the
ATX power supply switch off (fully turn the +5V standby power off), or take the power cord
off. Otherwise, you may cause the motherboard components or add-on cards to malfunction
or be damaged.
II/III CPU
Before Proceeding with the Installation
&&&&
&&&&
&&&&&&&&
''''
User Friendly Instructions
Our objective is to enable the novice computer user to perform the installation by himself.
We have attempted to write this document in a very clear, concise and descriptive manner to
help overcome any obstacles you may face during installation. Please read our instructions
carefully and follow them step-by-step.
User’s Manual
2-2 Chapter2
2-1. Installing the Motherboard to the Chassis
Most computer chassis will have a base on which there will be many mounting holes that
allows the motherboard to be securely attached and at the same time, prevents short circuits.
There are two ways to attach the motherboard to the base of chassis:
with studs
#
or with spacers
#
Please refer to the figure 2-1 that shows the studs and spacers, they may have several types,
but all look like the figures below:
In principle, the best way to attach the
motherboard is with studs, and only if
you are unable to do this should you
attach the board with spacers. Take a
careful look at the motherboard and
you will see many mounting holes on
it. Line these holes up with the
mounting holes on the base. If the
holes line up, and there are screw holes
this means you can attach the motherboard with studs. If the holes line up and there are only
slots, this means you can only attach the motherboard with spacers. Take the tip of the
spacers and insert them into the slots. After doing this to all the slots, you can slide the
motherboard into position aligned with the slots. After the motherboard has been positioned,
check to make sure everything is OK before putting the casing back on.
Figure 2-2 shows you the way to affix the motherboard using studs or spacers:
CX6
Installing the Motherboard 2-3
Note
If the motherboard has mounting holes, but they don’t line up with the holes on the base
and there are no slots to attach the spacers, don’t worry, you can still attach the spacers
to the mounting holes. Just cut the bottom portion of spacers (the spacer may be a little
hard to cut off, so be careful of your hands). In this way you can still attach the
motherboard to the base without worrying about short circuits. Sometimes you may
need to use the plastic springs to isolate the screw from the motherboard PCB surface,
because the circuit wire may be near by the hole. Be careful, don’t let the screw contact
any printed circuit wire or parts on the PCB that are near the fixing hole, otherwise it
may damage the board or cause board malfunctioning.
Note:
II/III CPU
2-2. Installation of the Pentium
The installation method for the CPU is printed on the package of the retention mechanism
that comes with the motherboard. You can refer to it while you install the CPU.
Installing a heat sink and cooling fan is necessary for proper heat dissipation from
#
your CPU. Failing to install these items may result in overheating and damage of
your CPU.
Please refer to your boxed
#
with your CPU for detailed installing instructions.
processor installation or other documentation attached
Important Notice
If you want to change your CPU, be sure to first cut off the AC power of your computer,
don’t attempt while computer is in “Shutdown” only mode. Furthermore, you also need
to use the CCMOS1 jumper to clear the CMOS after you change your CPU (refer to
section 2-4).
User’s Manual
2-4 Chapter2
2-3. Installing System Memory
The memory module for the Camino chipset is different from conventional DIMM. It is
called RIMM (Rambus In-line Memory Module).
The RIMM conforms to the standard DIMM form factor, but it is not pin-compatible. Its
architecture is based on the electrical requirements of the DRC (Direct Rambus Channel)
high-speed bus operating at a clock rate of 400MHz which enables a data rate of 800MHz
because data is clocked on both clock edges. The DRC bus also uses a two byte-wide data
channel, resulting in a peak data transfer rate of 1.6Gbytes per second. The bus uses
transmission line characteristics to maintain high signal integrity.
The CX6 with Camino chipset supports a single Direct Rambus Channel. 300 and 400 MHz
Direct RDRAM devices are supported. 64, 128 and 256 Mbit technology Direct RDRAM
devices are supported. A maximum of 32 Direct RDRAM devices (64Mbit technology =
256 Mbyte Max) are supported for a single channel. The following table shows the
maximum DRAM array size and the minimum increment size for the various DRAM
densities supported for CX6.
Table 2-1 Valid Memory Configurations
RDRAM Technology Increments Maximum
64Mbit 8MB 256MB
128Mbit 16MB 512MB
256Mbit 32MB 1GB
The CX6 provides two 184-pin RIMMs for memory expansion. You have to pay attention to
two things before you want to install RIMMs. Firstly, the serial nature of Direct Rambus
RIMM technology requires that all memory expansion sockets be occupied in order to
complete the transmission line to the termination resistors. For example, a two sockets
configuration where only one Direct Rambus RIMM module is used would require the use
of a continuity module.
Secondly, a single Direct Rambus Channel can connect directly to as many as 32 Direct
RDRAMs placed on a total of two RIMM modules.
How to install RIMMs
Generally, installing Direct RDRAM modules to your motherboard is an easy thing to do.
You can refer to figure 2-3 and 2-4 to see what a 184-pin Direct RDRAM module and
continuity module look like.
CX6
Installing the Motherboard 2-5
Unlike installing SIMMs, RIMMs
may be "snapped" directly into the
socket. Note: Certain RIMM sockets
have minor physical differences. If
Fig. 2-3 Direct RDRAM module
Fig. 2-4 Continuity module
The following procedure will show you how to install a RIMM module into a RIMM socket.
Figure 2-5 Memory module instllation
your module doesn't seem to fit, please
do not force it into the socket as you
may damage your memory module or
RIMM socket.
Before you install the
Step 1.
memory module, please place the
computer power switch in the
position and disconnect the AC power
cord from your computer.
Remove the computer’s
Step 2.
chassis cover.
Before touching any
Step 3.
electronic components, make sure you
first touch an unpainted, grounded
metal object to discharge any static
electricity stored on your clothing or
body.
off
Locate your computer’s 184-pin memory expansion RIMM socket.
Step 4.
Insert the RIMM module into the expansion socket as shown in the illustration.
Step 5.
Note how the module is keyed to the socket. You can refer to figure 2-5 for the
details. This insures the RIMM module will be plugged into the socket in one way
only. Firmly press the RIMM module into the RIMM socket, making certain the
module is completely seated in the RIMM socket.
Once the RIMM module has been installed, the installation is complete and the
Step 6.
computer’s cover can be replaced. Or you can continue to install other devices and
add-on cards that are mentioned in the following section.
User’s Manual
2-6 Chapter2
Note
When you install a RIMM module fully into the RIMM socket, the eject tab should be
locked into the RIMM module very firmly and fit into its indention on the both sides.
CX6
Installing the Motherboard 2-7
2-4. Connectors, Headers and Switches
Inside the case of any computer several cables and plugs have to be connected. These cables
and plugs are usually connected one-by-one to connectors located on the motherboard. You
need to carefully pay attention to any connection orientation the cables may have and, if any,
notice the position of the first pin of the connector. In the explanations that follow, we will
describe the significance of the first pin.
We will show you all connectors, headers and switches here, and tell you how to connect
them. Please pay attention and read the whole section for necessary information before
attempting to finish all of the hardware installation inside the computer chassis.
Figure 2-6 shows you all of the connectors and headers that we’ll discuss in the next section,
you can use this diagram to visually locate each connector and header we describe.
All connectors, headers and switches mentioned here, will depend on your system
configuration. Some features you may (or may not) have and need to connect or configure
depending on the peripheral. If your system doesn't have such add-on cards or switches you
can ignore some special feature connectors.
Figure 2-6. All Connectors and Headers for the CX6
First, Let’s see the headers that CX6 uses, and what their functions are.
User’s Manual
2-8 Chapter2
ATX: ATX Power Input Connector
Caution
If the power supply connectors are not properly attached to the ATX power supply, the
power supply or add-on cards may be damaged.
Attach the connector from the power supply
to the ATX connector here. Remember you
have to push the connector from the ATX
power supply firmly to the end with the
ATX connector, insuring that you have a
good connection.
Note: Watch the pin position and the
orientation
FAN 1 , FAN2 & FAN3 : FA N hea d er
Attach the connector from the individual
CPU fan to the header named FAN2, and
attach the connector from the chassis fan to
FAN 3 o r FAN1 h e a d e r.
Note: Watch the pin position and the orientation
CX6
You must attach the CPU fan to the
processor, or your processor will work
abnormally or may be damaged by
overheating. Also, if you want the computer
case’s internal temperature to be kept steady
and not too high, you had better connect the
chassis fan to reach this goal.
Installing the Motherboard 2-9
IRCIR1: IR Header (Infrared)
There is a specific orientation for pins 1
through 5, attach the connector from the IR
KIT or IR device to the IRCIR1 header. This
motherboard supports standard IR transfer
rates.
Note: Watch the pin position and the
orientation
WOM1: Wake On Modem Header
If you have an internal modem adapter that
supports this feature, then you can connect
the specific cable from the internal modem
adapter to this header. This feature lets you
wake up your computer via remote control
through the modem.
Note: Watch the pin position and the
orientation
WOL1: Wake on LAN Header
orientation
If you have a Network adapter that supports
this feature, then you can connect the
specific cable from the network adapter to
this header. This feature lets you wake up
your computer via remote control through a
local area network. You may need a specific
utility to control the wake up event, like
using the Intel
®
LDCM® utility or other
similar utilities.
Note: Watch the pin position and the
User’s Manual
2-10 Chapter2
SMB: System Management Bus Connector
This connector is reserved for system
management bus (SMBus). The SMBus is a
specific implementation of an I
2
C bus. I2C is
a multi-master bus, which means that
multiple chips can be connected to the same
bus and each one can act as a master by
initiating a data transfer. If more than one
master simultaneously tries to control the
bus, an arbitration procedure decides which
master gets priority.
Note: Watch the pin position and the orientation
RT2 head er
The RT2 is for you to connect an additional
thermistor to detect the temperature in the
location of your choice. You can buy the
thermistor at an electronics store, and ask for
a 10KΩ thermistor which should be OK.
Please don’t use too long of a lead wire for
the thermistor.
JP1 Jumper
CX6
This jumper is reserved for CPU frequency
strap setting.
Installing the Motherboard 2-11
JP2 Jpmper
This jumper is reserved for boot failure.
JP5 Jumper
This jumper lets you select the CODEC
mode on the AMR card. When pin 1 and pin
2 jumpers are shorted (default), the CODEC
on the AMR card is set to secondary mode.
If pin 2 and pin 3 jumpers are shorted, the
onboard audio CODEC is disabled and
CODEC on the AMR card is set to primary
mode.
S5 Header
This jumper is reserved for installing light
sensor.
User’s Manual
2-12 Chapter2
LED1: Standby LED
This LED is called the Stand-By LED. It
shows if the motherboard is in the power on
state, or is fully powered down. If this LED
light is on, that means your motherboard is
not fully powered down. You can't
disassemble any components, add-on cards,
CPU, or RAM modules in this state. You
have to fully check and shutdown the system
power, before this LED will turn off. Only
then can you disassemble any components, add-on cards, CPU, or RAM module.
CD_IN1, CD_IN2 and AUX_IN1:
CD_IN1 & CD_IN2:
for the internal CD-ROM drive audio cable
connection use, and these two connectors
are used for different types of CD audio
cable connectors. Please check your audio
cable attached with the CD-ROM drive to
see which type connector you have, then
plug it to the appropriate connector on the
motherboard.
AUX_IN1:
if you have installed two internal CD-ROM drives in your computer system, you can
connect a secondary CD-ROM drive audio cable to this connector.
CCMOS1: CMOS Discharge Jumper
This connector is used for other internal audio cable connections. For example,
Jumper CCMOS1 discharge CMOS
memory. When you install the motherboard,
make sure this jumper is set for normal
operation (pin 1 and 2 shorted). See figure
2-7.
These connectors are
CX6
Installing the Motherboard 2-13
Normal Operation (Default) Discharge CMOS
Figure 2-7. CCMOS1 jumper setting
Note
Before you clear the CMOS, you have to turn the power off first (including the +5V
standby power). Otherwise, your system may work abnormally or malfunction.
PN1 and PN2 Headers
PN1 and PN2 are for switches and indicators
for the chassis’s front panel, there are
several functions that come from these two
headers. You have to watch the pin position
and the orientation, or you may cause
system malfunctions. Figure 2-8 shows you
the PN1 and PN2 functions of the pins.
Figure 2-8. The definition of PN1 and
PN2 pins
PN1 (Pin 1-2-3-4-5): Power LED and Keylock Switch Headers
There is a specific orientation for pins 1
through 3. Insert the three-threaded power
LED cable to pins 1~3, and the two-threaded
keylock cable into pin 4 and pin 5. Check to
make sure the correct pins go to the correct connectors on the motherboard. If you install
them with the wrong direction, the power LED light will not illuminate correctly.
Note: Watch the power LED pin position and orientation.
User’s Manual
2-14 Chapter2
PN1 (Pin 6-7): HDD LED Header
Attach the cable from the case’s front panel
HDD LED to this header. If you install it in
the wrong direction, the LED light will not
illuminate correctly.
Note: Watch the HDD LED pin position and the orientation.
PN1 (Pin 8-9): Power on Switch Header
Attach the cable from the case’s front panel
power switch to this header.
PN1 (Pin 10-11): Hardware Suspend Switch (SMI Switch) Header
Attach the cable from the case’s front panel
suspend switch (if there is one) to this
header. Use this switch to enable/disable the
power management function by hardware.
Note: If you enable the ACPI function in the BIOS setup, this function will not work.
PN2 (Pin 1-2): Hardware Reset Switch Header
Attach the cable from the case’s front panel
Reset switch to this header. Press and hold
the reset button for at least one second to
reset the system.
PN2 (Pin 4-5-6-7): Speaker Header
Attach the cable from the system speaker to
this header.
CX6
Installing the Motherboard 2-15
PN2 (Pin 9-10): Suspend LED Header
Insert the two-threaded suspend LED cable
into pin 9 and pin 10. If you install it in the
wrong direction, the LED light will not
illuminate correctly.
Watch the HDD LED pin position and the orientation.
Note:
For the PN1 and PN2 pin’s count-name list, please refer to table 2-2.
Table 2-2. PN1 and PN2 pin count name list
PIN Name Significance of signal PIN Name Significance of signal
PIN 1 +5VDC PIN 1 Ground
PIN 2 No connection PIN 2 Reset input
PIN 3 Ground PIN 3 No connection
PIN 4 Keyboard inhibit Signal PIN 4 +5VDC
PIN 5 Ground PIN 5 Ground
PN1
PIN 6 No connection PIN6 Ground
PIN 7 LED power PIN 7 Speaker data
PIN 8 HDD active PIN 8 No connection
PIN 9 No connection PIN 9 +5VDC
PIN 10 Ground PIN 10 Suspend LED active
PIN 11 Power On/Off signal PIN 11 No connection
PIN 12 No connection PIN 12 Reserved
PIN 13 +3V Standby PIN 13 Reserved
PIN 14 Suspend signal
Let’s now see the I/O connectors that CX6 uses, and what their functions are.
PN2
PIN14 Reserved
FDC1 Connector
This 34-pin connector is called the “
disk drive connector
360K, 5.25”, 1.2M, 5.25”, 720K, 3.5’’,
1.44M, 3.5” or 2.88M, 3.5” floppy disk
drive, you can even connect a 3 Mode
floppy disk drive (it’s a 3 1/2” drive used in
Japanese computer systems).
A floppy disk drive ribbon cable has 34
wires and two connectors to provide for the
”. You can connect a
floppy
User’s Manual
2-16 Chapter2
connection of two floppy disk drives. After connecting the single end to the FDC1, connect
the two connectors on the other end to the floppy disk drives. In general, people only install
one floppy disk drive on their computer system.
Note
A red mark on a wire typically designates the location of pin 1. You need to align the
wire pin 1 to the FDC1 connector pin 1, then insert the wire connector into the FDC1
connector.
IDE1 and IDE2 Connectors
An IDE hard disk drive ribbon cable has 40
wires and two connectors to provide a
connection for two IDE hard disk drives.
After connecting the single end to the IDE1
(or IDE2), connect the two connectors on
the other end to the IDE hard disk drives (or
CD-ROM drive, LS-120, etc.).
Before you install a hard disk, there are some things you need to be aware of:
“Primary” refers to the first connector on the motherboard, that is, the IDE1 connector on
♦
the motherboard.
“Secondary” refers to the second connector on the motherboard, that is, the IDE2
♦
connector on the motherboard.
Two hard disks can be connected to each connector:
♦
The first HDD is referred to as the “Master”,
The second HDD is referred to as the “Slave”.
For performance issues, we strongly suggest you don’t install a CD-ROM drive on the
♦
same IDE channel as a hard disk. Otherwise, the system performance on this channel may
drop. (how much depends on your CD-ROM drive performance)
CX6
Loading...
