ABC SOUNDERS User Guide

4

SOUNDERS

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

ABI 001 RC

PIEZO INDICATOR

Specifications ABI 001 RC

Rated voltage 12VDC
Operating voltage 3~16VDC
Rated current* ≤7mA
Sound output at 10cm* ≥80dB
Resonant frequency 4000±500Hz
Tone Continuous
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 1g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: Noryl

■ Built-in oscillating circuit ■ PCB mountable

■ Low power consumption ■ Sealed base

■ Wave solderable and washable

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 003 RC

PIEZO INDICATOR

Specifications ABI 003 RC

Rated voltage 12VDC
Operating voltage 3~20VDC
Rated current* ≤15mA
Sound output at 10cm* ≥95dB
Resonant frequency 3400±500Hz
Tone Continuous
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 4g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Sealed base

■ High sound output ■ PCB mountable

■ Wave solderable

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 004 RC/013 RC
ABI 005/012

PIEZO INDICATOR

Specifications

ABI 004 RC ABI 005 ABI 012 ABI 013 RC

Rated voltage

12VDC 24VDC 12VDC 12VDC

Operating voltage

1.5~16VDC 1.5~28VDC 3~15VDC 3~15VDC

Rated current*

≤15mA ≤20mA ≤20mA ≤10mA

Sound output at 30cm* ≥95dB ≥95dB ≥90dB ≥90dB
Resonant frequency 3500±500Hz 3500±500Hz 3200±500Hz 3200±500Hz
Tone

Continuous Continuous Dual Pulse

Operating temp

-20~+60oC -20~+60oC -20~+60oC -20~+60oC

Storage temp

-30~+70oC -20~+60oC -20~+60oC -30~+70oC

Lead wire

UL1007 UL1007

AWG26

-­AWG26

Weight

15g 15g 15g 15g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Panel or base flange mounted

■ Fitted with 100mm flying leads ■ Housing material: ABS

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 006 RC

PIEZO INDICATOR

Specifications ABI 006 RC

Rated voltage 12VDC
Operating voltage 3~16VDC
Rated current* ≤8mA
Sound output at 30cm* ≥90dB
Resonant frequency 3700±500Hz
Tone Continuous
Operating temperature -20~+60oC
Storage temperature -30~+80oC
Lead wire UL1095 AWG28
Weight 5g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: ABS

■ Flange mounted with wire leads ■ Built-in oscillating circuit

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 012

SOUNDERS

5

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

ABI 007 RC

PIEZO INDICATOR

Specifications ABI 007 RC

Rated voltage 12VDC
Operating voltage 3~16VDC
Rated current* ≤8mA
Sound output at 30cm* ≥90dB
Resonant frequency 3700±500Hz
Tone Continuous
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 5g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ PCB Thro hole mounted

■ Wave solderable and washable ■ Sealed base

■ Housing material: Noryl

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 017 RC/018 RC

SURFACE MOUNT
INDICATOR

Specifications ABI 017 RC ABI 018 RC

Rated voltage 5VDC 12VDC
Operating voltage 4~7VDC 8~15VDC
Rated current* ≤30mA ≤30mA
Sound output at 10cm* ≥88dB ≥85dB
Resonant frequency 2400±400Hz 2400±400Hz
Tone Continuous Continuous
Operating temperature -20~+70oC -20~+70oC
Storage temperature -30~+80oC -30~+80oC
Weight 2g 2g

*Value applying at rated voltage (DC)

Features

■ Reflow solderable and washable ■ Pin material: Brass

■ Compact surface mount indicator

■ Housing material: PPS

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 019 RC

MAINS BUZZER

Specifications ABI 019 RC

Rated voltage 220VAC
Operating voltage 160~260VAC
Rated current* ≤30mA
Sound output at 10cm* ≥80dB
Coil resistance 6500Ω±10%
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 18g

*Value applying at rated voltage (DC)

Features

■ Suitable for applications ■ Fixing via a 4mm screw

where the only supply available

■ Housing material: PBT

is 240V mains

■ Tab material: Brass

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 009 RC/010 RC

ELECTRO MECHANICAL
INDICATOR

Specifications ABI 009 RC ABI 010 RC

Rated voltage 6VDC 12VDC
Operating voltage 4~7VDC 8~16VDC
Rated current* ≤30mA ≤30mA
Sound output at 10cm* ≥85dB ≥85dB
Resonant frequency 2300±300Hz 2300±300Hz
Tone Continuous Continuous
Operating temperature -20~+70oC -20~+70oC
Storage temperature -30~+80oC -30~+80oC
Weight 2g 2g

*Value applying at rated voltage (DC)

Features Applications

■ Black in colour ■ Computer and peripherals

■ Built-in oscillating circuit ■ Communications equipment

■ Sealed structure ■ Portable equipment

■ Wave solderable and washable ■ Automobile electronics

■ Housing material: Noryl ■ POS system

All data at 25ºC unless otherwise specified ■ Electronic cash register

Dimensions Unit: mm Tolerance: ±0.5mm

6

SOUNDERS

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

ABI 020 RC/021 RC

ELECTRO MECHANICAL
INDICATOR

Specifications ABI 020 RC ABI 021 RC

Rated voltage 12VDC 6VDC
Operating voltage 8~15VDC 4~8VDC
Rated current* ≤30mA ≤30mA
Sound output at 10cm* ≥85dB ≥85dB
Resonant frequency 2300±300Hz 2300±500Hz
Tone Continuous Continuous
Operating temperature -20~+70oC -20~+70oC
Storage temperature -30~+80oC -30~+80oC
Weight 7g 7g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: Noryl

■ Sealed base

■ Wave solderable and washable

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 022 RC

PIEZO INDICATOR

Specifications ABI 022 RC

Rated voltage 12VDC
Operating voltage 5~15VDC
Rated current* ≤15mA
Sound output at 10cm* ≥100dB
Resonant frequency 3500±500Hz
Tone Continuous
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 8g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Pin material: Red copper

■ Sealed base

■ Housing material: ABS

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 023 RC

PIEZO INDICATOR

Specifications ABI 023 RC

Rated voltage 12VDC
Operating voltage 1.5~20VDC
Rated current* ≤10mA
Sound output at 30cm* ≥96dB
Resonant frequency 2800±500Hz
Tone Continuous
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Lead Wire UL1007 AWG28
Weight 15g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: ABS

■ Flange mounted with wire leads ■ Built-in oscillating circuit

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

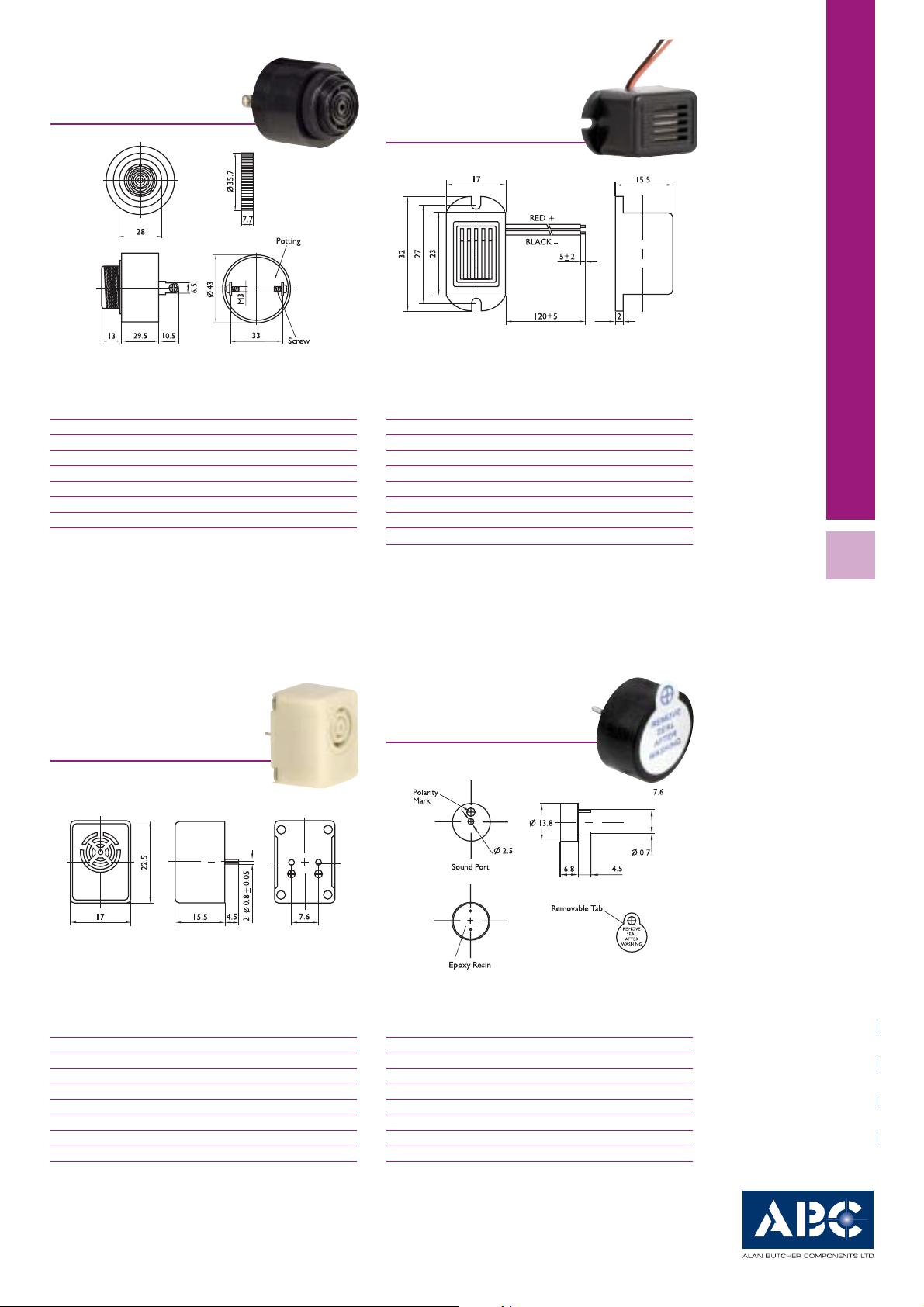

Specifications ABI 024 RC ABI 025 RC ABI 026 RC

Operating voltage 4~28VDC 6~28VDC 6~28VDC
Rated current* ≤8mA/12V ≤6mA/12V ≤6mA/12V
Sound output at 30cm*

≥97dB/12V ≥88dB/12V ≥88dB/12V
Resonant frequency 2800±500Hz 2900±500Hz 2900±500Hz
Tone Continuous Fast pulse Slow pulse
Operating temp -20~+60oC -20~+60oC -20~+60oC
Storage temp -30~+70oC -30~+70oC -30~+70oC
Weight 43g 43g 43g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: ABS

■ Panel mounted

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 024 RC/025 RC/026 RC

PIEZO CERAMIC
INDICATOR

ABI 028-12 RC

ELECTRO MECHANICAL
INDICATOR

Specifications ABI 028-12 RC

Rated voltage 12VDC
Operating voltage 9~15VDC
Rated current* ≤25mA/12VDC
Sound output at 20cm* ≥75dB/6VDC
Resonant frequency 400±100Hz
Tone Continuous
Operating temperature -10~+60oC
Storage temperature -10~+70oC
Weight 10g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: ABS

■ Low frequency range

■ Flange mounted with wire leads

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABI 030 RC

ELECTRO MECHANICAL
INDICATOR

Specifications ABI 030 RC

Rated voltage 12VDC
Operating voltage 9~15VDC
Rated current* ≤25mA
Sound output at 20cm* ≥75dB
Resonant frequency 400±100Hz
Tone Continuous
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 10g

*Value applying at rated voltage (DC)

Features

■ Low frequency range ■ Housing material: White ABS

■ PCB mountable ■ Pin material: Red copper

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 402 RC

PIEZO TRANSDUCER

Specifications ABT 402 RC

Rated voltage (Vp-p square wave) 5Vp-p
Operating voltage 1~20Vp-p
Rated current at rated voltage ≤1mA
Capacitance 13000±30%pF
Sound output at 4000Hz at 10cm ≥80dB
Resonant frequency 4000±500Hz
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 1g

Requires additional electronic circuitry to operate as a sounder

Features

■ Low power consumption ■ PCB mountable

■ Wave solderable and washable ■ Sealed base

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

SOUNDERS

7

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

ABI 027 RC

PIEZO INDICATOR

Specifications ABI 027 RC

Operating voltage 60~250VDC/AC
Rated current ≤16mA/250VDC/AC
Sound output at 30cm ≥91dB/220VDC/AC
Resonant frequency 2800±500Hz
Tone Fast pulse
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 43g

Features

■ Black in colour ■ Housing material: ABS

■ Panel mounted ■ Fast pulse

■ 60-250VAC/DC non-polar

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

8

SOUNDERS

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

ABT 403 RC

PIEZO TRANSDUCER

Specifications ABT 403 RC

Rated voltage (Vp-p square wave) 10Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤10mA
Capacitance 35000±30%pF
Sound output at 3000Hz at 10cm ≥90dB
Resonant frequency 3000±500Hz
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 5g

Requires additional electronic circuitry to operate as a sounder

Features

■ Wave solderable ■ Housing material: ABS

■ Pin material: Beryllium bronze

■ Vertical PCB edge mounting transducer

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 405 RC

PIEZO TRANSDUCER

Specifications ABT 405 RC

Rated voltage (Vp-p square wave) 3Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤1mA
Capacitance 10000±30%pF
Sound output at 4000Hz at 10cm ≥75dB
Resonant frequency 4000±500Hz
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 1g

Requires additional electronic circuitry to operate as a sounder

Features

■ Black in colour ■ Housing material: Noryl

■ Low current consumption ■ Low profile

■ Pin material: Beryllium bronze

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.3mm

ABT 407 RC

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 407 RC

Rated voltage 1.5VDC
Operating voltage 1~3VDC
Rated current* ≤15mA
Sound output at 10cm* ≥70dB
Resonant frequency* 2048Hz
Coil resistance 42±6Ω
Coil impedance 120Ω
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 2g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: Noryl

■ Wave solder and wash NOT allowed

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 408 RC

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 408 RC

Rated voltage

(Vp-p square wave)

1.5Vp-p
Operating voltage 1~3Vp-p
Rated current at rated voltage ≤70mA
Sound output at 2731Hz at 10cm ≥85dB
Resonant frequency 2731Hz
Coil resistance 6.5±1Ω
Coil impedance at 2731Hz 22Ω
Operating temperature -20~+70oC
Storage temperature -30~+85oC
Weight 2g

Requires additional electronic circuitry to operate as a sounder

Features

■ Side opening for sound emission ■ Housing material: Noryl SE1

■ Small and low profile

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 410 RC

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 410 RC

Rated voltage

(Vp-p square wave)

1.5Vp-p
Operating voltage 1~3Vp-p
Rated current at rated voltage ≤15mA
Sound output at 2048Hz at 10cm ≥80dB
Resonant frequency 2048Hz
Coil resistance 42±6Ω
Coil impedance at 2048Hz 120Ω
Operating temperature -25~+70oC
Storage temperature -30~+80oC
Weight 2g

Requires additional electronic circuitry to operate as a sounder

Features

■ Low current consumption ■ PCB mountable

■ Wave solderable and washable

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 411 RC/413

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 411 RC ABT 413

Rated voltage 1.5Vp-p 5Vp-p
Operating voltage 1~3Vp-p 3~8Vp-p
Rated current* ≤80mA ≤60mA
Sound output at 10cm* ≥85dB ≥85dB
Resonant frequency* 3100Hz 3100Hz
Coil resistance 5.5±1Ω 40±4Ω
Coil impedance at 3100Hz 9.5Ω 80Ω
Operating temperature -20~+70oC -20~+70oC
Storage temperature -30~+80oC -30~+80oC
Weight 1g 1g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: Noryl

■ Wave solder and wash NOT allowed

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 412 RC

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 412 RC

Rated voltage 1.5Vp-p
Operating voltage 1~3Vp-p
Rated current* ≤80mA
Sound output at 10cm* ≥85dB
Resonant frequency* 2731Hz
Coil resistance 5.5±1Ω
Coil impedance at 2730Hz 9.5Ω
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 2g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: Noryl

■ Wave solder and wash NOT allowed

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.3mm

ABT 414 RC

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 414 RC

Rated voltage

(Vp-p square wave)

5Vp-p
Operating voltage 3~8Vp-p
Rated current at rated voltage ≤40mA
Sound output at 2400Hz at 10cm ≥85dB
Resonant frequency 2400Hz
Coil resistance 45±5Ω
Coil impedance at 2400Hz 80Ω
Operating temperature -20~+75oC
Storage temperature -30~+85oC
Weight 2g

Requires additional electronic circuitry to operate as a sounder

Features

■ Sealed base ■ Housing material: Noryl

■ Wave solderable and washable

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

SOUNDERS

9

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

10

SOUNDERS

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

ABT 415 RC/416 RC

ELECTRO MECHANICAL
TRANSDUCER

Specifications ABT 415 RC ABT 416 RC

Rated voltage

(Vp-p square wave)

1.5VDC 6Vp-p
Operating voltage 1.3VDC 4~8Vp-p
Rated current* ≤18mA ≤40mA
Sound output at 2048Hz at 10cm* ≥80dB ≥85dB
Resonant frequency* 2048Hz 2048Hz
Coil resistance 27±3Ω 50±5Ω
Coil impedance at 2048Hz 80Ω 110Ω
Operating temperature -20~+70oC -20~+70oC
Storage temperature -30~+80oC -30~+80oC
Weight 2g 2g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: Noryl

■ Sealed base

■ Wave solderable and washable

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

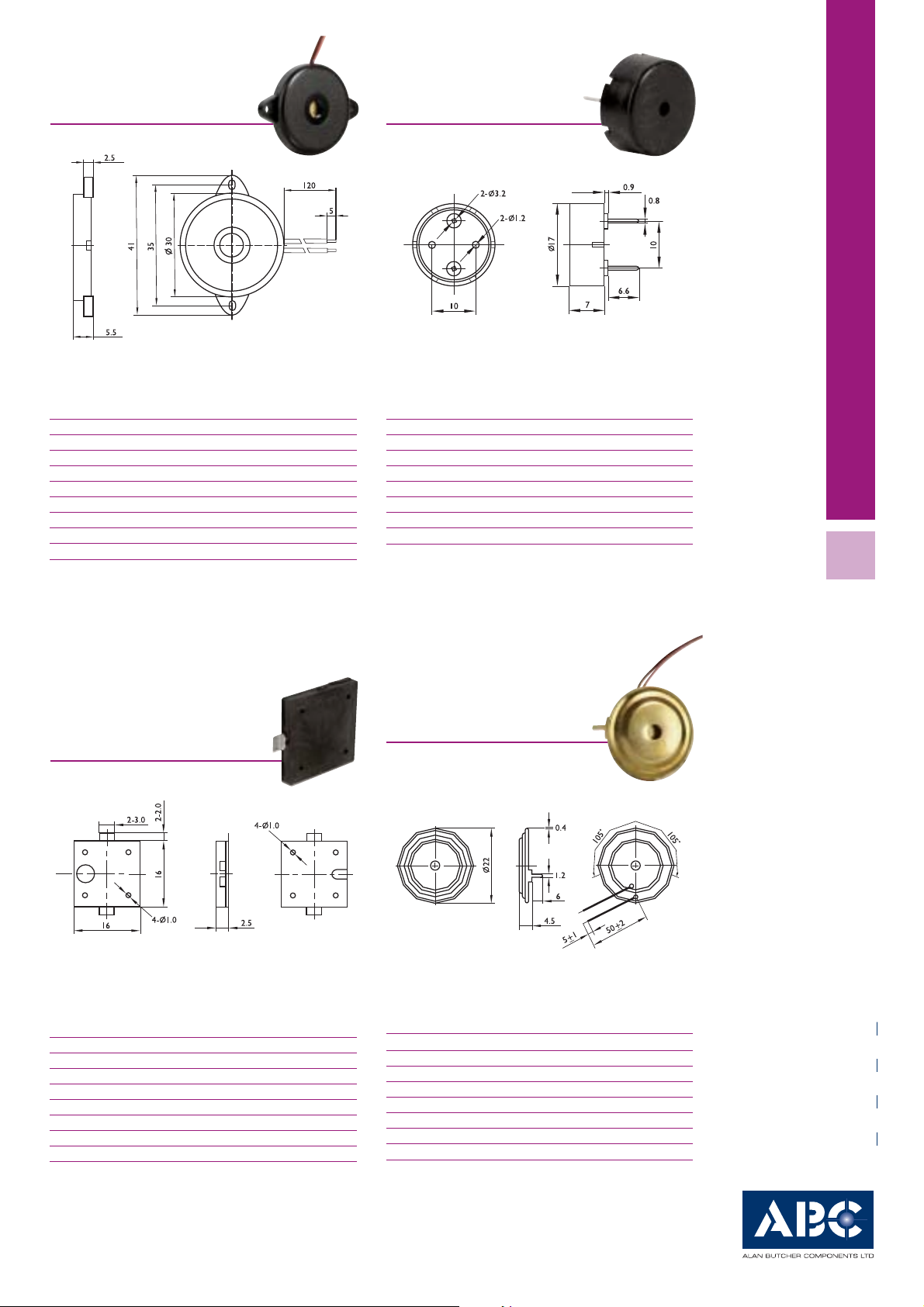

ABT 418 RC/425 RC/427 RC

SURFACE MOUNT
TRANSDUCER

Specifications

ABT 418 RC ABT 425 RC ABT 427 RC

Rated voltage (Vp-p square wave) 5Vp-p 1.5Vp-p 12Vp-p
Operating voltage

3~8Vp-p 1~3Vp-p 8~16Vp-p

Rated current at rated voltage ≤40mA ≤30mA ≤40mA
Sound output at 2400Hz
at 10cm

≥85dB ≥80dB ≥85dB

Resonant frequency

2400Hz±400Hz 2400Hz±400Hz 2400Hz±400Hz

Coil resistance

45±5Ω 15±3Ω 140±14Ω

Operating temp

-20~+70oC -20~+70oC -20~+70oC

Storage temp

-30~+80oC -30~+80oC -30~+80oC

Weight

2g 2g 2g

Requires additional electronic circuitry to operate as a sounder

Features

■ Reflow solderable and washable

■ Housing material: PPS

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

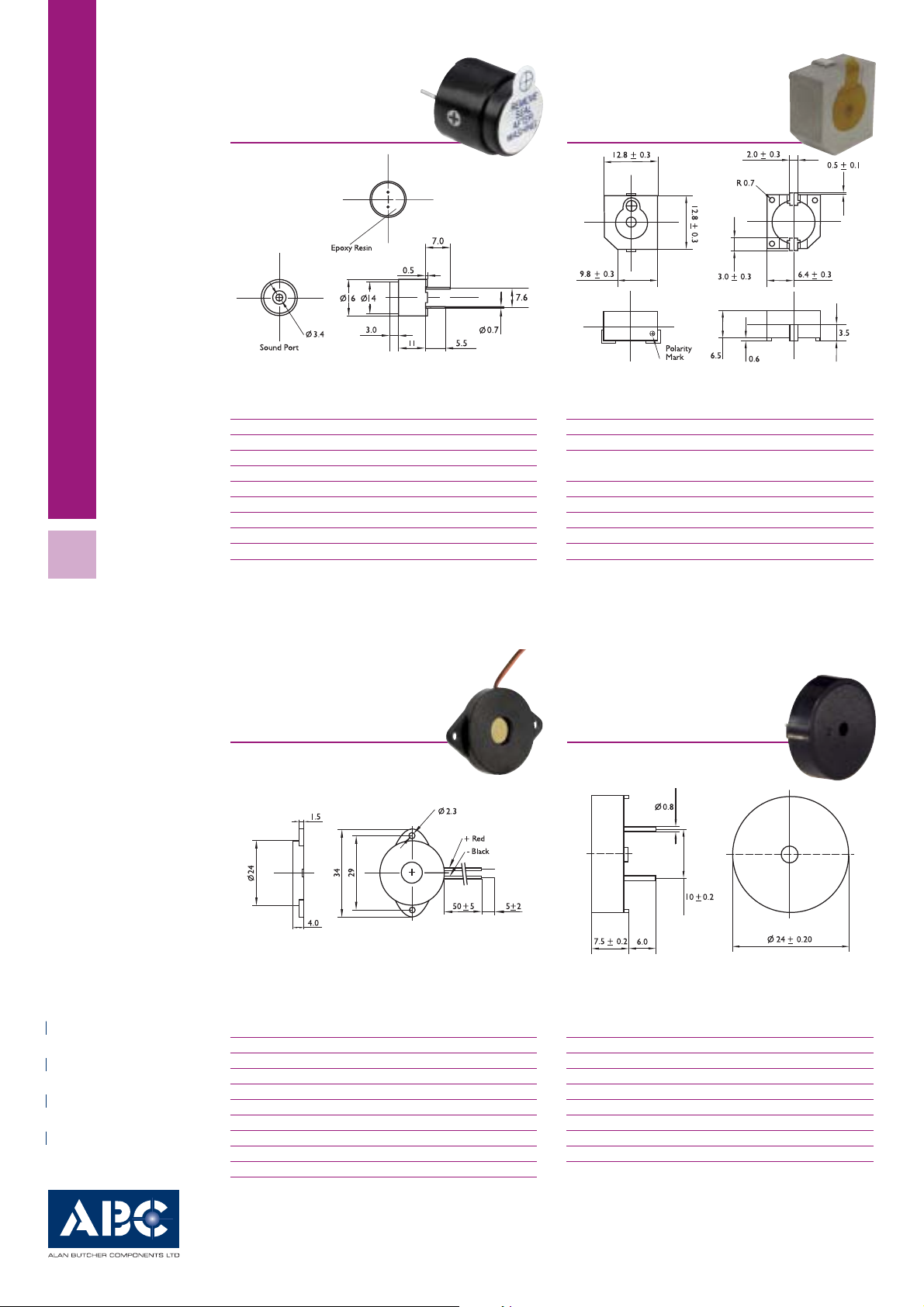

ABT 422 RC

PIEZO TRANSDUCER

Specifications ABT 422 RC

Rated voltage

(Vp-p square wave)

15Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤8mA
Capacitance at 1KHz 18000±30%pF
Sound output at 5500Hz at 30cm at rated voltage ≥90dB
Resonant frequency 5500±700Hz
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Lead wire UL1571 AWG32
Weight 3g

Requires additional electronic circuitry to operate as a sounder

Features

■ Black in colour ■ Low current and profile

■ Housing material: ABS

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 430

PIEZO TRANSDUCER

Specifications ABT 430

Rated voltage

(Vp-p square wave)

9Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤3mA
Capacitance at 1KHz 17000±30%pF
Sound output at 4000Hz at 10cm at rated voltage ≥85dB
Resonant frequency 4000±500Hz
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Weight 3g

Requires additional electronic circuitry to operate as a sounder

Features

■ Black in colour

■ Housing material: ABS

■ Low current and profile

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 431 RC

PIEZO TRANSDUCER

Specifications ABT 431 RC

Rated voltage

(Vp-p square wave)

9Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤3mA
Capacitance at 120Hz 20000±30%pF
Sound output at 3500Hz at 10cm at rated voltage ≥88dB
Resonant frequency 3500±500Hz
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Lead wire UL1905 AWG28
Weight 3.5g

Requires additional electronic circuitry to operate as a sounder

Features

■ Black in colour ■ Very low profile

■ Housing material: ABS ■ Low current consumption

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 436 RC

PIEZO TRANSDUCER

Specifications ABT 436 RC

Rated voltage

(Vp-p square wave)

5Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤1mA
Capacitance at 120Hz 15000±30%pF
Sound output at 4000Hz at 10cm at rated voltage ≥78dB
Resonant frequency 4000±500Hz
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 1g

Requires additional electronic circuitry to operate as a sounder

Features

■ Low current consumption ■ Pin material: Phosphor bronze

■ PCB mountable

■ Housing material: Noryl

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 439 RC

SURFACE MOUNT
TRANSDUCER

Specifications ABT 439 RC

Rated voltage

(Vp-p square wave)

3Vp-p
Operating voltage 1~25Vp-p
Rated current* ≤1mA
Capacitance at 1.0KHz 14000±30%pF
Sound output at 4KHz at 10cm* ≥70dB
Resonant frequency* 4000±500Hz
Operating temperature -20~+70oC
Storage temperature -30~+80oC
Weight 1g

*Value applying at rated voltage (DC)

Features

■ Black in colour ■ Housing material: LCP

■ Reflow solder allowed ■ Pin material: Ni-alloy

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 440 RC

PIEZO TRANSDUCER

Specifications ABT 440 RC

Rated voltage

(Vp-p square wave)

15Vp-p
Operating voltage 1~30Vp-p
Rated current at rated voltage ≤5mA
Sound output at 4300Hz at 10cm at rated voltage ≥90dB
Resonant frequency 4300±500Hz
Operating temperature -20~+60oC
Storage temperature -30~+70oC
Lead wire UL1571 AWG32
Weight 2g

Requires additional electronic circuitry to operate as a sounder

Features

■ Housing material: Brass

■ Fitted with flying leads

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

SOUNDERS

11

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

12

SOUNDERS

Telephone

01258 456360

Facsimile

01258 459194

Email

[email protected]

Website

www.abcomponents.co.uk

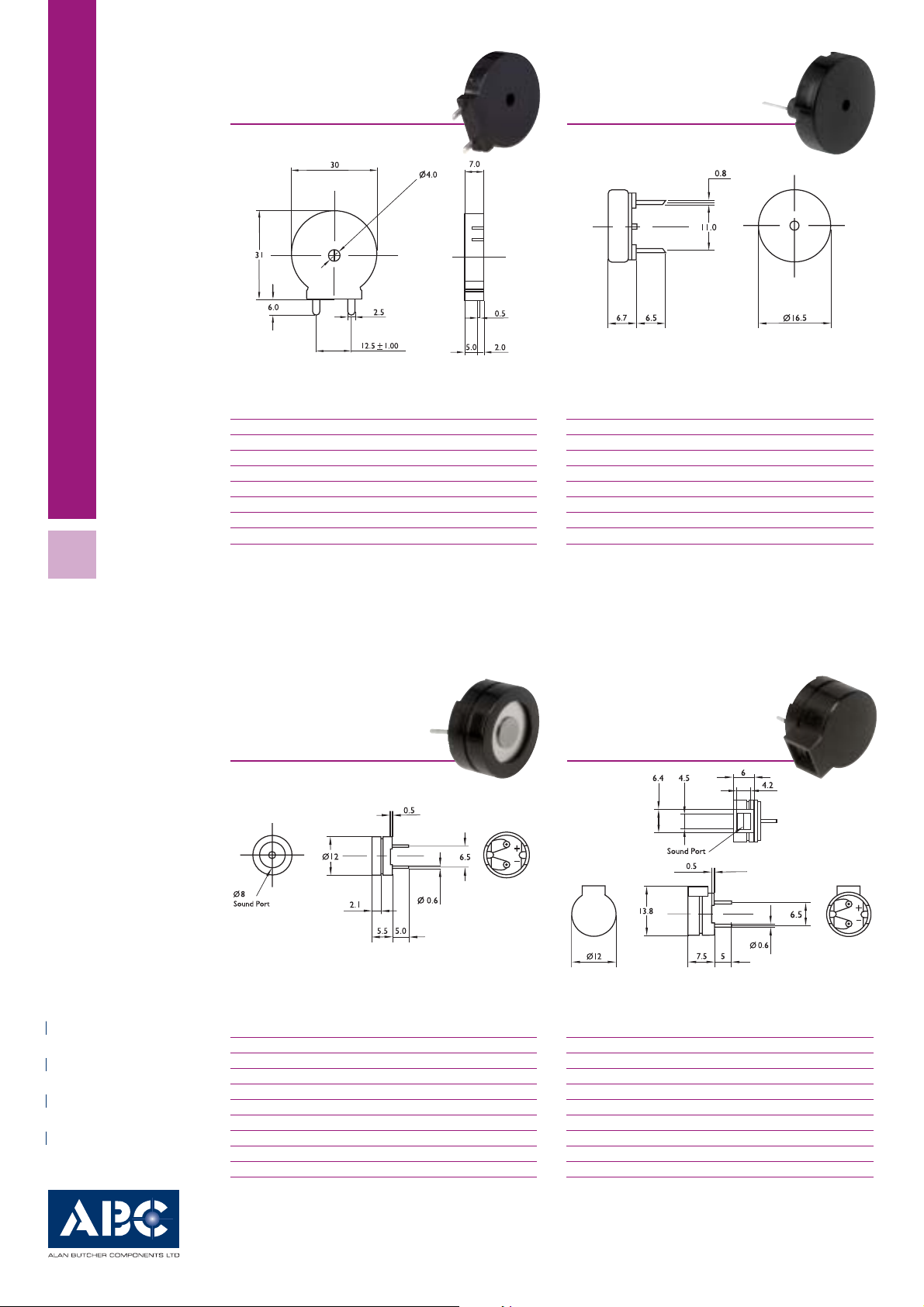

KPEG 132

PIEZO TRANSDUCER

Specifications KPEG 132

Rated voltage

(Vp-p square wave)

12Vp-p
Operating voltage 3~28Vp-p
Rated current at rated voltage ≤8mA
Sound output at 3000Hz at 30cm at rated voltage ≥83dB
Resonant frequency 3000±500Hz
Tone Continuous
Operating temperature -30~+85oC
Storage temperature -40~+95oC
Weight 3.8g

Requires additional electronic circuitry to operate as a sounder

Features

■ Black in colour ■ PCB mountable

■ Housing material: ■ Wave solderable and washable

ABS UL-94 1/16” HB high heat

■ High output feedback terminal

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

ABT 443 RC

SURFACE MOUNT
TRANSDUCER

Specifications ABT 443 RC

Rated voltage 3.6VDC
Operating voltage 2.5~4.5VDC
Rated current* ≤90mA
Sound output at 2730Hz at 10cm* ≥85dB
Resonant frequency* 2730Hz
Coil resistance 16±3Ω
Operating temperature -30~+80oC
Storage temperature -40~+85oC
Weight 0.5g

Requires additional electronic circuitry to operate as a sounder

Features

■ Black in colour ■ Housing material: LCP

■ Very small and low profile

■ Surface mount

All data at 25ºC unless otherwise specified

Dimensions Unit: mm Tolerance: ±0.5mm

KBI 2734/3526/3529F
ABT 432 RC

PIEZO ELEMENT

Specifications

KBI 2734 KBI 3526 KBI 3529F ABT 432 RC

Rated max voltage

(Vp-p square wave)

30Vp-p 30Vp-p 30Vp-p 30Vp-p

Capacitance

13000pF 30000pF 21000pF 20000pF

Resonant frequency 3400±500Hz 2600±500Hz 2900±500Hz 4600±500Hz
Resonant impedance ≥250Ω≥200Ω≥350Ω≥300Ω
Operating temp

-20~+70oC -20~+70oC -20~+70oC -20~+60oC

Storage temp

-30~+80oC -30~+80oC -30~+80oC -30~+70oC

Dimensions

D±0.1

27mm 35mm 35mm 27mm

d±0.3

14.6mm 25mm 25mm 19.7mm

t±0.02

0.30mm 0.25mm 0.25mm 0.25mm

T±0.1

0.53mm 0.53mm 0.58mm 0.54mm

Specifications

ABT 429-50 ABT 434 ABT 435 ABT 441 RC

Rated max voltage

(Vp-p square wave)

30Vp-p 30Vp-p 30Vp-p 30Vp-p

Capacitance

30000pF 30000pF 85000pF 20000pF±30%

Resonant frequency 2600±500Hz 2700±500Hz 2500±500Hz 4200±500Hz
Resonant impedance ≥200Ω≥300Ω≥300Ω≥300Ω
Operating temp

-20~+60oC -20~+60oC -20~+60oC -20~+60oC

Storage temp

-20~+70oC -20~+70oC -20~+70oC -20~+70oC

Dimensions

D±0.1 35mm 27mm 20mm 27mm
d±0.3 25mm 20mm 15mm 20mm
t±0.02 0.25mm 0.25mm 0.085mm 0.3mm
T±0.1 0.53mm 0.53mm 0.19mm 0.52mm

Lead wire

-- -UL1095 AWG28

Lead length (L)

50mm 125mm 50mm 200mm

KBI 3529F

With feedback

Features

■ Low power consumption ■ Reliable and lightweight

Features

■ Low power consumption ■ Reliable and lightweight

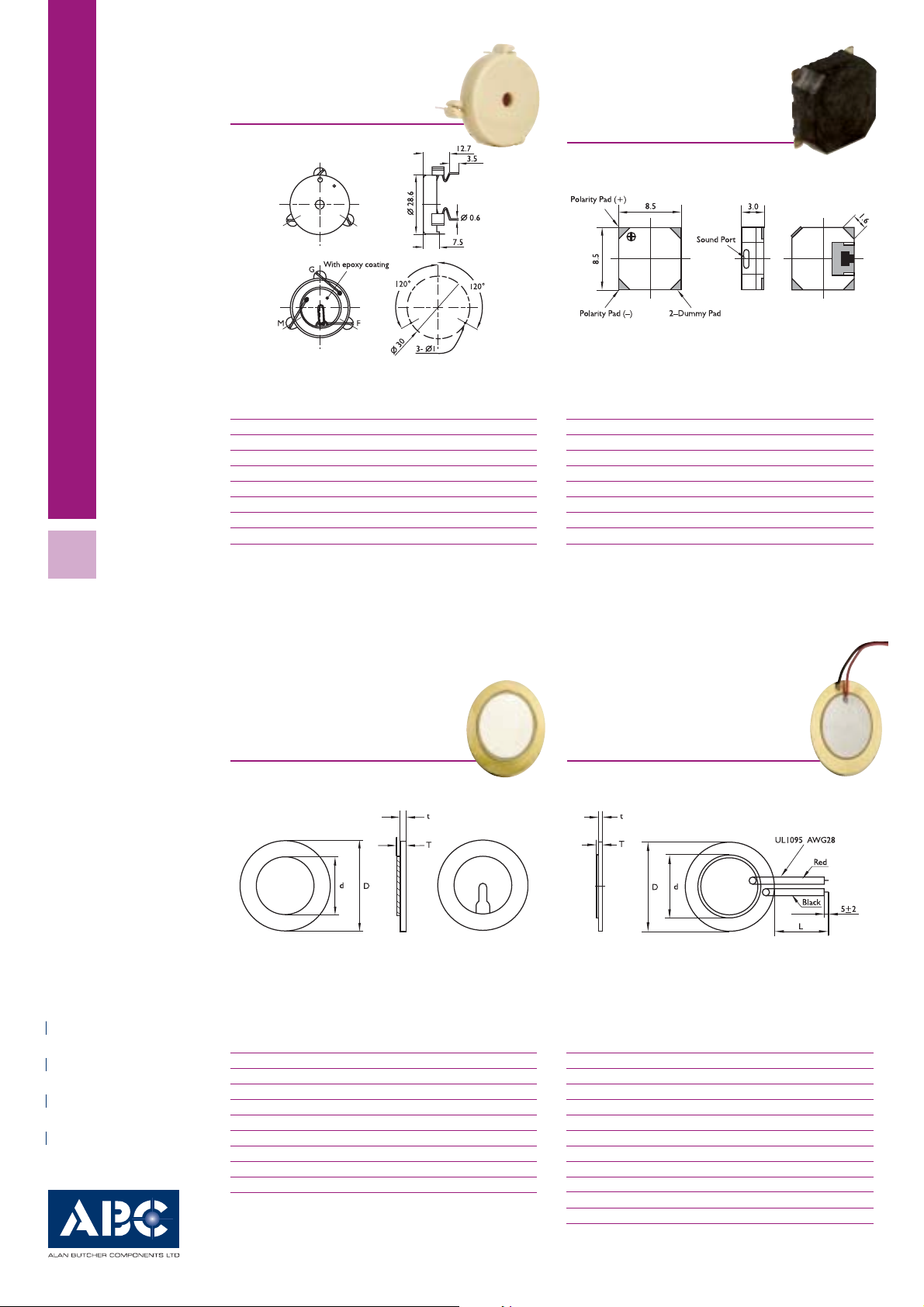

ABT 429-50/434/435
ABT 441 RC

PIEZO ELEMENTS WITH LEADS
