Page 1
1473-1-8811 │ 01.12.2015
Technical Reference Manual
ABB-free@home
®
Weather station
WS-1
Page 2
Table of contents
Technical Reference Manual 1473-1-8811 │2
Table of contents
1 Notes on the instruction manual ................................................................................................................................. 3
2 Safety .......................................................................................................................................................................... 4
2.1 Information and symbols used ........................................................................................................................ 4
2.2 Intended use ................................................................................................................................................... 5
2.3 Improper use .................................................................................................................................................. 5
2.4 Target group / Qualifications of personnel ...................................................................................................... 5
2.5 Safety instructions .......................................................................................................................................... 6
2.6 Environment ................................................................................................................................................... 7
3 Setup and function ...................................................................................................................................................... 8
3.1 Scope of supply .............................................................................................................................................. 9
3.2 Overview of types ........................................................................................................................................... 9
3.3 Functions ........................................................................................................................................................ 9
3.4 Device overview ........................................................................................................................................... 10
4 Technical data ........................................................................................................................................................... 11
4.1 Dimensional drawings .................................................................................................................................. 11
5 Connection, installation / mounting ........................................................................................................................... 12
5.1 Planning instructions .................................................................................................................................... 12
5.2 Safety instructions ........................................................................................................................................ 12
5.3 Circuit diagrams ............................................................................................................................................ 13
5.4 Mounting ....................................................................................................................................................... 13
6 Commissioning ......................................................................................................................................................... 16

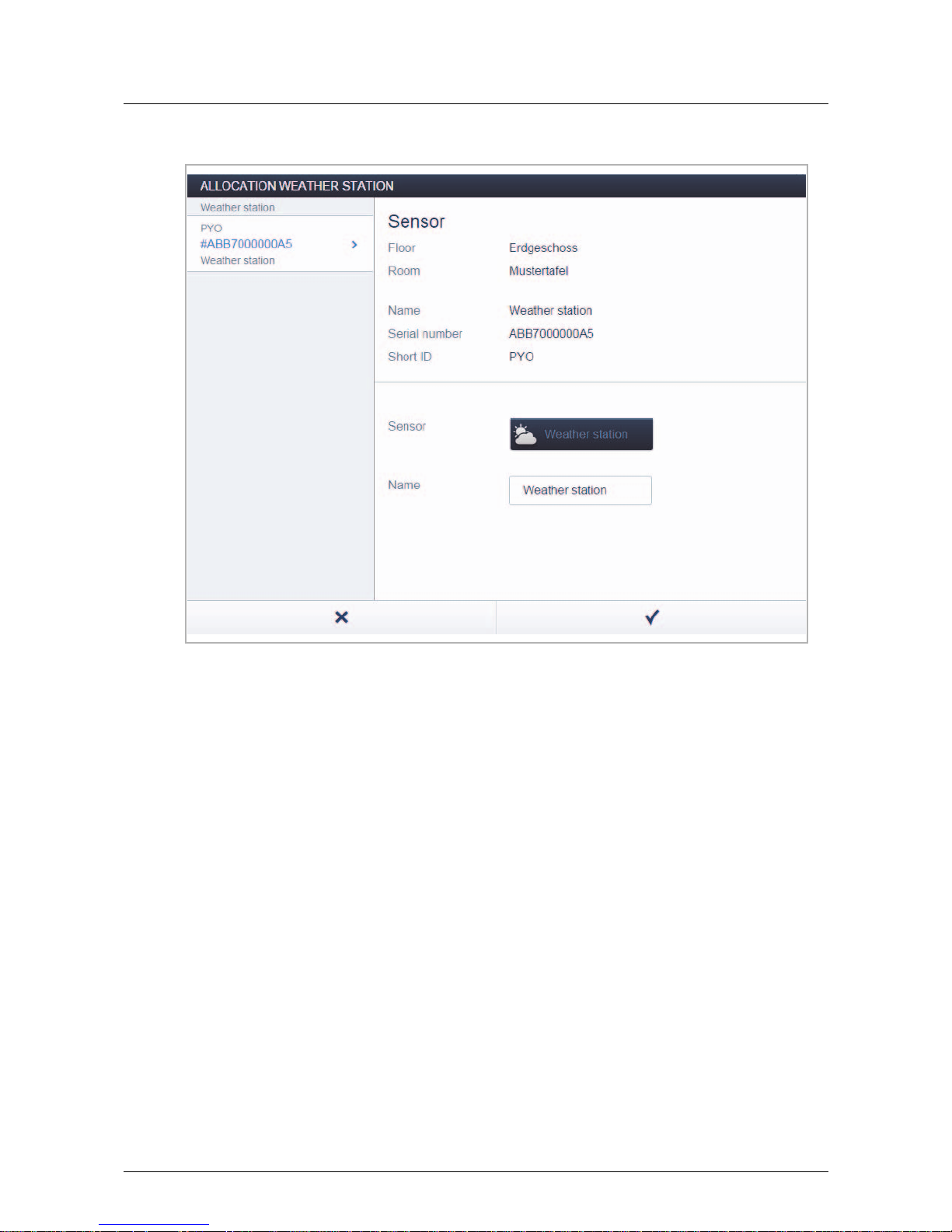

6.1 Allocation of devices and definition of channels ........................................................................................... 16
6.2 Setting options per channel .......................................................................................................................... 20
6.3 Links ............................................................................................................................................................. 23
7 Updating options ....................................................................................................................................................... 25
8 Operation .................................................................................................................................................................. 25
9 Maintenance ............................................................................................................................................................. 25
10 Notes ......................................................................................................................................................................... 26
11 Index ......................................................................................................................................................................... 27
Page 3
Notes on the instruction manual
Technical Reference Manual 1473-1-8811 │3
1 Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property, and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place.
If you pass the device on, also pass on this manual along with it.
ABB accepts no liability for any failure to observe the instructions in this manual.
If you require additional information or have questions about the device, please contact ABB or
visit our Internet site at:
www.BUSCH-JAEGER.com
Page 4
Safety
Technical Reference Manual 1473-1-8811 │4
2 Safety
The device has been constructed according to the latest valid regulations governing technology
and is operationally reliable. It has been tested and left the factory in a technically safe and
reliable state.
However, residual hazards remain. Read and adhere to the safety instructions to prevent
hazards of this kind.
ABB accepts no liability for any failure to observe the safety instructions.
2.1 Information and symbols used
The following Instructions point to particular hazards involved in the use of the device or provide
practical instructions.
Danger
Risk of death / serious damage to health
– The respective warning symbol in connection with the signal word "Danger"
indicates an imminently threatening danger which leads to death or serious
(irreversible) injuries.
Warning
Serious damage to health
– The respective warning symbol in connection with the signal word "Warning"
indicates a threatening danger which can lead to death or serious
(irreversible) injuries.
Caution
Damage to health
– The respective warning symbol in connection with the signal word "Caution"
indicates a danger which can lead to minor (irreversible) injuries.
Attention
Damage to property
– This symbol in connection with the signal word "Attention" indicates a
situation which could cause damage to the product itself or to objects in its
surroundings.
NOTE
This symbol in connection with the word "Note" indicates useful tips and
recommendations for the efficient handling of the product.
The following safety symbols are used in the operating manual.
This symbol alerts to electric voltage.
Page 5
Safety
Technical Reference Manual 1473-1-8811 │5
2.2 Intended use
The device is a weather station for surface-mounting on buildings.
Depending on the setting, the movement detector responds to body heat and switches on the
lights.
The device is intended for the following:
■
Operation according to the listed technical data
■
Installation on walls of buildings
■
Use with the connecting options available on the device
The intended use also includes adherence to all specifications in this manual.
2.3 Improper use
Each use not listed in Chapter 2.2 “Intended use“ on page 5 is deemed improper use and can
lead to personal injury and damage to property.
ABB is not liable for damages caused by use deemed contrary to the intended use of the
device. The associated risk is borne exclusively by the user/operator.
The device is not intended for the following:
■
Unauthorized structural changes
■
Repairs
■
Insert with an additional bus coupler
2.4 Target group / Qualifications of personnel
Installation, commissioning and maintenance of the device must only be carried out by trained
and properly qualified electrical installers.
The electrical installer must have read and understood the manual and follow the instructions
provided.
The electrical installer must adhere to the valid national regulations in his/her country governing
the installation, functional test, repair and maintenance of electrical products.
The electrical installer must be familiar with and correctly apply the "five safety rules" (DIN VDE
0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts
Page 6
Safety
Technical Reference Manual 1473-1-8811 │6
2.5 Safety instructions
Danger - Electric voltage!
Electric voltage! Risk of death and fire due to electric voltage of 230 V.
Dangerous currents flow through the body when coming into direct or indirect
contact with live components. This can result in electric shock, burns or even
death.
■
Work on the 230 V supply system may only be performed by authorised and
qualified electricians.
■
Disconnect the mains power supply before installation or dismantling.
■
Never use the device with damaged connecting cables.
■
Do not open covers firmly bolted to the housing of the device.
■
Use the device only in a technically faultless state.
■
Do not make changes to or perform repairs on the device, on its components
or its accessories.
Caution - hot surface!
The rain sensor is hot during operation.
■
Do not touch the rain sensor.
Page 7
Safety
Technical Reference Manual 1473-1-8811 │7
2.6 Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic
waste.
– The device contains valuable raw materials which can be recycled.
Therefore, dispose of the device at the appropriate collecting depot.
All packaging materials and devices bear the markings and test seals for proper disposal.
Always dispose of the packaging material and electric devices and their components via the
authorized collecting depots and disposal companies.
The products meet the legal requirements, in particular the laws governing electronic and
electrical devices and the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006).
Page 8
Setup and function
Technical Reference Manual 1473-1-8811 │8
3 Setup and function
Fig. 1: Product overview
[1] Brightness sensor
[2] Rain sensor with heating (optional)
[3] LED and push-button for positioning during commissioning and for booting
[4] Wind wheel
[5] Temperature sensor
The weather station (with bus coupler) must only be integrated in a free@home system. Here,
for example, it can be assigned to existing switch actuators to control automated functions. The
devices detect temperature, brightness and wind speed. They have not been pre-programmed.
Also a rain sensor has been installed on the top side. This can also activated as an option
(additional power supply via 110 to 230 V necessary).
The weather data can be displayed via the web-based user interface of the System Access
Point and the free@home- app.
The integrated bus coupler makes possible the connection to the free@home bus line.
NOTE
Rain is only detected when the rain sensor is sufficiently moist. There could be a
delay between the first rain drop of a shower and the time the rain is detected.
After the rain has stopped, and in spite of the heating, it can also take several
minutes until the sensor is dry again and this is detected by the device.
The temperature value can be affected by direct exposure to sunlight.
Page 9
Setup and function
Technical Reference Manual 1473-1-8811 │9
3.1 Scope of supply
The device including wall bracket is contained in the scope of supply.
3.2 Overview of types
Sensor channels Article number Product name
1 WS-1 Weather station
Table 1: Overview of types
3.3 Functions
The following table provides an overview of the possible functions and applications of the
device:
Icon of the operating surface Information
Name:
Weather station
Type:
Sensor
Made available by:
Weather station
Function:
Sensor for the control of
free@home functions dependent
on the weather data Temperature
and wind speed). Rain sensor is
optional.
Table 2: Overview of functions
Page 10
Setup and function
Technical Reference Manual 1473-1-8811 │10
3.4 Device overview
Fig. 2: Overview of wall bracket and weather station
[1] Plug-in terminal for mains voltage
[2] Bus connection terminal
[3] Washer
[4] Rubber seal/cable screw gland
[5] Fastening screw for wall bracket
[6] Screw for cover
[7] Wall bracket
[8] Screw for wall bracket hinge
Page 11
Technical data
Technical Reference Manual 1473-1-8811 │11
4 Technical data
Designation Value
Power Supply 21 V to 32 V DC (via bus line)
Power supply of rain sensor (optional) 110 V to 230 V AC, -15% +10%, 50 / 60 Hz
Bus subscribers 1 (10 mA)
Connections
Bus connection terminal: 0.4 - 0.8 mm
Line type: J-Y(St)Y, 2 x 2 x 0.8 mm
Wire stripping: 6 - 7 mm
Plug-in terminal for mains voltage
Line type: NYM 3 x 1.5 mm2
Max. conductor cross-section: 1.5 mm2
Protection class III
Protection type P44 according to EN 60529
Wind sensor 2 – 30 m/s
Brightness sensors (3 x) 1 - 10,000 lux
Rain sensor display Rain / no rain
Ambient temperature -20°C - +55°C
Storage temperature -20°C - +70°C
Table 3: Technical data
4.1 Dimensional drawings
Fig. 3: Dimensions
All dimensions are in mm.
Page 12
Connection, installation / mounting
Technical Reference Manual 1473-1-8811 │12
5 Connection, installation / mounting
5.1 Planning instructions
NOTE
Planning and application instructions for the system are available in system
manual for ABB-free@home
®
. This can be downloaded via
www.abb.de/freeathome.
5.2 Safety instructions
Danger - Electric shock due to short-circuit!
Risk of death due to electrical voltage of 230 V during short-circuit in the lowvoltage line.
– Low-voltage and 230 V cables must not be installed together in a flush-
mounted socket!
– Observe the spatial division during installation (> 10 mm) of SELV electric
circuits to other electric circuits.
– If the minimum distance is insufficient, use electronic boxes and insulating
tubes.
– Observe the correct polarity.
– Observe the relevant standards.
Danger - Electric voltage!
Install the device only if you have the necessary electrical engineering
knowledge and experience.
■
Incorrect installation endangers your life and that of the users of the
electrical system.
■
Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation
are as follows:
■
Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts.
■
Use suitable personal protective clothing.
■
Use only suitable tools and measuring devices.
■
Check the type of supply network (TN system, IT system, TT system) to
secure the following power supply conditions (classic connection to ground,
protective earthing, necessary additional measures, etc.).
■
Observe the correct polarity.
Page 13
Connection, installation / mounting
Technical Reference Manual 1473-1-8811 │13
5.3 Circuit diagrams
Fig. 4: Connections
NOTE
Operation is possible also without mains voltage. However, the rain sensor
heating does not function then.
5.4 Mounting
Attention - Short-circuit and corrosion
Shirt-circuit and corrosion from penetrating moisture.
– Use the supplied washers for fixing the wall bracket.
NOTE
■
Do not mount the device in the lee of the building.
■
Avoid shading and light reflections, e.g. from other buildings or masts. Align
the device as much as possible toward the south.
■
Observe mounting position:
– Wind wheel downward
– Rain sensor toward the top
Page 14
Connection, installation / mounting
Technical Reference Manual 1473-1-8811 │14
Wall mounting
To mount the device, perform the following steps:
1. Fix the wall bracket [7] to the wall
with the supplied screws [5] and
washers [3].
– The washers are necessary for
obtaining protection type IP44.
2. Connection of the integrated
free@home bus coupler according to
connecting diagram:
– Feed the free@home bus line
through the rubber seal / cable
screw gland [4] in the wall
bracket.
– Connect the free@home bus line
to the 2-pole bus connecting
terminal [2] in the wall bracket.
Observe the correct polarity!
3. Connecting the optional rain sensor
with heating:
– Feed the 230 V line through the
rubber seal / cable screw gland in
the wall bracket.
– Connect the 230 V line to the
connecting terminal [1] in the wall
bracket.
Operation is possible also without mains
voltage. However, the rain sensor
heating does not function then.
Fig. 5: Mounting and connecting the wall bracket
Page 15
Connection, installation / mounting
Technical Reference Manual 1473-1-8811 │15
1. Loosen the two screws on the
outrigger [8].
2. Push the weather station from the top
down into the wall bracket.
3. Tighten the screw [6].
4. Align the weather station horizontally
and tighten the screws [8].
Fig. 6: Mounting the outrigger to the wall bracket
Page 16
Commissioning
Technical Reference Manual 1473-1-8811 │16
6 Commissioning
Commissioning is always carried out via the Web-based surface of the System Access Point.
The System Access Point establishes the connection between the free@home participants and
the smartphone, tablet or PC. The System Access Point is used to identify and program the
participants during commissioning.
Devices which are physically connected to the free@home bus, log themselves automatically
into the System Access Point. They transmit information about their type and supported
functions (see chapter 3.3 “Functions“ on page 9).
During initial commissioning all devices are given a universal name, e.g. "Sensor / switch
actuator 1/1gang". The installer must change this name to a name practical and specific for the
system, e.g. in "Living room ceiling light".
The devices must be parameterised for the use of additional functions.
Commissioning of the device is described in the following chapters. Here it is assumed that the
basic commissioning steps of the overall system have already been carried out. General
knowledge about the Web-based commissioning software of the System Access Point is
assumed.
Attention
Awnings and blinds need time to retract when it is windy.
■
The wind thresholds under the value specified by the manufacturer of the
awnings/blinds need to be parameterized.
NOTE
General information about commissioning and parameterization is available in
the technical reference manual and the online Help of the System Access Point.
6.1 Allocation of devices and definition of channels
The devices connected to the system must be identified, i.e. they are allocated to a room
according to their function and are given a descriptive name.
The allocation is made via the allocation function of the Web-based user
interface of the System Access Point.
Page 17
Commissioning
Technical Reference Manual 1473-1-8811 │17
6.1.1 Add device
Fig. 7: Selecting the device group
1. Select the correct device group in the "Add device" bar.
NOTE
Ensure that the correct filter is set, so that the correct device group is displayed.
Fig. 8: Add device
2. In the "Add device" bar select the desired application and pull the icon via drag-and-drop
onto the floor plan in the working area.
Page 18
Commissioning
Technical Reference Manual 1473-1-8811 │18
Fig. 9: Allocation of devices
A window opens which lists all the devices suitable for the application selected.
Identification via serial number
Fig. 10: Identification via serial number
3. Compare the serial number and the short ID of the identification label printed on the device
with the numbers and IDs in the list. This is how the searched for device and possibly the
searched for channel are identified.
The specifications of the identification label should also be transmitted to the device plan.
Page 19
Commissioning
Technical Reference Manual 1473-1-8811 │19
Assigning a name
Fig. 11: Assigning a name
4. Enter a name that is easy to understand and under which the application is to be displayed
later, e.g. "North-wall weather station".
5. Press the tick at the bottom right.
This takes over the entry.
Page 20
Commissioning
Technical Reference Manual 1473-1-8811 │20
6.2 Setting options per channel
General settings and special parameter settings must be made for each channel.
The settings are made via the allocation function of the Web-based user
interface of the System Access Point.
Select unit
Fig. 12: Select device
1. Select the device icon [1] in the floor plan of the working area view.
All setting options for the respective channel are displayed in the list view [2].
The settings in the following section are available.
Page 21
Commissioning
Technical Reference Manual 1473-1-8811 │21
6.2.1 Setting the weather station
General sensor settings
[1] Changing the name
[2] Deleting the channel
[3] Definition of the sending interval
[4] Selection of the individual sensors
Fig. 13: General sensor settings
Setting the brightness sensor
[1] Setting the lux value which is to activate the
brightness alarm
Fig. 14: Setting the brightness sensor
For example:
The brightness sensor is connected to a blind actuator:
■
The brightness value is exceeded: the blind is moved down
(delay time: 5 minutes)
■
The brightness value drops below setpoint: the blind is moved up
(delay time: 15 minutes)
The hysteresis is generally set on 5000 lux.
Page 22
Commissioning
Technical Reference Manual 1473-1-8811 │22
Setting the temperature sensor
[1] Setting the ambient temperature which
activates the frost alarm.
Fig. 15: Setting the temperature sensor
For example:
The temperature sensor is connected to a blind actuator:
■
The frost protection temperature is exceeded: the blind is moved down
(delay time: 5 minutes)
■
The frost protection temperature drops below setpoint: the blind is moved up
(delay time: 15 minutes)
Setting the wind sensor
[1] Setting the wind force which activates the
wind alarm.
Fig. 16: Setting the wind sensor
For example:
The wind sensor is connected to a blind actuator:
■
The wind alarm is exceeded: the blind is moved down
(delay time: none)
■
The wind alarm drops below setpoint: the blind is moved up
(delay time: 10 minutes)
Page 23
Commissioning
Technical Reference Manual 1473-1-8811 │23
Rain sensor
No separate setting is possible.
For example:
The rain sensor is connected to a blind actuator:
■
The rain alarm is exceeded: the blind is moved down
(delay time: none)
■
The rain alarm drops below setpoint: the blind is moved up
(delay time: 10 minutes)
6.3 Links
The weather stations and actuators created via the allocation function can now be linked with
each other. This links the individual sensors of the weather station with one or several
corresponding actuators. For example, the wind sensor can be linked with blind actuators. This
causes the blinds to be moved up when the set wind force is reached.
The linking in the list view is made via the linking function of the Web-based user
interface of the System Access Point.
Page 24
Commissioning
Technical Reference Manual 1473-1-8811 │24
6.3.1 Linking actuator and sensor
Fig. 17: Linking actuator and sensor
1. On the working area select the sensor [1] that is to be linked with the actuator. Now a
selection list opens next to the icon of the weather station. Here all sensors of the weather
station are listed.
2. Select a sensor. The corresponding sensor is displayed in the list view.
3. Select the actuator [2] that is to be served by the sensor.
4. Press the arrow [3] at the bottom right to take over the entries.
A blue connecting line indicates the link between the two devices. The configuration is now
transmitted automatically to the devices. The transmission can, depending on the number of
affected devices, take a number of seconds. During the transmission a progress bar is
displayed around the devices affected.
NOTE
A sensor can be linked with several actuators.
A sensor can additionally be linked with scenes.
Page 25
Updating options
Technical Reference Manual 1473-1-8811 │25
7 Updating options
A firmware update is carried out via the Web-based user interface of the System Access Point.
8 Operation
The device responds automatically to various types of weather. No action is therefore required
on the part of the user.
9 Maintenance
The device is maintenance-free. In case of damage, e.g. during transport or storage), do not
perform repairs. Once the device is opened, the warranty is void.
Access to the device must be guaranteed for operation, testing, inspection, maintenance and
repairs (according to DIN VDE 0100-520).
Clean dirty devices with a soft dry cloth.
– If this is insufficient, the cloth can be moistened slightly with a soap solution.
Page 26
Notes
Technical Reference Manual 1473-1-8811 │26
10 Notes
Page 27
Index
Technical Reference Manual 1473-1-8811 │27
11 Index
A
Add device ........................................................................... 17
Allocation of devices ............................................................ 16
Ambient temperature ........................................................... 11
Assigning a name ................................................................ 19
B
Brightness sensor ............................................................ 8, 11
Bus connection .................................................................... 10
Buttons .................................................................................. 8
C
Circuit diagrams ................................................................... 13
Commissioning .................................................................... 16
Connection, installation / mounting ...................................... 12
Connections ......................................................................... 11
D
Device overview .................................................................. 10
Dimensional drawings ......................................................... 11
E
Environment .......................................................................... 7
F
Firmware update .................................................................. 25
Functions ......................................................................... 9, 16
G
General sensor settings ....................................................... 21
I
Identification ........................................................................ 18
Identification label ................................................................ 18
Improper use ......................................................................... 5
Information and symbols used ............................................... 4
Initial commissioning ........................................................... 16
Intended use .......................................................................... 5
L
LED ........................................................................................ 8
Leeward side ....................................................................... 13
Links .................................................................................... 23
actuator ........................................................................... 24
sensor ............................................................................. 24
M
Mains supply ........................................................................ 10
Maintenance ........................................................................ 25
Mounting ..............................................................................13
N
Notes ....................................................................................26
Notes on the instruction manual ............................................3
O
Operation .............................................................................25
Overview of types ..................................................................9
P
Planning instructions ............................................................12
Power Supply .......................................................................11
Protection class ....................................................................11
Protection type .....................................................................11
Q
Qualification of personnel ......................................................5
R
Rain sensor ......................................................................8, 23
S
Safety .....................................................................................4
Safety instructions ............................................................6, 12
Scope of supply .....................................................................9
Select unit ............................................................................20
Serial number .......................................................................18
Setting the brightness sensor ..............................................21
Setting the temperature sensor ............................................22
Setting the wind sensor ........................................................22
Setup and function .................................................................8
Storage temperature ............................................................11
System Access Point ...........................................................16
T
Target group ..........................................................................5
Technical data ......................................................................11
Temperature sensor ...............................................................8
U
Updating options ..................................................................25
W
Wall bracket .........................................................................10
Wall mounting ......................................................................14
Wind sensor .........................................................................11
Wind wheel ............................................................................8
Page 28
A
member of the ABB Group
Busch-Jaeger Elektro GmbH
PO box
58505 Lüdenscheid
Freisenbergstraße 2
58513 Lüdenscheid
www.BUSCH-JAEGER.com
info.bje@de.abb.com
Central sales service:
Tel.: +49 2351 956-1600
Fax: +49 2351 956-1700
Notice
We reserve the right to make
technical changes at all times as
well as changes to the contents of
this document without prior notice.
The detailed specifications agreed
upon apply for orders. ABB accepts
no responsibility for possible errors
or incompleteness in this document.
We reserve all rights to this
document and the topics and
illustrations contained therein. The
document and its contents, or
extracts thereof, must not be
reproduced, transmitted or reused
by third parties without prior written
consent by ABB
Copyright© 2015 Busch-Jaeger
Elektro GmbH
A
ll rights reserved
Technical Reference Manual 1473-1-8811
Loading...
