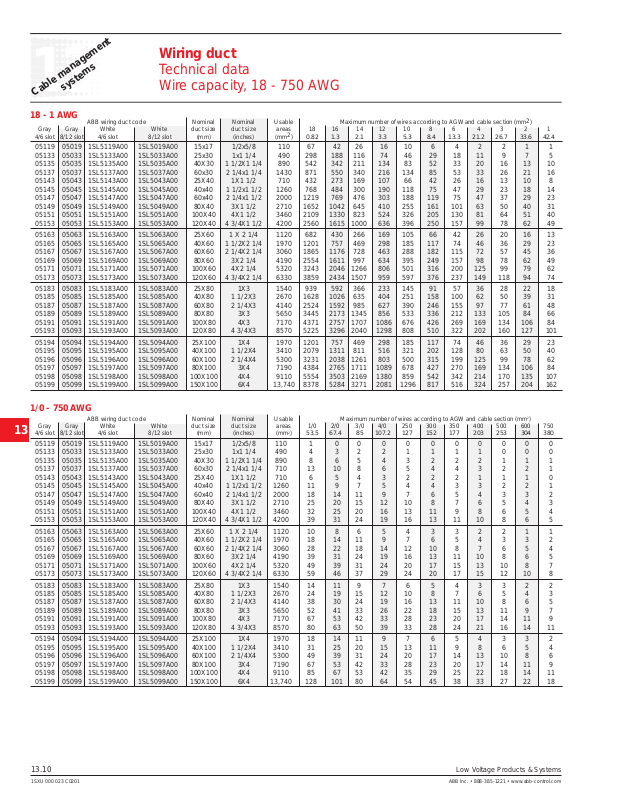

ABB Wiring duct Technical Data

ent

Wiring duct

Technical data

13

18 - 1 AWG

ABB wiring duct code Nominal Nominal Usable Maximum number of wires according to AGW and cable section (mm2)
Gray Gray White White duct size duct size areas 18 16 14 12 10 8 6 4 3 2 1
4/6 slot 8/12 slot 4/6 slot 8/12 slot (mm) (inches) (mm2) 0.82 1.3 2.1 3.3 5.3 8.4 13.3 21.2 26.7 33.6 42.4

05119 05019 1SL5119A00 1SL5019A00 15x17 1/2x5/8 110 67 42 26 16 10 6 4 2 2 1 1
05133 05033 1SL5133A00 1SL5033A00 25x30 1x1 1/4 490 298 188 116 74 46 29 18 11 9 7 5
05135 05035 1SL5135A00 1SL5035A00 40X30 1 1/2X1 1/4 890 542 342 211 134 83 52 33 20 16 13 10
05137 05037 1SL5137A00 1SL5037A00 60x30 2 1/4x1 1/4 1430 871 550 340 216 134 85 53 33 26 21 16
05143 05043 1SL5143A00 1SL5043A00 25X40 1X1 1/2 710 432 273 169 107 66 42 26 16 13 10 8
05145 05045 1SL5145A00 1SL5045A00 40x40 1 1/2x1 1/2 1260 768 484 300 190 118 75 47 29 23 18 14
05147 05047 1SL5147A00 1SL5047A00 60x40 2 1/4x1 1/2 2000 1219 769 476 303 188 119 75 47 37 29 23
05149 05049 1SL5149A00 1SL5049A00 80X40 3X1 1/2 2710 1652 1042 645 410 255 161 101 63 50 40 31
05151 05051 1SL5151A00 1SL5051A00 100X40 4X1 1/2 3460 2109 1330 823 524 326 205 130 81 64 51 40
05153 05053 1SL5153A00 1SL5053A00 120X40 4 3/4X1 1/2 4200 2560 1615 1000 636 396 250 157 99 78 62 49

05163 05063 1SL5163A00 1SL5063A00 25X60 1 X 2 1/4 1120 682 430 266 169 105 66 42 26 20 16 13
05165 05065 1SL5165A00 1SL5065A00 40X60 1 1/2X2 1/4 1970 1201 757 469 298 185 117 74 46 36 29 23
05167 05067 1SL5167A00 1SL5067A00 60X60 2 1/4X2 1/4 3060 1865 1176 728 463 288 182 115 72 57 45 36
05169 05069 1SL5169A00 1SL5069A00 80X60 3X2 1/4 4190 2554 1611 997 634 395 249 157 98 78 62 49
05171 05071 1SL5171A00 1SL5071A00 100X60 4X2 1/4 5320 3243 2046 1266 806 501 316 200 125 99 79 62
05173 05073 1SL5173A00 1SL5073A00 120X60 4 3/4X2 1/4 6330 3859 2434 1507 959 597 376 237 149 118 94 74

05183 05083 1SL5183A00 1SL5083A00 25X80 1X3 1540 939 592 366 233 145 91 57 36 28 22 18
05185 05085 1SL5185A00 1SL5085A00 40X80 1 1/2X3 2670 1628 1026 635 404 251 158 100 62 50 39 31
05187 05087 1SL5187A00 1SL5087A00 60X80 2 1/4X3 4140 2524 1592 985 627 390 246 155 97 77 61 48
05189 05089 1SL5189A00 1SL5089A00 80X80 3X3 5650 3445 2173 1345 856 533 336 212 133 105 84 66
05191 05091 1SL5191A00 1SL5091A00 100X80 4X3 7170 4371 2757 1707 1086 676 426 269 169 134 106 84
05193 05093 1SL5193A00 1SL5093A00 120X80 4 3/4X3 8570 5225 3296 2040 1298 808 510 322 202 160 127 101

05194 05094 1SL5194A00 1SL5094A00 25X100 1X4 1970 1201 757 469 298 185 117 74 46 36 29 23
05195 05095 1SL5195A00 1SL5095A00 40X100 1 1/2X4 3410 2079 1311 811 516 321 202 128 80 63 50 40
05196 05096 1SL5196A00 1SL5096A00 60X100 2 1/4X4 5300 3231 2038 1261 803 500 315 199 125 99 78 62
05197 05097 1SL5197A00 1SL5097A00 80X100 3X4 7190 4384 2765 1711 1089 678 427 270 169 134 106 84
05198 05098 1SL5198A00 1SL5098A00 100X100 4X4 9110 5554 3503 2169 1380 859 542 342 214 170 135 107
05199 05099 1SL5199A00 1SL5099A00 150X100 6X4 13,740 8378 5284 3271 2081 1296 817 516 324 257 204 162

systems

Cable managem

Wire capacity, 18 - 750 AWG

1/0 - 750 AWG

ABB wiring duct code Nominal Nominal Usable Maximum number of wires according to AGW and cable section (mm2)
Gray Gray White White duct size duct size areas 1/0 2/0 3/0 4/0 250 300 350 400 500 600 750

13

4/6 slot 8/12 slot 4/6 slot 8/12 slot (mm) (inches) (mm2) 53.5 67.4 85 107.2 127 152 177 203 253 304 380

05119 05019 1SL5119A00 1SL5019A00 15x17 1/2x5/8 110 1 0 0 0 0 0 0 0 0 0 0
05133 05033 1SL5133A00 1SL5033A00 25x30 1x1 1/4 490 4 3 2 2 1 1 1 1 0 0 0
05135 05035 1SL5135A00 1SL5035A00 40X30 1 1/2X1 1/4 890 8 6 5 4 3 2 2 2 1 1 1
05137 05037 1SL5137A00 1SL5037A00 60x30 2 1/4x1 1/4 710 13 10 8 6 5 4 4 3 2 2 1
05143 05043 1SL5143A00 1SL5043A00 25X40 1X1 1/2 710 6 5 4 3 2 2 2 1 1 1 0
05145 05045 1SL5145A00 1SL5045A00 40x40 1 1/2x1 1/2 1260 11 9 7 5 4 4 3 3 2 2 1
05147 05047 1SL5147A00 1SL5047A00 60x40 2 1/4x1 1/2 2000 18 14 11 9 7 6 5 4 3 3 2
05149 05049 1SL5149A00 1SL5049A00 80X40 3X1 1/2 2710 25 20 15 12 10 8 7 6 5 4 3
05151 05051 1SL5151A00 1SL5051A00 100X40 4X1 1/2 3460 32 25 20 16 13 11 9 8 6 5 4
05153 05053 1SL5153A00 1SL5053A00 120X40 4 3/4X1 1/2 4200 39 31 24 19 16 13 11 10 8 6 5

05163 05063 1SL5163A00 1SL5063A00 25X60 1 X 2 1/4 1120 10 8 6 5 4 3 3 2 2 1 1
05165 05065 1SL5165A00 1SL5065A00 40X60 1 1/2X2 1/4 1970 18 14 11 9 7 6 5 4 3 3 2
05167 05067 1SL5167A00 1SL5067A00 60X60 2 1/4X2 1/4 3060 28 22 18 14 12 10 8 7 6 5 4
05169 05069 1SL5169A00 1SL5069A00 80X60 3X2 1/4 4190 39 31 24 19 16 13 11 10 8 6 5
05171 05071 1SL5171A00 1SL5071A00 100X60 4X2 1/4 5320 49 39 31 24 20 17 15 13 10 8 7
05173 05073 1SL5173A00 1SL5073A00 120X60 4 3/4X2 1/4 6330 59 46 37 29 24 20 17 15 12 10 8

05183 05083 1SL5183A00 1SL5083A00 25X80 1X3 1540 14 11 9 7 6 5 4 3 3 2 2
05185 05085 1SL5185A00 1SL5085A00 40X80 1 1/2X3 2670 24 19 15 12 10 8 7 6 5 4 3
05187 05087 1SL5187A00 1SL5087A00 60X80 2 1/4X3 4140 38 30 24 19 16 13 11 10 8 6 5
05189 05089 1SL5189A00 1SL5089A00 80X80 3X3 5650 52 41 33 26 22 18 15 13 11 9 7
05191 05091 1SL5191A00 1SL5091A00 100X80 4X3 7170 67 53 42 33 28 23 20 17 14 11 9
05193 05093 1SL5193A00 1SL5093A00 120X80 4 3/4X3 8570 80 63 50 39 33 28 24 21 16 14 11

05194 05094 1SL5194A00 1SL5094A00 25X100 1X4 1970 18 14 11 9 7 6 5 4 3 3 2
05195 05095 1SL5195A00 1SL5095A00 40X100 1 1/2X4 3410 31 25 20 15 13 11 9 8 6 5 4
05196 05096 1SL5196A00 1SL5096A00 60X100 2 1/4X4 5300 49 39 31 24 20 17 14 13 10 8 6
05197 05097 1SL5197A00 1SL5097A00 80X100 3X4 7190 67 53 42 33 28 23 20 17 14 11 9
05198 05098 1SL5198A00 1SL5098A00 100X100 4X4 9110 85 67 53 42 35 29 25 22 18 14 11
05199 05099 1SL5199A00 1SL5099A00 150X100 6X4 13,740 128 101 80 64 54 45 38 33 27 22 18

13.10 Low Voltage Products & Systems

1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com

Wiring duct

Technical data
Wire capacity, 800 - 1000 AWG

800 - 1000 AWG

ABB wiring duct code Nominal Nominal Usable Maximum number of wires according to AGW and cable section (mm2)
Gray Gray White White duct size duct size areas 800 1000
4/6 slot 8/12 slot 4/6 slot 8/12 slot (mm) (inches) (mm2) 405 508

05119 05019 1SL5119A00 1SL5019A00 15x17 1/2x5/8 110 0 0
05133 05033 1SL5133A00 1SL5033A00 25x30 1x1 1/4 490 0 0
05135 05035 1SL5135A00 1SL5035A00 40X30 1 1/2X1 1/4 890 1 0
05137 05037 1SL5137A00 1SL5037A00 60x30 2 1/4x1 1/4 1430 1 1
05143 05043 1SL5143A00 1SL5043A00 25X40 1X1 1/2 710 0 0
05145 05045 1SL5145A00 1SL5045A00 40x40 1 1/2x1 1/2 1260 1 1
05147 05047 1SL5147A00 1SL5047A00 60x40 2 1/4x1 1/2 2000 2 1
05149 05049 1SL5149A00 1SL5049A00 80X40 3X1 1/2 2710 3 2
05151 05051 1SL5151A00 1SL5051A00 100X40 4X1 1/2 3460 4 3
05153 05053 1SL5153A00 1SL5053A00 120X40 4 3/4X1 1/2 4200 5 4

05163 05063 1SL5163A00 1SL5063A00 25X60 1 X 2 1/4 1120 1 1
05165 05065 1SL5165A00 1SL5065A00 40X60 1 1/2X2 1/4 1970 2 1
05167 05067 1SL5167A00 1SL5067A00 60X60 2 1/4X2 1/4 3060 3 3
05169 05069 1SL5169A00 1SL5069A00 80X60 3X2 1/4 4190 5 4
05171 05071 1SL5171A00 1SL5071A00 100X60 4X2 1/4 5320 6 5
05173 05073 1SL5173A00 1SL5073A00 120X60 4 3/4X2 1/4 6330 7 6

05183 05083 1SL5183A00 1SL5083A00 25X80 1X3 1540 1 1
05185 05085 1SL5185A00 1SL5085A00 40X80 1 1/2X3 2670 3 2
05187 05087 1SL5187A00 1SL5087A00 60X80 2 1/4X3 4140 5 4
05189 05089 1SL5189A00 1SL5089A00 80X80 3X3 5650 6 5
05191 05091 1SL5191A00 1SL5091A00 100X80 4X3 7170 8 7
05193 05093 1SL5193A00 1SL5093A00 120X80 4 3/4X3 8570 10 8

05194 05094 1SL5194A00 1SL5094A00 25X100 1X4 1970 2 1
05195 05095 1SL5195A00 1SL5095A00 40X100 1 1/2X4 3410 4 3
05196 05096 1SL5196A00 1SL5096A00 60X100 2 1/4X4 5300 6 5
05197 05097 1SL5197A00 1SL5097A00 80X100 3X4 7190 8 7
05198 05098 1SL5198A00 1SL5098A00 100X100 4X4 9110 11 8
05199 05099 1SL5199A00 1SL5099A00 150X100 6X4 13,740 16 13
