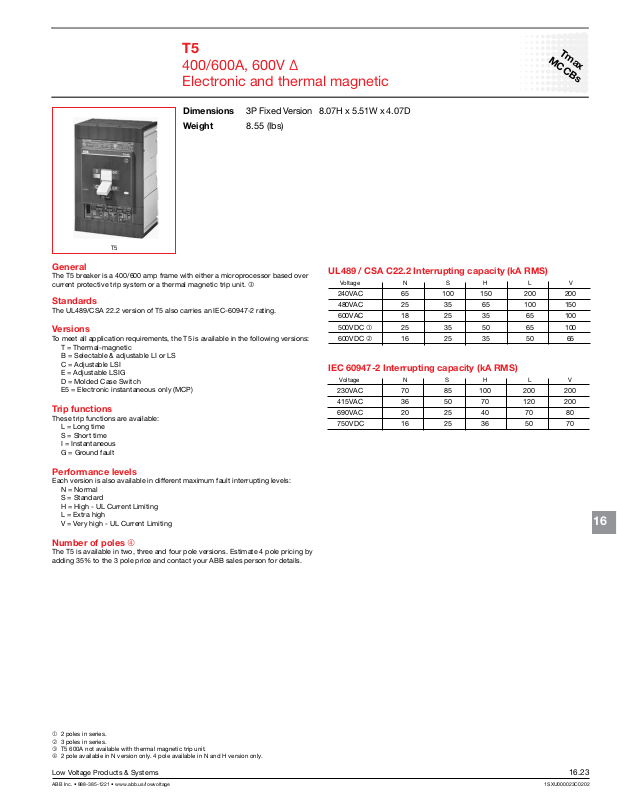

T5
400/600A, 600V ∆
Tmax
MCCBs
Electronic and thermal magnetic
Dimensions 3P Fixed Version 8.07H x 5.51W x 4.07D
Weight
T5
8.55 (Ibs)
General
The T5 breaker is a 400/600 amp frame with either a microprocessor based over
current protective trip system or a thermal magnetic trip unit. 3
Standards
The UL489/CSA 22.2 version of T5 also carries an IEC-60947-2 rating.
Versions
To meet all application requirements, the T5 is available in the following versions:
T = Thermal-magnetic
B = Selectable & adjustable LI or LS
C = Adjustable LSI
E = Adjustable LSIG
D = Molded Case Switch
E5 = Electronic instantaneous only (MCP)
Trip functions
These trip functions are available:
L = Long time
S = Short time
I = Instantaneous
G = Ground fault
Performance levels
Each version is also available in different maximum fault interrupting levels:
N = Normal
S = Standard
H = High - UL Current Limiting
L = Extra high
V = Very high - UL Current Limiting
Number of poles 4
The T5 is available in two, three and four pole versions. Estimate 4 pole pricing by
adding 35% to the 3 pole price and contact your ABB sales person for details.
UL489 / CSA C22.2 Interrupting capacity (kA RMS)
Voltage N S H L V
240VAC 65 100 150 200 200
480VAC 25 35 65 100 150
600VAC 18 25 35 65 100
500VDC 1 25 35 50 65 100
600VDC 2 16 25 35 50 65
IEC 60947-2 Interrupting capacity (kA RMS)
Voltage N S H L V
230VAC 70 85 100 200 200
415VAC 36 50 70 120 200
690VAC 20 25 40 70 80
750VDC 16 25 36 50 70
16
1 2 poles in series.
2 3 poles in series.
3 T5 600A not available with thermal magnetic trip unit.
4 2 pole available in N version only. 4 pole available in N and H version only.
Low Voltage Products & Systems 16.23
ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage 1SXU000023C0202
Tmax
MCCBs
T5
400/600A, 600V ∆
Thermal magnetic 1
300A - 400A Frames - thermal-magnetic trip units
Breaker
T5N 25
T5S 35
T5H
UL Current Limiting
T5L 100
T5V
UL Current Limiting
IC at 480VAC
kA
65
150
Rating
300A 1500-3000 T5N300TW-2
400A 2000-4000 T5N400TW-2 T5N400TW
300A 1500-3000
400A 2000-4000 T5S400TW
300A 1500-3000
400A 2000-4000 T5H400TW
300A 1500-3000
400A 2000-4000 T5L400TW
300A 1500-3000
400A 2000-4000 T5V400TW
Magnetic
300A - 400A Frames - 100% rated, thermal-magnetic
Breaker IC at 480VAC Rating Magnetic
T5N 25
T5S 35
T5H
UL Current Limiting
T5L 100
T5V
UL Current Limiting
65
150
300A 1500-3000 T5NQ300TW
400A 2000-4000 T5NQ400TW
300A 1500-3000 T5SQ300TW
400A 2000-4000 T5SQ400TW
300A 1500-3000 T5HQ300TW
400A 2000-4000 T5HQ400TW
300A 1500-3000 T5LQ300TW
400A 2000-4000 T5LQ400TW
300A 1500-3000 T5VQ300TW
400A 2000-4000 T5VQ400TW
trip
trip
2 pole, 600VAC/600VDC
catalog number
– –
– –
– –
– –
3 pole,
600VAC/600VDC
Catalog number
List
price
$ 2,481
List
price
$ 2,888
3,185
5,475
7,078
10,920
3 pole, 600VAC/600VDC
catalog number
T5N300TW
T5S300TW
T5H300TW
T5L300TW
T5V300TW
List
price
$ 2,612
2,880
4,950
6,400
9,873
16
1 T5 600A not available with Thermal Magnetic trip unit.
16.24 Low Voltage Products & Systems
1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
Discount schedule S5T [T5]
T5
400/600A, 600V ∆
Electronic (AC only)
Tmax
MCCBs
300A Frame, electronic trip unit (AC only)
Breaker
T5N 25 PR222 LSI T5N300CW-2 3,672 T5N300CW 3,865
T5S 35 PR222 LSI - - T5S300CW 3,945
T5H
UL Current
Limiting
T5L 100 PR222 LSI - - T5L300CW 7,375
T5V
UL Current
Limiting
400A Frame, electronic trip unit (AC only)
Breaker
T5N 25 PR222 LSI T5N400CW-2 3,672 T5N400CW 3,865
T5S 35 PR222 LSI - - T5S400CW 3,945
T5H
UL Current
Limiting
T5L 100 PR222 LSI - - T5L400CW 7,375
T5V
UL Current
Limiting
IC at 480VAC
kA
65 PR222 LSI - - T5H300CW 5,893
150 PR222 LSI - - T5V300CW 11,206
IC at 480VAC
kA
65 PR222 LSI - - T5H400CW 5,893
150 PR222 LSI - - T5V400CW 11,206
Trip
Unit
PR221 LS/I T5N300BW-2 $ 3,097 T5N300BW $ 3,260
PR222 LSIG T5N300EW-2 4,717 T5N300EW 4,965
PR221 LS/I - - T5S300BW 3,350
PR222 LSIG - - T5S300EW 5,138
PR221 LS/I - - T5H300BW 5,395
PR222 LSIG - - T5H300EW 7,148
PR221 LS/I - - T5L300BW 6,860
PR222 LSIG - - T5L300EW 8,625
PR221 LS/I - - T5V300BW 10,406
PR222 LSIG - - T5V300EW 12,111
Trip
Unit
PR221 LS/I T5N400BW-2 $ 3,097 T5N400BW $ 3,260
PR222 LSIG T5N400EW-2 4,717 T5N400EW 4,965
PR221 LS/I - - T5S400BW 3,350
PR222 LSIG - - T5S400EW 5,138
PR221 LS/I - - T5H400BW 5,395
PR222 LSIG - - T5H400EW 7,148
PR221 LS/I - - T5L400BW 6,860
PR222 LSIG - - T5L400EW 8,625
PR221 LS/I - - T5V400BW 10,406
PR222 LSIG - - T5V400EW 12,111
2 pole, 600V
catalog number
2 pole, 600V
catalog number
List
price
List
price
3 pole, 600V
catalog number
3 pole, 600V
catalog number
List
price
List
price
600A Frame, electronic trip unit (AC only) 1
Breaker
T5N 25 PR222 LSI T5N600CW 6,460
T5S 35 PR222 LSI T5S600CW 6,595
T5H 65 PR222 LSI T5H600CW 8,805
T5L 100 PR222 LSI T5L600CW 10,440
T5V 150 PR222 LSI T5V600CW 14,375
1 T5 600A not available in 2 pole version.
Low Voltage Products & Systems 16.25
ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage 1SXU000023C0202
IC at 480VAC
kA
Trip
Unit
PR221 LS/I T5N600BW $ 5,750
PR222 LSIG T5N600EW 8,360
PR221 LS/I T5S600BW 5,910
PR222 LSIG T5S600EW 8,645
PR221 LS/I T5H600BW 8,170
PR222 LSIG T5H600EW 10,890
PR221 LS/I T5L600BW 9,860
PR222 LSIG T5L600EW 12,630
PR221 LS/I T5V600BW 13,550
PR222 LSIG T5V600EW 16,350
3 pole, 600V
catalog number
List
price
Discount schedule S5T [T5]
16
Tmax
MCCBs
T5
400/600A, 600V ∆, 100% Rated 1
Electronic (AC only)
300A Frame – 100% rated, electronic trip units (AC only)
Breaker
T5N 25 PR222 LSI T5NQ300CW 4,302
T5S 35 PR222 LSI T5SQ300CW 4,391
T5H
UL Current
limiting
T5L 100 PR222 LSI T5LQ300CW 8,208
T5V
UL Current
limiting
400A Frame – 100% rated, electronic trip units (AC only)
Breaker
T5N 25 PR222 LSI T5NQ400CW 4,302
T5S 35 PR222 LSI T5SQ400CW 4,391
T5H
UL Current
limiting
T5L 100 PR222 LSI T5LQ400CW 8,208
T5V
UL Current
limiting
IC at 480VAC
kA
65 PR222 LSI T5HQ300CW 6,559
150 PR222 LSI T5VQ300CW 12,473
IC at 480VAC
kA
65 PR222 LSI T5HQ400CW 6,559
150 PR222 LSI T5VQ400CW 12,473
Trip
Unit
PR221 LS/I T5NQ300BW $ 3,628
PR222 LSIG T5NQ300EW 5,526
PR221 LS/I T5SQ300BW 3,729
PR222 LSIG T5SQ300EW 5,719
PR221 LS/I T5HQ300BW 6,005
PR222 LSIG T5HQ300EW 7,956
PR221 LS/I T5LQ300BW 7,635
PR222 LSIG T5LQ300EW 9,600
PR221 LS/I T5VQ300BW 11,582
PR222 LSIG T5VQ300EW 13,480
Trip
Unit
PR221 LS/I T5NQ400BW $ 3,628
PR222 LSIG T5NQ400EW 5,526
PR221 LS/I T5SQ400BW 3,729
PR222 LSIG T5SQ400EW 5,719
PR221 LS/I T5HQ400BW 6,005
PR222 LSIG T5HQ400EW 7,956
PR221 LS/I T5LQ400BW 7,635
PR222 LSIG T5LQ400EW 9,600
PR221 LS/I T5VQ400BW 11,582
PR222 LSIG T5VQ400EW 13,480
3 pole, 600V
catalog number
3 pole, 600V
catalog number
List
price
List
price
16
1 T5 600A not available in 100% rated frame.
16.26 Low Voltage Products & Systems
1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
Discount schedule S5T [T5]
T5
400/600A, 600V ∆
Instantaneous only, MCP/Molded case switch
T5 - 400A Frame, magnetic only (MCP - AC only)
Breaker IC at 480VAC Trip unit type Rating Adjustment
T5N 25kA
T5S 35kA
T5H 65kA
T5L 100kA
Instantaneous
only
Instantaneous
only
Instantaneous
only
Instantaneous
only
T5 - 600A Frame, magnetic only (MCP - AC only)
Breaker IC at 480VAC Trip unit type Rating Adjustment
T5N 25kA
T5S 35kA
T5H 65kA
T5L 100kA
Instantaneous
only
Instantaneous
only
Instantaneous
only
Instantaneous
only
300A 300-3000 T5N300E5W
400A 400-4000 T5N400E5W
300A 300-3000
400A 400-4000 T5S400E5W
300A 300-3000 T5H300E5W
400A 400-4000 T5H400E5W
300A 300-3000 T5L300E5W
400A 400-4000 T5L400E5W
600A 600-6000 T5N600E5W $ 5,615
600A 600-6000
600A 600-6000 T5H600E5W 7,761
600A 600-6000 T5L600E5W 9,370
range
range
3 pole, 600VAC
Catalog number
T5S300E5W
3 pole, 600VAC
Catalog number
T5S600E5W
List
price
$ 3,097
3,183
5,125
6,517
List
price
5,770
Tmax
MCCBs
Molded case switch 1
Type IC at 480VAC Amps
T5N-D 25kA 400 5000 T5N400DW $ 2,393
T5S-D 35kA 400 5000 T5S400DW 2,659
T5H-D 65kA 400 5000 T5H400DW 4,585
T5L-D 100kA 400 5000 T5L400DW 5,878
T5V-D 150kA 400 5000 T5V400DW 7,536
T5N-D 25kA 600 6000 T5N600DW 3,419
T5S-D 35kA 600 6000 T5S600DW 3,799
T5H-D 65kA 600 6000 T5H600DW 6,550
T5L-D 100kA 600 6000 T5L600DW 8,350
T5V-D 150kA 600 6000 T5V600DW 11,575
Note: For terminal connection options see page 16.43.
Magnetic
trip
3 pole 600V
catalog number
List
price
16
1 When protected by a OCPD with appropriate ratings.
Low Voltage Products & Systems 16.27
ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage 1SXU000023C0202
