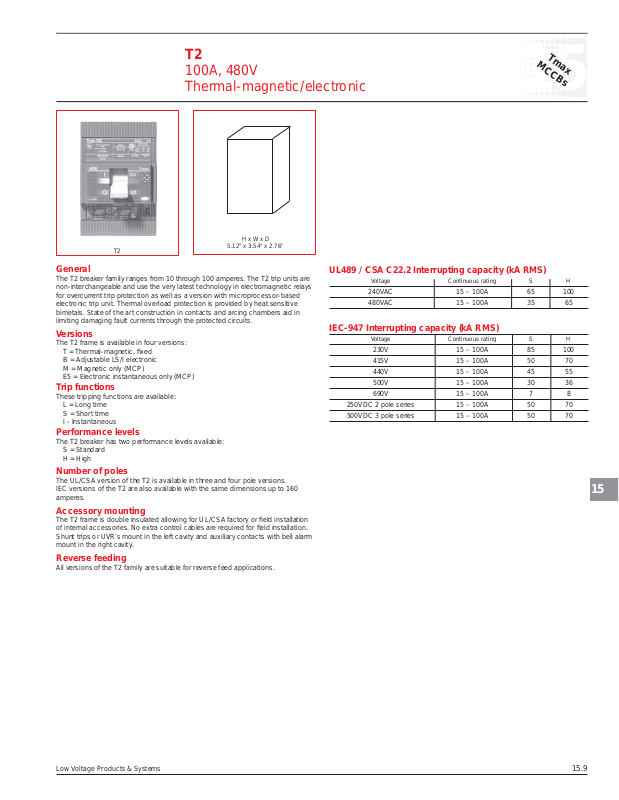

Tmax
MCCBs
100A, 480V
Thermal-magnetic/electronic
H x W x D
T2
5.12" x 3.54" x 2.76"
15
General
The T2 breaker family ranges from 10 through 100 amperes. The T2 trip units are
non-interchangeable and use the very latest technology in electromagnetic relays
for overcurrent trip protection as well as a version with microprocessor-based
electronic trip unit. Thermal overload protection is provided by heat sensitive
bimetals. State of the art construction in contacts and arcing chambers aid in
limiting damaging fault currents through the protected circuits.
Versions
The T2 frame is available in four versions:
T = Thermal-magnetic, fi xed
B = Adjustable LS/I electronic
M = Magnetic only (MCP)
E5 = Electronic instantaneous only (MCP)
Trip functions
These tripping functions are available:
L = Long time
S = Short time
I - Instantaneous
Performance levels
The T2 breaker has two performance levels available:
S = Standard
H = High
Number of poles
The UL/CSA version of the T2 is available in three and four pole versions.
IEC versions of the T2 are also available with the same dimensions up to 160
amperes.
Accessory mounting
The T2 frame is double insulated allowing for UL/CSA factory or fi eld installation
of internal accessories. No extra control cables are required for fi eld installation.
Shunt trips or UVR’s mount in the left cavity and auxiliary contacts with bell alarm
mount in the right cavity.
Reverse feeding
All versions of the T2 family are suitable for reverse feed applications.
UL489 / CSA C22.2 Interrupting capacity (kA RMS)
Voltage Continuous rating S H
240VAC 15 – 100A 65 100
480VAC 15 – 100A 35 65
IEC-947 Interrupting capacity (kA RMS)
Voltage Continuous rating S H
230V 15 – 100A 85 100
415V 15 – 100A 50 70
440V 15 – 100A 45 55
500V 15 – 100A 30 36
690V 15 – 100A 7 8
250VDC 2 pole series 15 – 100A 50 70
500VDC 3 pole series 15 – 100A 50 70
15
Low Voltage Products & Systems 15.9
T2
Gross Automation, 1725 South Johnson Road, New Berlin, WI 53146
PH: 262-446-0000, FAX: 262-446-0300, www.abbsales.com
Tmax
MCCBs
15
T2 — 100A TMF
Breaker
480VAC trip catalog number price
15A 500A T2S015TW $ 690
20A 500A T2S020TW 690
25A 500A T2S025TW 690
30A 500A T2S030TW 690
40A 500A T2S040TW 690
T2S 35kA 50A 500A T2S050TW 690
60A 600A T2S060TW 690
70A 700A T2S070TW 793
80A 800A T2S080TW 793
90A 900A T2S090TW 793
100A 1000A T2S100TW 793
IC at
100A, 480V
Thermal-magnetic/electronic
Rating
Magnetic 3 pole, 480VAC List
Breaker
480VAC trip catalog number price
15A 500A T2H015TW $ 942
20A 500A T2H020TW 942
25A 500A T2H025TW 942
30A 500A T2H030TW 942
40A 500A T2H040TW 942
T2H 65kA 50A 500A T2H050TW 942
60A 600A T2H060TW 942
70A 700A T2H070TW 1153
80A 800A T2H080TW 1153
90A 900A T2H090TW 1153
100A 1000A T2H100TW 1153
IC at
Rating
Magnetic 3 pole, 480VAC List
T2 — 100A frame electronic trip unit (AC only)
Breaker
480VAC type rating catalog number price
25A T2S025BW $ 1240
T2S 35kA PR221DS-LS/I 60A T2S060BW 1240
100A T2S100BW 1343
T2H 65kA PR221DS-LS/I 60A T2H060BW 1492
100A T2H100BW 1703
IC at
Trip unit
25A T2H025BW 1492
CT 3 pole, 480VAC List
T2 — 100A frame magnetic only (MCP)
15
Breaker
480VAC type range catalog number price
20A 120 - 240 T2S020MW $ 598
T2S 35kA Mag only
100A 600 – 1200 T2S100MW 804
20A 120 - 240 T2H020MW 673
T2H 65kA Mag only 50A 300 - 600 T2H050MW 754
100A 600 – 1200 T2H100MW 904
IC at
Trip unit
Rating
Adjustment 3 pole, 480VAC List
50A 300 - 600 T2S050MW 670
T2 — 100A frame instantaneous only, electronic (MCP - AC only)
Breaker
480VAC type range catalog number price
T2S 35kA
only 60A 60 - 600 T2S060E5W 1178
100A 100 - 1000 T2S100E5W 1276
T2H 65kA
only 60A 60 - 600 T2H060E5W 1417
100A 100 - 1000 T2H100E5W 1618
15.10 Low Voltage Products & Systems
IC at
Instantaneous 25A 25 - 250 T2S025E5W $ 1178
Instantaneous 25A 25 - 250 T2H025E5W 1417
Trip unit
Rating
Adjustment 3 pole, 480VAC List
