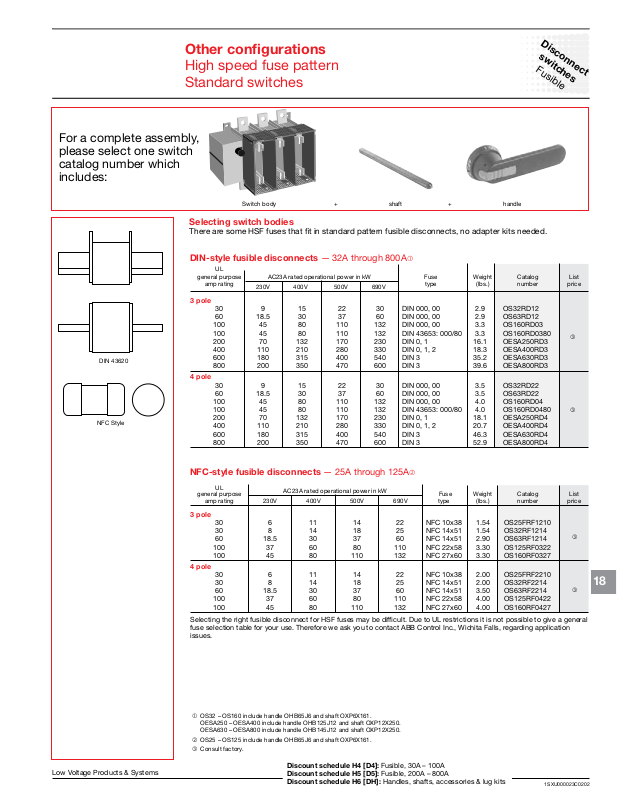

Other conﬁgurations

High speed fuse pattern

Standard switches

For a complete assembly, please select one switch

catalog number which

includes:

Selecting switch bodies

There are some HSF fuses that t in standard pattern fusible disconnects, no adapter kits needed.

DIN-style fusible disconnects — 32A through 800A1

UL general purpose AC23A rated operational power in kW Fuse Weight Catalog List

3 pole

30 9 15 22 30 DIN 000, 00 2.9 OS32RD12 60 18.5 30 37 60 DIN 000, 00 2.9 OS63RD12 100 45 80 110 132 DIN 000, 00 3.3 OS160RD03 100 45 80 110 132 DIN 43653: 000/80 3.3 OS160RD0380 200 70 132 170 230 DIN 0, 1 16.1 OESA250RD3 400 110 210 280 330 DIN 0, 1, 2 18.3 OESA400RD3

DIN 43620

NFC Style

600 180 315 400 540 DIN 3 35.2 OESA630RD3 800 200 350 470 600 DIN 3 39.6 OESA800RD3

4 pole

30 9 15 22 30 DIN 000, 00 3.5 OS32RD22 60 18.5 30 37 60 DIN 000, 00 3.5 OS63RD22 100 45 80 110 132 DIN 000, 00 4.0 OS160RD04 100 45 80 110 132 DIN 43653: 000/80 4.0 OS160RD0480

200 70 132 170 230 DIN 0, 1 18.1 OESA250RD4

400 110 210 280 330 DIN 0, 1, 2 20.7 OESA400RD4

600 180 315 400 540 DIN 3 46.3 OESA630RD4

800 200 350 470 600 DIN 3 52.9 OESA800RD4

Switch body + shaft + handle

amp rating

230V 400V 500V 690V

type (lbs.) number price

Disconnect

switches

Fusible

Low Voltage Products & Systems

NFC-style fusible disconnects — 25A through 125A2

amp rating 230V 400V 500V 690V type (lbs.) number price

3 pole

30 6 11 14 22 NFC 10x38 1.54 OS25FRF1210

30 8 14 18 25 NFC 14x51 1.54 OS32RF1214

60 18.5 30 37 60 NFC 14x51 2.90 OS63RF1214

100 37 60 80 110 NFC 22x58 3.30 OS125RF0322

100 45 80 110 132 NFC 27x60 3.30 OS160RF0327

4 pole

30 6 11 14 22 NFC 10x38 2.00 OS25FRF2210

30 8 14 18 25 NFC 14x51 2.00 OS32RF2214

60 18.5 30 37 60 NFC 14x51 3.50 OS63RF2214

100 37 60 80 110 NFC 22x58 4.00 OS125RF0422

100 45 80 110 132 NFC 27x60 4.00 OS160RF0427

Selecting the right fusible disconnect for HSF fuses may be difcult. Due to UL restrictions it is not possible to give a general

fuse selection table for your use. Therefore we ask you to contact ABB Control Inc., Wichita Falls, regarding application

issues.

1 OS32 – OS160 include handle OHB65J6 and shaft OXP6X161. OESA250 – OESA400 include handle OHB125J12 and shaft OXP12X250. OESA630 – OESA800 include handle OHB145J12 and shaft OXP12X250.

2 OS25 – OS125 include handle OHB65J6 and shaft OXP6X161. 3 Consult factory.

1SXU000023C0202

general purpose

AC23A rated operational power in kW

Discount schedule H4 [D4]: Fusible, 30A – 100A Discount schedule H5 [D5]: Fusible, 200A – 800A Discount schedule H6 [DH]: Handles, shafts, accessories & lug kits

Fuse Weight Catalog List
