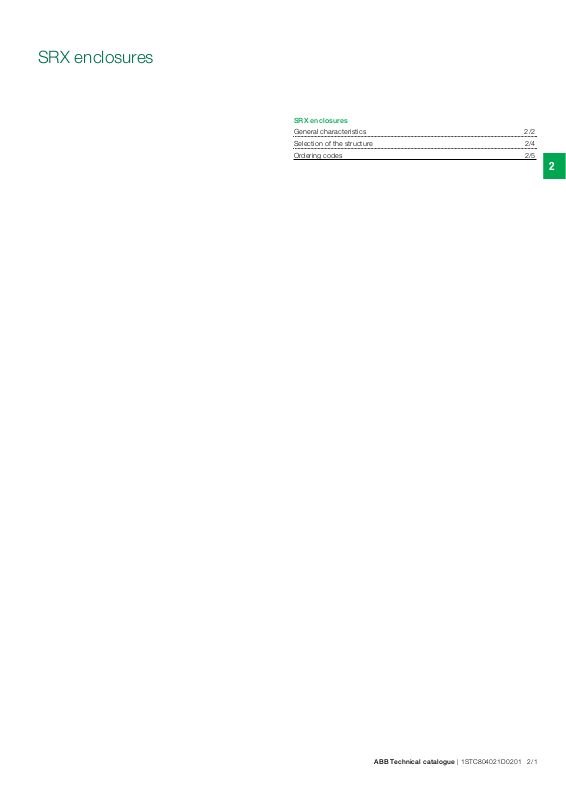

SRX enclosures

SRX enclosures

General characteristics 2/2

Selection of the structure 2/4

Ordering codes 2/5

2

ABB Technical catalogue | 1STC804021D0201 2/1

SRX enclosures

General characteristics and applications

The AISI 304 stainless steel used allows the cabinets to be installed either indoors or
outdoors, by fixing to the floor or a wall. AISI 304 stainless steel enclosures with blind
door, usually intended for making enclosures for automation, are supplied with the

2

galvanised sheet metal internal plate and do not have cable entry flanges.

SRX enclosures always conform to IEC EN 62208 and to IEC
61439-1-2, have a degree of protection IP66 (IEC EN 60529) and
NEMA 4X (UL standard). The degree of protection against external
mechanical impacts is IK10 for the version with blind door and
IK09 for the version with glass door (IEC 62262).
AISI 304 stainless steel enclosures with glass door can also be
used for distribution configurations. Alternatively, the internal

equipment is made by selecting special kits (Distribution Kit)
consisting of a pair of functional uprights for assembly of the AISI
304 stainless steel modular panels (to be ordered separately) and
any compensation panels. The modular panels, which can also
be installed on the enclosures with blind door using the same KD

Kit....X, are all hinged and have vertical modularity of 185 mm.

2/2 1STC804021D0201 | ABB Technical catalogue

SRX enclosures can be equipped with: standard plates, clip nuts, spacers, slotted
internal plate, accessories for stacking, DIN rails and fixing brackets, shaped sections
for accessories on doors, closing systems.

2

Spray protection roof

Improves protection against
infiltration by liquids and
accidental sprays. Made of
AISI 304 stainless steel.

Stacking

SRX enclosures can be
stacked using the special kit.
The plinth with removable
flanges is made of 25/10 thick
AISI 304 stainless steel.

Distribution kit

All apparatuses and modular
circuit breakers can be installed
on a DIN rail combined with a
modular panel.

Closing box

A new Ø19mm closing box
made of chrome-finished
plastic with double tongue key.

Technical characteristics

Conforms to CEI EN 62208, CEI EN 60439-1, IEC 61439-1-2

Degree of protection IP66 (CEI EN 60529)*

NEMA 4X (UL standard)*

Degree of mechanical protection IK10 blind door

IK09 glass door

(IEC 62262)

Certifications

Type of material AISI 304

Installation site indoors/outdoors

Fixing method floor/wall

Normal operating conditions

- ambient temperature from –25 to +55°C

* Under certification.

II 3 G D

ABB Technical catalogue | 1STC804021D0201 2/3

SRX enclosures

Selection of the structure

Rapid selection table

W D

2

H

Overall dimensions

Enclosures with
H
mm

300

400

500

600

700 500 250 SRN7525X SRN7525VX KC7050X PF7050

800

1000 800 300 SRN10830X SRN10830VX KC1080X PF1080 5 36 180 KD1080X

1200

1

The mounting plate must be ordered separately.

W
mm

200 150 SRN3215X PF3020

400 150 SRN3415X PF3040

300

400 200 SRN4420X PF4040

600 200 SRN4620X PF4060

400 200 SRN5420X SRN5420VX KC5040X PF5040 2 14 28 KD5040X

500 200 SRN5520X PF5050

400 200 SRN6420X SRN6420VX KC6040X PF6040 3 14 42 KD6040X

600

600

800 300 SRN8830X PF8080

600 300 SRN12630X PF1260

800 300 SRN12830X PF1280

D
mm

150 SRN4315X

200 SRN4320X

200 SRN6620X

300 SRN6630X

200 SRN8620X

300 SRN8630X 25 100

blind door +

mounting plate

Enclosures with glass

1

door

Automation kit

Blind
inner door
IP20

KC4030X PF4030

KC8060X PF8060 4

Blind
plate

PF6060

Distribution kit
Supports for mounting modular panels

No. of
vertical mod.
H=185mm

Mod. DIN

1

2

3

No. of DIN
mod. per
row

25 100

Total
modules

185

185

DIN
supports

KD8060X250 SRN8625VX 25 100

2/4 1STC804021D0201 | ABB Technical catalogue

SRX enclosures

Ordering codes

1

Spray protection roof

Page ..................................................................... 2/12

1

2

2

Wall-mounting brackets

Page ....................................................................... 2/9

2

3

3

Spacers for back plates

Page ....................................................................... 2/8

10

4

6

5

4

Blind internal plate

Page ....................................................................... 2/7

5

Slotted internal plate

7

Page ....................................................................... 2/8

6

Document pocket

Page ....................................................................... 5/8

7

8

Blind inner door

Page ....................................................................... 2/7

8

Plinth

Page ..................................................................... 2/10

9

9

Frame for DIN rail

Page ..................................................................... 2/10

13

12

11

10

Modular panels for apparateus

Page ..................................................................... 2/11

11

DIN rail

Page ..................................................................... 2/12

12

Blind modular panels

Page ..................................................................... 2/11

13

Modular panel for DIN rail

Page ..................................................................... 2/11

ABB Technical catalogue | 1STC804021D0201 2/5

SRX enclosures

Ordering codes

120°

SRX series enclosures with blind door (internal plate included)

Enclosures with an blind door, made of AISI 304 stainless steel, usually intended for producing enclosures for
automation, come supplied with the galvanised sheet metal internal plate and do not have cable entry flanges.

2

Enclosures with blind door complete with internal mounting plate

Dimensions (mm)

Code Item Price

300

400

500

600

700 500 250

800

1000 800 300

1200

200

400

300 150

300

400

600

400

500

400

600

600 300

600 200

600

800

600

800

150

200

200

200

300

300

SRN3215X

SRN3415X

SRN4315X

SRN4320X

SRN4420X

SRN4620X

SRN5420X

SRN5520X

SRN6420X

SRN6620X

SRN6630X

SRN7525X

SRN8620X

SRN8630X

SRN8830X

SRN10830X

SRN12630X

SRN12830X

Package/
No. of piecesH W D

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

1/1

120°

SRX series stainless steel enclosures with glass door

AISI 304 stainless steel enclosures with a glass door can also be used for distribution configurations. The internal
equipment is set up using the relevant kits:

- KD...X (Distribution Kit) consisting of a pair of functional uprights for assembly of the modular panels made of AISI
304 stainless steel (to be ordered separately) and of any compensation panels. The modular panels, which can also
be installed on the enclosures with blind door using the KD kit, are all hinged and have vertical modularity of 185
mm. SRX enclosures with glass door are provided without mounting plate (to be ordered separately).

Enclosures with glass door

Dimensions (mm)

500 400

600 400

700 500

800 600

1000 800 300

200

250

Code Item Price

SRN5420VX

SRN6420VX

SRN7525VX

SRN8625VX

SRN10830VX

Package/ No.
of piecesH W D

1/1

1/1

1/1

1/1

1/1

2/6 1STC804021D0201 | ABB Technical catalogue

Blind inner door

The inner door guarantees a degree of protection of IP20. Made of 15/10 thick AISI 304 stainless steel, complete
with box and double tongue insert.

Blind inner door

Dimensions (mm)

400 300

500

600

700 500

800 600

1000 800

400

Code Item Price

KC4030X

KC5040X

KC6040X

KC7050X

KC8060X

KC1080X

Package/
No. of piecesH W

1/1

1/1

1/1

1/1

1/1

1/1

2

Blind internal mounting plate

20/10 thick galvanised sheet metal internal plate, complete with fixing with small parts supplied. Depth-adjustable
using a special spacer kit (to be ordered separately).

Blind internal mounting plate

Dimensions (mm)

Code Item Price

300 200 PF3020 1/1

300 400 PF3040 1/1

400 300 PF4030 1/1

400 400 PF4040 1/1

400 600 PF4060 1/1

500 400 PF5040 1/1

500 500 PF5050 1/1

600 400 PF6040 1/1

600 600 PF6060 1/1

700 500 PF7050 1/1

800 600 PF8060 1/1

800 800 PF8080 1/1

1000 800 PF1080 1/1

1200 600 PF1260 1/1

1200 800 PF1280 1/1

Package/
No. of piecesH W

ABB Technical catalogue | 1STC804021D0201 2/7

SRX enclosures

Ordering codes

Slotted internal mounting plate

Fixing with small parts supplied. Depth-adjustable using a special spacer kit (to be ordered separately).

2

Slotted internal mounting plate

Dimensions (mm)

Code Item Price

300 200 TQ3020 1/1

300 400 TQ3040 1/1

400 300 TQ4030 1/1

400 400 TQ4040 1/1

400 600 TQ4060 1/1

500 400 TQ5040 1/1

600 400 TQ6040 1/1

600 600 TQ6060 1/1

700 500 TQ7050 1/1

800 600 TQ8060 1/1

800 800 TQ8080 1/1

1000 800 TQ1080 1/1

1200 600 TQ1260 1/1

1200 800 TQ1280 1/1

Package/
No. of piecesH W

Clip nuts

For slotted plates with M6x10mm hexagonal head screws.

Package/ No.
of piecesDescription

1/20

Clip nuts

Code Item Price

TQ6610

Spacer kit for adjusting back plate depth

Kit made up of 12 spacers for fixing the mounting plate. Allows depth adjustment in 25 mm steps.

Package/ No.
of piecesDescription

1/12

1/12

Spacers, length 25 mm

25 mm

Spacers, length 50 mm

50 mm

Code Item Price

AA8025

AA8050

2/8 1STC804021D0201 | ABB Technical catalogue

Wall-mounting brackets

Allow enclosures to be wall-mounted and are fitted using the special holes located on the back of the enclosures.
Made of 30/10 thick AISI 304 stainless steel.

Package/ No.
of piecesDescription

1/4

Wall-mounting brackets

Code Item Price

AA1206X

Cable entry flanges

Cable entry flanges in 25/10 thick AISI 304 stainless steel with polyurethane gasket.

Dimensions (mm)

Code Item Price

Cable entry flange for SRN3215X 200 150 FLN3215X 1/1

Cable entry flange for SRN4315X 300 150 FLN4315X 1/1

Cable entry flange for SRN3415X 400 150 FLN3415X 1/1

Cable entry flange for
SRN4320X, SRN4320VX

Cable entry flange for
SRN4420X, SRN5420X,
SRN6420X, SRN5420VX,
SRN6420VX

Cable entry flange 500x200mm
for SRN5520X

Cable entry flange) for
SRN4620X, SRN6620X,
SRN8620X

Cable entry flange for
SRN7525X, SRN7525VX

Cable entry flange for
SRN8625VX

Cable entry flange for
SRN6630X, SRN8630X,
SRN12630X

Cable entry flange for
SRN8830X, SRN10830X,
SRN12830X, SRN10830VX

300 200 FLN4320X 1/1

400 200 FLN4420X 1/1

500 200 FLN5520X 1/1

600 200 FLN4620X 1/1

500 250 FLN7525X 1/1

600 250 FLN8625X 1/1

600 300 FLN6630X 1/1

800 300 FLN6830X 1/1

2

Package/ No.
of piecesDescription W D

Accessories for stacking

Dimensions (mm)

Code Item Price

IP65 gasket

400

500

600

800 300 GZ8030 1/1

200 GZ4020 1/1

250 GZ4025 1/1

200 GZ5020 1/1

250 GZ5025 1/1

200 GZ6020 1/1

250 GZ6025 1/1

300 GZ6030 1/1

ABB Technical catalogue | 1STC804021D0201 2/9

Package/ No.
of piecesW D

SRX enclosures

Ordering codes

2

Plinth

25/10 thick AISI 304 stainless steel plinth.

Plinth

Dimensions (mm)

Code Item Price

100 400 200 ZA4020X 1/1

100

100 250 ZA5025X 1/1

100

100 300 ZA6030X 1/1

100 800 300 ZA8030X 1/1

500

600

200 ZA5020X 1/1

200 ZA6020X 1/1

Package/ No.
of piecesH W D

Frame for DIN rail

Internal supports for fixing modular panels and DIN rails, with compensation panels, made of AISI 304 stainless steel.

Description

Supports for 14 DIN mod. x
2 rows

Supports for 14 DIN mod. x
3 rows

Supports for 25 DIN mod. x
4 rows

Supports for 36 DIN mod. x
5 rows

Dimensions (mm)

500 400

600 400

800 600

1000 800

Code Item Price

KD5040X

KD6040X

KD8060X

KD1080X

Package/ No.
of piecesH W

1/1

1/1

1/1

1/1

2/10 1STC804021D0201 | ABB Technical catalogue

Screwed modular panels

12/10 mm thick AISI 304 stainless steel modular panels. The screwed modular panels can be fitted on the
enclosures using the special kit (KD...) consisting of functional uprights and a compensation panel.

Each modular panel (PM) comes equipped with a DIN rail (depth-adjustable), fixing brackets and the relative
small parts. Tmax modular and moulded-case circuit breakers up to T3 can be positioned side by side on
the same DIN rail using the special depth adapter AP6001. To install MCCBs, fix the DIN rail in the recessed
position. The DIN rail fixing brackets allow mounting of the wiring duct up to a maximum size of 60 x 60 mm.

Stainless steel screwed modular panels for DIN rail (including DIN rail and fixing brackets)

Dimensions (mm)

Description

14 DIN mod. + fixing bracket 185 400 PM1414X 1/1

25 DIN mod. + fixing bracket 185 600 PM1625X 1/1

36 DIN mod. + fixing bracket 185 800 PM1836X 1/1

Stainless steel screwed modular panels for measuring instruments

Dimensions (mm)

Description

2 instruments 72 x 72mm 185 400 PS2476X 1/1

2 instruments 72 x 72mm 185 600 PS2676X 1/1

2 instruments 72 x 72mm 185 800 PS2876X 1/1

Stainless steel blind screwed modular panels

Dimensions (mm)

Description

Blind panel 185 400 PC1406X 1/1

Blind panel 185 600 PC1606X 1/1

Blind panel 185 800 PC1806X 1/1

Blind panel 370 600 PC2606X 1/1

Blind panel 370 800 PC2806X 1/1

Code Item Price

Code Item Price

Code Item Price

Package/
No. of piecesH W

Package/
No. of piecesH W

Package/
No. of piecesH W

2

Shaped sections for accessories

Allow fixing of accessories (e.g.: wiring ducts) inside the blind doors. Consist of a pair of vertical crosspieces made
of 15/10 thick white galvanised sheet metal, pre-drilled with 25 mm pitch. In enclosures with height 1000 and 1200
mm with an blind door, the shaped sections are already supplied.

Dimensions (mm)

Description

Shaped sections for door 600 TS6009 1/2

Shaped sections for door 700 TS7009 1/2

Shaped sections for door 800 TS8009 1/2

Code Item Price

ABB Technical catalogue | 1STC804021D0201 2/11

Package/
No. of piecesH

SRX enclosures

Ordering codes

2

DIN rail and fixing brackets

Descrizione

DIN rail and fixing brackets 14 400 GD4006 1/1

DIN rail and fixing brackets 25 600 GD6006 1/1

DIN rail and fixing brackets 36 800 GD8006 1/1

No.
modulesW (mm) Code Item Price

Spray protection roof

Improves protection against infiltration by liquids and accidental sprays.

Made of 15/10 thick AISI 304 stainless steel.

Spray protection roof

Dimensions (mm)

Code Item Price

200 150 TT2015X 1/1

300 150 TT3015X 1/1

400 150 TT4015X 1/1

300 200 TT3020X 1/1

400 200 TT4020X 1/1

500 200 TT5020X 1/1

600 200 TT6020X 1/1

500 250 TT5025X 1/1

600 250 TT6025X 1/1

600 300 TT6030X 1/1

800 300 TT8030X 1/1

Package/
No. of pieces

Package/
No. of piecesW D

Closing systems

May substitute standard fasteners for the external doors.

AA8001X

Box Ø19mm double tongue made of chrome­finished plastic and key for external door

Box Ø19mm with safety insert and Yale type key

AA8002

AA8003

EV1008

2/12 1STC804021D0201 | ABB Technical catalogue

for external door

Box Ø19mm with handle and Yale type key for
external door

Box Ø19mm with triangular insert for external door
(Nema TYPE 12)

Plastic key for triangular insert AA5200 for external
door

Box with double tongue insert made of plastic with
key for inner door (Nema TYPE 12)

Single code Yale insert for inner door EV1036 1/1

Ronis 455 insert for inner door EV1037 1/1

3mm double tongue insert for inner door EV1039 1/1

(1)

Only for external door

Code Item Price

AA8001X

(1)

AA8002

(1)

AA8003

(1)

AA5200

AA5190

EV1008

Package/
No. of piecesDescription

1/1

1/1

1/1

1/1

1/1

1/1

Special drilling service

D

C

A

The extra cost depends on the number of individual parts drilled rather than the number of holes made.
By individual part we mean: A-door; B-plate; C-box and D-upper/power part.
The special drilling service must be managed using the code SRX.../SPEC plus code FORSRX.
Include the layout drawing of the holes to be drilled (see page 7/28 for possible drilling areas).

C

2

B

Extra cost for drilling service per individual
part SRX

Code Item Price

FORSRX

Package/
No. of piecesDescription

Special painting service

The customized painting sevice is available presenting a request of feasibility to our special product department
(offer). Please contact your local sales unit.

Code Item Price

Extra cost for special painting SRX VERNSRX

Package/
No. of piecesDescription

Spare parts

Code Item Price

Stainless steel screws (No. 16 screws, flanged
nuts and nylon washers)

Blind door 300x200mm (HxW) PRN3026X 1/1

Blind door 300x400mm (HxW) PRN3046X 1/1

Blind door 400x300mm (HxW) PRN4036X 1/1

Blind door 400x400mm (HxW) PRN4046X 1/1

Blind door 400x600mm (HxW) PRN4066X 1/1

Blind door 500x400mm (HxW) PRN5046X 1/1

Blind door 500x500mm (HxW) PRN5056X 1/1

Blind door 600x400mm (HxW) PRN6046X 1/1

Blind door 600x600mm (HxW) PRN6066X 1/1

Blind door 600x800mm (HxW) PRN6086X 1/1

Blind door 700x500mm (HxW) PRN7056X 1/1

Blind door 800x600mm (HxW) PRN8066X 1/1

Blind door 800x800mm (HxW) PRN8086X 1/1

Blind door 1000x800mm (HxW) PRN1086X 1/1

Blind door 1200x600mm (HxW) PRN1266X 1/1

Blind door 1200x800mm (HxW) PRN1286X 1/1

Glass door 400x300mm (HxW) PTN4036X 1/1

Glass door 500x400mm (HxW) PTN5046X 1/1

Glass door 600x400mm (HxW) PTN6046X 1/1

Glass door 700x500mm (HxW) PTN7056X 1/1

Glass door 800x600mm (HxW) PTN8066X 1/1

Glass door 1000x800mm (HxW) PTN1086X 1/1

AA1203X 1/1

Package/
No. of piecesDescription

ABB Technical catalogue | 1STC804021D0201 2/13
