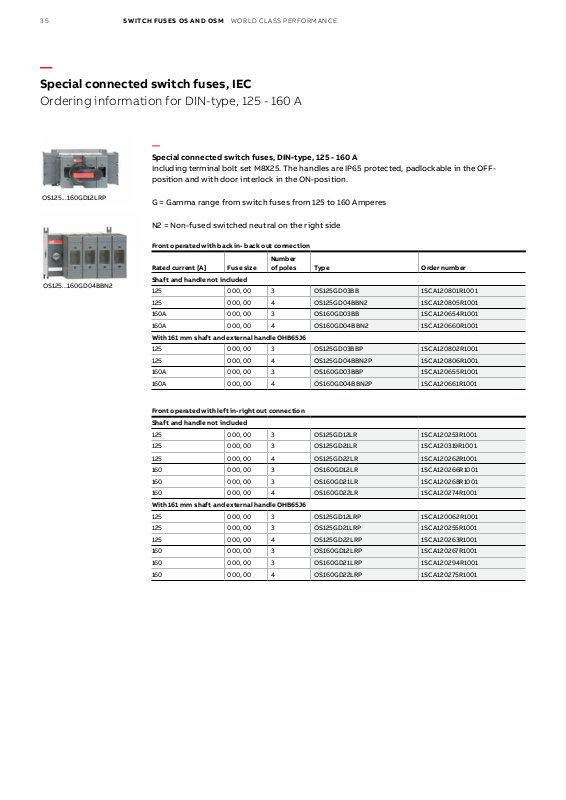

35 SWITCH FUSES OS AND OSM WORLD CLASS PERFORMANCE

—

Special connected switch fuses, IEC

Ordering information for DIN-type, 125 - 160 A

—

Special connected switch fuses, DIN-type, 125 - 160 A

Including terminal bolt set M8X25. The handles are IP65 protected, padlockable in the OFFposition and with door interlock in the ON-position.

OS125...160GD12LRP

OS125...160GD04BBN2

G = Gamma range from switch fuses from 125 to 160 Amperes

N2 = Non-fused switched neutral on the right side

Front operated with back in- back out connection

Rated current [A] Fuse size

Shaft and handle not included

125 000, 00 3 OS125GD03BB 1SCA120801R1001

125 000, 00 4 OS125GD04BBN2 1SCA120805R1001

160A 000, 00 3 OS160GD03BB 1SCA120654R1001

160A 000, 00 4 OS160GD04BBN2 1SCA120660R1001

With 161 mm shaft and external handle OHB65J6

125 000, 00 3 OS125GD03BBP 1SCA120802R1001

125 000, 00 4 OS125GD04BBN2P 1SCA120806R1001

160A 000, 00 3 OS160GD03BBP 1SCA120655R1001

160A 000, 00 4 OS160GD04BBN2P 1SCA120661R1001

Front operated with left in-right out connection

Shaft and handle not included

125 000, 00 3 OS125GD12LR 1SCA120253R1001

125 000, 00 3 OS125GD21LR 1SCA120319R1001

125 000, 00 4 OS125GD22LR 1SCA120262R1001

160 000, 00 3 OS160GD12LR 1SCA120266R1001

160 000, 00 3 OS160GD21LR 1SCA120268R1001

160 000, 00 4 OS160GD22LR 1SCA120274R1001

With 161 mm shaft and external handle OHB65J6

125 000, 00 3 OS125GD12LRP 1SCA120062R1001

125 000, 00 3 OS125GD21LRP 1SCA120255R1001

125 000, 00 4 OS125GD22LRP 1SCA120263R1001

160 000, 00 3 OS160GD12LRP 1SCA120267R1001

160 000, 00 3 OS160GD21LRP 1SCA120294R1001

160 000, 00 4 OS160GD22LRP 1SCA120275R1001

Number of poles Type Order number
