78 FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS

—

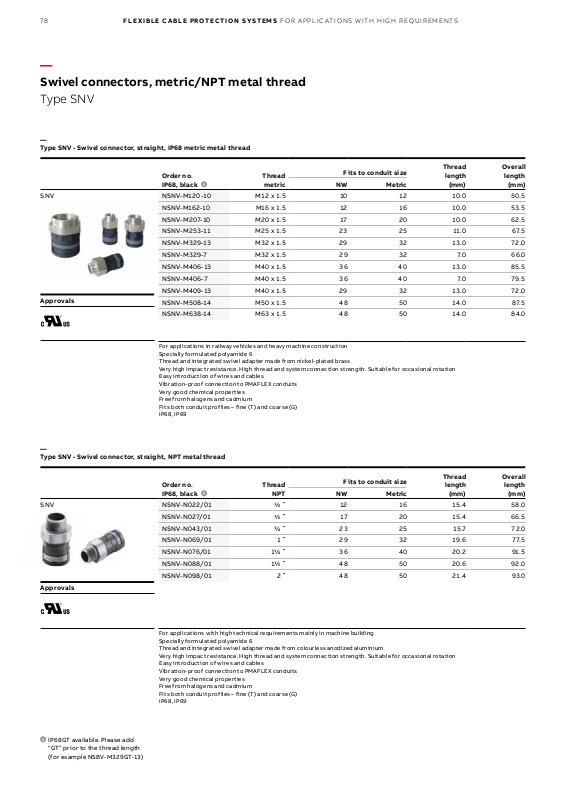

Swivel connectors, metric/NPT metal thread

Type SN V

—

Type SNV - Swivel connector, straight, IP68 metric metal thread

SNV

Approvals

Order no.

IP68, black

❹

metric

Thread

Fits to conduit size

Thread

length

(mm)

Overall

length

(mm)NW Metric

NSNV-M120-10 M12 x 1.5 10 12 10.0 50.5

NS NV- M162-10 M16 x 1.5 12 16 10.0 53.5

NSNV-M207-10 M20 x 1.5 17 20 10.0 62.5

NS NV- M253 -11 M25 x 1.5 23 25 11.0 67. 5

NSNV-M329-13 M32 x 1.5 29 32 13.0 72.0

NSNV-M329-7 M32 x 1.5 29 32 7.0 66.0

NSNV-M406-13 M40 x 1.5 36 40 13.0 85.5

NSNV-M406-7 M40 x 1.5 36 40 7.0 79.5

NSNV-M409-13 M40 x 1.5 29 32 13.0 72.0

NSNV-M508-14 M50 x 1.5 48 50 14.0 8 7.5

NS NV- M638 -14 M63 x 1.5 48 50 14.0 84.0

For applications in railway vehicles and heavy machine construction

Spec ially formulated po lyamide 6

Thread and inte grated swivel adap ter mad e from nickel- plated brass
Very high impact resistance. High thread and system connection strength. Suitable for occasional rotation
Easy introducti on of wi res and cable s
Vibration-proof connection to PMAFLEX conduits
Very good chemical properties
Free from halog ens and cadmium

Fits both conduit prof iles – fine ( T) and coars e (G)
IP68 , IP69

—
Type SNV - Swivel connector, straight, NPT metal th read

Order no.

SNV

IP68, black

NSNV-N 022/01 ½ ˝ 12 16 1 5 . 4 5 8 . 0

❹

N S NV -N 02 7/01 ½ ˝ 17 20 1 5 . 4 6 6 . 5

NSN V-N0 43/01 ¾ ˝ 23 25 1 5 . 7 7 2 . 0

NSNV-N069/01 1 ˝ 29 32 19.6 7 7 . 5

NSN V- N076/01 1¼ ˝ 36 40 2 0 . 2 9 1 . 5

NSN V-N088/01 1½ ˝ 48 50 20.6 92.0

NSN V-N098/01 2 ˝ 48 50 21.4 93.0

Approvals

For applications with high technical requirements mainly in machine building

Spec ially formulated po lyamide 6

Thread and integrated swivel adapter made from colourless anodized aluminium
Very high impact resistance. High thread and system connection strength. Suitable for occasional rotation
Easy introducti on of wi res and cable s
Vibration-proof connection to PMAFLEX conduits
Very good chemical properties
Free from halog ens and cadmium

Fits both conduit prof iles – fine ( T) and coars e (G)
IP68 , IP69

Thread

NPT

Fits to conduit size

Thread

length

(mm)

Overall

length

(mm)NW Metric

❹

IP6 8GT availabl e. Please add

“GT” prior to the thread length

(for example NS BV-M329GT-13)
