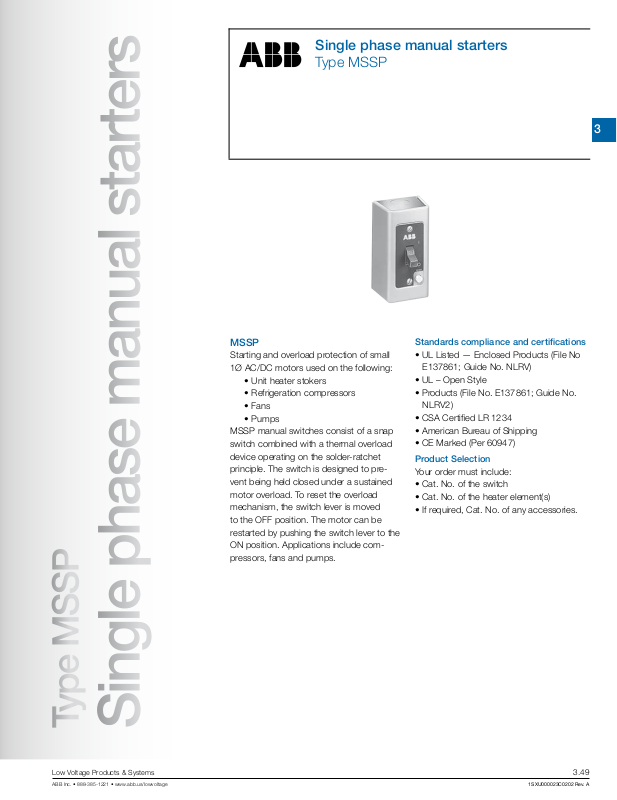

ABB Single phase manual starters Catalog Page

Single phase manual starters

Type MSSP

Starters

IEC & NEMA

Single phase

Enclosed starters

Manual starters

MSSP

Starting and overload protection of small 1Ø AC/DC motors used on the following:

• Unit heater stokers

• Refrigeration compressors

• Fans

• Pumps MSSP manual switches consist of a snap switch combined with a thermal overload device operating on the solder-ratchet principle. The switch is designed to prevent being held closed under a sustained motor overload. To reset the overload mechanism, the switch lever is moved to the OFF position. The motor can be restarted by pushing the switch lever to the ON position. Applications include compressors, fans and pumps.

Standards compliance and certiﬁcations

• UL Listed — Enclosed Products (File No E137861; Guide No. NLRV)

• UL – Open Style

• Products (File No. E137861; Guide No. NLRV2)

• CSA Certied LR 1234

• American Bureau of Shipping

• CE Marked (Per 60947)

Product Selection

Your order must include:

• Cat. No. of the switch

• Cat. No. of the heater element(s)

• If required, Cat. No. of any accessories.

Type MSSP

Low Voltage Products & Systems 3.49

ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage 1SXU000023C0202 Rev. A

Single phase manual starters

Starters IEC & NEMA

Single phase

manual starters

Enclosed starters

Single phase manual starters

Type MSSP

MSSP1-T2P

MSSP-T2P

Ratings

Single pole — 1 HP 115...230V AC, 1 HP 277V AC, Open Type without Enclosure or Type 1 General Purpose Enclo-

sure

Two pole — 1 Hp 115...230V AC, 1 HP 277 AC, Open Type without enclosure or Type 1 General Purpose Enclosure, 3/4 HP 115...230V DC

Open type without

enclosure

Description

Switch only

Toggle type

Key type 2 pole MSSP-K2 MSSP1-K2 MSSP-K2S Lever type 1 pole MSSP-L1 MSSP1-L1 —

Switch with neon pilot light (115 or 230V)

Toggle type

Key type 2 pole MSSP-K2P MSSP1-K2P MSSP-K2PS

Switch and “hand-off-auto” selector switch (for use on AC only)

Toggle type 2 pole — MSSP1-T2H MSSP-T2SH

Switch with neon pilot light and “hand-off-auto” selector switch (115 or 230V AC only)

Toggle type 2 pole — MSSP1-T2HP MSSP-T2SHP Key type 2 pole — MSSP1-K2HP —

Two switch units in one enclosure

Toggle type 2 pole — MSSP1-T2T2 —

Two switch units in one enclosure neon pilot light on both units (115 or 230V)

Toggle type 2 pole — MSSP1-T2PT2P MSSP-T2PT2P

Two speed switch

Toggle type 2 pole — MSSP1-22 —

1 pole MSSP-T1 MSSP1-T1 MSSP-T1S 2 pole MSSP-T2 MSSP1-T2 MSSP-T2S

1 pole MSSP-T1P MSSP1-T1P MSSP-T1PS 2 pole MSSP-T2P MSSP1-T2P MSSP-T2PS

- includes legend plate

Catalog number

Type 1 General pur-

pose enclosure

- surface mount

Catalog number

Type 1 General

purpose enclosure

- ush mounting includes ush

plate but not switch

box

Catalog number

Two speed switch with neon pilot lights (115 or 230V)

Toggle type 2 pole — MSSP1-22P MSSP-22P

Accessories

Description

Pilot light replacement bulb incandescent

MSSP-PL

MSSP-LA

Note: Pilot lights as used on MSSP switches indicate whether the motor is running only if the switch is used to control the motor directly. If a thermostat, pressure switch, or some other pilot device controls the operation of the motor, the light on the MMSP switch merely indicates whether the power is ON or OFF

Locking attachment (for toggle operated only) MSSP-LA

3.50 Low Voltage Products & Systems

1SXU000023C0202 Rev. A ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage

Catalog number

MSSP-PL
