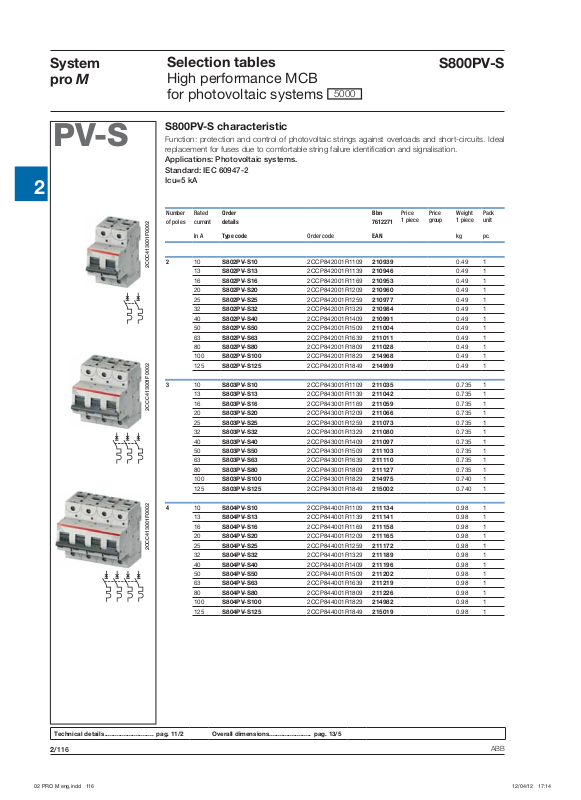

ABB S800PV-S Catalog Page
System
pro M
PV-S
2
Selection tables
S800PV-S
High performance MCB
for photovoltaic systems
S800PV-S characteristic
Function: protection and control of photovoltaic strings against overloads and short-circuits. Ideal
replacement for fuses due to comfortable string failure identiļ¬cation and signalisation.
Applications: Photovoltaic systems.
Standard: IEC 60947-2
Icu=5 kA
5000
Number
of poles
2
2CCC413001F00022CCC413001F00022CCC413001F0002
3
Rated
current
In A Type code Order code EAN kg pc.
10
13
16
20
25
32
40
50
63
80
100
125
10
13
16
20
25
32
40
50
63
80
100
125
Order
details
S802PV-S10
S802PV-S13
S802PV-S16
S802PV-S20
S802PV-S25
S802PV-S32
S802PV-S40
S802PV-S50
S802PV-S63
S802PV-S80
S802PV-S100
S802PV-S125
S803PV-S10
S803PV-S13
S803PV-S16
S803PV-S20
S803PV-S25
S803PV-S32
S803PV-S40
S803PV-S50
S803PV-S63
S803PV-S80
S803PV-S100
S803PV-S125
2CCP842001R1109
2CCP842001R1139
2CCP842001R1169
2CCP842001R1209
2CCP842001R1259
2CCP842001R1329
2CCP842001R1409
2CCP842001R1509
2CCP842001R1639
2CCP842001R1809
2CCP842001R1829
2CCP842001R1849
2CCP843001R1109
2CCP843001R1139
2CCP843001R1169
2CCP843001R1209
2CCP843001R1259
2CCP843001R1329
2CCP843001R1409
2CCP843001R1509
2CCP843001R1639
2CCP843001R1809
2CCP843001R1829
2CCP843001R1849
Bbn
7612271
210939
210946
210953
210960
210977
210984
210991
211004
211011
211028
214968
214999
211035
211042
211059
211066
211073
211080
211097
211103
211110
211127
214975
215002
Price
1 piece
Price
group
Weight
1 piece
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.740 1
0.740 1
Pack
unit
4
