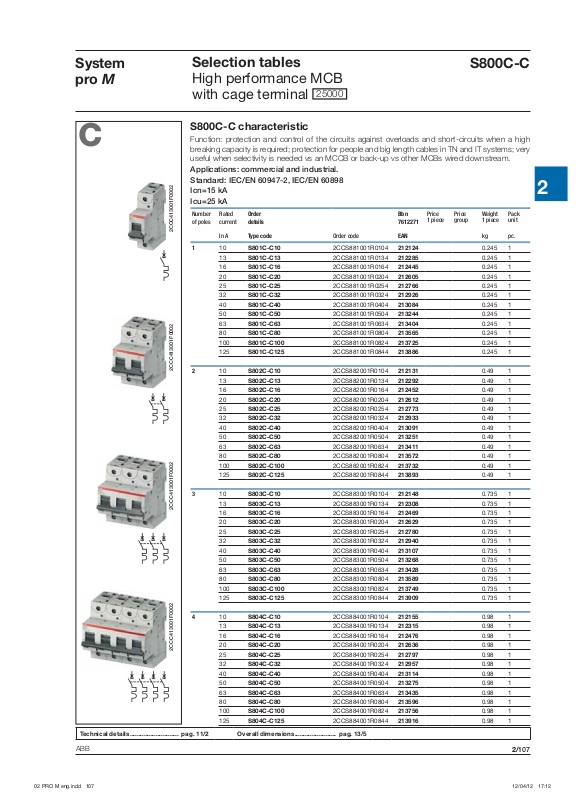

ABB S800C-C Catalog Page
System
pro M
C
Selection tables
S800C-C
High performance MCB
with cage terminal
S800C-C characteristic
Function: protection and control of the circuits against overloads and short-circuits when a high
breaking capacity is required; protection for people and big length cables in TN and IT systems; very
useful when selectivity is needed vs an MCCB or back-up vs other MCBs wired downstream.
Applications: commercial and industrial.
Standard: IEC/EN 60947-2, IEC/EN 60898
Icn=15 kA
Icu=25 kA
Number
of poles
2CCC413001F00022CCC413001F00022CCC413001F00022CCC413001F0002
1
Rated
current
In A Type code Order code EAN kg pc.
10
13
16
20
25
32
40
50
63
80
100
125
Order
details
S801C-C10
S801C-C13
S801C-C16
S801C-C20
S801C-C25
S801C-C32
S801C-C40
S801C-C50
S801C-C63
S801C-C80
S801C-C100
S801C-C125
25000
2CCS881001R0104
2CCS881001R0134
2CCS881001R0164
2CCS881001R0204
2CCS881001R0254
2CCS881001R0324
2CCS881001R0404
2CCS881001R0504
2CCS881001R0634
2CCS881001R0804
2CCS881001R0824
2CCS881001R0844
Bbn
7612271
212124
212285
212445
212605
212766
212926
213084
213244
213404
213565
213725
213886
Price
1 piece
Price
group
Weight
1 piece
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
0.245 1
Pack
unit
2
2
3
4
Technical details ............................ pag. 11/2 Overall dimensions ........................ pag. 13/5
10
13
16
20
25
32
40
50
63
80
100
125
10
13
16
20
25
32
40
50
63
80
100
125
10
13
16
20
25
32
40
50
63
80
100
125
S802C-C10
S802C-C13
S802C-C16
S802C-C20
S802C-C25
S802C-C32
S802C-C40
S802C-C50
S802C-C63
S802C-C80
S802C-C100
S802C-C125
S803C-C10
S803C-C13
S803C-C16
S803C-C20
S803C-C25
S803C-C32
S803C-C40
S803C-C50
S803C-C63
S803C-C80
S803C-C100
S803C-C125
S804C-C10
S804C-C13
S804C-C16
S804C-C20
S804C-C25
S804C-C32
S804C-C40
S804C-C50
S804C-C63
S804C-C80
S804C-C100
S804C-C125
2CCS882001R0104
2CCS882001R0134
2CCS882001R0164
2CCS882001R0204
2CCS882001R0254
2CCS882001R0324
2CCS882001R0404
2CCS882001R0504
2CCS882001R0634
2CCS882001R0804
2CCS882001R0824
2CCS882001R0844
2CCS883001R0104
2CCS883001R0134
2CCS883001R0164
2CCS883001R0204
2CCS883001R0254
2CCS883001R0324
2CCS883001R0404
2CCS883001R0504
2CCS883001R0634
2CCS883001R0804
2CCS883001R0824
2CCS883001R0844
2CCS884001R0104
2CCS884001R0134
2CCS884001R0164
2CCS884001R0204
2CCS884001R0254
2CCS884001R0324
2CCS884001R0404
2CCS884001R0504
2CCS884001R0634
2CCS884001R0804
2CCS884001R0824
2CCS884001R0844
212131
212292
212452
212612
212773
212933
213091
213251
213411
213572
213732
213893
212148
212308
212469
212629
212780
212940
213107
213268
213428
213589
213749
213909
212155
212315
212476
212636
212797
212957
213114
213275
213435
213596
213756
213916
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.49 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.735 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
0.98 1
ABB
2/107
