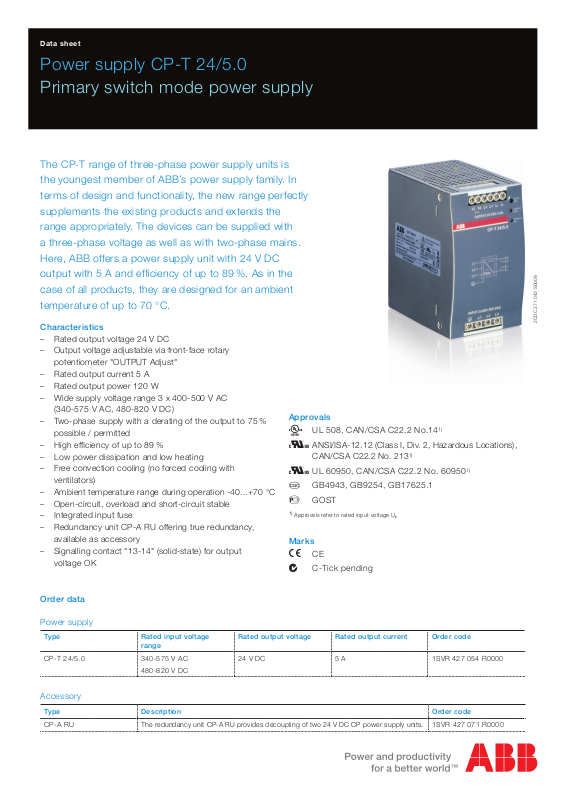

ABB Power supply CP-T 24/5.0 Data Sheet

Data sheet

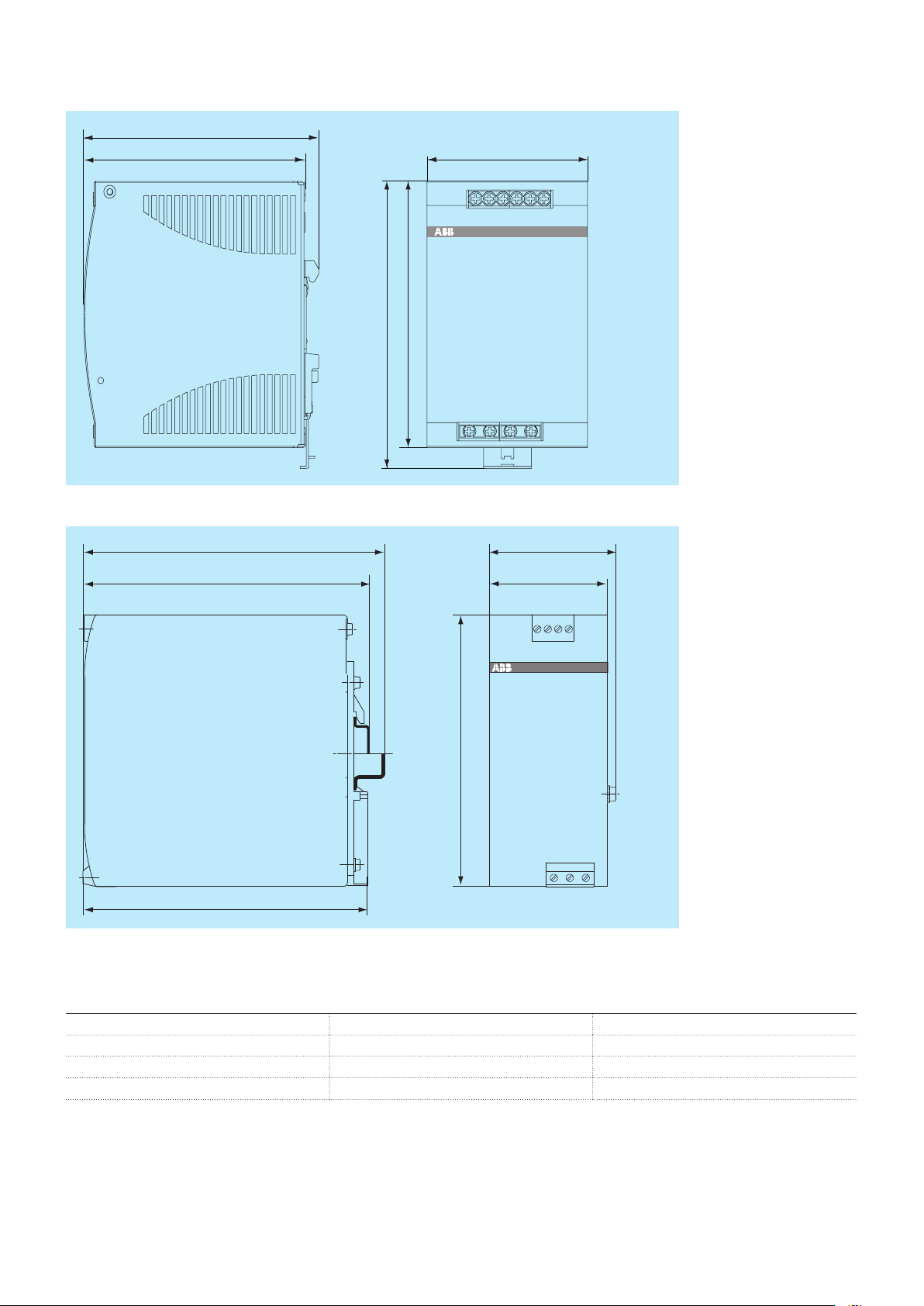

Power supply CP-T 24/5.0

Primary switch mode power supply

The CP-T range of three-phase power supply units is

the youngest member of ABB’s power supply family. In

terms of design and functionality, the new range perfectly

supplements the existing products and extends the

range appropriately. The devices can be supplied with

a three-phase voltage as well as with two-phase mains.

Here, ABB offers a power supply unit with 24 V DC

output with 5 A and efficiency of up to 89 %. As in the

case of all products, they are designed for an ambient

temperature of up to 70 °C.

Characteristics

– Rated output voltage 24 V DC
– Output voltage adjustable via front-face rotary

potentiometer "OUTPUT Adjust"
– Rated output current 5 A
– Rated output power 120 W
– Wide supply voltage range 3 x 400-500 V AC

(340-575 V AC, 480-820 V DC)
– Two-phase supply with a derating of the output to 75 %

possible / permitted
– High efficiency of up to 89 %
– Low power dissipation and low heating
– Free convection cooling (no forced cooling with

ventilators)
– Ambient temperature range during operation -40...+70 °C
– Open-circuit, overload and short-circuit stable
– Integrated input fuse
– Redundancy unit CP-A RU offering true redundancy,

available as accessory
– Signalling contact "13-14" (solid-state) for output

voltage OK

Approvals

A
H

H
R
D

1)

Approvals refer to rated input voltage U

Marks

a
b

UL 508, CAN/CSA C22.2 No.14

ANSI/ISA-12.12 (Class I, Div. 2, Hazardous Locations),
CAN/CSA C22.2 No. 213

UL 60950, CAN/CSA C22.2 No. 60950

GB4943, GB9254, GB17625.1

GOST

CE

C-Tick pending

1)

in

1)

1)

2CDC 271 043 S0009

Order data

Power supply

Type Rated input voltage

CP-T 24/5.0 340-575 V AC

Accessory

Type Description Order code

CP-A RU

range

480-820 V DC

The redundancy unit CP-A RU provides decoupling of two 24 V DC CP power supply units.

Rated output voltage Rated output current Order code

24 V DC 5 A 1SVR 427 054 R0000

1SVR 427 071 R0000

2CDC 271 043 S0009

1

2

1 Signalling contact

OUTPUT 13-14: terminals - signalling contact

A solid-state output indicates the error-free operation
of the output voltage.

3

4

2 Output

OUTPUT L+, L+, L-, L-: terminals - output

3 Adjustable output voltage

OUTPUT Adjust: potentiometer

The CP-T range types feature a continuously
adjustable output voltage. Thus, they can be optimally

5

adapted to the application, e.g. compensating the
voltage drop caused by a long cable length.

4 Indication of operational states

OUTPUT LOW: red LED - output voltage too low
OUTPUT OK: green LED - output voltage OK

6

5 Circuit diagram

6 Wide input range

INPUT L1, L2, L3, PE: terminals - input

Optimised for worldwide applications: The CP-T
power supply units can be supplied for a wide range
of AC and DC voltages. Both kinds of power supply
(three-phase and two-phase) are possible.

Application

The primary switch mode power supply offers a three-phase supply voltage range of 3 x 400-500 V AC. A two-phase power
supply is also possible and it can also be supplied by 480-820 V DC. Furthermore, this power supply unit is equipped with
two generous capacitors, which ensure mains buffering of at least 20 ms. That is why the devices can be used worldwide
also in high fluctuating networks and battery-powered plants.

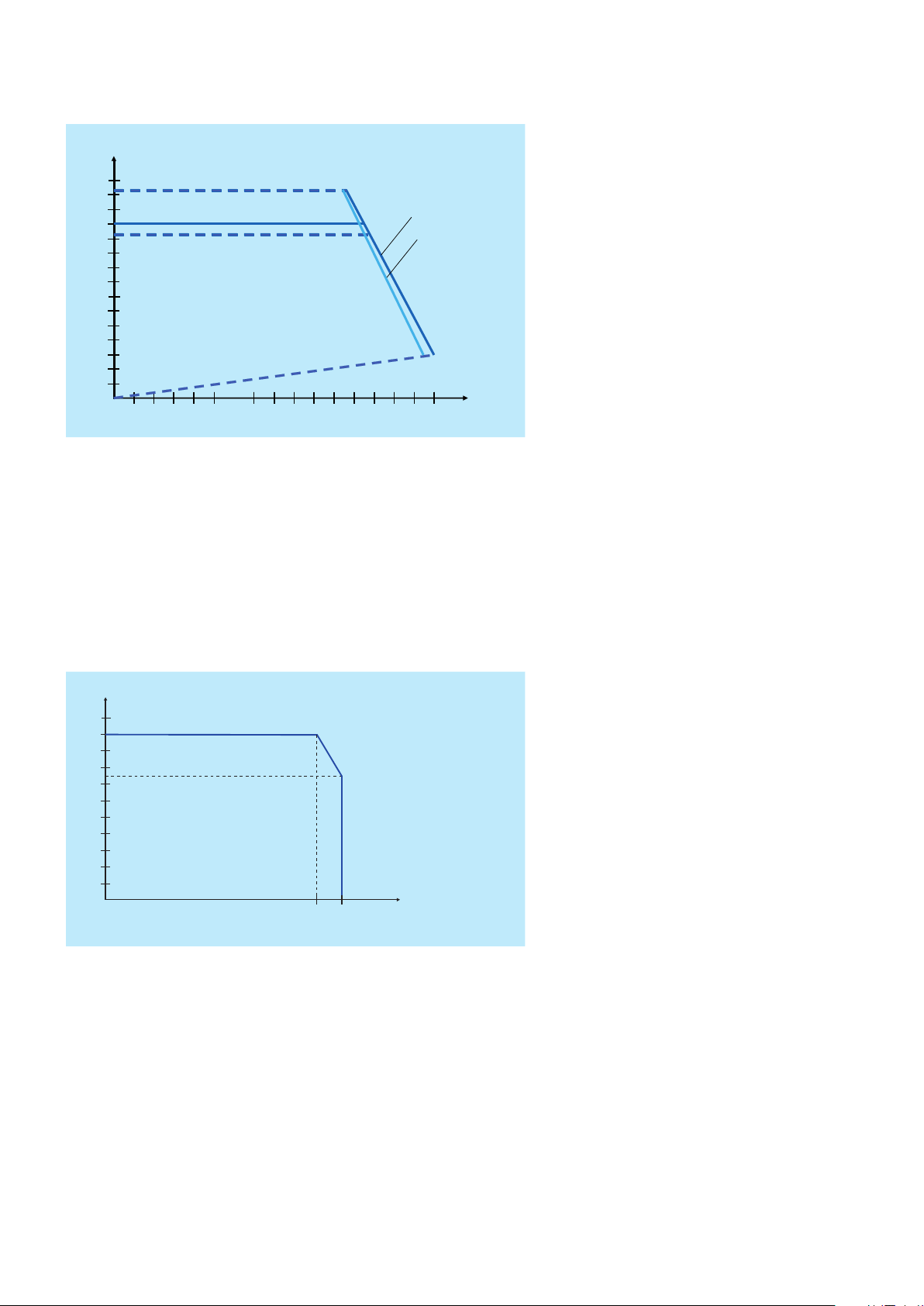

Operating mode

By means of the potentiometer "OUTPUT Adjust" the output voltage can be adjusted within a range of 22.5-28.5 V DC.
Thus, the power supply can be optimally adapted to the application, e.g. compensating the voltage drop caused by a long
line length.

The green LED "OUTPUT OK" is lightening during proper operation, i. e. when the output voltage exceeds 75 %.

The red LED "OUTPUT LOW" is lightening when the output voltage is less than 70 % of the rated output voltage.

Two-phase supply is permissible with a derating of the output to 75 %.

Signalling contact "13-14" (max. 60 V DC / 0.3 A) is ON when the output voltage exceeds 19.4 V.

2 - Power supply CP-T 24/5.0 | Data sheet

Installation

The device must be installed by qualified persons only and in accordance with the specific national regulations (e.g. VDE, etc.).
The devices are maintenance-free chassis-mounted units.

Before installation

DANGER!

Components with high stored energy and circuits with high voltage

Danger to be electrocuted!

► Disconnect the system from the supply network and protect against switching on before any installation,

maintenance or modification work.

► Do not introduce any objects into the unit and do not open the unit.

► Ensure that the service personnel is protected against inadvertent contact with parts carrying energy.

Mounting

The switch mode power supply can be snapped on a DIN rail (TH 35-15 or TH 35-7.5 according to IEC/EN 60715) as
shown in the accompanying picture. For that the device is set with its mounting rail slide on the upper edge of the mounting
rail and locked by lifting it downwards.

2CDC 272 016 F0010

Demounting

Remove the switch mode power supply as shown in the accompanying picture. For that the latching lever is pulled
downwards by means of the screwdriver. Alternatively you can press the unlock button to release the device. Then in both
cases the device can be unhinged from the mounting rail edge and removed.

2CDC 272 017 F0010

Mounting position

The devices have to be mounted horizontally with the input terminals on the bottom. In order to ensure a sufficient
convection, the minimum distance to other modules should not be less than 25 mm (0.98 in) in vertical and horizontal
direction.

[B]

[A]

13 14 L+ L+ L- L-

CP-T 24/5.0

L1

L2

L3

L+

PWM

L+
L­L-

L1 L2 L3

[B]

[A]

2CDC 272 009 F0010

Data sheet | Power supply CP-T 24/5.0 - 3
