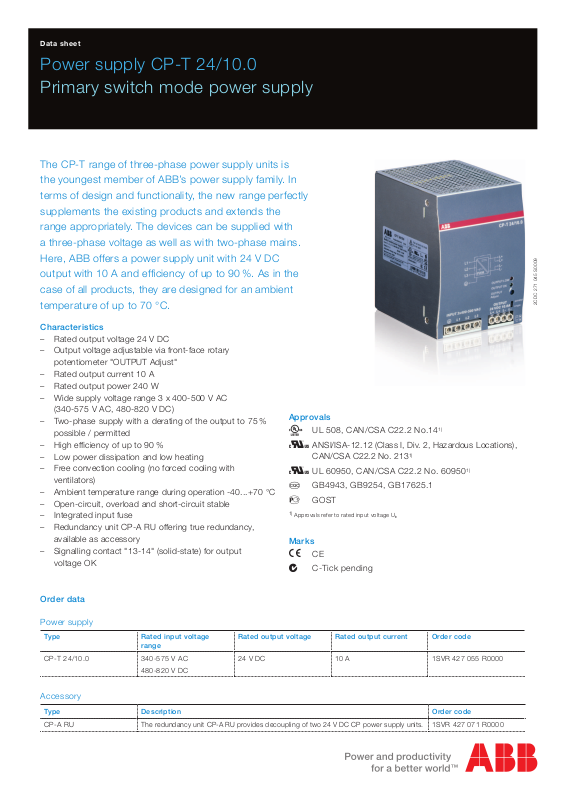

ABB Power supply CP-T 24/10.0 Data Sheet

Data sheet

Power supply CP-T 24/10.0

Primary switch mode power supply

The CP-T range of three-phase power supply units is

the youngest member of ABB’s power supply family. In

terms of design and functionality, the new range perfectly

supplements the existing products and extends the

range appropriately. The devices can be supplied with

a three-phase voltage as well as with two-phase mains.

Here, ABB offers a power supply unit with 24 V DC

output with 10 A and efficiency of up to 90 %. As in the

case of all products, they are designed for an ambient

temperature of up to 70 °C.

2CDC 271 045 S0009

Characteristics

– Rated output voltage 24 V DC
– Output voltage adjustable via front-face rotary

potentiometer "OUTPUT Adjust"
– Rated output current 10 A
– Rated output power 240 W
– Wide supply voltage range 3 x 400-500 V AC

(340-575 V AC, 480-820 V DC)
– Two-phase supply with a derating of the output to 75 %

possible / permitted
– High efficiency of up to 90 %
– Low power dissipation and low heating
– Free convection cooling (no forced cooling with

ventilators)
– Ambient temperature range during operation -40...+70 °C
– Open-circuit, overload and short-circuit stable
– Integrated input fuse
– Redundancy unit CP-A RU offering true redundancy,

available as accessory
– Signalling contact "13-14" (solid-state) for output

voltage OK

Order data

Approvals

UL 508, CAN/CSA C22.2 No.14

A

ANSI/ISA-12.12 (Class I, Div. 2, Hazardous Locations),

H

CAN/CSA C22.2 No. 213

UL 60950, CAN/CSA C22.2 No. 60950

H

GB4943, GB9254, GB17625.1

R

GOST

D

1)

Approvals refer to rated input voltage U

Marks

CE

a

C-Tick pending

b

1)

in

1)

1)

Power supply

Type Rated input voltage

CP-T 24/10.0 340-575 V AC

Accessory

Type Description Order code

CP-A RU

range

480-820 V DC

The redundancy unit CP-A RU provides decoupling of two 24 V DC CP power supply units.

Rated output voltage Rated output current Order code

24 V DC 10 A 1SVR 427 055 R0000

1SVR 427 071 R0000

1 Circuit diagram

2 Indication of operational states

OUTPUT LOW: red LED - output voltage too low
OUTPUT OK: green LED - output voltage OK

3 Adjustable output voltage

OUTPUT Adjust: potentiometer

The CP-T range types feature a continuously
adjustable output voltage. Thus, they can be optimally
adapted to the application, e.g. compensating the

1

voltage drop caused by a long cable length.

2CDC 271 045 S0009

2

3

4

4 Configuration of single or parallel operation

Sliding switch

5 Signalling contact

5

6

OUTPUT 13-14: terminals - signalling contact

A solid-state output indicates the error-free operation
of the output voltage.

7

6 Output

OUTPUT L+, L+, L-, L-: terminals - output

5 Wide input range

INPUT L1, L2, L3, PE: terminals - input

Optimised for worldwide applications: The CP-T
power supply units can be supplied for a wide range
of AC and DC voltages. Both kinds of power supply
(three-phase and two-phase) are possible.

Application

The primary switch mode power supply offers a three-phase supply voltage range of 3 x 400-500 V AC. A two-phase power
supply is also possible and it can also be supplied by 480-820 V DC. Furthermore, this power supply unit is equipped with
two generous capacitors, which ensure mains buffering of at least 20 ms. That is why the devices can be used worldwide
also in high fluctuating networks and battery-powered plants.

Operating mode

By means of the potentiometer "OUTPUT Adjust" the output voltage can be adjusted within a range of 22.5-28.5 V DC.
Thus, the power supply can be optimally adapted to the application, e.g. compensating the voltage drop caused by a long
line length.

The green LED "OUTPUT OK" is lightening during proper operation, i. e. when the output voltage exceeds 75 %.

The red LED "OUTPUT LOW" is lightening when the output voltage is less than 70 % of the rated output voltage.

Two-phase supply is permissible with a derating of the output to 75 %.

Signalling contact "13-14" (max. 60 V DC / 0.3 A) is ON when the output voltage exceeds 19.4 V.

2 - Power supply CP-T 24/10.0 | Data sheet

Installation

The device must be installed by qualified persons only and in accordance with the specific national regulations (e.g. VDE, etc.).
The devices are maintenance-free chassis-mounted units.

Before installation

DANGER!

Components with high stored energy and circuits with high voltage

Danger to be electrocuted!

► Disconnect the system from the supply network and protect against switching on before any installation,

maintenance or modification work.

► Do not introduce any objects into the unit and do not open the unit.

► Ensure that the service personnel is protected against inadvertent contact with parts carrying energy.

Mounting

The switch mode power supply can be snapped on a DIN rail (TH 35-15 or TH 35-7.5 according to IEC/EN 60715) as
shown in the accompanying picture. For that the device is set with its mounting rail slide on the upper edge of the mounting
rail and locked by lifting it downwards.

2CDC 272 016 F0010

Demounting

Remove the switch mode power supply as shown in the accompanying picture. For that the latching lever is pulled
downwards by means of the screwdriver. Alternatively you can press the unlock button to release the device. Then in both
cases the device can be unhinged from the mounting rail edge and removed.

2CDC 272 017 F0010

Mounting position

The devices have to be mounted horizontally with the input terminals on the bottom. In order to ensure a sufficient
convection, the minimum distance to other modules should not be less than 25 mm (0.98 in) in vertical and horizontal
direction.

[B]

[A]

CP-T 24/10.0

L2

L3

L+L1

PWM

L+
L­L-

L1 L2 L3

L+ L+ L- L-

[B]

[A]

2CDC 272 010 F0010

Data sheet | Power supply CP-T 24/10.0 - 3

Electrical connection

o

14 L+ L-L+ L-

13

L+L1

L2

L3

o

L+
L­L-

PWM

L1 L2 L3

L+, L- Output voltage

L1, L2, L3 Input voltage

13-14 Signalling contact

o Protective earth

2CDC 272 002 F0010

Connection diagram

Preparations:

– Connect to main according to the specific national regulations.

– Power supply cables and unit must be sufficiently fused. A disconnecting device has to be provided for the power

supply to disengage unit and supply cables from supply mains if required.

– We recommend to choose the cable section as large as possible in order to minimize voltage drops.

– In order to ensure sufficient air-cooling the distance to other devices has to be considered.

Instructions:

1. Connect the input terminals L1, L2 and L3.

2. Connect the protective earth conductor to the terminal o (protection class I).

3. Provide a suitable disconnecting device (e.g. line protection switch) in the supply line acc. to IEC/EN 60950.

4. Rate the lines for the maximum output current (considering the short-circuit current) or provide a separate fuse
protection. The input side is protected by an internal input fuse.

5. Observe the polarity.

The device is overload, short-circuit and open-circuit proof. The secondary side of the power supply unit is electrically
isolated from the input and internally not earthed (SELV) and can therefore be earthed by the user according to the needs
with L+ or L- (PELV).

Operation

DANGER!

High current

Risk of electric arcs and electric shocks!

► Do not modify the installation (primary and secondary side).

► Intended use.

CAUTION!

Depending on the operation conditions the enclosure can become very hot

Risk of burns!

► In order to ensure sufficient air-cooling the distance to other devices has to be considered.

The device is intended for use as a primary switch mode power supply. Any other usage is not supported by the
manufacturer. Other usage may impair safety and cause operational difficulties or destruction of the unit.

Service

The internal fuse is not user-replaceable. If the internal fuse blows, most probably the device is defective. In this case, an
examination of the switch mode power supply by the manufacturer is necessary.

4 - Power supply CP-T 24/10.0 | Data sheet

Technical data

Data at Ta = 25 °C, Uin = 3 x 400 V AC and rated values, unless otherwise indicated

Input circuit - supply circuit L1, L2, L3

Rated input voltage U

in

Input voltage range 340-575 V AC

Frequency range AC 47-63 Hz

Typical current consumption 0.65 A

Typical power consumption 270 W

Inrush current limiting 20 A

Power failure buffering time min. 20 ms

Internal input fuse per phase 2 A / 600 V AC

Recommended backup fuse 3 pole miniature circuit breaker ABB type S 203

characteristic B or C

max. rating 20 A

Power factor correction (PFC) yes, passive, 0.55

Discharge current towards PE < 3.5 mA

input / output < 0.25 mA

Indication of operational states

Output voltage OUTPUT OK: green LED output voltage OK

OUTPUT LOW: red LED output voltage too low

3 x 400-500 V AC

480-820 V DC

Output circuit L+, L+, L-, L-

Rated output power 240 W

Rated output voltage 24 V DC

Tolerance of the output voltage 0...+1 %

Adjustment range of the output voltage 22.5-28.5 V DC

Rated output current I

r

Ta ≤ 60 °C 10 A

Derating of the output current 60 °C < Ta ≤ 70 °C 2.5 %/°C

Signalling contact for output voltage OK 13-14 solid-state (max. 60 V DC, 0.3 A)

threshold 17.6-19.4 V

insulation voltage 500 V DC

Mininum fuse rating to achieve short-circuit

13-14 M 60 V DC, m 0.3 A fast-acting

protection

Maximum deviation with load change statical ±1 % (single mode)

±5 % (parallel mode)

change of output voltage within

±0.5 %

the input voltage range

Control time at rated load < 2 ms

Starting time after applying the supply voltage at Irmax. 1 s

with 7000 µF max. 1.5 s

Rise time at rated load max. 150 ms

with 7000 µF max. 500 ms

Fall time max. 150 ms

Residual ripple and switching peaks BW = 20 MHz 100 mV

Parallel connection configurable, to increase power, up to 2 devices,

min. 0.1 I

max. 0.9 I

r -

r

Series connection yes, to increase voltage, max. 2 devices

Data sheet | Power supply CP-T 24/10.0 - 5

Output circuit - no-load, overload and short-circuit behaviour

Characteristic curve of output combined U/I and hiccup mode

Short-circuit protection continuous short-circuit proof

Short-circuit behaviour current limiting

Resistance to reverse feed approx. 35 V

Overload protection hiccup mode

No-load protection continuous no-load stability

Overtemperature protection yes, automatic recovery after temperature went down

Starting of capacitive loads 7000 µF

General data

Efficiency typ. 90 %

Duty time 100 %

Dimensions of housing (W x H x D) 89 x 124 x 118.8 mm (3.5 x 4.88 x 4.68 in)

Weight 1.045 kg (2.304 lb)

Material of housing metal

Mounting DIN rail (IEC/EN 60715), snap-on mounting

without any tool

Mounting position horizontal

Minimum distance to other units horizontal / vertical 25 mm / 25 mm (0.98 in / 0.98 in)

Degree of protection housing / terminals IP20 / IP20

Protection class I

Electrical connection - input circuit L1, L2, L3

Wire size fine-strand with wire end ferrule 0.2-4 mm² (24-11 AWG)

fine-strand without wire end ferrule 0.2-6 mm² (24-11 AWG)

rigid 0.2-6 mm² (24-10 AWG)

Stripping length 8 mm (0.31 in)

Tightening torque 1 Nm (9 lb.in)

Electrical connection - output circuit L+, L+, L-, L-

Wire size fine-strand with wire end ferrule 0.2-4 mm² (24-11 AWG)

fine-strand without wire end ferrule 0.2-6 mm² (24-10 AWG)

rigid 0.2-6 mm² (24-10 AWG)

Stripping length 8 mm (0.31 in)

Tightening torque 0.6 Nm (5.5 lb.in)

Electrical connection - signalling circuit 13-14

Wire size fine-strand with wire end ferrule 0.2-4 mm² (24-11 AWG)

fine-strand without wire end ferrule 0.2-6 mm² (24-10 AWG)

rigid 0.2-6 mm² (24-10 AWG)

Stripping length 8 mm (0.31 in)

Tightening torque 0.6 Nm (5.5 lb.in)

6 - Power supply CP-T 24/10.0 | Data sheet

Environmental data

Ambient temperature range operation -40...+70 °C

rated load -40...+60 °C

storage -40...+85 °C

Damp heat, cyclic IEC/EN 60068-2-30 95 % without condensation

Vibration, sinusoidal IEC/EN 60068-2-6 2 g, 10-500 Hz, 2G, each along X, Y, Z axes 60 min /

cycle

Shock, half-sine IEC/EN 60068-2-27 15 g, 11 ms, 3 axes, 6 faces, 3 times for each face

Isolation data

Rated insulation voltage U

i

input circuit / output circuit 3 kV AC

input / PE 1.5 kV AC

Pollution degree 2

Overvoltage category UL/EN/IEC 60950-1 II

Standards

Product standard EN 61204-3

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

RoHS Directive 2002/95/EC

Electrical safety EN 60950-1, UL 60950-1, UL 508,

EN 61558-1, EN 61558-2-17, EN 60204-1

Protective low voltage SELV

Electromagnetic compatibility

Interference immunity to IEC/EN 61000-6-2

electrostatic discharge IEC/EN 61000-4-2 level 4 (air discharge 15 kV / contact discharge 8 kV)

radiated, radio-frequency, electromagnetic

IEC/EN 61000-4-3 level 3 (10 V/m)

field

electrical fast transient/burst IEC/EN 61000-4-4 level 4 (4 kV / 5 kHz)

surge IEC/EN 61000-4-5 L-L level 3 (2 kV) /

L-PE level 4 (4 kV)

conducted disturbances, induced by radio-

IEC/EN 61000-4-6 level 3 (10 V)

frequency fields

power frequency magnetic fields IEC/EN 61000-4-8 level 4 (30 A/m)

voltage dips, short interruptions and voltage

variations

IEC/EN 61000-4-11 dips: >95 % 0.5 ms / >30 % 25 ms

interruptions: >95 % 250 ms

Interference emission IEC/EN 61000-6-3

high-frequency radiated IEC/CISPR 22, EN 55022 class B

high-frequency conducted IEC/CISPR 22, EN 55022 class B

limits for harmonic current emissions IEC/EN 61000-3-2 class A

Data sheet | Power supply CP-T 24/10.0 - 7

Technical diagrams

P

[%]

Output behaviour

U

in V

out

28

24

20

16

12

8

@ 3 x 400 V supply

@ 3 x 500 V supply

4

2 4 6

8

10 12 14 16

Hiccup mode

I

in A

out

2CDC 272 033 F0009

Characteristic curve of output at Ta = 25 °C

The switch mode power supply CP-T 24/10.0 is able to supply at 24 V DC output voltage and

– at an ambient temperature of:

≤ 60 °C a continuous output current of approx. 10 A

– at ambient temperatures of:

60 °C < Ta ≤ 70 °C the output power has to be reduced by 2.5 % per °C temperature increase.

If the switch mode power supply is loaded with an output current > 10 A, the operating point is passing through the U/I
characteristic curve shown.

Temperature behaviour

out

100

90
80

70
60

50

40
30
20

10

-40 60 70

Characteristic curve of temperature at rated load

8 - Power supply CP-T 24/10.0 | Data sheet

Ta [°C]

2CDC 272 025 F0211

Dimensions

in mm and inches

Power supply

118.8 4.68‘‘

111.9 4.41‘‘

89 3.5‘‘

131 5.16‘‘

124 4.88‘‘

2CDC 272 022 F0009

144.5 5.69”

137 5.39”

135.5 5.33”

Accessory redundancy unit CP-A RU

Further documentation

60 2.36”

56.5 2.22”

130 5.12”

2CDC 272 015 F0007

Document title Document type Document number

Electronic products and relays Technical catalogue 2CDC 110 004 C020x

Power supply units Application manual 2CDC 114 048 M020x

Redundancy unit CP-A RU Data sheet 2CDC 114 036 D0202

You can find the documentation on the internet at www.abb.com/lowvoltage -> Control Products -> Power Supplies

Data sheet | Power supply CP-T 24/10.0 - 9
