Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
Minimum Order Quantity:
Customs Tariff Number:
EAN:
Package Level 1 Width:
Package Level 1 Length:
Package Level 1 Height:
Package Level 1 Gross Weight:
Package Level 1 Units:
Product Net Height:
Product Net Depth:
Product Net Weight:
Product Net Width:
Input Signal:
Output Signal:
Rated Control Supply Voltage (Us):
Function:
RoHS Status:
Instructions and Manuals:
cUL Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
RoHS Information:
UL Certificate:
ETIM 4:
ETIM 5:
ETIM 6:
eClass:
UNSPSC:
Object Classification Code:

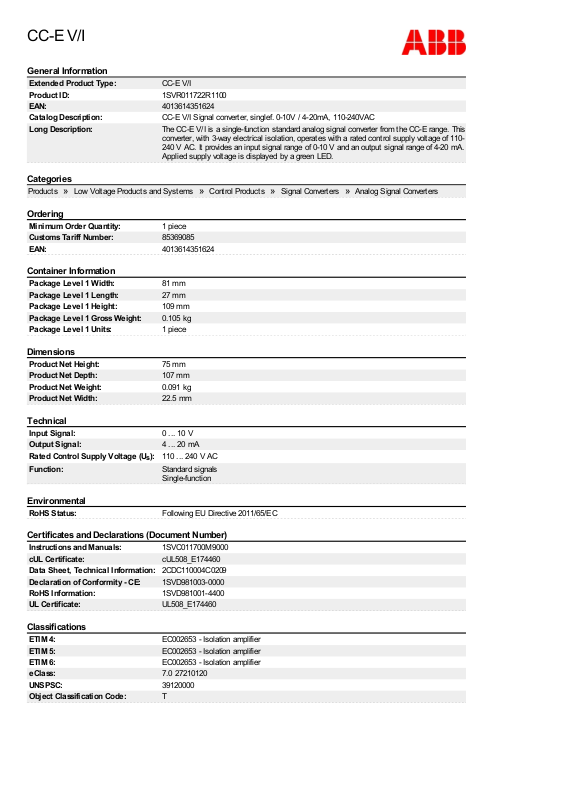

General Information
CC-E V/I
1SVR011722R1100
4013614351624
CC-E V/I Signal converter, singlef. 0-10V / 4-20mA, 110-240VAC
The CC-E V/I is a single-function standard analog signal converter from the CC-E range. This
converter, with 3-way electrical isolation, operates with a rated control supply voltage of 110240 V AC. It provides an input signal range of 0-10 V and an output signal range of 4-20 mA.
Applied supply voltage is displayed by a green LED.
Categories
Products » Low Voltage Products and Systems » Control Products » Signal Converters » Analog Signal Converters
Ordering
1 piece
85369085
4013614351624
Container Information
81 mm
27 mm
109 mm
0.105 kg
1 piece
Dimensions
75 mm
107 mm
0.091 kg
22.5 mm
Technical
0 ... 10 V
4 ... 20 mA
110 ... 240 V AC
Standard signals
Single-function
Environmental
Following EU Directive 2011/65/EC
Certificates and Declarations (Document Number)
1SVC011700M9000
cUL508_E174460
2CDC110004C0209
1SVD981003-0000
1SVD981001-4400
UL508_E174460
Classifications
EC002653 - Isolation amplifier
EC002653 - Isolation amplifier
EC002653 - Isolation amplifier
7.0 27210120
39120000
T
CC-E V/I
