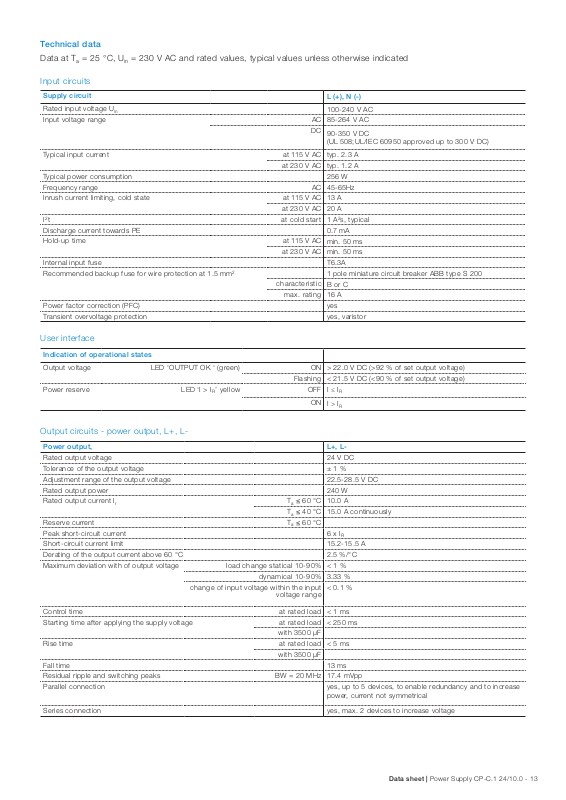

Technical data

Data at Ta = 25 °C, Uin = 230 V AC and rated values, typical values unless otherwise indicated

Input circuits

Supply circuit

Rated input voltage U

Input voltage range AC

Typical input current at 115 V AC

at 230 V AC

Typical power consumption

Frequency range AC

Inrush current limiting, cold state at 115 V AC

at 230 V AC

I2t at cold start

Discharge current towards PE

Hold-up time at 115 V AC

at 230 V AC

Internal input fuse

Recommended backup fuse for wire protection at 1.5 mm

characteristic

max. rating

Power factor correction (PFC)

Transient overvoltage protection

L (+), N (-)

100-240 V AC

85-264 V AC

90-350 V DC (UL 508;UL/IEC 60950 approved up to 300 V DC)

typ. 2.3 A

typ. 1.2 A

256 W

45-65Hz

13 A

20 A

1 A2s, typical

0.7 mA

min. 50 ms

T6.3A

1 pole miniature circuit breaker ABB type S 200

B or C

16 A

yes

yes, varistor

User interface

Indication of operational states

Output voltage LED ‘OUTPUT OK ‘ (green) ON > 22.0 V DC (>92 % of set output voltage)

Flashing < 21.5 V DC (<90 % of set output voltage)

Power reserve LED ‘I > IR’ yellow OFF I ≤ I

I > I

Output circuits - power output, L+, L-

Power output, L+, L-

Rated output voltage 24 V DC

Tolerance of the output voltage ± 1 %

Adjustment range of the output voltage 22.5-28.5 V DC

Rated output power 240 W

Rated output current I

Reserve current Ta ≤ 60 °C

Peak short-circuit current 6 x I

Short-circuit current limit 15.2-15.5 A

Derating of the output current above 60 °C 2.5 %/°C

Maximum deviation with of output voltage load change statical 10-90% < 1 %

change of input voltage within the input

Control time at rated load < 1 ms

Starting time after applying the supply voltage at rated load < 250 ms

Rise time at rated load < 5 ms

Fall time 13 ms

Residual ripple and switching peaks BW = 20 MHz 17.4 mVpp

Parallel connection yes, up to 5 devices, to enable redundancy and to increase

Series connection yes, max. 2 devices to increase voltage

Ta ≤ 60 °C 10.0 A

Ta ≤ 40 °C 15.0 A continuously

dynamical 10-90% 3.33 %

< 0.1 %

voltage range

with 3500 µF

power, current not symmetrical

Data sheet | Power Supply CP-C.1 24/10.0 - 13

No-load, overload and short-circuit behavior

Characteristic curve of output U/I characteristic curve with power reserve

Short-circuit protection continuous short-circuit stability

Short-circuit behavior current limiting

Current limiting at short circuit 15.2-15.5 A

Resistance to reverse feed 35 V DC

Overload protection constant current limitation

Overtemperature protection protection by automatic switch off in case of

overtemperature (thermal protection)

No-load protection continuous no-load stability

Starting of capacitive loads

Signaling outputs

OUTPUT OK signaling output

Type of output relay, n/o contact

Contact material Cd free

ON (contact closed) > 22.0 V DC (>92 % of set output voltage)

OFF (contact open) < 21.5 V DC (<90 % of set output voltage)

Contact ratings max. switching voltage / current 30 V AC - 0.5 A / 24 V DC - 1 A (resistive load)

min. switching voltage / current 5 V DC / 1 mA

Isolation voltage to any other electrical circuits see isolation data

POWER RESERVE signaling output

Type of output transistor

Active / ON (closed) I ≤ I

OFF (open) I > I

Ratings voltage

current

+24 V DC (same potential as power supply output L+)

20 mA limited at 24 V

General data

Efficiency at rated load > 94 %

Power losses at rated load 14 W

at 50% of rated load 9 W

at no load < 3.5 W

Duty time 100 %

MTBF acc. to MIL 217 HDBK

Dimensions (W x H x D) 60.0 x 129.4 x 136.0 mm (2.36 x 5.094 x 5.354 in)

Weight gross weight, with packaging and instruction sheet 1.3 kg (2.646 lb)

net weight 1.2 kg (2.866 lb)

Material of housing cover zinc-coated sheet-steel

enclosure shell aluminium

front plastic, PA6, V-0

Mounting DIN rail (EN 60715), snap-on mounting without any tool

Mounting position horizontal

Minimum distance to other units horizontal max. 25 mm (0.98 in)

ver tica l max. 25 mm (0.98 in)

Degree of protection (IEC/EN 60529) enclosure / terminals IP20 / IP20

Protection class (EN 61140) I

14 - Power Supply CP-C.1 24/10.0 | Data sheet

Electrical connection

Input circuits (L1, N, PE)

Wire size fine-strand with(out) wire end ferrule / rigid 0.5-2.5 mm² (20-12 AWG) / 0.5-4.0 mm² (20-1 AWG)

Stripping length 8 mm (0.315 in)

Tightening torque 0.5 Nm (4.4 lb-in)

Output circuits (L+, L+, L-, L-)

Wire size fine-strand with(out) wire end ferrule / rigid 0.5-2.5 mm² (20-12 AWG) / 0.5-4.0 mm² (20-1 AWG)

Stripping length 8 mm (0.315 in)

Tightening torque 0.5 Nm (4.4 lb-in)

Signaling output (13-14, I > Ir)

Wire size fine-strand with(out) wire end ferrule / rigid 0.5-2.5 mm² (20-12 AWG) / 0.5-4.0 mm² (20-1 AWG)

Stripping length 8 mm (0.315 in)

Tightening torque 0.5 Nm (4.4 lb-in)

Environmental data

Ambient temperature range operation

rated load

storage

transportation

Climatic category (IEC/EN 60721-3-1) storage

Climatic category (IEC/EN 60721-3-2) transportation

Climatic category (IEC/EN 60721-3-3) operation

Damp heat, cyclic (IEC/EN 60068-2-30)

Vibration, half-sine (IEC/EN 60068-2-6)

Shock, half-sine (IEC/EN 60068-2-27)

-25…+70 °C (-13 ... +158°F)

-25...+60 °C (-13 ... +140°F)

-25…+85 °C (-13 ...+185°F)

-40…+85 °C (-40 ...+185°F)

1K2 (-40...+85°C)

2K2 (-40°C…85°C)

3K3

95 % RH without condensation

< 15 Hz, amplitude ±2.5 mm/15 Hz - 150 Hz, 2.3 g

30 g, all directions

Isolation data

Rated impulse withstand voltage U (EN 50178)

Overvoltage category (EN 5 017 8) < 2000m

Overvoltage category (EN 60950-1) < 2000m

Pollution degree IEC/EN 60950-1; EN 50178 2

Test voltage between all isolated circuits, type test (IEC/EN 60950-1)

Test voltage between all isolated circuits, routine test

Protective separation IEC/EN 60950-1 input circuit / output circuit

imp

input circuit / output circuit

input circuit / PE

input circuit / relay contact

output circuit / relay contact

relay contact / PE

output circuit / PE

2000…5000m

input circuit / output circuit

input circuit / PE

relay contact / output circuit

output circuit / PE

input circuit / output circuit

input circuit / PE

relay contact / output circuit

output circuit / PE

input circuit / relay contact

4 kV (1.2/50µS)

0.5 kV (1.2/50µS)

III

3 kV (AC); 4242 (DC)

1.5 kV (AC); 2121 (DC)

0.5 kV (AC); 707 (DC)

1.5 kV (AC); 2121 (DC)

0.5 kV (DC)

Yes

Data sheet | Power Supply CP-C.1 24/10.0 - 15

Standard

Product standard IEC/EN 61204

Low Voltage Directive 2006/95/EC

EMC directive 2004/108/EC

RoHS directive 2011/65/EC

Electrical safety IEC/EN 60950-1,

Safety of ..., power supply units …Particular requirements and tests for switch mode power supply units and transformers for switch mode power supply units

Electrical equipment of machines

Industrial control equipment UL/cUL Listed UL 508 and CSA 22.2 No 107.1

Programmable controllers – Part 2: Equipment requirements and test references IEC/EN 61131-2 applicable parts

Electronic equipment for use in power installations EN 50178/VDE 0160

Protective extra low voltage PELV (IEC/EN 61204)

Safety extra low voltage SELV (IEC/EN 60950-1)

Protection for safety – Protection against electric shock VDE 0100-410, IEC 60364-4-41

Limitation of harmonic line currents According to IEC/EN 61000-3-2

IEC/EN 61204-7, UL/cUL Recognized UL 60950-1

IEC/EN 61558-2-16 covered by IEC 60950-1

Electromagnetic compatibility

Low-voltage power supplies, d.c. output – Part 3: Electromagnetic compatibility (EMC)

Interference immunity to IEC/EN 61000-6-1 and IEC/EN 61000-6-2

Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 4, 8kV / 15 kV

Radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-3 Level 3, 10 V/m

Electrical fast transient/burst IEC/EN 61000-4-4 Level 4, 4 kV

Surge IEC/EN 61000-4-5 L-N 2 kV (Level 3), L / N-VPE 4 k V (Level 3)

Conducted disturbances, induced by radio-frequency fields IEC/EN 61000-4-6 Level 3, 10 V

Power frequency magnetic field immunity test IEC/EN 61000-4-8 1000 A/m (A)

IEC/EN 61204-3

Damped oscillatory magnetic field immunity test IEC/EN 61000-4-10 30 A/m (A)

Voltage dips, short interruptions and voltage variations immunity tests

Voltage variations harmonics and interharmonics IEC/EN 61000-4-13

Test for immunity to conducted, common mode disturbances in the frequency range 0 Hz to 150 kHz

Dumped oscillatory wave immunity test IEC/EN 61000-4-18

Interference emission IEC/EN 61000-6-3 and IEC/EN 61000-6-4

Emission standard for residential commercial and lightindustrial environments

Limits – Limits for harmonic current emissions (equipment input current m 16 A per phase)

Limits – Limitation of voltage changes „voltage fluctuations and flicker in public low-voltage supply systems, „for equipment with rated current ≤ 16 A per phase and not subject“ to conditional connection

Emission standard for industrial environments IEC/EN 61000-6-4

Information technology equipment Radio disturbance characteristics Limits and methods of measurement

Industrial scientific and medical (ISM) radio-frequency equipment Electromagnetic disturbance characteristics Limits and methods of measurement

IEC/EN 61000-4-11 Class 3

IEC/EN 61000-4-16 10 V (A)

IEC/EN 61000-6-3

IEC/EN 61000-3-2 Class A

IEC/EN 61000-3-3 pass

IEC/EN 61000-3-2 Class B

IEC/CISPR 22,

EN 55022

Class B

Voltage sags SEMI F47 pass

16 - Power Supply CP-C.1 24/10.0 | Data sheet

Technical diagrams

at 24 V at 22.5 V at 28.5 V

Output voltage [V]

Ambient temperature [°C]

Output current [A]

Characteristic curve of output

024681012141618

Output current [A]

Characteristic curve of output at Ta = 25 °C

Characteristic curve of temperature

-25 -10 0

Power reserve

10 20 30 40 50 60 70

Characteristic curve of temperature at U

= 24 V

out

The switch mode power supply CP-C 24/10.0 is able to supply at 24 V DC output voltage and at an ambient temperature of

– ≤ 40 °C a continuous output current of typ. ≤ 15 A – ≤ 60 °C the rated current of 10 A

At ambient temperatures of:

– > 60 °C the output power has to be reduced by 2.5 % per Celcius temperature increase – > 70 °C i.e. thermal overload

The device will switch-off as soon as the internal temperature exceeds the acceptable levels. The exact ambient

temperature of when this occurs depends on positioning, orientation and placement of the power supply i.e. which heat dissipation is allowed.

If the switch mode power supply is loaded with an output current > 15 A, the operating point is passing through the U/I characteristic curve shown.

Data sheet | Power Supply CP-C.1 24/10.0 - 17
