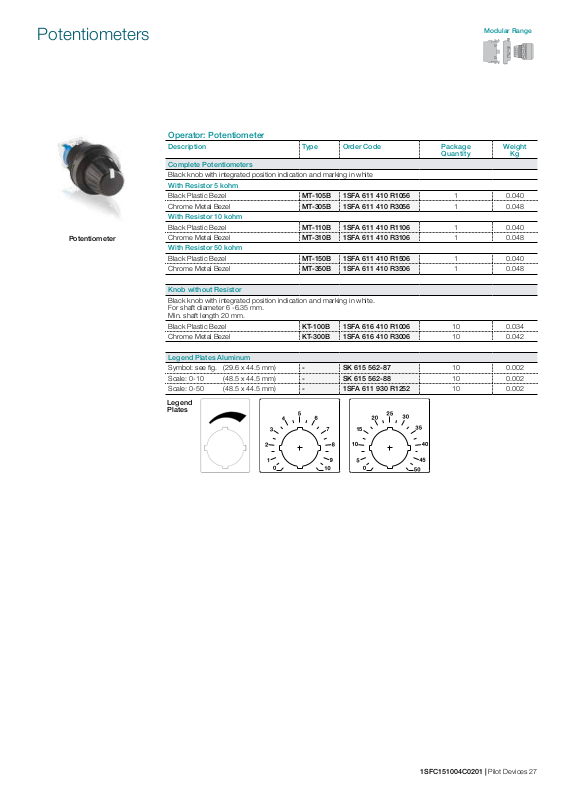

Potentiometers

Potentiometer

Modular Range

Operator: Potentiometer

Description Type Order Code Package

Quantity

Complete Potentiometers

Black knob with integrated position indication and marking in white

With Resistor 5 kohm

Black Plastic Bezel MT-105B 1SFA 611 410 R1056 1 0.040
Chrome Metal Bezel MT-305B 1SFA 611 410 R3056 1 0.048

With Resistor 10 kohm

Black Plastic Bezel MT-110B 1SFA 611 410 R1106 1 0.040
Chrome Metal Bezel MT-310B 1SFA 611 410 R3106 1 0.048

With Resistor 50 kohm

Black Plastic Bezel MT-150B 1SFA 611 410 R1506 1 0.040
Chrome Metal Bezel MT-350B 1SFA 611 410 R3506 1 0.048

Knob without Resistor

Black knob with integrated position indication and marking in white.
For shaft diameter 6 -6.35 mm.
Min. shaft length 20 mm.

Black Plastic Bezel KT-100B 1SFA 616 410 R1006 10 0.034
Chrome Metal Bezel KT-300B 1SFA 616 410 R3006 10 0.042

Weight

Kg

Legend Plates Aluminum

Symbol: see g. (29.6 x 44.5 mm) - SK 615 562-87 10 0.002
Scale: 0-10 (48.5 x 44.5 mm) - SK 615 562-88 10 0.002
Scale: 0-50 (48.5 x 44.5 mm) - 1SFA 611 930 R1252 10 0.002

Legend
Plates

1SFC151004C0201 | Pilot Devices 27
