ABB MS132 Dimensional Sheet

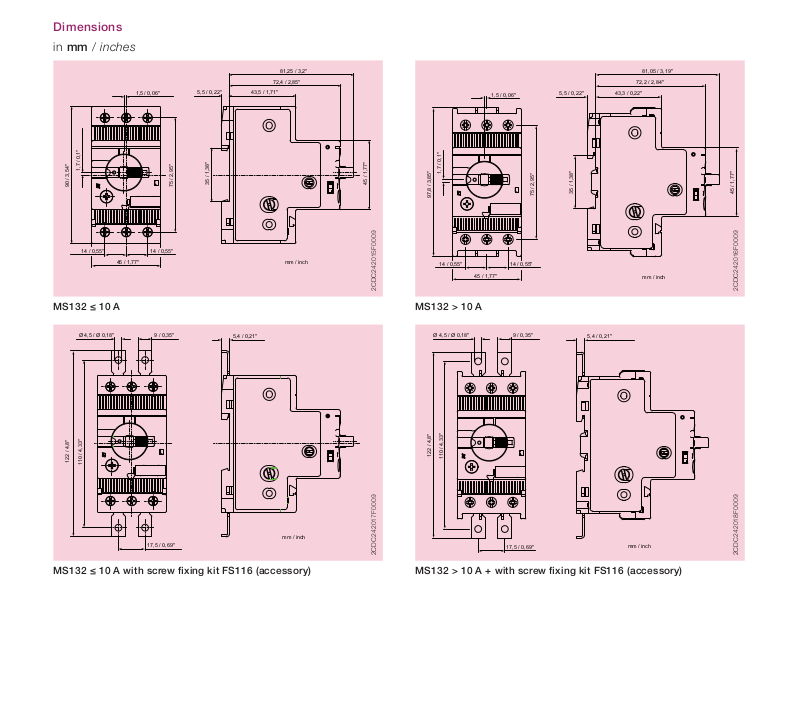

Dimensions

90 / 3,54"

97,8 / 3,85"

9 / 0,35"Ø 4,5 / Ø 0,18"

122 / 4,8"

9 / 0,35" Ø 4,5 / Ø 0,18"

122 / 4,8"

in mm / inches

1,5 / 0,06"

5,5 / 0,22" 43,5 / 1,71"

81,25 / 3,2"

72,4 / 2,85"

1,5 / 0,06"

5,5 / 0,22"

81,05 / 3,19"

72,2 / 2,84"

43,3 / 0,22"

1,7 / 0,1"

35 / 1,38"

75 / 2,95"

45 / 1,77"

14 / 0,55"

mm / inch

14 / 0,55"

MS132 ≤ 10 A

5,4 / 0,21"

110 / 4,33"

17,5 / 0,69"

mm / inch

MS132 ≤ 10 A with screw xing kit FS116 (accessory)

45 / 1,77"

2CDC242015F0009

2CDC242017F0009

1,7 / 0,1"

35 / 1,38"

75 / 2,95"

14 / 0,55" 14 / 0,55"

45 / 1,77"

mm / inch

MS132 > 10 A

5,4 / 0,21"

110 / 4,33"

17,5 / 0,69"

mm / inch

MS132 > 10 A + with screw xing kit FS116 (accessory)

45 / 1,77"

2CDC242016F0009

2CDC242018F0009
