Enlargers, reducers, metric

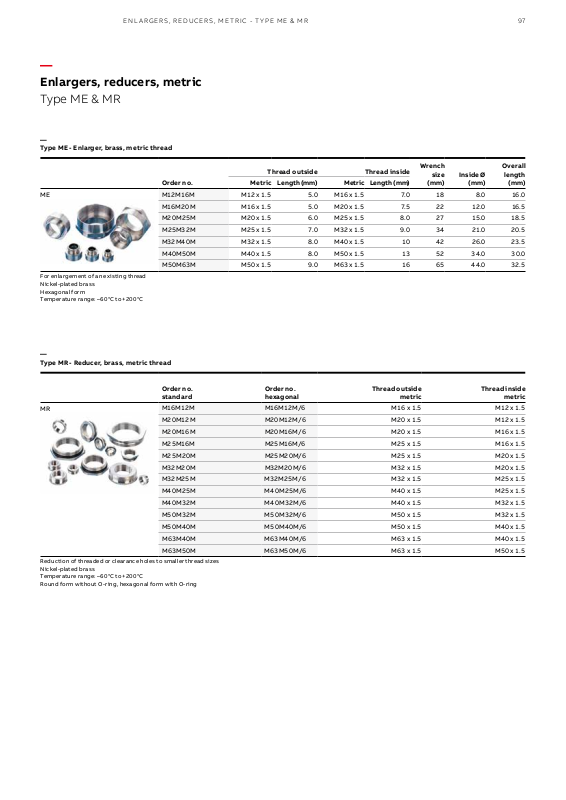

Type ME & MR

—
Type ME - Enlarger, brass, metric thread

97ENLA RGERS , REDUCERS, METRIC - TYPE ME & MR

Order no.

ME

For enl argeme nt of an existi ng thread
Nickel-plated brass
Hexagonal form

Temperature range: –60 °C to +200°C

—
Type MR - Reducer, brass, metric thread

MR

Reduction of t hreade d or clearance holes to sm aller th read sizes
Nickel-plated brass

Temperature range: –60 °C to +200°C

Round form with out O-ri ng, hexa gonal form with O -ring

M12M16M M12 x 1.5 5.0 M16 x 1.5 7.0 18 8 . 0 1 6 . 0

M16M20M M16 x 1.5 5.0 M20 x 1.5 7.5 22 1 2 . 0 1 6 . 5

M20M25M M20 x 1.5 6.0 M25 x 1.5 8.0 27 1 5 . 0 1 8 . 5

M25M32M M25 x 1.5 7.0 M32 x 1.5 9.0 34 2 1 . 0 2 0 . 5

M32M40M M32 x 1.5 8.0 M40 x 1.5 10 42 2 6 . 0 2 3 . 5

M40M50M M40 x 1.5 8.0 M50 x 1.5 13 52 3 4 . 0 3 0 . 0

M50M63M M50 x 1.5 9.0 M63 x 1.5 16 65 44.0 3 2 . 5

Order no.
standard

M16M12M M16M12M/6 M16 x 1.5 M12 x 1.5

M20M12M M20 M12M/6 M20 x 1.5 M12 x 1.5

M20 M16M M20 M16M/6 M20 x 1.5 M16 x 1.5

M25M16M M25M16M/6 M25 x 1.5 M16 x 1.5

M25M20M M25M20M/6 M25 x 1.5 M20 x 1.5

M32M20M M32M20M/6 M32 x 1.5 M20 x 1.5

M32M25M M32M25M/6 M32 x 1.5 M25 x 1.5

M40M25M M40M25M/6 M40 x 1.5 M25 x 1.5

M40M32M M40 M32M/6 M40 x 1.5 M32 x 1.5

M50M32M M50 M32M/6 M50 x 1.5 M32 x 1.5

M50M40M M50M40M/6 M50 x 1.5 M40 x 1.5

M63M40M M63M40 M/6 M63 x 1.5 M40 x 1.5

M63M50M M63M50M/6 M63 x 1.5 M50 x 1.5

Thread outside Thread inside

Order no.
hexagonal

Thread outside

metric

Wrench

size

(mm)

Inside Ø

(mm)

Overall

length

(mm)Metric Length (mm) Metric Length (mm)

Thread inside

metric
