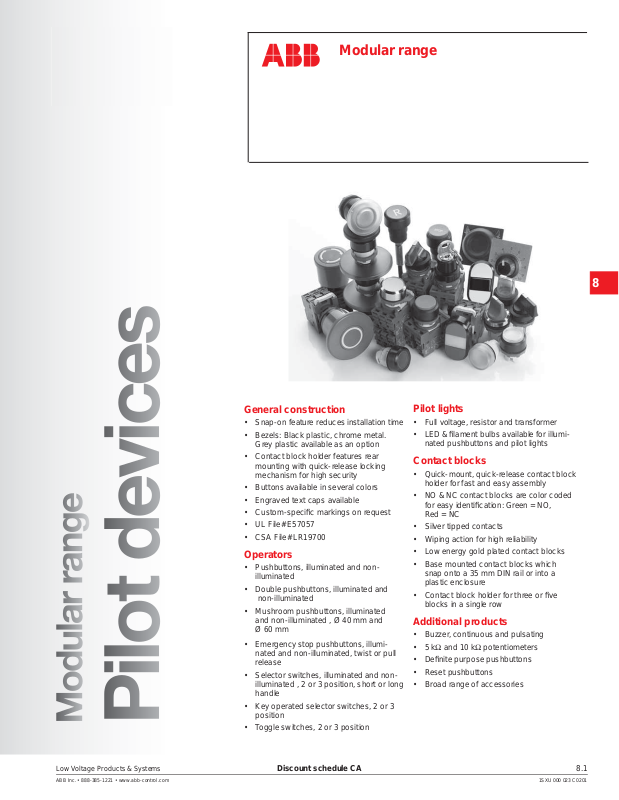

Modular range
Pilot Devices
Modular Range
8
8
General construction
• Snap-on feature reduces installation time
• Bezels: Black plastic, chrome metal.
Grey plastic available as an option
• Contact block holder features rear
mounting with quick-release locking
mechanism for high security
• Buttons available in several colors
• Engraved text caps available
• Custom-specifi c markings on request
• UL File# E57057
• CSA File# LR19700
Operators
• Pushbuttons, illuminated and non illuminated
• Double pushbuttons, illuminated and
non-illuminated
• Mushroom pushbuttons, illuminated
and non-illuminated , Ø 40 mm and
Ø 60 mm
• Emergency stop pushbuttons, illumi-
nated and non-illuminated, twist or pull
release
• Selector switches, illuminated and non illuminated , 2 or 3 position, short or long
handle
• Key operated selector switches, 2 or 3
position
• Toggle switches, 2 or 3 position
Pilot lights
• Full voltage, resistor and transformer
• LED & fi lament bulbs available for illumi nated pushbuttons and pilot lights
Contact blocks
• Quick-mount, quick-release contact block
holder for fast and easy assembly
• NO & NC contact blocks are color coded
for easy identifi cation: Green = NO,
Red = NC
• Silver tipped contacts
• Wiping action for high reliability
• Low energy gold plated contact blocks
• Base mounted contact blocks which
snap onto a 35 mm DIN rail or into a
plastic enclosure
• Contact block holder for three or fi ve
blocks in a single row
Additional products
• Buzzer, continuous and pulsating
• 5 kΩ and 10 kΩ potentiometers
• Defi nite purpose pushbuttons
Reset pushbuttons
•
•
Broad range of accessories
Low Voltage Products & Systems 8.1
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule CA
Pilot Devices
8
Modular Range
Exploded view
General information
Mounting
Contact block
Single pole with making or
breaking contact
8
Lamp block
Illuminated pushbuttons, illuminated selector switches
and pilot lights have a lamp
block in the center position
of the holder.
Holder
Available either for three
or fi ve blocks in one single
row. Additional blocks can
be stacked on holders for
three blocks.
Nut
Legend plates
Of aluminum with slots
that guide the legend
plate and the operator
into the correct position.
Please, see the chapter
’legend plates’ for more
information.
Operator
Buttons, lenses and
handles in several
colors. Illuminated or
non-illuminated.
Easy to mount
The operator is to be inserted
from the front.....
...and to remove
...and secured at the back with
a nut.
Press down the spring on
the holder and pull the
holder from the actuator.
Legend plate holder
Of black plastic. Insert of
brushed aluminum.
Please, see the chapter
’legend plates’ for more
information.
The contact blocks/lamp block
are then snapped on to the
holder...
Bezels
Pushbuttons, selector
switches and toggle
switches with bezel in
black plastic, chrome
metal are available.
...and the holder snaps on to the
operator.
8.2 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Discount schedule CA
Selection Guide
Pilot Devices
Modular Range
8
Pushbuttons and Mushroom pushbuttons
Double pushbuttons
Emergency stop pushbuttons Contact block/lamp block combinations
Contact block/lamp block combinations
Contact block/lamp block combinations
8
Selector switches Contact block/lamp block combinations
Toggle switches Contact block combinations
Pilot lights
Lamp block
combination
Buzzers
Defi nite purpose pushbuttons
Potentiometers
Not for the keyoperated selector
switches
Reset pushbuttons
Low Voltage Products & Systems 8.3
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule CA
Flush and extended pushbuttons
Illuminated
Momentary and maintained
Pilot Devices
Modular Range
8
Bulb max 1.2 W
Bezel in black plastic as standard
Bezel in metal:
Replace ‘1’ in the:
Catalog No. MPX-1 0X
Ref. Code 1SFA611XXX R 1XXX
3 for metal bezel
4 for grey plastic bezel
Operator ...
Description Catalog No. Ref. Code List Price
with fl ush button
Momentary 1
Red MP1-11R 1SFA 611 100 R1101
Green MP1-11G 1SFA 611 100 R1102
Yellow MP1-11Y 1SFA 611 100 R1103
Blue MP1-11L 1SFA 611 100 R1104
White MP1-11W 1SFA 611 100 R1105
Clear MP1-11C 1SFA 611 100 R1108
Maintained 13
Red MP2-11R 1SFA 611 101 R1101
Green MP2-11G 1SFA 611 101 R1102
Yellow MP2-11Y 1SFA 611 101 R1103 17.30
Blue MP2-11L 1SFA 611 101 R1104
White MP2-11W 1SFA 611 101 R1105
Clear MP2-11C 1SFA 611 101 R1108
$ 6.10
with extended button
Momentary 1
Red MP3-11R 1SFA 611 102 R1101
Green MP3-11G 1SFA 611 102 R1102
Yellow MP3-11Y 1SFA 611 102 R1103
Blue MP3-11L 1SFA 611 102 R1104
White MP3-11W 1SFA 611 102 R1105
Clear MP3-11C 1SFA 611 102 R1108
Maintained 13
Red MP4-11R 1SFA 611 103 R1101
Green MP4-11G 1SFA 611 103 R1102
Yellow MP4-11Y 1SFA 611 103 R1003 17.30
Blue MP4-11L 1SFA 611 103 R1004
White MP4-11W 1SFA 611 103 R1005
Clear MP4-11C 1SFA 611 103 R1108
6.10
Contact blocks, lamp block and holder 2
Blocks Catalog No. Ref. Code List Price
1 NO + 1 LB with holder MCBH-101 1SFA 611 605 R1201 $ 27.50
1 NC + 1 LB with holder MCBH-011 1SFA 611 605 R1210 27.50
2 NO + 1 LB with holder MCBH-201 1SFA 611 605 R1202 35.50
2 NC + 1 LB with holder MCBH-021 1SFA 611 605 R1220 35.50
1 NO + 1 NC +1 LB with holder MCBH-111 1SFA 611 605 R1211 35.50
1 NO without holder MCB-10 1SFA 611 610 R1001 8.00
1 NC without holder MCB-01 1SFA 611 610 R1010 8.00
Lamp block for 2 W, max 230 V AC/DC
bulb or LED MLB-1 1SFA 611 620 R1001 17.50
Holder for 3 blocks MCBH-00 1SFA 611 605 R1100 2.00
8
Ordering example
Requested: A modular pushbutton, maintained and illuminated
with green fl ush button and one NO + one NC contact.
Ref.: 1 piece of MP2-11G + 1 piece of MCBH-111
Bulb - see accessories
1 No contact block in the center position
2 Lamp block MLB-1. Bulb not included. For other lamp blocks see Accessories.
3 Bulb max 1.2
Low Voltage Products & Systems 8.5
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
W, not included.
