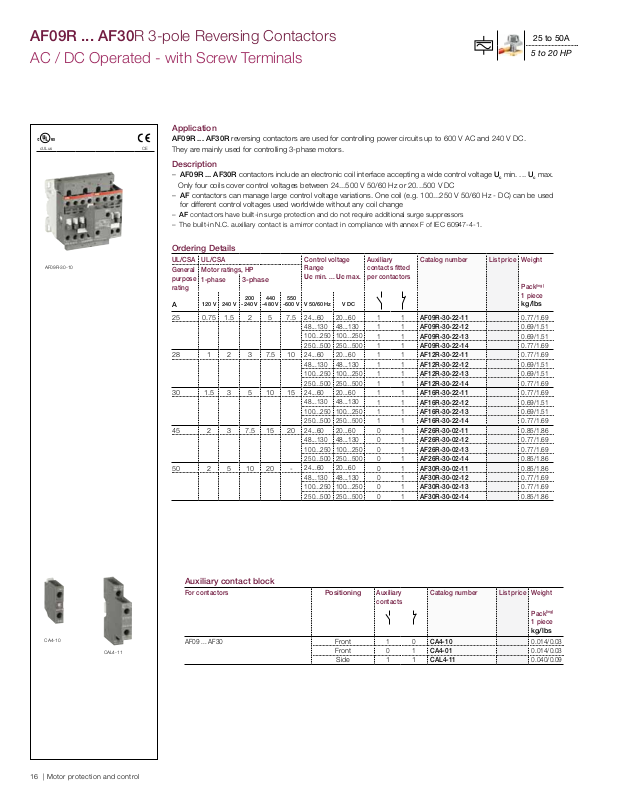

AF09R ... AF30R 3-pole Reversing Contactors
AC / DC Operated - with Screw Terminals
Application
cULus
AF09R-30-10
AF09R ... AF30R reversing contactors are used for controlling power circuits up to 600 V AC and 240 V DC.
CE
They are mainly used for controlling 3-phase motors.
Description
– AF09R ... AF30R contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max.
Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC
– AF contactors can manage large control voltage variations. One coil (e.g. 100...250 V 50/60 Hz - DC) can be used
for different control voltages used worldwide without any coil change
– AF contactors have built-in surge protection and do not require additional surge suppressors
– The built-in N.C. auxiliary contact is a mirror contact in compliance with annex F of IEC 60947-4-1.
Ordering Details
UL/CSA UL/CSA Control voltage
General
Motor ratings, HP
purpose
rating
A
1-phase
120 V 240 V
3-phase
200
-240 V
440
-480 V
25 0.75 1.5 2 5 7.5
28 1 2 3 7.5 10
30 1.5 3 5 10 15
45 2 3 7.5 15 20
50 2 5 10 20 -
Range
Uc min. ... Uc max.
550
-600 V V 50/60 Hz V DC
24...60 20...60
48...130 48...130
100...250 100...250
250...500 250...500
24...60 20...60
48...130 48...130
100...250 100...250
250...500 250...500
24...60 20...60
48...130 48...130
100...250 100...250
250...500 250...500
24...60 20...60
48...130 48...130
100...250 100...250
250...500 250...500
24...60 20...60
48...130 48...130
100...250 100...250
250...500 250...500
Auxiliary
Catalog number List price Weight
contacts fitted
per contactors
Pack
1 piece
kg/lbs
1 1 AF09R-30-22-11 0.77/1.69
1 1 AF09R-30-22-12 0.69/1.51
1 1 AF09R-30-22-13 0.69/1.51
1 1 AF09R-30-22-14 0.77/1.69
1 1 AF12R-30-22-11 0.77/1.69
1 1 AF12R-30-22-12 0.69/1.51
1 1 AF12R-30-22-13 0.69/1.51
1 1 AF12R-30-22-14 0.77/1.69
1 1 AF16R-30-22-11 0.77/1.69
1 1 AF16R-30-22-12 0.69/1.51
1 1 AF16R-30-22-13 0.69/1.51
1 1 AF16R-30-22-14 0.77/1.69
0 1 AF26R-30-02-11 0.85/1.86
0 1 AF26R-30-02-12 0.77/1.69
0 1 AF26R-30-02-13 0.77/1.69
0 1 AF26R-30-02-14 0.85/1.86
0 1 AF30R-30-02-11 0.85/1.86
0 1 AF30R-30-02-12 0.77/1.69
0 1 AF30R-30-02-13 0.77/1.69
0 1 AF30R-30-02-14 0.85/1.86
25 to 50A
5 to 20 HP
(ing)
CA4-10
16 | Motor protection and control
CAL4-11
Auxiliary contact block
For contactors
AF09 ... AF30
Positioning
Auxiliary
contacts
Front
Front
Side 1 1
Catalog number List price Weight
(ing)
Pack
1 piece
kg/lbs
1 0 CA4-10 0.014/0.03
0 1 CA4-01 0.014/0.03
CAL4-11 0.040/0.09
