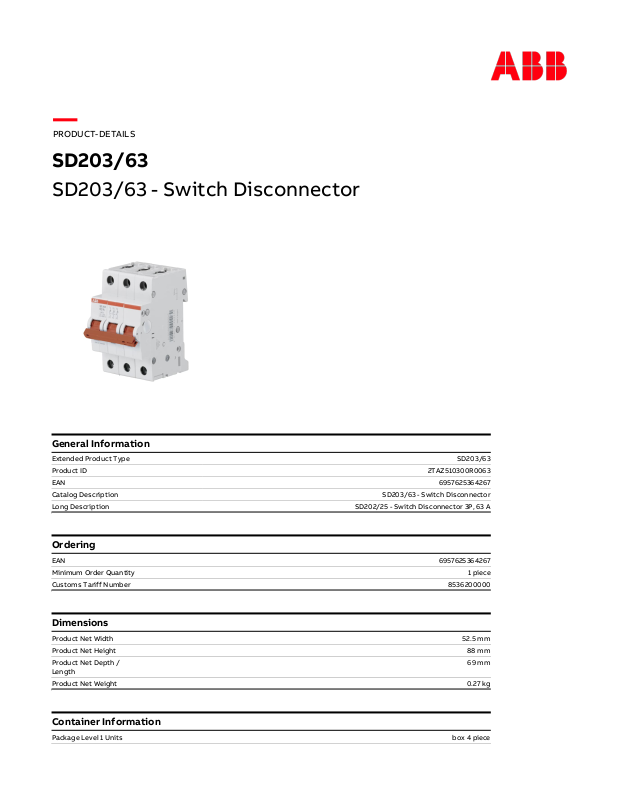

PRODUCT-DETAILS
Minimum Order Quantity
SD203/63
SD203/63 - Switch Disconnector
General Information
Extended Product Type
Product ID
EAN
Catalog Description
Long Description
SD203/63 - Switch Disconnector
SD202/25 - Switch Disconnector 3P, 63 A
SD203/63
2TAZ510300R0063
6957625364267
Ordering
6957625364267 EAN
1 piece
8536200000 Customs Tariff Number
Dimensions
52.5 mm Product Net Width
88 mm Product Net Height
Length
69 mm Product Net Depth /
0.27 kg Product Net Weight
Container Information
box 4 piece Package Level 1 Units
SD203/63
0.089 m Package Level 1 Width
0.077 m Package Level 1 Height
0.215 m Package Level 1 Depth /
Length
1.135 kg Package Level 1 Gross
Weight
6957625364748 Package Level 1 EAN
32 piece Package Level 2 Units
0.183 m Package Level 2 Width
0.164 m Package Level 2 Height
0.445 m Package Level 2 Depth /
Length
9.406 kg Package Level 2 Gross
Weight
6957625365226 Package Level 2 EAN
2
Additional Information
Code
Switch Disconnector Product Name
Q Object Classification
SD200 Product Main Type
Certificates and Declarations (Document Number)
Information
Conformity - CE
Manuals
2CDC441015D0201 Data Sheet, Technical
No declaration needed Declaration of
No document needed Instructions and
Classifications
EC001545 - Main switch for distribution board ETIM 5
EC001545 - Main switch for distribution board ETIM 6
EC001545 - Main switch for distribution board ETIM 7
Code
Q Object Classification
Accessories
SD203/63
3
IdentifierDescriptionTypeQuantity
2CDS200922R0001S2C-S/H6R - S2C - S/H 6R- 1NA+1NC (1/2 mod.)S2C-S/H6R1piece
2CDS200912R0001S2C-H6R - S2C - H 6R- 1NA+1NC (1/2 mod.)S2C-H6R1piece
2CDS200936R0001
2CDS200936R0002
2CDS200936R0003
2CDS200946R0001S2C-H6-11R - Auxiliary ContactS2C-H6-11R1piece
2CDS200946R0002S2C-H6-20R - Auxiliary ContactS2C-H6-20R1piece
2CDS200946R0003S2C-H6-02R - Auxiliary ContactS2C-H6-02R1piece
2CDS200909R0001S2C-A1 - S2C - A1- 12-60V c.a./c.c. (1 mod.)S2C-A11piece
2CDS200909R0002
2CSS200911R0001S2C-UA 12 DC - S2C - UA 12 DC- 12V c.c. (1 mod.)S2C-UA 12 DC1piece
2CSS200911R0002
2CSS200911R0003
2CSS200911R0004
2CSS200911R0005
2CSS200911R0006
2CSS200911R0007
2CSS200911R0008
2CSS200911R0009
2CSS200911R0010
2CSS201997R0013S2C-CM1 - S2C-CM1- S200 1PS2C-CM11piece
2CSS203997R0013S2C-CM2/3 - S2C-CM2/3-S200 2P-3PS2C-CM2/31piece
2CSS204997R0013S2C-CM4 - S2C-CM4- S200 4PS2C-CM41piece
GHS2001901R0003S2C-DH - S2C-DHS2C-DH1piece
2CSS200998R0001S2C-BP - Mechanical tripping deviceS2C-BP1piece
2CSS200999R0001S2C-EST - S2C-ESTS2C-EST1piece
2CDS200918R0001S2C-NT - Hand Operated NeutralS2C-NT1piece
2CCA880100R0001sistema misura multipartenze CMSCMS-100PS1piece
2CCA880101R0001sistema misura multipartenze CMSCMS-101PS1piece
2CCA880102R0001sistema misura multipartenze CMSCMS-102PS1piece
S2C-H11L - S2C-H11L- 1NA+1NC montaggio a
sinistra (1/2 mod.)
S2C-H20L - S2C-H20L- 2NA montaggio a
sinistra (1/2 mod.)
S2C-H02L - S2C-H02L- 2NC montaggio a
sinistra (1/2 mod.)
S2C-A2 - S2C - A2- 110-415V c.a./110-250 V c.c.
(1 mod.)
S2C-UA 24 AC - S2C - UA 24 AC- 24V c.a. (1
mod.)
S2C-UA 48 AC - S2C - UA 48 AC- 48V c.a. (1
mod.)
S2C-UA 110 AC - S2C - UA 110 AC- 110V c.a. (1
mod.)
S2C-UA 230 AC - S2C - UA 230 AC- 230V c.a. (1
mod.)
S2C-UA 400 AC - S2C - UA 400 AC- 400V c.a. (1
mod.)
S2C-UA 24 DC - S2C - UA 24 DC- 24V c.c. (1
mod.)
S2C-UA 48 DC - S2C - UA 48 DC- 48V c.c. (1
mod.)
S2C-UA 110 DC - S2C - UA 110 DC- 110V c.c. (1
mod.)
S2C-UA 230 DC - S2C - UA 230 DC- 230V c.c. (1
mod.)
S2C-H11L1piece
S2C-H20L1piece
S2C-H02L1piece
S2C-A21piece
S2C-UA 24 AC1piece
S2C-UA 48 AC1piece
S2C-UA 110 AC1piece
S2C-UA 230
AC
S2C-UA 400
AC
S2C-UA 24 DC1piece
S2C-UA 48 DC1piece
S2C-UA 110 DC1piece
S2C-UA 230
DC
1piece
1piece
1piece
Unit Of
Measure
Categories
Low Voltage Products and Systems → Modular DIN Rail Products → Command and Signalling Devices → Switch Disconnectors
SD203/63
4
