PowerSaver
Wireless Optical Mouse
User’s Guide
Model: R7-10
www.a4tech.com
R7 PowerSaver Wireless Optical Mouse
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)
THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Federal Communications Commission Requirements
The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to
radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
z Reorient of relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
- 1 -
R7 PowerSaver Wireless Optical Mouse
INTRODUCTION
Congratulations on your purchase!
Your new RF-Mouse R7 PowerSaver is designed with R7 Extremely Low-Power Technology only requires 7mA
electric current while others require 25mA. Wow! Just turn your mouse battery –life 3 times longer. Same time, R7
PowerSave performs high-speed RF technology with report rate of 125Hz
reports rate of only 90Hz (Tested by Mouse Rate Program)].
z Package contains：
R7 PowerSaver Wireless Optical Mouse
USB RF Receiver
2 AAA Alkaline Batteries
User’s Manual
z System Requirements:
To use the mouse presenter, your computer must meet the following hardware requirements and run one of the
operating system listed below.
Hardware
1. IBM or compatible system
2. UBS v1.1 or higher interface
3. Hard Disk Driver
4. USB Port
- 2 -
[**Normal wireless optical mice performs with
R7 PowerSaver Wireless Optical Mouse
Operating System
Windows®98/Me/2000/2003/XP/x64

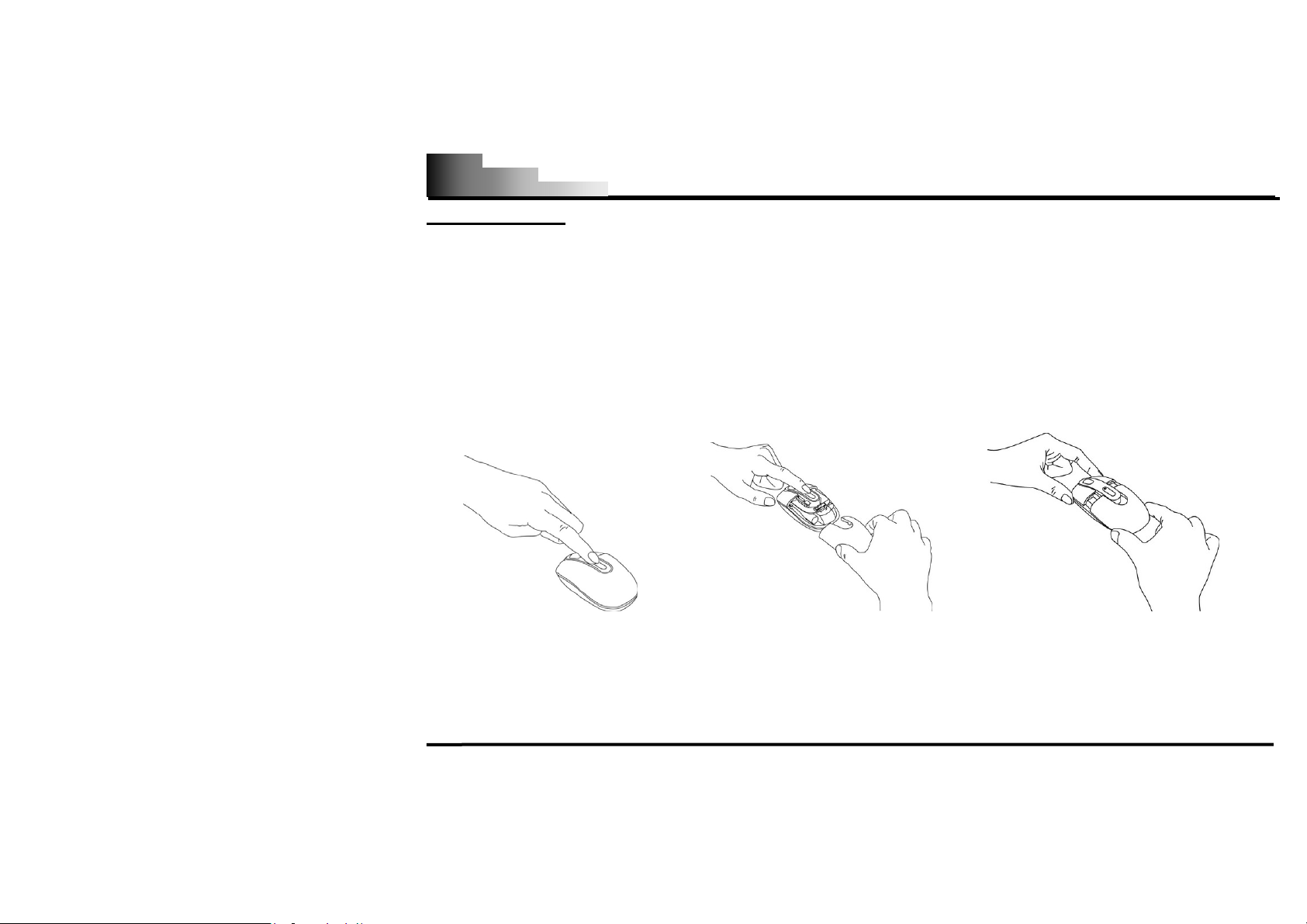

Inserting the Batteries
1. Press the tab on the front of the mouse cover as shown here and remove the cover.
2. Insert the supplied batteries, making sure that the positive (+) and negative (-) ends of the battery match the
polarity indicators inside the battery housing.
3. Slide the batter cover back into position until it “clicks” firmly into place.
Step1 Step2 Step3
- 3 -
R7 PowerSaver Wireless Optical Mouse

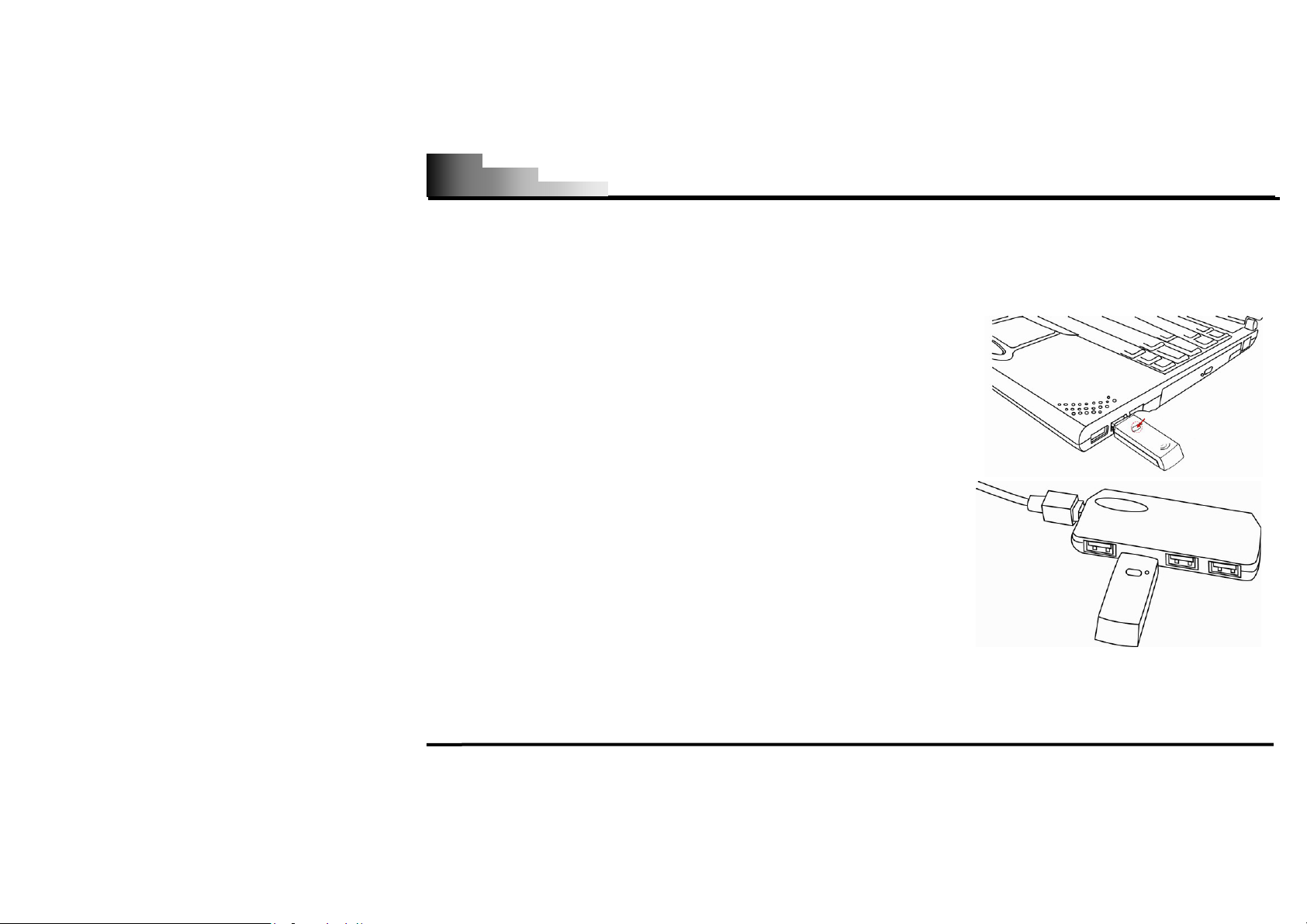

To connect the receiver
Insert the Receiver USB port connector into the available computer USB port. You can choose anyway to connect
the USB receive with computer as blow:
For laptop computer usage:
Insert the USB mouse port connector into the USB port on laptop
computer. Easy take and use.
2. For PC computer usage:
Insert the USB receives mouse port connector into the USB HUB port.
- 4 -
p
R7 PowerSaver Wireless Optical Mouse

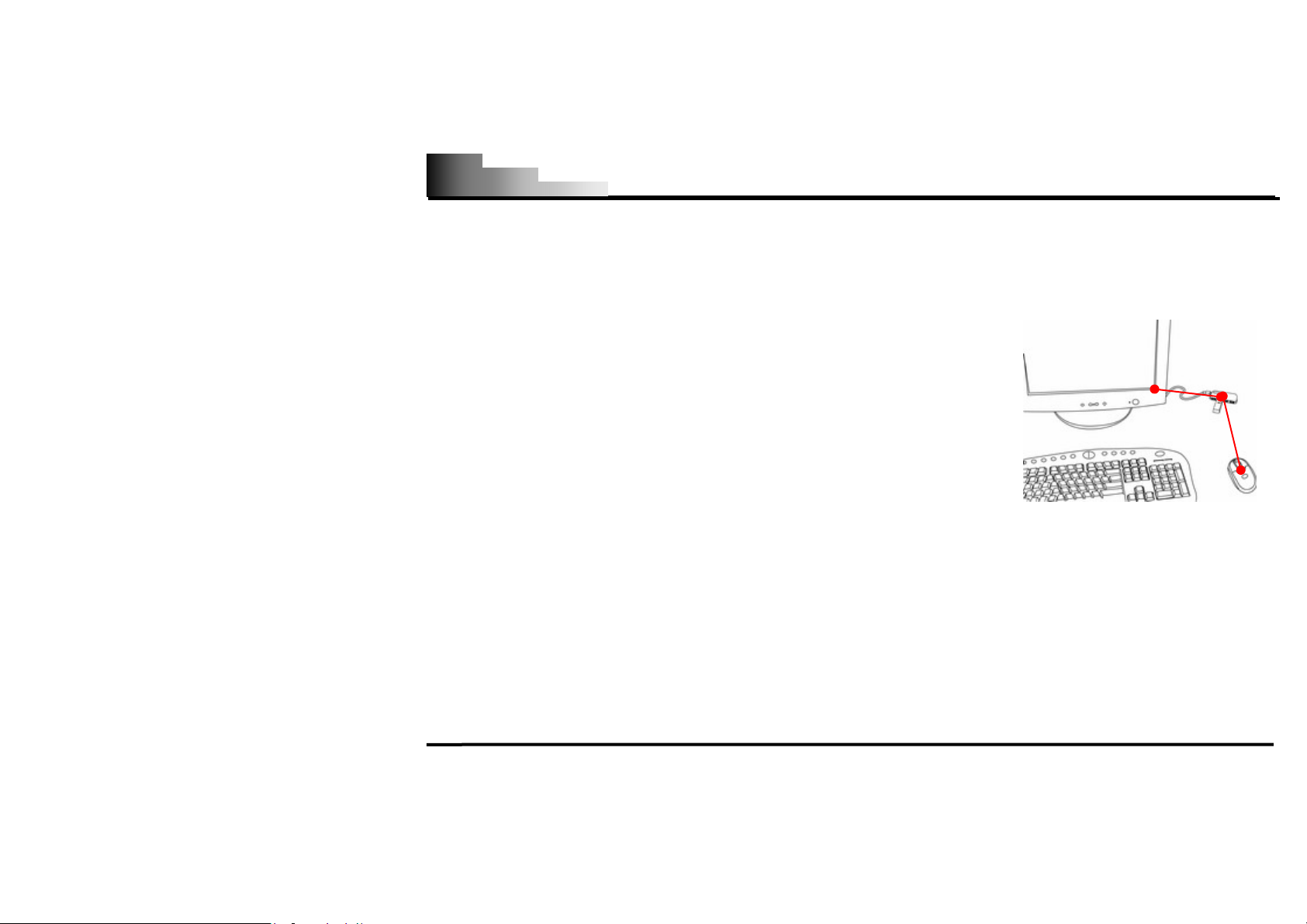

Locating the USB RF-Mouse Receiver
Your RF-Mouse has limitations on the range or distance from its receiver. To make sure that your mouse sends and
receives properly, refer to the following instructions:
1. For optimal performance, place the receiver at least 8 inches (20
centimeters) away from other electrical devices, such as the computer, the
monitor, or external storage drives.
2. The RF-Mouse should be no farther than 4 feet (1. 5meter) from the mouse
receiver. This will ensure optimal communication between the mouse and
receiver.
Keep 8 inches
Kee
4 feet
Operating Hints: For optimal performance and RF reception:
1. Avoid suing the mouse on a metal surface, Metals, such as iron, aluminum or copper, shield the radio frequency
transmission and may slow down the mouse’s response time or cause the mouse presenter to fail temporarily.
2. The mouse will enter a suspend mode at the same time your computer dose, click a button on the mouse
presenter to activate it.
3. Never use the mouse on a glass or mirrored surface as these surface will the mouse to fail temporarily
- 5 -
R7 PowerSaver Wireless Optical Mouse

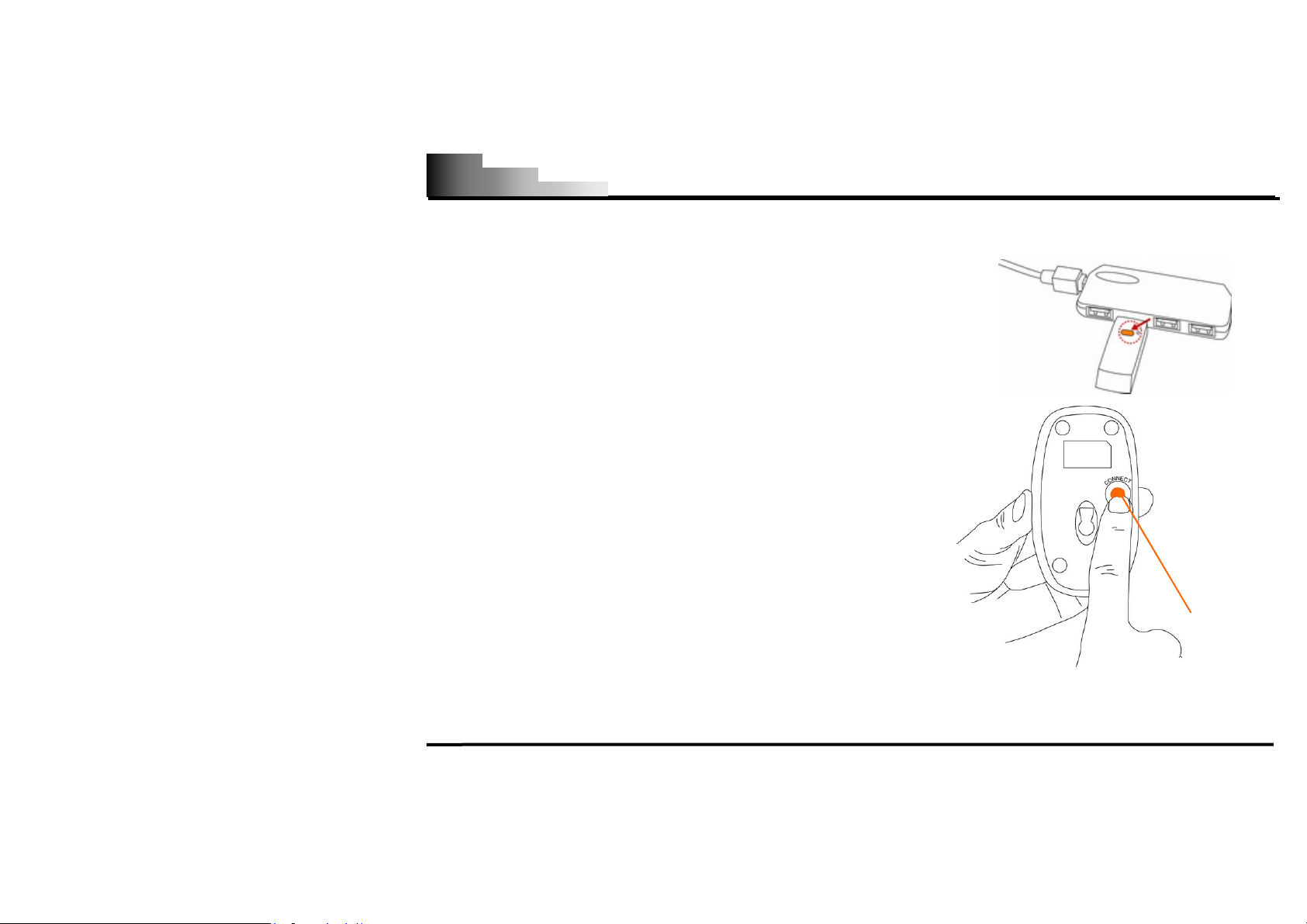

Establish Frequency Channel and ID Code
USB RF Mouse Receiver: lanuch frequency channel and ID
to RF-Mouse
code
Press and release the connect button on the front of USB receiver
(shown as right image), the GREEN PWR LED light turns “Off” and starts
“Blinking.
Wireless optical mouse : Respond frequency channel and ID
from Receiver
code
Press and release (1 second) the connect button on the bottom of
mouse, the RED PWR LED light turns “Off” and starts “Blinking with right
frequency channel and ID code . (shown as right image)
When the mouse is inactive, If the GREENPWR LED light of USB RF
Mouse Receiver is black out, it indicates that the right frequency channels
and ID codes are launched successfully between the receiver and the
mouse, otherwise, repeat the procedures of the right frequency channel
and ID codes. You are now ready to use the mouse.
Note：The connect button has two functions. One function is correspond frequency with USB receiver. Other
function is power switch. you can control power on-off through it (please operate as “
- 6 -
Power Management”
1. Frequency Button
2. Power on/off
R7 PowerSaver Wireless Optical Mouse
show )
Power Management
Manual Power on/off method
1. To power the mouse on, please press and release the switch bottom
of the mouse within in 1 second.
2. Turn off the mouse while traveling or when you don’t use it. Please
press and release the switch bottom of the mouse within 4 seconds.
(if you use this mouse , you must power on the mouse again)
Automatic Power on/off method
If this mouse is kept non-operation in 30 minutes, Mouse turns off automatically. If you awaken this mouse, you can
click left or right button on the mouse.
Note: Removing the batteries will require you to synchronize it with the receiver again the next time you turn it back on.
Practical electrical current usage text sheet (on white paper)
Battery Voltage (V) Use Electrical Current (mA)
3.3 6.9
- 7 -
R7 PowerSaver Wireless Optical Mouse
3.2 7.0
3.1 7.3
3.0 7.4
2.9 7.6
Intelligent 4 Power-Saving (SLEEP MODE)：There are 4 sleep mode features activating PowerSaver mouse
Mouse status Enter Sleep mode Electrical Current usage(mA) Savable electricity(mA)
200 milliseconds
non-operation
5 seconds non-operation sleeping mode 0.8 7.2
70 seconds non-operation deep sleeping mode 0.1 7.9
30 minute non-operation turns off automatically 0.01 7.99
To wake up the mouse from sleep mode, you must click left or right button on the mouse.
TECH SUPPORT
For tech support, please visit our website at http://support.a4tech.com/ or email us at support@a4tech.com
- 8 -
idle mode 2.1 5.9
