ViewCam
User’s manual
Model :PK-635
www.a4tech.com
Contents |
page |
Introduction |
2 |
System’s Requirements |
2 |
Package Include |
2 |
USB PC Camera |
3 |
Specification |
3 |
Installing Camera’s Driver |
4 |
Checking connection of your camera |
13 |
Uninstalling Driver |
13 |

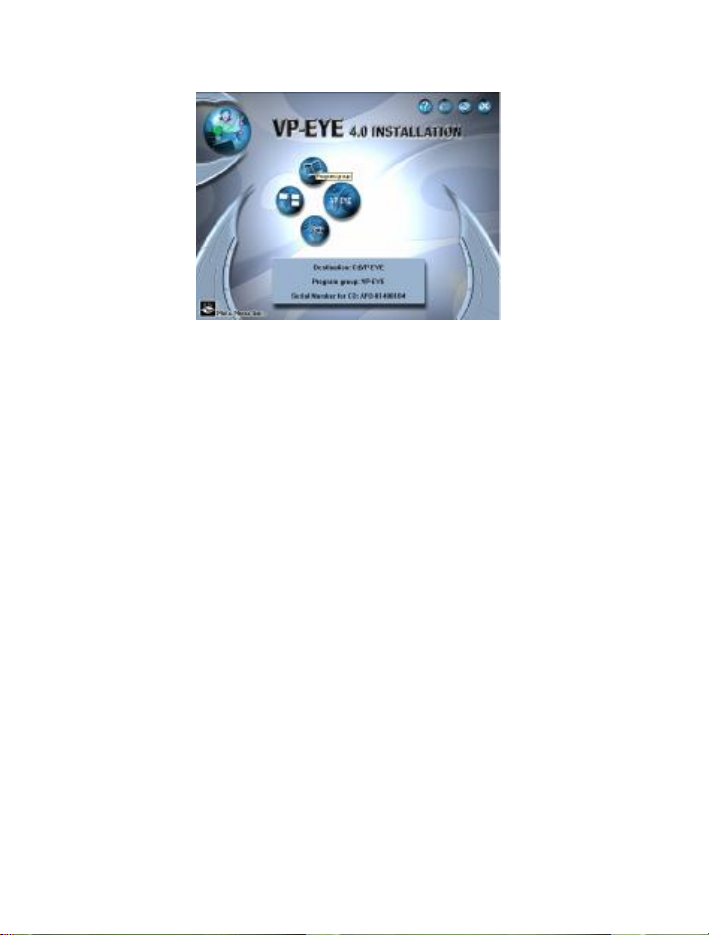

VP-EYE program |
14 |
Troubleshooting |
24 |
1
•Introduction
Welcome to the World of Digital Imaging.
The following information will guide you to install and use the PC Camera to its full capabilities.
•System’s requirements
Personal Computer, Laptop, Desktop, or IBM Compatible Computer with Pentium 166MHz minimum, and with an active USB (universal serial bus) port.
Windows 98/ME/2000/XP, CD-ROM drive, color monitor, mouse and keyboard. For videoconference, Internet connection must be equipped.
• Package includes
PC Camera |
CD Installation Disc & User’s Guide |
(With USB cable) |
|
|
|
2
•USB PC Camera
•Specification
Image Sensor: |
1/4 CMOS, 640×480pixels |
Frame Rate: |
30fps@640x480, @600x800, @320x240, |
|
@160x120 |
Lens: |
F=2.4, f=4.9mm |
View Angle: |
54 degree |
Focus Range: |
Automatic focus, 10cm to infinity |
Exposure Control: |
Automatic |
White Balance: |
Automatic |
|
3 |
Still Image Capture |
800x600 640X480 352x288 320x240 176x144 |
|
Res.: |
160x120 |
|
Flicker Control: |
50Hz, 60Hz and None |
|
Computer Port |
USB port |
|
•Installing camera’s driver
Driver’s Installation Instruction for Windows 98/ME/2000/XP
NOTE: Please Uninstall All Previous Installed WEBCAM BEFORE Installing A4 TECH ViewCAM. DO NOT CONNECT A4 TECH ViewCAM TO THE COMPUTER UNTIL ITS DRIVER IS INSTALLED!
1.Insert the included CD into the CD-ROM: The Auto-run Menu Window will popup, move the mouse cursor to and click on “Install viewCAM”.
4
2.Please select your ViewCAM model and click on the product image to install (As the right image). Then dialogue box will appear on the computer screen as below:
3.Follow the on screen instruction to complete the installation process
5
4. When the Installation Process is completed
5.Click “Finish” to complete installation. Now, the shortcut Amcap and Zoom images will appear on the computer
desktop
6.Plug the PC Camera’s USB cable to the computer’s USB Port, and restart your computer.
Amcap Usage

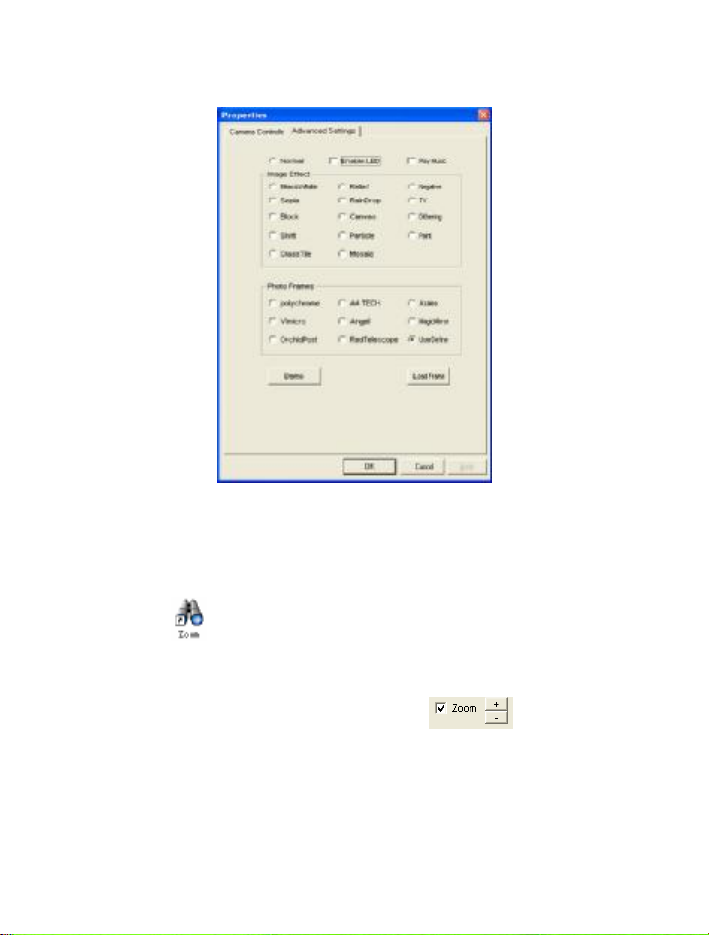

After installation of view cam driver, you can pre-view image and set the adjustments for the properties sheet through the image application software which comes with the product.
6
Image-preview
Click
button on the desktop and the Amcap image
application will pop-up or from “start” to “application” “A4TECH USB PC Camera H” and click “Amcap” by mouse the application image will appear shown as below
7
if Amcap image fails to appear please select the preview below “ Options “shown as follows :
Device description
Go to “Devices” and select “A4 Tech USB PC Camera H”. (Refer to below diagram)
8
