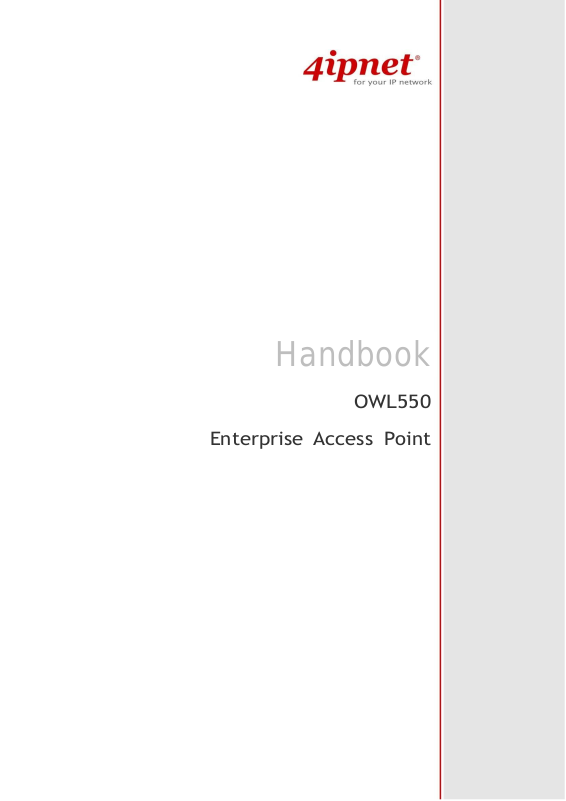

4IPNET OWL550 User Manual

Handbook

OWL550

Enterprise Access Point

Handbook

OWL550 Enterprise Access Point ENGLISH

i

To download up-to-date version, please visit www.4ipnet.com.

Copyright Notice

This document is protected by USA copyright laws and other laws. Besides, the

document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,

publish, display, perform, or modify any part of this publication in any form or by any

means without prior written perm

copyright or other notice from copies of the content. All other brand and product names

are claimed or registered marks of their respective companies or organizations.

ission from 4IPNET, INC. You may not alter or remove any

Handbook

OWL550 Enterprise Access Point ENGLISH

ii

FCC CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 35cm between the radiator & your body.

Professional installation instruction

1. Installation personal

This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting.

2. Installation location

The product shall be installed at a location where the radiating antenna can be kept 35 cm from nearby person in normal operation condition to meet regulatory RF exposure requirement.

3. External antenna

Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited. The antenna must be installed completely perpendicular to the horizon for compliance with FCC Rule Part 15.407(a)(1)(i).

4. Installation procedure

Please refer the handbook for the detail.

Handbook

OWL550 Enterprise Access Point ENGLISH

iii

Antenna Type

2.4 GHz

(2412 ~ 2462 MHz)

5 GHz band 1

(5180 ~ 5240 MHz)

5 GHz band 4

(5745 ~ 5825 MHz)

Antenna Gain

Max Power

Antenna Gain

Max Power

Antenna Gain

Max Power

External Dipole

4.92 dBi

645.727 mW

6.87 dBi

201.971 mW

6.92 dBi

782.596 mW

Frequency range (MHz)

Max. transmit power (dBm)

2412-2472

23 dBm

5150-5350

23 dBm

5500-5700

23 dBm

AT

BE

BG

HR

CY

CZ

DK

EE

FI

FR

DE

EL

HU

IE

IT

LV

LT

LU

MT

NL

PL

PT

RO

SK

SI

ES

SE

UK

Input Power

Power from PoE: IEEE802.3at

Operation Temperature

-20℃ (-4℉) to 50℃ (122℉)

5. Warning

Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.

The antenna gain, antenna type and output power that can be used for the device and the info listed below are correct and represent the product.

CE CAUTION

Hereby, 4ipnet, inc. declares that the radio equipment type OWL550 is in compliance with Directive 2014/53/EU.

Frequency Range and Transmit Power

Model – OWL550

The device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of RED within the CE marking requirement.

 Radio: EN 300 328 V2.1.1, EN 301 893 V2.1.1  EMC: EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1  EMC: EN 55032:2015 + AC:2016 Class B, EN 55024:2010 + A1:2015 including the followings:

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Safety: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

iv

Handbook

OWL550 Enterprise Access Point ENGLISH

根據

NCC

低功率電波輻射性電機管理辦法規定

:

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或

變

更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受

合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

Caution

 This declaration is only valid for configurations (combinations of software, firmware, and hardware)

provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.

 Requirements in

AT/BE/BG/CZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/CY/LV/LI/LT/LU/HU/MT/NL/NO/PL/PT/RO/SI/SK/TR/FI/SE /CH/UK/HR.

 In order to ensure compliance with the exposure recommendations to electromagnetic fields, the device

should be used at a minimum distance of 20cm from the body.

Taiwan NCC Statement

減少電磁波影響，請妥適使用

Handbook

OWL550 Enterprise Access Point ENGLISH

1

Preface

Package Contents

4ipnet OWL550 Access Point is an enterprise-grade dual radio 802.11 a/b/g/n + ac Wave 2 Access Point with the best performance for business and industrial applications. Featuring two 2x2 MIMO radios, the OWL550 can simultaneously support up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands respectively. OWL550 is compliant with the latest industrial wireless security standards such as 802.1X and WiFi Protected Access (WPA and WPA2) which are required in the tightly secured enterprise network environments. Furthermore, OWL550 also features multiple ESSIDs with VLAN tags and multiple Virtual APs; great for enterprise applications, such as separating traffic from different departments using different ESSIDs. As an Access Point, OWL550 supports wall mounting and poll mounting for different deployment environments. Besides OWL550’s PoE uplink port is able to receive power from Power over Ethernet (PoE) sourcing devices, its LAN port also supports PoE with 802.11at standard which make network deployment more convenient and easier. This Handbook provides instructions and reference materials to get you started with 4ipnet OWL550.

1. 4ipnet OWL550 x 1

2. Handbook x 1

3. Metal Strip x 2

4. Antenna (2.4G) x 2

5. Antenna (5G) x 2

It is recommended to keep the original

packing material for possible future shipment when repair or maintenance is required. Any returned product should be packed in its original packaging to prevent damage during delivery.

2

Handbook

OWL550 Enterprise Access Point

ENGLISH

System Overview

OWL550 Side OWL550 Back

3

Handbook

1

Power LED

OWL550 status. The Power LED will start blinking when the OWL550 is booting. After finishing booting, the Power LED will always on.

2

LAN1 LED

Uplink status. The LAN1 LED will light up when there is traffic passing through the LAN1 port.

3

LAN2 LED

LAN status. The LAN LED will light up when there is traffic passing through the LAN port.

4

2.4G LED

2.4G Wi-Fi status. The 2.4G LED will blink when there is 2.4G traffic.

5

5G LED

5G Wi-Fi status. The 5G LED will blink when there is 5G traffic.

6

LAN1 (PoE) Port

Offers uplink connection. This port can be used to connect to a controller, gateway, or directly to the Internet. 802.3at PoE is also supported.

7

Ventilation Valve

Due to extreme weather conditions, water vapor in the OWL550 may condense. The valve allows ventilation to prevent moisture buildup within the OWL550.

8

LAN2 Port

The ports for connections with LAN side devices.

9

Wall Mounting Holes

For hanging OWL550.

10

Pole Mounting Gap

For mounting OWL550.

ENGLISH

OWL550 Enterprise Access Point

4

Handbook

OWL550 Enterprise Access Point

ENGLISH

Hardware Installation

Please follow the steps mentioned below to install the hardware of OWL550:

1. Place the OWL550 at the best location.

The best location for OWL550 is usually at the center of your intended wireless network.

Wall mount

1. Secure screws on the wall.

2. Hang OWL550 on the wall by pole mounting holes.

5

Handbook

 To verify the wired connection between OWL550 and your switch / router / hub, please also

check the LED indicator of the respective network devices.

ENGLISH

Pole mount

1. Insert the metal strips through the pole mounting gap.

2. Join the two ends of the metal strips and adjust the length for tight fitting around the pole.

OWL550 Enterprise Access Point

2. Connect the OWL550 to your network device.

Connect one end of the Ethernet cable to the LAN1 (PoE) port of OWL550 and the other end of the cable to a switch, a router, or a hub. OWL550 is then connected to your existing wired LAN network.

3. Power on the OWL550.

OWL550 LAN1 (PoE) port is capable of receiving DC currents. Connect an IEEE 802.3at-compliant PSE device (e.g. a PoE-switch) to the LAN1 (PoE) port of OWL550 with the Ethernet cable.

Now, the Hardware Installation is complete.

6

Handbook

OWL550 Enterprise Access Point

ENGLISH

Getting Started

IP Address

192.168.1.1

Subnet Mask

255.255.255.0

4ipnet OWL550 supports web-based configuration. Upon the completion of hardware installation, Access Point can be configured through a PC by using its web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0 and above.

The default values of LAN IP address and subnet mask of OWL550 are:

Steps:

1. To access the web management interface, connect the administrator PC to the LAN port of OWL550 via an Ethernet cable. Then, set a static IP address on the same subnet mask as OWL550 in TCP/IP of your PC, such as the following example:

IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0

2. Launch the web browser on your PC by entering the IP address of OWL550 (http://192.168.1.1) at the address field, and then press Enter.

Example of entering OWL550's default IP Address via a web browser

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields, and then click Login.

Administrator Login Page

7

Handbook

 It is strongly recommended to make a backup copy of the configuration settings.

After OWL550's network configuration is completed, please remember to change the IP Address of your PC Connection Properties back to its original settings in order to ensure that your PC functions properly in its real network environments.

ENGLISH

OWL550 Enterprise Access Point

4. After a successful login into OWL550’s Web user interface (Web UI), a System Overview page of web management interface will appear, as depicted below.

The Web Management Interface - System Overview Page

Congratulations!

Now, 4ipnet OWL550 is installed and configured successfully.

P/N: V34320180416
