2.4GHz/5 GHz MIMO Access Point (AP) with the
best price/ performance for business and industrial
applications and is compliant with the latest
industrial wireless security standards that are
required in the tightly secured enterprise network
environments.
EAP747 makes the wireless communication fast,
secure and easy. It supports business grade
security such as 802.1X, and Wi-Fi Protected
Access (WPA and WPA2). By pushing a purposely
built button, the 4ipWES (Press-n-Connect)
feature makes it easy to bridge wireless links of
multiple EAP747s for forming a wider wireless
network coverage.
EAP747 also features multiple ESSIDs with VLAN
tags and multiple Virtual APs; great for enterprise
1. 4ipnet EAP747 x 1
2. Quick Installation Guide (QIG) x 1
3. CD-ROM
(with User’s Manual and QIG) x 1
4. Ethernet Cable x 1
5. Power Adapter (DC 12V) x 1 (Optional)
6. Mounting Kit x 1
It is recommended to keep the original
packing material for possible future shipment
when repair or maintenance is required. Any
returned product should be packed in its
original packaging to prevent damage during
delivery.
applications, such as separating traffic from different
departments using different ESSIDs. The PoE
Uplink port is able to receive power from Power over
Ethernet (PoE) sourcing devices.
This Quick Installation Guide provides instructions
and reference materials to get you started with
4ipnet EAP747.
Attach the power adapter here.
Press once to restart the system; Press and hold for more than 5 seconds to
reset to factory default.
WDS Easy Setup. Press the button to build up a WDS link with another peer.
4 LED lights are available. What the numbers stand for is listed at the bottom of
the panel.
Offers uplink connection. This port can be used to connect to a controller,
gateway, or directly to the Internet. PoE is also supported
Attach Ethernet cables here to connect to the wired local network.
The telephone line can bypass if the EAP747 is placed on the socket.
Please follow the steps mentioned below to install the hardware of EAP747:
1. Place the EAP747 at the best location.
a) The best location for EAP747 is usually at the center of your intended wireless network.
b) If admin would like to mount the EAP747 on the wall (on a socket), the figure below indicates how the
mounting kit can be used on the back of the device. Screw the panel to the EAP747, and then turn the panel
clockwise to fasten it with the AP.
2. Connect the EAP747 to your network device.
Connect one end of the Ethernet cable to the Uplink port of EAP747 and the other end of the cable to a switch,
a router, or a hub. EAP747 is then connected to your existing wired LAN network.
There are two ways to supply power over to EAP747.
3. Connect the DC power adapter to the EAP747 power socket.
EAP747 Uplink port is capable of receiving DC currents. Connect an IEEE 802.3af-compliant PSE device (e.g.
a PoE-switch) to the Uplink port of EAP747 with the Ethernet cable.
Now, the Hardware Installation is complete. For more information on installing the wall and ceiling mount kit,
please refer to the Mounting Kit Installation Guide provided.
Using a different power adapter may damage this system.
To verify the wired connection betwee n EAP747 and you switch / router / hub, please also
check the LED status indicator of the respective network devices.
4ipnet EAP747 supports web-based configuration. When hardware installation is complete, EAP747 can be
configured through a PC by using a web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0
and above.
The default values of LAN IP address and subnet mask of EAP747 are:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Steps:
1. To access the Web Management Interface, connect the administrator PC to the LAN port of EAP747 via
an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP747 in TCP/IP of your
PC, such as the following example:
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
2. Launch the web browser on your PC by entering the IP address of EAP747 (https://192.168.1.1) in the
address field, and then press Enter.
Example of entering EAP747's default IP Address via a web browser
3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,
and then click Login.
4. After a successful login to EAP747, a System Overview page of the Web Management Interface will
appear, as depicted below.
The Web Management Interface - System Overview Page
5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the
Administrator Login Page. Click OK to logout.
Click on the Utilities icon on the main menu, and select the Change Password tab.
Enter the old password and then a new password with a length of up to 32 characters, and retype it in
Step 2. Configure General AP (Access Point) Settings
EAP747 Enterprise Access Point ENGLISH
Wireless General Settings Page
Click on the Wireless icon on the main menu, and then select the General tab.
Determine the Band and Channel settings:
Select your preferred Band and Channel for you wireless connection. For example, select
802.11g+802.11n for the band and 6for the channel.
Admin should be aware of Dynamic Frequency Selection (DFS) mandated on some channels of the
5GHz band. When an EAP747 detects interference, this mechanism will limit the ability to broadcast
the SSID on one of the channels listed below:
EAP747 supports up to 8 virtual APs (VAPs).
Configure VAP profile settings:
(a) Select the VAP Configuration tab to configure the settings of the desired VAP.
(b) Enable a specific VAP from the drop-down menu of Profile Name and configure related settings
below.

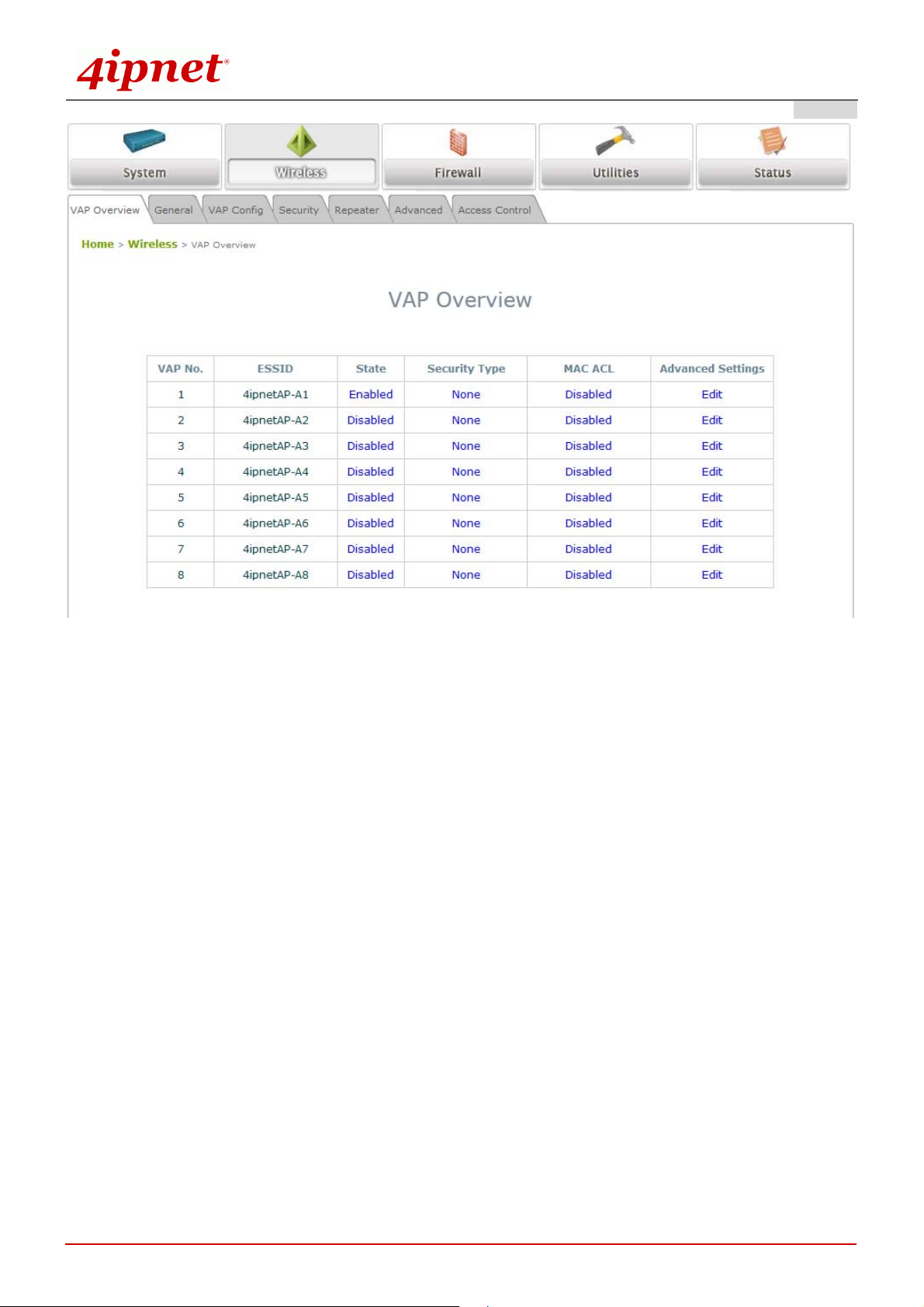

Check VAP status:
After finishing VAP configuration, the status of enabled Virtual APs shall be reflected on the VAP
Overview page.
Step 4. Configure WDS (Wireless Distribution System) Settings (Optional)
To extend the wireless coverage, EAP747 supports up to 4 WDS links for connecting wirelessly to other
WDS-capable APs (peer APs). By default, all WDS profiles are disabled.
Click on the Wireless button on the main menu.
Select the Repeater Settings tab.
Choose WDS as the Repeater Type.
Choose the desired WDS profile:
(a) Enable WDS.
(b) Enter the MAC Address (peer AP) and then Click SAVE.
If you are using another EAP747 as the peer AP, simply repeat the above-mentioned steps to configure
another peer AP(s).
On each and every configuration page, you may click SAVE to save the changes of your configured
Note:
settings, but you must reboot the system for the changes to take effect. After clicking SAVE, the
following message will appear: “Some modifications have been saved and will take effect after
Reboot.”
Congratulations!
Now, 4ipnet EAP747 is installed and configured successfully.
After EAP747's network configuration is completed, please remember to change the IP Address of
your PC Connection Properties back to its original settings in order to ensure that your PC functions
properly in its real network environments.
It is strongly recommended to make a backup copy of your configuration settings.
For further configuration and backup information, please refer to the User’s Manual.
