4IPNET EAP330 User Manual

EAP330

Enterprise Access Point

Handbook

i

To download up-to-date version, please visit www.4ipnet.com.

EAP330 Enterprise Access Point ENGLISH

Copyright Notice

This document is protected by USA copyright laws and other laws. Besides, the

document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,

publish, display, perform, or modify any part of this publication in any form or by any

means without prior written permission from 4IPNET, INC. You may not alter or remove any

copyright or other notice from copies of the content. All other brand and product names

are claimed or registered marks of their respective companies or organizations.

Handbook

ii

EAP330 Enterprise Access Point ENGLISH

FCC CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. ※ FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the

potential for harmful interference to co-channel Mobile Satellite systems.

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Handbook

iii

根據 NCC 低功率電波輻射性電機管理辦法規定:

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或

變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

在 5.25 ~ 5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。

EAP330 Enterprise Access Point ENGLISH

CE CAUTION

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for European Community, Switzerland, Norway, Iceland, and Liechtenstein Model: EAP330

For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.

• Radio: EN 300.328

:

• EMC: EN 301.489-1, EN 301.489-17,

• EMC: EN 55022 Class B, EN 55024:+ A1 + A2 including the followings:

EN 61000-3-2, EN 61000-3-3. EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

• Safety: EN 60950-1 + A11,

Caution:

 This declaration is only valid for configurations (combinations of software, firmware, and hardware)

provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.

European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range

2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory authority for compliance.

Taiwan NCC Statement

減少電磁波影響，請妥適使用

Handbook

1

Preface

Package Contents

4ipnet EAP330 is a high-end, dual radio 802.11 b/g/n + ac MIMO Access Point (AP) with the best performance for business and industrial applications and is compliant with the latest industrial wireless security standards that are required in the tightly secured enterprise network environments. EAP330 makes the wireless communication fast, secure and easy. It supports business grade security such as 802.1X, and Wi-Fi Protected Access (WPA and WPA2). The EAP330 supports multiple point-to-point wireless links to form wider wireless network coverage. EAP330 also features multiple ESSIDs with VLAN tags and multiple Virtual APs; great for enterprise applications, such as separating traffic from different departments using different ESSIDs. The PoE Uplink port is able to receive power from Power over Ethernet (PoE) sourcing devices. This Handbook provides instructions and reference materials to get you started with 4ipnet EAP330.

1. 4ipnet EAP330 x 1

2. Handbook x 1

3. Power Adaptor (12V) x 1

4. Detachable Antenna x 6

It is recommended to keep the original

packing material for possible future shipment when repair or maintenance is required. Any returned product should be packed in its original packaging to prevent damage during delivery.

EAP330 Enterprise Access Point ENGLISH

Handbook

2

System Overview

1.

External Antenna

External antennas via SMA connectors. A(1), A(2) and A(3) corresponds to Ant1, Ant2 and Ant3 of 2.4G; B(1), B(2) and B(3) corresponds to Ant1, Ant2 and Ant3 of 5G.

2.

12V 2.5 A

Attach power adaptor here.

3.

Uplink (PoE) Port

Offers uplink connection. This port can be used to connect to a controller, gateway, or directly to the Internet. 802.3at PoE is also supported.

4.

LAN 1 Port

The ports for connections with LAN side devices.

5.

USB Port

USB interface reserved for future use.

6.

WES Buttons

For IT administrators to easily setup WDS links with RF Card (A).

EAP330 Enterprise Access Point ENGLISH

Handbook

3

7.

Restart / Reset

Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds.

8.

WES Buttons

For IT administrators to easily setup WDS links with RF Card (B).

9.

Console Port

To access EAP330 via the console interface.

10.

LED Indicator

An LED indicator is available to show the power status.

11.

K-Slot

Use Kensington lock for anti-theft purpose.

EAP330 Enterprise Access Point ENGLISH

Handbook

4

Hardware Installation

Please use only the power adapter supplied with the EAP330 package. Using a different power adapter may damage this system.

 Using a different power adapter may damage this system.  To verify the wired connection between EAP330 and you switch / router / hub, please also

check the LED status indicator of the respective network devices.

EAP330 Enterprise Access Point ENGLISH

Please follow the steps mentioned below to install the hardware of EAP330:

1. Place the EAP330 at the best location.

The best location for EAP330 is usually at the center of your intended wireless network.

2. Connect the EAP330 to your network device.

Connect one end of the Ethernet cable to the Uplink port of EAP330 and the other end of the cable to a switch, a router, or a hub. EAP330 is then connected to your existing wired LAN network.

3. There are two ways to supply power over to EAP330.

(a) Connect the DC power adapter to the EAP330 power socket.

(b) EAP330 Uplink port is capable of receiving DC currents. Connect an IEEE 802.3at-compliant PSE

device, e.g. a PoE-switch, to the Uplink port of EAP330 with the Ethernet cable.

Now, the Hardware Installation is complete.

Handbook

5

Getting Started

EAP330 Enterprise Access Point ENGLISH

4ipnet EAP330 supports web-based configuration. When hardware installation is complete, EAP330 can be configured through a PC by using a web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0 and above.

The default values of LAN IP address and subnet mask of EAP330 are:

IP Address: 192.168.1.1 Subnet Mask: 255.255.255.0

Steps:

1. To access the Web Management Interface, connect the administrator PC to the Uplink port of EAP330 via an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP330 in TCP/IP of your PC, such as the following example:

IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0

2. Launch the web browser on your PC by entering the IP address of EAP330 (http://192.168.1.1) in the address field, and then press Enter.

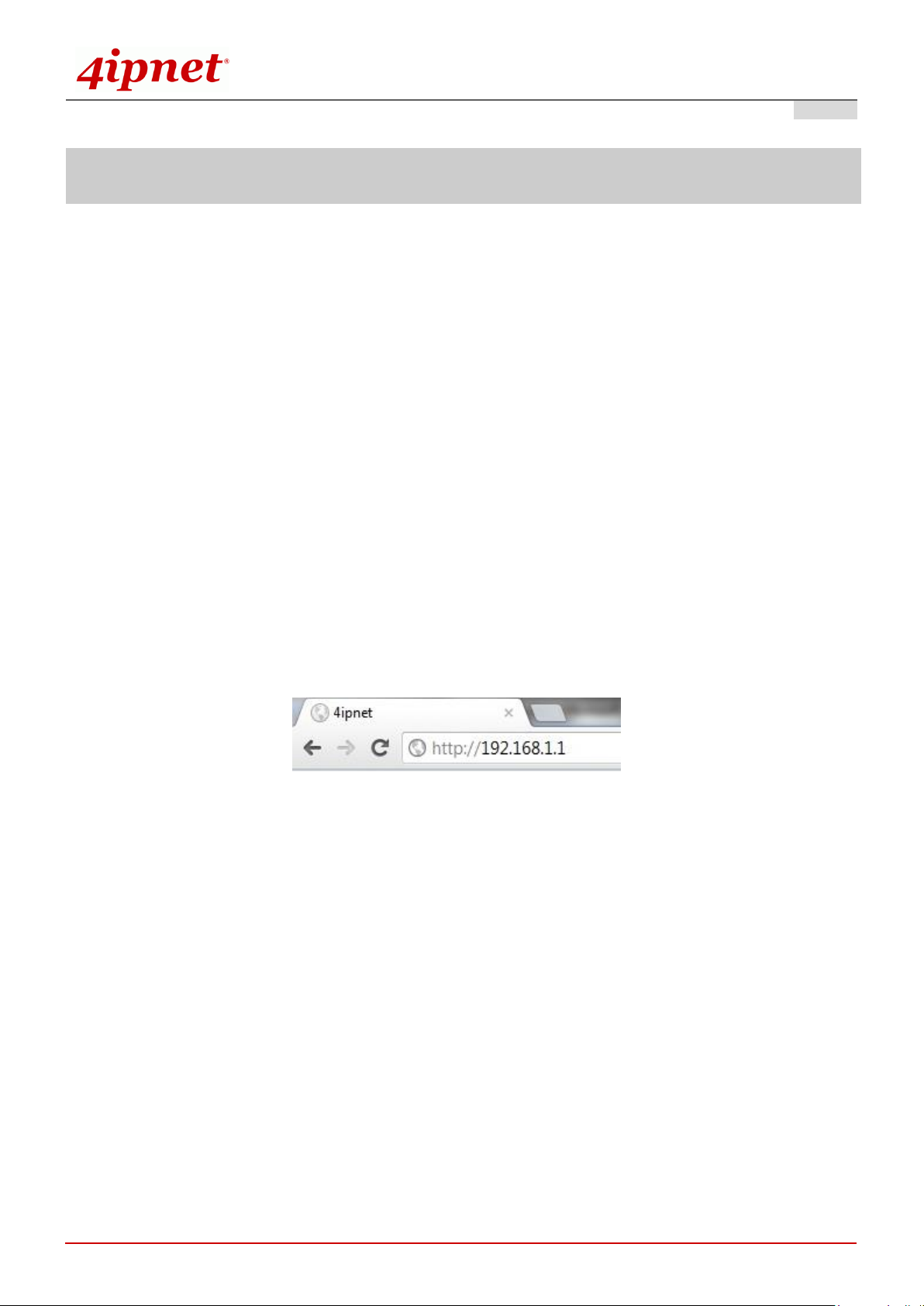

Example of entering EAP330's default IP Address via a web browser

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields, and then click Login.

Handbook

6

EAP330 Enterprise Access Point ENGLISH

Administrator Login Page

4. After a successful login to EAP330, a System Overview page of the Web Management Interface will appear, as depicted below.

The Web Management Interface - System Overview Page

5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the Administrator Login Page. Click OK to logout.

Handbook

7

Common Settings

Step 1. Change Administrator’s Password

EAP330 Enterprise Access Point ENGLISH

Change Password Page

 Click on the Utilities icon on the main menu, and select the Change Password tab.  Enter a new password with a length of up to 32 characters, and retype it in the Re-enter New

Password field.

 Click SAVE to save the changes.

Handbook

8

Step 2. Configure General AP (Access Point) Settings

EAP330 Enterprise Access Point ENGLISH

Wireless General Settings Page

 Click on the Wireless icon on the main menu, and then select the General tab.  Determine the Band, Protocol and Channel settings:

Select your preferred Band, Protocol and Channel for you wireless connection. For example, select

2.4GHz for the band, 802.11g+802.11n for the protocol and 6 for the channel.

Handbook

9

 Note:

Admin should be aware of Dynamic Frequency Selection (DFS) mandated on some channels of the 5GHz band. When an EAP330 detects interference, this mechanism will limit the ability to broadcast the SSID on one of the channels listed below:

1) Country Code: 841 (US)

DFS Channels: 52 56 60 64 100 104 108 112 116 132 136 140 149 153 157 161 165

2) Country Code: 250 (EU) DFS Channels: 52 56 60 64 100 104 108 112 116 120 124 128 132 136 140

EAP330 Enterprise Access Point ENGLISH

Handbook

10

EAP330 Enterprise Access Point ENGLISH

Step 3. Configure VAP (Virtual Access Point) Profile Settings

VAP Configuration Page (VAP-1 shown)

 EAP330 supports up to 16 virtual APs (VAPs) per RF Card.  Configure VAP profile settings：

(a) Select the VAP Config tab to configure the settings of the desired VAP. (b) Enable a specific VAP from the drop-down menu of Profile Name and configure related settings below.

 Check VAP status：

After finishing VAP configuration, the status of enabled Virtual APs shall be reflected on the VAP Overview page.

Handbook

11

EAP330 Enterprise Access Point ENGLISH

Virtual AP Overview Page

Handbook

12

 Note:

On each and every configuration page, you may click SAVE to save the changes of your configured settings, but you must reboot the system for the changes to take effect. After clicking SAVE, the following message will appear: “Some modifications have been saved and will take effect after APPLY.”

EAP330 Enterprise Access Point ENGLISH

Step 4. Configure WDS (Wireless Distribution System) Settings (Optional)

To extend the wireless coverage, EAP330 supports up to 8 WDS links per RF card for connecting wirelessly to other WDS-capable APs, or peer APs. By default, all WDS profiles are disabled.

 Click on the Wireless button on the main menu.  Select the Repeater Settings tab.  Choose WDS as the Repeater Type.  Choose the desired WDS profile:

(a) Enable WDS. (b) Enter the Remote AP MAC Address (peer AP) and then Click SAVE.

If you are using another EAP330 as the peer AP, simply repeat the above-mentioned steps to configure another peer AP(s).

Handbook

13

After EAP330's network configuration is completed, please remember to change the IP Address of your PC Connection Properties back to its original settings in order to ensure that your PC functions properly in its real network environments.

 It is strongly recommended to make a backup copy of your configuration settings.

Congratulations!

Now, 4ipnet EAP330 is installed and configured successfully.

EAP330 Enterprise Access Point ENGLISH

P/N: V10020160329
