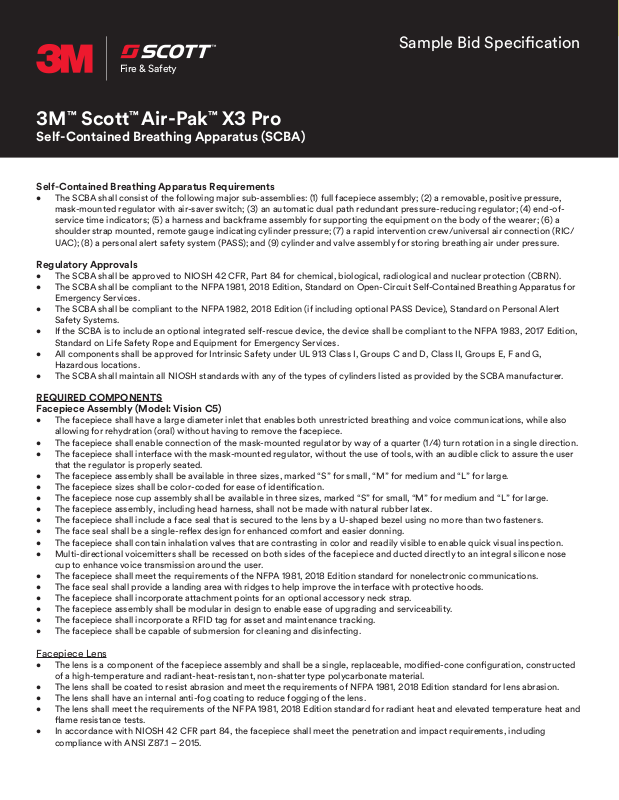

3M™ Scott™ Air-Pak™ X3 Pro

Self-Contained Breathing Apparatus (SCBA)

Self-Contained Breathing Apparatus Requirements

• The SCBA shall consist of the following major sub-assemblies: (1) full facepiece assembly; (2) a removable, positive pressure,
mask-mounted regulator with air-saver switch; (3) an automatic dual path redundant pressure-reducing regulator; (4) end-of­service time indicators; (5) a harness and backframe assembly for supporting the equipment on the body of the wearer; (6) a
shoulder strap mounted, remote gauge indicating cylinder pressure; (7) a rapid intervention crew/universal air connection (RIC/
UAC); (8) a personal alert safety system (PASS); and (9) cylinder and valve assembly for storing breathing air under pressure.

Regulatory Approvals

• The SCBA shall be approved to NIOSH 42 CFR, Part 84 for chemical, biological, radiological and nuclear protection (CBRN).

• The SCBA shall be compliant to the NFPA 1981, 2018 Edition, Standard on Open-Circuit Self-Contained Breathing Apparatus for

Emergency Services.

• The SCBA shall be compliant to the NFPA 1982, 2018 Edition (if including optional PASS Device), Standard on Personal Alert
Safety Systems.

• If the SCBA is to include an optional integrated self-rescue device, the device shall be compliant to the NFPA 1983, 2017 Edition,
Standard on Life Safety Rope and Equipment for Emergency Services.

• All components shall be approved for Intrinsic Safety under UL 913 Class I, Groups C and D, Class II, Groups E, F and G,
Hazardous locations.

• The SCBA shall maintain all NIOSH standards with any of the types of cylinders listed as provided by the SCBA manufacturer.

REQUIRED COMPONENTS
Facepiece Assembly (Model: Vision C5)

• The facepiece shall have a large diameter inlet that enables both unrestricted breathing and voice communications, while also
allowing for rehydration (oral) without having to remove the facepiece.

• The facepiece shall enable connection of the mask-mounted regulator by way of a quarter (1/4) turn rotation in a single direction.

• The facepiece shall interface with the mask-mounted regulator, without the use of tools, with an audible click to assure the user

that the regulator is properly seated.

• The facepiece assembly shall be available in three sizes, marked “S” for small, “M” for medium and “L” for large.

• The facepiece sizes shall be color-coded for ease of identication.

• The facepiece nose cup assembly shall be available in three sizes, marked “S” for small, “M” for medium and “L” for large.

• The facepiece assembly, including head harness, shall not be made with natural rubber latex.

• The facepiece shall include a face seal that is secured to the lens by a U-shaped bezel using no more than two fasteners.

• The face seal shall be a single-reex design for enhanced comfort and easier donning.

• The facepiece shall contain inhalation valves that are contrasting in color and readily visible to enable quick visual inspection.

• Multi-directional voicemitters shall be recessed on both sides of the facepiece and ducted directly to an integral silicone nose

cup to enhance voice transmission around the user.

• The facepiece shall meet the requirements of the NFPA 1981, 2018 Edition standard for nonelectronic communications.

• The face seal shall provide a landing area with ridges to help improve the interface with protective hoods.

• The facepiece shall incorporate attachment points for an optional accessory neck strap.

• The facepiece assembly shall be modular in design to enable ease of upgrading and serviceability.

• The facepiece shall incorporate a RFID tag for asset and maintenance tracking.

• The facepiece shall be capable of submersion for cleaning and disinfecting.

Facepiece Lens

• The lens is a component of the facepiece assembly and shall be a single, replaceable, modied-cone conguration, constructed
of a high-temperature and radiant-heat-resistant, non-shatter type polycarbonate material.

• The lens shall be coated to resist abrasion and meet the requirements of NFPA 1981, 2018 Edition standard for lens abrasion.

• The lens shall have an internal anti-fog coating to reduce fogging of the lens.

• The lens shall meet the requirements of the NFPA 1981, 2018 Edition standard for radiant heat and elevated temperature heat and

ame resistance tests.

• In accordance with NIOSH 42 CFR part 84, the facepiece shall meet the penetration and impact requirements, including
compliance with ANSI Z87.1 – 2015.

Head Harness

• The head harness is a component of the facepiece assembly and shall have ve points of suspension connection, four of which
shall be adjustable, made in the fashion of a net hood to minimize interference between securing of the facepiece and the wearing
of head protection.

• The head harness shall be constructed of a para-aramid material for re, rst responder and CBRN applications.

• The head harness shall include an integrated handle to assist with donning of the facepiece.

• Two elastomeric straps, attached to the face seal in four locations, shall provide adjustment for proper seal to the face.

• The head harness shall be available in three sizes to accommodate persons of varying facial shapes and sizes.

• The head harness shall be designed for easy removal from the facepiece to assist with cleaning and serviceability.

Facepiece Assembly (Model: AV-3000 HT)

• The facepiece shall have a large diameter inlet that enables both unrestricted breathing and voice communications, while also
allowing for rehydration (oral) without having to remove the facepiece.

• The facepiece shall enable connection of the mask-mounted regulator by way of a quarter (1/4) turn rotation in a single direction.

• The facepiece shall interface with the mask-mounted regulator, without the use of tools, with an audible click to assure the user

that the regulator is properly seated.

• The full facepiece assembly shall be available in three sizes, marked “S” for small, “M” for medium and “L” for large.

• The facepiece sizes shall be color-coded for ease of identication.

• The facepiece nose cup assembly shall be available in three sizes, marked “S” for small, “M” for medium and “L” for large.

• The facepiece assembly, including head harness, shall not be made with natural rubber latex.

• The facepiece shall include a face seal that is secured to the lens by a U-shaped bezel using no more than two fasteners.

• The facepiece shall contain inhalation valves that are contrasting in color and readily visible to enable quick visual inspection.

• Multi-directional voicemitters shall be recessed on both sides of the facepiece and ducted directly to an integral silicone nose cup

to enhance voice transmission around the user.

• The facepiece shall meet the requirements of the NFPA 1981, 2018 Edition standard for nonelectronic communications.

• The facepiece assembly shall be modular in design to enable ease of upgrading and serviceability.

• The facepiece shall be capable of submersion for cleaning and disinfecting.

• The facepiece shall be able to incorporate multiple electronic communications options (amplication, radio interface, radio direct

interface) without aecting NIOSH approvals and/or NFPA certication, where applicable.

• The facepiece shall enable the installation of communications bracket on either the right or left side.

• The facepiece shall be approved for use with multiple respiratory applications to enable the same user to switch from one

application to another without the use of tools and without dong the facepiece.

Facepiece Lens

• The lens is a component of the facepiece assembly and shall be a single, replaceable, modied-cone conguration, constructed of
a high-temperature and radiant-heat-resistant, non-shatter type polycarbonate material.

• The lens shall be coated to resist abrasion and meet the requirements of NFPA 1981, 2018 Edition standard for lens abrasion.

• The lens shall have an internal anti-fog coating to reduce fogging of the lens.

• The lens shall meet the requirements of the NFPA 1981, 2018 Edition standard for radiant heat and elevated temperature heat and

ame resistance tests.

• In accordance with NIOSH 42 CFR part 84, the facepiece shall meet the penetration and impact requirements, including
compliance with ANSI Z87.1 – 2015.

Head Harness

• The head harness is a component of the facepiece assembly and shall have ve points of suspension connection, four of which
shall be adjustable, made in the fashion of a net hood to minimize interference between securing of the facepiece and the wearing
of head protection.

• The head harness shall be available in an optional, adjustable ve-strap conguration.

• The head harness shall be constructed of a para-aramid material for re, rst responder and CBRN applications.

• The head harness shall include either a positioning strap or an integrated handle to assist with donning of the facepiece.

• Two elastomeric straps, attached to the face seal in four locations, shall provide adjustment for proper seal to the face.

Regulator (Model: E-Z Flo C5)

• The mask-mounted regulator shall maintain positive pressure during ows of up to 500 standard liters per minute.

• The mask-mounted regulator shall be available in a continuous hose conguration, with an optional inline quick disconnect

coupling.

• The optional quick disconnect coupling shall be easily connected and disconnected by trained individuals with a gloved hand and
in limited visibility conditions.

• The optional quick disconnect coupling shall be guarded against inadvertent disconnect during use of the equipment.

• The low-pressure hose shall be equipped with a swivel attachment at the mask-mounted regulator.

• The mask-mounted regulator shall connect to the facepiece by way of a quarter (1/4) turn rotation in a single direction.

• An audible click shall provide notication that the mask-mounted regulator is securely attached to the facepiece.

• The mask-mounted regulator shall be equipped with a gasket to provide a seal against the mating surface of the facepiece.

• The mask-mounted regulator shall reactivate and supply air only in the positive pressure mode when the wearer aects a face

seal and inhales.

• The mask-mounted regulator shall have a demand valve to deliver air to the user, activated by a diaphragm responsive to
respiration.

• The diaphragm shall include an integrated exhalation valve.

• The mask-mounted regulator shall include a purge valve for use as an emergency bypass.

• The mask-mounted regulator shall be designed to direct the incoming air through a spray bar and over the inner surface of the

facepiece lens for defogging purposes.

• The mask-mounted regulator shall incorporate a Heads-Up Display (HUD) to provide visual alerts to the SCBA user of air status
and critical alarm conditions.

• The HUD shall be recessed into the mask-mounted regulator body to help improve downward visibility through the facepiece.

• The HUD shall provide visual alerts to the SCBA wearer for electronic personnel accountability report, evacuation, and system

integrity alarm.

• The mask-mounted regulator shall incorporate status lights to assist with remote identication of a user’s SCBA air remaining.

• The mask-mounted regulator shall incorporate a latch mechanism to enable removal from the facepiece.

• When fully engaged, the latch mechanism shall act as an auto air-saver switch to stop the air ow.

• An audible click shall provide notication that the latch is fully engaged, and the air-saver switch has been activated to stop the

air ow.

• The mask-mounted regulator shall require a quarter (1/4) turn rotation in a single direction for removal from the facepiece.

Regulator (Model: E-Z Flo+)

• The mask-mounted regulator shall maintain positive pressure during ows of up to 500 standard liters per minute.

• The mask-mounted regulator shall be available in a continuous hose conguration, with an optional inline quick disconnect

coupling.

• The optional quick disconnect coupling shall be easily connected and disconnected by trained individuals with a gloved hand and
in limited visibility conditions.

• The optional quick disconnect coupling shall be guarded against inadvertent disconnect during use of the equipment.

• The low-pressure hose shall be equipped with a swivel attachment at the mask-mounted regulator.

• The mask-mounted regulator shall connect to the facepiece by way of a quarter (1/4) turn rotation.

• An audible click shall provide notication that the mask-mounted regulator is securely attached to the facepiece.

• The mask-mounted regulator shall be equipped with a gasket to provide a seal against the mating surface of the facepiece.

• The mask-mounted regulator shall contain an air-saver switch to prevent airow when disconnected from the facepiece.

• The mask-mounted regulator shall reactivate and supply air only in the positive pressure mode when the wearer aects a face

seal and inhales.

• The mask-mounted regulator shall have a demand valve to deliver air to the user, activated by a diaphragm responsive to
respiration.

• The diaphragm shall include an integrated exhalation valve.

• The mask-mounted regulator shall include a purge valve for use as an emergency bypass.

• The mask-mounted regulator shall be designed to direct the incoming air through a spray bar and over the inner surface of the

facepiece lens for defogging purposes.

• The mask-mounted regulator shall incorporate a Heads-Up Display (HUD) to provide visual alerts to the SCBA user of air status
and PASS alarm conditions.

• The mask-mounted regulator shall incorporate a latch mechanism to enable removal from the facepiece.

• The mask-mounted regulator shall require a quarter (1/4) turn rotation for removal from the facepiece.

Pressure Reducer with Snap-Change Cylinder Connection

• The pressure-reducing regulator shall be mounted at the waist on the backframe and be coupled to the cylinder valve through a
stainless steel quick connect snout for engagement and sealing within the cylinder valve outlet.

• The cylinder shall be secured to the pressure-reducing regulator with two pull-rings 180° from each other.

• A stainless-steel rod shall secure each of the pull-rings to prevent removal of the cylinder while the SCBA is pressurized.

• The stainless-steel rods shall be actuated when the cylinder is opened and when cylinder pressure is above 30 psig.

• In lieu of a manual by-pass, the pressure-reducing regulator shall include a back-up pressure-reducing valve connected in

parallel with the primary pressure-reducing valve and an automatic transfer valve for redundant control.

• The back-up pressure-reducing valve shall also be the means of activating the low-pressure alarm devices in the mask-mounted
regulator.

• This warning shall denote a switch from the primary reducing valve to the back-up reducing valve whether from a malfunction of
the primary reducing valve or from low cylinder supply pressure.

• A press-to-test valve shall be included to allow functional testing of the back-up reducing valve.

• The pressure-reducing regulator shall have incorporated a resettable over-pressurization relief valve which shall prevent the

attached low-pressure hose and mask-mounted regulator from being subjected to high pressure.

Pressure Reducer with CGA Cylinder Connection

• The pressure-reducing regulator shall be mounted at the waist on the backframe and be coupled to the cylinder valve through a
short length of internally-armored, high-pressure hose with a hand coupling for engagement and sealing within the cylinder valve
outlet.

• In lieu of a manual by-pass, the pressure-reducing regulator shall include a back-up pressure-reducing valve connected in
parallel with the primary pressure-reducing valve and an automatic transfer valve for redundant control.

• The back-up pressure-reducing valve shall also be the means of activating the low-pressure alarm devices in the facepiece­mounted mask-mounted regulator.

• This warning shall denote a switch from the primary reducing valve to the back-up reducing valve whether from a malfunction of
the primary reducing valve or from low cylinder supply pressure.

• A press-to-test valve shall be included to allow functional testing of the back-up reducing valve.

• The pressure-reducing regulator shall have incorporated a resettable over-pressurization relief valve which shall prevent the

attached low-pressure hose and mask-mounted regulator from being subjected to high pressure.

End-of-Service Time Indicator (EOSTI)

• The SCBA shall have two end-of-service time indicators (EOSTI). One shall be both a tactile and audible alarm, and one shall be
a Heads-Up Display (HUD).

• The primary EOSTI shall be the integral low-pressure alarm device that shall combine an audible alarm with simultaneous
vibration of the facepiece.

• The primary EOSTI shall be located in the positive pressure mask-mounted regulator.

• This alarm device shall indicate either low cylinder pressure (35% +/- 2%) or a malfunction of the primary pressure-reducing

valve (rst stage regulator).

• The HUD shall serve as the secondary EOSTI.

• The HUD shall be powered by the SCBA’s single power supply.

• It shall be mounted in the user’s eld of vision on the positive pressure mask-mounted regulator.

• It shall display cylinder pressure in increments of 100%, 75%, 50% and 35%.

• The display shall not have a numerical representation of cylinder pressure.

• At greater than three quarters cylinder pressure, two green Light Emitting Diodes (LED) shall be illuminated.

• At or at less than three quarters cylinder pressure, one green LED shall be illuminated.

• At or at less than one-half cylinder pressure, one “yellow” LED shall be illuminated and ash at a rate not not less than one (1x)

time per second.

• At 35% cylinder pressure, one “red” LED shall be illuminated and ash at a rate to exceed ten (10x) times per second.

• The HUD shall have a low battery indication that is distinct and distinguishable from the cylinder pressure indications.

Backframe and Harness Assembly

• A lightweight, lumbar support style backframe and harness assembly shall be used to carry the cylinder and valve assembly and
the pressure-reducing regulator assembly.

• The backframe shall be a solid, one-piece black powder-coated aluminum alloy frame that is contoured to follow the shape of the
user’s back.

• The backframe shall include a shroud to streamline hose and wire management by minimizing exposure of the low-pressure hose
and electronics molded cable.

• The backframe shall include an over-the-center, adjustable tri-slide xture, a para-aramid strap and a double-locking latch
assembly to secure 30, 45, 60, or 75-minute cylinders.

• The harness assembly shall include a waist pad and shoulder pads constructed of an outer shell material and incorporating a
closed-cell foam design to help minimize water absorption.

• The harness assembly shall incorporate parachute-type, quick-release buckles with an integrated bail to help secure the
webbing.

• The harness assembly shall consist of a one-size, black, para-aramid strap with two red stripes along the outer edges and a
reective stripe in the center for enhanced visibility.

• The harness assembly shall include a seat-belt type waist belt attachment.

• The harness assembly shall include box-stitched construction with no screws or bolts.

• The harness assembly shall be removable from the backframe without the use of tools.

• The harness assembly shall be machine washable to help with exposure reduction.

• The harness assembly shall accommodate a waist belt extension.

• The waist pad shall be attached to the backframe such that movement by the wearer provides natural articulation. Articulation

shall be accomplished without the use of mechanical devices.

• The waist pad and belt shall freely wrap around and conform to the user’s hips.

• The shoulder harness shall be tted with a Drag Rescue Loop (DRL) capable of being deployed in an emergency to drag a

downed reghter to safety.

• The DRL shall be sewn into the shoulder harness assembly and shall provide a horizontal pull strength of 1000 lbs.

• The DRL shall be stored in a manner to prevent accidental snag but maintain accessibility with gloved hands.

• The shoulder harness shall be attached to the backframe such that the harness presents itself for ease of donning.

• The shoulder harness shall include reective material to enhance the visibility of the user in low-light conditions.

• The shoulder harness shall accommodate two distinct positions for a chest strap attachment.

Rapid Intervention Crew / Universal Air Connection (RIC/UAC)

• The SCBA shall incorporate a RIC/UAC tting to be compliant with the 2018 edition of the NFPA 1981 Self-Contained Breathing
Apparatus standard.

• The RIC/UAC shall be an integral part of the pressure reducer and protected by the backframe.

• The RIC/UAC inlet connection shall be within 4” (4-inches) of the tip of the CGA threads of the cylinder valve.

• The RIC/UAC shall consist of a connection for attaching a high-pressure air source and a self-resetting relief valve allowing a

higher pressure than that of the SCBA to be attached to the SCBA.

• The self-resetting relief valve shall be color-coded to identify pressure rating of the SCBA.

• The RIC/UAC shall have a check valve to prevent the loss of air when the high-pressure air source has been disconnected.

Cylinder and Valve Assembly

• The cylinder valve shall be a “fail open” type, constructed of forged aluminum.

• There shall be no mandatory maintenance required on the cylinder valve.

• If the SCBA is equipped with a Compressed Gas Association (CGA) threaded cylinder connection, the cylinder valve outlet shall

be a modication of the CGA standard threaded connection number 346 for breathing air for 2216 psig. and CGA 347 for 4500
and 5500 psig. systems.

• If the SCBA is equipped with a Snap-Change cylinder connection, the cylinder valve shall be designed with a patented stainless
steel quick connect snout that delivers air directly to the rst stage pressure-reducing regulator. The quick connect snout shall
be an integral part of the cylinder valve, rather than an adapter that threads onto the CGA tting.

• If the SCBA is equipped with a Snap-Change cylinder connection, the cylinder valve shall be oered with a CGA 346 or CGA 347
tting for the purposes of lling the cylinder only.

• If the SCBA is equipped with a Snap-Change cylinder connection, the ll tting shall have a check valve to prevent ow from the
cylinder.

• If the SCBA is equipped with a Snap-Change cylinder connection, the ll tting shall be provided with a dust cover, retained the
the cylinder valve, to protect threads from damage and prevent interior surfaces from being contaminated when not in use.

• Each cylinder valve shall consist of the following: 1) a hand activated valve mechanism with a spring-loaded, positive action,
ratchet type safety lock and lock-out release for selecting “lock open service” or “non-lock open service”; 2) an upstream
connected frangible disc safety relief device; 3) a dual reading pressure gauge indicating cylinder pressure at all times; 4) an
elastomeric bumper; 5) an angled outlet.

• The cylinder valve shall have an RFID tag molded into the elastomeric bumper with a universal RFID marking embossment.

• The RFID tag shall be capable of storing product specic information, including serial number, manufacture date, hydrostatic test

date, pressure rating, life expectancy, and ll logs.

• The SCBA shall maintain all NIOSH and NFPA standards with any of the types of cylinders listed as provided by the SCBA
manufacturer.

Cylinder Type - Aluminum

• The cylinder shall be manufactured in accordance with Department of Transportation (DOT) specications and meet the
Transport Canada requirements with a working pressure of 2216 psig.

• The cylinder shall be made of an aluminum alloy.

• The cylinder shall be available in a 30-minute duration based on the NIOSH breathing rate of 40 liters per minute (lpm).

Cylinder Type – Carbon-Wrapped

• The cylinder shall be manufactured in accordance with Department of Transportation (DOT) specications and meet the
Transport Canada requirements with working pressures of 2216, 4500, or 5500 psig.

• The cylinder shall be lightweight, composite type cylinder consisting of an aluminum alloy inner shell, with a total overwrap of
carbon ber, berglass and an epoxy resin.

• The cylinder shall have a 2D barcode located under the protective gel coat programmed with the following information, at a
minimum: serial number, manufacture date, and hydrostatic test date.

• The cylinder shall be available in a 30-minute, 45-minute, 60-minute or 75-minute duration based on the NIOSH breathing rate
of 40 liters per minute (lpm).

• The cylinder shall be available in an approved 30-year life design as dened by the DOT Special Permit 14232.

Personal Alert Safety System (PASS) with Fireghter Locator

• The PASS Device shall be compliant to the NFPA 1982, 2018 Edition Standard on Personal Alert Safety Systems.

• Operation of this distress alarm shall be initiated with the opening of the valve of a charged SCBA cylinder.

• The system shall feature a “hands-free” reset capability that may be activated by means of a slight movement of the SCBA when

the system is in a pre-alarm mode.

• The system shall operate from a single power source containing six “AA” batteries.

• The system shall have a battery check function that provides an LED indication of battery status while the SCBA is not

pressurized.

• When the PASS is manually activated, the locator system shall immediately emit a 2.4 GHz signal able to be received by a
separate hand-held receiver.

• When the PASS is activated due to lack of motion, the locator system shall have a ten second delay prior to emitting a 2.4 GHz
signal able to be received by a separate hand-held receiver.

• The locating system shall be programmable with eight alpha-numeric characters to provide identication information.

• The PASS device shall contain two components: a Console and a Sensor Module.

• When the PASS device goes into pre-alarm, the user shall be notied through a distinct light pattern in the HUD display located

on the mask-mounted regulator.

Console

• The console shall be located on the user’s right shoulder harness.

• The control console shall come with a mechanical (analog) pressure gauge that is angled at 30°.

• The console shall contain an integral, edge-lit, mechanical pressure gauge that is automatically turned on by opening the cylinder

valve.

• The console shall display to the user the following:

- Pre-Alarm: alternating red ashing LED’s;

- Full Alarm: dual ashing red LED’s and a ashing PASS icon;

- Low Battery: red ashing LED’s;

- Normal System Operation: ashing green LED.

• The console shall contain a photo sensing diode that automatically adjust the brightness of the HUD as the ambient lighting
conditions change.

• The console shall contain an integrated RFID tag.

• The console shall contain push buttons for user interface.

• The push buttons shall be designed to minimize accidental activation.

• A yellow color-coded push button shall permit system reset.

• A red color-coded push button shall permit manual activation of the full alarm mode.

• The console shall be equipped with a LED “External HUD” allowing others to determine the user’s cylinder pressure through the

same color-code scheme as the HUD display on the mask-mounted regulator.

• A green LED shall be illuminated across the gauge face to indicate a cylinder with greater than half cylinder pressure.

• A yellow LED shall be illuminated across the gauge face to indicate a cylinder with less than half cylinder pressure.

• A red LED shall be illuminated across the gauge face to indicate a cylinder with less than 35% of the rated cylinder pressure.

Sensor Module

• The system shall include a sensor module mounted to the SCBA backframe and located in an area between the cylinder and
backframe in a manner designed to protect the assembly from damage.

• The sensor module shall contain a motion sensor that is sensitive to user hip movement to reduce false activations.

• The sensor module shall contain redundant, dual sound emitters for the audible alarm and dual visual “buddy” indicator lights.

• The sensor module sound emitters shall be oriented in multi-directions for optimal sound projection.

• The sensor module sound emitters shall broadcast a unique alarm tone for the following conditions:

- Pre-alarm PASS

- Full-alarm PASS

- Low battery

• The visual indicators on the backframe-mounted sensor module shall ash green during normal operation.

• The visual indicators shall ash red when the device is in pre-alarm and full-alarm.

• The visual indicators shall ash orange when the SCBA has reached one-half cylinder pressure.

• The visual indicators shall ash a combination of red, green, and white when the SCBA has reached 35% of the rated cylinder

pressure.

• The sensor module shall have a Bluetooth chipset integral to the unit to provide wireless connectivity to external devices.

Warranty

• The SCBA shall be covered by a warranty providing protection against defects in materials and workmanship.

• The warranty period shall be for as long as the SCBA is owned by the original purchaser.

• This warranty shall not require a registration in order to activate.

• This warranty shall not be contingent upon completing mandatory overhaul or recommended preventative maintenance.

OPTIONAL ACCESSORIES

Universal Emergency Breathing Safety System (UEBSS)

• The optional Universal Emergency Breathing Safety System (UEBSS) shall be approved to NIOSH 42CFR, Part 84 and NFPA 1981,
2018 Edition.

• The UEBSS shall have one of each of the following requirements; (1) a manifold with one each of a Rectus socket and Rectus plug,
both of which have check valves, (2) 40” minimum low-pressure hose, (3) a pouch for storing the hose, and (4) a dust cap for the
socket and plug.

• The UEBSS shall be positioned on the wearer’s right side and shall be capable of allowing for six feet of hose between like
systems.

• The manifold shall be made of aluminum and anodized.

• The socket and plug shall have spacing, no less than 15° o-center.

• The socket shall have a double action to disengage, noted as a “push-in/pull-back”.

• The socket shall have an internal check valve.

• The plug shall have an external check valve.

• The hose shall be made of high temperature rubber capable of sustaining a maximum 250 psig of pressure.

• The containment system shall include a pouch and shall be made of para-aramid materials and shall be capable of storing 36” of

hose.

• The pouch shall be attached to the SCBA by snap fasteners.

• The pouch shall have a pull-strap to assist with opening of the ap and gaining access to the hose and manifold assembly.

• The pouch shall be marked “UEBSS” and be constructed of reective material.

• The pouch shall be removable from the backframe without the use of tools.

• The UEBSS shall have provision for connection of a supplied airline for extended duration use while reserving the cylinder supply

for egress.

• The UEBSS shall connect to a supplied airline using an extended duration airline adapter.

• The extended duration airline adapter shall have a plug on one end to connect to the UEBSS and a socket on the other end to

connect to a supplied airline.

• The extended duration airline adapter shall be able to accommodate Hansen, Foster, Hansen HK, or Schrader.

• The extended duration airline adapter shall have a check valve to prevent the accidental loss of air when the adapter is
disconnected from the supplied airline.

Personal Alert Safety System (PASS) with Accountability

• The PASS device shall be compliant to the NFPA 1982, 2018 Edition Standard on Personal Alert Safety Systems.

• Operation of this distress alarm shall be initiated with the opening of the valve of a charged SCBA cylinder.

• The system shall feature a “hands-free” reset capability that may be activated by means of a slight movement of the SCBA when

the system is in a pre-alarm mode.

• The system shall operate from a single power source containing six “AA” batteries.

• The system shall have a battery check function that provides an LED indication of battery status while the SCBA is not

pressurized.

• When the PASS is manually activated, the locator system shall immediately emit a 2.4 GHz signal able to be received by a
separate hand-held receiver.

• When the PASS is activated due to lack of motion, the locator system shall have a ten second delay prior to emitting a 2.4 GHz
signal able to be received by a separate hand-held receiver.

• The locating system shall be programmable with eight alpha-numeric characters to provide identication information.

• The system shall transmit user status information at a frequency of 2.4 GHz on a self-healing mesh network system that when

deployed allows each energized SCBA to function as a repeater ensuring system connectivity.

• The system shall provide bi-directional communications between incident command and the SCBA wearer.

• The communication shall contain: the user’s name or ID, cylinder pressure, PASS alarms, PASS acknowledgement, evacuation

status, evacuation acknowledgement, withdraw status, withdraw acknowledgement, system status, and electronic PAR status.

• The PASS device shall contain two components: a Console and a Sensor Module.

• When the PASS device goes into pre-alarm, the user shall be notied through a distinct ashing light pattern in the HUD display

located on the mask-mounted regulator.

Console

• The console shall be located on the user’s right shoulder harness.

• The control console shall come with a mechanical (analog) pressure gauge that is angled at 30°.

• The console shall contain an integral, edge-lit, mechanical pressure gauge that is automatically turned on by opening the cylinder

valve.

• The console shall display to the user the following:

- Pre-Alarm: alternating red ashing LED’s;

- Full Alarm: dual ashing red LED’s and a ashing PASS icon;

- Low Battery: red ashing LED’s;

- Normal System Operation: ashing green LED.

• The console shall also include icons to indicate:

- Range status

- Evacuation

- Withdraw (self-evacuation)

- Electronic Personnel Accountability Report (ePAR)

- When the system is ready to receive the user’s ID through an RFID card

• The console shall contain a photo sensing diode that automatically adjusts the brightness of the HUD as the ambient lighting
conditions change.

• The console shall contain an integrated RFID tag.

• The console shall contain push buttons for user interface.

• The push buttons shall be designed to minimize accidental activation.

• A yellow color-coded push button shall permit system reset.

• A red color-coded push button shall permit manual activation of the full alarm mode.

• A gray color-coded push button shall permit the activation of the withdraw mode.

• The console shall be equipped with a LED “External HUD” allowing others to determine the user’s cylinder pressure through the

same color-code scheme as the HUD display on the mask-mounted regulator.

• A green LED shall be illuminated across the gauge face to indicate a cylinder with greater than half cylinder pressure.

• A yellow LED shall be illuminated across the gauge face to indicate a cylinder with less than half cylinder pressure.

• A red LED shall be illuminated across the gauge face to indicate a cylinder with less than 35% of the rated cylinder pressure.

Sensor Module

• The system shall include a sensor module mounted to the SCBA backframe and located in an area between the cylinder and
backframe in a manner designed to protect the assembly from damage.

• The sensor module shall contain a motion sensor that is sensitive to user hip movement to reduce false activations.

• The sensor module shall contain redundant, dual sound emitters for the audible alarm and dual visual “buddy” indicator lights.

• The sensor module sound emitters shall be oriented in multi-directions for optimal sound projection.

• The sensor module sound emitters shall broadcast a unique alarm tone for the following conditions:

- Pre-alarm PASS

- Full-alarm PASS

- Electronic Personnel Accountability Report (ePAR)

- EVAC

- System Integrity

- Low battery

• The visual indicators on the backframe mounted sensor module shall ash green during normal operation.

• The visual indicators shall ash red when the device is in pre-alarm and full-alarm.

• The visual indicators shall ash orange when the SCBA has reached one-half cylinder pressure.

• The visual indicators shall ash a combination of red, green, and white when the SCBA has reached 35% of the rated cylinder

pressure.

• The sensor module shall have a Bluetooth chipset integral to the unit to provide wireless connectivity to external devices.

Integrated Self-Rescue Belt

• The optional integrated self-rescue belt shall be compliant to the NFPA 1981, 2018 edition and NFPA 1983, 2017 edition
standards.

• The waist belt shall be available in one size, and adjustable to t waist sizes 28” to 50”.

• The waist belt shall be constructed of Kevlar® aramid bers.

• The waist belt shall have dual adjustment points to allow the belt to remain centered while donning.

• The waist belt shall utilize side thumb-release buckles for ease of dong.

• The waist belt shall incorporate an optional quick release feature to jettison the SCBA.

• The waist belt shall utilize the patented COBRA buckle system.

• The waist belt shall include a D-ring integrated into the front buckle that can be utilized as an NFPA 1983 rated attachment or

positioning point.

• The assembly shall consist of the following components: waist belt, life safety rope, fall descent device and anchor connector.

• The life safety rope shall be Tsafe 7.5mm escape rope utilizing a Technora sheath and nylon core construction.

• The descent device shall be an auto-locking Sterling Rope F4 Descender Escape Device with single brake.

• The system shall have an option for either an aluminum Lightning GT hook or a steel Crosby hook.

• The complete system shall have a minimum tensile strength of at least 13.5 kN (3034 lbf) without failure.

Electronic Voice Communications

• The respirator, when congured with the AV-3000 HT facepiece, shall have an optional facepiece-mounted voice amplication
device to electronically project the user’s voice.

Refer to EPIC 3 Voice Amplier Bid Specications, H/S 7093

• The respirator, when congured with the AV-3000 HT facepiece, shall have an optional facepiece-mounted radio interface
communication system that provides voice amplication and wireless communication with two-way radios.

Refer to EPIC 3 RI Voice Communication System Bid Specications, H/S 7489

• The respirator, when congured with the AV-3000 HT facepiece, shall have an optional facepiece-mounted radio direct
interface communication system that provides voice amplication and wireless communication with two-way radios.

Refer to EPIC 3 RDI Voice Communication System Bid Specications, H/S 7570

In-Mask Thermal Imager

• The respirator, when congured with the AV-3000 HT facepiece, shall have an optional hands-free, in-mask thermal imager.

• The in-mask thermal imager shall consist of a facepiece-mounted thermal imaging camera and an in-mask display.

Disclaimer: All statements, technical information and recommendations set out in this Sample Bid Specication are based on information believed
to be reliable and reect the 3M Scott product(s) referenced above, but the accuracy or completeness thereof is not guaranteed. Before utilizing this
Sample Bid Specication, the user should determine its suitability for use in the user’s specic circumstances. The user assumes all risks and liability
associated with any part of such use.

3M Scott Fire & Safety

Personal Safety Division
Monroe Center, P.O. Box 569
Monroe, NC 28111

Phone [phone]
Email [e-mail]
Web 3MScott.com

H/S 7019 RevG_EN 12/20 ISO 9001 Registered.
Please recycle. Printed in USA © 3M 2020. All rights
reserved. 3M and Scott are trademarks of 3M. All other
trademarks are the property of their respective owner.
