3M S50C, X50C User Manual
S50C/X50C
Multimedia Projector
Operator's Guide
USING THE MAGNIFY FEATURE ... 21
ACCESSORIES .............................. 39
S50C/X50C Multimedia Projector
Operator's Guide
Thank you for purchasing this projector.
CAUTION
thoroughly to ensure correct usage through understanding.
After reading, store this instruction manual in a safe place for future reference.
NOTE
• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without express
written authority.
TRADEMARK ACKNOWLEDGEMENT :
• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.
• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• All other trademarks are the property of their respective owners.
• The information in this manual is subject to change without notice.
Please read the "Product Safety Guide" and this "Operator's Guide"
CONTENTS
Page
PROJECTOR FEATURES............... 2
PREPARATIONS ............................. 2
PART NAMES.................................. 4
SETTING UP THE PROJECTOR .... 6
CONNECTING YOUR DEVICES ..... 8
USING
THE REMOTE CONTROL ........... 13

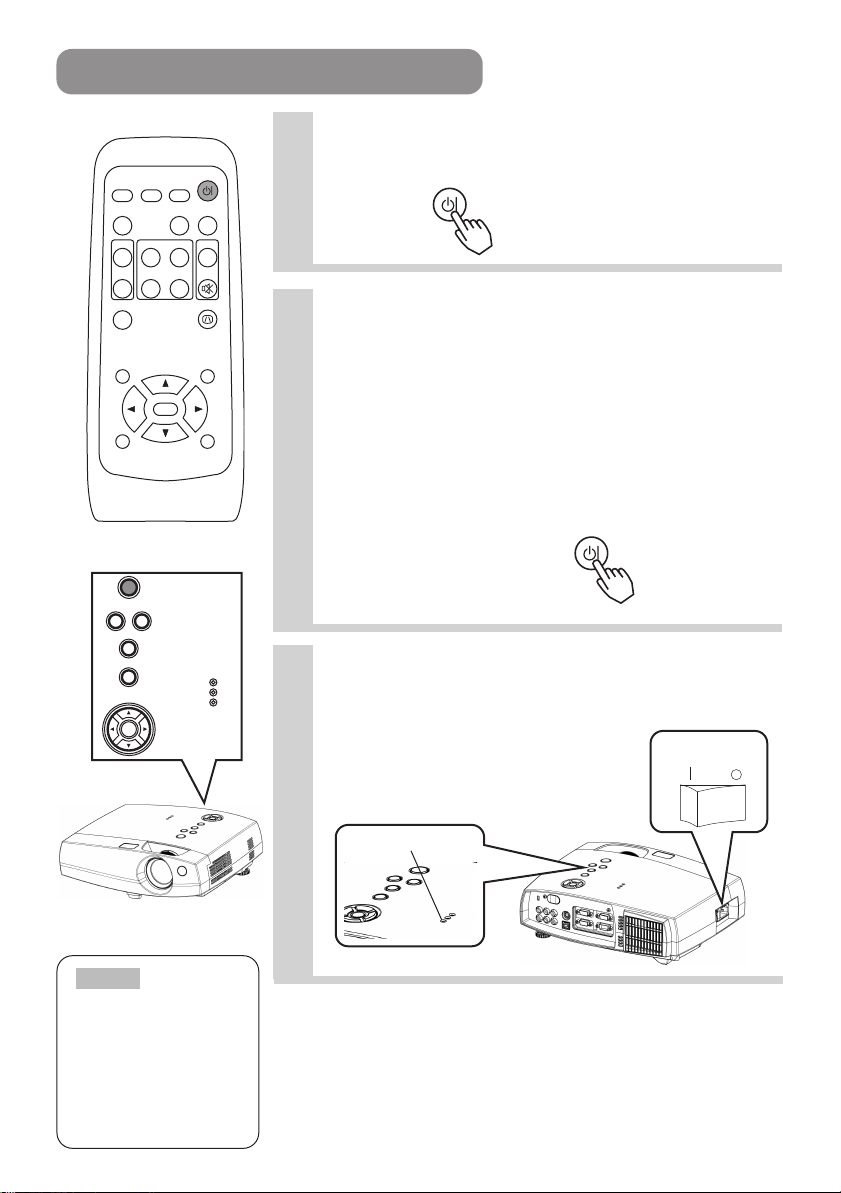

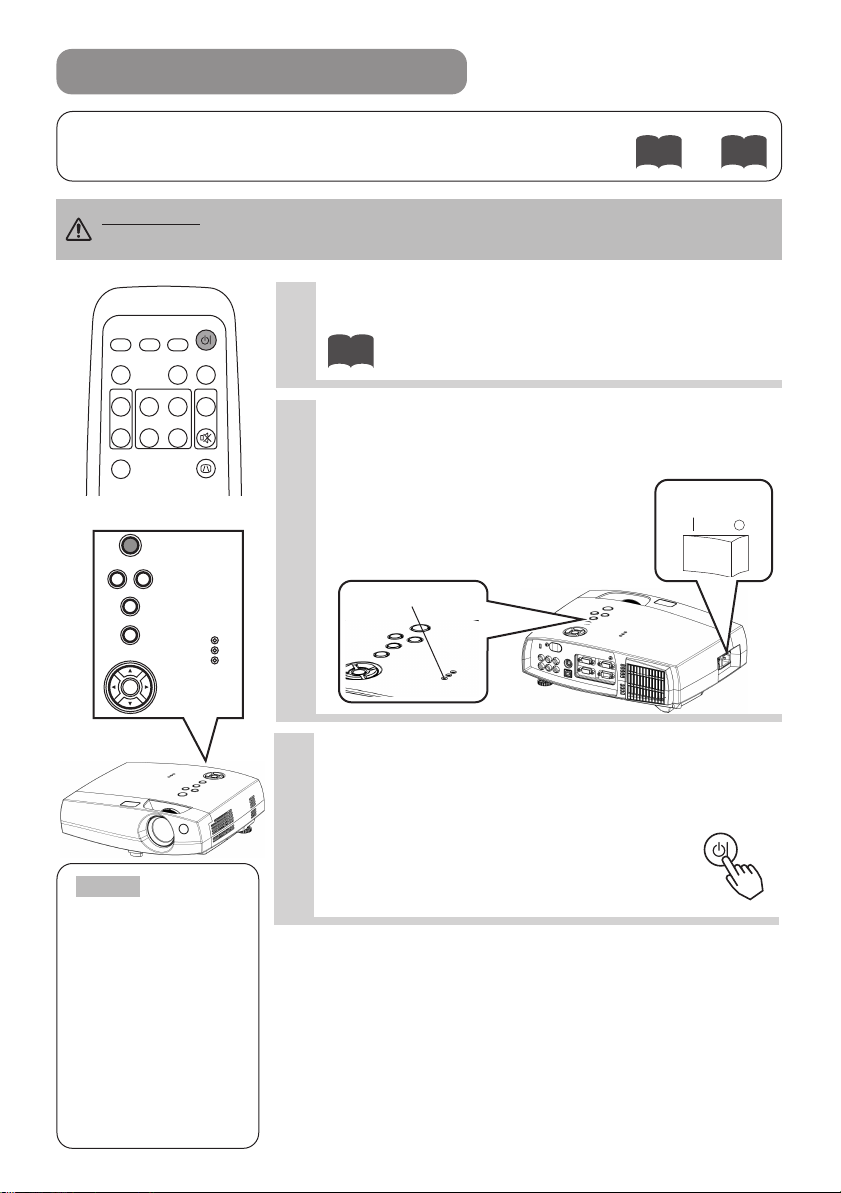

TURNING ON THE POWER .......... 14
TURNING OFF THE POWER ........ 16

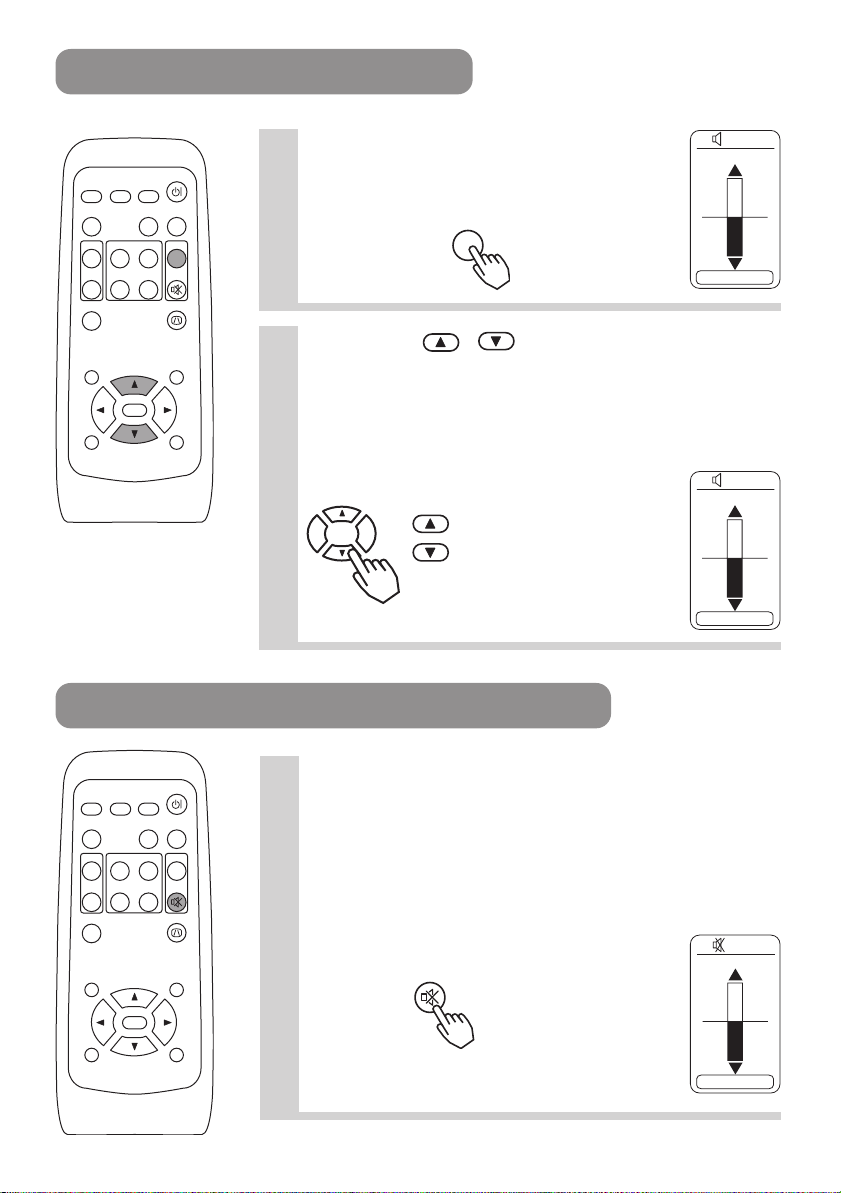

ADJUSTING THE VOLUME ........... 17
TEMPORARILY
MUTING THE SOUND ................... 17

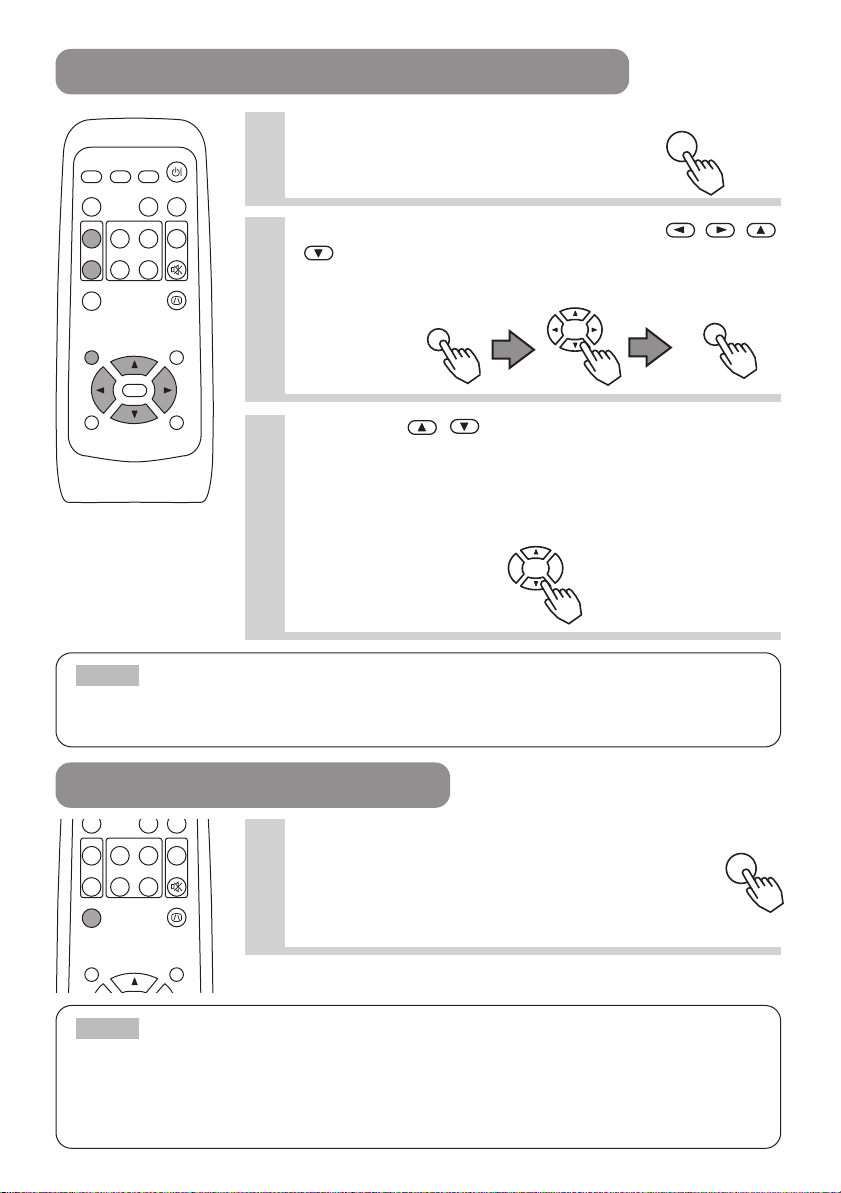

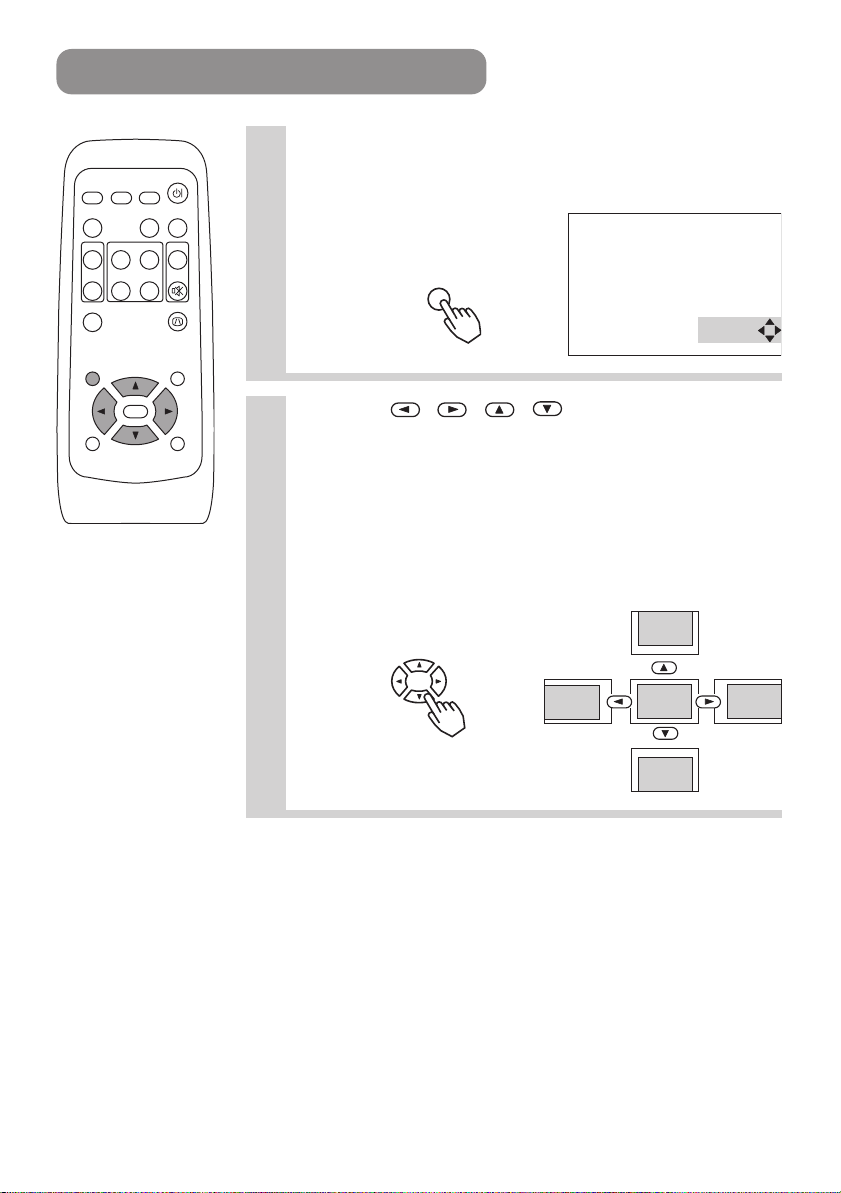

ADJUSTING THE POSITION ........ 18
USING THE AUTOMATIC
ADJUSTMENT FEATURE ........... 19

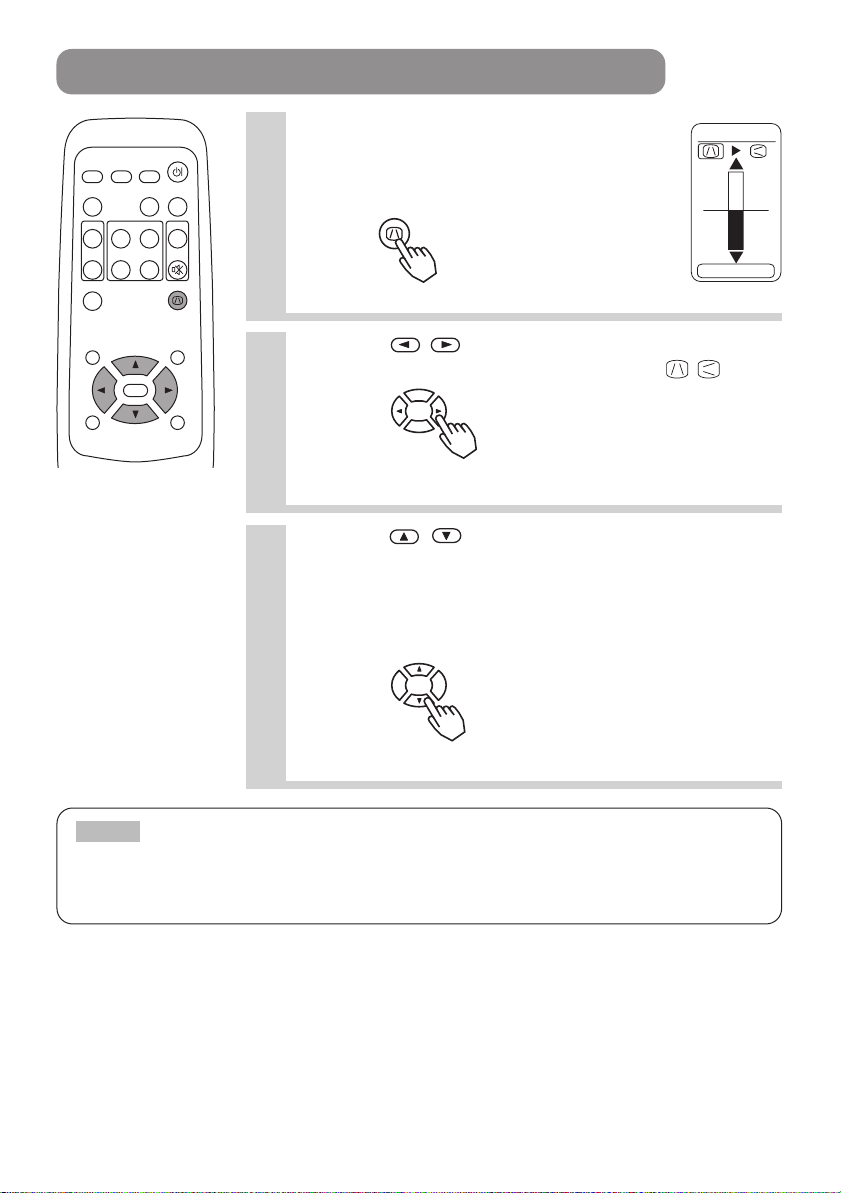

CORRECTING
KEYSTONE DISTORTIONS ......... 20

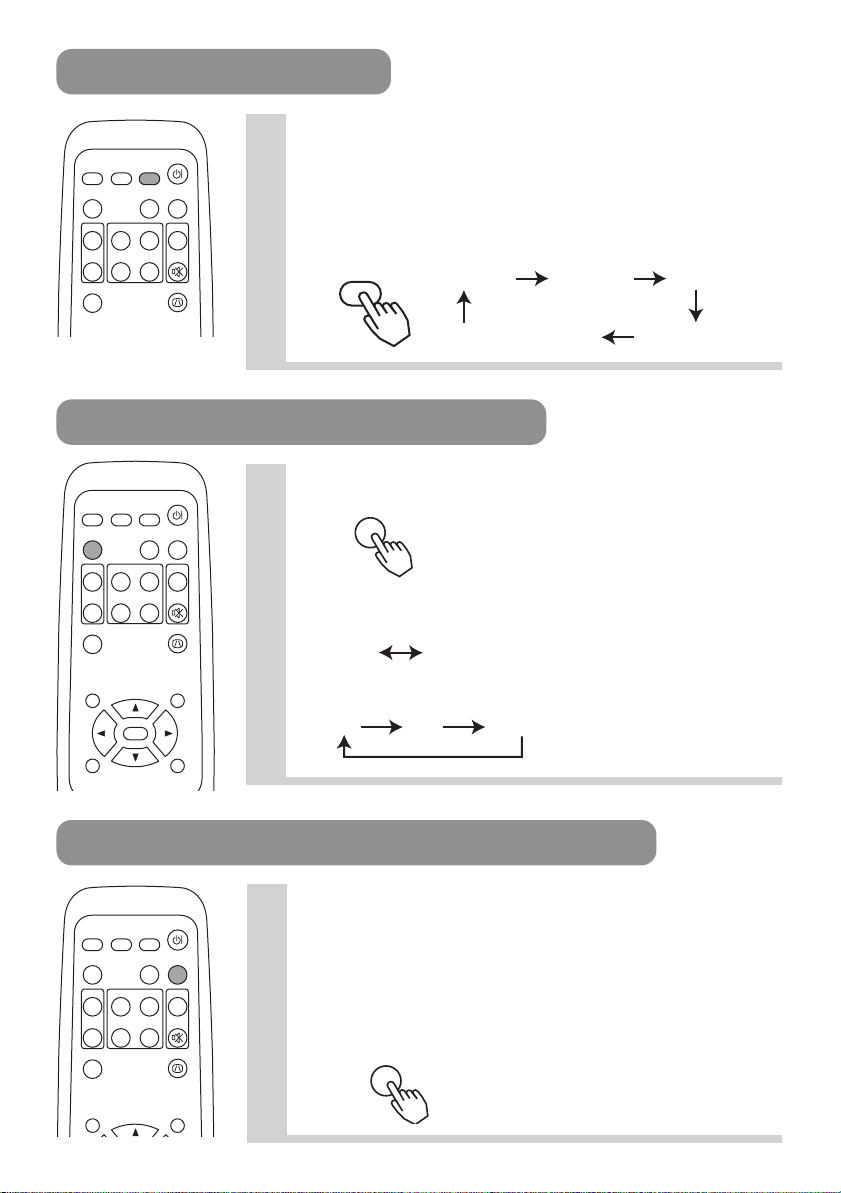

FREEZING THE SCREEN ............. 21
SIGNAL SEARCHING ................... 22
SELECTING
THE ASPECT RATIO ..................... 22
TEMPORARILY
BLANKING THE SCREEN .......... 22

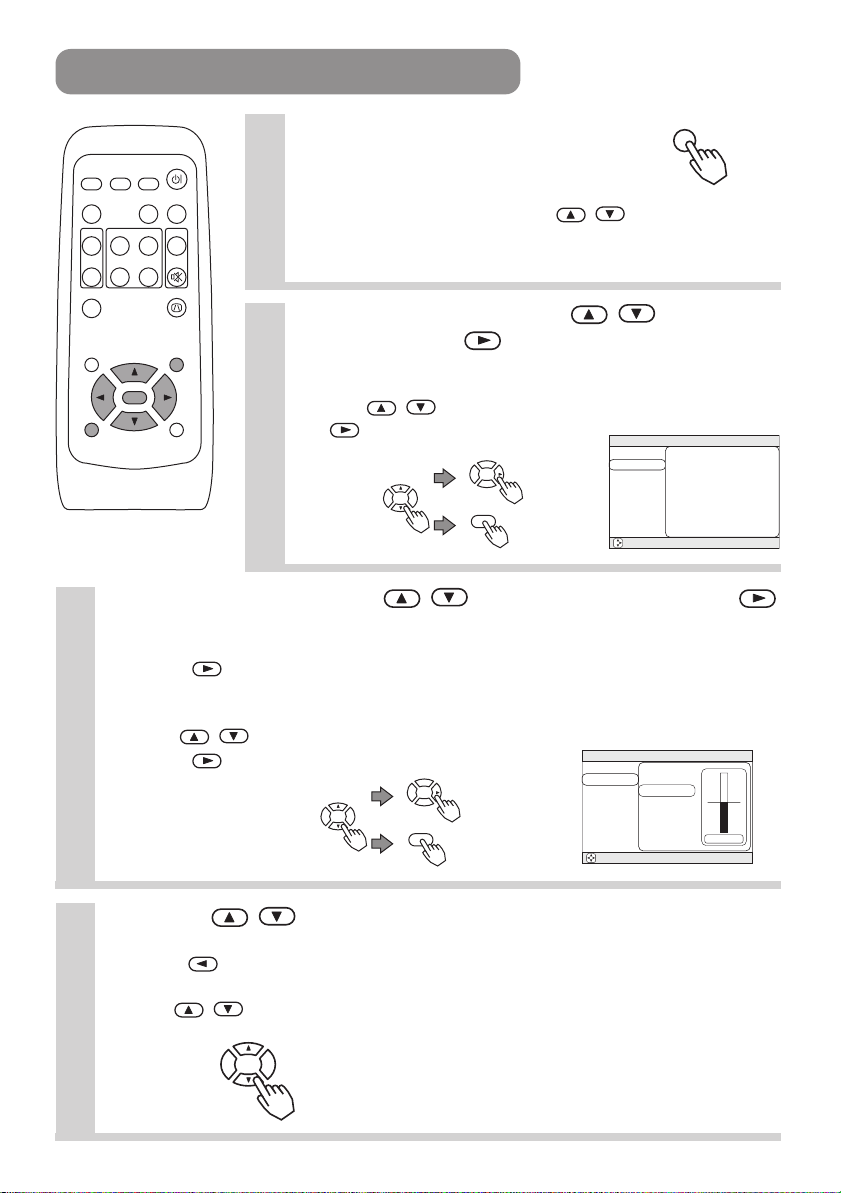

USING THE MENU FUNCTIONS .. 23
MULTIFUNCTIONAL
SETTINGS .................................... 24
OPERATING THE PC SCREEN .... 29

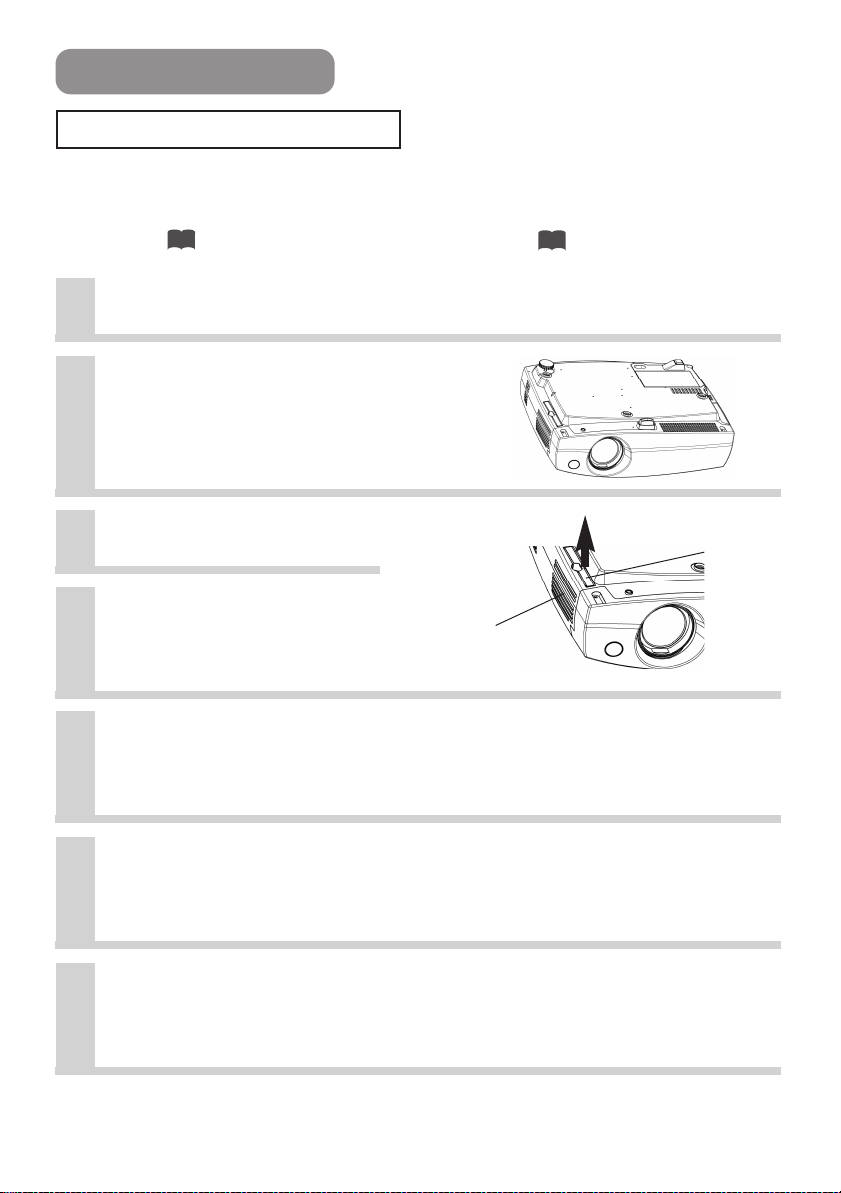

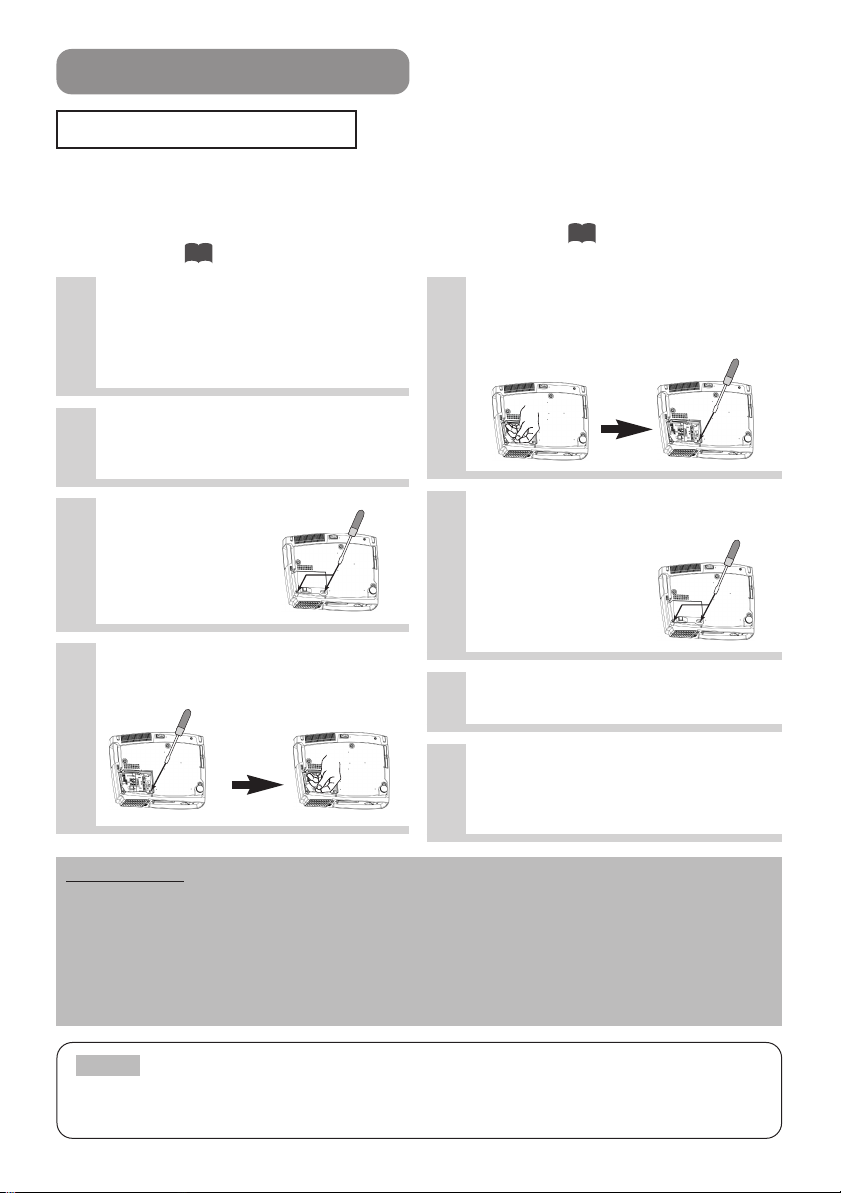

THE LAMP ..................................... 30

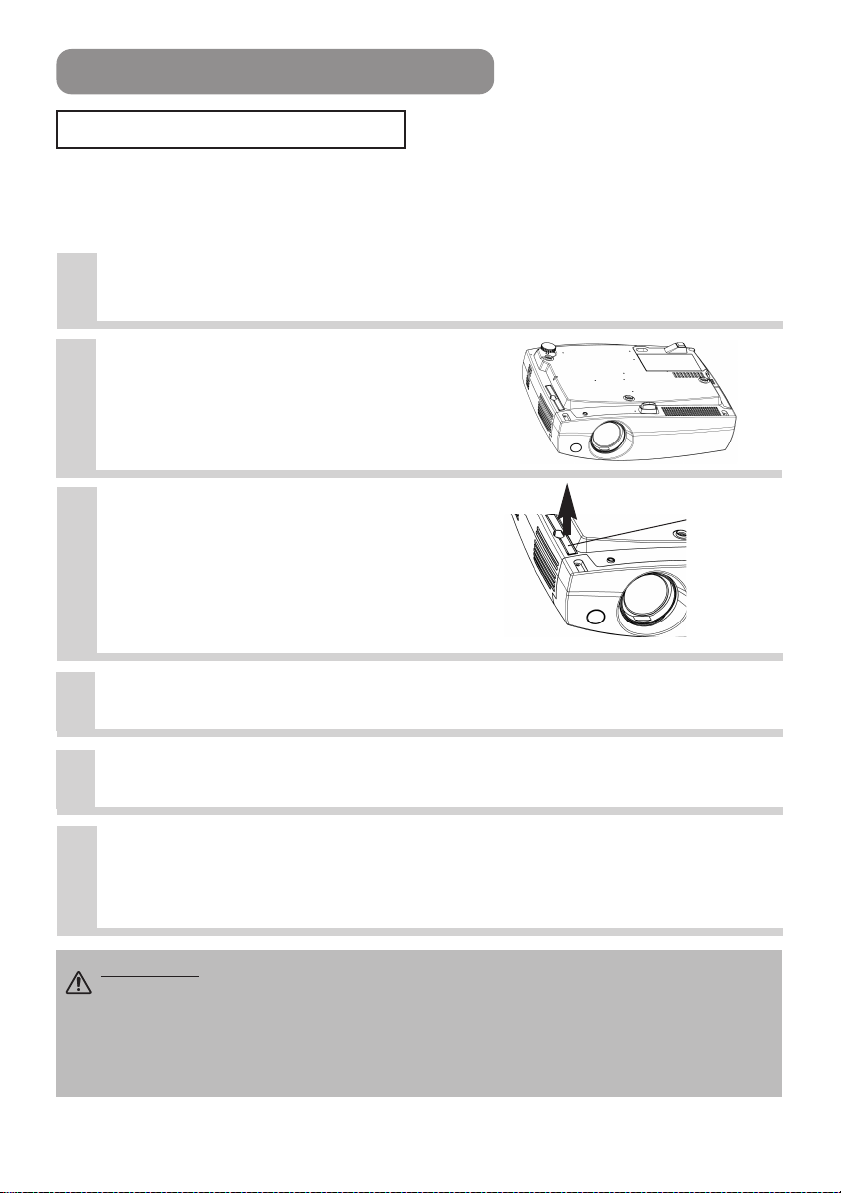

THE AIR FILTER ............................ 32
OTHER CARE ................................ 34
WHAT TO DO
WHEN YOU THINK A MACHINE
DEFECT HAS OCCURRED ......... 35

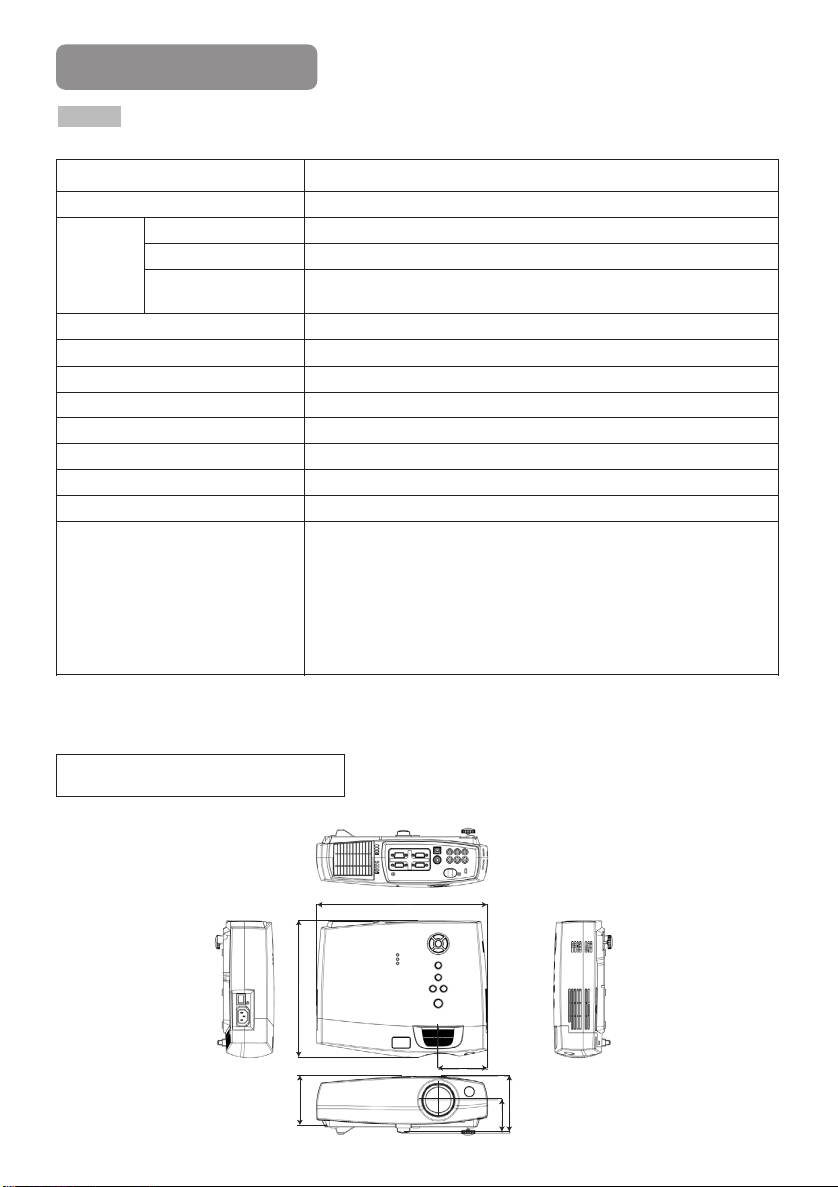

SPECIFICATIONS .......................... 38
Page
1
PROJECTOR
Product Safety Guide
Warranty
Quick Start Guide
Operator's Guide
USB mouse
cable
cable cable
(with white lead) (with green lead)
FEATURES
This liquid crystal projector is used to project
various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space
is required for installation and large images can
easily be realized.
Ultra High Brightness
●
Crisp, ultra-bright presentations is achieved
by using a UHB (ultra high brightness) lamp
and a highly efficient optical system
Partial Magnification Function
●
Interesting parts of images can be magnified
for closer viewing
PREPARATIONS
Your projector should come with the items
shown below. Check to make sure that all the
items are included. Contact your dealer if
anything is missing.
NOTE
• Keep the original packing material for future reshipment.
Power cord
(US Type)
Projector
S50/X50
Multimedia Projector
Operator's Guide
S50/X50 Projecteur multimedia - Guide de L' opérateur
S50/X50 Multimedia-Projektor - Benutzerhandbuch
S50/X50 Proyector de Multimedia - Guía del usuario
S50/X50 Proiettore Multimediale - Guida dell' operatore
S50/X50 Multimedia Projector - Gebruiksaanwijzing
S50/X50 Projector dos Multimedia - Guia da operador
S50/X50 Multimedia Projektør- Brukerhåndbok
RGB cable
Keystone Distortion Correction
●
Quick correction of distorted images electrically
Whisper Mode Equipped
●
Special mode is available for reducing
projector noise to achieve quieter operation
Power cord
(UK Type)
Power cord
(Europe Type)
Video/Audio Componet Video
STANDBY/ON
VIDEO
RGB SEARCH
ASPECT
AUTO BLANK
HOME
PAGE UP VOLUME
MAGNIFY
ON
END
PAGE DOWN
MUTE
OFF
KEYSTONEFREEZE
Two AA batteries
(for the remote
ENTER
ESC RESET
MENUPOSITION
control)
Soft case
Remote control
2
WARNING Precautions to observe in regards to the power cord: Please use extra
caution when connecting the projector's power cord as incorrect or faulty
connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the
following safety guidelines to insure safe operation of the projector:
•
Only plug the power cord into outlets rated for use with the power cord's specified voltage range.
• Only use the power cord that came with the projector.
• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-
PRONGED PLUG!
• Make sure that you firmly connect the power cord to the projector and wall outlet.
Connect your devices to the projector
1
Connect your computer, VCR and/or other
devices you will be using to the projector.

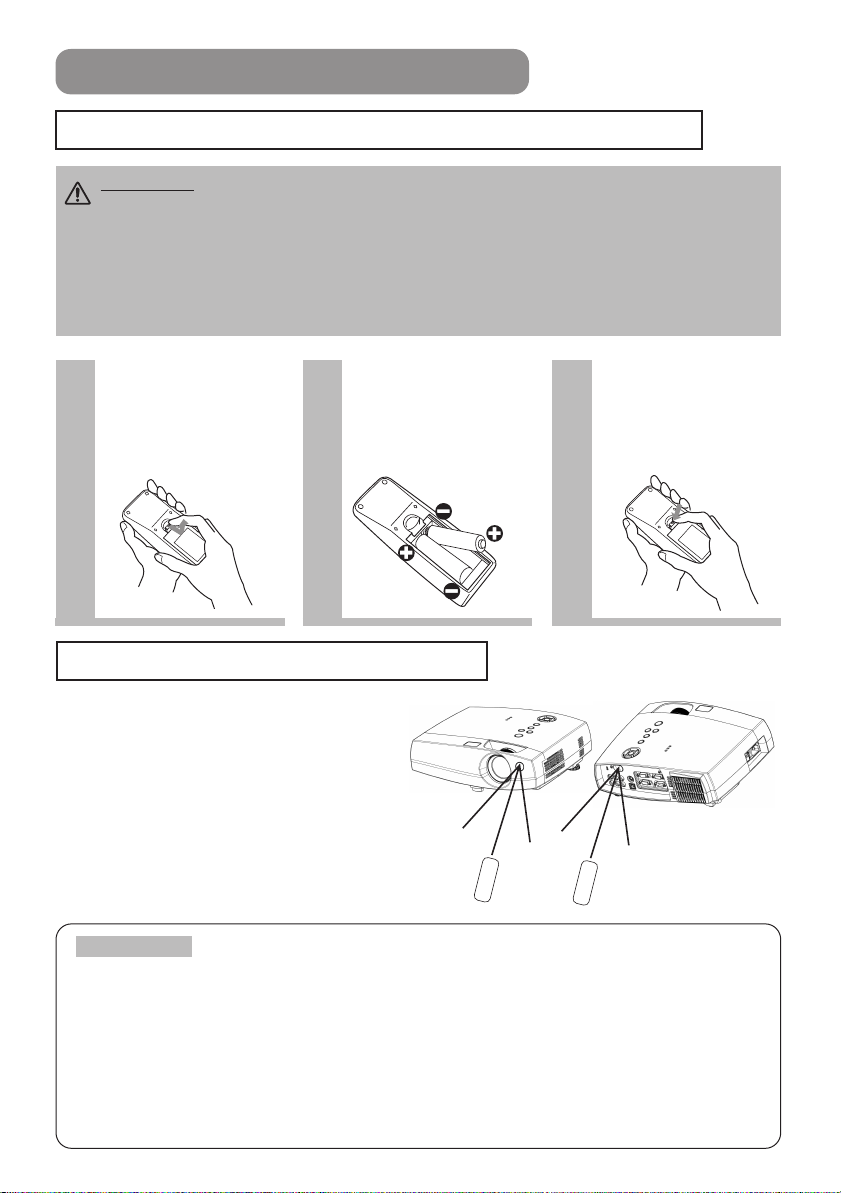

Insert the batteries into the remote
2
control
Connect the power cord
3
(1)
Connect the connector of the electrical power cord to the AC inlet of the main unit.
(2) Firmly plug the power cord's plug into the outlet
8 12
〜
13
Power outlet
(1)
(2)
Power cordAC inlet
3
PART NAMES
Focus ring
Zoom ring
Air filter
keystone button
video button
reset button
menu button
power indicator
lamp indicator
Indicates the corresponding
reference page
AC power inlet
s-video in port
rgb in 1 port
video in port
usb port
Power switch
cursor buttons
Remote sensor
Remote sensor
component video
component video
component video
CR/PR port
11
11
11
CB/PB port
Y port
11
coontrol port
10
10
11
rgb in 2 port
10
audio in L port
10
rgb out port
12
10
Elevator button
Terminal panel
rgb button
Lens
on/off button
Rear adjuster foot
Speaker
10
audio in R port
temp indicator
Elavator foot
THE PROJECTOR
,,,
23
14
3
15
32
15
6
23
20
29
15
15
14
13
6
31
32
14
4
6
13
THE REMOTE CONTROL
2
9
2
9
RGB button
VIDEO button
ASPECT button
MAGNIFY buttons
FREEZE button
15
VIDEO
15
ASPECT
22
MAGNIFY
ON
21
OFF
21
RGB SEARCH
AUTO BLANK
HOME
PAGE UP VOLUME
END
PAGE DOWN
STANDBY/ON
MUTE
KEYSTONEFREEZE
SEARCH button
22
STANDBY/ON button
14
AUTO button
19
BLANK button
22
VOLUME button
17
MUTE button
17
KEYSTONE button
20
KEYBOARD buttons
POSITION button
,,,
Cursor buttons
ESC button
18
23
23
MENUPOSITION
MENU button
23
ENTER
ESC RESET
RESET button
ENTER button
23
5
SETTING UP THE PROJECTOR
Rear Foot Adjuster
CAUTION •
of the "Product Safety Guide" and this "Operator's Guide".
• If you press the elevator button without holding the projector, the projector might
crash down, overturn, smash your fingers and possibly result in malfunction. To
prevent damaging the projector and injuring yourself, ALWAYS HOLD THE
PROJECTOR whenever using the elevator button to adjust the elevator foot.
Install the projector in a suitable environment according to instructions
Adjusting the Projector's Elevator Foot
You can use the elevator foot to make adjustments if the surface on which you
need to set the projector is uneven or if you otherwise need to adjust the angle of
projection. The adjustment range of the elevator foot is 0 to 9 degrees.
Press and hold in the elevator
1
button
Raise or lower the projector to the
2
desired height and then release the
elevator button
When you release the elevator button, the elevator
foot will lock into position.
As necessary, you can also finely
3
adjust the left-right slope of the
projector by twisting the rear foot
adjuster screw by hand
6
9
Adjusting the Screen Size and Projection Distance
9
16
Refer to the illustrations and tables below to determine the screen size and
projection distance.
The values shown in the table are calculated for a full size screen
(S50: 800x600 pixels/X50: 1024x768 pixels).
a:Distance from the projector to the screen (±10%)
b:Distance from the lens center to the bottom of the screen (±10%)
c:Distance from the lens center to the top of the screen (±10%)
The screen
Top view
If 4:3 aspect ratio
4
3
Lens center
c
b
The screen
c
Lens center
b
Screen Size [inch (m)]
30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)
40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)
50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)
60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)
70 (1.8) 83 (2.1)
80 (2.0) 95 (2.4)
90 (2.3)
100 (2.5)
Side view
a
Top view
Side view
a
120 (3.0)
150 (3.8)
200 (5.0)
250 (6.3)
300 (7.5)
If 16:9 aspect ratio
Screen Size [inch (m)]
30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)
40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)
50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)
60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)
70 (1.8) 90 (2.3)
80 (2.0)
90 (2.3)
100 (2.5)
120 (3.0)
150 (3.8)
200 (5.0)
250 (6.3)
300 (7.5)
a [inch (m)]
Min. Max.
100 (2.5)
114 (2.9)
107 (2.7) 129 (3.3)
119 (3.0) 143 (3.6)
143 (3.6) 172 (4.4)
180 (4.6) 216 (5.5)
240 (6.1) 288 (7.3)
300 (7.6) 361 (9.2)
360 (9.2)
433 (11.0)
a [inch (m)]
Min. Max.
109 (2.8)
104 (2.6) 125 (3.2)
117 (3.0) 140 (3.6)
130 (3.3) 156 (4.0)
156 (4.0) 188 (4.8)
196 (5.0) 235 (6.0)
261 (6.6) 314 (8.0)
327 (8.3)
393 (10.0)
393 (10.0)
472 (12.0)
b
[inch (cm)]c [inch (cm)]
2 (5) 40 (102)
2 (6) 46 (116)
3 (7) 51 (131)
3 (7) 57 (145)
3 (9) 69 (174)
4 (11) 86 (218)
6 (15)
114 (290)
7 (18)
143 (363)
9 (22)
171 (435)
b
[inch (cm)]c [inch (cm)]
4 (9) 38 (96)
4 (10) 43 (110)
5 (12) 49 (124)
5 (13) 54 (137)
6 (15) 65 (165)
8 (19) 81 (206)
10 (26)
108 (275)
13 (32)
135 (343)
15 (39)
162 (412)
7
CONNECTING YOUR DEVICES
Devices You Can Connect to the Projector
(Refer to this section for planning your device
configuration to use for your presentation.)
CAUTION • Incorrect connecting could result in fire or electrical shock. Please
read the "Product Safety Guide" and this "Operator's Guide".
ATTENTION
• Whenever attempting to connect other devices to the projector, please thoroughly
read the manual of each device to be connected.
• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to
connect a live device to the projector may generate extremely loud noises or other
abnormalities that may result in malfunction and/or damage to the device and/or
projector. Refer to the “TECHNICAL” for the pin assignment of connectors and
RS-232C communication data.
• Make sure that you connect devices to the correct port. Incorrect connection may
result in malfunction and/or damage to the device and/or projector.
• A component cable and some other cables have to be used with core set. Use the
accessory cable or a designated-type cable for the connection. For cables that have
a core only at one end, connect the core to the projector.
• Secure the screws on the connectors and tighten.
Precautions to observe when connecting other devices to the projector
Indicates the
corresponding
reference page
Display monitors
12
DVD players
11
Laptop computers
10
VCRs
11
Desktop computers
10
8
Ports and Cables
Refer to the table below to find out which projector port and cable to use for connecting a
given device. Use this table for determining which cables to prepare.
Function Projector Port Connection Cables
RGB input
RGB output rgb out
USB mouse control usb Accessory USB cable
PS/2 mouse control
ADB mouse control Optional ADB mouse cable
Serial mouse control Optional serial mouse cable
RS-232C communication Optional RS-232C cable
S-video input s-video in
Video input video in Accessory audio/video cable
Component video input
Audio input
rgb in 1
rgb in 2
control
component video Y
component video C
audio in L
audio in R
B/PB
R/PR
Accessory RGB cable or optional RGB
cable with D-sub 15-pin shrink jack and
inch thread screws
Optional PS/2 mouse cable
Optional S-video cable with mini DIN 4-pin
jack
Optional component video cablecomponent video C
Accessory audio/video cable or optional
audio cable with RCA jack
NOTE
About Plug-and-Play Capability
• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by
connecting this projector to computers that are VESA DDC (display data channel)
compatible. Please take advantage of this function by connecting the accessory RGB
cable to the rgb in 1 port (DDC 1/2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.
• Plug-and-Play is a system composed of the computer, its operating system and
peripheral equipment (i.e. display devices).
• Please use the standard drivers as this projector is a Plug-and-Play monitor.
Plug-and-Play may not function properly with some type of computers. Use the rgb in 2
•
port if Plug-and-Play does not function correctly.
9
B
A
AUDIO IN
AUDIO cable
RGB cable
AUDIO OUT
RGB IN
Analogue
RGB OUT
CONNECTING YOUR DEVICES (continued)
Connecting to a Computer
ATTENTION Whenever attempting to connect a laptop computer to the projector,
be sure to activate the laptop's RGB external image output (set the laptop to CRT
display or to simultaneous LCD and CRT display). For details on how this is done,
please refer to the instruction manual of the corresponding laptop computer.
R L/ (mono) video in
B B
R/RR CB/PB Y
C
audio in
component viideo
s-video in
1 rgb in 2
usb
rgb out
Laptop computer
audio in
A
control
USB cable
If connecting to a
USB port equipped
computer
R L/ (mono) video in
C C
R/RR CB/PB Y
C
C
D
USB IN
USB OUT
component viideo
C
AUDIO IN
AUDIO OUT
Desktop computer
s-video in
usb
D
A
AUDIO cable
1 rgb in 2
A
rgb out
RGB IN
RGB cable
Analogue
RGB OUT
NOTE
• Some computers may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• For some RGB input modes, the optional Mac adapter is necessary.
B
control
B
CONTROL IN CONTROL OUT
MOUSE cable
10
Connecting to a DVD Player
audio in
component viideo
R L/ (mono) video in
C
R/RR CB/PB Y
s-video in
usb
1 rgb in 2
control
rgb out
B B B
A
A
A
C
audio in
component viideo
R L/ (mono) video in
C
R/RR CB/PB Y
s-video in
usb
1 rgb in 2
control
rgb out
A A A
B
COMPONENT VIDEO IN
A
COMPONENT cable
COMPONENT VIDEO OUT
Ifusingacomponent
videoconnection
C
AUDIO/VIDEO IN
B
AUDIO/VIDEO cable
AUDIO/VIDEO OUT
Ifusinganaudio/video
connection
C
DVD player
Connecting to a VCR
A
AUDIO/VIDEOIN AUDIO/VIDEOOUT
B
S-VIDEOIN
S-VIDEO IN
S-VIDEO OUT
S-VIDEO cable
If using a S-video
connection
AUDIO/VIDEO cable
VCR
S-VIDEO cable
If using a S-video
connection
S-VIDEOOUT
11
RGB cable
A
RGBOUT
RGBIN
CONNECTING YOUR DEVICES (continued)
Connecting to a Display Monitor
1 rgb in 2
audio in
R L/ (mono) video in
C
R/RR CB/PB Y
component viideo
s-video in
usb
A
rgb out
control
12
Display monitor
Loading...
