3M S40C, X40C User Manual

S40C/X40C

Multimedia Projector

Operator's Guide

USING THE MAGNIFY FEATURE ... 21

ACCESSORIES .............................. 38

S40C/X40C Multimedia Projector
Operator's Guide

Thank you for purchasing this projector.

CAUTION • Please read the accompanying manual “Product Safety Guide"

and this “Operator's Guide” thoroughly to ensure correct usage through
understanding. After reading, store this instruction manual in a safe place for
future reference.

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express
written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

• The information in this manual is subject to change without notice.

CONTENTS

Page

PROJECTOR FEATURES............... 2

PREPARATIONS ............................. 2

PART NAMES.................................. 4

SETTING UP THE PROJECTOR .... 6

CONNECTING YOUR DEVICES ..... 8

USING

THE REMOTE CONTROL ........... 12

TURNING ON THE POWER .......... 14

TURNING OFF THE POWER ........ 16

ADJUSTING THE VOLUME ........... 17

TEMPORARILY

SOUND THE SOUND ................... 17

ADJUSTING THE POSITION ........ 18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ........... 19

CORRECTING

KEYSTONE DISTORTIONS ......... 20

FREEZING THE SCREEN ............. 21

SIGNAL SEARCHING ................... 22

SELECTING

THE ASPECT RATIO ..................... 22

TEMPORARILY

BLANKING THE SCREEN .......... 22

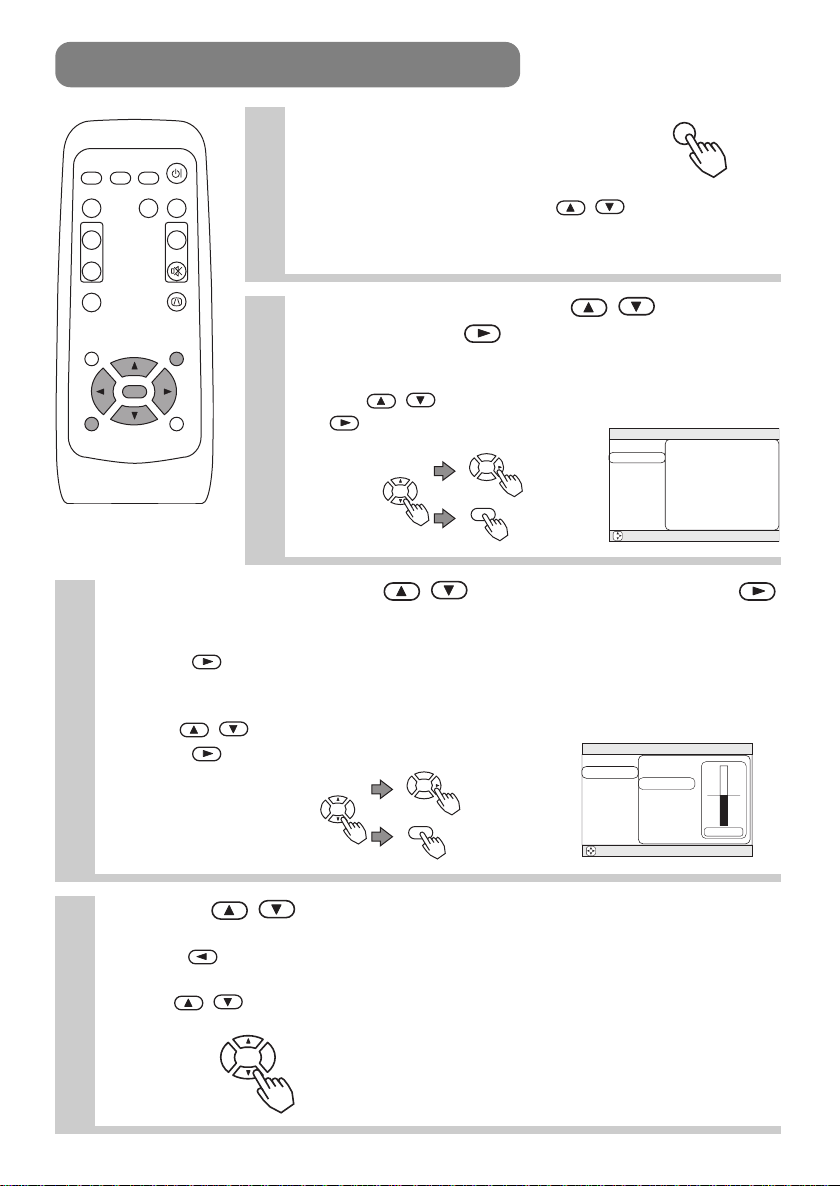

USING THE MENU FUCTIONS ..... 23

MULTIFUNCTIONAL

SETTINGS .................................... 24

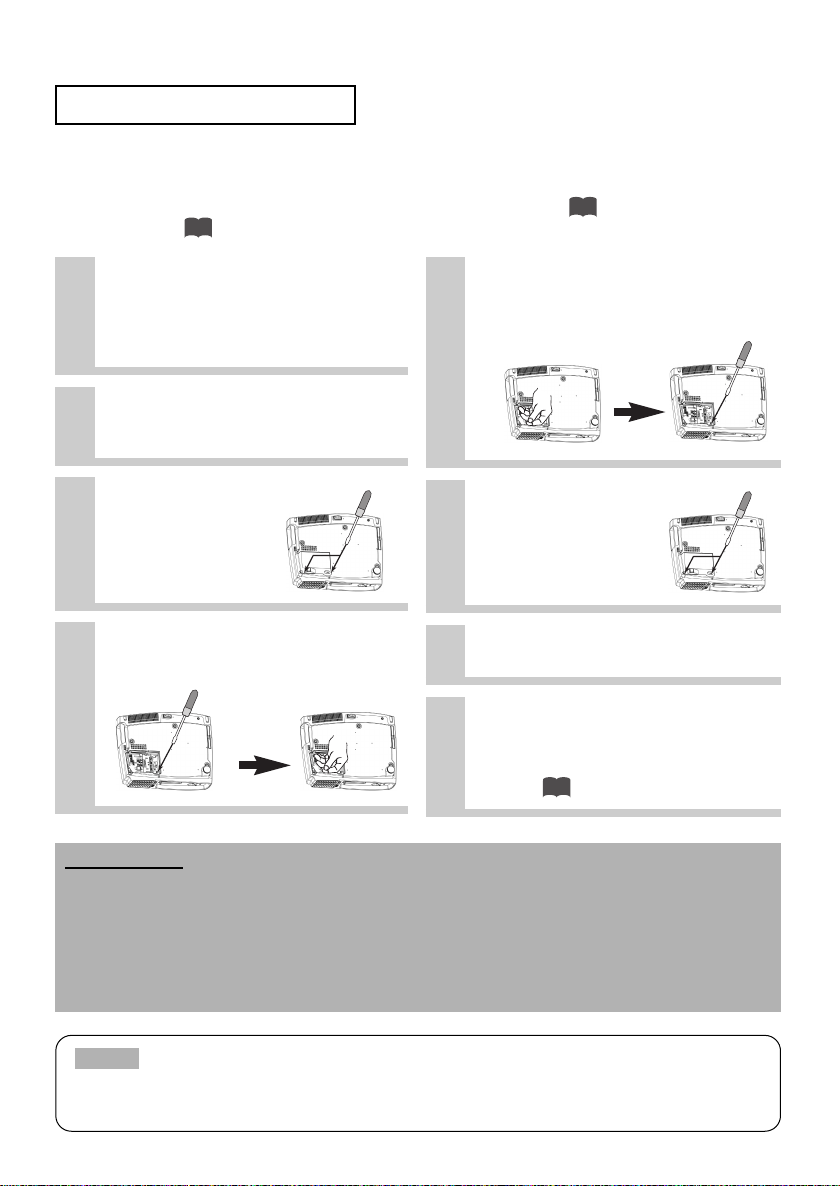

THE LAMP ..................................... 29

THE AIR FILTER ............................ 31

OTHER CARE ................................ 33

WHAT TO DO
WHEN YOU THINK A MACHINE

DEFECT HAS OCCURRED ......... 34

SPECIFICATIONS .......................... 37

Page

1

Projector

Power cord

(UK Type)

(with white lead) (with green lead)

Two AA batteries

(for the

remote control)

PROJECTOR

Product Safety Guide
Warranty
Quick Start Guide

Operator's Guide

RGB cable

Video/Audio

cable

Component Video

cable

Stereo Mini-Cable

FEATURES

This liquid crystal projector is used to project
various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space
is required for installation and large images can
easily be realized.

Ultra High Brightness

●

Crisp, ultra-bright presentations is achieved
by using a UHB (ultra high brightness) lamp
and a highly efficient optical system

Partial Magnification Function

●

Interesting parts of images can be magnified
for closer viewing

PREPARATIONS

Your projector should come with the items
shown below. Check to make sure that all the
items are included. Contact your dealer if
anything is missing.

NOTE

• Keep the original packing material for future reshipment.

Power cord

(US Type)

S40/X40

Multimedia Projector

Operator's Guide

S40/X40 Projecteur multimedia - Guide de L' opérateur
S40/X40 Multimedia-Projektor - Benutzerhandbuch
S40/X40 Proyector de Multimedia - Guía del usuario

S40/X40 Proiettore Multimediale - Guida dell' operatore
S40/X40 Multimedia Projector - Gebruiksaanwijzing
S40/X40 Projector dos Multimedia - Guia da operador
S40/X40 Multimedia Projektør- Brukerhåndbok

Keystone Distortion Correction

●

Quick correction of distorted images electrically

Whisper Mode Equipped

●

Special mode is available for reducing
projector noise to achieve quieter operation

Power cord

(Europe Type)

Soft case

2

STANDBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

VOLUME

MAGNIFY

ON

MUTE

OFF

KEYSTONEFREEZE

MENUPOSITION

ENTER

ESC RESET

Remote control

WARNING Precautions to observe in regards to the power cord: Please use extra

(1)

(2)

Power outlet

Power cord

AC inlet

caution when connecting the projector's power cord as incorrect or faulty
connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the
following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

• Only use the power cord that came with the projector.

• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

• Make sure that you firmly connect the power cord to the projector and wall outlet.

Connect your devices to the projector

1

Connect your computer, VCR and/or other
devices you will be using to the projector.

Insert the Alkaline batteries into the

2

control

Connect the power cord

3

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

8 11

12

〜

3

4

PART NAMES

THE PROJECTOR

Indicates the corresponding
reference page

AC power inlet

Power switch

Focus ring

15

Zoom ring

15

Remote sensor

13

Lens

Elevator foot

6

Air filter

31

Speaker

Rear adjuster foot

6

lamp indicator

35

temp indicator

35

power indicator

14

menu button

Terminal Panel

on/off button

14

video button

15

rgb button

15

reset button

24

keystone button

20

23

,,,

cursor buttons

23

14

Elevator button

6

3

5

THE REMOTE CONTROL

THE TERMINAL PANEL

STANDBY/ON button

14

VIDEO button

15

MENU button

23

RGB button

15

BLANK button

22

SEARCH button

22

VOLUME button

17

MUTE button

17

KEYSTONE button

20

ASPECT button

22

AUTO button

19

MAGNIFY buttons

21

FREEZE button

21

POSITION button

18

ESC button

23

,,,
Cursor buttons

23

RESET button

24

ENTER button

23

audio L port

audio R port

rgb port

10

control port

10

audio port

10

video port

11

11

11

s-video port

11

Remote sensor

13

component video CR/PR port

11

component video Y port

11

component video CB/PB port

11

VIDEO

RGB SEARCH

ASPECT

MAGNIFY

ON

OFF

STANDBY/ON

AUTO BLANK

VOLUME

KEYSTONEFREEZE

MUTE

MENUPOSITION

ENTER

ESC RESET

SETTING UP THE PROJECTOR

Rear Foot Adjuster

CAUTION •

of the “Product Safety Guide” and this manual "Operator's Guide".

• If you press the elevator button without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To
prevent damaging the projector and injuring yourself, ALWAYS HOLD THE
PROJECTOR whenever using the elevator button to adjust the elevator foot.

Install the projector in a suitable environment according to instructions

Adjusting the Projector's Elevator Foot

You can use the elevator foot to make adjustments if the surface on which you
need to set the projector is uneven or if you otherwise need to adjust the angle of
projection. The adjustment range of the elevator foot is 0 to 9 degrees.

Press and hold in the elevator

1

button

Raise or lower the projector to the

2

desired height and then release the
elevator button

When you release the elevator button, the elevator

foot will lock into position.

As necessary, you can also finely

3

adjust the left-right slope of the
projector by twisting the rear foot
adjuster screw by hand

6

9

Adjusting the Screen Size and Projection Distance

9

16

Refer to the illustrations and tables below to determine the screen size and
projection distance.

The values shown in the table are calculated for a full size screen

(S40: 800x600 pixels/X40: 1024x768 pixels).

a:Distance from the projector to the screen (±10%)
b:Distance from the lens center to the bottom of the screen (±10%)
c:Distance from the lens center to the top of the screen (±10%)

The screen

Top view

If 4:3 aspect ratio

4

3

Lens center

c

b

The screen

c

Lens center

b

Screen Size [inch (m)]

30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)
40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)
50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)
60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)
70 (1.8) 83 (2.1)
80 (2.0) 95 (2.4)
90 (2.3)

100 (2.5)

Side view

a

Top view

Side view

a

120 (3.0)
150 (3.8)
200 (5.0)
250 (6.3)
300 (7.5)

If 16:9 aspect ratio

Screen Size [inch (m)]

30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)
40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)
50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)
60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)
70 (1.8) 90 (2.3)
80 (2.0)

90 (2.3)
100 (2.5)
120 (3.0)
150 (3.8)
200 (5.0)
250 (6.3)
300 (7.5)

a [inch (m)]

Min. Max.

100 (2.5)

114 (2.9)
107 (2.7) 129 (3.3)
119 (3.0) 143 (3.6)
143 (3.6) 172 (4.4)
180 (4.6) 216 (5.5)
240 (6.1) 288 (7.3)
300 (7.6) 361 (9.2)
360 (9.2)

433 (11.0)

a [inch (m)]

Min. Max.

109 (2.8)
104 (2.6) 125 (3.2)
117 (3.0) 140 (3.6)
130 (3.3) 156 (4.0)
156 (4.0) 188 (4.8)
196 (5.0) 235 (6.0)
261 (6.6) 314 (8.0)
327 (8.3)

393 (10.0)

393 (10.0)

472 (12.0)

b

[inch (cm)]c [inch (cm)]

2 (5) 40 (102)
2 (6) 46 (116)
3 (7) 51 (131)
3 (7) 57 (145)
3 (9) 69 (174)
4 (11) 86 (218)
6 (15)

114 (290)

7 (18)

143 (363)

9 (22)

171 (435)

b

[inch (cm)]c [inch (cm)]

4 (9) 38 (96)
4 (10) 43 (110)
5 (12) 49 (124)
5 (13) 54 (137)
6 (15) 65 (165)
8 (19) 81 (206)

10 (26)

108 (275)

13 (32)

135 (343)

15 (39)

162 (412)

7

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector
(Refer to this section for planning your device
configuration to use for your presentation.)

CAUTION • Incorrect connecting could result in fire or electrical shock. Please
read this manual and the separate “Product Safety Guide”.

ATTENTION

• Whenever attempting to connect other devices to the projector, please thoroughly
read the manual of each device to be connected.

• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to
connect a live device to the projector may generate extremely loud noises or other
abnormalities that may result in malfunction and/or damage to the device and/or
projector. Refer to the “Technical” for the pin assignment of connectors and
RS-232C communication data.

• Make sure that you connect devices to the correct port. Incorrect connection may
result in malfunction and/or damage to the device and/or projector.

• Some cables have to be used with core set. Use the accessory cable or a designated-
type cable for the connection. For cables that have a core only at one end,
connect the core to the projector.

• Secure the screws on the connectors and tighten.

Precautions to observe when connecting other devices to the projector

Indicates the
corresponding
reference page

DVD players

11

Laptop computers

10

VCRs

11

Desktop computers

10

8

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a
given device. Use this table for determining which cables to prepare.

Function Projector Port Connection Cables

RGB input rgb

AUDIO input
(from the computer)

RS-232C communication control RS-232C cable

S-video input s-video

Video input video Audio/video cable

Component video input

Audio input
(from video equipment)

NOTE

About Plug-and-Play Capability

audio Audio cable with stereo mini jack

component video Y

B

component video CR/P
audio L
audio R

R

RGB cable
with D-sub 15-pin shrink jack and
inch thread screws

S-video cable

with mini DIN 4-pin jack

Component video cablecomponent video CB/P

Audio/video cable or
Audio cable with RCA jack

• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by
connecting this projector to computers that are VESA DDC (display data channel)
compatible. Please take advantage of this function by connecting the accessory RGB
cable to the rgb port (DDC 1/2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.

• Plug-and-Play is a system composed of the computer, its operating system and
peripheral equipment (i.e. display devices).

• Please use the standard drivers as this projector is a Plug-and-Play monitor.

9

CONNECTING YOUR DEVICES (continued)

A

AUDIO IN

AUDIO OUT

RGB IN

Analogue

RGB OUT

RGB cable

AUDIO cable

B

Connecting to a Computer

ATTENTION Whenever attempting to connect a laptop computer to the projector,
be sure to activate the laptop's RGB external image output (set the laptop to CRT
display or to simultaneous LCD and CRT display). For details on how this is done,
please refer to the instruction manual of the corresponding laptop computer.

A

B

Desktop computer

Laptop computer

NOTE

• Some computers may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.

• For some RGB input modes, the optional Mac adapter is necessary.

10

Connecting to a DVD Player

B

C

A

Ifusingacomponent
videoconnection

Ifusinganaudio/video
connection

COMPONENT VIDEO IN

COMPONENT VIDEO OUT

AUDIO/VIDEO IN

AUDIO/VIDEO OUT

S-VIDEO IN

S-VIDEO OUT

If using a S-video
connection

COMPONENT cable

AUDIO/VIDEO cable

S-VIDEO cable

B

If using a S-video
connection

A

AUDIO/VIDEOIN AUDIO/VIDEOOUT

S-VIDEOIN

S-VIDEOOUT

AUDIO/VIDEO cable

S-VIDEO cable

A A A

C

B BB

DVD player

Connecting to a VCR

A A A

B

VCR

11

USING THE REMOTE CONTROL

Putting batteries into the remote control unit

CAUTION

Always handle the batteries with care and use them only as directed. Improper use may result in

battery cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

• Keep the battery away from children and pets.

•

Be sure to use only the batteries specified for use with the remote control. Do not mix new batteries with used ones.

•

When inserting batteries, verify that the plus and minus terminals are aligned correctly (as indicated in the remote control).

• When you dispose the battery, you should obey the law in the relative area or country.

Remove the battery cover

1

Slide back and remove the battery cover in the direction of the
arrow.

Insert the batteries

2

Align and insert the two AA Alkaline batteries (that came
with the projector) according to their plus and minus
terminals (as indicated in the remote control).

Close the battery cover

3

Replace the battery cover in the direction of the arrow and
snap it back into place.

Precautions to observe in regards to the batteries

12

Operating the remote control

• The remote control works with both
the projector's front and rear remote
sensors.

• The range of the remote sensor on
the front is 3 meters with a 90-degree
range (45 degrees to the left and
right of the remote sensor), and back
is 3 meters with a 60-degree range.

• Since the remote control uses
infrared light to send signals to the
projector (Class 1 LED), be sure to
use the remote control in an area free
from obstacles that could block the
remote control's output signal to the
projector.

45 degrees

45 degrees

30 degrees

30 degrees

ATTENTION

Precautions to observe when using the remote control

• Do not drop or otherwise expose the remote control to physical impact.

• Do not get the remote control wet or place it on wet objects. Doing so may result in

malfunction.

• Remove the batteries from the remote control and store them in a safe place if you
won't be using the remote control for an extended period.

• Replace the batteries whenever the remote control starts to malfunction.

• When strong light, such as direct sunlight or light from an extremely close range

(such as from an inverter fluorescent lamp), hits the projector's remote sensor, the
remote control may cease to function. Adjust the direction of the projector to keep
light from directly hitting the projector's remote sensor.

13

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

ON

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

TURNING ON THE POWER

Precautions

Connect all devices to be used to the projector prior to turning on the power.

WARNING When the power is ON, a strong light is emitted. Do not look into the
lens.

Make sure that the power cord is firmly and

1

correctly connected to the projector and outlet

8

3

Turn on the projector's power

2

Set the power switch to [ | ] (ON). The projector will go
to STANDBY mode and the power indicator will light to

Control panel

on off

video rgb

reset

keystone

menu

lamp
temp
power

solid orange.

power indicator

power switch

〜

11

NOTE

power on/off in
right order.

• Power on the
projector before the
computer or video
tape recorder.

• Power off the
projector after the

14

computer or video
tape recorder.

Turn the

Press the STANDBY/ON button of remote

3

control or the on/off button of control panel

•

The projector begins warming up and the power indicator
blinks green.

• The power indicator stops blinking
and lights to solid green once the
projector's power is completely on.

Control panel

5

Press the RGB button of the Remote control
or the

rgb button of the control panel

Press this button to swich to the devices connected to
rgb port as illustrated below.

Press the Video button of the Remote control
or the video button of the control panel

Press this button to toggle between the devices
connected to video port, s-video

port and component

video port. A

s illustrated below, each time you press the
VIDEO button or the video button, the projector switches
between video, s-video and component video. Select
the signal you wish to project.

Selecting an Input Signal

Selecting a RGB signal

Selecting a VIDEO signal

lamp
temp
power

on off

video rgb

reset

menu

keystone

STANDBY/ON

RGB SEARCH

VIDEO

ASPECT

AUTO BLANK

MAGNIFY

ON

OFF

VOLUME

MUTE

KEYSTONEFREEZE

RGB

video
s-video
component video

VIDEO

video

component video

rgb

s-video

Use the zoom ring to adjust the

6

screen size

Use the focus ring to focus the

7


15

TURNING OFF THE POWER

Check that the power indicator stops
blinking and lights to solid orange.

When the projector has

Switch the power switch to [O] (OFF).

completed powering down,

the power indicator will go off.

power indicator

power switch

Press the STANDBY/ON button of remote

1

controrol or the on/off button of control panel

RGB SEARCH

AUTO BLANK

ENTER

STANDBY/ON

VOLUME

MUTE

KEYSTONEFREEZE

MENUPOSITION

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

Control panel

on off

video rgb

reset

keystone

menu

lamp
temp
power

The message "Power off?" will appear on the screen for approximately 5 seconds.

Press the STANDBY/ON or on/off button

2

again(remote control or control panel)

Press the STANDBY/ON or on/off button again while the "Power off?"
message is visible. The projector lamp goes off and starts cooling
down. The power indicator blinks orange while the lamp cools
down. (Pressing the STANDBY/ON or on/off button while the power
indicator is blinking orange has no effect.)
The system goes into the STANDBY mode after
cooling down and the power indicator stops
blinking orange and then lights to solid orange.

3

NOTE

• Except in
emergencies, follow
the above­mentioned
procedure for
turning power off.

16

VOLUME

MUTE

ADJUSTING THE VOLUME

Press the VOLUME button

1

RGB SEARCH

AUTO BLANK

ENTER

STANDBY/ON

VOLUME

MUTE

KEYSTONEFREEZE

MENUPOSITION

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

As illustrated on the right, a dialog will
appear on the screen to aid you in adjusting
the volume.

Press the , buttons to adjust

2

VOLUME

the volume

Press the VOLUME button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)

Press this to increase the volume
Press this to decrease the volume

TEMPORARILY MUTING THE SOUND

VOLUME

16

VOLUME

16

RGB SEARCH

AUTO BLANK

ENTER

STANDBY/ON

VOLUME

KEYSTONEFREEZE

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

MUTE

MENUPOSITION

Press the MUTE button

1

As illustrated on the right, a dialog will appear on the
screen indicating that you have muted the sound. Press
the VOLUME button to close the dialog. (Even if you don't
do anything, the dialog will automatically disappear after
a few seconds.)
Press the MUTE button again to restore the sound.

MUTE

VOLUME

16

17

ADJUSTING THE POSITION

Press the POSITION button

1

As illustrated on the right, a dialog will appear on the screen
to aid you in adjusting the position.

POSITION

VIDEO

ASPECT

MAGNIFY

ON

OFF

RGB SEARCH

AUTO BLANK

STANDBY/ON

VOLUME

MUTE

KEYSTONEFREEZE

MENUPOSITION

POSITION

ENTER

ESC RESET

Use the , , , buttons to adjust

2

the position

When you want to initialize the position, press the RESET
button during adjustment.
Press the POSITION button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)
This function is only available for rgb input.

18

USING THE AUTOMATIC ADJUSTMENT FEATURE

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Press the AUTO button

1

Automatic Adjustment for RGB Input

Horizontal position (H. POSIT), vertical position (V.
POSIT), clock phase (H. PHASE) and horizontal size (H.
SIZE) are automatically adjusted.
Make sure that the application window is set to its
maximum size prior to attempting to use this feature.
Dark pictures may still be incorrectly adjusted. Use a
bright screen when adjusting.

Automatic Adjustment for Video Input

The signal type best suited for the respective input
signal is selected automatically.
This feature is available only if VIDEO is set to AUTO in
the INPUT menu.

AUTO

NOTE

The automatic adjustment operation requires approximately 10 seconds. Also, please

note that it may not function correctly with some input signals.

19

CORRECTING KEYSTONE DISTORTIONS

KEYSTONE

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Press the KEYSTONE button

1

As illustrated on the right, a dialog will appear
on the screen to aid you in correcting the
distortion.

Use the , buttons to correct the

2

distortion

Press the KEYSTONE button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)

NOTE

• This function may not be work well with some types of input signals.

• The adjustable range for correcting keystone distortions will vary with the type of

input signal.

KEYSTONE

16

20

USING THE MAGNIFY FEATURE

MAGNIFY

MUTE

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

VOLUME

MAGNIFY

RGB SEARCH

AUTO BLANK

ENTER

STANDBY/ON

VOLUME

KEYSTONEFREEZE

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

MUTE

MENUPOSITION

Press the MAGNIFY (ON) button

1

The projector enters MAGNIFY mode.

Press the POSITION button, then use the ,,

2

, buttons to select the area to enlarge and then

press the POSITION button again to confirm your
selection

POSITION

Press the , buttons to zoom in and

3

out of the selected area.

MAGNIFY

ON

POSITION

Press the MAGNIFY (OFF) button to exit MAGNIFY mode
and restore the screen to normal. (The projector will also
automatically exit MAGNIFY mode if there is a change in the
input signal's state.)

NOTE

The projector will automatically exit from MAGNIFY mode if either the INPUT SELECT,

AUTO, ASPECT or VIDEO feature is used, or, if there is a change in the input signal's state.

FREEZING THE SCREEN

Press the FREEZE button

1

The [II] icon appears and the screen will freeze at
the current image. Press the FREEZE button again
and the [ ] appears as the projector exits FREEZE

▲

mode.

NOTE

•

The projector will automatically exit from FREEZE mode if either the POSITION, VOLUME, MUTE, AUTO,
BLANK ON/OFF or MENU ON/OFF feature is used, or, if there is a change in the input signal's state.

•

If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode),
the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.

FREEZE

21

SIGNAL SEARCHING

L

BLANK

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

ON

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Press the SEARCH button

1

When you press the SEARCH button, the projector begins
searching for input signals. If it detects an input signal, the
search will cease and the projector will project the detected
signal. If the projector is unable to find an input signal at any of
its ports, it will return to the state it was in prior to the search.

SEARCH

rgb video

component video

SELECTING THE ASPECT RATIO

Press the ASPECT button

1

ASPECT

rgb in, component video

(HDTV signals : 1125i (1035i/1080i), 750p)

4:3 16:9

video in, s-video in, component video

(Non-HDTV signals : 525i, 525p,625i)

4:3 16:9 SMAL

TEMPORARILY BLANKING THE SCREEN

s-video

22

Press the BLANK button

1

The input signal screen is shut off, and a blank screen
appears. You can set the blank screen using the menu
(from the SCREEN menu, select BLANK). Press the BLANK
button again to remove the blank screen, and return to the
input signal screen.

USING THE MENU FUNCTIONS

Press the MENU button

1

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

3

STANDBY/ON

RGB SEARCH

AUTO BLANK

VOLUME

MUTE

KEYSTONEFREEZE

MENUPOSITION

ENTER

Select an item using the
or ENTER button.

The menu display appears on the screen. The
projector has the following menus: MAIN,
PICTURE-1, PICTURE-2, INPUT, SCREEN, and
OPTION. Select a menu using the / buttons. The
current settings of the items that can be manipulated via the
selected menu appear.

Select a menu using the

2

then press the or ENTER button.

/

The display of the selected menu appears.

[ex. Adjusting SHARPNESS]

Use the / buttons to select PICTURE-1, then press
the or ENTER button.

ENTER

/

buttons, then press the

MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

: SELECT

The operation display of the selected item appears. To adjust a numerical value,
press the or ENTER button again to switch to the single menu (small display
showing only the operation display area).

[ex. Adjusting SHARPNESS]

Use the / buttons to select SHARPNESS, then
press the or ENTER button.

ENTER

MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

: SELECT

COLOR BAL R
COLOR BAL B

SHARPNESS

MENU

buttons,

COLOR BAL R
COLOR BAL B
SHARPNESS
COLOR
TINT

COLOR

TINT

–1
+1
–1
+1
–1

0

Press the

4

Press the MENU button to hide the menu and finish your operation. Alternatively,

/

buttons to adjust the level.

press the or ESC button to return to the previous display.

[ex. Adjusting SHARPNESS]

Use the / buttons to adjust the SHARPNESS.

23

MULTIFUNCTIONAL SETTINGS

This device has 6 separate menus: MAIN, PICTURE-1, PICTURE-2, INPUT,
SCREEN, OPTION. Each of these menus is operated using the same methods.
The basic operations of these menus are as follows.

Menu screen display : Press the "MENU"button.
Menu selection : Choose a menu name using the / button, and press the

button or the ENTER button.

Item selection : Choose an item using the / button, and press the

button or the ENTER button.

Return menu to last previous screen
Execution of settings and/or adjustments:Operate by using the / button. (For further

I

nitialization of settings and/or adjustments

End menu operations: Press the MENU button, or do not perform any operation for

several seconds.

MAIN Menu

With the MAIN menu, the seven items shown in the Table below can be
performed.
Perform each operation in accordance with the instructions in the Table.

MAIN Menu

Item Description

BRIGHT

CONTRAST

ASPECT

PICT.POSIT.

GAMMA

MIRROR

LANGUAGE

24

Adjust Brightness: Light ⇔ Dark
Adjust Contrast: Strong ⇔ Weak

Select Aspect Ratio:

At rgb Input or Hi-Vision 1125i(1035i/1080i)/750p of component video
Input:
4:3 ⇔ 16:9
At video Input, s-video Input or 525i/525p/625i of component video Input:
4:3 ⇔ 16:9 ⇔ SMALL

• The SMALL picture may not be displayed correctly with certain input signals.

Select Picture Position (for 16:9/SMALL Picture):

TOP ⇔ CENTER ⇔ BOTTOM

Select Gamma Mode:

NORMAL ⇔ CINEMA ⇔ DYNAMIC

Select Mirror Status:

NORMAL ⇔ H:INVERT ⇔ V:INVERT ⇔ H&V:INVERT

Select Menu Language:

ENGLISH ⇔ FRANÇAIS ⇔ DEUTSCH ⇔ ESPAÑOL

⇔ ITALIANO ⇔ NORSK ⇔ NEDERLANDS ⇔

日本語 ⇔ POTUGUÊS ⇔

: Press the button or the ESC button.

details, read the explanation for each separate menu.)

: During operation, press the RESET button.

(Note that items whose functions are
performed simultaneously with the operation
of clock phase, language selection, automatic
adjustment, etc., cannot be initialized.)

MENU
MAIN

BRIGHT

PICTURE-1

CONTRAST

PICTURE-2

ASPECT

INPUT

PICT. POSIT.

SCREEN

GAMMA

OPTION

MIRROR
LANGUAGE

: SELECT

Example : MAIN Menu

(BRIGHT)

中文 ⇔

12

PICTURE-1 Menu

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

COLOR BAL R
COLOR BAL B
SHARPNESS
COLOR
TINT

12

With the PICTURE-1 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.

PICTURE-1 Menu

Item Description

Example : PICTURE-1 Menu

(COLOR BAL R)

COLOR BAL R

COLOR BAL B

SHARPNESS

COLOR

TINT

Adjust Red Color Balance: Dark ⇔ Light

Adjust Blue Color Balance: Dark ⇔ Light

Adjust Sharpness (for VIDEO/S-VIDEO): Clear ⇔ Soft
Adjust COLOR (for video/s-video/component video):

Dark ⇔ Light
Adjust Tint (for video/s-video): Green ⇔ Red

PICTURE-2 Menu

With the PICTURE-2 menu, the four items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.

PICTURE-2 Menu

Item Description

V POSITION

H POSITION

H PHASE

Adjust Vertical Position (for rgb): Up ⇔ Down
Adjust Horizontal Position (for rgb): Left ⇔ Right

Adjust Horizontal Phase (for rgb/component video):

Right ⇔ Left

• Adjust to eliminate flicker.

MENU
MAIN

V POSITION

PICTURE-1

H POSITION

PICTURE-2

H PHASE

INPUT

H SIZE
SCREEN
OPTION

: SELECT

12

Example : PICTURE-2 Menu

(V POSITION)

H SIZE

Adjust Horizontal Size (for rgb): Large ⇔ Small

• If the horizontal size adjustment is excessive, the image may not be displayed
correctly. In such a case, initialize H SIZE with the RESET button.

25

MULTIFUNCTIONAL SETTINGS (continued)

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

AUTO
VIDEO
HDTV
SYNC ON G

EXECUTE

INPUT Menu

With the INPUT menu, the four items shown in the Table below can be
performed. With inputting of rgb in signal, the horizontal and vertical
frequencies of the signal will be displayed on the initial screen of the
INPUT menu.
Perform each operation in accordance with the instructions in the Table.

INPUT Menu

Item Description

Auto Adjust (for rgb): Automatically adjusts H POSITION, V POSITION, H

PHASE, and H SIZE. Use this function with the maximum window size.
Auto Adjust (for video/s-video): Automatically selects the proper VIDEO
mode for the current input signal. This function is active only when the AUTO
mode is selected for the item VIDEO. Refer to the description for the item

26

AUTO

VIDEO

HDTV

SYNC ON G

VIDEO below.

• This function may not be available with a PAL60 signal and certain other

signals.

• The AUTO mode operation requires approximately 10 seconds.

•

For component video, the signal type is identified automatically even if
this function is inactive. For a HDTV signal, refer to the item HDTV below.

Select Mode of Signal Type (for video/s-video):

AUTO ⇔ NTSC ⇔ PAL ⇔ SECAM ⇔
NTSC4.43 ⇔ M-PAL ⇔ N-PAL
Selecting AUTO mode activates and performs the AUTO function for video/s­video. It automatically selects the proper mode from among those above.
Use this function if the image becomes unstable with video/s-video. (e.g.
The image becomes irregular, or lacks color.)

• AUTO mode may not function correctly with a PAL60 signal and certain other

signals.

• The AUTO mode operation requires approximately 10 seconds.

•

For component video, the signal type is identified automatically even if
this function is inactive. For a HDTV signal, refer to the item HDTV below.

Select HDTV Signal Mode:

1080i ⇔ 1035i

• If the selected HDTV mode is incompatible with the input signal, the picture

may be distorted.

On/Off SYNC ON G Mode:

TURN ON ⇔ TURN OFF
Selecting TURN ON turns on the SYNC ON G mode. The SYNC ON G mode
allows reception of SYNC on G.

• In the SYNC ON G mode, the picture may be distorted with certain input

signals. In such a case, remove the signal connector so that no signal is
received and turn SYNC ON G off, and then reconnect the signal.

Example : INPUT Menu

(AUTO)

SCREEN Menu

With the SCREEN menu, the two items shown in the Table below
can be performed.
Please perform each operation in accordance with the instructions
in the Table.

SCREEN Menu

Item Description

Selection of BLANK Screen:

.. ⇔ . . ⇔ ..

The BLANK Screen may be voluntarily selected. The BLANK Screen is

BLANK

START UP

displayed when the screen has been erased (i.e., made to vanish) by
manipulating the BLANK button (please refer to the “Temporarily Blanking the
Screen” section).
Option screens: Various colored non-patterned (plain) screens displayed
within the Menus.

Selection of START UP Screen:

TURN ON ⇔ TURN OFF
The START UP Screen may be voluntarily selected. The START UP Screen is
displayed when no signal has been inputted, or when spec signals are being
inputted.
TURN ON: Existing standard screens. Please make confirmation using the
actual screen(s).
TURN OFF: A non-patterned (plain) blue color screen.

• Note that if TURN OFF is selected the blank screen is displayed in blue when
there is no signal.

MENU
MAIN

BLANK

PICTURE-1

START UP
PICTURE-2
INPUT
SCREEN
OPTION

: SELECT

Example : SCREEN Menu

(BLANK)

27

MULTIFUNCTIONAL SETTINGS (continued)

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

VOLUME
AUTO OFF
WHISPER
LAMP TIME
FILTER TIME

12

OPTION Menu

With the OPTION menu, the five items shown in the Table below
can be performed.
Please perform each operation in accordance with the instructions
in the Table.

OPTION Menu

Item Description

VOLUME

AUTO OFF

WHISPER

LAMP TIME

FILTER TIME

28

Adjust Volume: High ⇔ Low

Adjust AUTO OFF Time:

Long (MAX. 99 min.) ⇔ Short (Min. 1 min.) ⇔ (DISABLE: 0 min.)
The system automatically enters the standby mode if no signal is received
within the set time. This function is inactive when DISABLE (0 min.) is selected.

Select WHISPER Mode:

NORMAL ⇔ WHISPER
When WHISPER is selected the WHISPER mode is activated. In the WHISPER
mode, acoustic noise and screen brightness are reduced.

Refer to LAMP TIME: When set, this function displays the total time the
projector lamp has been used since new.

Reset LAMP TIME [Use this function only when the lamp has been replaced!]:

Depress the RESET button for at least 3 seconds while lamp time is being
displayed. The reset menu will then appear. After you replace the lamp with a
new lamp, select RESET on the menu with the button.

• Do not reset the lamp time unless you have replaced the lamp. And, always
reset the lamp time when replacing the lamp. The message functions will not
operate properly if the lamp time is not reset correctly.

• Before replacing the lamp, carefully read the descriptions headed "THE
LAMP".

Refer to FILTER TIME: This function displays the total time the air-filter has
been used since new.

Reset FILTER TIME [Use this function only when the filter is cleaned or replaced!]:

Depress the RESET button for at least 3 seconds while filter time is being
displayed. The reset menu will then appear. After you replace the filter, select
RESET on the menu with the button.
RESET ⇔ CANCEL

• Do not reset the filter time unless you have cleaned or replaced the filter. And,
always reset the filter time when cleaning or replacing the filter. The message
functions will not operate properly if the filter time is not reset correctly.
Before cleaning or replacing the filter, carefully read the descriptions headed "THE AIR FILTER".

•

Example : OPTION Menu

(VOLUME)

THE LAMP

The LCD projector uses a glass lamp bulb. It is a mercury lamp with high

internal pressure. High-pressure mercury lamps can break with a loud
bang, or burn out, if jolted or scratched, or through wear over time. Each lamp has a
different lifetime, and some may burst or burn out soon after you start using them. In
addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing,
and for gas containing mercury to escape from the projector’s vent holes.

•

Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

•

If the replace lamp indicator (see "Related Messages" ( ) and "Regarding the
indicator Lamps" ( )) comes on, replace the lamp as soon as possible. Using the
lamp for long periods of time, or past the replacement date, could cause it to burst. Do
not use old (used) lamps; this is a cause of breakage.

•

If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems
elsewhere besides the lamp. If this happens, contact your local dealer.

•

If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make
sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.

•

If the lamp should break (it will make a loud bang when it does), unplug the power cord from
the outlet, and make sure to request a replacement lamp from your local dealer. Note that
shards of glass could damage the projector’s internals, or cause injury during handling, so
please do not try to clean the projector or replace the lamp yourself.

•

Obey local ordinances when disposing of used lamps. In most cases, it is possible to dispose of used
bulbs in the same manner as used glass bottles, but in some cases, bulbs are sorted separately.

• Do not use the projector with the lamp door removed.

WARNING

34
35

Before replacing the lamp, turn off the power, and unplug the power

cord, then wait at least 45 minutes, in order to ensure that the lamp is

properly cooled. Removing the lamp bulb while it is still hot could cause burns, or cause
the lamp bulb to burst.

WARNING

HIGH VOLTAGE
HIGH TEMPERATURE
HIGH PRESSURE

Before replacing the lamp, check the serial number of the replacement lamp bulb (sold separately:
78-6969-9463-7 for S40 / 78-6969-9565-9 for X40), then contact your local dealer.

29

Replacing the lamp

34

28

All projector lamps will wear out eventually. If used for long periods of time, the image could become
darkened, and the color contrast could be impacted as well. We recommend that you replace your lamps
early. If the lamp indicator turns red, or a message prompts you to replace the lamp when you power up
the projector, the lamp needs to be replaced. (See "Related Messages" ( ) and "Regarding the
Indicator Lamps" ( ) for details.)

35

Turn off the projector, and unplug the

1

unolug the power cord.
Allow the lamp bulb to cool for at
least 45 minutes, and prepare a new

lamp.

After making sure that the projector has

2

cooled adequately, slowly flip over the
projector, so that the bottom is facing up

Unscrew the 2

3

screws, and
remove the
lamp door

Unscrew the 1 screw, and slowly pull

4

out the lamp by the handle

•

Be careful not to touch the inside of the lamp case.

Insert the new lamp, and tighten the 1

5

screw firmly to lock it in place

•

Also steadily push the opposite side of the
screwed side of the
lamp into the unit.

Replace the lamp

6

door, and tighten
the 2 screws firmly
to lock it in place

Slowly turn the projector so that

7

the top is facing up

Turn on the projector power, and using

8

the menu, reset the lamp timer

•

To reset the lamp timer, from the OPTION
menu, select LAMP TIME. (See “OPTION
menu” ( ) for details.)

ATTENTION •

• Do not use with lamp door removed.
Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always when replacing

•

the lamp. The message functions will not operate properly if the lamp timer is not reset correctly.

• When the lamp has been replaced after the message of "CHANGE THE LAMP ...THE POWER
WILL TURN OFF AFTER 0 hr." is displayed, or the lamp indicator is red, complete the following
operation within 10 minutes of switching power ON.

NOTE

Before replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power

ON again. If the lamp indicator is still red, replace the lamp.

Make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

• The lamp indicator is also red when the lamp unit reaches high temperature.

30

THE AIR FILTER

34

35

3

Insert the air filter

Slowly turn the projector so that the top is facing up

5

7

Turn on the projector, and use the menu to reset the filter
timer

• To reset the air filter timer, from the OPTION menu, select FILTER TIME.

6

Remove the air filter

Air Filter

4

Clean the air filter and
ventilation openings

with a vacuum cleaner

Ventilation
openings

Caring for the air filter

The air filter should be cleaned about every 100 hours. If the lamp indicator and
temp indicator blink red simultaneously, or a message prompts you to clean the air

filter when you turn on the unit, the filter needs to be cleaned. (See "Related
Messages" ( ) and "Regarding the Indicator Lamps" ( ) for details.)

Turn off the projector, and unplug the power cord

1

After making sure that the

2

projector hascooled adequately,
slowly flip over the projector, so

that the bottom is facing up

Air Filter

31

Replacing the air filter

1

3

5

4

2

Remove the air filter

Turn on the projector power, and using the menu, reset the
filter timer

• To reset the air filter timer, from the OPTION menu, select FILTER TIME.

Insert the new filter

• Make sure to turn off the power and unplug the power cord before caring for

the unit. Please carefully read "Product Safety Guide", in order to care for your projector correctly.

• Do not use with air filter cover removed.

• If the air filter becomes clogged by dust or the like, internal temperature rises and could cause

malfunction. The power is automatically turned off in order to prevent the unit from overheating
internally.

WARNING

6

After making sure that the
projector has cooled adequately,

so that the bottom is facing up

Slowly turn the projector so that the top is facing up

If the soiling will not come off the air filter, or it becomes damaged, then it needs to be
replaced. Please contact your local dealer, after confirming the model of your
separately sold replacement air filter.

Turn off the projector, and unplug the power cord. Prepare a
new air filter (one specified for your projector)

slowly flip over the projector,

Air Filter

32

OTHER CARE

NOTE

Do not polish or wipe with hard objects.

Caring for the inside of the projector :

In order to ensure the safe use of your projector, please have it cleaned and inspected by
your local dealer about once every 2 years. Never try to care for the inside of the unit
yourself. Doing so is dangerous.

Caring for the lens :

Lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the
lens directly with your hand.

Caring for the cabinet and remote control transmitter :

Wipe lightly with gauze or a soft cloth. If soiling is severe, dip a soft cloth in water or a
neutral cleanser diluted in water, and wipe lightly after wringing well. Then, wipe lightly
with a soft, dry cloth.

WARNING • Make sure to turn off the power and unplug the power cord before caring for

the unit. Please carefully read "Product Safety Guide" in this manual, in order to care for your

projector correctly.

• Do not use cleaners or chemicals other than those listed above, including benzene and paint

thinner.

• Do not use aerosols or sprays.

33

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED

292829

28

28

Related Messages

When the unit's power is ON, messages such as those shown below may be displayed. When
any such message is displayed on the screen, please respond as described below.

Message Description

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIMER.

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIMER.

THE POWER WILL TURN OFF

AFTER

＊＊ hr.

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIMER.

THE POWER WILL TURN OFF

AFTER CLEANING AIR FILTER,

ON ＊＊＊ ＊＊＊＊＊

AFTER 0 hr.

CLEAN THE AIR FILTER

RESET THE FILTER TIMER.

NO INPUT IS DETECTED

SYNC IS OUT OF RANGE

CHECK THE AIR FLOW

ON ＊＊＊

fH

kHz

(Note 1)

(Note 1)

fV

＊＊＊＊＊

Lamp usage time is approaching 2,000 hours. (Note 2)
Preparation of a new lamp, and an early lamp change, is
recommended. After you have changed the lamp, please be
sure to reset the lamp timer.

Lamp usage time is approaching 2,000 hours. A lamp change
within ＊＊ hours is recommended. (Note 2)
When lamp usage reaches 2,000 hours, the power will
automatically be turned OFF. Please change the lamp by

referring to “THE LAMP”. After you have
changed the lamp, please be sure to reset the lamp

timer.
As lamp use has reached 2,000 hours, the power will soon be

automatically turned OFF. (Note 2)
Please immediately turn the power OFF, and follow the
instructions in the “THE LAMP”,

After you have changed the lamp, please be sure to reset the
lamp timer.

A note of precaution when cleaning the air filter.
After cleaning the filter, operate FILTER TIME of the OPTION
Menu, and perform reset of the filter timer.

There is no input signal.
Please confirm the signal input connection, and the status of the
signal source.

The horizontal or vertical wavelength of the inputted signal is
outside of the response parameters of this unit. Please confirm

Hz

the specs for this unit or the signal source specs.
The internal portion temperature is rising. Please turn the power

OFF, and allow the unit to cool down for approximately 20
minutes. After having confirmed the following items, then please
resent the power to ON.

•

Is there blockage of the air passage aperture?

•

Is the air filter dirty?

•

Does the peripheral temperature exceed 35°C?

NOTES

Note 1: Although this message will be automatically disappeared after around 3 minutes, it will be

reappeared every time the power is turned ON.

Note 2: Lamps have a finite product life. Lamps are characterized by the fact that, after long hours of

usage, a lamp will no longer light up, or the lamp will break or burst, etc. This unit is equipped
with an automatic shut-down function, such that the power will automatically be turned OFF
when lamp usage time has reached 2,000 hours. Please be aware, however, that among lamp
types, there are major differences in product lifetimes; a lamp may thus fail to light even prior
to the functioning of the automatic shut-down function of this unit.

34

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED (continued)

Regarding the Indicator Lamps

Lighting and flashing of the power indicator, the lamp indicator, and the
temp indicator have the meanings as described in the Table below.

Please respond in accordance with the instructions within the Table.

power

indicator

lamp

indicator

temp

indicator

Description

The orange

lamp is lighted

Flashing of the green lamp
The green lamp is lighted
Flashing of the orange lamp

Blinking of the

red lamp

The red lamp

is lighted, or

blinks

The red lamp

is lighted, or

blinks

The red lamp

is lighted, or

blinks

The red lamp is

lighted, or

blinks

The green lamp

is lighted

The green

lamp is lighted

Turned OFF

(Not lighted)

Turned OFF Turned OFF
Turned OFF Turned OFF
Turned OFF Turned OFF

- -

The red lamp

is lighted

Blinking of the

red lamp

Turned

OFF

Turned

OFF

Alternative blinking

with the red lamp

Simultaneous blinking

with the red lamp

Turned OFF
(Not lighted)

Turned

OFF

Turned

OFF

Blinking of the

red lamp

The red lamp is

lighted

The STANDBY mode is set

The unit is warming up. Please wait.
The unit is in an ON state. Ordinary operations may be performed.
The unit is cooling down. Please wait.

The unit is cooling down. Please wait.
A certain error has been detected. Wait until the power indicator lamp has finished
flashing, and then perform the proper response measure using the item descriptions
below as reference.

The lamp does not light.
There is a possibility that the interior portion has become heated. Turn the power OFF and wait
approximately 20 minutes. After the main unit has cooled down, please confirm whether or not
there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or
not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance,
turn the power ON again; if the same display is displayed, then please change the lamp.

Either there is no lamp and/or lamp door, or either of these has not been properly fixed
(attached). Turn the power OFF and wait approximately 45 minutes. After the main unit has
sufficiently cooled down, please make confirmation of the attachment state of the lamp and
lamp door. After performing any needed maintenance, turn the power ON again; if the same
display is displayed, then please contact a sales store or a service company.

The cooling fan is not operating. Turn the power OFF and wait approximately 20 minutes. After the
main unit has cooled down, please make confirmation that no foreign matter has become caught in
the fan, etc. After performing any needed maintenance, turn the power ON again; if the same display
is displayed, then please contact a sales store or a service company.

There is a possibility that the interior portion has become heated. Turn the power OFF and wait
approximately 20 minutes. After the main unit has cooled down, please confirm whether or not
there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or
not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance,
turn the power ON again; if the same display is displayed, then please contact a sales store or a
service company.

There is a possibility that the interior portion has become overcooled. Please use the unit within
the usage temperature parameters (0°C to 35°C). After performing any needed maintenance,
turn the power ON again; if the same display is displayed, then please contact a sales store or a
service company.

This is a notification that it is time to clean the filter.
After cleaning the filter, operate the FILTER TIME portion of the OPTION Menu, and perform
reset of the FILTER TIME.

NOTE

When the interior portion has become overheated, for safety purposes, the power source is automatically turned OFF, and the
indicator lamps may also be turned OFF. Press the “○” (power OFF) side of the main power switch, and wait for approximately 20

minutes. Please then use the unit only after having first confirmed that the unit has sufficiently cooled down.

35

Phenomena That May Easily Be Mistaken for Machine Defects

Before requesting repair, check in accordance with the following chart.
If the situation cannot be corrected, then contact your dealer.

Phenomenon

Power does not
come ON

No sound or
pictures are
outputted

Pictures are
displayed, but no
sounds are heard

Sounds are
heard, but no
pictures are

displayed

Colors have a faded­out appearance
Color tone is poor

Pictures appear
dark

Pictures appear
blurry

Cases not involving a machine defect

The main power source is not ON.

The electrical power cord is not plugged in. Correctly connect the power cord.

The main power source has been
interrupted during operation, such as by
a power outage (blackout), etc.

The input changeover settings
are mismatched.

No signal is being inputted.

The electrical wiring to this unit
is not correctly connected.

The volume setting has been set at (or
adjusted to) an extremely low level.

The MUTE mode is the current setting.

The electrical wiring to this unit
is not correctly connected.

The brightness setting has been set at
(or adjusted to) an extremely low level.

Color depth setting or color tone setting

The brightness setting and/or contrast
setting has not been properly adjusted.

The WHISPER mode is the current
setting.

Lamp is approaching the end of its
product lifetime.

Either the FOCUS setting or the H
PHASE is not properly adjusted.

Items to be confirmed

Turn on the main power.

Be sure to press the “O” (power OFF) side
of the main power switch, and leave this OFF
for approximately 20 minutes. After the unit
has sufficiently cooled down, turn ON the
power source.

Select the input signal, and
correct the settings.

Correctly connect the connection cord.

Correctly connect the connection cord.

Adjust the VOLUME setting to a higher level.

Press the MUTE button to release
(change) the MUTE mode setting.

Correctly connect the connection cord.

Adjust the BRIGHT setting to a
brighter level.

Perform picture adjustments by changing the
COLOR BAL R, the COLOR BAL B, and/or the
TINT settings, etc.

Perform picture adjustments by changing the
BRIGHT and/or CONTRAST settings, etc.

Change (by releasing) from the
WHISPER mode.

Exchange the old lamp with a new
lamp.

Adjust the FOCUS and H PHASE settings.

Reference

Page(s)

3, 14

14

15

10, 11

10, 11

17

17

10, 11

24

25

24

28

24, 25

15, 25

NOTE

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of
liquid crystal displays, and such do not constitute or imply a machine defect.

36

SPECIFICATIONS

Unit : mm

NOTE

• This specifications are subject to change without notice.

Item Specification

Product name Liquid crystal projector

Liquid
crystal
panel

Lens Zoom lens F=2.0 ~ 2.3 f=18 ~ 21 mm
Lamp 150 W UHB
Speaker 1.0W
Power supply AC100 ~ 120V, 2.7A / AC220 ~ 240V, 1.3A
Power consumption 240W
Temperature range 0 ~ 35°C (Operating)
Size 316 (W) x 105 (H) x 254 (D) mm
Weight (mass) 2.9 kg

Ports

Panel size 1.8 cm (0.7 type)
Drive system TFT active matrix

Pixels

S40：480,000 pixels (800 horizontal x600 vertical)
X40：786,432 pixels (1024 horizontal x 768 vertical)

RGB Port

rgb in .............................1

VIDEO Ports

video in ...........................1

s-video in .......................1

component video

(Y, CB/PB,CR/PR)......1

AUDIO Ports

audio in(R, L) .................1

audio in...........................1

CONTROL Port

control ............................1

Dimension Diagram

254

316

31

43.69

104.59

60.9

37

38

Acccessories..................................................................................Part Number

UHB lamp, 150W (S40) ..................................................................78-6969-9463-7

UHB lamp, 150W (X40) ..................................................................78-6969-9565-9

Air Filter ..........................................................................................78-8118-........-..

Power cord (US) .............................................................................78-8118-8102-4

Power cord (UK) .............................................................................78-8118-8101-6

Power cord (Europe).......................................................................78-8118-8103-2

VGA cable ......................................................................................78-8118-8708-8

RCA component cable ....................................................................78-8118-8843-3

RCA audio/video cable....................................................................78-8118-3234-0

Stereo mini-cable ............................................................................78-8118-8846-6

Remote control......................................................................

..........78-8118-........-..

S-Video cable ................................................................................78-8118-3238-1

RS-232C control cable ..................................................................78-8118-3312-4

Mac adapter ....................................................................................78-8118-3308-2

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the
following number :

In U.S. or Canada : 1-800-328-1371
In other locations,contact your local 3M sales office.

Deluxe Mouse Emulation Kit .......................................................... 78-6969-9233-4

Soft case .......................................................................................78-6969-9203-7

Not Included with Basic Packet....................................................Part Number

Ceiling mount ................................................................................78-6969-9206-0

Adjustable height suspension ........................................................78-6969-8312-7

Shipping case ................................................................................78-6969-9204-5

ACCESSORIES

3M Austin Center

Building A145-5N-01
6801 River Place Blvd.
Austin, TX 78726-9000

3M Canada

P.O. Box 5757
London, Ontario
N6A 4T1

3M Mexico, S.A. de C.V.

Apartado Postal 14-139
Mexico, D.F. 07000
Mexico

3M Europe

Boulevard de l'Oise
95006 Cerge Pontoise Cedex
France

Litho in Japan

© 3M 2003

78-xxxx-xxxx-x Rev. A

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only
transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call
us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

DN00571 (QR58621_OG_ENG)

Intended Use

Before operating this machine, please read this entire manual thoroughly. The 3MTM Multimedia Projectors are designed, built, and tested for use indoors,
using 3M lamps, 3M ceiling mount hardware, and nominal local voltages.
The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment
and/or create a potentially unsafe operating condition.
3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment.

• 16˚ to 29˚C (60˚ to 85˚ F)

• 10- 80 %RH (without condensation)

• 0- 1828 m (0-6000 feet) above sea level
The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the
projector.
Use of this product in adverse conditions will void the product warranty.
