S10

Multimedia Projector

Operator’s Guide

Thank you for purchasing this projector.

WARNING Before using, read the "Product Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference.

NOTE • The information in this manual is subject to change without notice.

The manufacturer assumes no responsibility for any errors that may appear in this manual.

The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGMENT :

VGA and XGA are registered trademarks of the International Business Machines Corporation.

Apple and Mac are registered trademarks of Apple Computer, Inc.

VESA and SVGA are trademarks of the Video Electronics Standard Association.

Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

1

Contents

…………3

…………3

…………4

4

4

6

…………7

7

8

…………9

………11

…………12

12 …13

…………14

…………14

………15

…………16

…………17

…………17 Sound…17

…………18

19

19

……20 Freezing The Screen ……………20 Signal Searching …………………21 Selecting The Aspect Ratio ……21 Temporarily Blanking

The Screen ………………………21

Multifunctional Settings …………22

Using The Menu Functions ……22 MAIN Menu ………………………23 PICTURE-1 Menu ………………24 PICTURE-2 Menu ………………26 INPUT Menu ……………………27 AUTO Menu ………………………29 SCREEN Menu …………………30 OPTION Menu ……………………31

Lamp ………………………………32

Replacing The Lamp ……………33

Air Filter ……………………………34

Caring For The Air Filter…………34 Replacing The Air Filter …………35

Other Care …………………………36

Caring For The Inside

Of The Projector …………………36 Caring For The Lens ……………36 Caring For The Cabinet

And Remote Control ……………36

Troubleshooting …………………37

Related Messages ………………37 Regarding

The Indicator Lamps ……………39 Phenomena That May Easily Be Mistaken For Machine Defects …41

Specifications ……………………43 Accessories ………………………44

2

Projector Features

This multimedia projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system.

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation.

User Memory Function

This projector can memorize 4 settings by MY MEMORY function.

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

Keystone Distortion Correction

Quick correction of distorted images electrically.

Preparation

Please see the “Quick Start Guide”. Your projector should come with the items shown there. Contact your dealer anything is missing.

NOTE • Keep the original packing material for future reshipment.

3

Part Names

The Projector

Indicates the corresponding

reference page









15 Focus ring



Remote sensor 13

15

Zoom knob





34



Lens

Air filter cover

(An air filter is

(The picture is

inside.)

projected from



here.)

8 Elevator





button

8

Elevator feet

Projector (Front/Right)



Attaching The Base

CAUTION • Be careful not to pinch your finger on the occasion of the handling of a base.

Do not hold the base, lens or other project part to move the projector.

Do not use the base to suspend the projector.

Do not push or put anything on the both sides of the top of the projector.

1Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes.

2 After making sure that the projector has cooled adequately, slowly flip over the projector, so that the bottom is facing up.

Put the base on the bottom of the 3 projector, as shown in the fugure.

Then slide it to the back of the projector until it locks into position. To remove it, slide the base to the front of the projector pinching the lever of the base.

Bottom of

Base the projector

Lever

Back

4 Slowly turn the projector so that the top is facing up.

4

Part Names (continued)

The Projector (continued)

19 keystone button

turns on/off the KEYSTONE mode. In the KEYSTONE mode,

To adjust the keystone, use the cursor / buttons.

video button 15 toggles between the signal ports of video, s-video and component video.

cursor buttons 22 works for adjusting or menu controlling.

on/off button 14 prepares for turning the power on/off.

temp indicator 14 lights or blinks when any problem about internal temperature has happened.

22reset button cancels the adjustment in progress.

*The adjustments of the volume etc. are not reset.

15rgb button selects the input signal of rgb port.

22 menu button opens/closes the menu.

39 power indicator tells the state of power supply. Refer to the section “Power ON/OFF”.

39 lamp indicator lights or blinks when any problem about the lamp has happened.





Control buttons



audio

R port 10







L port





(from a video equipment)





audio port

10





(from a computer)







s-video port

10





video port

10

10

control port





component video - Y 10

10 rgb port

component video - CB/PB 10

14 Power switch

component video - CR/PR 10

11 AC inlet

Projector (Rear/Left)

5

Part Names (continued)

15

21

button





input





the





ports of

15



-video and





video.



21



20

20

18

ESC button 22 returns to the previous display at the menu functions.

STANBY/ON

AUTO BLANK

VOLUME

MUTE

KEYSTONE

MENU

RESET

22 button to the next at the menu

.

22 , , ,

(Cursor) buttons works for adjusting or menu controlling.

14STANDBY/ON button

prepares for turning the power on/off.

19 AUTO button executes automatic adjustment.

21 BLANK button blanks the screen temporarily.

17 VOLUME button turns on/off the VOLUME mode.

In the VOLUME mode,

To adjust the volume, use the cursor / buttons.

17 MUTE button mutes/restores the sound.

19KEYSTONE button

turns on/off the KEYSTONE mode.

In the KEYSTONE mode,

To adjust the keystone,

use the cursor / buttons.

22 MENU button opens/closes the menu.

22 RESET button cancels the adjustment in progress.

* The adjustments of the volume etc. are not reset.

6

Setting Up

Arrangement

WARNING • Install the projector in a suitable environment according to instructions of the “Product Safety Guide” and this manual.

• The power outlet should be close to the projector and easily accessible.

Refer to the illustrations and tables below to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen:800×600 (a):Distance from the projector to the screen (±10%)

(b):Distance from the lens center to the bottom of the screen (±10%) (c):Distance from the lens center to the top of the screen (±10%)







Reference for



Screen Size [inch (m)]

(a) [inch (m)]

(b)

(c)







the 4:3 aspect ratio





Min.

Max.

[inch (cm)]

[inch (cm)]









30 (0.8)

35(0.9)

42(1.1)

2(5)

16(41)



























































































40 (1.0)

47(1.2)

56(1.4)

2(6)

22(55)



























































































50 (1.3)

59(1.5)

71(1.8)

3(8)

27(69)























Screen











































60 (1.5)

71(1.8)

85(2.2)

4(9)

32(82)



































































Lens center



70 (1.8)

83(2.1)

99(2.5)

4(11)

38(96)



(c)





























































80 (2.0)

95(2.4)

114(2.9)

5(12)

43(110)



























































































90 (2.3)

107(2.7)

128(3.3)

5(14)

49(123)



























































































100 (2.5)

119(3.0)

143(3.6)

6(15)

54(137)























































































120 (3.0)

143(3.6)

171(4.4)

7(18)

65(165)



(b)



























































150 (3.8)

179(4.6)

215(5.5)

9(23)

81(206)

































































(a)











Side View





































200 (5.0)

240(6.1)

287(7.3)

12(30)

108(274)









































































250 (6.3)

300(7.6)

359(9.1)

15(38)

135(343)



























































































300 (7.5)

360(9.2)

431(10.9)

18(46)

162(411)









































































































Reference for



Screen Size [inch (m)]

(a) [inch (m)]

(b)

(c)









Min.

Max.

[inch (cm)]

[inch (cm)]







the 16:9 aspect ratio













30 (0.8)

38(1.0)

46(1.2)

0(1)

15(39)



























































































40 (1.0)

51(1.3)

61(1.6)

1(2)

20(51)



























































































50 (1.3)

64(1.6)

77(2.0)

1(2)

25(64)























Screen





























































60 (1.5)

77(2.0)

93(2.4)

1(2)

30(77)



































































Lens center



70 (1.8)

90(2.3)

108(2.8)

1(3)

35(90)



(c)





































80 (2.0)

104(2.6)

124(3.2)

1(3)

41(103)



























































































90 (2.3)

117(3.0)

140(3.6)

1(4)

46(116)









































100 (2.5)

130(3.3)

155(3.9)

2(4)

51(129)



































































120 (3.0)

156(4.0)

187(4.7)

2(5)

61(154)







(b)

















































































(a)

150 (3.8)

196(5.0)

234(5.9)

2(6)

76(193)







































































Side View

200 (5.0)

216(6.6)

312(7.9)

3(8)

101(257)









































250 (6.3)

327(8.3)

391(9.9)

4(10)

127(322)



























































































300 (7.5)

393(10.0)

469(11.9)

5(12)

152(386)



















































7

Setting Up (continued)

Elevator

buttons without holding the projector, the your fingers and possibly result in

and injuring yourself, ALWAYS HOLD buttons to adjust the elevator feet.

if the surface on which you need to set need to adjust the angle of projection. The

9 degrees.

buttons.

Elevator buttons

to the the

the elevator

finely

by twisting the elevator feet by hand.

Elevator feet

8

Setting Up (continued)

Connecting Your Devices

WARNING • Incorrect connecting could result in fire or electrical shock. Whenever attempting to connect other devices to the projector, please thoroughly read the "Product Safety Guide", this manual and the manual of each device to be connected.

CAUTION • TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector.

ATTENTION • Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector. Refer to the section “TECHNICAL” of this manual for the pin assignment of connectors and RS-232C communication data.

Some cables have to be used with core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.

Secure the screws on the connectors and tighten.

Whenever attempting to connect a laptop computer to the projector, be sure to activate the laptop’s RGB external image output (set the laptop to CRT display or to simultaneous LCD and CRT display). For details on how this is done, please refer to the instruction manual of the corresponding laptop computer.

NOTE About Plug-and-Play Capability

This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by connecting this projector to computers that are VESA DDC (display data channel) compatible. Please take advantage of this function by connecting the accessory RGB cable to the rgb port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Plug-and-Play is a system composed of the computer, its operating system and peripheral equipment (i.e. display devices).

Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor.

NOTE • Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

For some RGB input modes, the optional Mac adapter is necessary.

When the image resolution is changed on a computer, depending on an input, automatic adjust function may take some time and may not be completed. In this case, you may not be able to see a check box to select “Yes/No” for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or TFT monitors to change the resolution.

9

Setting Up (continued)

Please refer to the following for connecting your devices. See the rear of the projector. You can see the ports.

Connecting to a computer

RGB out RGB cable (D-sub 15 pin) 1 Audio out Audio cable (Stereo mini)2 RS-232C port RS-232C cable 3

Connecting to a DVD/VCR player

Video out





















4





















Audio out (L)







Audio/Video cable





5













Audio out (R)





















6





















If using a SCART RGB input,



4

Video

























AUDIO-L

























5























AUDIO-R





SCART







SCART cable





6















G





out port















7



















B

























8

























R

























9















































video L - a u d i o - R

21

audio

rgb

s-video

Y CB/PB CR/PR component video

video L - audio - R

4 5 6

audio

rgb

s-video

Y CB/PB CR/PR component video

video L - audio - R

4 5 6

audio

rgb

s-video 7 8 9

Y CB/PB CR/PR component video

If using a S-video input,

S-video out port













S-video cable











10









video L - audio - R































Audio out (L)











Audio cable







5











5 6





















audio













Audio out (R)



































6















rgb



















































































s-video











































































































































































Y

CB/PB CR/PR





















































component video



If using a component input,

7

















Component (Y) out

































video L - audio - R

































Component (CB/PB) out











Component cable





8











5 6

































audio













Component (CR/PR) out

























9













































7 8 9

rgb





























s-video



































Audio out (L)











Audio cable

5































Y

component video



















































CB/PB CR/PR





Audio out (R)



































6

























































































































If using a component input from rgb port,

















Component (Y) out



























2







video L - audio - R















































































Component (CB/PB) out









Component cable





1









1





















Component (CR/PR) out









(with D-sub 15 pin)

audio























































































rgb























































Audio out



Audio cable(Stereo mini)

2





s-video

































Y

component video



















































CB/PB CR/PR





3

control

control

control

control

control

control

10

Setting Up (continued)

Connecting Power Supply

WARNING • Please use extra caution when connecting the power cord as incorrect or faulty connections may result in FIRE and/or ELECTRICAL SHOCK. Please adhere to the “Product Safety Guide” and the following.

Only plug the power cord into outlets rated for use with the power cord’s specified voltage range.

Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.

Never modify the power cord. Never attempt to defeat the ground connection of the three-pronged plug.

Make sure that you firmly connect the power cord to the projector and wall outlet.

1Connect the connector of the power cord to the AC inlet of the projector. 1

AC Inlet

2 Firmly plug the power cord’s plug Connector Side

1

into the outlet.

11

Remote Control

Putting Batteries

batteries with care and use them only as directed. cracking or leakage, which could result in fire, injury environment.

and pets.

specified for use with the remote control. Do not mix

the plus and minus terminals are aligned correctly

.

should obey the law in the relative area or country.

Slide back and remove the battery cover in the direction of the arrow.

the

.

Align and insert the two AA batteries according to their plus and minus terminals (as indicated in the remote control).

Close the

3 battery cover.

Replace the battery cover in the direction of the arrow and snap it back into place.

12

Remote Control (continued)

Operating The Remote Control

ATTENTION • Do not drop or otherwise expose the remote control to physical impact.

Do not get the remote control wet or place it on wet objects. Doing so may result in malfunction.

Remove the batteries from the remote control and store them in a safe place if you won’t be using the remote control for an extended period.

Replace the batteries whenever the remote control starts to malfunction.

When strong lights, such as direct sunlight or light from an extremely close range (such as from an inverter fluorescent lamp), hit the projector’s remote sensor, the remote control may cause to function. Adjust the direction of the projector to keep light from directly hitting the projector’s remote sensor.

The remote control works with the projector’s remote sensor.

The range of the remote sensor is 3 meters with a 60degree range (30 degrees to the left and right of the remote sensor).

Also a remote signal reflected in the screen etc. may be available. If it is difficult to send a remote signal to the sensor directly, please try.

Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control’s output signal to the projector.

Remote sensor

30° 30°

approximately 3 meters

13

Power ON/OFF

Turning On The Power

WARNING • When the power is ON, a strong light is emitted. Do not look into the lens or vents of the projector.

NOTE • Turn the power on/off in right order. Please power on the projector before

the connected devices. Power off the projector after the connected devices.

1

Make sure that the power cord is

(on/off)button















firmly and correctly connected to the





projector and outlet.































2

Set the power switch to [ | ] (ON).













Power switch (ON position)

power indicator

























The power indicator will light orange.

3

Press the button of the projector or



the remote control.

The projector lamp will light up and the power indicator will begin blinking green.

According to a setup, the projector lamp may light up and the power indicator may begin blinking green, without pressing this button.

When the power is completely on, the indicator will stop blinking and light green.

Power switch

(STANDBY/ON) button



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON



14

Power ON/OFF (continued)

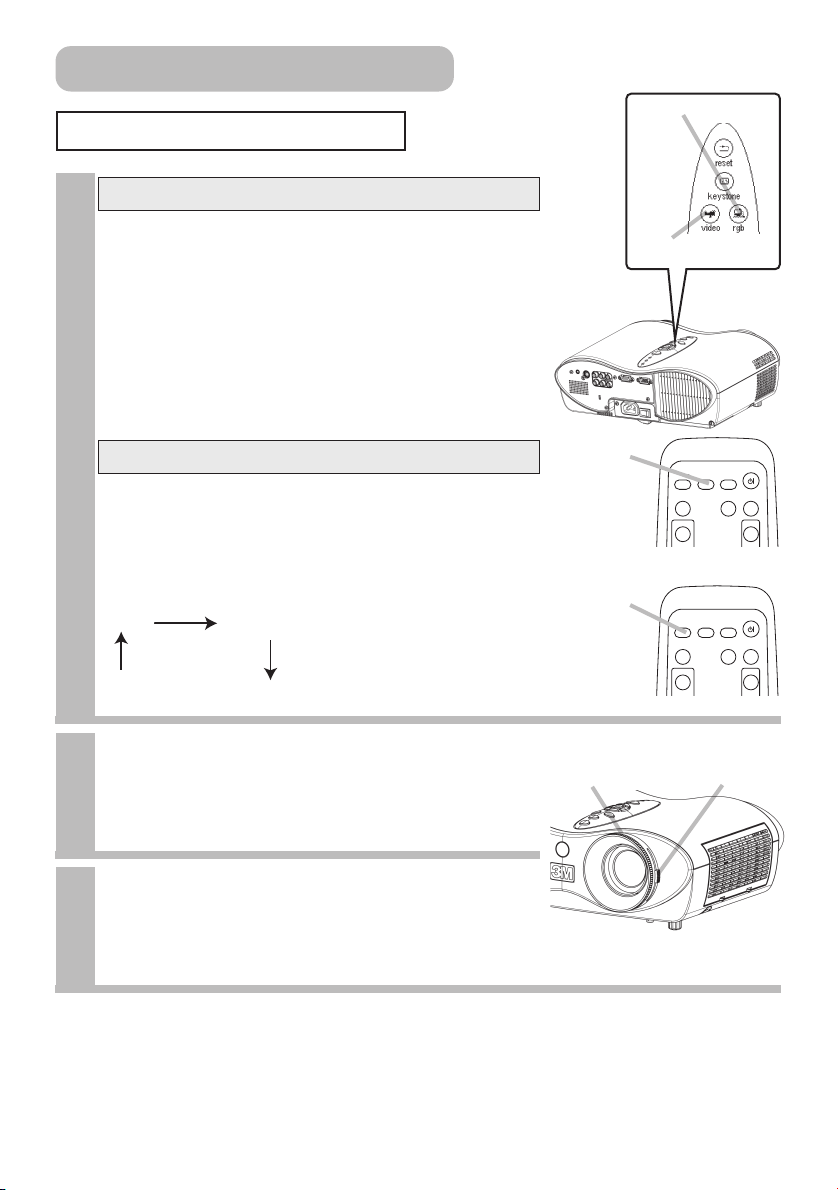

Selecting An Input Signal

1

Selecting a RGB signal

Press the RGB button of the remote control or rgb button of the projector.

When the button is pressed, the projector switches to the rgb port.

Selecting a video signal

Press the VIDEO button of the remote control or video button of the projector.

As illustrated below, each time you press the button, the projector switches between its input signal ports. Select the signal you wish to project.

video s-video

component video

rgb button

video button

RGB button



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON



VIDEO button



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON



2

Use the zoom ring to adjust the screen







size.

Focus ring

Zoom knob





3 Use the focus ring to focus the picture.

15

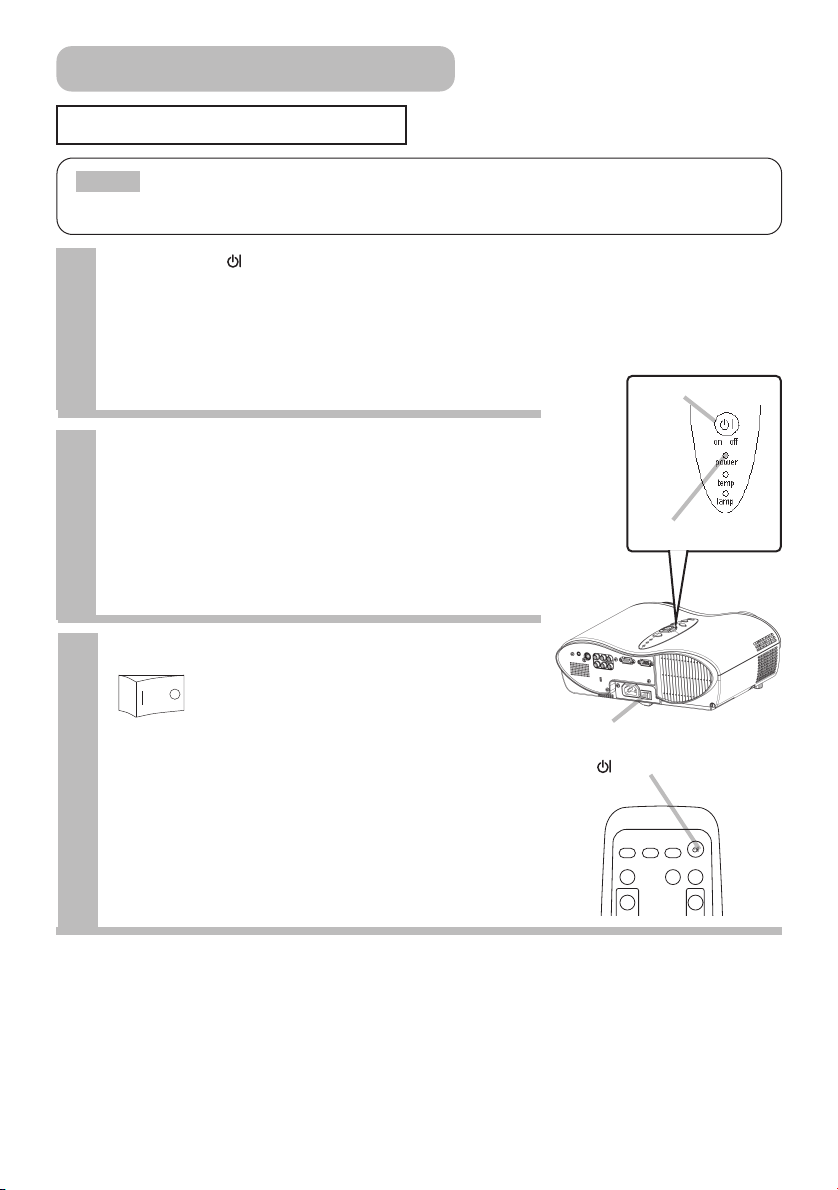

Power ON/OFF (continued)

Please power on the projector before after the connected devices.

projector or

the screen

(on/off)button

again is

power

power indicator

and light complete.

(OFF).

The power indicator will go off.

Power switch

(STANDBY/ON) button



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON



16

Operating

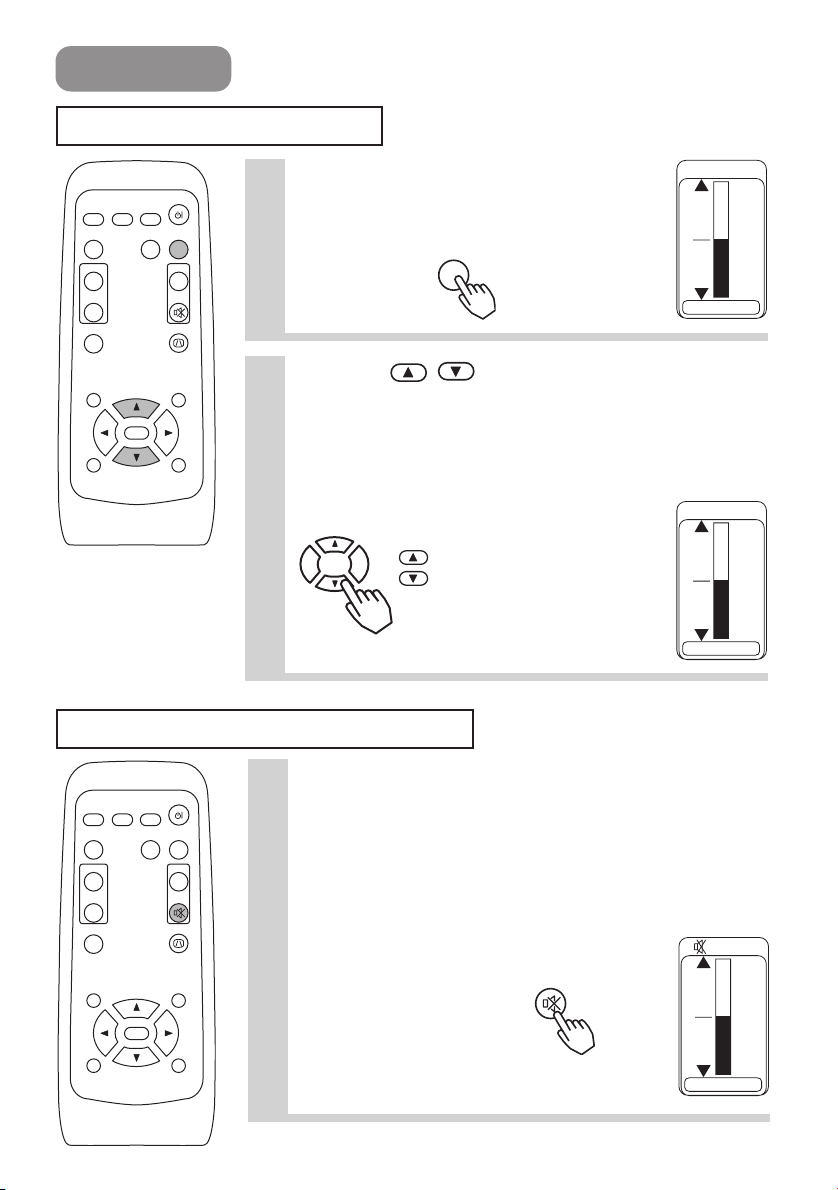

Adjusting The Volume



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

1 Press the VOLUME button.

VOLUME

As illustrated on the right, a dialog will

appear on the screen to aid you in adjusting the volume.

VOLUME

16

2 Use the

/

buttons to adjust the

volume.





Press the VOLUME button again to close the dialog and complete this operation.

(Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

VOLUME

Press this to increase the volume

Press this to decrease the volume

16

Temporarily Muting The Sound



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU

1 Press the MUTE button.

Press the MUTE button.

As illustrated on the right, a dialog will appear on the screen indicating that you have muted the sound.

(If you don't do anything, the dialog will automatically disappear after a few seconds.)

Press the MUTE or VOLUME button to restore the sound.

VOLUME

MUTE

ENTER

ESC

RESET

16

17

Operating (continued)

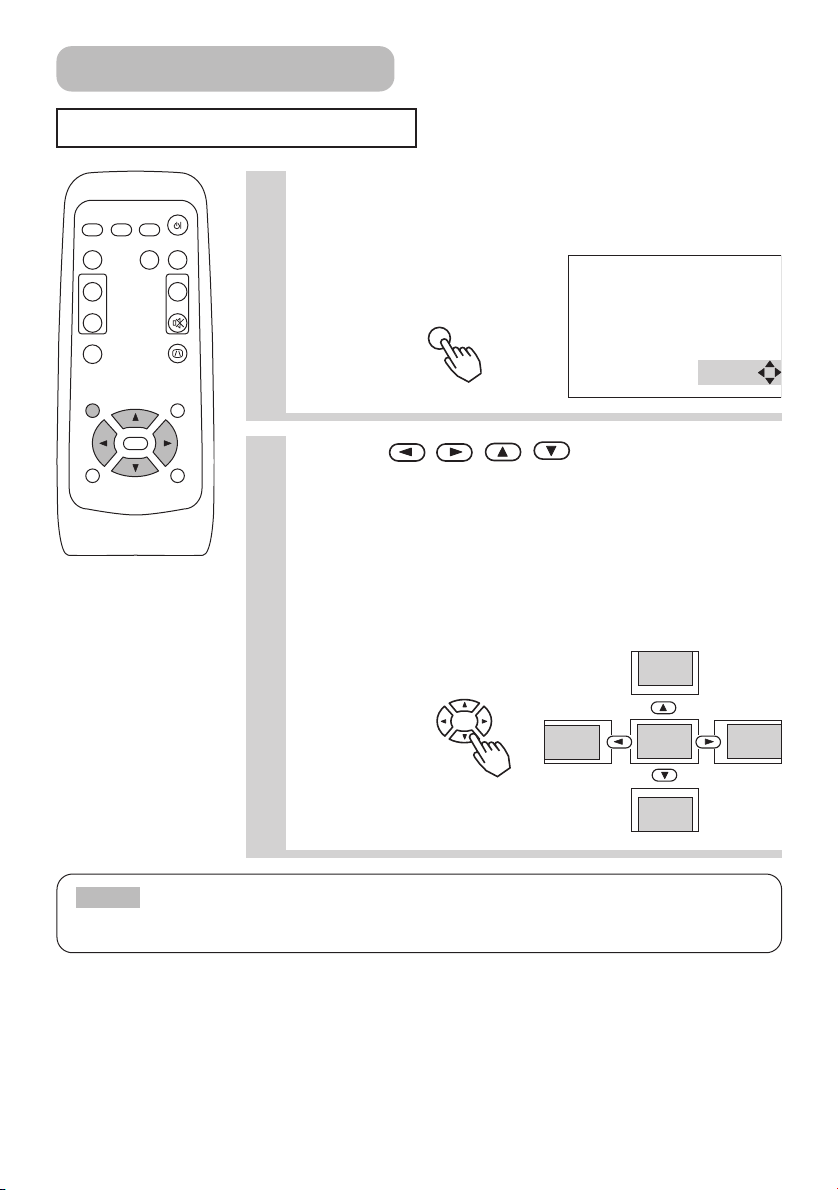

Adjusting The Position



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

1 Press the POSITION button.

As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position.

POSITION

POSITION

2 Use the

, , ,

buttons to adjust

the position.



When you want to initialize the position, press the RESET button during adjustment.

Press the POSITION button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

This function is only available for RGB input.

NOTE • When a menu is displayed, the operation of adjusting the position works for the position of not the picture but the menu.

18

Operating (continued)

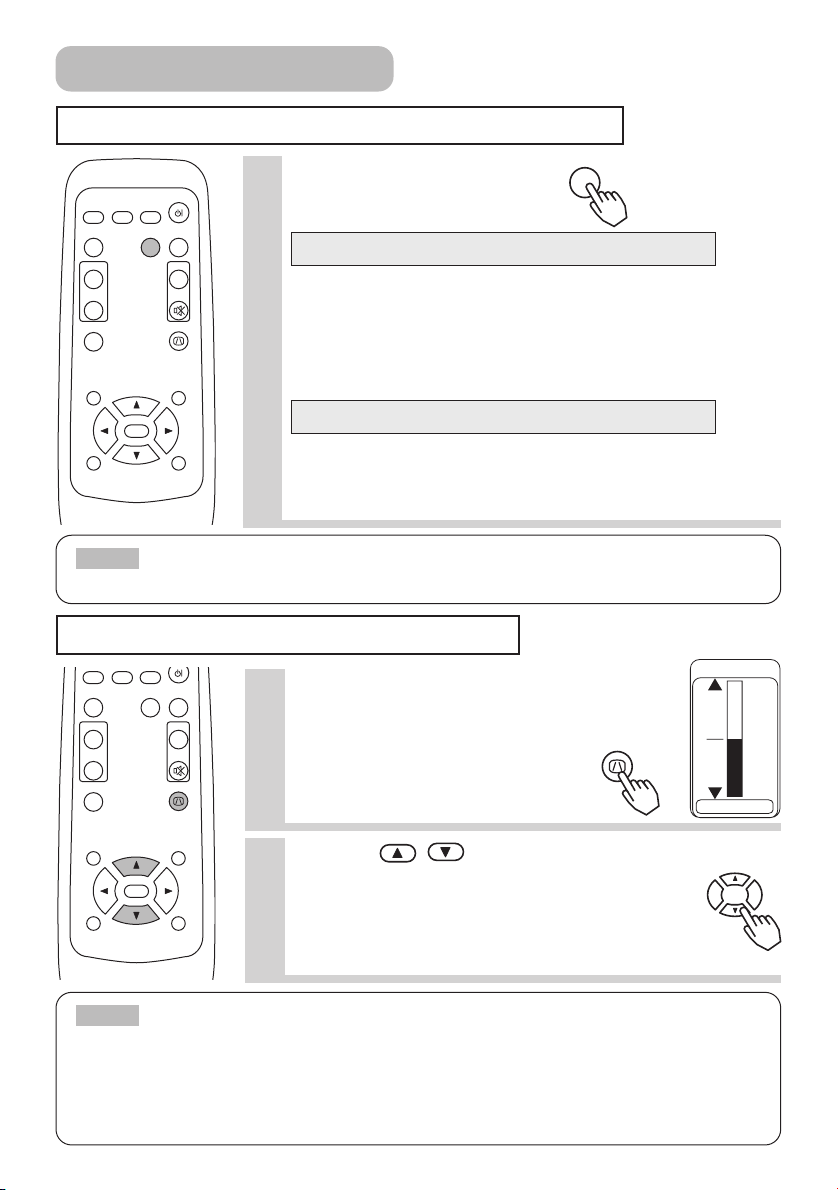

Using The Automatic Adjustment Feature



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

1 Press the AUTO button.

AUTO



Automatic Adjustment for RGB Input

Horizontal position (H POSITION), vertical position (V POSITION), clock phase (H PHASE) and horizontal size (H SIZE) are automatically adjusted.

Make sure that the application window is set to its maximum size prior to attempting to use this feature. Dark pictures may still be incorrectly adjusted. Use a bright screen when adjusting.

Automatic Adjustment for Video Input

The signal type best suited for the respective input signal is selected automatically.

This feature is available only if VIDEO is set to AUTO in the INPUT menu.

NOTE • The automatic adjustment operation requires approximately 10 seconds. Also, please note that it may not function correctly with some input.

Correcting Keystone Distortions

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

1

Press the KEYSTONE button.

KEYSTONE



As illustrated on the right, a dialog will appear on





the screen to aid you in correcting the distortion.









KEYSTONE











+0

2

Use the

,

buttons to correct distortion.

Press the KEYSTONE button again to close the dialog and complete this operation. (Even if you don't do anything, the dialog will automatically disappear after a few seconds.)

NOTE • When the WIDE is selected under the ASPECT item of the MAIN menu, this adjustment is ignored.

The correcting keystone distortions function may not be work well with some types of input signals.

The adjustable range for correcting keystone distortions will vary with the type of input signal.

19

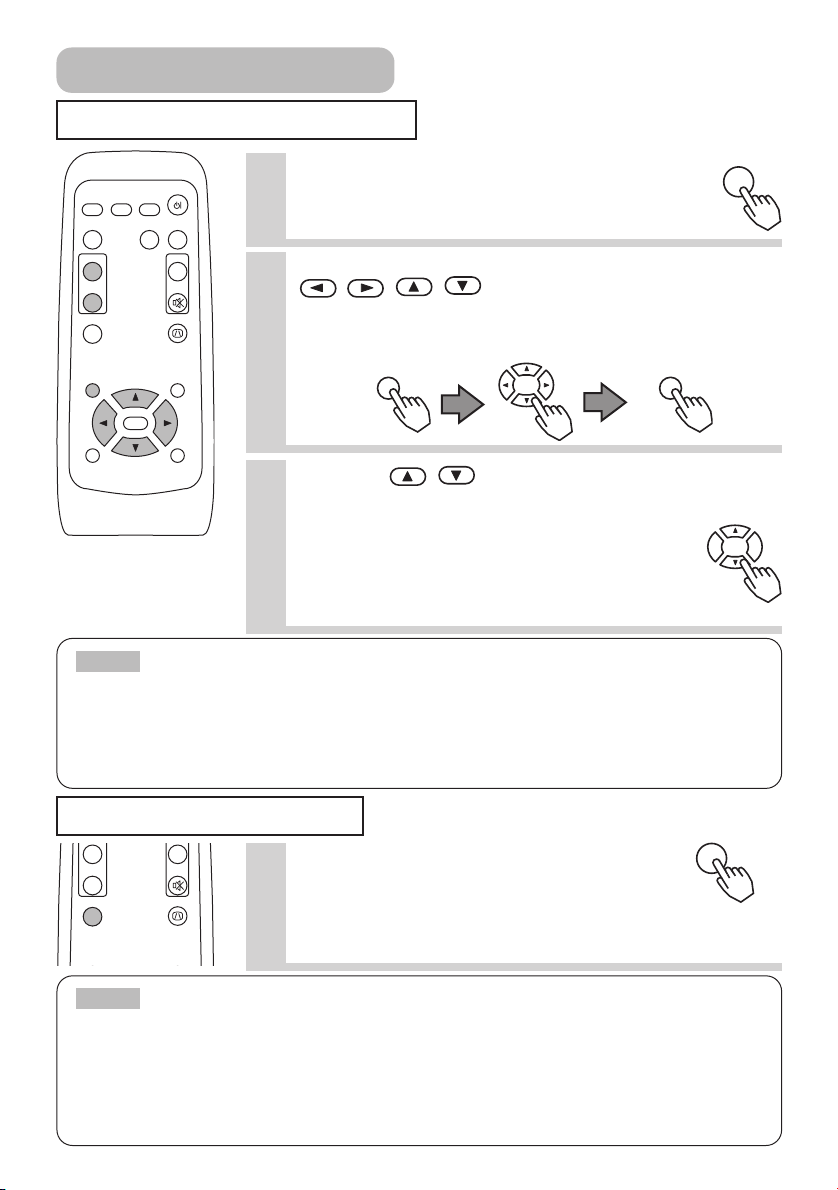

Operating (continued)

MAGNIFY (ON) button. enters MAGNIFY mode.

MAGNIFY

ON

POSITION button, then use the , buttons to select the area

Press the POSITION button again the zoom area.

POSITION

, buttons to adjust the zoom

(OFF) button to exit MAGNIFY the screen to normal.(The

also automatically exit MAGNIFY is a change in the input signal's

exit from MAGNIFY mode if either the feature is used, or, if there is a change in the

vary when the magnify function is active. In so the correcting keystone condition will be

FREEZE

FREEZE button.



appears and the screen will freeze



image. Press the FREEZE button



[▲] appears as the projector exits FREEZE



mode.

POSITION

MENU

NOTE

• The freezing function will automatically finish if either the STANDBY/ON,

SEARCH, RGB, VIDEO, BLANK, AUTO, VOLUME, MUTE, POSITION or MENU button of remote control is pressed, or if a button of projector is pressed, or if there is a change in the input signal’s state.

• If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.

20

Operating (continued)

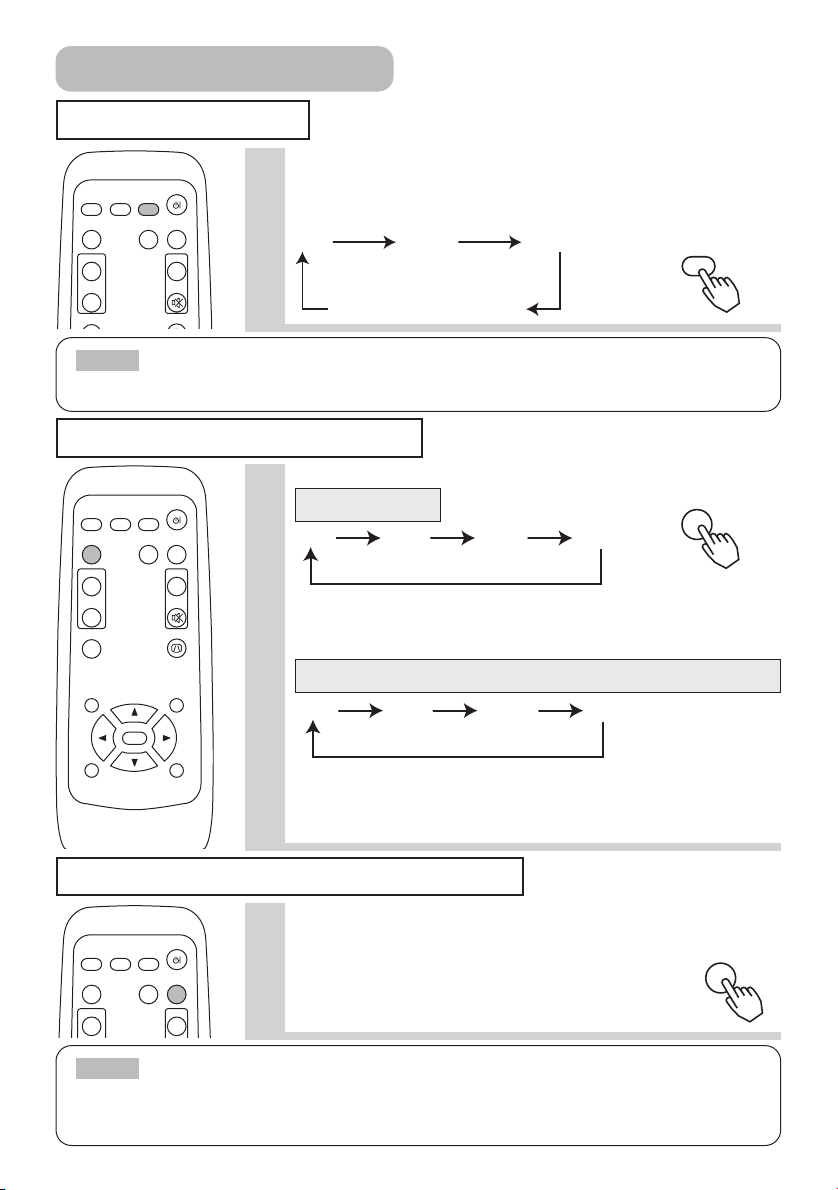

Signal Searching



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

1

Press the SEARCH button.

Cycle through input signals, displaying the images of retrieved signals. If



no signal is found, returns to the signal that was selected before the search



was begun.





rgb

video

s-video







SEARCH





component video



NOTE • May not function properly with some input signals.

• The signal searching function takes about 10 seconds to display an image.

Selecting The Aspect Ratio



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

1 Press the ASPECT button.



RGB input

ASPECT

4:3 16:9 15:9 32:15

At a RGB input, selecting an aspect ratio may display the message “SYNC IS OUT OF RANGE”. In this case, please select one of other aspect ratios.

VIDEO, S-VIDEO, COMPONENT VIDEO input

4:3 16:9 WIDE ZOOM

At a COMPONENT VIDEO input of 16:9 Hi-Vision of 1125i (1035i/1080i)/750p, only 16:9 can be selected.

When the 4:3 is selected under the SCREEN TYPE item of the OPTION menu. WIDE and ZOOM cannot be selected.

Temporarily Blanking The Screen



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON



1

Press the BLANK button.

The input signal screen is shut off, and a blank screen appears. You can



set the blank screen using the menu (from the SCREEN menu, BLANK



select BLANK).



Press the BLANK button again to remove the blank screen,



and return to the input signal screen.

NOTE • The temporarily blanking function will automatically finish if either the STANDBY/ON, SEARCH,

RGB, VIDEO, FREEZE, AUTO, VOLUME, MUTE, POSITION or MENU button of remote control is pressed, or if a button of projector is pressed, or if there is a change in the input signal’s state.

21

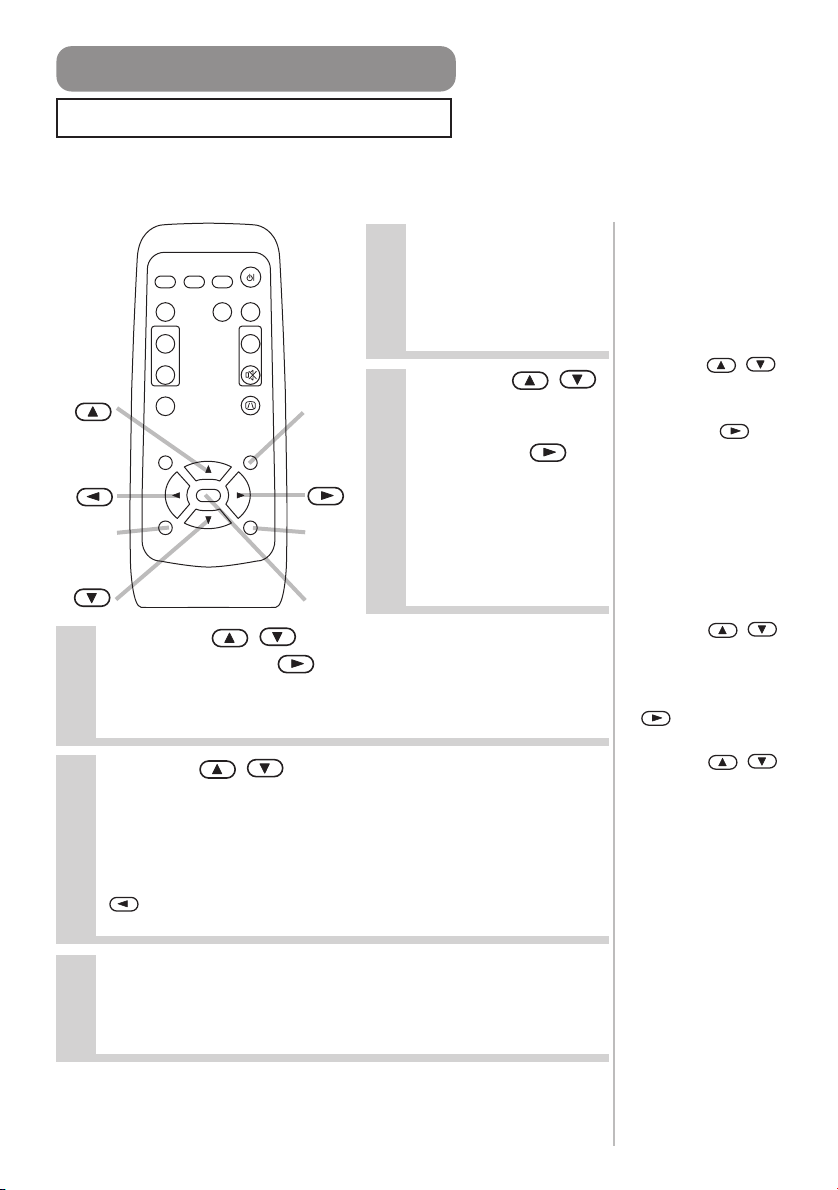

Multifunctional Settings

Using The Menu Functions

This projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, OPTION. Each of these menus is operated using the same methods. The basic operations of these menus are as follows.



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

ESC

MENU

RESET

ENTER

1 Press the MENU button.

The menu display appears on the screen.

2 Use the / buttons to select a menu , then press the or ENTER button.

The display of the selected menu appears.

3 Use the / buttons to select an item, then press the or ENTER button.

The operation display of the selected item appears.

4 Use the

/

buttons to operate the item.

When you want to reset the adjustment, press the RESET button during the operation. Note that the items whose functions are performed simultaneously with operating (ex. LANGUAGE, WHISPER, H PHASE etc.) are not reset. When you want to return to the previous display, press the or ESC button.

5

Press the MENU button, or do not perform

any operation for several seconds.

The menu display disappears and your operation finishes.

[ex. Adjusting VOLUME]

1.Press the MENU button.

2.Use the / buttons to select the OPTION, then press the or ENTER button.

3.Use the / buttons to select the VOLUME, then press the or ENTER button.

4.Use the / buttons to adjust the VOLUME.

5.Press the MENU button.

22

Multifunctional Settings (continued)

MAIN Menu

With the MAIN menu, the items shown in the table below can be performed.

Perform each operation in accordance with the instructions in the table below.

MENU





MAIN

KEYSTONE

+0

PICTURE-1

BRIGHT

+0

PICTURE-2

CONTRAST

+0

INPUT

ASPECT

4:3

AUTO

WHISPER

NORMAL

SCREEN

MIRROR

NORMAL

OPTION

LANGUAGE

ENGLISH



[Language]



: SELECT





Item





Description







Adjust the Keystone (Vertical) Distortion:



Upper in the data



Lower in the data



• The adjustable range of this function will vary with the type of input signal. At



some signals, this function may not work well.



• When the V:INVERT or the H&V:INVERT is selected under the MIRROR item, if

KEYSTONE

the projector screen is inclined or if the projector is angled downward, this

function may not work correctly.



When the WIDE is selected under the ASPECT item of the MAIN menu, this adjustment is ignored.

When the zoom adjustment is set to the TELE side, this correction may be excessive. This function should be used with zoom set to WIDE whenever possible.

BRIGHT

Adjust Brightness: Light



Dark

CONTRAST

Adjust Contrast: Strong



Weak

Select an Aspect Ratio At a RGB input:

4:3 16:9 15:9 32:15

At a RGB input, selecting an aspect ratio may display the message “SYNC IS OUT OF RANGE”. In this case, please select one of other aspect ratios.

ASPECT

At a VIDEO input, a S-VIDEO input or a COMPONENT VIDEO input:



4:3 16:9 WIDE ZOOM



• At a COMPONENT VIDEO input of 16:9 Hi-Vision of 1125i(1035i/1080i)/750p,



only 16:9 can be selected.



• When the 4:3 is selected under the SCREEN TYPE item of the OPTION menu,



WIDE and ZOOM cannot be selected.



Select the Whisper Mode:

WHISPER

NORMAL



WHISPER

• When the WHISPER is selected, acoustic noise and screen brightness are





reduced.





MIRROR

Select a Mirror Status:

NORMAL H:INVERT V:INVERT H&V:INVERT

Select a Menu Language:

ENGLISH FRANÇAIS LANGUAGE ITALIANO NORSK

PORTUGUÊS

SVENSKA

DEUTSCH



ESPAÑOL





NEDERLANDS

















SUOMI



POLSKI





Reset the MAIN Menu Items:



Selecting the EXECUTE performs this function.

RESET

EXECUTE

CANCEL



• The items of the MAIN menu are collectively returned to the initial setting.



Note that the items WHISPER and LANGUAGE are not reset.

23

Multifunctional Settings (continued)



MENU







MAIN

GAMMA

NORMAL



PICTURE-1

COLOR BAL R

+0



PICTURE-2

COLOR BAL G

+0



INPUT

COLOR BAL B

+0



AUTO

SHARPNESS

+0



SCREEN

COLOR

+0



OPTION

TINT

+0

.



MY MEMORY

SAVE1

: SELECT





CUSTOM or the ENTER button calls

the or the ENTER

G B

USER is selected under the

CUSTOM

Adjust the Gamma Data:









GAMMA

Up



Down









CUSTOM

Select a Color Temperature Mode:





COLOR TEMP

HIGH



MIDDLE



LOW



USER

CUSTOM

Adjust the Red Color Level for the USER mode of the

COLOR TEMP:











R











Strong



Weak



















CUSTOM

Adjust the Green Color Level for the USER mode of the

COLOR TEMP:











G











Strong



Weak



















CUSTOM

Adjust the Blue Color Level for the USER mode of the

COLOR TEMP:











B











Strong



Weak





























Weak















Weak















Weak















Soft













be selected only at RGB









be selected only at RGB











input. (The adjustment











but no effect.)













be selected only at RGB

24

Multifunctional Settings (continued)

PICTURE - 1 Menu (continued)

Item







Description













Load/Save a Setting:



















Selecting one from the following and then pressing the



or the ENTER



button performs each function.















LOAD1



LOAD2



LOAD3



LOAD4







SAVE1



SAVE2



SAVE3



SAVE4



• This projector has 4 memories called M1, M2, M3 and M4 for settings.



MY MEMORY

Performing the SAVE1, SAVE2, SAVE3 or SAVE4 puts the current setting data

on the memory whose number corresponds. Performing the LOAD1, LOAD2,





LOAD3 or LOAD4 calls the data of memory whose number corresponds, and



adjusts the picture automatically depending on the data.







The LOAD1, LOAD2, LOAD3 or LOAD4 cannot be selected when there is no memory whose number corresponds.

At a different signal input from the signal that was being inputted when the setting was memorized, the picture may not be adjusted correctly.



Reset the PICTURE-1 Menu Items:



Selecting the EXECUTE performs this function.

RESET

EXECUTE

CANCEL





The items of the PICTURE-1 menu are collectively returned to the initial setting. Note that the items MY MEMORY and CUSTOM - GAMMA are not reset.

25

Multifunctional Settings (continued)

MENU

MAIN

V POSITION

20

PICTURE-1

H POSITION

142

PICTURE-2

H PHASE

31

INPUT

H SIZE

1344

AUTO

OVER SCAN

95

SCREEN

RESET



OPTION





: SELECT

Right

:

or a COMPONENT VIDEO

Small

may not be displayed button during selection of

input, a S-VIDEO input or a

degradation may appear at the adjust small.

returned to the initial

26

Multifunctional Settings (continued)

INPUT Menu

With the INPUT menu, the items shown in the table below can be performed.

Perform each operation in accordance with the instructions in the table below.

MENU

MAIN

COLOR SPACE

AUTO

PICTURE-1

COMPONENT

COMPONENT

PICTURE-2

VIDEO

AUTO

INPUT

FRAME LOCK

TURN ON

AUTO

3D-YCS

NORMAL

SCREEN

VIDEO NR

LOW

OPTION

PROGRESSIVE

TURN OFF



INFORMATION



: SELECT





Item

Description

Select a Color Space Mode:

AUTO RGB SMPTE240 REC709 REC601

• This item can be selected only at a RGB input or a COMPONENT VIDEO

COLOR SPACE input.

When the AUTO is selected, the optimum mode is automatically selected. However, it may not work well at some signals. In such a case, select the SMPTE240 or REC709 for HDTV signal.

Select a Function of COMPONENT VIDEO Jacks:

COMPONENT SCART RGB

COMPONENT • When the SCART RGB is selected, the component video jacks function as ports for a RGB input with a SCART cable. Refer to the section “Signal Connectors” of “TECHNICAL”.

Select a Signal Type Mode:











AUTO



NTSC



PAL



SECAM





NTSC 4.43



M-PAL





N-PAL



This item performs only at a VIDEO input or a S-VIDEO input. For a COMPONENT VIDEO input, although this item is ineffective, the signal type is

VIDEO

identified automatically even if the AUTO is not selected.

Selecting the AUTO automatically selects the optimum mode. However, it may not work well at a PAL60 signal and some other signals. If the picture becomes unstable (ex. a irregular picture, color lack), please select the mode depending on the input signal.

The AUTO operation requires approximately 10 seconds.

Select the Frame Lock Mode:

TURN ON TURN OFF

• This function performs only at a RGB input with vertical frequency of 48 to 72

FRAME LOCK

Hz.

• When the TURN ON is selected, a moving picture is displayed more smoothly.

• This function may cause a certain degradation of the picture. In such a case, please select the TURN OFF.

Select a 3D-YCS mode:

STILL IMAGE NORMAL TURN OFF

• This function performs only at a VIDEO input of NTSC 3.58.

3D-YCS • NORMAL is the mode for images with a lot of motions like movies, and STILL IMAGE is the mode for images with few motions or completely still ones like slides.

• When this function performs, the VIDEO NR function is ineffective.

27

Multifunctional Settings (continued)

Item

VIDEO NR

PROGRESSIVE

INFORMATION

S2-ASPECT

RESET

Description

Select a Noise Reduction Mode:

HIGH MIDDLE LOW

This function performs only at a VIDEO input or a S-VIDEO input. At a VIDEO input of NTSC 3.58, this function performs only when the TURN OFF is

selected under the 3D-YCS.

When the HIGH, the MIDDLE or the LOW is selected, the noise on screen is reduced according to each mode.

When this function is excessive, it may cause a certain degradation of the picture.

Select the Progressive Mode:

TV FILM TURN OFF

This function performs only at an interlaced signal of a VIDEO input, a S- VIDEO input or a COMPONENT VIDEO input of 525i or 625i signal. The FILM mode is adaptable to the 3-2 Pull-Down system to the conversion.

When the TV or FILM is selected, the screen image will be crisper. But it may cause a certain defect (for example, jagged line) of the picture at a quick moving object. In such a case, please select the TURN OFF, even though the screen image may lose the crisp.

This function may cause a certain degradation of the picture. In such a case, please select the TURN OFF.

Display the Information:

Pressing the or the ENTER button performs this function.

Use this function when you want the information about the current input (ex. the resolution and the vertical frequency at a RGB input, the signal type of a video input) and setting states of the COMPONENT, the VIDEO and the FLAME LOCK.

Select the S2-ASPECT Mode:

TURN ON TURN OFF

This function performs only at a S-VIDEO input.

When the TURN ON is selected, an S2-Video signal can be identified and the

optimum aspect ratio is automatically selected.

When the ASPECT button of the remote control is used or the ASPECT item of the MAIN menu is operated, the S2-ASPECT mode will be switched to the TURN OFF automatically.

Reset the INPUT Menu Items:

Selecting the EXECUTE performs this function.

EXECUTE

CANCEL

The items of the INPUT menu are collectively returned to the initial setting. Note that the INFORMATION item is not reset.

28

Multifunctional Settings (continued)

AUTO Menu

With the AUTO menu, the items shown in the table below can be performed.

Perform each operation in accordance with the instructions in the table below.

MENU

MAIN

ADJUST



PICTURE-1

POWER OFF

0 min

PICTURE-2

SEARCH

TURN ON

INPUT

RESET



AUTO





SCREEN





OPTION





: SELECT





Item

ADJUST

POWER OFF

SEARCH

RESET

Description

Automatically Adjust the Picture:

Pressing the or the ENTER button performs this function.

At a RGB input:

V POSITION, H POSITION, H PHASE and HSIZE are automatically adjusted. Please use this function with the maximum window size.

At a VIDEO input or S-VIDEO input:

This function performs only when the AUTO is selected under the VIDEO item of the INPUT menu. For a COMPONENT VIDEO input, although this function is

ineffective, the signal type is identified automatically even if the AUTO is not selected.

This function automatically selects the optimum mode for the input signal. However, it may not work well at a PAL60 signal and some other signals. If the picture becomes unstable (ex. irregular picture, color lack), please use the function of VIDEO of the INPUT menu.

The operation of this function requires approximately 10 seconds. Also, please note that it may not function correctly with some input.

Set the Automatically Power Off Timer:

Long (Max. 99 minutes.) Short (Min. 0 minute =DISABLE)

This function performs only when the time is set to 1 to 99.

When the set time passes without a valid signal (there is no signal, or the signal is out of specifications), the projector lamp automatically goes off, and the POWER indicator begins blinking. Please refer to the section “Turning OFF The Power” of “Power ON/OFF” about the turning off.

Automatically Signal Search:

TURN ON TURN OFF

If the TURN ON is selected under this item when no signal input is detected, the projector begins searching for an input signal. When an input signal is detected the projector will cease searching and the picture will appear.

The priority of a search is as follows:

rgb → video → s-video → component video

If the projector is unstable to find an input signal at any of its ports, it will return to the state it was in prior to the search.

Reset the AUTO Menu Items:

Selecting the EXECUTE performs this function.

EXECUTE

CANCEL

The items of the AUTO menu are collectively returned to the initial setting. Note that the item ADJUST is not reset.

29

Multifunctional Settings (continued)



MENU







MAIN

BLANK

BLACK



PICTURE-1

START UP

TURN ON



PICTURE-2 MENU POSITION



be

INPUT

MESSAGE

TURN ON

AUTO

RESET









SCREEN







OPTION







: SELECT





by pressing the BLANK Blanking The Screen” of

or the detected signal is

.

you want to return to the

message functions are

signal, “Searching …..” “Detecting …..”

.

EXECUTE

CANCEL

• The items of the SCREEN menu are collectively returned to the initial setting.

30

Multifunctional Settings (continued)

OPTION Menu

With the OPTION menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU

MAIN

VOLUME

16

PICTURE-1

SCREEN TYPE

4:3

PICTURE-2

LAMP TIME

1234h

INPUT

FILTER TIME

21h

AUTO

RESET



SCREEN





OPTION





: SELECT

Item

VOLUME

SCREEN TYPE

LAMP TIME

FILTER TIME

RESET

Description

Adjust Volume:

High



Low





Select the Screen Type:









4:3



16:9



16:9



16-9

Please select the screen type used and the picture position in case of 16:9. This selection is used as basic information for a suitable display. This function should be performed before other picture adjustment.

To begin the operation of this item, please press the button of the projector or the RESET button of the remote control for 3 seconds.

Reset the Lamp Timer:

Selecting the RESET performs this function.

RESET



CANCEL

The numerical value of four digits shown on this menu is the projector use time since the last RESET operation of this item. The value is reset to 0 at the

same time the RESET is selected.

The value of this function is used to display the message of “CHANGE THE LAMP”. So this function must be performed only immediately after replacing the lamp.

Do not perform this function unless you have replaced the lamp. Perform this function every time the lamp is replaced. Incorrect performing of this function causes incorrect operation of the message function.

• Please see to the section “Lamp” about replacing the lamp.

To begin the operation of this item, please press the button of the projector or the RESET button of the remote control for 3 seconds.

Reset the Filter Timer:

Selecting the RESET performs this function.

RESET

CANCEL

The numerical value of four digits shown on this menu is the projector use time since the last RESET operation of this item. The value is reset to 0 at the same time the RESET is selected.

The value of this function is used to display the message of “CLEAN THE AIR FILTER”. So this function must be performed only immediately after cleaning or replacing the air filter.

Do not perform this function unless you have cleaned or replaced the air filter. Perform this function every time the air filter is cleaned or replaced. Incorrect performing of this function causes incorrect operation of the message function.

Please see to the section “Air Filter” about cleaning and replacing the air filter.

Reset the OPTION Menu Items:

Selecting the EXECUTE performs this function.

EXECUTE

CANCEL

The SCREEN TYPE item is returned to the initial setting. Note that the items VOLUME, LAMP TIME and FILTER TIME are not reset.

31

Lamp

WARNING

HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE

The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector’s vent holes.

If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector’s internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.

If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.

Do not open the lamp cover while the projector is suspended from above. This is dangerous, since if the lamp’s bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken

If the indicators or a message prompts you to replace the lamp (see the section “Related Messages” and “Regarding the indicator Lamps”), replace the lamp as soon as possible. Using the lamp for long periods of time, or past the replacement date, could cause it to burst. Do not use old (used) lamps; this is a cause of breakage.

If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer or a service representative.

Use the lamp of the specified type only. See the section “ACCESSORIES”.

Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

Before replacing the lamp, make sure the power switch is off and the power cable is not plugged in, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

Obey local ordinances when disposing of used lamps. In most cases, it is possible to dispose of used bulbs in the same manner as used glass bottles, but in some cases, bulbs are sorted separately.

32

Lamp (continued)

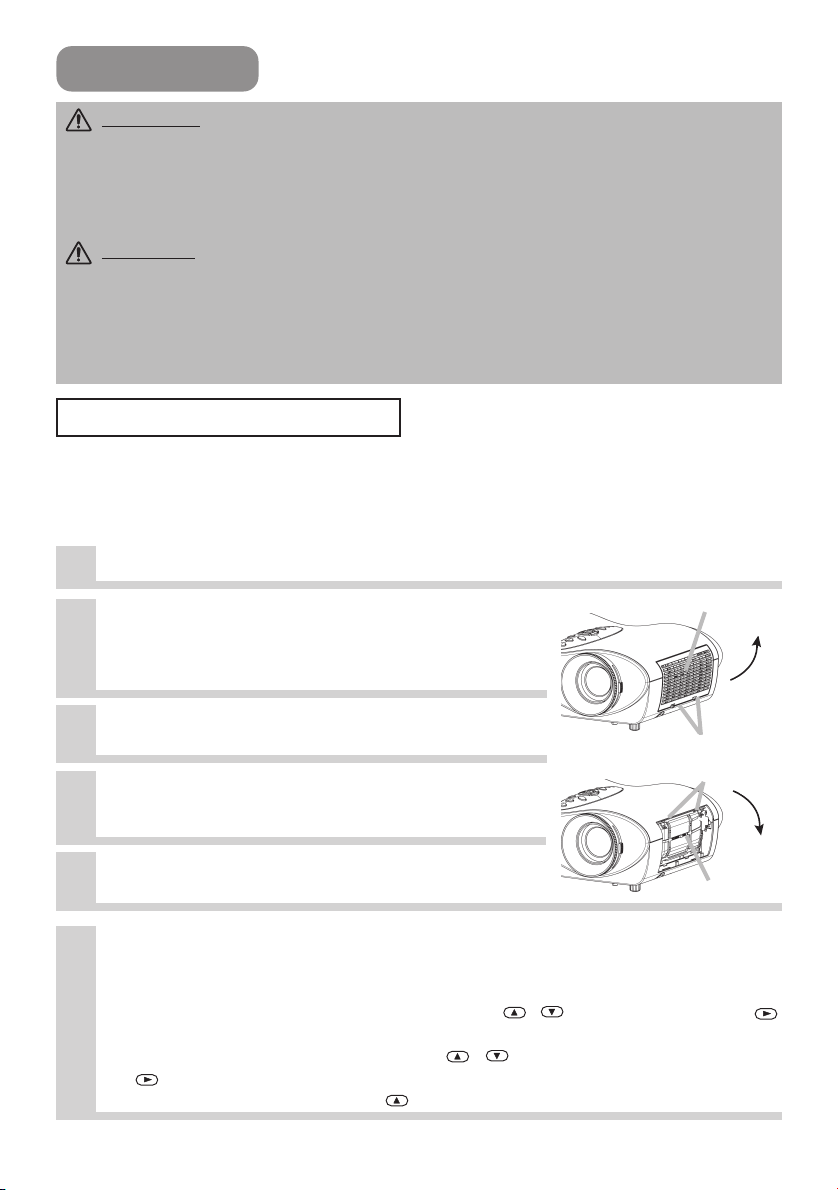

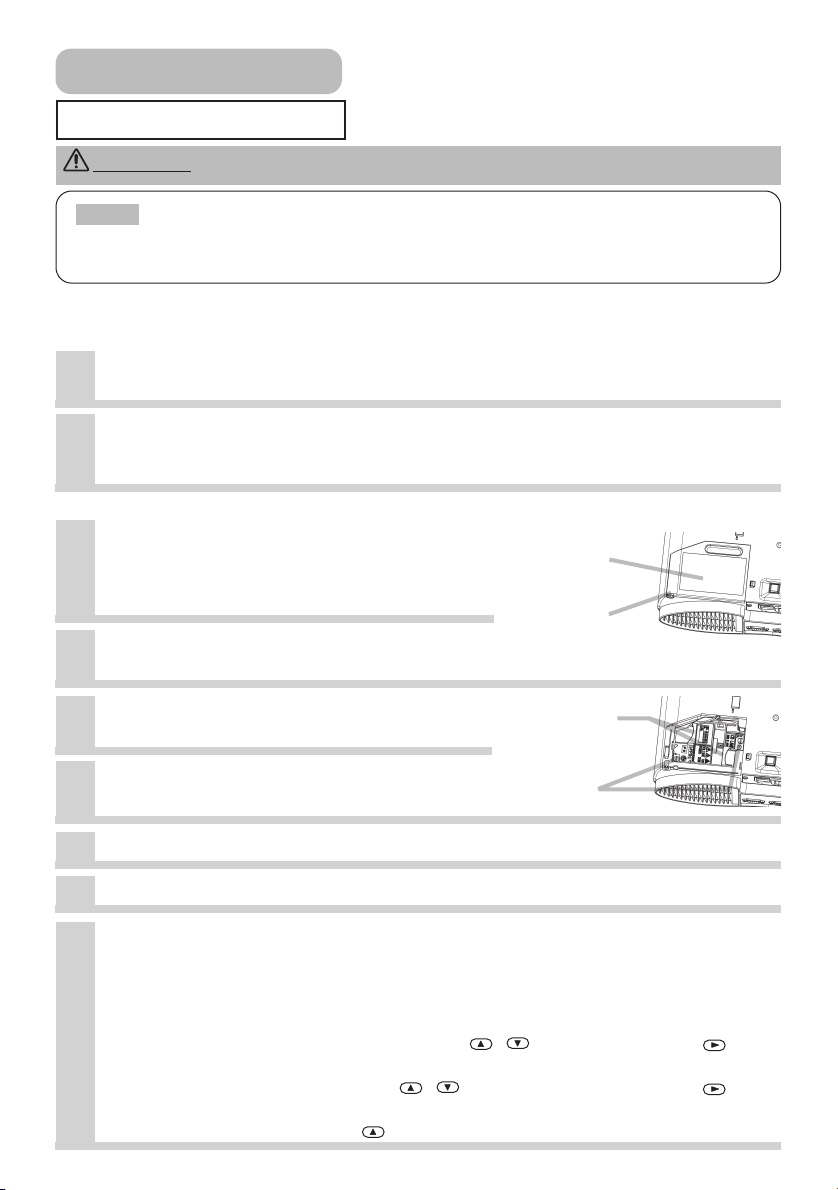

Replacing The Lamp

WARNING Please carefully read the “Product Safety Guide”.

NOTE • Do not reset the lamp timer without replacing the lamp.

• When you replace the lamp, please replace also the air filter. The air filter may be attached when you buy a replacement lamp for this projector. Please ask your dealer.

If the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible. Using the lamp for long periods of time, or past the replacement date, could cause it to burst. If the projector is mounted on the ceiling, or if the lamp has broken, do not try to clean the projector or replace the lamp yourself.

1

Turn off the projector, and unplug the power cord. Allow the lamp



bulb to cool for at least 45 minutes.





2

Contact your local dealer to prepare a new lamp. Tell the dealer

your lamp type number. If the projector is mounted on the ceiling,

or if the lamp has broken, also ask the dealer to replace the lamp.

In the case of replacement by yourself,

3 After making sure that the projector has cooled adequately, slowly flip over the projector, so that the bottom is facing up.

4 Unscrew the screw of the lamp door, then slide and take the lamp door up.

Lamp door

Screw

5

Unscrew the 2 screws, and slowly



pick up the lamp by the handles.







Insert the new lamp, and tighten the 2

6



screws firmly to lock it in place.





Handles

Screws

7

8

Slide the lamp door into place until it locks into position.

Slowly turn the projector so that the top is facing up.

Turn on the projector, and reset the lamp timer. When the lamp has 9 been replaced after the message of “THE POWER WILL TURN OFF AFTER 0hr.” is displayed, complete the following operation within

10 minutes of switching power on.

(1)

While the projector running, press the MENU button to open the menu.



(2)

Choose the “OPTION” on the menu using the

/

button, then press the

button



or ENTER button.











(3)

Choose the “LAMP TIME” using the

/

button, then press and hold the

button



of projector or the RESET button of remote control for 3 seconds.



(4)

Choose the “RESET” using the

button.







33

(3) Choose the “FILTER TIME” using the
button, then press and hold the

Air Filter

WARNING Please carefully read the “Product Safety Guide”.

Before replacing the air filter, make sure the power switch is off and the power cable is not plugged in.

Use the air filter of the specified type only. See the section “ACCESSORIES”.

Do not use the projector with the air filter and filter cover removed. The use without the air filter could result in damage.

CAUTION • Do not reset the filter timer without cleaning or replacing the air filter.

If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The power is automatically turned off in order to prevent the projector from overheating internally.

When you replace the lamp, please replace also the air filter. The air filter may be attached when you buy a replacement lamp for this projector. Please ask your dealer.

Caring For The Air Filter

The air filter should be cleaned about every 100 hours. If the indicators or a message prompts you to clean the air filter (see the section “Related Messages” and “Regarding The Indicator Lamps”), clean the air filter as soon as possible. If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction.

1 Turn off the projector, and unplug the power cord.

2

After making sure that the projector has

cooled adequately, remove the filter



cover. Hold the release buttons ofthe



filter cover, while pulling up it.







Hold the release buttons of the air filter,

3



while pulling down it.



Apply a vacum cleaner to the air filter

4



and the filter cover to clean.











Replace the air filter and the filter cover.

5





Filter cover

Release buttons Release buttons

Air filter

6 Reset the filter timer.

(1)Turn on the projector. While the projector running, press the MENU button to open the menu.

(2)Choose the “OPTION” on the menu using the / button, then press the button or ENTER button.

/

button of projector or the RESET button of remote control for 3 seconds.

(4) Choose the “RESET” using the button.

34

(3) Choose the “FILTER TIME” using the
button, then press and hold the

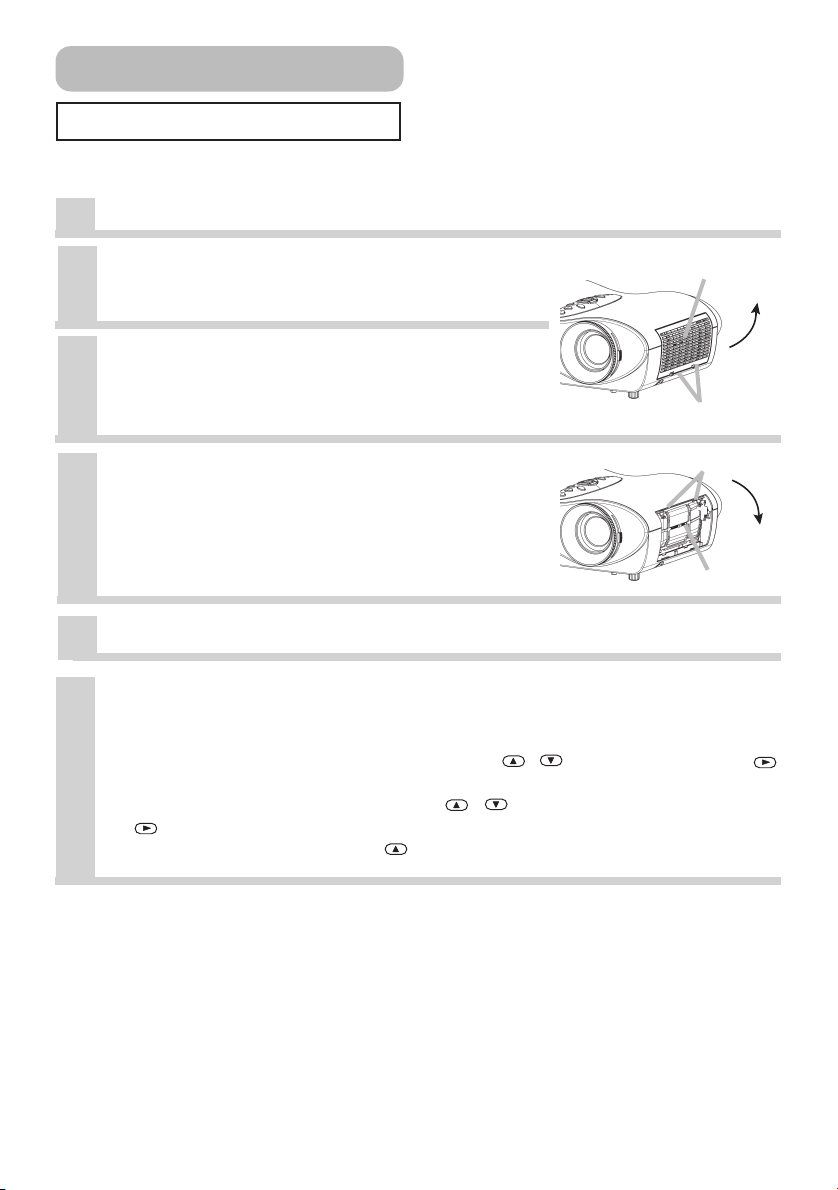

Air Filter (continued)

Replacing The Air Filter

If the soiling will not come off the air filter, or it becomes damaged, then it needs to be replaced. Please replace the air filter as soon as possible.

1 Turn off the projector, and unplug the power cord.



2

Contact your local dealer to prepare a





new air filter. Tell the dealer your air





filter type number.















3

After making sure that the projector

has cooled adequately, remove the filter cover. Hold the release buttons of the filter cover, while pulling up it.

Filter cover

Release buttons

4

Hold the release buttons of the air



filter, while pulling down it.

Release buttons

Air filter

5

6

Insert a new air filter, and replace the filter cover.

Reset the filter timer.

(1)Turn on the projector. While the projector running, press the MENU button to open the menu.

(2)Choose the “OPTION” on the menu using the / button, then press the button or ENTER button.

/

button of projector or the RESET button of remote control for 3 seconds.

(4) Choose the “RESET” using the button.

35

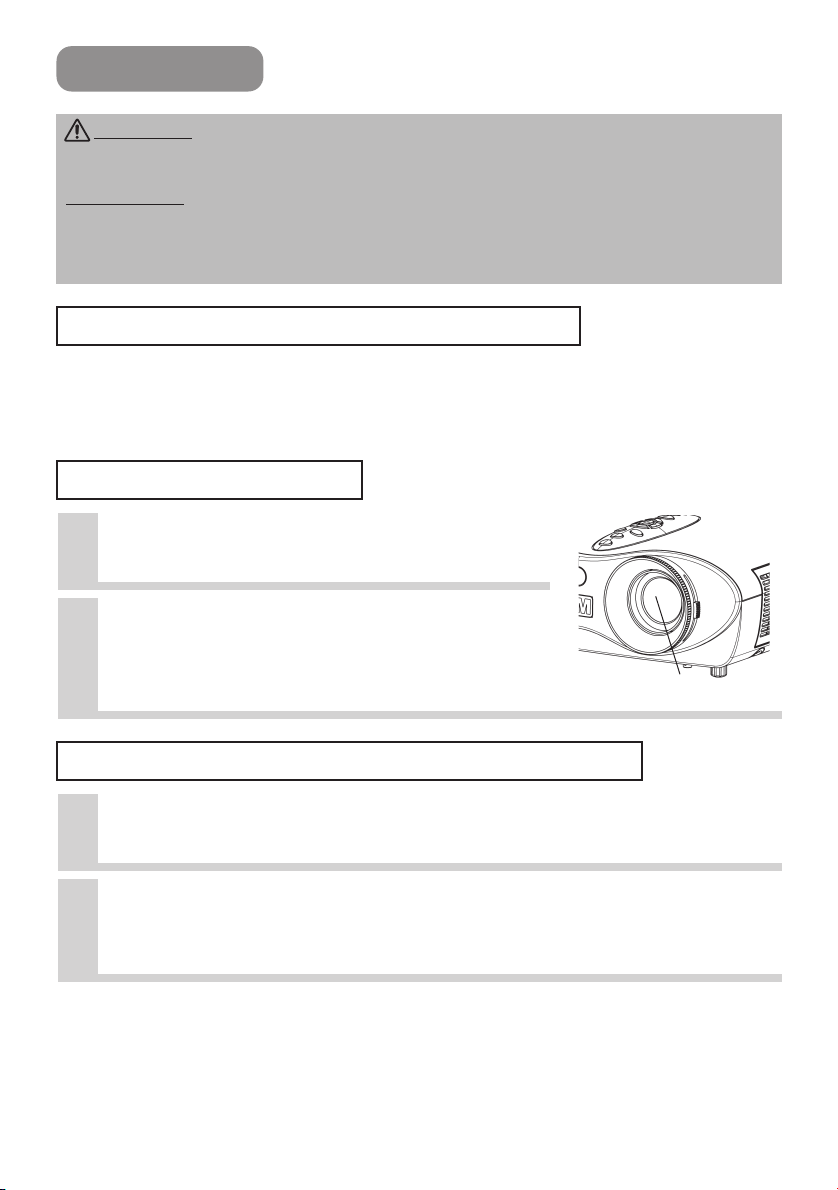

Other Care

WARNING Please carefully read the “Product Safety Guide”.

Before replacing the air filter, make sure the power switch is off and the power cable is not plugged in.

ATTENTION • Do not use cleaners or chemicals other than those listed below, including benzene and paint thinner.

Do not use aerosols or sprays.

Do not polish or wipe with hard objects.

Caring For The Inside Of The Projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every 2 years. Never try to care for the inside of the unit yourself. Doing so is dangerous.

Caring For The Lens



1

Turn off the projector, and unplug the







power cord.































Lightly wipe the lens with a





2







commercially available lens-cleaning







wipe. Do not touch the lens directly







with your hand.

Lens





























Caring For The Cabinet And Remote Control



















Turn off the projector, and unplug the power cord.





1





















2

Wipe lightly with gauze or a soft cloth.







If soiling is severe, dip soft cloth in water or a neutral cleaner dilute in water, and

wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

36

Troubleshooting

Related Messages

When the unit's power is ON, messages such as those shown below may be displayed. When any such message is displayed on the screen, please respond as described below. If the same message is displayed after the treatment, or if a message other than the following appears, please contact your dealer or service company.

Message

Description





CHANGE THE LAMP

Lamp usage time is approaching 2000 hours. (*2)

AFTER REPLACING LAMP,

Preparation of a new lamp, and an early lamp change is

RESET THE LAMP TIMER.

recommended. After you have changed the lamp, please be

(*1)

sure to reset the lamp timer.





CHANGE THE LAMP

Lamp usage time is approaching 2000 hours. (*2)

AFTER REPLACING LAMP,

A lamp change within ** hours is recommended. When lamp

RESET THE LAMP TIMER.

usage reaches 2000 hours, the power will automatically be

THE POWER WILL TURN OFF

turned OFF. Please change the lamp by referring to the “Lamp”

AFTER ** hr.

section of this manual. After you have changed the lamp,

please be sure to reset the lamp timer.

(*1)





CHANGE THE LAMP

As lamp use has reached 2000 hours (*2), the power will soon

AFTER REPLACING LAMP,

be automatically turned OFF.

RESET THE LAMP TIMER.

Please immediately turn the power off, and change the lamp by

THE POWER WILL TURN OFF

referring to the “Lamp” section of this manual. After you have

AFTER 0 hr.

changed the lamp, please be sure to reset the lamp timer.







NO INPUT IS DETECTED

There is no input signal.

Please confirm the signal input connection, and the status of the

ON ***

signal source.







SYNC IS OUT OF RANGE

The horizontal or vertical wavelength of the inputted signal is

outside of the response parameters of this unit.

ON *** fH *****kHz fV *****Hz

Please confirm the specs for this unit or the signal source



specs.

The internal portion temperature is rising.

Please turn the power OFF, and allow the unit to cool down at least 20 minutes. After having confirmed the following items,

CHECK THE AIR FLOW please turn the power ON again.

Is there blockage of the air passage aperture?

Is the air filter dirty?

Does the peripheral temperature exceed 35°C?

NOTE (*1) • Although this message will be automatically disappeared after around 3 minutes, it will be reappeared

every time the power is turned ON.

(*2) • Lamps have a finite product life. Lamps are characterized by the fact that, after long hours of usage, a lamp will no longer light up, or the lamp will break or burst, etc. This unit is equipped with an automatic shut-down function, such that the power will automatically be turned OFF when lamp usage time has reached 2,000 hours. Please be aware, however, that among lamp types, there are major differences in product lifetimes; a lamp may thus fail to light even prior to the functioning of the automatic shut-down function of this unit.

37

Troubleshooting (continued)

Related Messages (continued)

Message

Description





CLEAN THE AIR FILTER

A note of precaution when cleaning the air filter.

Please immediately turn the power OFF, and clean or change

POWER OFF FIRST,

the air filter by referring to the “Air Filter” section of this manual.

THEN CLEAN THE AIR FILTER.

After you have cleaned or changed the air filter, please be sure

AFTER CLEANING THE AIR

to reset the filter timer.

FILTER,

If the same message is displayed after the treatment, please

clean the transparent area of filter cover and the dust-detecting

RESET THE FILTER TIMER.

window, according to the following.







ATTENTION • The transparent area of filter cover and the dust-detecting window should be cleaned for normal operation of the optical dust detecting system. Please pay attention not to remain fiber or fragment of cloth inside the duct.

1



Turn off the projector, and unplug the

Filter cover



power cord.



















After making sure that the projector





2











has cooled adequately, remove the









filter cover.









Hold the release buttons of the filter cover, while

Release buttons







pulling up it.





























3



Wipe the transparent area of the filter

Filter cover











cover by using a swab or a soft cloth.



Transparent area







Remove the air filter.





Release buttons



4





















Hold the release buttons of the air filter, while pulling















down it.





















Air filter







































by











5





































(Rear side)







Dust detecting window





(Bottom side)











































6



Replace the air filter and filter cover.









38

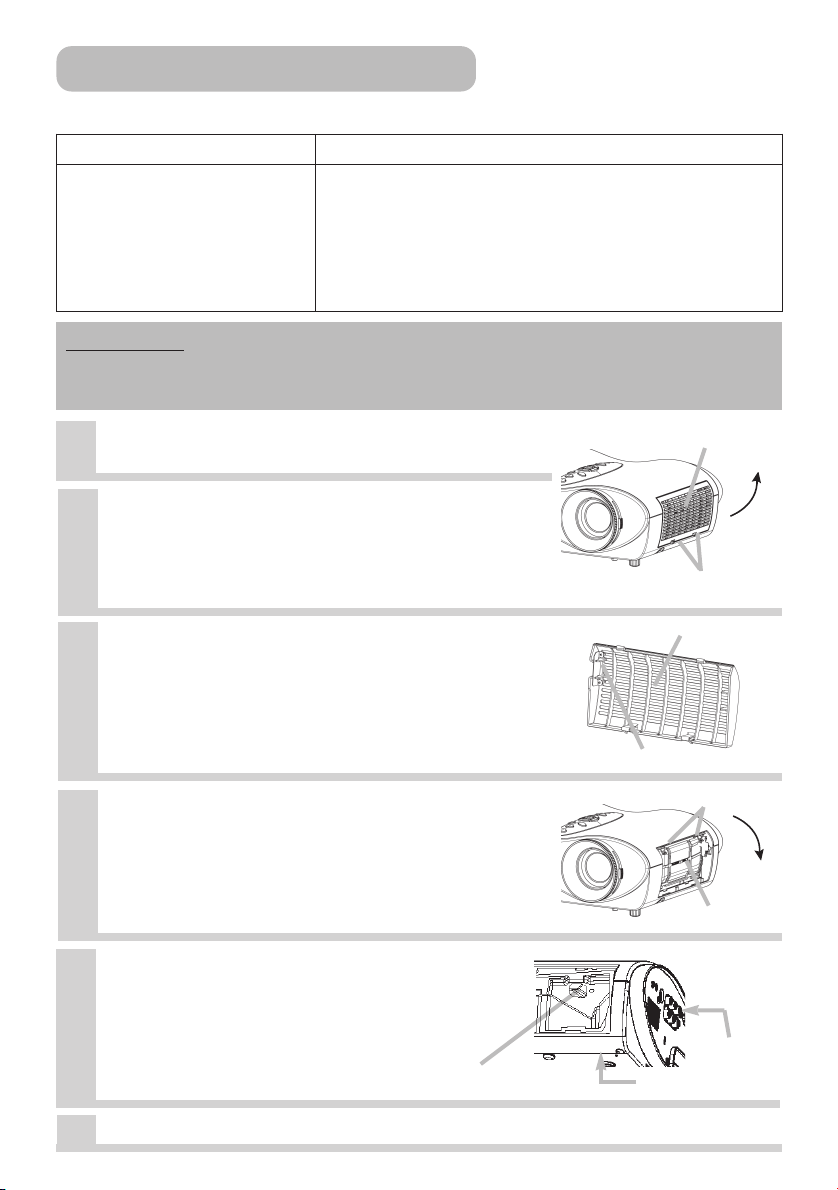

Troubleshooting (continued)

Regarding The Indicator Lamps

ATTENTION • When the interior portion has become overheated, for safety purposes, the power source is automatically turned off, and the indicator lamps may also be turned off. In such a case, press the “○” (power OFF) side of the main power switch, and wait at least 45 minutes. After the unit has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

Lighting and flashing of the power indicator, the lamp indicator, and the temp indicator have the meanings as described in the table below. Please respond in accordance with the instructions within the table. If the same indication is displayed after the treatment, or if an indication other than the following is displayed, please contact your dealer or service company.

power

lamp

temp

Description

indicator

indicator

indicator











Lighting in

Turned off

Turned off

The unit is in a standby state. Please refer to the “Power

orange

ON/OFF” section of this manual.













Flashing in

Turned off

Turned off

The unit is warming up. Please wait.

green







Lighting in

Turned off

Turned off

The unit is in an ON state. Ordinary operations may be

green

performed.













Flashing in

Turned off

Turned off

The unit is cooling down. Please wait.

orange













The unit is cooling down. A certain error has been detected.

Blinking in

-

-

Wait until the power indicator has finished flashing, and then

red

perform the proper response measure using the item











descriptions below as reference.















The projector lamp has not been properly fixed (attached),







the projector lamp does not light, and/or there is a possibility







that the interior portion has become heated. Turn the power

Lighting or





OFF and wait at least 20 minutes. After the unit has sufficiently

Lighting in



cooled down, please make confirmation of the following items,

blinking in

Turned off

red

and then turn the power ON again. If the same indication is

red



displayed, please change the lamp.











• Is there blockage of the air passage aperture?







• Is the air filter is dirty?







• Does the peripheral temperature exceed 35°C?









Lighting or





The lamp cover has not been properly fixed (attached). Turn

Blinking in



the power OFF and wait at least 45 minutes. After the unit has

blinking in

Turned off

sufficiently cooled down, please make confirmation of the

red

red



attachment state of the lamp and lamp cover, and then turn











the power ON again.









39

Troubleshooting (continued)

power

lamp

temp

Description

indicator

indicator

indicator

















The cooling fan is not operating. Turn the power OFF and wait

Lighting or



Blinking in

at least 20 minutes. After the unit has sufficiently cooled down,

blinking in

Turned off

please make confirmation of the following item, and then

red

red



resent the power to ON.











• Is there no foreign matter caught in the cooling fan?















There is a possibility that the interior portion has become







heated. Turn the power OFF and wait at least 20 minutes.

Lighting or





After the unit has sufficiently cooled down, please make



Lighting in

confirmation of the following item, and then resent the power

blinking in

Turned off

red

to ON.

red



• Is there blockage of the air passage aperture?











• Is the air filter is dirty?







• Does the peripheral temperature exceed 35°C?











Alternative blinking in

There is a possibility that the interior portion has become

Lighting in

overcooled. Please use the unit within the usage temperature

green

the red

parameters (0°C to 35°C). After the treatment, resent the







power to ON.















It is time to clean the air filter, or there is no air filter. Please



Simultaneous blinking

immediately turn the power OFF, and clean or change the air

Lighting in

filter by referring to the “Air Filter” section of this manual. After

green

in red

you have cleaned or changed the air filter, please be sure to







reset the filter timer. After the treatment, resent the power to







ON.









40

Troubleshooting (continued)

Phenomena That May Easily Be Mistaken For Machine Defects

WARNING Please carefully read the “Product Safety Guide”.

Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur.

NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.

Before requesting repair, please check in accordance with the following chart. If the situation cannot be corrected, then contact your dealer.

Phenomenon

Cases not involving a machine defect,

Reference

and Items to be confirmed

pages











The main power source is not ON.





Turn on the main power.

11,14







The electrical power cord is not plugged in.





Power does not

Correctly connect the power cord.







come ON.

The main power source has been interrupted during operation,





such as by a power outage (blackout), etc.





Be sure to press the “○” (power OFF) side of the main power switch,

14



and leave this OFF for at least 20 minutes. After the unit has





sufficiently cooled down, turn ON the power source.









Neither sounds

The input changeover settings are mismatched.

15

Select the input signal, and correct the settings.

nor pictures are







No signal is being inputted.



outputted.

10



Correctly connect the connection cables.





The electrical wiring to this unit is not correctly connected.

10



Correctly connect the connection cables.

Pictures are







The volume setting has been set at (or adjusted to) an



displayed,

17

extremely low level.

but no sounds

Adjust the VOLUME setting to a higher level.



are heard.









The MUTE mode is the current setting.

17



Press the MUTE button to release (change) the MUTE mode setting.













The electrical wiring to this unit is not correctly connected.

10



Correctly connect the connection cables.

Sounds are







The brightness setting has been set at (or adjusted to) an



heard,

23

extremely low level.

but no pictures

Adjust the BRIGHT setting to a brighter level.



are displayed.









The lens cap has not been removed.

4,14



Remove the lens cap.











Colors have a

Color settings are not correctly adjusted.



fadedout



Perform picture adjustments by changing the COLOR BAL R,

24

appearance, or

COLOR BAL G, COLOR BAL B, COLOR, and/or the TINT settings,

Color tone is



etc.



poor.













41

Troubleshooting (continued)

Machine Defects (continued)

Phenomenon

Cases not involving a machine defect,

Reference

and Items to be confirmed

pages











The brightness setting and/or contrast setting has not been





properly adjusted.





Perform picture adjustments by changing the BRIGHT and/or

23

Pictures appear

CONTRAST settings, etc.



dark.

The WHISPER mode is the current setting.





Change (by releasing) from the WHISPER mode.











Lamp is approaching the end of its product lifetime.

32,33



Exchange the old lamp with a new lamp.













Either the FOCUS setting or the H PHASE is not properly



Pictures appear

adjusted.

15,26

Adjust the focus and the H PHASE setting.



blurry.







The lens is dirty or misty.

36





Clean the lens.











42

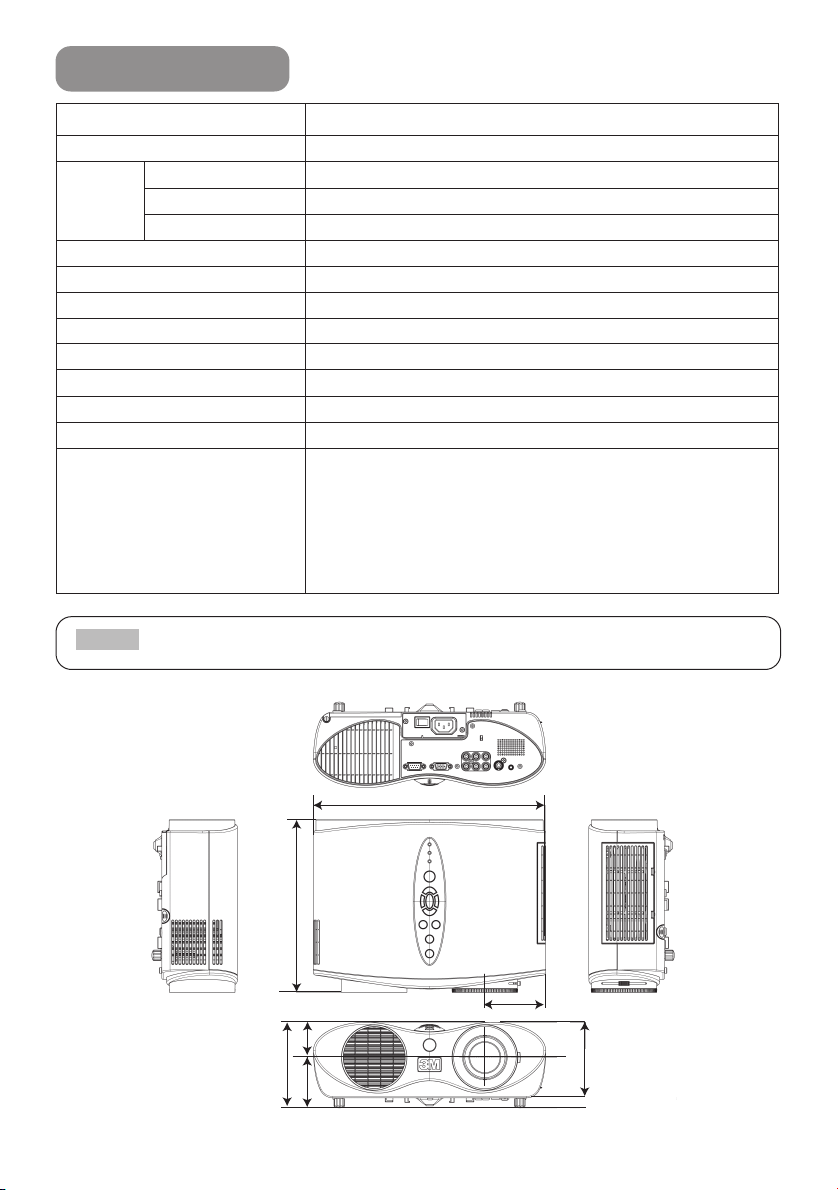

Specifications







Item



Specification















Product name

Liquid crystal projector























Liquid



Panel size

1.4 cm (0.55 type)



















crystal



Drive system

TFT active matrix







panel















Pixels

480,000 pixels (800 horizontal x 600 vertical)





















Lens





Zoom lens F=1.6 ~ 1.8 f=16.8 ~ 20.1 mm

















Lamp





130W UHB





















Speaker





1.0W















Power supply

AC100 ~ 120V, 2.4A / AC220 ~ 240V, 1.1A















Power consumption

220W



















Temperature range

0 ~ 35°C (Operating)















Size





329 (W) x 107 (H) x 245 (D) mm (Not including protruding parts)













Weight (mass)

2.99 kg (6.6 lbs.)































RGB Input Ports



AUDIO Ports











RGB ................................

1

AUDIO ............................

1









VIDEO Input Ports



AUDIO R, L.....................

1

Ports





VIDEO ............................

1

CONTROL Ports











S-VIDEO ........................

1

CONTROL ....................

1









COMPONENT VIDEO















(CR/PR, CB/PB, Y) ............

1



































NOTE



• This specifications are subject to change without notice.



329

254

86

107

43

Accessories

Accessories ……………………………………………………… Part Number

UHB lamp, 130W …………………………………………………………78-6969-9693-9 Air Filter ……………………………………………………………………78-8118-9177-5 Power cord (US) ……………………………………………………………78-8118-9178-3 Power cord (UK) ……………………………………………………………78-8118-9179-1 Power cord (Europe) ………………………………………………………78-8118-9180-9

VGA cable …………………………………………………………………78-8118-8708-8 RCA component cable ……………………………………………………78-8118-9056-1

Remote control ……………………………………………………………78-8118-9181-7 Soft case ……………………………………………………………………78-8118-9194-0 Base …………………………………………………………………………78-8118-9191-6

Not Included with Basic Packet ………………………………… Part Number

Ceiling mount ………………………………………………………………78-6969-9694-7 Adjustable height suspension ……………………………………………78-6969-9698-8 Shipping case ………………………………………………………………78-6969-9717-6 RCA Video/Audio cable ……………………………………………………78-8118-3234-0 S-Video cable ………………………………………………………………78-8118-3238-1 RS-232C control cable ……………………………………………………78-8118-9192-4 Mac adapter ………………………………………………………………78-8118-3308-2 Soft rolling luggage case …………………………………………………78-6969-9716-8 Soft side case with shoulder strap ………………………………………78-6969-9715-0 Ultra value warranty S10 (US only)………………………………………78-6969-9700-2 Deluxe Mouse Emulation Kit ……………………………………………78-6969-9233-4

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number :

In U.S. or Canada : 1-800-328-1371

In other locations,contact your local 3M sales office.

44

Intended Use

Before operating this machine, please read this entire manual thoroughly. The 3MTM Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages.

The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition.

3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment.

16˚ to 29˚C (60˚ to 85˚ F)

1080 %RH (without condensation)

0- 1828 m (0-6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector.

Use of this product in adverse conditions will void the product warranty.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

3M Austin Center

3M Canada

3M Mexico, S.A. de C.V.

3M Europe



Building A145-5N-01

P.O. Box 5757

Apartado Postal 14-139

Boulevard de l'Oise



6801 River Place Blvd.

London, Ontario

Mexico, D.F. 07000

95006 Cerge Pontoise Cedex

Litho in Japan

Austin, TX 78726-9000

N6A 4T1

Mexico

France

© 3M 2003









78-6970-9198-7 Rev. A

DN00571 (S10_OG_ENG)
