3M CWS100MECJ User Manual
Spec #
Quantity
Models:
CWS100ME/CWS100MECJ
CWS150ME/CWS150MECJ
CWS200ME/CWS200MECJ
CWS300ME/CWS300MECJ
Residential Water Softeners
Applications:
• Hard Water
• Moderate Soluable Metals
CWSME Series

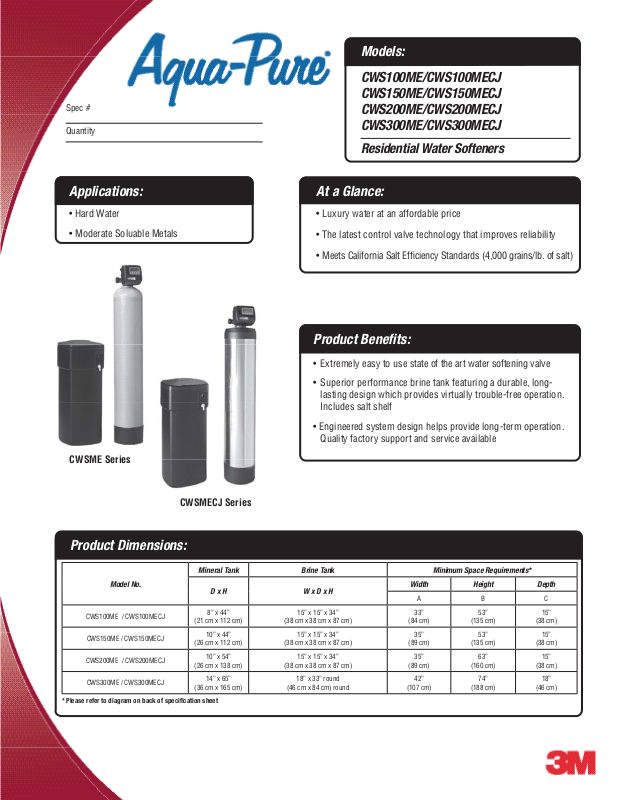

At a Glance:
• Luxury water at an affordable price
• The latest control valve technology that improves reliability
• Meets California Salt Effi ciency Standards (4,000 grains/lb. of salt)
Product Benefi ts:
• Extremely easy to use state of the art water softening valve
• Superior performance brine tank featuring a durable, longlasting design which provides virtually trouble-free operation.
Includes salt shelf
• Engineered system design helps provide long-term operation.
Quality factory support and service available
CWSMECJ Series
Product Dimensions:
Mineral Tank Brine Tank Minimum Space Requirements*
Model No.
CWS100ME / CWS100MECJ
CWS150ME / CWS150MECJ
CWS200ME / CWS200MECJ
CWS300ME / CWS300MECJ
* Please refer to diagram on back of specifi cation sheet
8” x 44”
(21 cm x 112 cm)
10” x 44”
(26 cm x 112 cm)
10” x 54”
(26 cm x 138 cm)
14” x 65”
(36 cm x 165 cm)
D x H W x D x H
15” x 15” x 34”
(38 cm x 38 cm x 87 cm)
15” x 15” x 34”
(38 cm x 38 cm x 87 cm)
15” x 15” x 34”
(38 cm x 38 cm x 87 cm)
18” x 33” round
(46 cm x 84 cm) round
Width Height Depth
ABC
33”
(84 cm)
35”
(89 cm)
35”
(89 cm)
42”
(107 cm)
53”
(135 cm)
53”
(135 cm)
63”
(160 cm)
74”
(188 cm)
15”
(38 cm)
15”
(38 cm)
15”
(38 cm)
18”
(46 cm)
Spec #
Quantity
Model Number
Part Number
Typical Installation:
Refer to Product Dimensions
Table on reverse side.
10" REF
A
C
CAUTION: These diagrams shown
are for reference purposes only.
Read installation and operation
manual prior to installing the unit.
Specifi cations:
Model
Category
Media in cu. ft. (liters) 1.0 (28) 1.5 (42) 2.0 (57) 3.0 (85)
Salt Dosage*
B
lbs. (kg)
Softening Capacity**
(grains)
Flow Rates
Service: 15 psid
* Salt Dosage: Top row indicates salt effi cient setting, second row indicates factory setting and
third row indicates maximum setting with the supplied brine tank
** Softening Capacity: Top row indicates salt effi cient setting, second row indicates factory salt
OFF
OFF
OFF
OFF
setting and third row indicates maximum salt setting with the supplied brine tank
NOTE: CWS softeners have been tested by an independent lab for conformance to NSF/ANSI
Standard 44 for specifi c performance claims. These softeners meet or exceed California Salt
Effi ciency requirements when salt dose is set at the salt effi cient setting. Effi ciency claim is only
valid at the salt effi ciency setting.
Maximum Operating Temperature: 110°F (43°C)
Electrical Requirements: 120V, 60Hz
Operating Pressure: 20 - 125 psi (138 - 862 kPa)
Pipe Size: 1” NPT
CWS100ME
CWS100MECJ
4.0 (1.81)
6.0 (2.72)
16.0 (7.26)
16,300
21,600
28,500
7.9 gpm
(29.9 lpm)
CWS150ME
CWS150MECJ
6.0 (2.72)
9.0 (4.08)
16.0 (7.26)
24,200
32,000
43,000
11.1 gpm
(42.0 lpm)
CWS200ME
CWS200MECJ
8.0 (3.63)
12.0 (5.44)
24.0 (10.89)
34,100
45,000
56,800
9.6 gpm
(36.3 lpm)
CWS300ME
CWS300MECJ
12.0 (5.44)
18.0 (8.16)
36.0 (16.3)
51,100
67,600
85,200
15.7 gpm
(59.4 lpm)
Limited Warranty:
3M Purifi cation Inc. warrants this Product to be free from defects in material and workmanship during normal use for the warranty period set forth below. The warranty period
commences from the date of purchase. This warranty does not cover failures resulting from abuse, misuse, alteration or damage not caused by 3M Purifi cation Inc. or failure to
follow installation and use instructions. No warranty is given as to the service life of any fi lter cartridge, membrane, or media as it will vary with local water conditions and water
consumption. 3M PURIFICATION INC. MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOMER
OR USAGE OF TRADE. If the Product is found defective within the warranty period, your exclusive remedy and 3M Purifi cation Inc.’s sole obligation shall be, at 3M Purifi cation Inc.’s
option, to replace or repair the Product or refund the purchase price of the Product. This warranty does not cover labor. The remedy stated in this paragraph is Customer’s sole remedy
and 3M Purifi cation Inc.’s exclusive obligation.
Warranty Period: One (1) year on the entire product unit; Five (5) years on the mineral tank only (does not include internal component parts); Five (5) years on the control valve; and
Five (5) years on salt storage container and components
For additional information, see the entire Limited Warranty located in the product Installation and Operating Instruction manual.
Limitation of Liability: 3M Purifi cation Inc. will not be liable for any loss or damage arising from this 3M Purifi cation Inc. product, whether direct, indirect, special, incidental, or
consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability. Some states and countries do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
