.100″ .100″ Plug
4600 Series
Shrouded to protect against physical and
chemical pin damage
Open or closed end covers available
Optional ejector latches
Accepts flat cable or discrete wire
Military (with 3518 polarizing key) and
centerbump polarization available
Optional mounting flanges
36
Physical
Wire Accommodation: 26 & 28 AWG Solid or Stranded
Electrical
Insulation Resistance: > 1 × 109 Ω at 500 Vdc
Withstanding Voltage: 1000 Vrms at Sea Level
Date Modified: February 19, 1999
Insulation
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact
Material: Copper Alloy
Plating
Underplate & U-Slot: 100 µ″ (2.54 µm) Nickel — QQ-N-290, Class 2
Wiping Area: 30 µ″ (0.76 µm) Gold — MIL-G-45204, Type II, Grade C
Marking: 3M Logo, Part Identification Number, and Contact Position Numbers
Current Rating: 1 A
TS-0086-12
Sheet 1 of 4
Environmental
Temperature Rating: – 55°C to + 105°C
UL File No.: E68080
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.100″ .100″ Plug
4600 Series
.25 [ 6.4 ]
Optional Closed
.050 Ref
[ 1.27 ]
H Ref
End Cover
Optional
Ejector/Latch
Nonconductive Transfer
Adhesive with Liner
I
.25 Ref
[ 6.4 ]
D
Notch C
See T able
and Note 2
Notch B
See Table
.17
[ 4.3 ]
.24
[ 6.1 ]
46XX
[ 4.1 ]
.050 Typ
[ 1.27 ]
Notch A
See Table
and Note 2
Position 1
Orientation
Triangle
.16
.235
[ 5.97 ]
.525
[ 13.34 ]
R .06
[ 1.6 ]
Slotted Mounting Flange
46XX-XXX0
#4-40x. 14 Long
Threaded Insert
Threaded Mounting Flange
46XX-XXX5
Detail A
.100 Ref
Optional
Mounting
Flange
Notes:
1. Polarization of 10 position product can be either:Center notch: B-4610-XX5X or the Left notch “C”-4610-XX0X.
2. Notches A and C will accommodate 3M Polarization keys (Part Number 3518 or M3518).
[ 2.54 ]
.100 Ref
[ 2.54 ]
.25
[ 6.4 ]
B
A’
C
A
.025 Sq Typ
[ 0.64 ]
.155 ± .010
[ 3.94 ]
Position 1
.165
[ 4.19 ]
Detail A
Ordering Information
46XX-XXXX

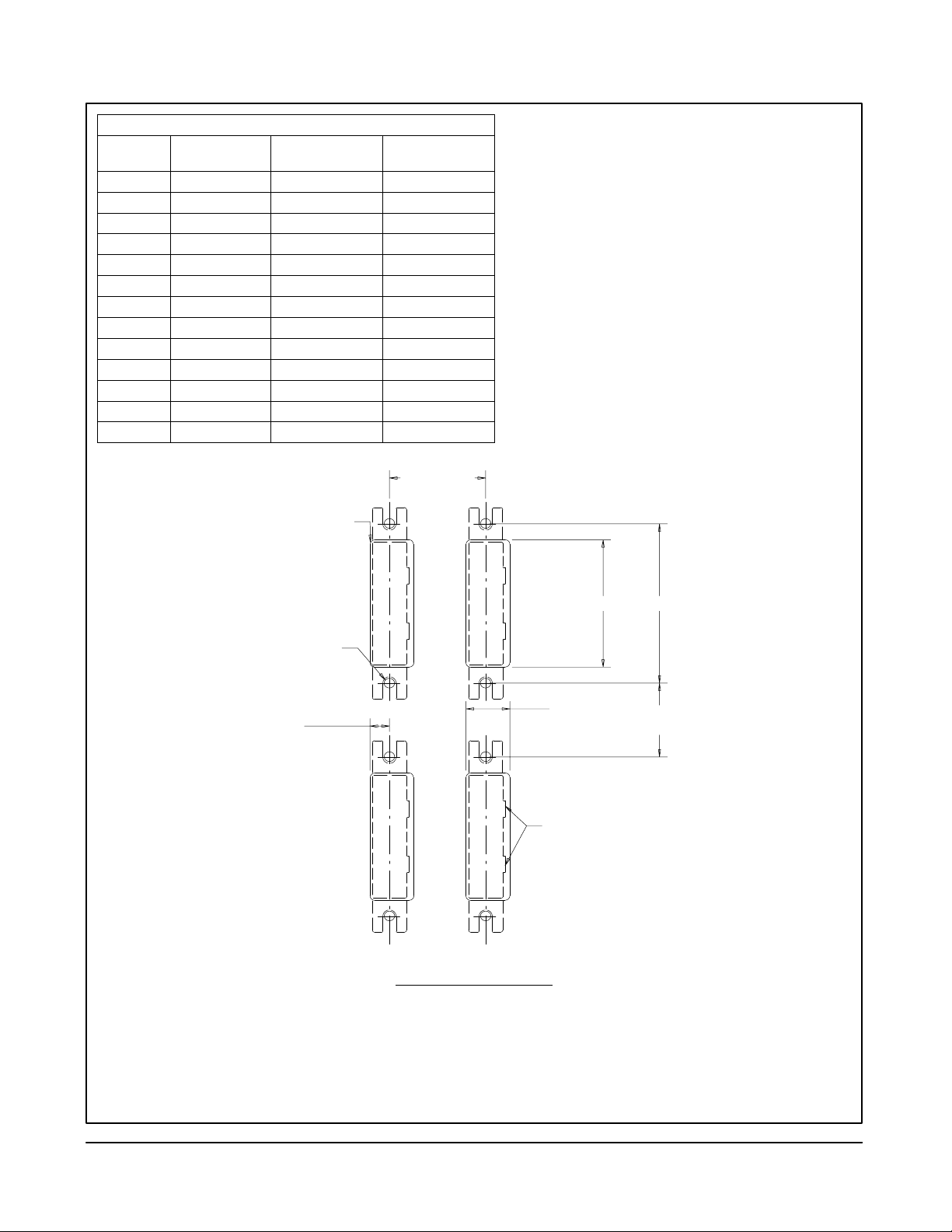

Contact Quantity:
See Table
Cover Style
6 = Open End (Daisy
Chaining/Bussing)
7 = Closed End (End
Cable Termination)

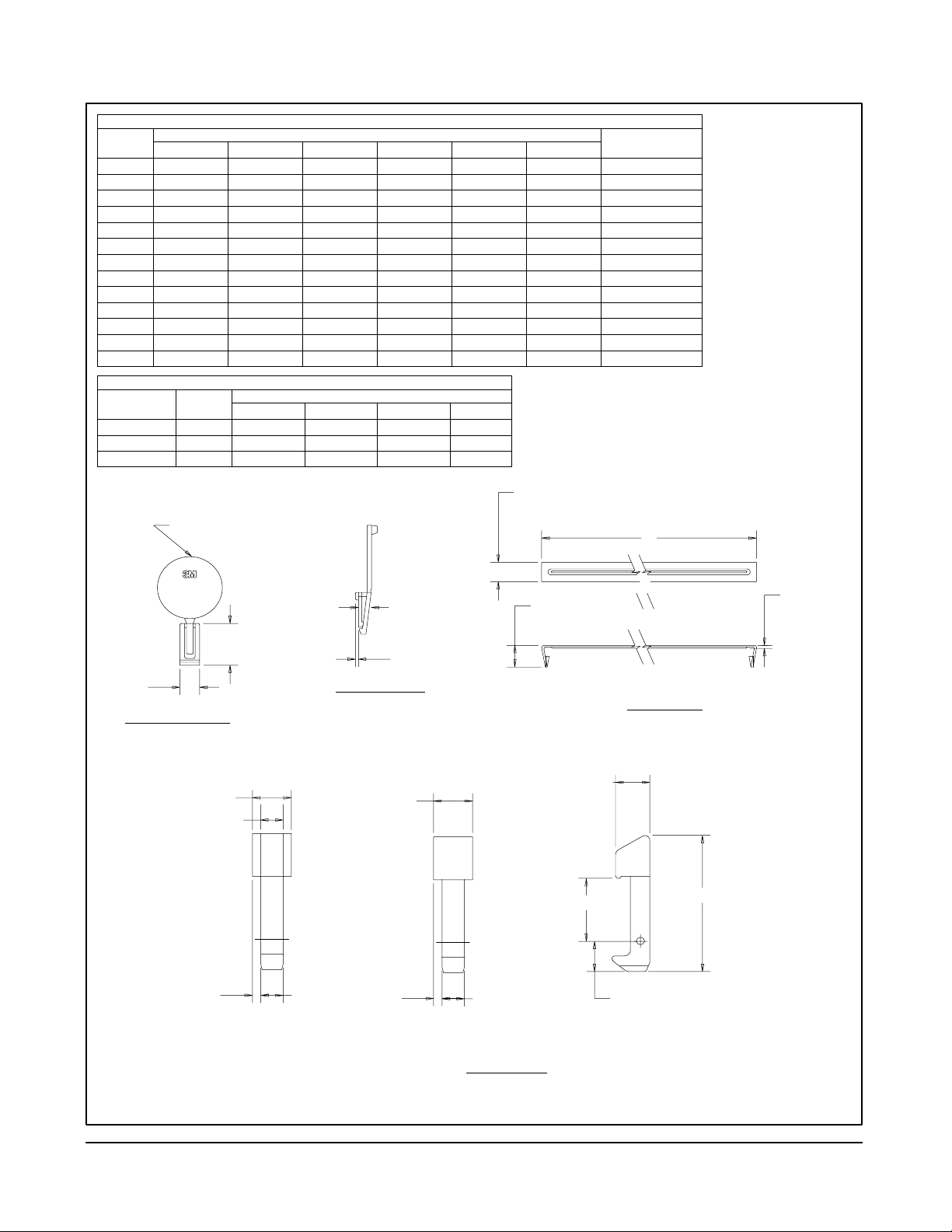

Ejector/Latch System
0 = None
2 = Short Ejector Latch
(3505-16)
3 = Long Ejector Latch
(3505-17)
7 = Universal Ejector Latch
(3505-21)
Polarization
0 = for Contact Qty
14 to 64
0 = for Notch C on
10 Position
5 = for Notch B on
10 Position
.33
[ 8.4 ]
See
Inch
Strain Relief
(Order Separately)
Body Style
0 = w/ Mounting Flange
1 = w/o Mounting Flange
5 = Mounting Flanges w/
Threaded Insert from
Socket mating side
Inch
[mm]
Tolerance Unless Noted
.0 .00 .000
± .005± .1 ± .01
[ ] Dimensions for
Reference only
3448-46XX
Contact Quantity:
See Table
TS-0086-12
Sheet 2 of 4
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
