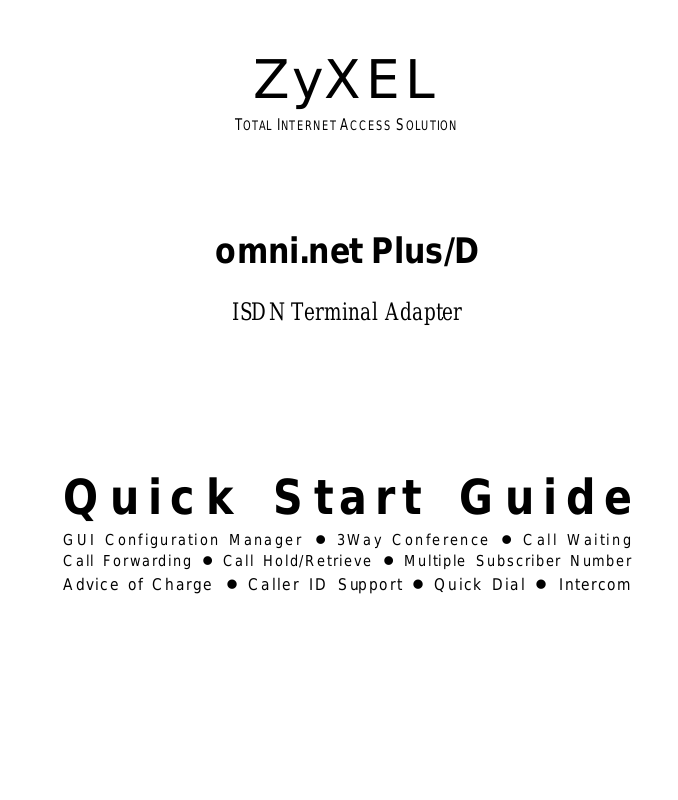

ZyXEL Communications Plus D User Manual
ZyXEL
T
OTAL INTERNET ACCESS SOLUTION
omni.net Plus/D
ISDN Terminal Adapter
Quick Start Guide
GUI Configuration Manager l 3Way Conference l Call Waiting
Call Forwarding l Call Hold/Retrieve l Multiple Subscriber Number
Advice of Charge l Caller ID Support l Quick Dial l Intercom
omni.net Plus/D Quick Start Guide
Table of Contents
1. Installation_____________________________________________________ 1-1
Front Panel Description ________________________________________________1-1
Back Panel Description and Connections (S/T Interface) ________________________1-4
Connect Your omni.net Plus/D (U interface) to ISDN Line _______________________1-5
Power On and Self Diagnostics___________________________________________1-6
2. Install Windows 95/98/NT Driver (INF file) _________________________ 2-1
Before Installation____________________________________________________2-1
Start Installing INF file ________________________________________________2-2

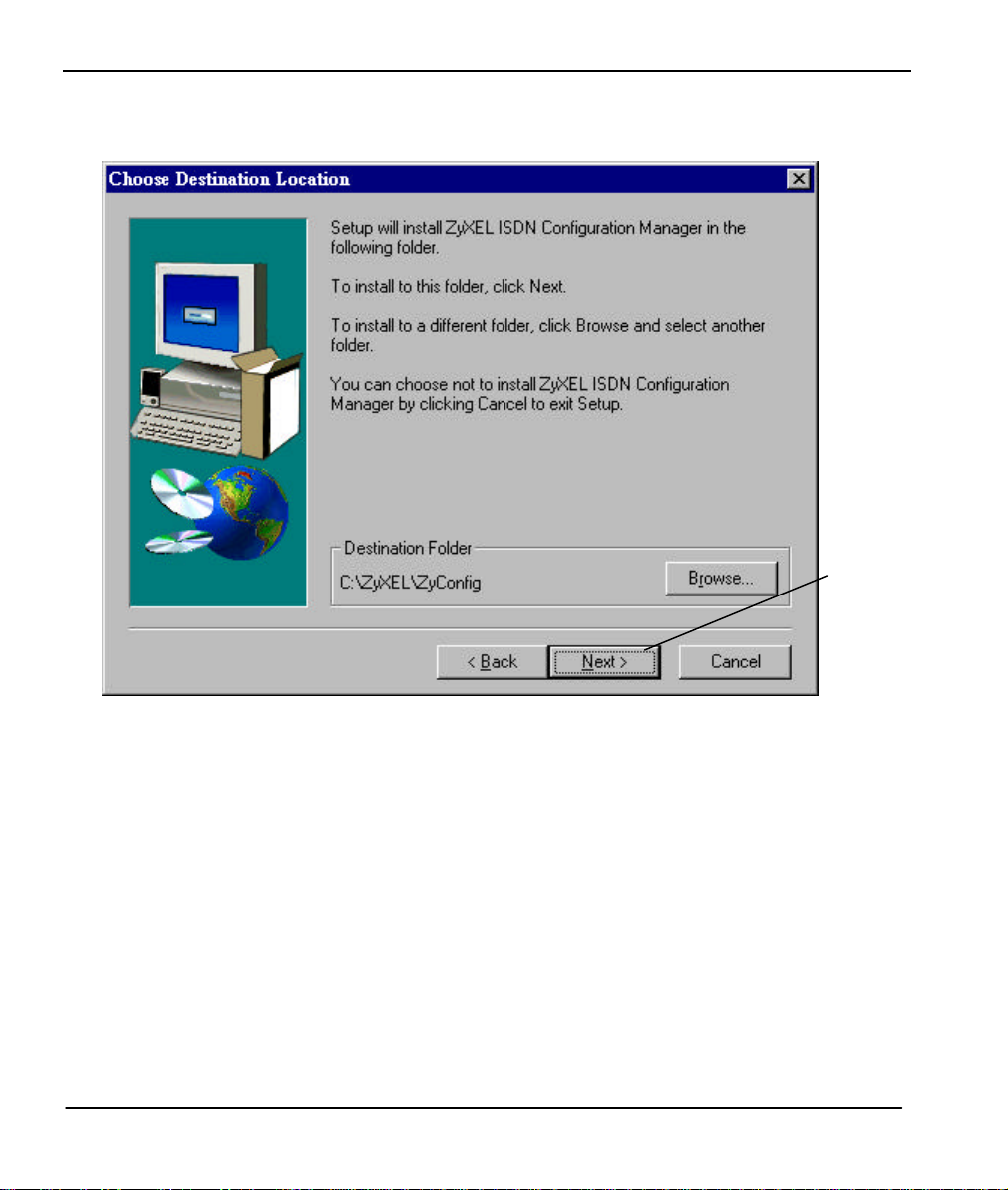

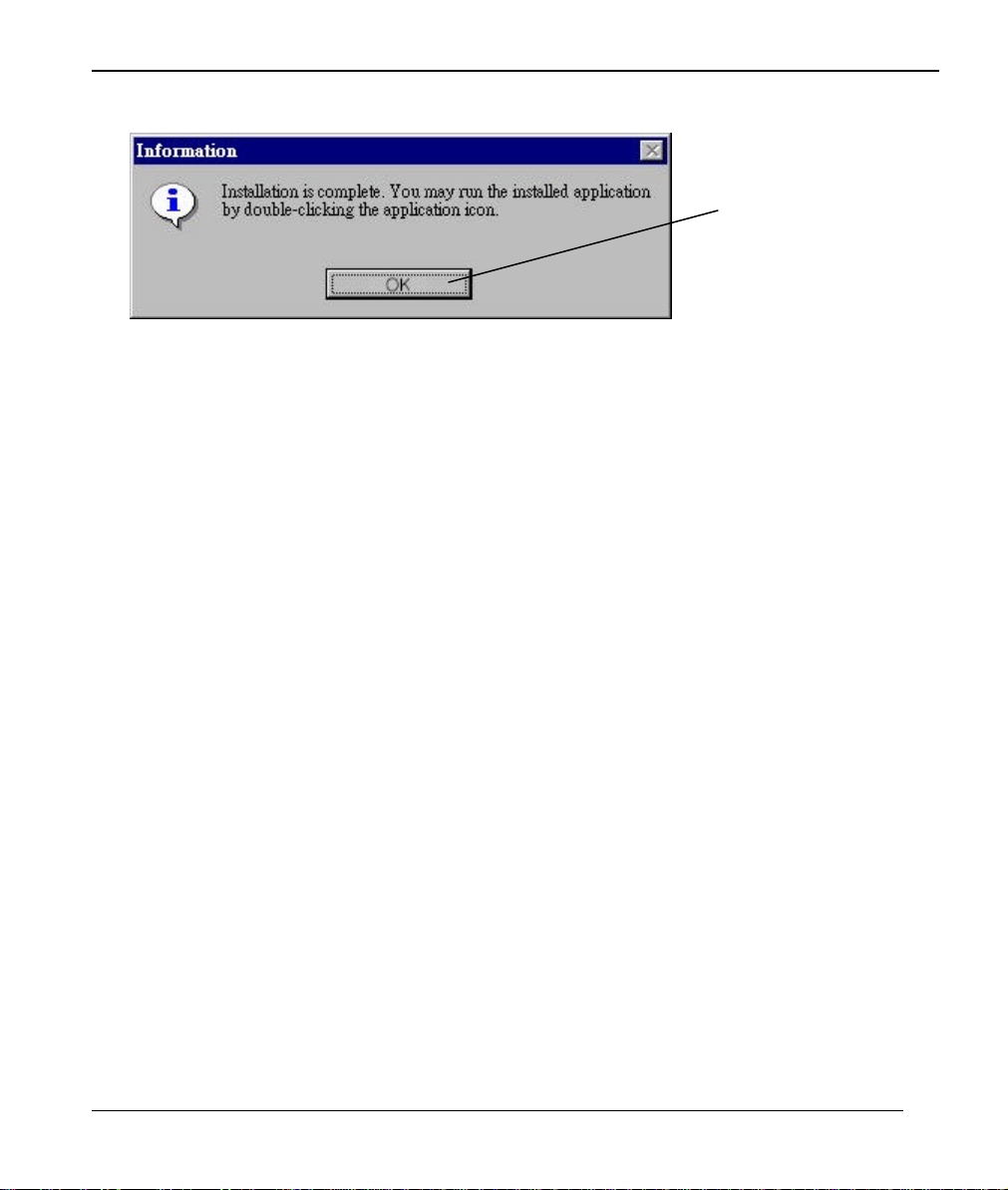

3. Install ZyXEL ISDN Configuration Manager for Windows 95/98/NT ______ 3-1
4. Setup ZyXEL ISDN Configuration Manager for Windows 3.x ____________ 4-1
Customer Support____________________________________________________ 4-2
i
omni.net Plus/D Quick Start Guide
Front Panel
2
Phone 1 & Phone 2
for omni.net Plus only
1. Installation
Thank you for choosing ZyXEL ISDN Terminal Adapter (ISDN TA) as your device for
connecting ISDN. This section is designed to guide you through a quick and correct installation
of your new omni.net Plus or omni.net D.
The following graphics are only displayed for the omni.net Plus. However, since the front panel
and back panel of omni.net Plus and omni.net D are almost identical, all installation steps
below can be applied to both of the omni.net Plus and the omni.net D unless specifically noted.
Front Panel Description
TX
PWR
LNK
B1
B2
AA
RX
Switch
1
CTS
RTS
DSR
CP
DTR
1-1
omni.net Plus/D Quick Start Guide
Front Panel LEDs
LED Function Active Description
PWR
LNK
B1
B2
AA
CP
DTR
DSR
RTS Request To Send On
Power LED On When the power is turned ON.
Link LED On
Blinking
B1 Channel On When the B1 channel is established.
B2 Channel On When the B2 channel is established.
Auto -Answer On
Blinking
Compression On
Data Terminal
Ready
Data Set
Ready
On When the DTE or computer connected to the DTE
On
When the link with the local ISDN switch is active.
When attempting to make a connection.
When your ISDN TA is in Auto Answer mode.
When your TA rings.
When Data Compression is being used over one or more
of the B Channels. Compression types are Hi/fn LZS
(formerly Stac) for PPP connections, and V.42bis for
V.120 or X.75 connections.
port signals that it is ready for communication by
establishing the RS-232 link.
When the modem is ready for communication with the
DTE.
When the DTE has data to be sent to the remote modem.
The RTS signal is used in Hardware Handshaking.
CTS Clear To Send
TX
RX
Phone 1 (for omni.net
Phone 2 (for omni.net
Transmit Data Blinking When the DTE/Computer transmits data to the
Receive Data On When the DTE/Computer receives data from the
Plus only)
Plus only)
On
On
On
When the modem is ready to receive data from the
remote modem. The CTS signal is used in Hardware
Handshaking.
DTE port.
DTE port.
When the POTS port 1 telephone/handset is off-hook.
When the POTS port 2 telephone/handset is off-hook.
1-2
omni.net Plus/D Quick Start Guide
Front Panel Switch
When the TA is in command state, pressing the front panel button causes it to dial the default
phone number pre-stored in the NVRAM. The default number pointer to the telephone
directory is assigned by the AT*D n command.
When the TA is on-line, pressing the button will tear down the connection and bring it into
command state.
1-3
omni.net Plus/D Quick Start Guide
Tel
Fax Fax Power
Power
Power
Power ON/OFF
Phone 1 & Phone 2
for omni.net Plus only
Back Panel Description and Connections (S/T Interface)
Switch Phone 2
Input
To DTE
Outlet
Adapter
Computer
Back Panel Switch and Connectors
ON/OFF
Power ON/OFF switch
ISDN
NT-1 Device
Phone 1
Tel
POWER Input terminal for power adapter.
To DTE Serial port DB-25 female connector for connection to the serial port of a DTE
ISDN ISDN RJ-45 terminal jack; connects to a S/T interface or a U interface.
PHONE 1 RJ-11 terminal jack for analog adapter 1; for connecting to analog equipment. (phone,
PHONE 2 RJ-11 terminal jack for analog adapter 2; for connecting to analog equipment. (phone,
(computer/terminal).
fax, answering machine, etc.)
fax, answering machine, etc.)
.
1-4
omni.net Plus/D Quick Start Guide
RJ-45
Phone 1 & Phone 2
for omni.net Plus only
Connect Your omni.net Plus/D (U interface) to ISDN Line
Connect one end of the RJ-45 connectors to the “ISDN U” jack, and another end to
your wall jack, as the following illustration:
1-5
omni.net Plus/D Quick Start Guide
Power On and Self Diagnostics
Once you have completed all of the installation steps above, flip the omni On/Off switch to the
ON (up) position.The unit starts a self-test sequence, where you should see a series of LED
lights blinking (LED, B1, B2, AA). After this cycle is complete, the PWR light should stay on.
If the test routine fails, the LNK LED flashes. Refer to your omni.net Plus/D Technical
Reference for more information on self-tests and error codes.
If you have a communication program loaded and active (connected to the same serial port as
the omni), you should see the DTR LED should be ON after the self-test.
1-6
