ZyXEL Communications P-2024 User Manual

P-2024

VoIP Analog Telephone Adaptor

Quick Start Guide

Version 3.60 7/2007 Edition 1

DEFAULT LOGIN

IP Address http://192.168.5.1

Password 1234

P-2024 Quick Start Guide

Overview

Use your P-2024 to make Voice over IP calls using analog phones. Connect analog telephones to the P-2024, and map each phone port to one or more of the configurable VoIP (SIP) accounts.

The following figure shows your P-2024 (labeled A) allowing analog telephones to make and receive calls over the Internet via a network router (B). The ITSP (Internet Telephony Service Provider) routes calls to and from other VoIP accounts and also PSTN (Public Switched Telephone Network) lines. C is a computer you connect to the P-2024 for initial configuration.

This Quick Start Guide shows you how to set up and use the P-2024 by doing the following things:

• Installing the Hardware

• Making Hardware Connections

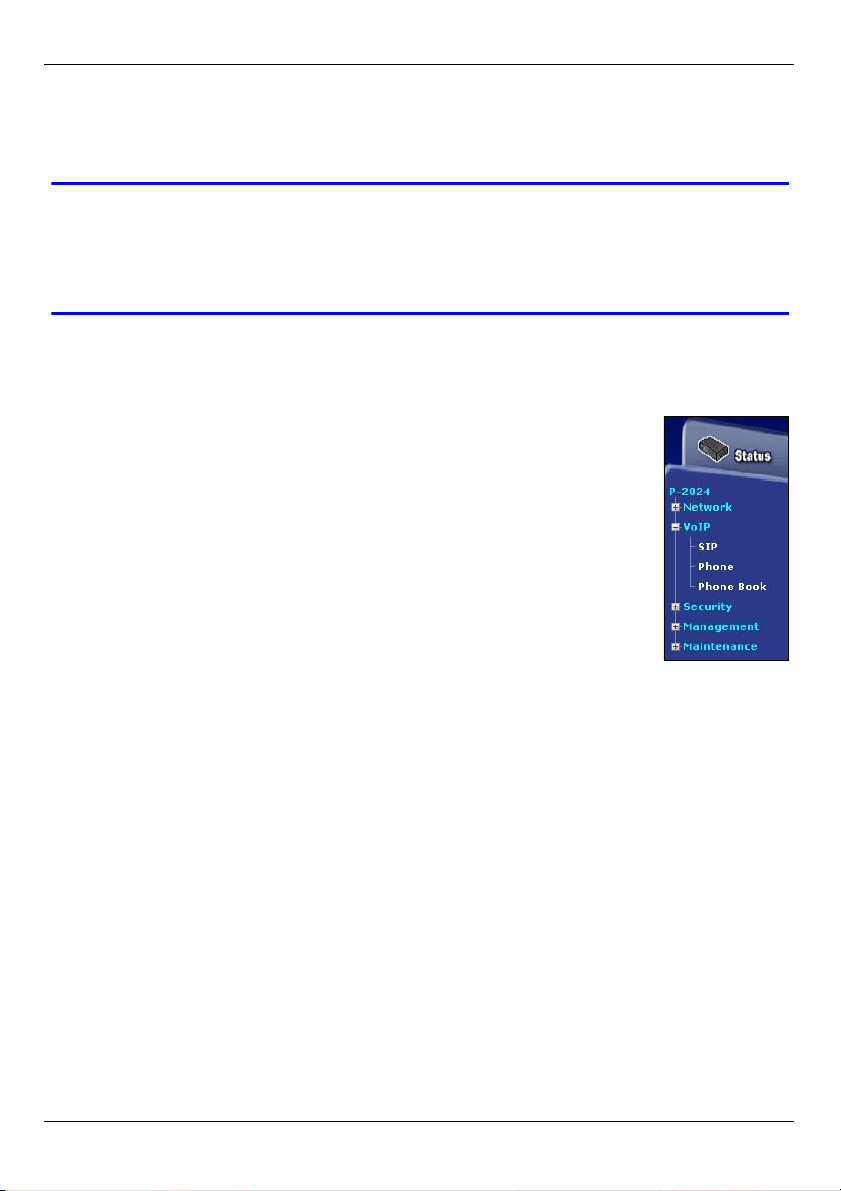

• Accessing the Web Configurator

• Configuring Network Settings

• Setting Up A SIP Account

• Setting Up a Telephone and Making a Call

P-2024 Quick Start Guide

The following table lists some important information about the P-2024.

Default web configurator password 1234

Default LAN IP address Static: 192.168.5.1

Default WAN IP address Dynamic: assigned via DHCP

Number of analog telephone connections 24

Number of configurable SIP accounts 24

Default SIP port numbers (SIP local port, SIP server port, SIP register server port)

5060

1 Installing the Hardware

Either:

• Attach the included self-adhesive rubber feet (for free-standing installation)

• Attach the included brackets and mount the P-2024 in a rack

" For proper ventilation, allow at least 4 inches (10 cm) of clearance at

the front and 3.4 inches (8 cm) at the back of the P-2024. Leave space between devices if stacking.

1.1 Free-Standing Installation

1 Set the switch on a smooth, level surface.

2 If your P-2024 comes with unattached rubber feet, attach them to each corner on the

bottom of the device. These rubber feet help protect the P-2024 from shock or vibration and ensure space between devices when stacking.

P-2024 Quick Start Guide

1.2 Rack-Mounted Installation

1 Align one bracket with the holes on one side of the P-2024 and secure it with bracket

screws smaller than the rack-mounting screws. Attach the other bracket to the other side of the P-2024.

2 After attaching both mounting brackets, position the switch in the rack by lining up the

holes in the brackets with the appropriate holes on the rack. Secure the switch to the rack with the rack-mounting screws.

P-2024 Quick Start Guide

2 Making Hardware Connections

This section describes how to connect the P-2024 to your network and prepare it for configuration.

Take the following steps to connect the P-2024 to your network:

1 Connect the Telco-50 (RJ-21) cable to the PHONE connector and tighten the retaining

screw.

See Section 2 on page 4 for information on configuring and using the Telco-50 cable to connect the P-2024 to your telephones or a Main Distribution Frame (MDF).

2 Use an Ethernet cable to connect your computer to the LAN port.

3 Use another Ethernet cable to connect your switch or router to the WAN port.

4 Connect a suitable power source to the AC INPUT power socket using the included

power cable. Turn on the power.

5 Look at the LEDs on the P-2024.

The 1 ~ 24 analog phone port LEDs flash during startup. Once the P-2024 has started up successfully:

• If an analog phone is connected to a port, the port’s LED blinks when the phone is off-hook.

• If an analog phone port has a registered SIP account assigned to it, the port’s LED stays steady on. The LED blinks when a call is incoming on the SIP account, even if no phone is connected.

The PWR/STATUS LED turns steady on when the P-2024 has started up successfully.

P-2024 Quick Start Guide

The LAN and WAN LEDs turn on when they are connected, and blink when there is traffic. A green LED indicates that the connection is at 10Mbps, and a yellow LED indicates that the connection is at 100Mbps.

V If the PWR/STATUS LED does not turn on, check the P-2024’s power

connection. If the LAN or WAN LED does not turn on, ensure that the device to which it is connected is working correctly.

2.1 Using the Telco-50 Cable

You need to use a Telco-50 cable with exactly the following pin assignments.
