Zyxel ZYWALL USG 2000 Support Notes

Download

ZyWALL USG 2000 Support Notes

ZyWALL USG 2000

Unified Security Gateway

Support Notes

Revision 2.10

Dec, 2008

ZyWALL USG 2000 Support Notes

INDEX

The comparison of ZyNOS and ZLD ............................................................................................. 8

1. Deploying VPN .......................................................................................................................... 9

1.1 Extended Intranets .......................................................................................................... 11

1.1.2 Site to Site VPN solutions (ZyWALL 1050 Ù ZyWALL USG 2000): .............. 11

1.2 Extranet Deployment ..................................................................................................... 18

1.2.1 Site to site VPN solutions (ZyWALL USG 2000 to ZyWALL70) ...................... 19

1.2.2 Interoperability – VPN with other vendors ......................................................... 23

1.2.2.1 ZyWALL with FortiGate VPN Tunneling ................................................ 23

1.2.2.2 ZyWALL with NetScreen VPN Tunneling .............................................. 30

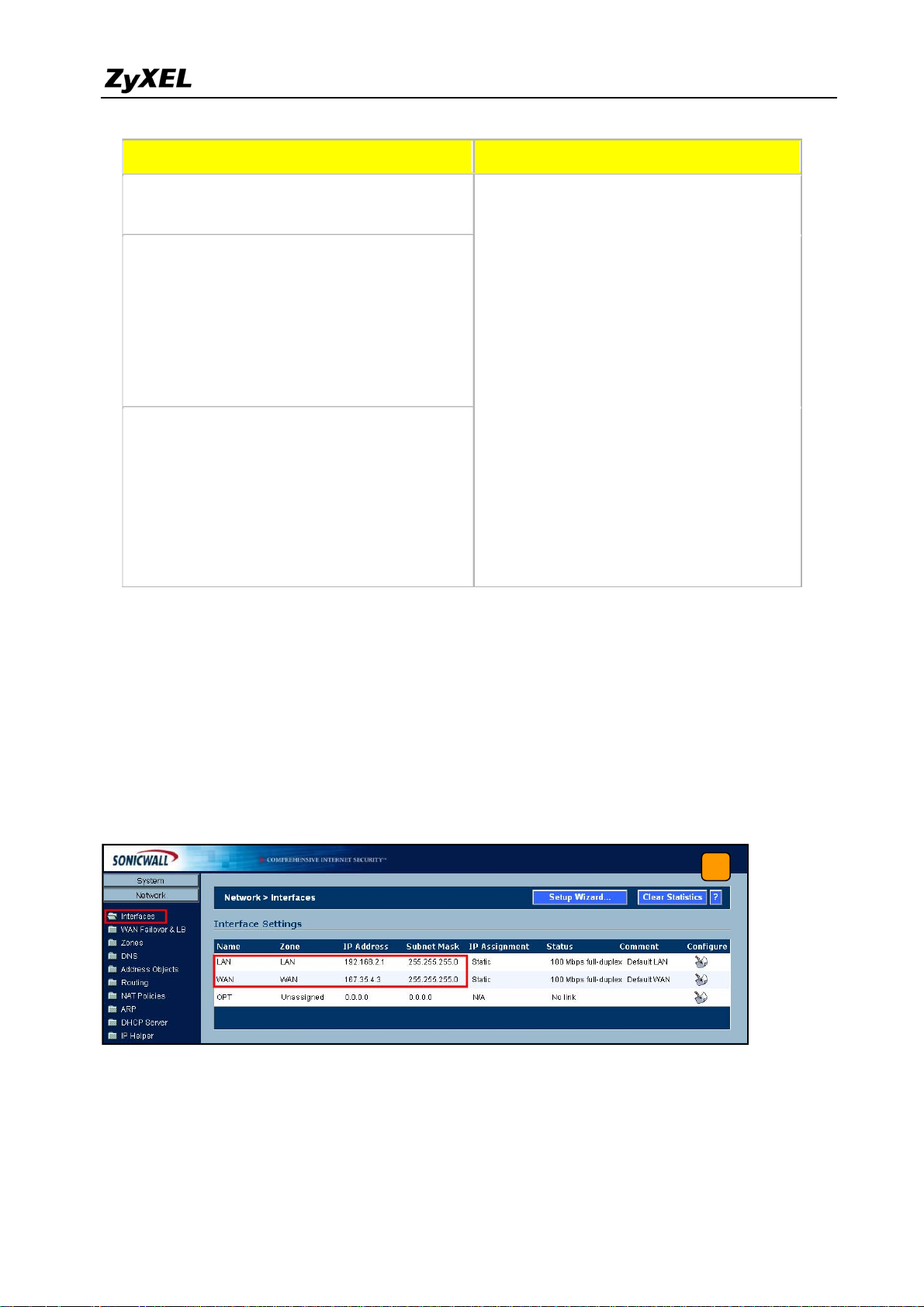

1.2.2.3 ZyWALL with SonicWall VPN Tunneling ............................................... 38

1.3 Remote Access VPN ...................................................................................................... 45

1.3.1 IPSec VPN for Remote Access ........................................................................... 45

1.3.1.1 Steps to configure ..................................................................................... 47

1.3.2 SSL VPN Application - Reverse Proxy ............................................................... 52

1.3.2.1 Scenario topology ..................................................................................... 52

1.3.2.2 Configuration flow ................................................................................... 52

1.3.2.3 Configuration procedure .......................................................................... 52

1.3.3 SSL VPN Application – Network Extension ...................................................... 55

1.3.3.1 Scenario topology ..................................................................................... 55

1.3.3.2 Configuration flow ................................................................................... 55

1.3.3.3 Configuration procedure .......................................................................... 56

1.3.4 L2TP over IPSec Application .............................................................................. 62

1.3.4.1 Scenario topology ..................................................................................... 62

1.3.4.2 Configuration flow ................................................................................... 62

1.3.4.3 Configuration Procedure .......................................................................... 62

1.4 Large-scale VPN Deployment ....................................................................................... 73

1.4.1 Fully Meshed Topology ................................................................................... 73

1.4.2 Star Topology ................................................................................................... 74

1.4.3 Star-Mesh Mixed Topology .............................................................................. 83

1.5 Device HA ...................................................................................................................... 99

1.5.1 Device HA ......................................................................................................... 101

1.5.1.1 Configuration procedure ........................................................................ 101

1.5.2 Device High Availability (HA) Active-Passive mode ....................................... 113

1.5.2.1 Scenario Topology ................................................................................. 113

ZyWALL USG 2000 Support Notes

1.5.2.2 Configuration Flow ................................................................................ 113

1.5.2.3 Configuration procedure ........................................................................ 114

1.5.2.4 Steps to configure ................................................................................... 115

2. Security Policy Enforcement .................................................................................................. 125

2.1 Managing IM/P2P Applications ................................................................................... 125

2.1.1 Why bother with managing IM/P2P applications? ............................................ 125

2.1.2 What does ZyWALL USG 2000 provide for managing IM/P2P applications? 126

2.1.3 Configuration Example ..................................................................................... 126

2.2 Zone-based Anti-Virus Protection ................................................................................ 134

2.2.1 Applying Zone-Based Anti-Virus to ZyWALL USG 2000 ............................... 134

2.2.2 Enabling Black and White List ......................................................................... 141

2.2.3 Enabling Anti-Virus Statistics Report ............................................................... 142

2.2.4 Dual AV ............................................................................................................. 143

2.3 Configuring ZyWALL USG 2000 as a Wireless Router .............................................. 143

2.3.1 Configuration procedure ................................................................................... 143

2.3.2 MAC filter in WLAN ........................................................................................ 145

2.4 Mobility Internet Access .............................................................................................. 147

2.4.1 Utilize 3G Wireless for Accessing the Internet ................................................. 148

2.4.1.1 Configuration procedure ........................................................................ 149

3. Seamless Incorporation .......................................................................................................... 156

3.1 Transparent Firewall ..................................................................................................... 156

3.1.1 Bridge mode & Router (NAT) mode co-exist ................................................... 156

3.1.2 NAT & Virtual Server........................................................................................ 159

3.2 Zone-based IDP Protection .......................................................................................... 162

3.2.1 Applying Zone-Based IDP to ZyWALL USG 2000 .......................................... 163

3.3 Anti-spam on the ZyWALL USG 2000 ........................................................................ 169

3.3.1 How Anti-Spam works on ZyWALL USG ....................................................... 170

3.3.2 Using DNSBL (DNS-based blacklist) ............................................................... 170

3.3.2.1 Application scenario to apply DNSBL ................................................... 170

3.3.2.1.1 Scenario I: Email server is located in the ISP/ Internet ...................... 170

3.3.2.1.2 Scenario II: Company’s Email server located in the DMZ ................. 173

3.3.3 Using Black/White list (B/W list) ..................................................................... 176

3.3.3.1 Configuration procedure ........................................................................ 176

3.3.3.2 Scenario topology ................................................................................... 177

3.3.3.3 Steps to configure B/W list .................................................................... 177

3.4 Guaranteed Quality of Service ..................................................................................... 180

3.4.1 Priority & Bandwidth management .................................................................. 181

ZyWALL USG 2000 Support Notes

F AQ ............................................................................................................................................ 188

A. Device Management FAQ ............................................................................................. 188

A01. How can I connect to ZyWALL USG 2000 to perform administrator’s tasks? 188

A02. Why can’t I login into ZyWALL USG 2000? ................................................... 188

A03. What’s difference between “Admin Service Control” and “User Service

Control” configuration in GUI menu System > WWW? ........................................... 189

A04. Why ZyWALL USG 2000 redirects me to the login page when I am

performing the management tasks in GUI? ............................................................... 190

A05. Why do I lose my configuration setting after ZyWALL USG 2000 restarts? ... 190

A06. How can I do if the system is keeping at booting up stage for a long time? ..... 190

B. Registration FAQ ........................................................................................................... 192

B01. Why do I need to do the Device Registration? .................................................. 192

B02. Why do I need to activate services? .................................................................. 192

B03. Why can’t I active trial service? ........................................................................ 192

B04. Will the UTM service registration information be reset once restore

configuration in ZyWALL USG 2000 back to manufactory default? ........................ 192

C. File Manager FAQ ......................................................................................................... 193

C01. How can ZyWALL USG 2000 manage multiple configuration files? .............. 193

C02. What are the configuration files like startup-config.conf, system-default.conf

and lastgood.conf? ...................................................................................................... 193

C03. Why can’t I update firmware? ........................................................................... 193

C04. What is the Shell Scripts for in GUI menu File manager > Shell Scripts? ........ 194

C05. How to write a shell script? ............................................................................... 194

C06. Why can’t I run shell script successfully? ......................................................... 194

D. Object FAQ.................................................................................................................... 195

D01. Why does ZyWALL USG 2000 use object? ...................................................... 195

D02. What’s the difference between Trunk and the Zone Object? ............................ 196

D03. What is the difference between the default LDAP and the group LDAP? What

is the difference between the default RADIUS and the group RADIUS? ................. 196

E. Interface FAQ ................................................................................................................ 197

E01. How to setup the WAN interface with PPPoE or PPTP? ................................... 197

E02. How to add a virtual interface (IP alias)? .......................................................... 197

E03. Why can’t I get IP address via DHCP relay? ..................................................... 197

E04. Why can’t I get DNS options from ZyWALL’s DHCP server? ......................... 197

E05. Why does the PPP interface dials successfully even its base interface goes

down? ......................................................................................................................... 198

F. Routing and NAT FAQ ................................................................................................... 199

ZyWALL USG 2000 Support Notes

F01. How to add a policy route? ................................................................................ 199

F02. How to configure local loopback in ZyWALL USG 2000? ............................... 199

F03. How to configure a NAT? .................................................................................. 203

F04. After I installed a HTTP proxy server and set a http redirect rule, I still can’t

access web. Why? ...................................................................................................... 204

F05. How to limit some application (for example, FTP) bandwidth usage? ............. 204

F06. What’s the routing order of policy route, dynamic route, and static route and

direct connect subnet table? ....................................................................................... 204

F07. Why ZyWALL USG 2000 cannot ping the Internet host, but PC from LAN side

can browse internet WWW? ...................................................................................... 205

F08. Why can’t I ping to the, Internet, after I shutdown the prim ary WAN interface?205

F09. Why the virtual server or port trigger does not work? ....................................... 205

F10. Why port trigger does not work? ....................................................................... 205

F11. How do I use the traffic redirect feature in ZyWALL USG 2000? .................... 206

F12. Why can’t ZyWALL learn the route from RIP and/or OSPF? ........................... 206

G. VPN and Certificate ...................................................................................................... 207

G01. Why can't the VPN connections dial to a remote gateway? .............................. 207

G02. VPN connections are dialed successfully, but the traffic still cannot go through

the IPsec tunnel. ......................................................................................................... 207

G03. Why ZyWALL USG 2000 VPN tunnel had been configured correctly and the VPN connection status is connected but the traffic still can not reach the remote

VPN subnet? ............................................................................................................... 207

G04. VPN connections are dialed successfully, and the policy route is set. But the

traffic is lost or there is no response from remote site. .............................................. 208

G05. Why don’t the Inbound/Outbound traffic NAT in VPN work? ......................... 208

H. Firewall FAQ ................................................................................................................. 209

H01. Why doesn’t my LAN to WAN or WAN to LAN rule work? ........................... 209

H02. Why does the intra-zone blocking malfunction after I disable the firewall? .... 209

H03. Can I have access control rules to the device in firewall? ................................ 209

I. Application Patrol FAQ................................................................................................... 210

I01. What is Application Patrol? ................................................................................ 210

I02. What applications can the Application Patrol function inspect? ........................ 210

I03. Why does the application patrol fail to drop/reject invalid access for some

applications? ............................................................................................................... 211

I04. What is the difference between “Auto” and “Service Ports” settings in the

Application Patrol configuration page? ..................................................................... 212

I05. What is the difference between BWM (bandwidth management) in Policy Route

ZyWALL USG 2000 Support Notes

and App. Patrol ? ........................................................................................................ 213

I06. Do I have to purchase iCards specifically for using AppPatrol feature? ............ 214

I07. Can I configure different access level based on application for different users? 214 I08. Can I migrate AppPatrol policy and bandwidth management control from

ZLD1.0x to ZLD2.0x? ............................................................................................... 214

J. lDP FAQ ......................................................................................................................... 215

J01. Why doesn’t the IDP work? Why has the signature updating failed? ................ 215

J02. When I use a web browser to configure the IDP, sometimes it will popup

"wait data timeout". .................................................................................................... 215

J03. When I want to configure the packet inspection (signatures), the GUI becomes

very slow. ................................................................................................................... 215

J04. After I select "Auto Update" for IDP, when will it update the signatures? ........ 215

J05. If I want to use IDP service, will it is enough if I just complete the registration

and turn on IDP? ........................................................................................................ 215

J06. What are the major design differences in IDP in ZLD1.0x and latest IDP/ADP

in ZLD2.0x? ............................................................................................................... 215

J07. Does IDP subscription have anything to do with AppPatrol? ............................ 216

J08. How to get a detailed description of an IDP signature? ..................................... 217

J09. After an IDP signature updated, does it require ZyWALL to reboot to make new

signatures take effect? ................................................................................................ 217

K. Content Filtering FAQ ................................................................................................... 218

K01. Why can’t I enable external web filtering service? Why does the external web

filtering service seem not to be working? .................................................................. 218

K02. Why can’t I use MSN after I enabled content filter and allowed trusted

websites only? ............................................................................................................ 218

L. Device HA FAQ ............................................................................................................. 219

L01. What does the “Preempt” mean? ....................................................................... 219

L02. What is the password in Synchronization? ........................................................ 219

L03. What is “Link Monitor” and how to enable it? .................................................. 219

L04. Can Link Monitor of Device HA be used in backup VRRP interfaces? ............ 220

L05. Why do both the VRRP interfaces of master ZW USG 2000 and backup ZW

USG 2000 are activated at the same time? ................................................................. 220

M. User Management FAQ ................................................................................................ 221

M01. What is the difference between user and guest account?.................................. 221

M02. What is the “re-authentication time” and “lease time”? ................................... 221

M03. Why can’t I sign in to the device? .................................................................... 221

M04. Why is the TELNET/SSH/FTP session to the device disconnected? Why is the

ZyWALL USG 2000 Support Notes

GUI redirected to login page after I click a button/link? ........................................... 221

M05. What is AAA? ................................................................................................... 222

M06. What are ldap-users and radius-users used for? ............................................... 222

M07. What privileges will be given for ldap-users and radius-users? ....................... 222

N. Centralized Log FAQ .................................................................................................... 224

N01. Why can’t I enable e-mail server in system log settings? ................................. 224

N02. After I have the entire required field filled, why can’t I receive the log mail? . 224

O. Traffic Statistics FAQ .................................................................................................... 225

O01. When I use "Flush Data" in Report, not all the statistic data are cleared. ......... 225

O02. Why isn't the statistic data of "Report" exact? .................................................. 225

O03. Does Report collect the traffic from/to ZyWALL itself? .................................. 225

O04. Why cannot I see the connections from/to ZyWALL itself? ............................. 225

P. Anti-Virus F AQ .............................................................................................................. 226

P01. Is there any file size or amount of concurrent files limitation with ZyWALL

USG 2000 Anti-Virus engine? ................................................................................... 226

P02. Does ZyWALL USG 2000 Anti-Virus support compressed file scanning? ....... 226

P03. What is the maximum concurrent session of ZyWALL USG 2000 Anti-Virus

engine? ....................................................................................................................... 226

P04. How many type of viruses can be recognized by the ZyWALL USG 2000? .... 226

P05. How frequent the AV signature will be updated? .............................................. 226

P06. How to retrieve the virus information in detail? ................................................ 226

P07. I cannot download a file from Internet through ZyWALL USG 2000 because the Anti-Virus engine considers this file has been infected by the virus; however, I am very sure this file is not infected because the file is nothing but a plain text file.

How do I resolve this problem? ................................................................................. 226

P08. Does ZyWALL USG 2000 Anti-Virus engine support Passive FTP? ................ 227

P09. What kinds of protocol are currently supported on ZyWALL USG 2000

Anti-Virus engine? ..................................................................................................... 227

P10. If the Anti-Virus engine detects a virus, what action it may take? Can it cure the

file? ............................................................................................................................. 227

ZyWALL USG 2000 Support Notes

The comparison of ZyNOS and ZLD

Since ZyXEL USG 2000 adopt ZLD 2.10 as their network operating system. Additionally, ZLD 2.10 provides many new features and new design in GUI. Hence, the layout in ZyNOS might not be the same as the one in ZLD 2.10. Accordingly, we provide a comparison table for your reference.

Platform Feature/Term

NAT

VPN

ZyNOS ZLD Chapter in

Advanced > NAT > Address Mapping Advanced > NAT Port forwarding Advanced > NAT Port Trigger

Security> VPN > Gateway Policy Security> VPN > Network Policy Security> VPN > Gateway Policy & Network Policy

Network > Routing > Policy Route SNAT Network > Virtual Server Network > Routing > Policy Route Port Triggering VPN > IPSec VPN> VPN Gateway VPN > IPSec VPN> VPN Connection VPN > IPSec VPN> Concentrator

Support Note

3.1.2 NAT & Virtual Server

1.1.2 Site to site VPN solutions

Others

(Hub & Spoke VPN network) Advanced > BW MGMT AppPatrol & Network >

Policy Route Network > LAN/DMZ/WLAN> IP alias Wireless > Wi-Fi Network > Interface >

Wireless > 3G Network > Interface >

Security > Auth Server Object > AAA Server

Network > Interface >

LAN/DMZ/VLAN/Brid

ge> V irtual Interface

WLAN

Cellular

2.4 Mobility Internet Access

ZyWALL USG 2000 Support Notes

1. Deploying VPN

VPN (Virtual Private Network) allows you to establish a virtual direct connection to remote locations or for the telecommuters to access the internal network in the office. VPN is a replacement for the traditional site-to-site lease lines like T1 or ISDN. Through the VPN applications, it reduces setup cost, works for various types of Internet connection devices (ISDN modem, ADSL modem and FTTX…) and is easy to troubleshoot.

VPN gives you site-to-site connection flexibility. However, with multiple VPN connections between sites, it can become more difficult to maintain. Typically, an administrator has to configure many site-to-site VPN connections to allow a truly global VPN network.

VPN connection management is made easily using the VPN concentrator. The VPN concentrator routes VPN traffic across multiple remote sites without complex setting, thus reduces the configuration overhead and the possibility of improper configuration. The VPN concentrator is also a centralized management tool for administrators because all the traffic sent between remote sites has to go through the central office first and administrators can set up different access control rules. These are based on the source address, remote address, user and schedule to enhance VPN security. To help to reduce network intrusion attacks, administrators can configure the built-in IDP engine to inspect VPN traffic. For easy

troubles

ooting and

monitorin

, the VPN

concentrat

WALL

r logs and

SG 200

stores syst

Suppor

m informa

Notes

ion and

network

The VP setting

status for f

concentr

p a globa

rther easy

tor enhanc VPN net

troublesho

s the VP

ork with

ting and a

routing a

less effort

alysis.

ility and h

but stron

lps networ

er securit

administ

and man

ators in gement

possibili

For SM

ies.

customer,

ZyXEL pr

vides a tot

l VPN sol

tion from

personal

lient to a 5

people fi



rewall whe

he benefit

e all of th

rom deplo

ll contents c

se devices

ment of Z

pyright (c) 2

ave the V

XEL VPN

08 ZyXEL

N connect

solutions

ommunicati

on ability.

ns Corporati

ZyWALL USG 2000 Support Notes

‧ Security and Reliability ‧ Improved communications ‧ Increased flexibility ‧ Lower cost

1.1 Extended Intranets

The ZyXEL VPN solutions primarily can be used to extend the intranet and deliver increased connectivity between operation sites. The branch office subnet will be considered a part of main office internet. Therefore, user behind branch office also can use the internal network resources as if he was in the main office. Because of the VPN connection, user will feel like he is using a local LAN even though he is accessing the network resources via Internet. Use of a VPN for smaller branch offices, franchise sites and remote workers provides nearly the same level of connectivity and reliability as a private network. The remote connection cost also can decrease by leveraging the Internet connections to replace expensive leased lines.

USG 2000

USG2000

1.1.2 Site to Site VPN solutions (ZyWALL 1050 Ù ZyWALL USG 2000):

Site to Site VPN is the basic VPN solution between local and remote gateway. This type of VPN connection is used to extend and join local networks of both sites into a single intranet. There are two kinds of connection interface. Static IP and dynamic DNS.

ZyWALL USG 2000 Support Notes

Configure ZyWALL 1050 with Static IP address: ZyWALL 1050 uses the static IP address for VPN connection. The topology is shown on the

following figure.

User needs to configure the static IP address and then apply to the VPN Gateway configuration page. The configuration steps are stated below:

1) Login ZyWALL 1050 GUI, setup the ge2 interface for internet connection and manually

assign a static IP. The configuration path in ZyWALL 1050 is Network > Interface > Ethernet >Edit > ge2

2) Switch to VPN > IPSec VPN > VPN Gateway select interface ge2 as My Address and

ZyWALL USG 2000 Support Notes

then in Security Gateway Address field set the remote gateway IP to 167.35.4.3. The Local ID Type and content are IP and 210.110.7.1, Peer ID Type and content are IP and

167.35.4.3.

3) User can refer to the user guide to complete the rest of the settings for VPN tunnel.

4) The ZyWALL1050 and ZyWALL USG 2000 VPN are route-based VPN. This means the

VPN tunnel can be an interface to route the VPN traffic. Thus, we need to configure a policy route for VPN traffic from the local subnet to the remote subnet after configuring the VPN gateway and connection (phase1 and phase2). The purpose of this policy route is to tell the ZyWALL1050 to send the traffic to VPN tunnel when the traffic flows from the local subnet to a destination that is in the remote subnet. Switch to ZyWALL 1050 > Network > Routing > Policy Route and add a new policy route. The source and the destination addresses are the local and remote subnets. The Next-Hop type is VPN tunnel. Then choose the corresponding VPN connection rule from the VPN tunnel drop down menu. Now, the VPN tunnel and routing is configured and user can start to test it.

ZyWALL USG 2000 Support Notes

5) Login ZyWALL USG 2000 GUI, setup the ge2 interface for internet connection and

manually assign a static IP. The configuration path in ZyWALL USG 2000 menu is ZyWALL > VPN > IPSec VPN >VPN Gateway > Add. Select Static site to site VPN and then create an object if you have not created any wan interface.

ZyWALL USG 2000 Support Notes

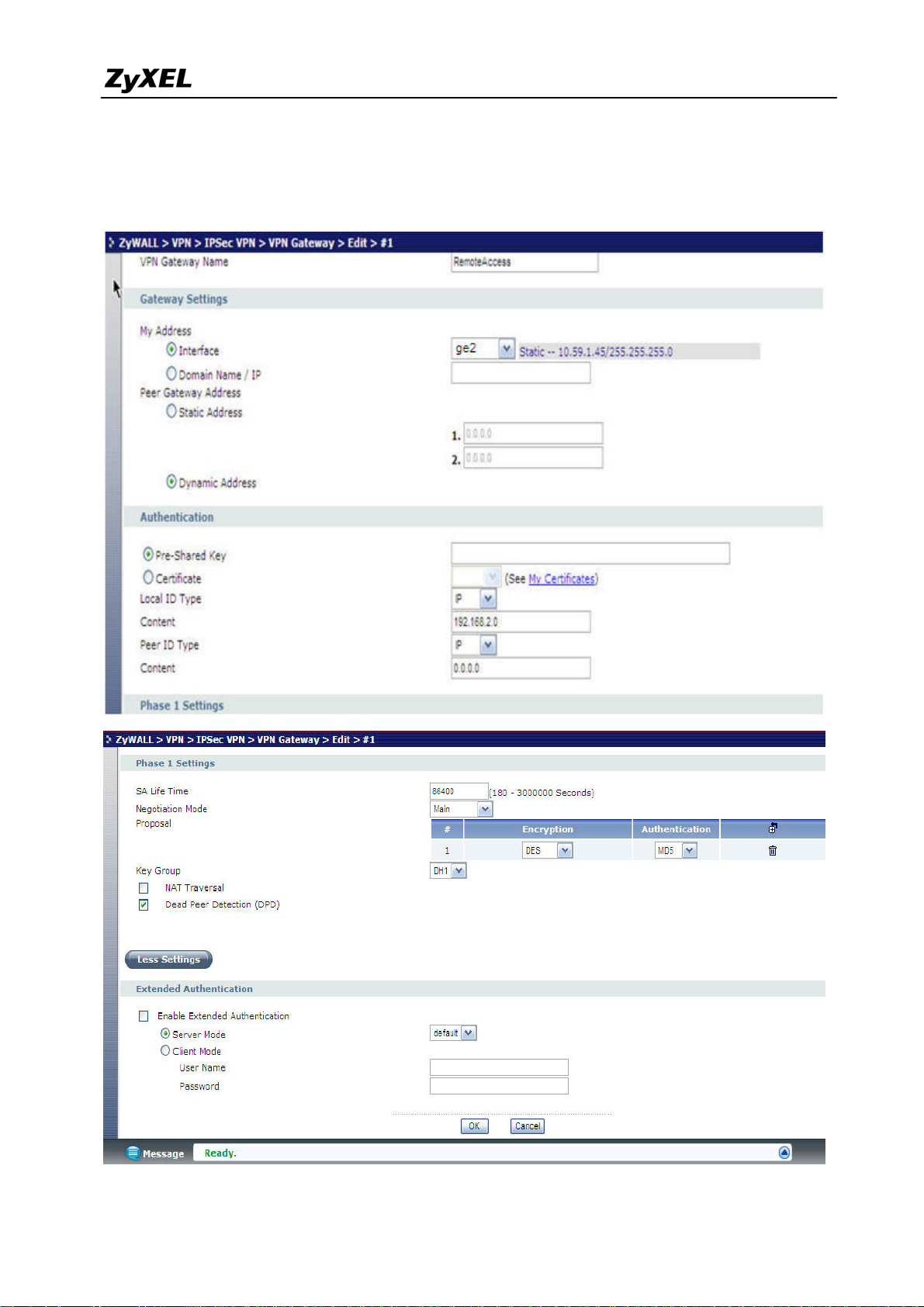

6) Switch to VPN > IPSec VPN > VPN Gateway > Edit select interface ge2 as My Address

and then in Security Gateway Address field set the remote gateway IP to 210.110.7.1. The Local ID Type and content are IP and 167.35.4.3, Peer ID Type and content are IP and 210.110.7.1.

ZyWALL USG 2000 Support Notes

7) Create VPN by selecting ZyWALL > VPN > IPSec VPN > VPN Connection > Edit. As

for more detail, user can refer to the user guide to complete the rest of the settings for VPN tunnel.

8) The ZyWALL1050 and ZyWALL USG 2000 VPN are route-based VPN. This means the

Tips for application:

1. Make sure the presharekey is the same in both local and remote gateways.

2. Make sure the IKE & IPSec proposal is the same in both local and remote gateways.

ZyWALL USG 2000 Support Notes

3. Select the correct interface for VPN connection.

4. The Local and Peer ID type and content must the opposite and contain the same. Make sure the VPN policy route has been configured in ZyWALL1050.

ZyWALL USG 2000 Support Notes

1.2 Extranet Deployment

The VPN provides the access to extranets which can provide the security path over internet to improve the client service, vendor support and company communication. Different flexible business models have been developed based on the global VPN extranet architecture. For example, customers can order equipment over the VPN and also suppliers can check the orders electronically. Another result of its application is that the employees across different branches can collaborate on project documents and share the different site’s internal resource to complete the project.

USG 2000

Partner Site

The ZyWALL USG 2000 can be placed as a VPN gateway in the central site. It can communicate with other ZyXEL’s VPN-capable products as well as VPN products from other major vendors in the network device industry, e.g. Cisco PIX/IOS VPN products, Check Point VPN Pro, Juniper NetScreen 100/200 and others…

ZyWALL USG 2000 Support Notes

1.2.1 Site to site VPN solutions (ZyWALL USG 2000 to ZyWALL70)

The exciting ZyWALL35 or 70 in central office gateway can be replaced by ZyWALL USG 2000, and the ZyWALL35 or 70 moved to a remote office. The ZyWALL USG 2000 can provide higher VPN throughput and deal with multiple VPN tunnels at the same time. To show how to build tunnel between ZyWALL5/35/70 and ZyWALL USG 2000 we used ZyWALL 70 as an example.

Static IP address

210.110.7.1

Static IP address

167.35.4.3

Internet

CenterOffice Gateway Branch Gateway

LAN: 192.168.1.X

1) Login ZyWALL USG 2000 GUI and setup the ge2 interface for the internet connection

and manually assign a static IP. The configuration path is ZyWALL USG 2000 > Network > Interface > Edit > ge2

LAN: 192.168.2.X

2) Switch to VPN > IPSec VPN > VPN Gateway, select My Address as interface ge2 and

then in Security Gateway Address field set the remote gateway IP to 167.35.4.3. The Local ID Type and content are IP and 210.110.7.1, Peer ID Type and content are IP and

ZyWALL USG 2000 Support Notes

167.35.4.3.

3) Login to ZyWALL70 and go to Security > VPN > Gateway Policy, add a new gateway

policy to connect with central office’s ZyWALL USG 2000. My Address and Remote

Gateway Address are ZyWALL70 and ZyWALL USG 2000 WAN IP addresses. The Pre-Shared Key configured on both sides must exactly the same Local ID Type &

content and Peer ID Type & content are reverse to the Local ZyWALL USG 2000.

4) The IKE Proposal is very important setting when configuring the VPN tunnel. The

proposal includes Negotiation Mode, Encryption and Authentication Algorithm and…. Make sure the IKE proposal parameters are must the same on both ends.

5) Switch to Network > IPSec VPN > VPN Connection, add a new VPN connection (IPSec

phase2). Setup the Phase2 proposal and local and remote policies. The chosen phase2 proposal chosen must be the same as on the remote site’s ZyWALL70.

ZyWALL USG 2000 Support Notes

6) In ZyWALL70, VPN is a rule based VPN. This means that whether the traffic is going to

the tunnel or not will depend on the local and remote policies. In this example, ZyWALL70 local and remote policies are 192.168.2.0 and 192.168.1.0 and the traffic from 192.168.2.X subnet to 192.168.1.X subnet will go through the VPN tunnel to the remote site as predefined. The ZyWALL USG 2000 local and remote policies must be reverse to the ZyWALL70’s settings, otherwise the tunnel will not be built up.

7) Check whether the IPSec proposal on both sites is the same and the configuration is done

on both sites.

8) The ZyWALL USG 2000 VPN is a route-based VPN, this means the VPN tunnel can be an

interface to route the VPN traffic. Thus, we need to configure a policy route for VPN traffic from the local subnet to the remote subnet after configuring the VPN gateway and

ZyWALL USG 2000 Support Notes

the connection (phase1 and phase2). The purpose for this policy route is to tell the ZyWALL USG 2000 to send the traffic to the VPN tunnel when the traffic goes from the local subnet to the destination that is in a remote subnet. Switch to Network> Routing > Policy > Policy Route and add a new policy route, the source and destination address are the local and remote subnet and the Next-Hop type is a VPN tunnel. Then choose the corresponding VPN connection rule from the VPN tunnel drop down menu. Now, the VPN tunnel and routing is built and user can start to test it.

9) After configuring both sides of the VPN, click the “Dial up” icon to test the VPN

connectivity.

10) “VPN tunnel establishment successful,” message appears.

ZyWALL USG 2000 Support Notes

Tips for application:

1. Make sure the presharekey is the same in both the local and the remote gateways.

2. Make sure the IKE & IPSec proposal is the same in both the local and the remote

gateways.

3. Select the correct interface for the VPN connection.

4. The Local and Peer ID type and content must be the opposite and not of the same content.

5. Make sure the VPN policy route had been setup in ZyWALL USG 2000.

1.2.2 Interoperability – VPN with other vendors

1.2.2.1 ZyWALL with FortiGate VPN Tunneling

This page guides how to setup a VPN connection between the ZyWALL USG 2000 and FortiGate 200A.

As on the figure shown below, the tunnel between Central and Remote offices ensures the packet flow between them are secure, because the packets go through the IPSec tunnel are

ZyWALL USG 2000 Support Notes

encrypted. To setup this VPN tunnel, the required settings for ZyWALL and FortiGate are explained in the following sections.

Static IP address

210.110.7.1

Static IP address

167.35.4.3

Internet

Central Office Gateway ZyWALL

LAN: 192.168.1.X

The central office gateway ZyWALL USG 2000’s interface and VPN setting retain the same setting as in the previous example. If you jumped this section first, please refer to ‘ZyWALL

Branch Gateway FortiGate 200A

LAN: 192.168.2.X

USG 2000 to ZYWALL70 VPN tunnel setting’ on page 8. This list below is to briefly show the VPN phase1 and phase2 configuration parameters:

ZyWALL FortiGate

WAN: 210.110.7.1

LAN: 192.168.1.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

WAN: 167.35.4.3

LAN: 192.168.2.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Authentication: SHA1

1) Configure the ZyWALL USG 2000 ‘s VPN gateway and VPN connection as on the list.

Also, remember to configure the policy route for the VPN traffic routing. Refer to the

ZyWALL USG 2000 Support Notes

previous scenario or user guide to find help on setting the ZyWALL USG 2000 VPN.

2) Login to the FortiGate GUI and switch to System > Network > Interface and set the wan1

interface to 167.35.4.3 and internal interface to 192.168.2.1/255.255.255.0.

Note: About the detail interface settings, refer to FortiGate user guide.

3) Switch to System > VPN > IPSEC and select the Auto Key (IKE) tab and click the Create

Phase 1 button. This will open a new page for VPN phase1 setup.

4) Fill-in the VPN phase1 setting according to the table listed. We don’t have to setup the ID

type and content because the FortiGate accepts any peer ID. Make sure both the pre-shares key and proposal are the same as in the ZyWALL USG 2000.

ZyWALL USG 2000 Support Notes

5) Get back to the VPN configuration page again and click the Create Phase 2 button to add

a new Phase2 policy.

6) Select the “ZyWALL”(configured in the step 4) policy from the Phase 1 drop down menu

and click the Advanced… button to edit the phase 2 proposal and source and destination address. Please make sure the phase 2 proposal is the same as in ZyWALL USG 2000 phase 2.

ZyWALL USG 2000 Support Notes

7) The VPN tunnel configuration is finished and the VPN IPSec page will show the VPN

phase 1 and phase 2 rules in the Auto Key (IKE) tab.

8) We need to setup the firewall rules for IPSec VPN traffic transmitting from ZyWALL to

FortiGate and from FortiGate to ZyWALL. Switch to Firewall > VPN >Address menu and add two new address object which stand for ZyWALL LAN subnet and FortiGate LAN subnet. Using the “Create New” button to create a new address object.

9) Switch to Firewall > Policy and click “Insert Policy Before” icon to add new policy for the

VPN traffic from FortiGate to ZyWALL.

ZyWALL USG 2000 Support Notes

10) We will setup the FortiGate to ZyWALL policy in the new page. The source interface is

internal and Address name is Fortinet (192.168.2.0/255.255.255.0 address object). The destination interface is wan1 and Address name is Zynet (192.168.1.0/255.255.255.0 address object). Schedule and service type are “always” and “ANY” to ensure that all kinds of traffic can pass through the VPN tunnel at any time. There are three kinds of “Action” available for user to configure, because the traf fic is send from “internal” to WAN and will be encrypted by IPSec VPN tunnel. Thus, we select “IPSEC” as action and chose allow inbound and outbound traffic in the ZyWALL tunnel.

11) Switch to Firewall > Policy and click “Create New” button to add new policy for the VPN

traffic from ZyWALL to FortiGate.

12) We setup the ZyWALL to FortiGate policy in the new page. The source interface is wan1

and Address name is Zynet (192.168.1.0/255.255.255.0 address object). The destination interface is internal and the Address name is Fortinet (192.168.2.0/255.255.255.0 address object). Schedule and service type are always and ANY to ensure that all kinds of traffic

ZyWALL USG 2000 Support Notes

can pass through the VPN tunnel at any time. Select “ACCEPT” as an action this time because the traffic sent from wan to internal must be decrypted first and only then can be transmitted. Don’t select the IPSec as the Action in this VPN traffic flow direction.

13) The overall firewall policy is shown on the following figure. The VPN tunnel between

ZyWALL and FortiGate has been successfully setup.

Tips for application:

1. Make sure the Pre-Shared Key is the same in both local and remo te gateways.

2. Make sure both IKE and IPSec proposal are the same in both local and remote gateways.

3. Make sure the VPN policy route has been configured in ZyWALL USG 2000.

4. Make sure the Firewall rule has been configured in FortiGate.

ZyWALL USG 2000 Support Notes

1.2.2.2 ZyWALL with NetScreen VPN Tunneling

This section guides how to setup a VPN connection between the ZyWALL USG 2000 and NetScreen 5GT.

As on the figure below, the tunnel between Central and Remote offices ensures the packet flows between them are secure. This is because the packets flowing through the IPSec tunnel are encrypted. The required settings to setup this VPN tunnel using ZyWALL and NetScreen are stated in the following section.

Static IP address

210.110.7.1

Static IP address

167.35.4.3

Internet

Central Office Gateway ZyWALL

LAN: 192.168.1.X

The central office gateway ZyWALL USG 2000’s interface and VPN setting retain the same settings as in the previous example. If you jumped to this section first, please refer to ‘ZyWALL USG 2000 to ZYWALL70 VPN tunnel setting’ on the page 8. This list below is to briefly show the VPN phase1 and phase2 configuration parameters:

ZyWALL NetScreen

WAN: 210.110.7.1

LAN: 192.168.1.0/24

Branch Gateway NetScreen 5GT

LAN: 192.168.2.X

WAN: 167.35.4.3

LAN: 192.168.2.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase 1

Encryption :DES

Key Group :DH1

ZyWALL USG 2000 Support Notes

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Encapsulation: Tunnel

Active Protocol: ESP

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Phase2

Encryption: DES

1) Configure the ZyWALL USG 2000 ‘s VPN gateway and VPN connection as on the list.

Also, remember to configure the policy route for the VPN traffic routing. Refer to the pervious scenario or user guide to find help on setting the ZyWALL USG 2000 VPN.

2) Using a web browser, login NetScreen by entering the LAN IP address of the NetScreen in

the URL field. The default username and password is netscreen/netscreen.

3) Switch to menu Network > Interfaces and configure the WAN/LAN IP addresses to

WAN: 167.35.4.3 / LAN: 192.168.2.0/24. The trust interface is for LAN, the untrust interface is for WAN.

Note: Regarding the detail interface settings, please refer to NetScreen user guide to get the detail info.

4) NetScreen won’t setup a route for the traffic to the external network. We have to manually

add a route for it. After configuring a static IP address in untrust interface, switch to Network -> Routing -> Routing Entries to edit a default Gateway IP address. In this example, the Gateway IP address is 167.35.4.1.

ZyWALL USG 2000 Support Notes

5) To edit the IPSec rule, first set the gateway policy and then edit the IKE policy. Switch to

VPNs > AutoKey Advanced > Gateway, and then press the New button.

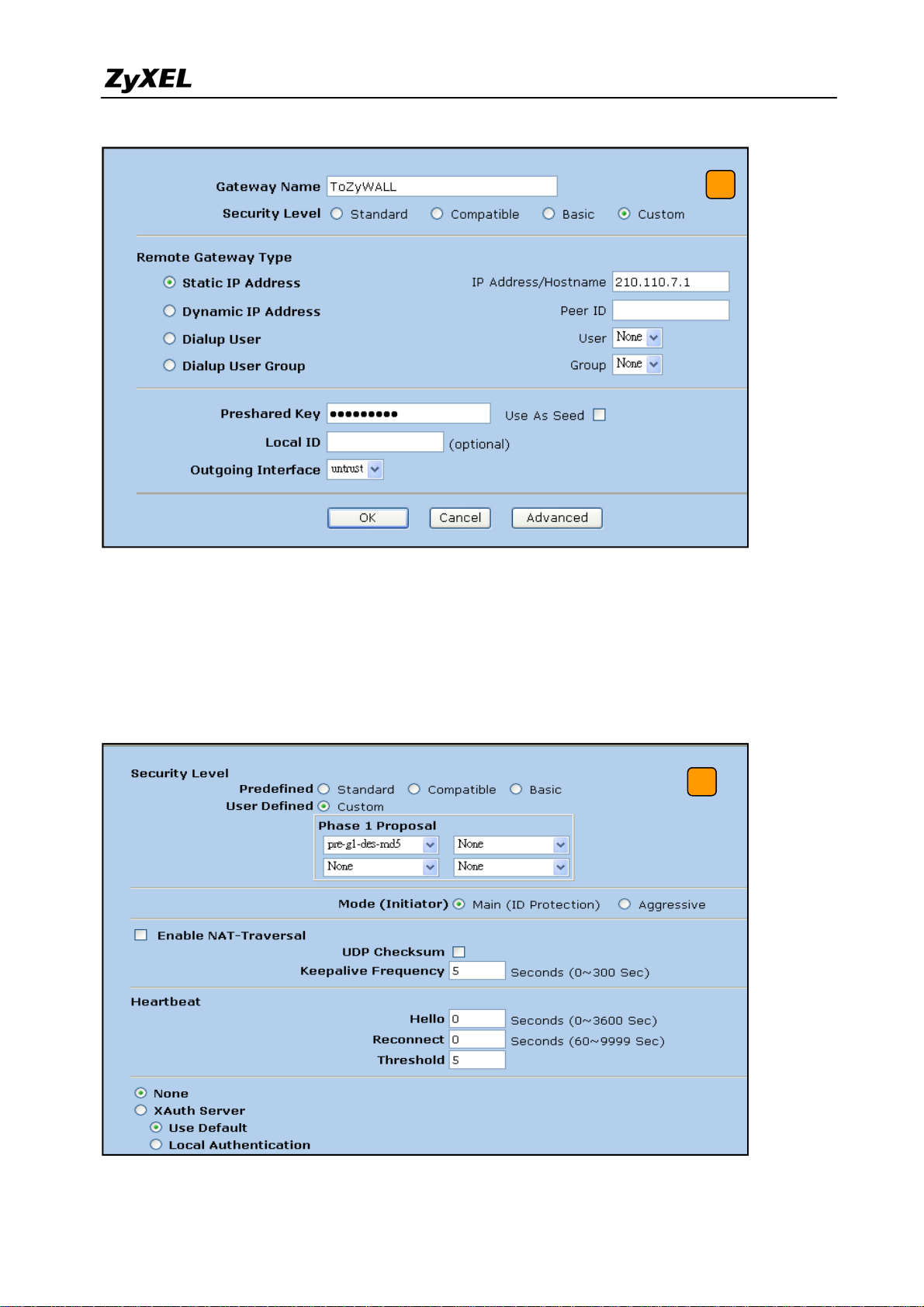

6) Choose a name for the policy, for example “ToZyWALL”. Remote Gateway IP Addr is

the ZyWALL's WAN IP address. In this example, we select Static IP Address option and enter IP 210.110.7.1 in the text box. Enter the key string 123456789 in Preshared Key text box, and then press Advanced button to edit the advanced settings.

ZyWALL USG 2000 Support Notes

7) On Security Level settings, we can set up phase 1 proposal. In this example, we select

User Defined, and choose pre-g1-des-md5 rule. The pre-g1-des-md5 means Pre-Share Key, group1, DES for Encryption Algorithm and MD5 for Authentication Algorithm. Select Main (ID Protection) option for Mode (Initiator). Then, press Return button, and press OK button on next page to save your settings.

ZyWALL USG 2000 Support Notes

8) After applying the previous settings, the new IKE rule is shown on the page.

9) To edit the IPSec rule, switch to VPNs > AutoKey IKE, and then press the New button to

edit your IPSec rules.

10) Give a name for the VPN, for example “ToZyWALL IPSec”. In Remote Gateway, choose

the Predefined option and select the ToZyWALL rule. Then, press Advanced button to edit the advanced settings.

ZyWALL USG 2000 Support Notes

11) In Security Level settings, choose the option User Defined and choose nopfs-esp-des-sha

rule on Phase 2 Proposal. The nopfs-esp-des-sha means no PFS, ESP Protocol,

Encryption Algorithm to DES and Authentication Algorithm to SHA1. Check the VPN Monitor check box so that you can monitor your VPN tunnels. Then, press Return button

and OK button on next page to save the settings.

12) After applying the settings, the VPN IKE page will show the new IPSec rule.

13) Switch to Policies to set up policy rules for VPN traffic. In the field From choose Trust

and in the field To choose Untrust (it means from LAN to WAN). Then press the New button to edit the policy rules.

ZyWALL USG 2000 Support Notes

14) Assign a name to this policy, for example “VPN”. In Source Address, set the Local LAN

IP addresses. In this example, we select New Address option. Type 192.168.2.0 /

255.255.255.0 in the text box. Set the remote IP addresses as Destination Address. In this example, we select New Address option, and type 192.168.1.0 / 255.255.255.0 in the text box. In drop down menu Action select the option Tunnel and then select the ToZyWALLIPSec VPN rule. Check Modify matching bidirectional VPN policy check box, so that you can create/modify the VPN policy for the opposite direction. Then, press OK button to save your settings.

ZyWALL USG 2000 Support Notes

15) After applying the settings, the new policy rules will be displayed in the Policies page.

16) Move the added policy rules to the top, so that the VPN policies will be checked first.

17) Ping the remote host and switch to VPNs > Monitor Status to check the VPN link status. If

the Link status is Up, it means the VPN tunnel between ZyWALL and NetScreen has been successfully built.

ZyWALL USG 2000 Support Notes

1.2.2.3 ZyWALL with SonicWall VPN Tunneling

This section guides how to setup a VPN connection between the ZyWALL USG 2000 and SonicWall TZ170.

Static IP address

210.110.7.1

Static IP address

167.35.4.3

Internet

Central Office Gateway ZyWALL

LAN: 192.168.1.X

Branch Gateway

SonicWall TZ170

LAN: 192.168.2.X

This list below is to briefly show the VPN phase1 and phase2 configuration parameters:

ZyWALL USG 2000 Support Notes

ZyWALL SonicWall

WAN: 210.110.7.1

LAN: 192.168.1.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

WAN: 167.35.4.3

LAN: 192.168.2.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

1) Configure the ZyWALL USG 2000 ‘s VPN gateway and VPN connection as on the list.

Also, remember to configure the policy route for the VPN traffic routing. Refer to the previous scenario or user guide to find help on setting the ZyWALL USG 2000 VPN.

2) Using a web browser, login SonicWall by entering the LAN IP address of SonicWall in the

URL field. The default username and password is admin/password.

3) Switch to menu Network > Interfaces and configure the WAN/LAN IP address to WAN:

167.35.4.3 LAN: 192.168.2.1/24.

ZyWALL USG 2000 Support Notes

4) Switch to VPN > Settings, check Enable VPN check box and press Add button. This will

bring the VPN settings.

Note: The VPN Policy Wizard is an alternative way to set up the VPN rules.

5) Click the tab General, to bring the Security Policy settings and assign a name to this

policy. In this example, we use ToZyWALL. IPSec Primary Gateway Name or Address is the ZyWALL's WAN IP Address (IP address of the remote gateway). In this example, we use 210.110.7.1 in IPSec Primary Gateway Name or Address text box. Then, enter the key string 123456789 in the text box Shared Secret.

ZyWALL USG 2000 Support Notes

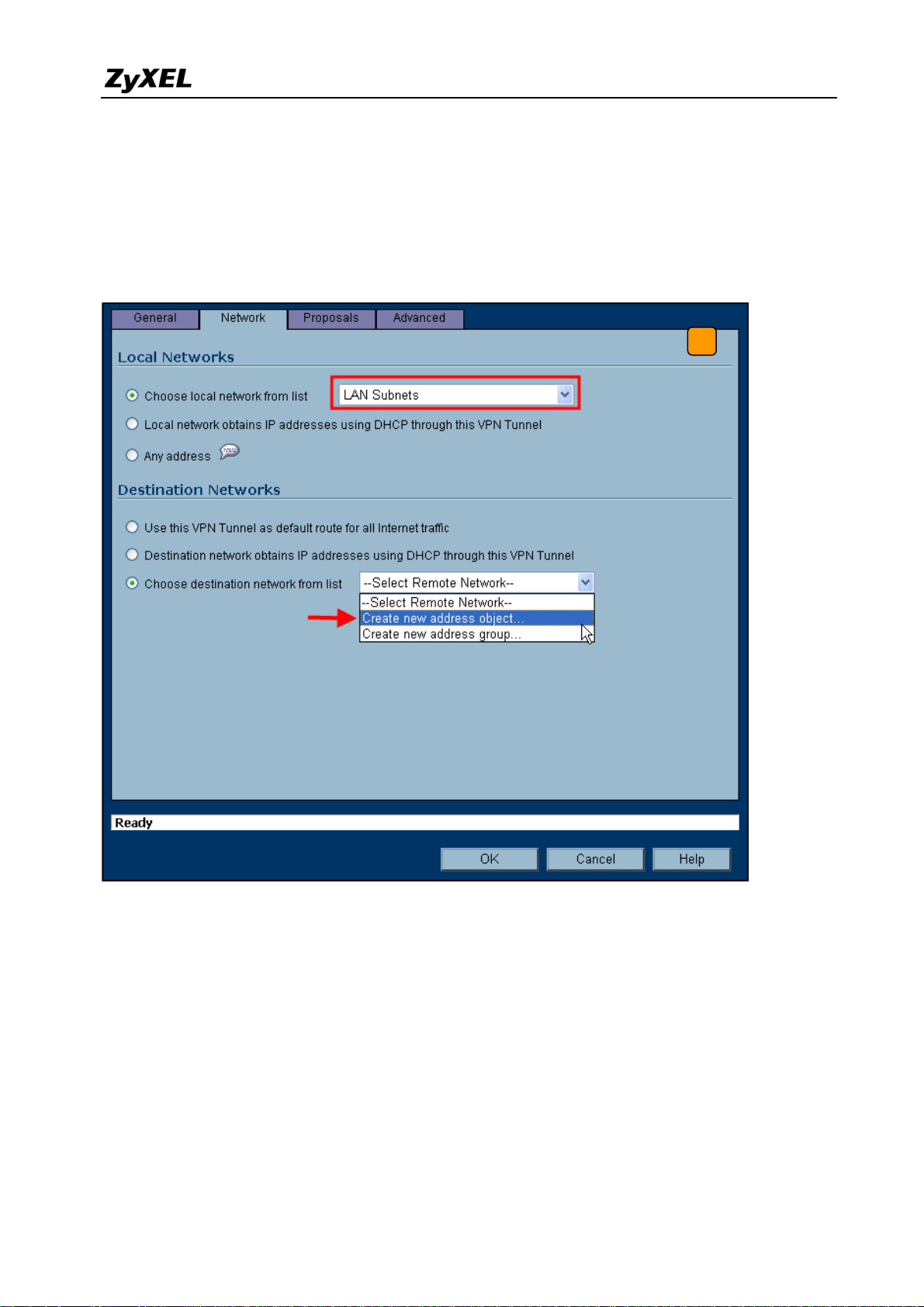

6) Switch to Network tab to configure the local and remote networks for VPN tunnel. We

choose the predefined “LAN Subnets” object from the local network drop down list. There is no predefined address object for remote subnet. Therefore, we have to create a new address object in the remote network drop down list. Then a new address object window will pop-up.

ZyWALL USG 2000 Support Notes

7) The name for this object can be for example “Remote_Subnet”. The Network IP Address

and the Subnet Mask are the remote site LAN subnet. In this example, enter 192.168.1.0 in Network text box and then type 255.255.255.0 in Subnet Mask text box. Then press OK. Now after the address object successfully configured, the new address object “Remote_Subnet” can be selected from the destination network drop down list.

8) Switch to Proposals tab. In IKE (Phase1) proposal settings, select Main mode, set DH

Group to Group1, Encryption to DES and Authentication to MD5. In IPSec (Phase2)

proposal settings, select ESP Protocol, Encryption to DES and Authentication to SHA1. Then press the OK button.

ZyWALL USG 2000 Support Notes

9) Switch to Advanced tab. In the setting VPN policy bound to select Interface WAN.

Then press the OK button.

10) The VPN status page will show a new VPN rule. Make sure the rule has been enabled.

ZyWALL USG 2000 Support Notes

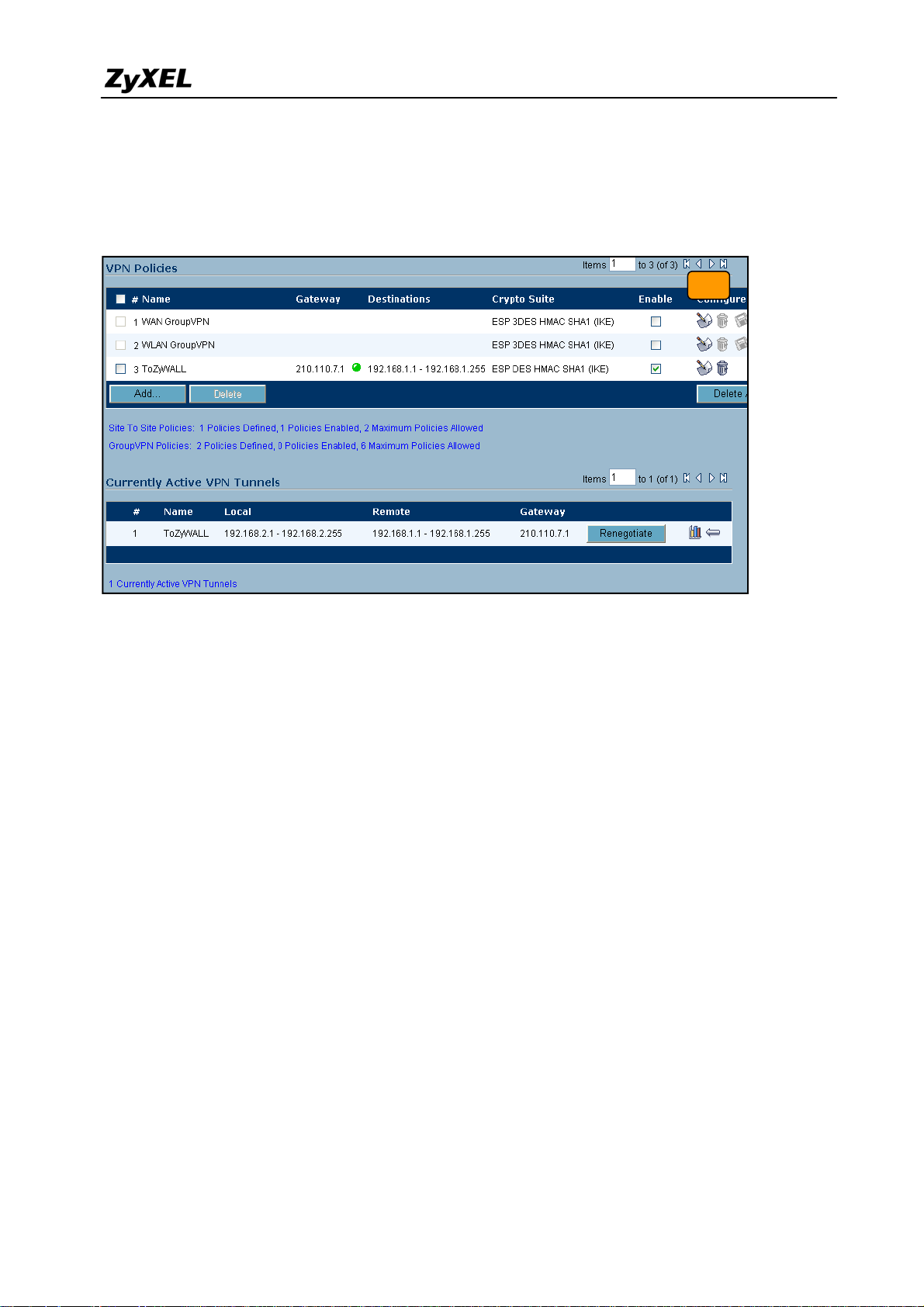

11) Ping the remote host to dial up the tunnel. We can check the connected VPN status in the

VPN status page. The VPN tunnel should appear in the Currently Active VPN Tunnels page. It should show that the tunnel had been successfully built-up.

ZyWALL USG 2000 Support Notes

1.3 Remote Access VPN

Remote Access VPN provides a cost-effective alternative to standard dial-in remote access to a company network. The users can connect to the network via the Internet, eliminating the expensive long-distance or the toll-free dial-in costs.

The most common scenario for application might look like this: An employee is on the road (i.e. teleworker). He can gain full network access simply by connecting to the Internet. During the data transmission between remote and host, this connection should also provide confidentiality (Data transferring in VPN tunnel with encryption).

Another genius application is a “Mobile office”: Teleworker or home & SOHO employee can work at airport, cyber café, hot spots, hotel or home. The office building scope can be eliminated and a global office can start to fully utilize the global resources.

ZyWALL USG 2000 incorporates IPSec, SSL VPN and L2TP over IPSec into a single box. The customers can choose the most appropriate application for the remote access application.

1.3.1 IPSec VPN for Remote Access

In this scenario, we assume the ZyWALL USG 2000 admin configured the VPN settings in a way to allow teleworker access internal network resource through remote access VPN. Since it is unknown what IP address will the remote teleworker’s PC/notebook connect from, 0.0.0.0 is used as for ZyWALL USG 2000’s remote gateway setting it represents “any IPs”. On the other end, the teleworker use ZyWALL VPN client on their notebooks to establish IPSec VPN with the main office.

ZyWALL USG 2000 Support Notes

So we are going to complete the following tasks.

z In ZyWALL USG 2000 create object ‘address’ for both local and remote networks z In ZyWALL USG 2000 configure a VPN gateway and the VPN connection setting z In ZyWALL VPN client configure the corresponding VPN setting in ZyWALL VPN

client

ZyWALL USG 2000 ZyWALL VPN Client

My address: ge2(10.59.1.45)

Secure gateway address: 0.0.0.0

Local: 192.168.2.0/24

Remote: 0.0.0.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Secure gateway address: 10.59.1.45

My address: Any

Local: Any

Remote: 192.168.2.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Encryption :DES

Authentication :MD5

Key Group :DH1

ZyWALL USG 2000 Support Notes

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Encapsulation: Tunnel

Active Protocol: ESP

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Phase2

Encryption: DES

1.3.1.1 Steps to configure

Below is step by step configuration:

1) Login ZyWALL USG 2000 GUI and go to Object > Address to create an address object

(local subnet) for remote access.

2) Create another address object for the remote host. The IP Addr ess of the host should be

0.0.0.0, which means that remote user dials in dynamically.

3) Go to VPN > IPSec VPN > VPN Gateway to create gateway for remote a VPN client. Because this kind of VPN is initialed from remote user, the Secure Gateway should be set as

ZyWALL USG 2000 Support Notes

dynamic, 0.0.0.0. Also, the VPN peers should keep consistence with each other for other parameters, such as Pre-Shared Key, ID Type, Encryption and Authentication proposal and so on.

ZyWALL USG 2000 Support Notes

4) To create a VPN rule, go to VPN > IPSec VPN > VPN Connection. Check the “Use Policy Route to control dynamic IPSec rules.” as defined in step 1 and step 2. Remote

policy should be a dynamic host address. We put VPN Gateway as dynamic as was defined in step 3.

5) Go to remote host to configure ZyXEL VPN Client. We create a Net Connection set remote access subnet to 192.168.2.x.

In My Identity, select local ID type as Any.

ZyWALL USG 2000 Support Notes

Note: Do not forget to enter Pre-Shared Key by clicking the button Pre-Shared Key.

The last step is to go to Security Policy to configure parameters for Phase1 and Phase 2. After saving the configuration, the VPN connection should be initialed from the host site.

ZyWALL USG 2000 Support Notes

Tips for application:

1. Make sure both pre-shared key settings are the same in local and remote gateway.

2. Make sure both IKE proposal settings are the same in local and remote gateway.

3. Select the correct interface for the VPN connection.

4. The Local and Peer ID type and content must the opposite and not of the same content.

5. The Local Policy of ZyWALL USG 2000 should be ‘dynamic single host with the value

0.0.0.0’. The VPN tunnel should be initialed from the remote host site.

ZyWALL USG 2000 Support Notes

1.3.2 SSL VPN Application - Reverse Proxy

In order to provide a proper access for remote users, a web server is considered to implement behind ZyWALL USG 2000. So, remote users can access the internal resource anywhere via a secure path.

1.3.2.1 Scenario topology

USG2000

The default LAN subnet is combined to ge1 and default IP is 192.168.1.1. Please connect to lan1 and ZyWALL USG 2000 will dispatch an IP for your PC then we can start to setup the basic interface and routing setting.

1.3.2.2 Configuration flow

¾ Network setup ¾ Test

1.3.2.3 Configuration procedure

1) Connect your NB at ZyWALL USG 2000’s ge1 port. Get the IP address by DHCP and login to ZyWALL USG 2000 by http://192.168.1.1. Configure the ZyWALL USG 2000’s ge1 and ge2 interface with proper IP address.

ZyWALL USG 2000 Support Notes

2) Go to menu ZyWA LL> V PN > SSL VPN, create one access privilege rule by clicking the Add icon.

Then continue to create user or group object. Here we create one user by click the “Add” button.

ZyWALL USG 2000 Support Notes

Then, continue to create one application object. Here we create one for reverse proxy rule using web application by click the “Add” button.

Step 1. Initial a browser and try to connect to http://10.1.1.1 Step 2. Enter the ID/password, check the “log into SSL VPN” and click Login button.

Step 3. Click the Yes buttons until you see the following page, which is the ZW_http link available in the application list.

ZyWALL USG 2000 Support Notes

)

1.3.3 SSL VPN Application – Network Extension

The network extension application enables the user to use specific client tools to access the server. Unlike reverse proxy applications, the user won’t be limited to the access to the available application list only. They can access any destination which is allowed and is pre-defined in “SSL VPN network” list.

1.3.3.1 Scenario topology

WAN(wan1

LAN1

USG 2000

1.3.3.2 Configuration flow

¾ Network setup

ZyWALL USG 2000 Support Notes

¾ Test

1.3.3.3 Configuration procedure

Network setup

The default ge1 subnet is combined to ge1 and default IP address is 192.168.1.1. Please connect your NB to ge1 port and ZyWALL USG 2000 will dispatch an IP address. Then we can start to setup the basic interface setting.

Step 1. Connect your NB at ZyWALL USG 2000’s LAN (lan1). Get the IP address by

DHCP and login to ZyWALL USG 2000 by http://192.168.1.1. Configure the ZyWALL USG 2000’s LAN and WA N inte rface with proper IP address in ZyWALL> Network > Interface.

Step 2. Create address Object for remote IP assignment. Switch to menu Object > Address

and click Add icon to add new user.

Configure a network range from 8.1.1.33 to 8.1.1.50 for remote IP assignment.

ZyWALL USG 2000 Support Notes

Step 3. Create address Object for VPN network which allows remote users to access to.

Switch to menu Object > Address and click Add icon to add new address.

Configure a network subnet 192.168.1.0/24.

Step 4. Modify the SSL rule we created for LAB1 by clicking the modify icon.

ZyWALL USG 2000 Support Notes

Step 5. Keep other settings but choose object we just created for network extension settings

as follows. Click OK button.

Test: Login and check if WAN user can access to the ZyNOS ZyWALL GUI by HTTP

Step 1. Config your NB with IP address 10.1.1.33 and connect it to ZyWALL USG 2000’s

WAN site (ge2). Initial a browser and try to connect to https://10.1.1.1

Step 2. Enter the ID/password, check the “log into SSL VPN” and click Login button.

ZyWALL USG 2000 Support Notes

Step 3. Click Yes buttons until you see the following page. You can find a small window is

processing about the security extender rule (for network extension).

ZyWALL USG 2000 Support Notes

Step 4. After a while, the window will show you the information about network extension.

Step 5. Please check the IP address assigned and routing info on the remote PC/NB.

You will see one PPP interface as below by typing ‘ipconfig’ on command prompt.

ZyWALL USG 2000 Support Notes

You will see the routing information accordingly as below by typing ‘route print’.

Step 6. Still try to connect the ZW_http link. You should be able to access the ZyWALL

Step 7. Try to ftp the device and see if you can access the ZyNOS ZyWALL by FTP tool. If

so, that means you have successfully established the network extension and aren’t limited just by the available application list.

ZyWALL USG 2000 Support Notes

1.3.4 L2TP over IPSec Application

1.3.4.1 Scenario topology

USG 2000

1.3.4.2 Configuration flow

¾ Create object ¾ Configure the default L2TP rule in IPSec VPN Gateway ¾ Configure the default L2TP rule in IPSec VPN Connection ¾ Configure the L2TP rule ¾ Configure Policy Route for L2TP ¾ Remote PC/NB L2TP Setup on WinXP or Win2K

1.3.4.3 Configuration Procedure

Create Object

Step 1. Switch to menu Object > Address, create two object for further VPN connection setting.

L2TP_IFACE, HOST, 10.1.1.1 L2TP_HOST, HOST, 0.0.0.0 L2TP_Pool, Range, 192.168.2.1 ~ 192.168.2.10

Step 2. Switch to menu Object > User/Group, create one object for L2TP application. L2TP_user/1234, Local user

ZyWALL USG 2000 Support Notes

Configure the default L2TP rule in IPSec VPN Gateway

Step 1. Go to menu VPN > IPSec VPN > VPN Gateway, click the Default_L2TP_VPN_GW

entry’s Edit icon.

Step 2. Ensure the My Address is configured with Interface ge2 with WAN IP address,

10.1.1.1. And the pre-shared key is 12345678. Click the OK button.

Step 3. Enable the rule by clicking the enable icon.

ZyWALL USG 2000 Support Notes

Configure the default L2TP rule in IPSec VPN Connection

Step1. Switch to menu VPN > IPSec VPN > VPN Connection, click the

Default_L2TP_VPN_GW entry’s Edit icon.

Step 2. Especially configure the policy enforcement as below. Click OK button.

Step 3. Enable the rule by clicking the enable icon.

ZyWALL USG 2000 Support Notes

Configure the L2TP rule Step 1. Go to menu VPN > L2TP VPN, configure it as follows.

Configure Policy Route for L2TP

Step 1. Go to menu Network > Routing > Policy Route, configure it as follows.

ZyWALL USG 2000 Support Notes

Remote PC/NB L2TP Setup on WinXP or Win2K

Note: Please ensure your computer is using Windows XP and Windows 2000 for the follow settings.

Before you configure the client, issue one of the following commands from the Windows command prompt to make sure the computer is running the Microsoft IPSec service. Make sure you include the quotes.

• For Windows XP, use net start "ipsec services".

• For Windows 2000, use net start "ipsec policy agent".

In Windows XP do the following to establish an L2TP VPN connection.

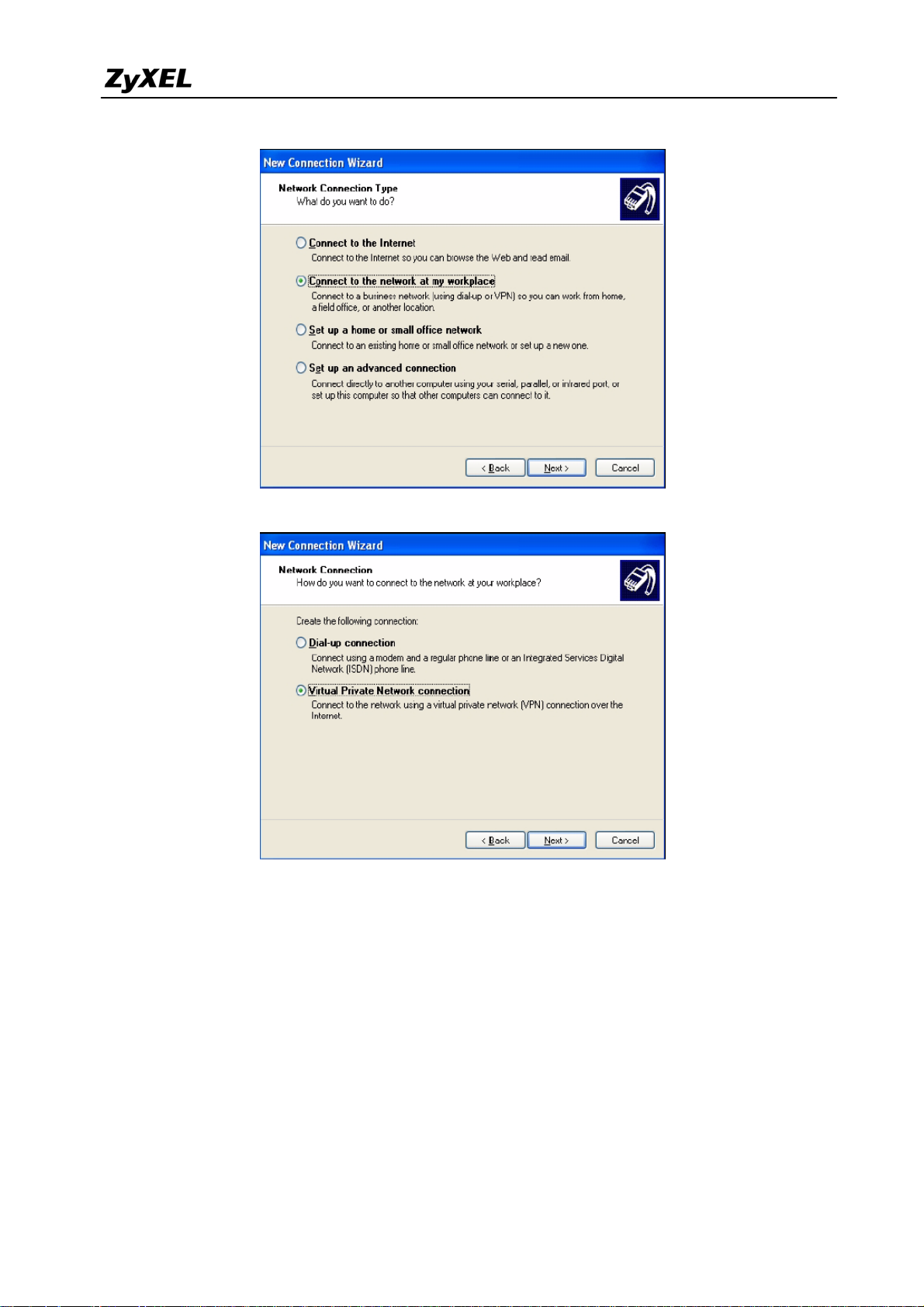

Step 1 Click Start > Control Panel > Network Connections > New Connection Wizard. Step 2 Click Next in the Welcome screen. Step 3 Select Connect to the network at my workplace and click Next.

ZyWALL USG 2000 Support Notes

Step 4 Select Virtual Private Network connection and click Next.

Step 5 Type L2TP to ZyWALL as the Company Name. Step 6 Select Do not dial the initial connection and click Next.

ZyWALL USG 2000 Support Notes

Step 7 Enter the domain name or WAN IP address configured as the My Address in the

VPN gateway configuration that the ZyWALL is using for L2TP VPN (10.1.1.1 in this example). Click Next.

Step 8 Click Finish.

ZyWALL USG 2000 Support Notes

Step 9 The Connect L2TP to ZyWALL screen appears. Click Properties > Security.

Step 10 Click Security, select Advanced (custom settings), and click Settings.

Step 11 Select Optional encryption allowed (connect even if no encryption) and the Allow

these protocols radio button. Select Unencrypted password (PAP) and clear all of

the other check boxes. Click OK.

ZyWALL USG 2000 Support Notes

Step 12 Click IPSec Settings.

Step 13 Select the Use pre-shared key for authentication check box and enter the pre-shared

key used in the VPN gateway configuration that the ZyWALL is using for L2TP VPN. Click OK.

ZyWALL USG 2000 Support Notes

Step 14 Click Networking. Select L2TP IPSec VPN as the Type of VPN. Click OK. Step 15 Enter the user name and password of your ZyWALL account. Click Connect. Step 16 A window appears while the user name and password are verified. Step 17 A ZyWALL-L2TP icon displays in your system tray. Double-click it to open a status

screen.

Step 18 Click Details to see the address that you received is from the L2TP range you

specified on the ZyWALL (192.168.10.10-192.168.10.20).

Step 19 Access the HTTP server behind the ZyWALL USG 2000 to make sure your access works.

ZyWALL USG 2000 Support Notes

1.4 Large-scale VPN Deployment

With the business growing, network administrator will face the more and more complicated VPN topology and applications. ZyWALL USG2000 supports various types of VPN topology that can meet the needs of the organizations of any size.

ZyWALL USG2000 VPN Topology supports fully meshed topology that can be deployed when the total number of remote site is small. Star topology is recommended when the total number of remote sites is high, Even more flexible design, Star and Mesh mixed topology (cascading topology) can be applied for a global distributed environment.

1.4.1 Fully Meshed Topology

All models in ZyWALL series

can support Fully-meshed VPN

topology, including: ZyWALL 2

Plus/5/35/70/1050/USG2000

Madrid

London

In a fully-meshed VPN topology, an

user can access to resources within

remote VPN sites provided that a PN tunnel was already established

Oslo

In this topology, each site

plays the same role – handles

incoming encrypted traffic or

Hannover Paris

encrypts outgoing traffic

designated to a remote site

1) In order to achieve the VPN connectivity of all sites in the fully meshed VPN topology, all

the sites must be directly connected with VPN tunnels to all the remote sites. The network administrator has to pay huge establishment and maintenance effort with the new remote site joining. This VPN topology is suitable for only a few sites connected with VPN.

2) For example, to complete the above topology, administrator needs to repeat the same steps

at least five times and totally needs to establish 10 VPN tunnels. The tunnels list follows:

Tunnel 1: London ÅVPN ÆMadrid

ZyWALL USG 2000 Support Notes

Tunnel 2: London ÅVPN ÆParis

Tunnel 3: London ÅVPN ÆHannover

Tunnel 4: London ÅVPN ÆOslo

Tunnel 5: Madrid ÅVPN Æ Paris

Tunnel 6: Madrid ÅVPN Æ Hannover

Tunnel 7: Madrid ÅVPN Æ Oslo

Tunnel 8: Paris ÅVPN Æ Hannover

Tunnel 9: Paris ÅVPN Æ Oslo

Tunnel 10: Hannover ÅVPN Æ Oslo

3) For help on building up the 10 tunnels, please refer to the section ZyWALL USG2000 to

ZyWALL USG2000 VPN tunnel configuration steps . We will introduce the configuration steps for a VPN concentrator that will greatly help to reduce the total number of tunnels.

1.4.2 Star Topology

In a Star VPN topology, any user in a

spoke site (in here it’s Madrid) can

access to resources within another

spoke site (London) via the central

site – Amsterdam

Madrid

In a Star VPN topology, ZyWALL

1050 acts as a central site (enabling

Hub & Spoke VPN) and spoke sites

can be any model of ZyWALL series

Paris

London

Central site

Amsterdam

n user in a spoke site (in

here it’s Oslo) can access

resources within central

site – Amsterdam

Oslo

Hannover

ZyWALL USG 2000 Support Notes

The ZyWALL USG2000 supports Star topology via the VPN concentrator feature. The VPN concentrator can help to reduce the VPN tunnel numbers and allows centralized VPN tunnel management.

The topology used for our VPN concentrator guide.

This topology is designed to simulate a global VPN network deployment. The company has a global headquarters in Taiwan and other offices around the world.

This company decided to build up a VPN concentrator to let all the offices’ internal network to be shared and interconnected based on a security link. We will separate each group as a member of each office and build up the VPN tunnel with headquarter and then to route the VPN traffic across the HQ to the destination office’s internal network.

The VPN configuration parameter

Remote Office HQ

WAN: 10.59.1.11

WAN: 10.59.1.10

LAN: 192.168.100.0/24

ZyWALL USG 2000 Support Notes

WAN: 10.59.1.17

LAN: 192.168.101.0/24

LAN: 192.168.119.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Negotiation Mode : Main

Pre-share key: 123456789

Authentication :MD5

Encapsulation: Tunnel

Active Protocol: ESP

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Phase 1

Encryption :DES

Key Group :DH1

Phase2

Encryption: DES

Setup VPN tunnel between each remote office and HQ We used the Netherland site (NL) as an example to show how to setup tunnel between NL and HQ. Please refer the above VPN parameter table to setup the VPN gateway and connection as

I don’t list the detail configuration steps here,.

Configure the NL site address object for each remote office subnet

ZyWALL USG 2000 Support Notes

Setup NL site address group that includes all the remote office subnets; the address object group is used as a policy route destination criterion.

The screenshot below is the NL site VPN Gateway status page.

NL site VPN Connection status page

ZyWALL USG 2000 Support Notes

NL site policy route for VPN traffic, this policy route is used to indicate that the ZyWALL 1050 sends the packets to the VPN tunnel.

HQ VPN concentrator configuration steps:

Here are step by step instructions on how to setup the VPN concentrator in HQ to route all the remote sites’ VPN traffic. The amount of tunnels needed to be configured in HQ ZyWALL1050 is the amount of the remote sites. This means that if we want HQ to route 5 remote sites VPN traffic, we need to configure 5 VPN tunnels from remote office to HQ. For the HQ VPN tunnel setting, please refer to the table below.

Remote Office HQ

WAN: 10.59.1.11 WAN: 10.59.1.10

ZyWALL USG 2000 Support Notes

WAN: 10.59.1.17

LAN: 192.168.101.0/24

LAN: 192.168.119.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

LAN: 192.168.100.0/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

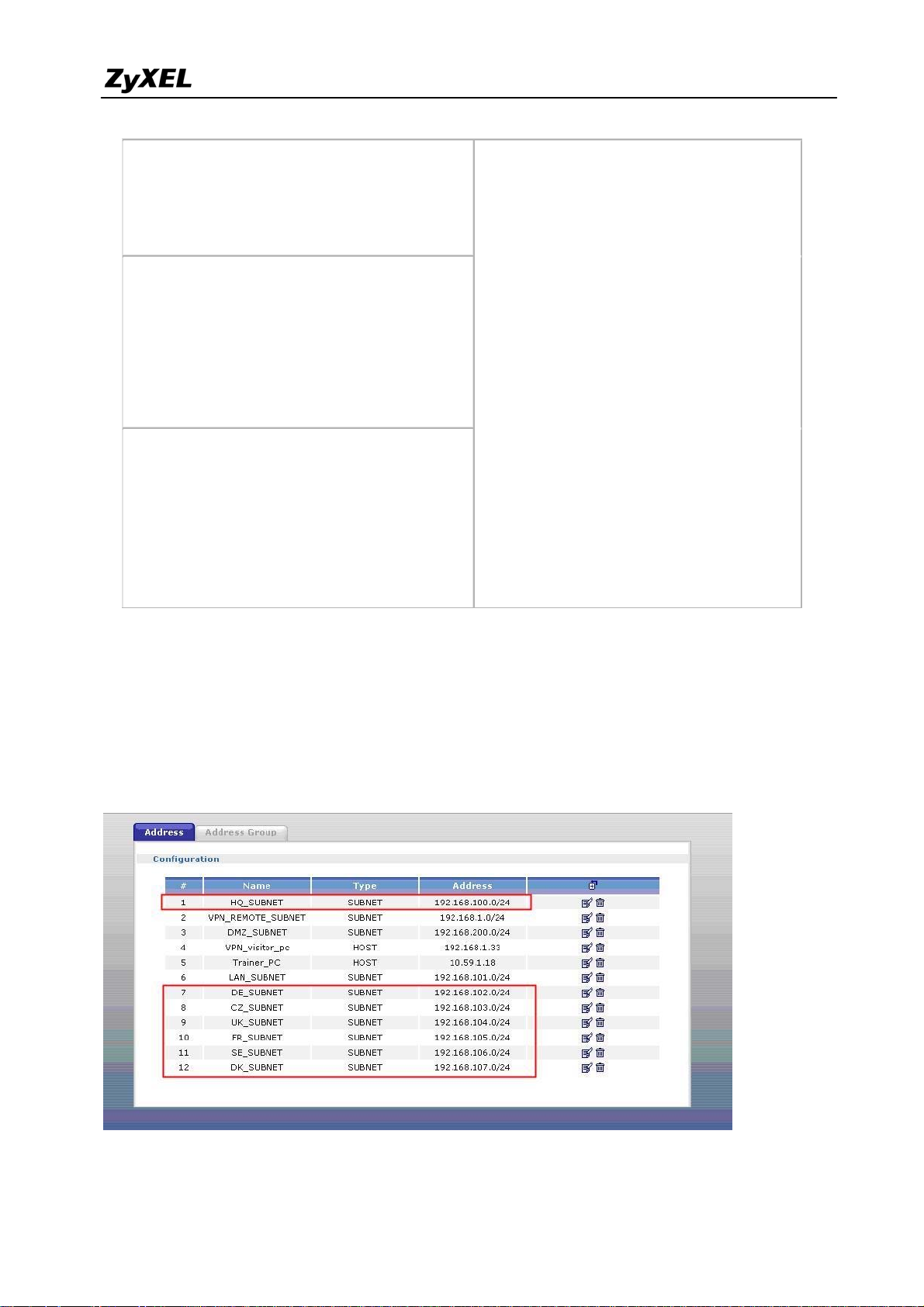

Setup the remote offices’ subnets address objects for the further VPN configuring.

Setup the HQ VPN Gateway for all the remote sites

ZyWALL USG 2000 Support Notes

Setup the HQ VPN connection for all the remote sites

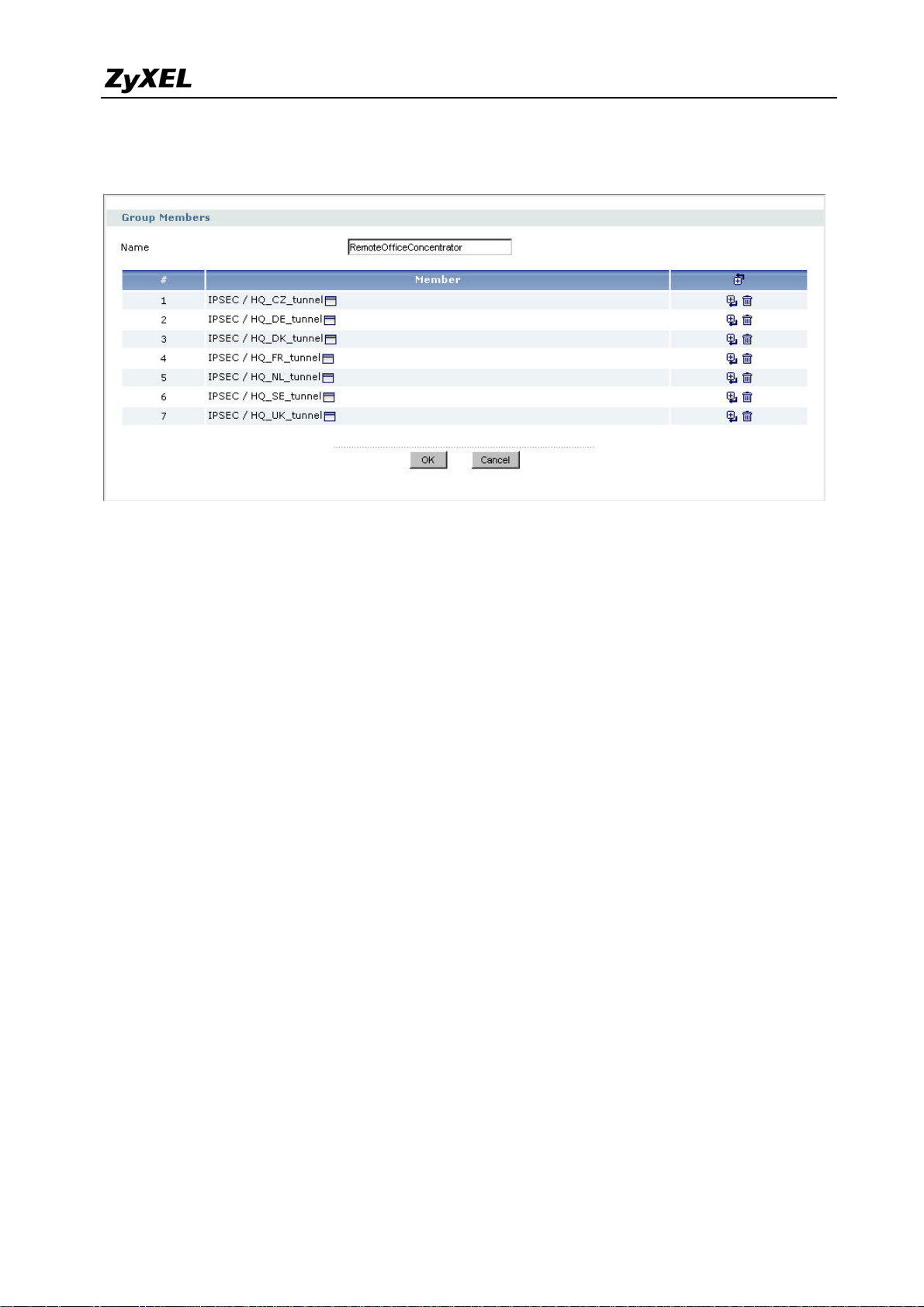

The next step is the most important one. We need to build up a VPN concentrator and join all the remote sites’ VPN traffic to it. Switch to ZyWALL USG2000 > Configuration > Network > IPSec VPN > Concentrator and then click the add icon to add a new concentrator. On the concentrator edit page, click the add icon to add VPN connection to this concentrator. The VPN traffic can be routed by HQ once the VPN connection has been added to the

ZyWALL USG 2000 Support Notes

concentrator. If this tunnel is already included in the concentrator, user doesn’t need to add any policy route to the VPN tunnel.

Now after the VPN concentrator setup, all the remote VPN tunnels have been linked to the HQ concentrator and remote sites can reach other remote sites via HQ.

The VPN concentrator is designed to route the remote sites’ VPN traffic. However, user still needs to setup the policy route for local subnet VPN traffic. For example, if we setup the VPN concentrator only for HQ and remote sites A & B, then the A subnet can connect to B subnet but HQ subnet can’t connect to neither A nor B subnet. Thus, this depends on how customers want to deploy their Global VPN network. We can add the following policy route to allow the HQ subnet to connect with all the concentrator’s remote subnets.

ZyWALL USG 2000 Support Notes

ondo

sterda

Singapore

1.4.3 Star-Mesh Mixed Topology

Taipei

An user in a spoke site

(in here it’s T a ipei) can

access the resources

on regional central

site – Singapore

Frankfurt

In a Star-Mesh mixed VPN topology, any user in a spoke site (in here it’s

Frankfurt) can access the resources

on another spoke site (London) via the

EU central site – Amsterdam

Backbone tunnel

EU Central site

sia Central site

Backup tunnel

Tokyo

If an user in London site needs to access resources outside the EU sites, i.e. Tokyo site, the traffic will be routed to the Asia central site (Singapore) then again

routed to the final destination – Tokyo spoke site

In a Star-mesh mixed VPN topology, ZyWALL USG2000 acts as a regional central site (enabling Hub & Spoke VPN) and spoke sites can be any model of ZyWALL series. The Star – Mesh Mixed Topology is well suited for an enterprise having a regional operation center acting as a regional hub and spoke VPN network in the area. The connection between each regional operation center will be backbone VPN tunnel. To ensure the communication continuity, we can use VPN HA (secondary security gateway) to configure a backup VPN tunnel in case the primary VPN connection failure.

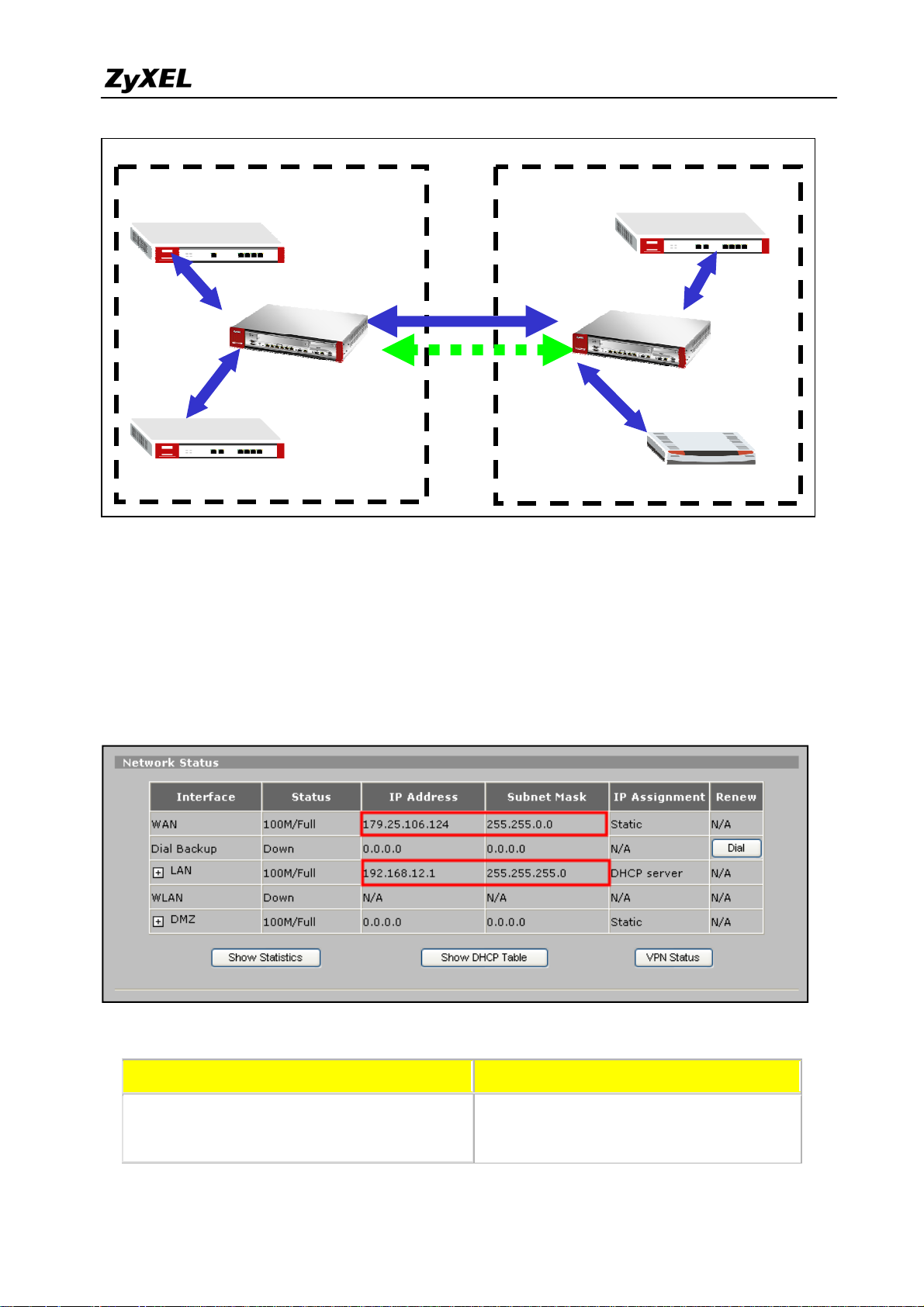

We use the below presented network topology to explain how to configure Star-Mesh Mixed Topology between all the ZyWALL series devices. The ZyWALL USG2000 act as a Regional Center devices whereas ZyWALL 2 Plus, 5, 35 and 70 are the regional remote sites’ devices which are building VPN tunnel back to the Regional Center and provide connection with the other area remote nodes via the VPN tunnel between the two Regional Centers.

ZyWALL USG 2000 Support Notes

Asia Region VPN Concentrator

Europe Region VPN Concentrator

ZyWALL5

ZyWALL35

WAN:179.25.106.124 LAN:192.168.12.1/24

Regional Center

ZyWALL USG2000

WAN1:179.25.3.24 WAN2:179.25.133.4

WAN:179.25.13.2 LAN:192.168.11.1/24

Primary VPN

Secondary VPN

Configuration Steps for Asia Region VPN Concentrator

ZyWALL5 and ZyWALL35 interface and VPN setting

ZyWALL70

Regional Center

ZyWALL USG2000

ZyWALL 2 Plus

WAN:220.123.65.117 LAN:192.168.21.1/24

WAN:220.123.97.7 LAN:192.168.22.1/24

WAN1:220.123.113.8 WAN2:220.123.119.9

Please configure the ZyWALL5 WAN and LAN interface as the topology diagram shown above. We can check the status page to confirm the correctness. Please refer to ZyWALL5 user guide for detail interface setting steps.

The VPN configuration parameters in Asia Region

Regional Remote Sites Regional Center

ZyWALL5 WAN: 179.25.106.124

WAN: 179.25.3.24

Local Policy: 192.168.0.0/16

Local Policy: 192.168.12.0/24

ZyWALL USG 2000 Support Notes

Remote Policy: 192.168.0.0/16

Remote Policy: 192.168.12.0/16

ZyWALL35 WAN: 179.25.13.2

Local Policy: 192.168.11.0/24

Remote Policy: 192.168.0.0/16

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Local Policy: 192.168.0.0/16

Remote Policy: 192.168.11.0/16

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

The next step is to configure the VPN tunnel setting. Following the ZyWALL5 VPN design logic, we have to define the local and remote policies to force the traffic going through the VPN tunnel to the remote site. For example, the traffic from ZyWALL5 will be sent to all the remote sites’ devices like ZyWALL35 (LAN subnet: 192.168.11.x), local center’s ZyWALL USG2000 (LAN subnet: 192.168.21.x), remote center’s ZyWALL USG2000 (LAN subnet:

192.168.20.x), ZyWALL 2 Plus (LAN subnet: 192.168.21.x) and ZyWALL70 (LAN subnet:

192.168.22.x) by building one VPN tunnel with local center ZyWALL USG2000. Thus a separate VPN tunnel to each remote site is not needed. We will use a class B subnet (192.168.0.0/255.255.0.0) as remote policy in order to include all ranges of the remote policies requirements.

The Local Policy is the local subnet 192.168.12.0/24 and Remote Policy is 192.168.0.0/16 for the tunnel between ZyWALL5 and local center ZyWALL USG2000. Please switch to menu Security > VPN > Global Setting and activate the “VPN rules skip applying to the overlap range of local and remote IP addresses” option because the local and remote policies are in the overlap range in this application. If this feature is not activated, you will fail to access device because of triggering VPN tunnels.

’

WALL

SG 200

Suppor

Notes

Based the VPN the VPN USG200 only afte VPN set

on the VP

status pag

setting. Th 0 didn’t se r both sites

ing steps.

configur

will brief

e VPN can

up the corr

’ VPN setu

tion param

ist the VP t be dialed

sponding

is done.

ter table t tunnel in

up for testi

PN tunnel

lease refer

finish the

rmation li

g because

until now.

o the Zy

PN tunne

e followin the remote The test an

ALL5 user

configura

g screen sh

ZyWALL

d debug ca

guide for

ion and

t after

start

etail

There

ZyWAL

are similar

35 WAN

configurati

nd LAN i

ll contents c

on steps fo

terface are

pyright (c) 2

the ZyW set as follo

08 ZyXEL

LL35 inte

ommunicati

face and th

ns Corporati

VPN setu

. The

WALL

SG 200

Suppor

Notes

Pleas

remote I

The V

make sure

addresses

PN tunnel

to activate

” option be

tatus page

the “VPN

fore startin

after confi

ules skip a

to setup t

ured the lo

plying to t e VPN tu

al center

e overlap

nel.

yWALL

ange of lo

SG2000 tu

al and

nel.

ll contents c

pyright (c) 2

08 ZyXEL

ommunicati

ns Corporati

ZyWALL USG 2000 Support Notes

As soon as we finish the configuration of ZyWALL5 and ZyWALL35, we can move to ZyWALL USG2000’s configuration.

Asia Regional Center ZyWALL USG2000 interface and VPN concentrator setting

The VPN configuration parameter for Asia and Europe regional Center ZyWALL USG2000

Asia Regional Center ZyAWLL USG2000 Europe Regional Center ZyAWLL USG2000

WAN1:179.25.3.24

WAN2:179.25.133.4

LAN:192.168.10.1/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

WAN1:220.123.113.8 WAN2:220.123.119.9 LAN:192.168.20.1/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Authentication: SHA1

Please refer to the application topology to setup the ZyWALL USG2000 interface first. We

can move to next steps only after setting up the interface. We use ge1 as LAN interface and IP

ZyWALL USG 2000 Support Notes

address is 192.168.10.1/255.255.255.0. The ge2 and ge3 are WAN1 and WAN2 interfaces and IP address are 179.25.3.24/255.255.0.0 and 179.25.133.4/255.255.0.0.

We have to pre-configure some address objects for the later VPN configuration

requirements. The needed address objects list is as follows:

The address object AsiaRegion (192.168.10.0 – 192.168.15.0) and EuropeRegion (192.168.20.0 – 192.168.25.0) are used for the two regional center VPN concentrators employed. When Asia region site like ZyWALL5 (192.168.12.0) tries to access the other region’s remote site like ZyWALL70 (192.168.22.0) it will match these two addresses’ object ranges and ZyWALL USG2000 can do next processing.

This ZyWALL USG2000 is the local center of Asia region. We need to setup the VPN tunnel between local sites ZyWALL5 and ZyWALL35 and Europe region center ZyWALL USG2000.

ZyWALL USG 2000 Support Notes

Follow the VPN parameter tables to setup the three VPN gateways (IKE / IPSec Phase1). For detail steps please refer to the ZyWALL USG2000 user guide. We have to configure a secondary security gateway for the VPN gateway between both of the regional centers’ ZyWALL USG2000s. The VPN connection can fail over to secondary gateway in case the parameter gateway fails.

After configuration, there will be three VPN gateways listed in the VPN Gateway status page.

ZyWALL USG 2000 Support Notes

The next step is to create the VPN connection (IPSec / IPSec Phase2). Make sure the parameters are configured correctly, otherwise the VPN will fail to dial. Below is the VPN connection global page.

Now, we have already successfully added three VPN connection rules and we can start to edit our regional VPN concentrator. Switch to Concentrator sub menu and click the Add icon to add a new concentrator.

Give a name to this concentrator and then click add icon to make the existing VPN

connection become a member of this concentrator.

ZyWALL USG 2000 Support Notes

The remote regional center ZyWALL USG2000 VPN connection is also treated as a member of this concentrator and the packets will be sent to the remote center first and then following the remote concentrator setting will be routed to the destination sites where the traffic destination is the site allocated under remote VPN concentrator.

We had finished all settings of the Asia Region VPN concentrator. Now you can test the local VPN concentrator link. Later on, we can test the connection of both concentrators. This will be after we setup the Europe Region VPN concentrator.

Configuration Steps for Europe Region VPN Concentrator

ZyWALL 2 Plus and ZyWALL70 interface and VPN setting

ZyWALL 2 Plus WAN and LAN interface setting

The VPN configuration parameters in Europe Region

Regional Remote Sites Regional Center

ZyWALL 2 Plus WAN: 220.123.65.117

Local Policy: 192.168.21.0/24

Remote Policy: 192.168.0.0/16

Remote Policy: 192.168.21.0/16

WAN: 220.123.113.8

Local Policy: 192.168.0.0/16

ZyWALL USG 2000 Support Notes

ZyWALL70 WAN: 220.123.97.7

Local Policy: 192.168.22.0/24

Local Policy: 192.168.0.0/16

Remote Policy: 192.168.0.0/16

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Remote Policy: 192.168.22.0/16

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Remember to activate “VPN rules skip applying to the overlap range of local and remote IP addresses” option before configuring the VPN tunnel.

Follow the VPN parameter table to configure the VPN tunnel.

ZyWALL USG 2000 Support Notes

ZyWALL70 WAN and LAN interface setting.

Remember to activate “VPN rules skip applying to the overlap range of local and remote IP addresses” option before configuring the VPN tunnel.

ZyWALL USG 2000 Support Notes

Follow the VPN parameter table to configure the VPN tunnel.

After we finish the configuration of ZyWALL 2 Plus and ZyWALL70, we can move to ZyWALL USG2000’s configuration.

Europe Regional Center ZyWALL USG2000 interface and VPN concentrator setting

The VPN configuration parameter for Asia and Europe regional Center ZyWALL USG2000

Asia Regional Center ZyAWLL USG2000 Europe Regional Center ZyAWLL USG2000

WAN1:179.25.3.24

WAN2:179.25.133.4

LAN:192.168.10.1/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

WAN1:220.123.113.8 WAN2:220.123.119.9

LAN:192.168.20.1/24

Phase 1

Negotiation Mode : Main

Pre-share key: 123456789

Encryption :DES

Authentication :MD5

Key Group :DH1

Phase2

Encapsulation: Tunnel

Active Protocol: ESP

Encryption: DES

Authentication: SHA1

Perfect Forward Secrecy (PFS): None

Encryption: DES

Authentication: SHA1

ZyWALL USG 2000 Support Notes

Please refer to the application topology to setup the ZyWALL USG2000 interface first.

Then we can move to setting the VPN.

We have to pre-configure some address objects for the later VPN configuration

requirements. The needed address objects list is as follows.

This ZyWALL USG2000 is the local center of Europe region. We need to setup the VPN tunnel between local sites ZyWALL 2 Plus and ZyWALL70 and Asia region center ZyWALL USG2000. Follow the VPN parameter tables to setup the three VPN gateways (IKE / IPSec Phase1). We have to configure a secondary security gateway for the VPN gateway between both regional centers’ ZyWALL USG2000s.

ZyWALL USG 2000 Support Notes

After configuration, there will be three VPN gateways listed in the VPN Gateway status page.

The next step is to create the VPN connection (IPSec / IPSec Phase2). Make sure the parameters are correctly configured; otherwise the VPN will fail to dial. Below is the VPN connection global page.

ZyWALL USG 2000 Support Notes

Now, we already successfully added the three VPN connection rules and we can start to edit our regional VPN concentrator. Switch to the Concentrator sub menu and click the Ad d icon to add a new concentrator.

Assign a name to this concentrator and then click the add icon to make the existing VPN

become the member of this concentrator.

The remote regional center ZyWALL USG2000 VPN connection is also treated as a member of this concentrator and the packets will be sent to the remote center first and then

ZyWALL USG 2000 Support Notes

following the remote concentrator setting will be routed to the destination sites where the traffic destination is the site allocated under remote VPN concentrator.

We have finished all the Star-Mesh Mixed VPN topology setting. Now you can test the local VPN concentrator link. Also, you can try the connection between both concentrators’ site.

1.5 Device HA

In the Global or multi-site Enterprise network deployment, reliability is another major concern while planning a VPN deployment.

ZyWALL USG 2000 provides advanced features to support the following scenarios to achieve high availability of the VPN infrastructure.

Main Office

Resilience of WAN connectivity – VPN HA

supports redundant gateway so that the

network path of VPN can always be available

ZyWALL USG 2000 (Master)

ZyWALL USG 2000

Mitigate the impact of Single Point of Failure –

device HA greatly reduces the device downtime

and

uarantees the non-stop operation

Remote Site 1

ZyWALL 2 Plus

ZyWALL 35

Remote Site 2

The benefits for the customer are:

‧ Dealing with the impact of unreliable WAN connectivity ‧ Mitigates the impact of Single Point of Failure

ZyWALL USG 2000 Support Notes

Below is the Application topology. The L3 switch is configured to three VLANs to simulate the internet environment, and the traffic can be routed between each VLAN.

100

Zyxel ZYWALL USG 2000 Support Notes
