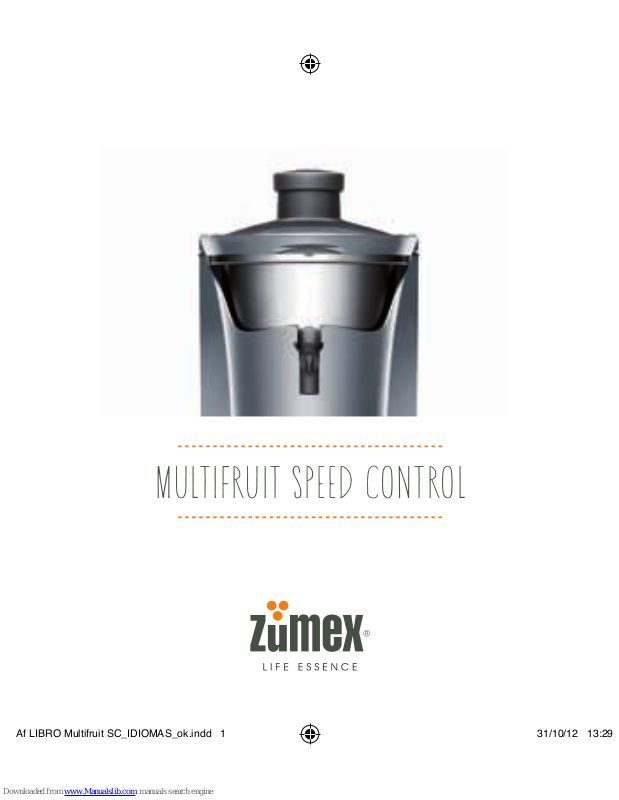

MULTIFRUIT SPEED CONTROL
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 1 31/10/12 13:29

Af LIBRO Multifruit SC_IDIOMAS_ok.indd 2 31/10/12 13:29

Multifruit Speed Control
Español
English
Français
Deustch
Italiano
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 3 31/10/12 13:29

Af LIBRO Multifruit SC_IDIOMAS_ok.indd 4 31/10/12 13:29

Español
Original instructions / Instrucciones originales
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 5 31/10/12 13:29

Multifruit Speed Control es la licuadora perfecta para extraer el
mayor jugo posible de cualquier tipo de fruta y verdura. Con esta licuadora
disfrutarás de una gran versatilidad gastronómica en la preparación de
cualquier zumo, cóctel o batido que puedas imaginar, economizando
tiempo, trabajo y materia prima.
Descripción
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 6 31/10/12 13:29

Piezas
1. Empujador.
2. Tapa.
3. Asa cierre.
4. Cubeta Inox.
5. Grifo Antigoteo.
6. Cubo de residuos.
7. Bandeja posavasos.
8. Embellecedor Inox.
bandeja posavasos.
9. Tuerca arrastre ltro.
10. Arrastre ltro.
11. Filtro.
12. Disco rallador.
1
2
3
4
5
6
8
7
9
10
11
12
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 7 31/10/12 13:29

Fruta y verdura
Antes de licuar…
1. Lava siempre la fruta y verdura.
2. Pela la fruta o verdura con piel o corteza no comestibles (piña, sandía,
mango, kiwi…).
3. Elimina antes del licuado los huesos y pepitas de gran tamaño
(melocotón, ciruela, cereza…).
4. Trocea las frutas o verduras más grandes que el oricio de alimentación
(75 mm). Si son menores puedes licuar varias a la vez.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 8 31/10/12 13:29

1. Presiona el interruptor de encendido trasero y ponlo en posición
« I ».
El LED luminoso junto al selector se encenderá.
Fig 1
2. Coloca el cubo de residuos en posición correcta, pegado a la pared
trasera de la licuadora.
Fig 2
¡Atención! Si su máquina funciona a 115V, y el LED parpadea, el cubo
está mal colocado. Vuelva a la posición de Stand-By ( ) y coloque el
cubo de residuos pegado a la pared trasera de la licuadora. Pon un reci-
piente bajo la salida de zumo y selecciona la posición deseada (• o ••).
La posición • es ideal para FRUTAS BLANDAS (manzana, piña, sandía,
fresa, uva…). La posición •• para VERDURAS DURAS (zanahoria, brócoli,
apio, remolacha…).
3.
con el empujador.
4. Para parar la máquina, gira el botón interruptor hasta la posición
(STAND BY).
Fig 3
Fig
3
5. Gira 180º el grifo antigoteo para evitar el goteo del zumo cuando no
estés licuando.
Fig 4
Funcionamiento
Fig 1 Fig 2 Fig 3 Fig 4
PAGINA GUIA MULTI.pdf 1 17/06/2013 15:39:56

Limpieza
1. Coloca el interruptor trasero en posición « 0 » y desconéctala de la red
tirando de la clavija.
Fig 5
2. Retira el asa levantándola de la parte delantera. Fig 6
3. Desmonta la tapa levantándola hacia arriba y separa el cubo de
residuos.
Fig 7
4. Desmonta el grifo y la bandeja antigoteo. Fig 8
5. Desmonta el conjunto formado por el ltro rallador y la cubeta; para
ello tira de la cubeta hacia arriba. Una vez desmontado el conjunto,
podrás separar fácilmente ambos elementos.
Fig 9
Atención: No toques las puntas afiladas del rallador.
Todas las piezas desmontadas pueden introducirse en el lavavajillas
para su lavado. La limpieza del exterior de la máquina deberás hacerla
usando una bayeta suave empapada con agua y jabón apto para vajillas,
aclarando con un paño humedecido en agua limpia hasta que no queden
restos de jabón.
Recuerda: Para evitar que la pulpa se seque entre uso y uso, vierte
lentamente una jarra de agua por el orificio de entrada de la fruta con
la máquina en funcionamiento.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 10 31/10/12 13:29

Fig 5 Fig 6
Fig 8
Fig 7
Fig 9
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 11 31/10/12 13:29

Seguridad
Si se levanta el asa de cierre o se retira el cubo de residuos cuando
la máquina está en marcha, se producirá una parada de emergencia.
La máquina tampoco se pondrá en marcha si se intenta hacer funcionar
sin cubeta.
Para evitar accidentes no manipules la máquina sin los elementos de
seguridad (asa, tapa y cubo de residuos).
En todos los casos de paro de emergencia, una vez subsanada la causa que
provocó el paro, pon el selector en posición (STAND BY) y a continuación
selecciona la posición deseada.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 12 31/10/12 13:29

Para más información entra en www.zumex.com
Podrás descargar el manual de usuario
y un práctico recetario de cócteles y zumos.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 14 31/10/12 13:29

English
Translation of the original instructions
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 15 31/10/12 13:29

Multifruit Speed Control is the perfect juicer to extract the most juice
possible from any kind of fruit or vegetable. With this juicer you’ll enjoy
a versatile cuisine in the preparation of any juice cocktail or smoothie
imaginable, saving time, labor and raw materials.
Description
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 16 31/10/12 13:29

Parts
1. Pusher.
2. Cover.
3. Locking handle.
4. Stainless steel tank.
5. Non drip tap.
6. Peel bucket.
7. Coaster.
8. Coaster trim.
9. Filter driver nut.
10. Filter driver.
11. Filter.
12. Grating disk.
1
2
3
4
5
6
8
7
9
10
11
12
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 17 31/10/12 13:29

Fruit and vegetables
Before juicing…
1. Always wash fruit and vegetables.
2. Peel the fruit or the vegetable with inedible skin or rind (pineapple,
watermelon, mango, kiwi…).
3. Remove bones and large seeds (peach, plum, cherry...) before juicing.
4. Chop the fruit or the vegetable if larger than the feeding tube (75 mm).
If it’s smaller you can juice several pieces at the same time.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 18 31/10/12 13:29

Take care! If your machine works at 115V and the LED flashes, the container
has been placed incorrectly. Return to the Stand-By position ( ) and
place the waste container on the rear wall of the blender.
1. Press the rear power switch selecting position « I ». The LED next to
the selector will light up.
Fig 1
2. Place the waste bucket in the correct position. Stuck to the rear wall
of the blender.
Fig 2
Fig 3
Place a jug
under the juice outlet and select the desired position (• or ••).
The position • is ideal for SOFT FRUITS (apple, pineapple, watermelon,
strawberry, grapes...). The position •• for HARD VEGETABLES (carrots,
broccoli, celery, beetroot...).
3. Insert the fruit or the vegetable through the feeding tube in the cover
and press down with the pusher.
4. To stop the machine, turn the selector to the (STAND BY) position.
Fig 3
5. Turn the Non Drip Tap 180º to avoid dripping of the juice when you’re
not juicing.
Fig 4
Operation
Fig 1 Fig 2 Fig 3 Fig 4
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 19 31/10/12 13:29

Cleaning
1. Place the rear power switch in position « 0 » and unplug it pulling out
the plug.
Fig 5
2. Remove the handle by lifting from the front. Fig 6
3. Remove cover lifting it upwards and separating it from the peel
bucket.
Fig 7
4. Disassemble the tap and coaster. Fig 8
5. Dismantle grating-filter and tank assembly, by pulling the bucket
upwards, following which they should come apart easily.
Fig 9
Attention: Do not touch the sharp points of the grater.
All these components are dishwasher safe. Clean the outside of the
machine using a soft cloth soaked with water and soap suitable for
dishes, rinsing with a cloth dampened with clean water to remove
soap traces.
Remember: To prevent the pulp from drying between uses, slowly pour
a jug of water through the feeding tube with the machine in operation.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 20 31/10/12 13:29

Fig 5 Fig 6
Fig 8
Fig 7
Fig 9
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 21 31/10/12 13:29

Security
If the locking handle is lifted or the peel bucket removed during operation,
the appliance will automatically stop. The juicer will also not work
without tting the stainless steel tank.
To avoid accidents do not manipulate the machine in order to make it
work without the security devices (handle, cover and peel bucket).
To restart the machine after a security cut-off, once the cause has been
corrected put the selector back to (STAND BY) and then select the desired
position.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 22 31/10/12 13:29

For more information visit www.zumex.com.
You can download the complete user manual
and a useful juice & cocktail recipe book.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 24 31/10/12 13:29

Français
Traduction des instructions originales
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 25 31/10/12 13:29

Multifruit Speed Control est la centrifugeuse parfaite pour extraire
le maximum de jus possible de n’importe quel type de fruits et légumes.
Grâce à elle, vous profiterez d’une grande versatilité gastronomique
dans l’élaboration de n’importe quel jus, cocktail ou milk-shake que vous
puissiez imaginer, et ce, en économisant du temps, du travail
et de la matière première
Description
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 26 31/10/12 13:29

Pièces
1. Poussoir.
2. Couvercle.
3. Poignée
de fermeture.
4. Cuve en inox.
5. Robinet
anti-goutte.
6. Bac à déchets.
7. Plateau repose-verre.
8. Enjoliveur en inox du
plateau repose-verre.
9. Écrou du porte-ltre.
10. Porte-ltre.
11. Filtre.
12. Disque à râper.
1
2
3
4
5
6
8
7
9
10
11
12
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 27 31/10/12 13:29

Fruits et légumes
Avant de passer au mixeur…
1. Lavez toujours les fruits et légumes.
2. Épluchez les fruits ou légumes avec peau ou écorce non-comestibles
(ananas, pastèque, mangue, kiwi…).
3. Éliminez avant de mixer les pépins et noyaux de grande taille (pêche,
prune, cerise…).
4. Coupez en morceaux les fruits ou légumes plus grands que la bouche
d’alimentation (75 mm). S’ils sont plus petits, vous pouvez en mixer
plusieurs en même temps.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 28 31/10/12 13:29

1. Appuyez sur l’interrupteur d’allumage situé à l’arrière et placez-le en
position « I ». La LED lumineuse située près du sélecteur s’allumera.
Fig 1
2. Placez le bac à déchets en position correcte. Plaqué contre la paroi
arrière de la centrifugeuse.
Fig 2
Mettez un récipient au niveau
Attention! Si votre appareil fonctionne sous 115V et que la LED
clignote, le bac est mal positionné. Revenez à la position Stand-by
( ) et positionnez le bac à déchets correctement plaqué contre
la paroi arrière de la centrifugeuse.
de la sortie du jus et sélectionnez la position souhaitée (• ou ••).
La position • est idéale pour les FRUITS TENDRES (pomme, ananas,
pastèque, fraise, raisin…). La position •• est celle indiquée pour des
LÉGUMES DURS (carotte, brocoli, céleri, betterave…).
3. Introduisez les fruits ou légumes par la bouche d’alimentation et
appuyez dessus avec le poussoir.
4. Pour arrêter la machine, tournez le bouton de l’interrupteur sur la
position (STAND BY).
Fig 3
5. Pour éviter l’égouttement de jus lorsque l’appareil est en arrêt, tournez
le robinet anti-goutte de 180º.
Fig 4
Fonctionnement
Fig 1 Fig 2 Fig 3 Fig 4
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 29 31/10/12 13:29
Fig 3

Nettoyage
1. Placez l’interrupteur situé à l’arrière sur la position « 0 » et décon-
nectez la machine du réseau en la débranchant de la prise.
Fig 5
2. Retirez la poignée en l’enlevant de la partie avant. Fig 6
3. Démontez le couvercle en le soulevant vers le haut et séparez-le du
bac à déchets.
Fig 7
4. Démontez le robinet et le plateau anti-goutte. Fig 8
5. Démontez l’ensemble formé par le filtre à râper et la cuve. Pour ce
faire, soulevez la cuvette vers le haut. Une fois l’ensemble démonté,
vous pourrez séparer facilement les deux éléments.
Fig 9
Attention: Ne touchez pas les dents aiguisées de la râpe.
Toutes les pièces démontées peuvent être lavées au lave-vaisselle. Le
nettoyage de l’extérieur de la machine devra être effectué en utilisant
un torchon doux trempé dans un mélange d’eau et de produit vaisselle.
Rincez ensuite avec un chiffon humide d’eau propre jusqu’à ce qu’il ne
reste aucune trace de produit de nettoyage.
Rappel: Pour éviter que la pulpe ne sèche entre chaque utilisation, versez
lentement une carafe d’eau par la bouche d’alimentation des fruits avec la
machine en fonctionnement.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 30 31/10/12 13:29

Fig 5 Fig 6
Fig 8
Fig 7
Fig 9
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 31 31/10/12 13:29

Sécurité
Si la poignée de fermeture est soulevée ou le bac à déchets retiré quand
la machine est en marche, un arrêt d’urgence se produira. La machine ne
se remettra pas non plus en marche si vous essayez de la faire fonctionner
sans cuve.
Pour éviter les accidents, ne manipulez pas la machine sans les éléments
de sécurité (poignée, couvercle et bac à déchets).
Dans tous les cas d’arrêt d’urgence, une fois la problématique corrigée,
remettez le sélecteur en position (STAND BY) et choisissez ensuite la
position souhaitée.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 32 31/10/12 13:29

Pour plus d’informations, veuillez visiter www.zumex.com.
Vous pourrez télécharger le manuel d’utilisateur et
un livre pratique de recettes de cocktails et jus.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 34 31/10/12 13:29

Deustch
Übersetzung der Originalbetriebsanleitung
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 35 31/10/12 13:29

Multifruit Speed Control ist der perfekte Entsafter, welcher die
Gewinnung der höchsten Menge Saft aus jeder Obst- oder Gemüseart
ermöglicht. Dieser Entsafter kann für vielfältige gastronomische Zwecke
eingesetzt werden, wie zur Zubereitung von Säften, Cocktails oder aller
Milchmixgetränke, die Sie sich nur vorstellen können und hilft Ihnen dabei,
an Zeit, Arbeit und Kosten der Ausgangsmaterialien einzusparen.
Beschreibung
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 36 31/10/12 13:29

Teile
1. Stößel.
2. Deckel.
3. Verschluss-Henkel.
4. Inox-Behälter.
5. Antitropf-Hahn.
6. Rückstandbehälter.
7. Abstellplatte.
8. Inox-Veckleidung
der Abstellplatte.
9. Schleppmutter
des Filters.
10. Filterlaufwerk.
11. Filter.
12. Raspelscheibe.
1
2
3
4
5
6
8
7
9
10
11
12
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 37 31/10/12 13:29

Obst und Gemüse
Vor dem Entsaften…
1. Waschen Sie immer das Obst und Gemüse.
2. Schälen Sie die Früchte oder das Gemüse mit Schale oder nicht essbaren
Rinden (Ananas, Wassermelone, Mango, Kiwi…).
3. Entfernen Sie vor dem Entsaften die großen und kleinen Kerne (Prsich,
Paume, Kirsche…).
4. Schneiden Sie grössere Früchte und grösseres Gemüse in Stücke (75 mm).
Sollten sie kleiner sein, so können Sie mehrere gleichzeitig entsaften.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 38 31/10/12 13:29

1. Drücken Sie auf den Schalter an der Rückseite und stellen Sie ihn auf
die Position « I ». Die LED-Leuchtanzeige des Geschwindigkeitswählers
schaltet sich ein.
Abb. 1
2. Setzen Sie den Rückstandbehälter in der richtigen Position ein. Er muss
an der Rückwand der Saftpresse anliegen.
Abb. 2
Achtung! Wenn Ihr Gerät mit 115V läuft und die LED-Anzeige blinkt, ist
der Behälter nicht richtig eingesetzt. Stellen Sie das Gerät in den
Stand-By-Modus ( ) und setzen Sie den Behälter so ein, dass er an der
Rückwand der Saftpresse anliegt. aufgesetzt. Stellen Sie ein Gefäß unter
den Saftauslauf und wählen Sie die gewünschte Position (• oder ••).
Die Position • eignet sich ideal für weicheres Obst (Äpfel, Ananas,
Wassermelone, Erdbeeren, Trauben…). Die Position •• eignet sich
für härteres Gemüse (Möhren, Brokkoli, Sellerie, Rote Beete…).
3. Führen Sie die Früchte oder das Gemüse durch die Öffnung ein und
schieben Sie mit dem Stößel nach.
4. Zum Abstellen des Geräts drehen Sie den Schalter zur Position (STAND BY).
Abb. 3
5. Drehen Sie den Antitropf-Hahn um 180º, um das Tropfen des Saftes zu
vermeiden, wenn nicht entsaftet wird.
Abb. 4
Betrieb
Abb. 1 Abb. 2 Abb. 3 Abb. 4
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 39 31/10/12 13:29
Abb. 3

Reinigung
1. Stellen Sie den Schalter an der Rückseite auf die Position « 0 » und
trennen Sie das Gerät vom Netz, indem Sie den Stecker abziehen.
Abb. 5
2. Entfernen Sie den Henkel, indem Sie ihn von der Vorderseite abheben. Abb. 6
3. Nehmen Sie den Deckel ab, indem Sie ihn nach oben ziehen und
entfernen Sie den Rückstandbehälter.
Abb. 7
4. Nehmen Sie den Hahn und die Abstellplatte ab. Abb. 8
5. Nehmen Sie die aus dem Raspel-Filter und dem Behälter bestehende
Einheit heraus und ziehen Sie zu diesem Zweck den Behälter nach oben.
Ist diese Einheit einmal entfernt, so können Sie leicht alle anderen
Elemente abnehmen.
Abb. 9
Achtung! Berühren Sie nicht die scharfen Spitzen der Raspelscheibe.
Alle abmontierten Teile können im Geschirrspüler gereinigt werden. Für
die Reinigung des äußeren Gehäuses des Geräts ist ein weicher Lappen zu
verwenden, der mit Wasser und einem Geschirrspülmittel befeuchtet wurde.
Danach muss das Spülmittel mit einem mit reinem Wasser befeuchteten
Lappen entfernt werden, bis keine Reste mehr vorhanden sind.
Vergessen Sie nicht: Um zu Vermeiden, dass von einer Benutzung zur
nächsten das Fruchtfleisch antrocknet, gießen Sie bei laufendem Betrieb
des Geräts einen Krug Wasser in die Einfüllöffnung für die Früchte.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 40 31/10/12 13:29

Abb. 5 Abb. 6
Abb. 8
Abb. 7
Abb. 9
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 41 31/10/12 13:29

Sicherheit
Wird der Verschluss-Henkel angehoben oder der Rückstandbehälter
entfernt, während das Gerät in Betrieb ist, so wird es zu einem Notstop
kommen. Das Gerät wird sich auch nicht in Betrieb setzten, wenn
versucht wird, es ohne den Behälter in Gang zu setzen.
Um Unfälle zu vermeiden, hantieren Sie nicht mit der Maschine,
wenn diese nicht mit den entsprechenden Sicherheitsvorrichtungen
ausgestattet ist (Henkel, Deckel und Rückstandbehälter).
Nach Behebung der Ursache des Notstops stellen Sie in allen Fällen
den Wähler auf die Position (STAND BY) und wählen Sie danach die
gewünschte Position.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 42 31/10/12 13:29

Für weitere Information
besuchen Sie unsere Webseite unter www.zumex.com.
Hier können Sie das Benutzerhandbuch und ein praktisches
Rezeptheft für Cocktails und Säfte herunterladen.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 44 31/10/12 13:29

Italiano
Traduzione delle istruzioni originali
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 45 31/10/12 13:29

Multifruit Speed Control è la centrifuga perfetta per estrarre la maggiore
quantità possibile di succo da qualsiasi tipo di frutta e verdura. Con questa
centrifuga si può sfruttare una grande versatilità gastronomica nella
preparazione di qualsiasi succo o cocktail immaginabile,
risparmiando tempo, lavoro e materie prime.
Descrizione
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 46 31/10/12 13:29

Componenti
1. Premitore.
2. Coperchio.
3. Manico di chiusura.
4. Vaschetta Inox.
5. Rubinetto
antigoccia.
6. Contenitore
di residui.
7. Vassoio
portacontenitori.
8. Ornamento Inox vassoio
porta contenitori.
9. Dado di trascinamento
ltro.
10. Trascinamento ltro.
11. Filtro.
12. Disco grattugia.
1
2
3
4
5
6
8
7
9
10
11
12
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 47 31/10/12 13:29

Frutta e verdura
Prima di centrifugare…
1. Lava sempre la frutta e la verdura.
2. Sbucciare la frutta o la verdura con pelle o buccia non commestibili
(ananas, anguria, mango, kiwi…).
3. Prima della centrifugazione elimina i noccioli e i semi di grande diametro
(pesche, prugne, ciliegie…).
4. Tagliare in pezzi più piccoli la frutta o la verdura più grande dell’apertura
di alimentazione (75 mm). Se sono più piccoli si possono centrifugare un
po’ per volta.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 48 31/10/12 13:29

1. Premi l’interruttore di accensione posteriore e impostalo in posizione
« I ». Il LED luminoso accanto al selettore si accenderà.
Fig 1
2. Collocare il contenitore dei residui in posizione corretta: in appoggio
contro la parete posteriore della spremitrice.
Fig 2
Attenzione! Se la macchina funziona a 115V, e il LED lampeggia, significa che
il contenitore non è bene al suo posto. Tornare alla posizione di stand-by ( )
e collocare il contenitore dei residui perfettamente in appoggio contro la
parete posteriore della spremitrice. Colloca un recipiente sotto l’uscita del
succo e seleziona la posizione desiderata
(• o ••).
La posizione • è ideale per FRUTTA MOLLE (mele, ananas, pesche, fragole,
uva…). La posizione •• per VERDURA DURA (carote, broccoli, sedano,
barbabietole…).
3. Introduci la frutta o la verdura nella bocca della Multifruit e premila
con il premitore.
4.
(STAND BY).
Fig 3
5. Gira di 180º il rubinetto antigoccia per evitare sgocciolamenti di succo
quando non stai centrifugando.
Fig 4
Funzionamento
Fig 1 Fig 2 Fig 3 Fig 4
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 49 31/10/12 13:29
Fig 3

Limpieza
1. Colloca l’interruttore posteriore in posizione « 0 » e disconnetti la
macchina dalla rete elettrica tirando via la spina dalla presa.
Fig 5
2. Togli il manico sollevandolo dalla parte posteriore. Fig 6
3. Smonta il coperchio sollevandolo verso l’alto e separa il contenitore
di residui.
Fig 7
4. Smonta il rubinetto e la vaschetta antigoccia. Fig 8
5. Smonta l’insieme formato dal filtro grattugia e la vaschetta, tirando
la vaschetta verso l’alto. Una volta smontato l’insieme, si potranno
separare facilmente i due elementi.
Fig 9
Attenzione: Non toccare le punte affilate della grattugia.
Tutti i pezzi smontati possono essere introdotti in lavastoviglie. Per la
pulizia dell’esterno della macchina si deve usare un panno morbido
imbevuto di acqua e detergente per piatti, tergendo in seguito con
un panno inumidito di sola acqua fino a che non rimangano residui di
detergente.
Ricorda: Per evitare che la polpa secchi tra un uso e l’altro, versa lenta-
mente una brocca d’acqua attraverso l’apertura di introduzione della
frutta con la macchina e il funzionamento.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 50 31/10/12 13:29

Fig 5 Fig 6
Fig 8
Fig 7
Fig 9
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 51 31/10/12 13:29

Sicurezza
Se si solleva il manico di chiusura o se si toglie il contenitore di residui
mentre la macchina è in funzione, si avrà un arresto di emergenza.
La macchina non entra in funzione anche quando si tenta di farla
funzionare senza vaschetta.
Per evitare incidenti, non manipolare la macchina senza i suoi elementi
di sicurezza (manico, coperchio e contenitore di residui).
In tutti i casi di arresto di emergenza, una volta sanata la causa che
ha provocato l’arresto, metti il selettore in posizione di (STAND BY)
e successivamente ripeti l’operazione riselezionando la posizione
desiderata.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 52 31/10/12 13:29

Per maggiori informazioni visita www.zumex.com.
Potrai scaricare il manuale utente e un pratico
ricettario di cocktail e succhi.
Af LIBRO Multifruit SC_IDIOMAS_ok.indd 54 31/10/12 13:29

Af LIBRO Multifruit SC_IDIOMAS_ok.indd 55 31/10/12 13:29

Af LIBRO Multifruit SC_IDIOMAS_ok.indd 56 31/10/12 13:29
Zumex Group, S.A. Headquarters
Polígono Ind. Moncada III
C/ Molí, 2 46113 Moncada, Valencia, Spain
Tel. +34 961 301 251 Fax.+34 961 301 255
zumex@zumex.com
Zumex USA Inc. USA & Canada
1573 NW 82nd Ave, Miami, FL 33126 USA
Tel. 1 305 591 0061 Fax. 1 305 591 0062
Technical Assistance:
1-877-ZUMEX-TA
(1 877 986 3982)
zumexusa@zumex.com
Zumex México
Uxmal 616. Colonia Vertiz Narvarte
Delegación Benito Juárez
CP 03600 México D.F. México
Tel. (55) 5212-0619 / 5212-1171
5212-1185 / 5212-1184
zumexmexico@zumex.com
www.zumex.com
04063:01
