ZTE ZXV10H100 Users Manual

ZXV10 H100 Home Gateway

User Manual (Draft)

Confidential

ZTE CORPORATION

ZXV10H100HomeGateway
User Manual (Draft)

Manual Version
Product Version V1.0

Copyright © 2004 ZTE Corporation

All rights reserved.

No part of this documentation may be excerpted, reproduced, translated, annotated or

duplicated, in any form or by any means without the prior written permission of ZTE

Corporation.

ZTE CORPORATION

ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P.R.China

Website: http://www.zte.com.cn

Postcode: 518057

Customer Support Center: ([phone] 800-9830-9830

Fax: [phone]

Email: [e-mail]

****

S.N.:

FAX: [phone]

Suggestions and Feedback

To improve the quality of ZTE product documentation and offer better services to our customers, we hope

you can give us your suggestions and comments on our documentation and fax this form to

[phone]; or mail to “Marketing center 3

Park, Nanshan District, Shenzhen, P. R. China”. Our postcode is 518057.

rd

floor ZTE Plaza, Keji Road South, Hi-Tech Industrial

Document name

Product version

Equipment installation time

Your information

Name Company

Postcode Company address

Telephone E-mail

Your evaluation

of this

documentation

ZXV10 H100 Home Gateway User Manual (Draft)

V1.0

Presentation: How is information presented? (Introductions, procedures, illustrations, others)

 Good  Fair  Average  Poor  Bad

Accessibility: Can you find the information you want? (Table of contents, Index, headings,

numbering, others)

 Good  Fair  Average  Poor  Bad

Intelligibility: Can you understand it when you find it? (Language, vocabulary, readability, others)

 Good  Fair  Average  Poor  Bad

Presentation:

Document version

Your suggestions

for improvement

of this

documentation

Your other

suggestions on

ZTE product

documentation

Accessibility:

Intelligibility:

Preface

Manual Description

Thank you for choosing the wireless Local Area Network (LAN) product-ZXV10

H100 of ZTE Corporation.

The ZXV10 H100 home gateway is a modular access gateway in the center of a home

network. It links multiple devices through Internet connections and provides users with

safe communication, entertainment and storage functions.

How to Use This Manual

This manual describes in detail the installation and configuration methods of this

product. Before installation or use of this product, please read this manual carefully to

comprehensively understand the functions of this product.

Conventions

This manual contains the following conventions in symbols, keyboard operations,

mouse operations and warning marks.

1. Symbols

The information with an angular bracket stands for a key name, button name or

the information that is input at the terminal by an operator. The information with

a square bracket stands for the man-machine interface, menu bar, data table, and

field name. A multi-level menu is separated with an arrow. For example, the

multi-level menu [File→New→Folder] stands for the menu item [Folder] under

the submenu [New] under the menu [File].

2. Keyboard operation convention

Format Meaning

Key or button name. For example, <Enter>, <Tab>,

Characters in angle brackets

<key 1+ key 2>

<Backspace> and <a> mean carriage return, tab key, backspace

key and letter "a” in lower case.

Press several keys on the keyboard at the same time. For

example, <Ctrl + Alt + A> means pressing “Ctrl”, “Alt”, and “A”

at the same time.

Format Meaning

CAUTION: changes or modifications made in the radio phone,
not expressly approved by ZTE, will void the user's authority to
operate the equipment.

Press the first key, and then release it and then press the second

<key, key 2>

key.For example, <Alt, F> means pressing the “Alt” key, and

then releasing it and then pressing the “F” key.

3. Mouse operation convention

Format Meaning

Click Press and release the left mouse button promptly

Double-click Quickly press twice the left button of the mouse and then release

it.

Right-click Quickly press and release the right button of the mouse

Drag Press and hold the left button of the mouse and move the mouse

4. Identifier

Four eye-catching symbols will appear in this manual to indicate the places

worthy of special attentions during operation:

Attention , Caution ,Warning , and Danger:

alerting you to some important instructions.

Statement: The actual product may differ from what is described in this

manual due to frequent update of ZTE products and fast development of

technologies. Please contact the local ZTE office for the latest updating

information of the product.

Contents

1 Introduction of the Product ...................................................................................................................1-1

1.1 Introduction of the Product ............................................................................................................ 1-1

1.2 Packing List of the Product............................................................................................................ 1-1

1.3 Features of the Product ..................................................................................................................1-1

1.4 Appearance of the Product............................................................................................................. 1-2

1.5 System Requirements..................................................................................................................... 1-4

2 System Connections ................................................................................................................................ 2-1

2.1 System Application Environment ..................................................................................................2-1

2.2 Connecting the LAN Network Interface........................................................................................ 2-1

2.3 Connecting the WAN (ADSL) Network Interface ......................................................................... 2-2

2.4 Connecting the Telephone Set........................................................................................................ 2-2

2.5 Connecting the Power Transformer ............................................................................................... 2-2

3 Client Settings ......................................................................................................................................... 3-1

3.1 TCP/IP Installation......................................................................................................................... 3-1

3.2 TCP/IP Configuration .................................................................................................................... 3-2

3.3 Configuration Inspection ............................................................................................................... 3-3

4 WEB Configuration ................................................................................................................................ 4-3

4.1 Main Logon Interface .................................................................................................................... 4-3

4.2 Basic Configuration ....................................................................................................................... 4-3

4.2.1 LAN Interface Information ................................................................................................. 4-3

4.2.2 ADSL WAN Connection..................................................................................................... 4-3

4.2.3 Static Route ......................................................................................................................... 4-3

4.2.4 RIP Dynamic Route ............................................................................................................4-3

-i-

4.2.5 DHCP Server ...................................................................................................................... 4-3

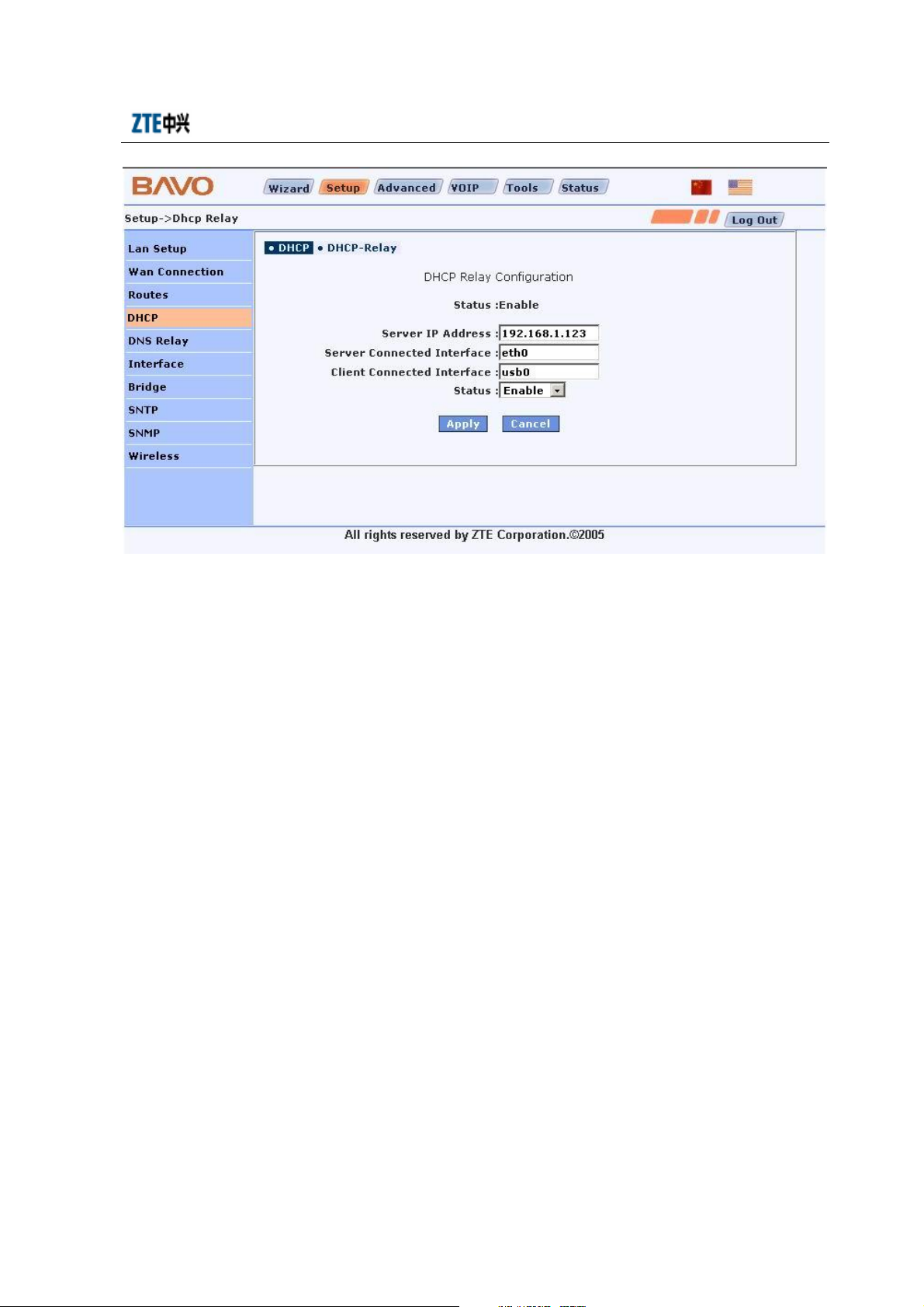

4.2.6 DHCP Relay ....................................................................................................................... 4-3

4.2.7 DNS Relay.......................................................................................................................... 4-3

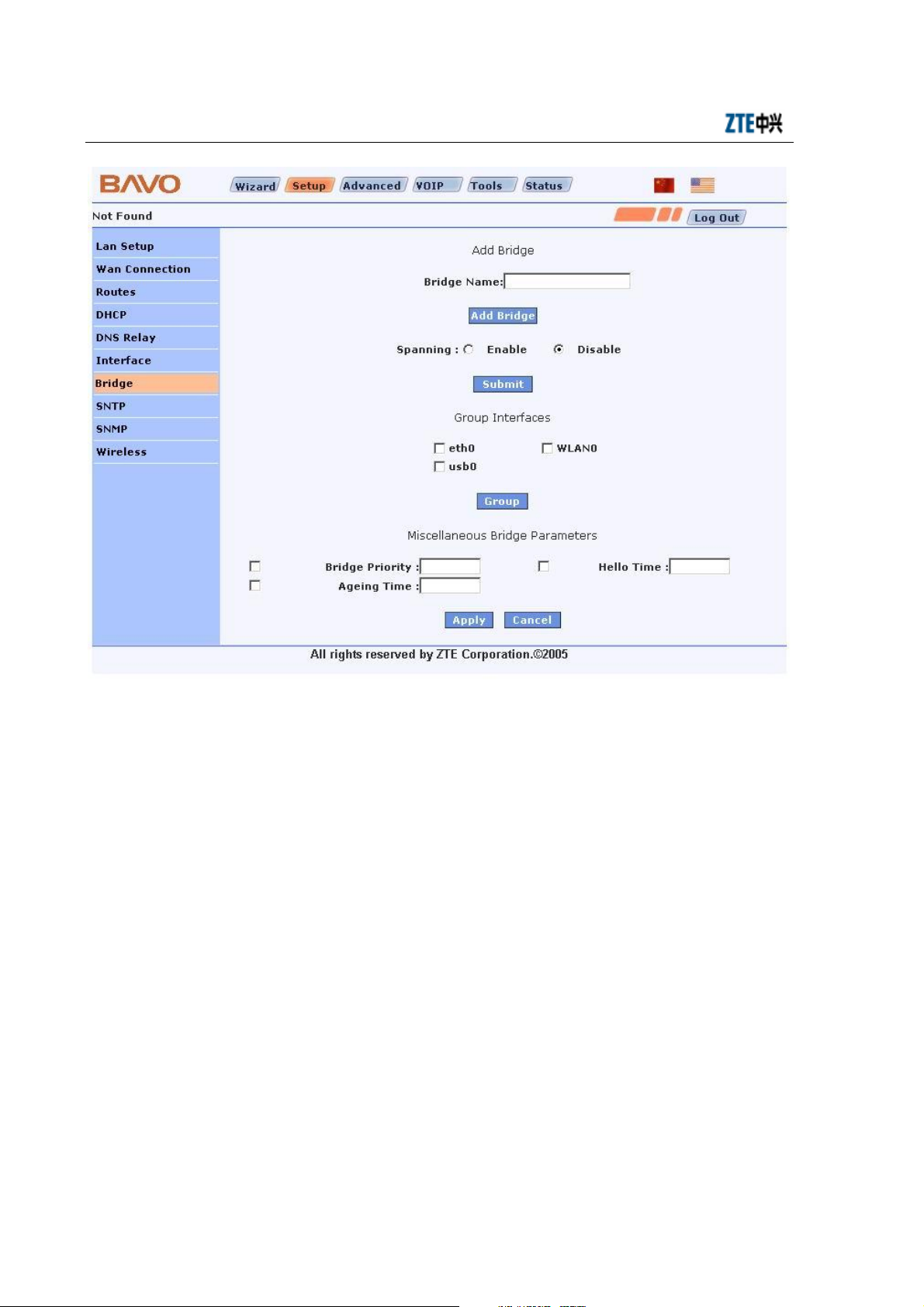

4.2.8 Bridge Connection .............................................................................................................. 4-3

4.2.9 SNTP .................................................................................................................................. 4-3

4.2.10 SNMP ............................................................................................................................... 4-3

4.2.11 WLAN .............................................................................................................................. 4-3

4.3 Advanced Configuration................................................................................................................ 4-3

4.3.1 ADSL Mode Configuration ................................................................................................ 4-3

4.3.2 Firewall Configuration ....................................................................................................... 4-3

4.3.3 MAC Filter ......................................................................................................................... 4-3

4.3.4 IPQoS ................................................................................................................................. 4-3

4.3.5 UPnP................................................................................................................................... 4-3

4.3.6 VLAN................................................................................................................................. 4-3

4.3.7 Bluetooth ............................................................................................................................ 4-3

4.4 VOIP Configuration....................................................................................................................... 4-3

4.4.1 Protocol Selection/Switchover............................................................................................ 4-3

4.4.2 SIP Configuration ............................................................................................................... 4-3

4.4.3 MGCP Configuration..........................................................................................................4-3

4.4.4 Voice Configuration............................................................................................................ 4-3

4.5 Other Operation Tools ................................................................................................................... 4-3

4.5.1 Configuring the Save and Restore ...................................................................................... 4-3

4.5.2 Device Reset Operation ...................................................................................................... 4-3

4.5.3 Network Connectivity Test Tool: PING.............................................................................. 4-3

4.5.4 ATM OAM Loopback......................................................................................................... 4-3

4.6 Equipment Status and Statistics..................................................................................................... 4-3

-ii-

Appendix A Radio Client Configuration................................................................................................. A-3

Appendix B FAQ....................................................................................................................................... B-3

Appendix C Technical Specification........................................................................................................ C-3

-iii-

1 Introduction of the Product

1.1 Introduction of the Product

Thank you for choosing the wireless Local Area Network (LAN) product-ZXV10

H100 of ZTE Corporation.

The ZXV10 H100 home gateway is a modular access gateway in the center of a home

network. It links multiple devices through Internet connections and provides users with

safe communication, entertainment and storage functions.

1.2 Packing List of the Product

The package of the H100 product should contain the following components:

• One H100 host

• One DC power transformer

• One RJ45 10/100BaseT Ethernet cross-connect connection line and one

• parallel connection line

• Two RJ11 telephone lines

• USB Slave connection line

• One Manual and Toolkit CD

• One user manual

• Guarantee card

• Certificate of quality

If any of the above components is missing or damaged, please contact your dealer. In

case of replacement, please keep the package and existing components of the product

well.

1.3 Features of the Product

• Interface Features

1-1

ZXV10 H100 Home Gateway User Manual (Draft)

WA N s id e:

ADSL interface: Built-in splitter, compatible with ADSL/ADSL2/2+

LAN side:

Fast Ethernet port: four, RJ-45, 10/100Mbps, complies with the IEEE802.3

and IEEEE802.3u standards

WLAN interface: Complies with the IEEE 802.11g/b standard, built-in antenna

Blue Tooth interface: Supports Core V1.2, built-in antenna

POTS interface: RJ11, 2-port

USB interface: 1 master (V2.0) & 1 slave (V1.1)

Extended interface (optional):

Card Bus: One, supports the 16-bit PCMCIA and 32-bit CARDBUS cards

• Technical Features

It implements two functions: data access and IP voice. The data exchange and

forwarding functions of Layer 2 and Layer 3 are implemented for data access

and the IP voice function is implemented according to different signaling

protocols and related network devices. In addition to providing the above

functions, the product gives much consideration to security, QOS and network

management, such as multi-level authentication based on devices, users and

services, encryption of data channels, implementation of QOS requirements

matching the local devices and network according to services with different

requirements, network management based on multiple management modes.

1.4 Appearance of the Product

The planform of the H100 is shown below:

1-2

Chapter 1 Introduction of the Product

The indicators on the front panel of the ZXV10 H100 are shown below:

The meanings of the indicators on the front panel of the ZXV10 H100 are show in the

table below:

Indicators Status Description

On Power-on self-test failure

To be determined

The device is powered on and the version

is being loaded/upgraded

The ADSL synchronization is normal and

so is the link connection

hand-shake negotiation

Working (switched on with the WLAN

button)

WLAN button)

Working (switched on with the Bluetooth

button)

Bluetooth button)

Fault indicator.

Run indicator

ADSL LINK indicator

WLAN indicator

Bluetooth indicator

Flashing

The green indicator is

solid on

Off The device is powered off

Flashing The device runs normally

The green indicator is

solid on

Off The link is not set up yet

Flashing The link is being set up through

The green indicator is

solid on

Off Stops working (switched off with the

Flashing Flashing according to the network traffic

The green indicator is

solid on

Off Stops working (switched off with the

Flashing Flashing according to the network traffic

The meanings of the indicators on the rear panel of the ZXV10 H100 are show in the

table below:

The meanings of the indicators on the rear panel of the ZXV10 H100 are show in the

1-3

ZXV10 H100 Home Gateway User Manual (Draft)

table below:

Indicators Status Description

The green indicator is solidonThe physical link connection is normal

LAN 1 2 3 4

Off The device is powered off/the network cable is

Flashing Flashing according to the network traffic

On the rear panel of the ZXV10 H100, are two RJ–45 LAN network interfaces, three

RJ–11 interfaces, the reset button and the power supply slot. The details are shown in

the table below:

Buttons Description

Reset button Default functions of the reset button

WLAN button Switch on/off the Wi-Fi function

Bluetooth button Switch on/off the Bluetooth function

unconnected

1.5 System Requirements

Hardware Requirements

• You need an ADSL modem to access the services provided by the Internet

Service Provider (ISP);

• One PC installed with a 10 Mbps,100 Mbps or 10/100 Mbps Ethernet card;

• If necessary, a Ethernet hub and Ethernet cables can be added to construct a

small and medium Intranet;

Software Requirements

• Each computer accessed into the network should be installed with the network

card driver and the TCP/IP protocol and have correct network settings;

• The H100 has a fixed IP address, or a dynamic IP address allocated from the

DHCP server, or an IP address allocated in the PPPOE dial-up. You also need to

set the gateway server address and the DNS server address provided by your

ISP;

• The Windows 98/Me/2000/NT/Xp or Linux operating system should run

normally;

• One PC of the LAN should be installed with the WEB explorer (Microsoft

1-4
