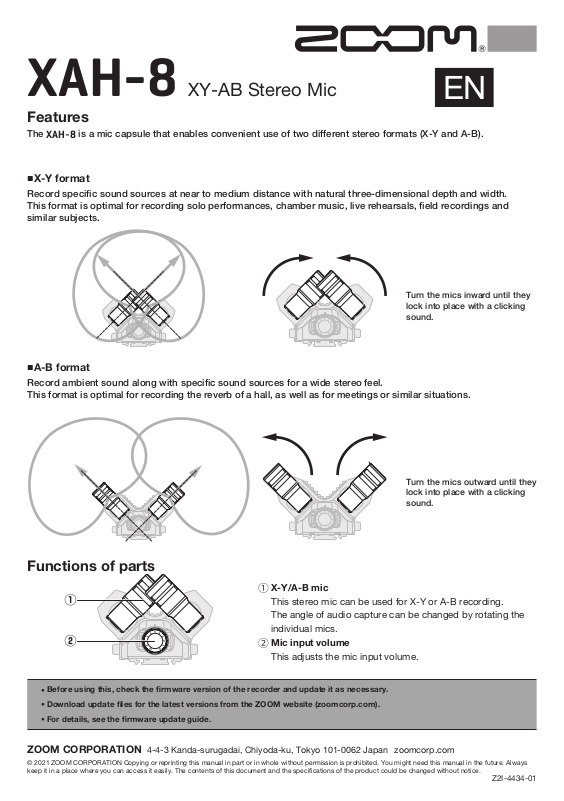

XAH-8
XY-AB Stereo Mic
EN
Features
The
■
X-Y format
Record specic sound sources at near to medium distance with natural three-dimensional depth and width.
This format is optimal for recording solo performances, chamber music, live rehearsals, eld recordings and
similar subjects.
■
A-B format
Record ambient sound along with specic sound sources for a wide stereo feel.
This format is optimal for recording the reverb of a hall, as well as for meetings or similar situations.
is a mic capsule that enables convenient use of two different stereo formats (X-Y and A-B).
XAH-8
Turn the mics inward until they
lock into place with a clicking
sound.
Turn the mics outward until they
lock into place with a clicking
sound.
Functions of parts
X-Y/A-B mic
➀
This stereo mic can be used for X-Y or A-B recording.
The angle of audio capture can be changed by rotating the
individual mics.
Mic input volume
➁
This adjusts the mic input volume.
Before using this, check the rmware version of the recorder and update it as necessary.
•
Download update les for the latest versions from the ZOOM website (zoomcorp.com).
•
For details, see the rmware update guide.
•
ZOOM CORPORATION
© 2021 ZOOM CORPORATION Copying or reprinting this manual in part or in whole without permission is prohibited. You might need this manual in the future. Always
keep it in a place where you can access it easily. The contents of this document and the specications of the product could be changed without notice.
4-4-3 Kanda-surugadai, Chiyoda-ku, Tokyo 101-0062 Japan zoomcorp.com
Z2I-4434-01
