Zoom 1201 Operation Manual

Operation Manual
Operation Manual

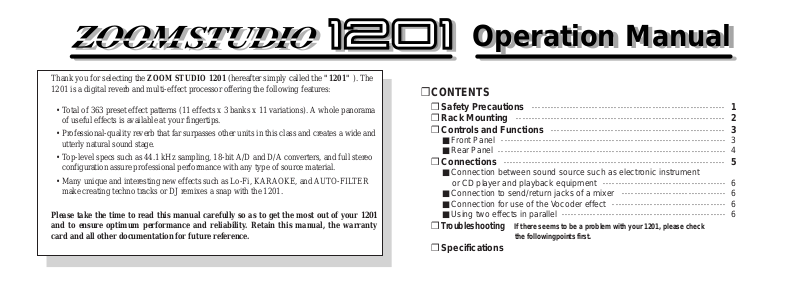

Thank you for selecting the ZOOM STUDIO 1201 (hereafter simply called the "1201" ). The 1201 is a digital reverb and multi-effect processor offering the following features:
• Total of 363 preset effect patterns (11 effects x 3 banks x 11 variations). A whole panorama of useful effects is available at your fingertips.
• Professional-quality reverb that far surpasses other units in this class and creates a wide and utterly natural sound stage.
• Top-level specs such as 44.1 kHz sampling, 18-bit A/D and D/A converters, and full stereo configuration assure professional performance with any type of source material.
• Many unique and interesting new effects such as Lo-Fi, KARAOKE, and AUTO-FILTER make creating techno tracks or DJ remixes a snap with the 1201.
Please take the time to read this manual carefully so as to get the most out of your 1201 and to ensure optimum performance and reliability. Retain this manual, the warranty card and all other documentation for future reference.
CONTENTS
Safety Precautions
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
1
Rack Mounting
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
2
Controls and Functions
•••••••••••••••••••••••••••••••••••••••••••••••••••••••
3
Front Panel
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
3
Rear Panel
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
4
Connections
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
5
Connection between sound source such as electronic instrument or CD player and playback equipment
•••••••••••••••••••••••••••••••••••••••
6
Connection to send/return jacks of a mixer
•••••••••••••••••••••••••••••••••
6
Connection for use of the Vocoder effect
••••••••••••••••••••••••••••••••••••
6
Using two effects in parallel
••••••••••••••••••••••••••••••••••••••••••••••••••••
6
Troubleshooting If there seems to be a problem with your 1201, please check
the followingpoints first.
Specifications
Safety Precautions
In this manual, symbols are used to highlight warnings and cautions for you to read so that accidents can be prevented. The meanings of these symbols are as follows:
This symbol indicates explanations about extremely dangerous matters. If users ignore this symbol and handle the device the wrong way, serious injury or death could result.
This symbol indicates explanations about dangerous matters. If users ignore this symbol and handle the device the wrong way, bodily injury and damage to the equipment could result.
Please observe the following safety tips and precautions to ensure hazard-free use of the 1201.
Power requirements
The 1201 is powered by the supplied AC adapter . To prevent malfunction and safety hazards, Do not use any other kind of AC adapter.
When using the 1201 in an area with a different line voltage, please consult your local ZOOM distributor about acquiring a proper AC adapter.
Environment
Avoid using your 1201 in environments where it will be exposed to:
• Extreme temperature
• High humidity or moisture
• Excessive dust or sand
• Excessive vibration or shock
Handling
The 1201 is a precision instrument. Do not exert undue pressure on the unit.
Also take care not to drop the unit, and do not subject it to shock or excessive pressure.
Connecting cables and input and output jacks
You should always turn off the power to the 1201 and all other equipment before connecting or disconnecting any cables. Also make sure to disconnect all cables and the AC adapter before moving the 1201.
Alterations
Never open the case of the 1201 or attempt to modify the product in any way since this can result in damage to the unit.
Usage Precautions
Electrical interference
The 1201 has been designed to minimize radio frequency emissions and is highly resistant to external interference. However, if placed very
close to equipment such as TV sets or radio receivers, reception interference may occur. If you encounter problems, move the 1201 further away from the affected equipment.
Whatever the type of digital control device, the 1201 included, electromagnetic damage can cause malfunctioning, and can corrupt or destroy data. Since this is an ever-present danger, thorough care should be taken to minimize the risk of damage.
Cleaning
Use a soft, dry cloth to clean the 1201. If necessary, slightly moisten the cloth. Do not use abrasive cleanser, wax, or solvents (such as paint thinner or cleaning alcohol), since these may dull the finish or damage the surface.
Please keep this manual in a convenient place for future reference.
1
!
Warning
!
Caution
!
Warning
!
Caution
!
Caution
!
Caution
!
Caution
Rack Mounting
This product conforms to EIA and DIN specifications for 19-inch rack mounting. We recommend to mount the unit in a rack rather than just placing it on a table or similar. As shown in the illustration, fasten the unit securely in the rack, using the four screw holes.
• This unit uses a metal enclosure and is heavier than it might seem at first glance. When mounting in a rack, firmly support the unit and do not let go until all screws have been fastened. If the unit is not secured properly, it can fall and cause damage and injury.
• Do not stack the unit directly on top of other components. Otherwise overheating poses a risk of fire and can lead to performance degradation.
• Before moving the unit, disconnect the AC adapter and all other cables. Otherwise cables or equipment may be damaged.
• Use a sturdy rack and place it on a level, solid surface where there is no danger of the rack vibrating or falling. Otherwise injury to persons or damage to equipment may occur.
2
INPUT
PEAK
DIGITAL REVERB & MULTI EFFECTS
MIX
OUTPUT
VARIATION ADJUST
DRY WET
6 7 8 9 10 11
5 4 3 2 1
EFFECTS
DIMENSION
PERCUSSION
ENSEMBLE
POWER
GATE
REVERSE
AMBIENCE VOCAL PLATE ROOM HALL
6 7 8 9 10 11
5 4 3 2 1
BANK A B C
MADE IN JAPAN
11
1
DELAY
CHORUS
FLANGER CHO/REV FLG/REV DLY/REV DLY+FLG CHO+DLY DLY+REV CHO+REV FLG+REV
2
3
4
5
6
7
8910
PITCH
PHASER
TRM-PAN
PIT-DLY
AUTO-FILTER
RING-MOD
Lo-Fi EFX
Vo-DIST ROTARY
VOCODER
KARAOKE
CHARACTER
REV TIME
REVERB
1
DELAY
CHORUS
FLANGER CHO/REV FLG/REV DLY/REV DLY+FLG CHO+DLY DLY+REV CHO+REV FLG+REV
2
3
4
5
6
7
8910
PITCH
PHASER
TRM-PAN
PIT-DLY
AUTO-FILTER
RING-MOD
Lo-Fi EFX
Vo-DIST ROTARY
VOCODER
KARAOKE
MADE IN JAPAN
* Screws for rack mounting are not included with the unit.
!
