Z Microsystems COMMAND CONSOLE 15 User Manual
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Z Microsystems
FIELD-READY
COMMAND
CONSOLE
15
Z Microsystems
FIELD-READY
User Manual
Doc# 27-0002UM Issued 7/99 Rev. 1.2
1. Use the power
and video
cables supplied
with the
Command
Console to help
prevent
interference
with radio and
television
reception. The
use of cables
and adapters
may cause
interference
with electronic
equipment in
the vicinity of
this unit.
2. This equipment
is pending
approval for a
Class A digital device,
pursuant to certain limits
imposed by Part 15 of the
FCC rules. These limits are
designed to provide
reasonable protection
against harmful interference
in a residential installation.
This equipment generates,
uses and can radiate radio
frequency energy, and, if not
installed and used in
accordance with the
instructions, may cause
harmful interference to radio
communications. However
there is no guarantee that
interference will not occur in
a particular installation. If
this equipment does cause
harmful interference, to
radio or television reception,
which can be determined by
turning the equipment off
and on, the user is
encouraged to try to correct
the interference by one or
more of the following
measures:
Reorient or relocate the
receiving antenna.
Increase the separation
between the equipment and
receiver.
Connect the equipment into
an outlet on a circuit
different from that to which
the receiver is connected.
Consult your dealer or an
experienced radio/TV
technician for help.
3. If necessary, the user should
contact the dealer or an
experienced radio/television
technician for additional
suggestions. The user may
find the following booklet,
prepared to be the FCC,
helpful: How to Identify
and Resolve Radio-TV
Interference Problems. This
booklet is available from the
U.S. Government Printing
Office, Washington, DC,
20402, Stock No. 00400345-4.
FCC INFORMATION
Regulatory
COMMAND
CONSOLE
15
2
Doc# 27-0002UM Issued 7/99 Rev. 1.2
STARTING POINT 4
Shipment Contents 4
User Manual 4
System Requirements 4
Product Description 5
PREPARATION 6
INSTALL RAILS 7
INSTALL CONSOLE 9
FINAL ADJUSTMENTS 10
SETUP 11
CLOSING CONSOLE 12
OPERATION 13
CONFIGURE MONITOR 14
Setup For Windows 95 or 98 14
Auto Setup 15
Auto Setup for DOS 15
Auto Setup for Windows 3.1
95, 98 or NT 16
ADJUSTMENTS 18
User Control Features 18
Operation 18
OSD Lock/Unlock 19
On-Screen Display (OSD) 19

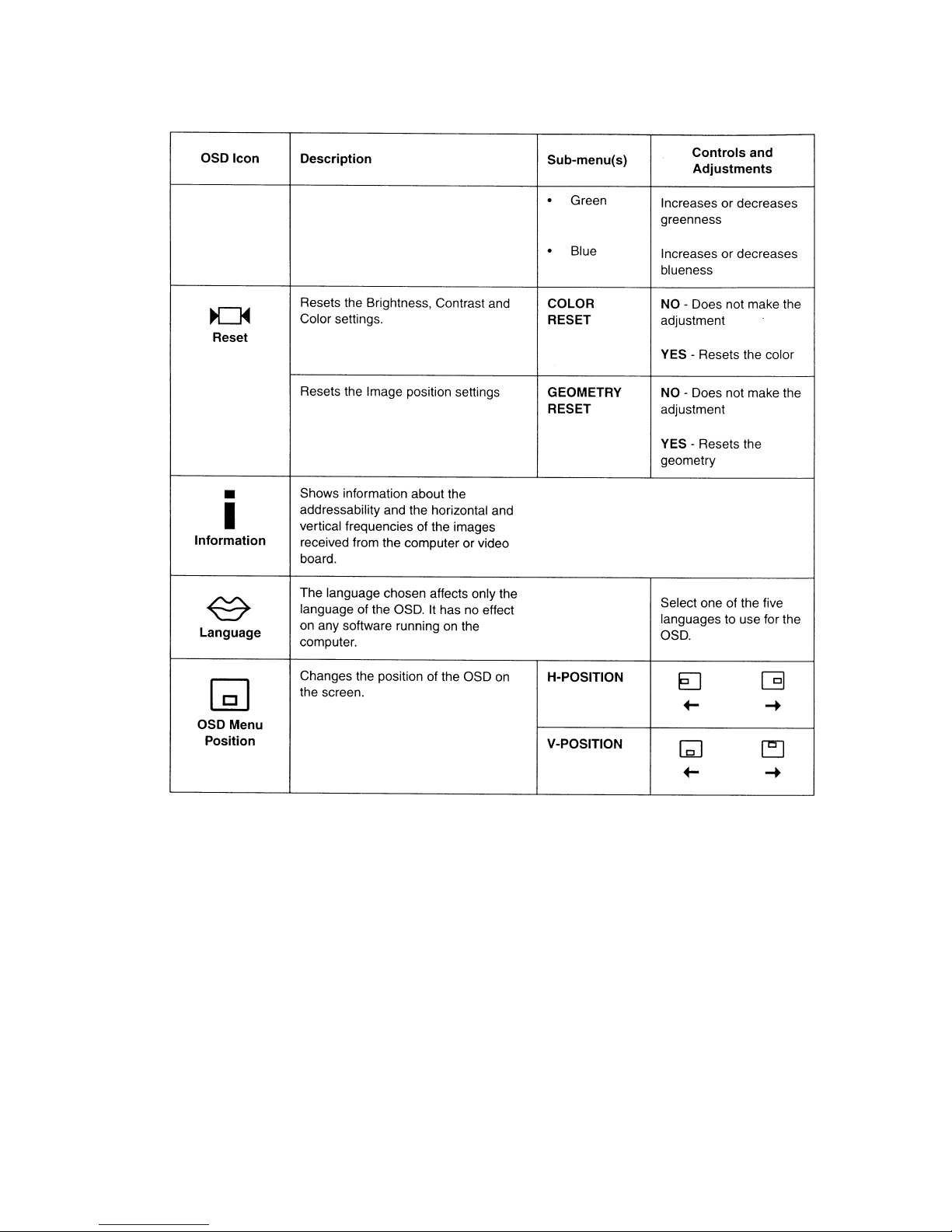

OSD Functions 20
MAINTENANCE 23

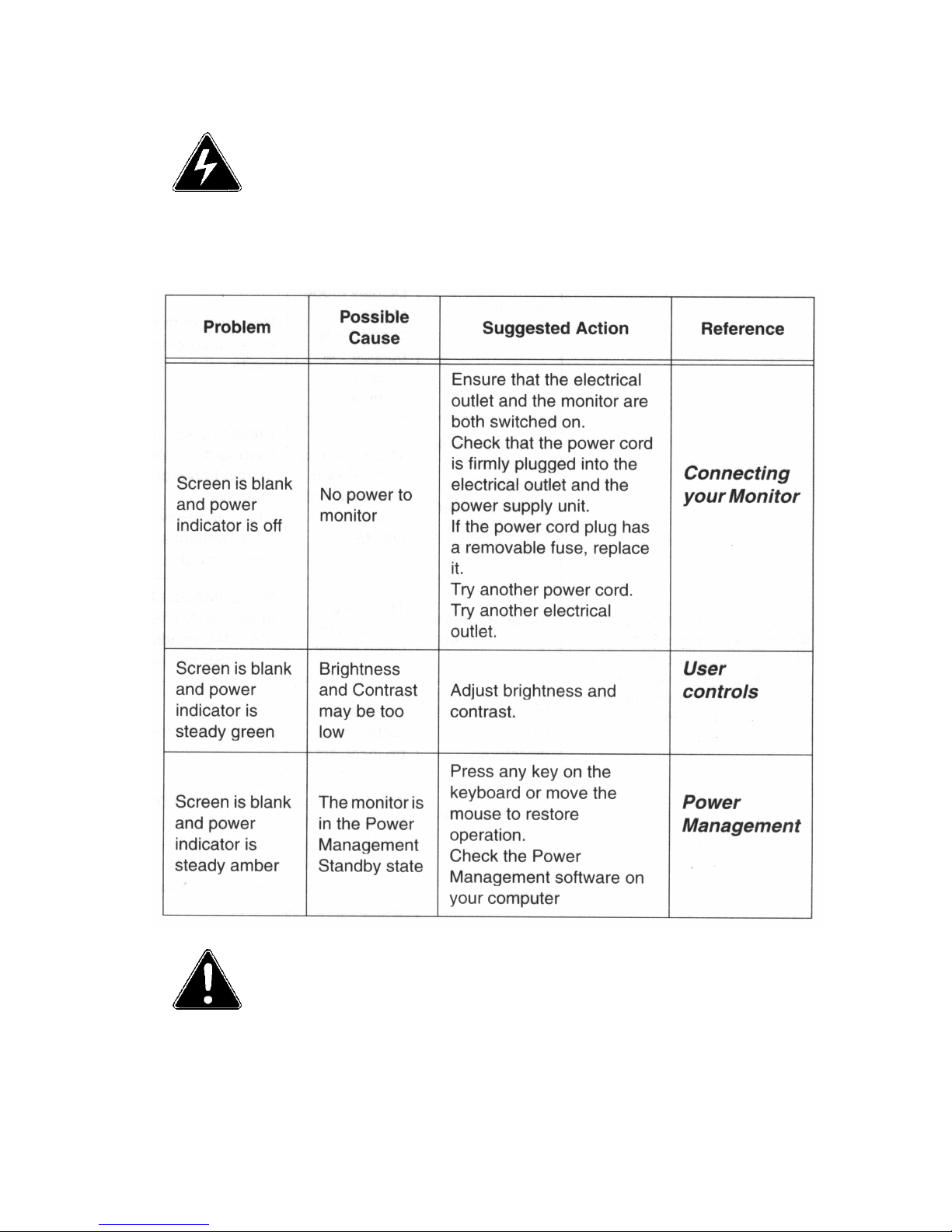

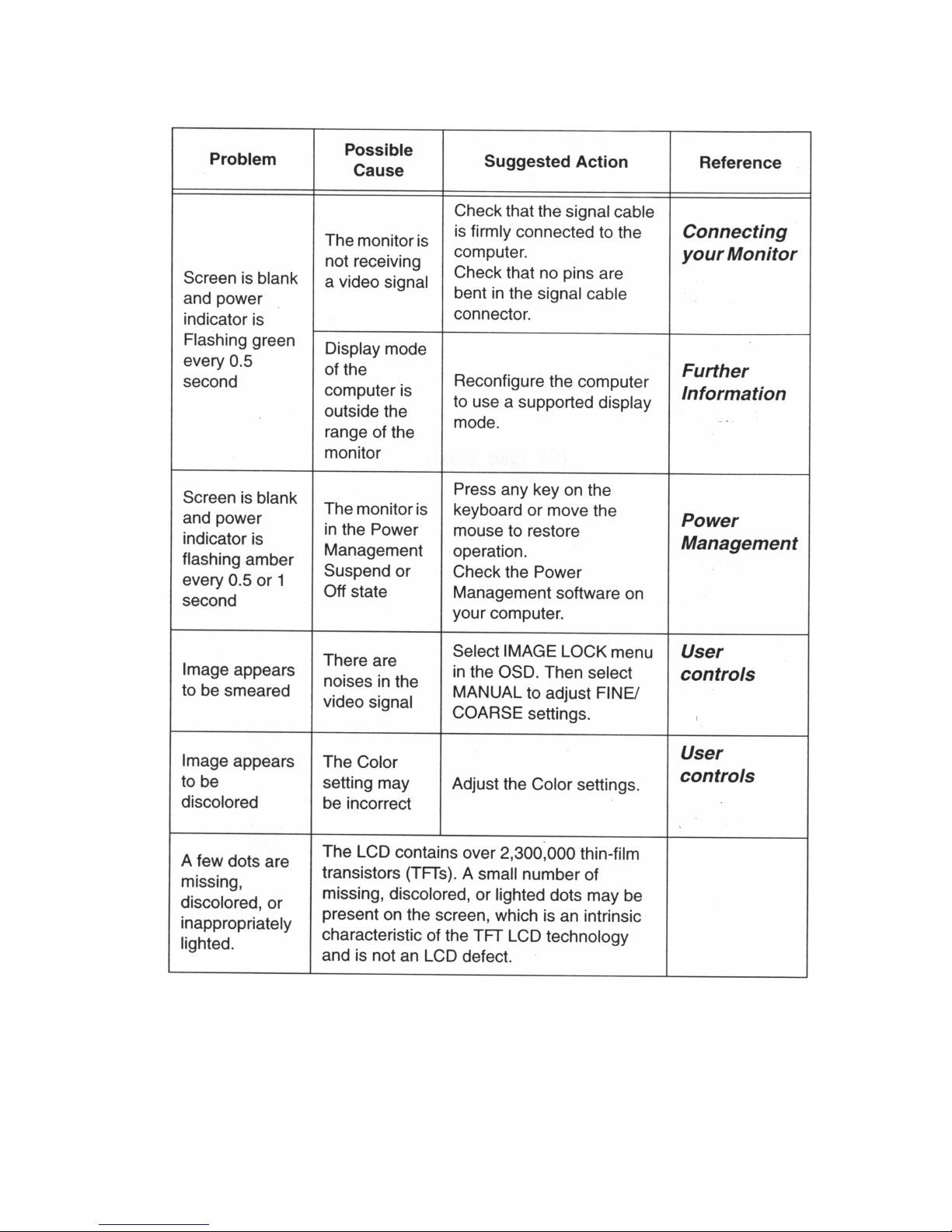

TROUBLESHOOTING 24
Causes and Corrective Action 24
APPENDICES 26
Display Modes 26
Power Management 27
SPECIFICATIONS 28
Display Specifications 28
Supported Display Modes 28
Communications 28
Power Input 28
Power Consumption 28
Performance Tested 28
Environmental Specifications 28
Regulatory 29
Reliability Specifications 29
Developmental Options 29
SUPPORT 30
Further Help 30
Replacing Parts 31
Providing Feedback 31
Y2K COMPLIANCE 32

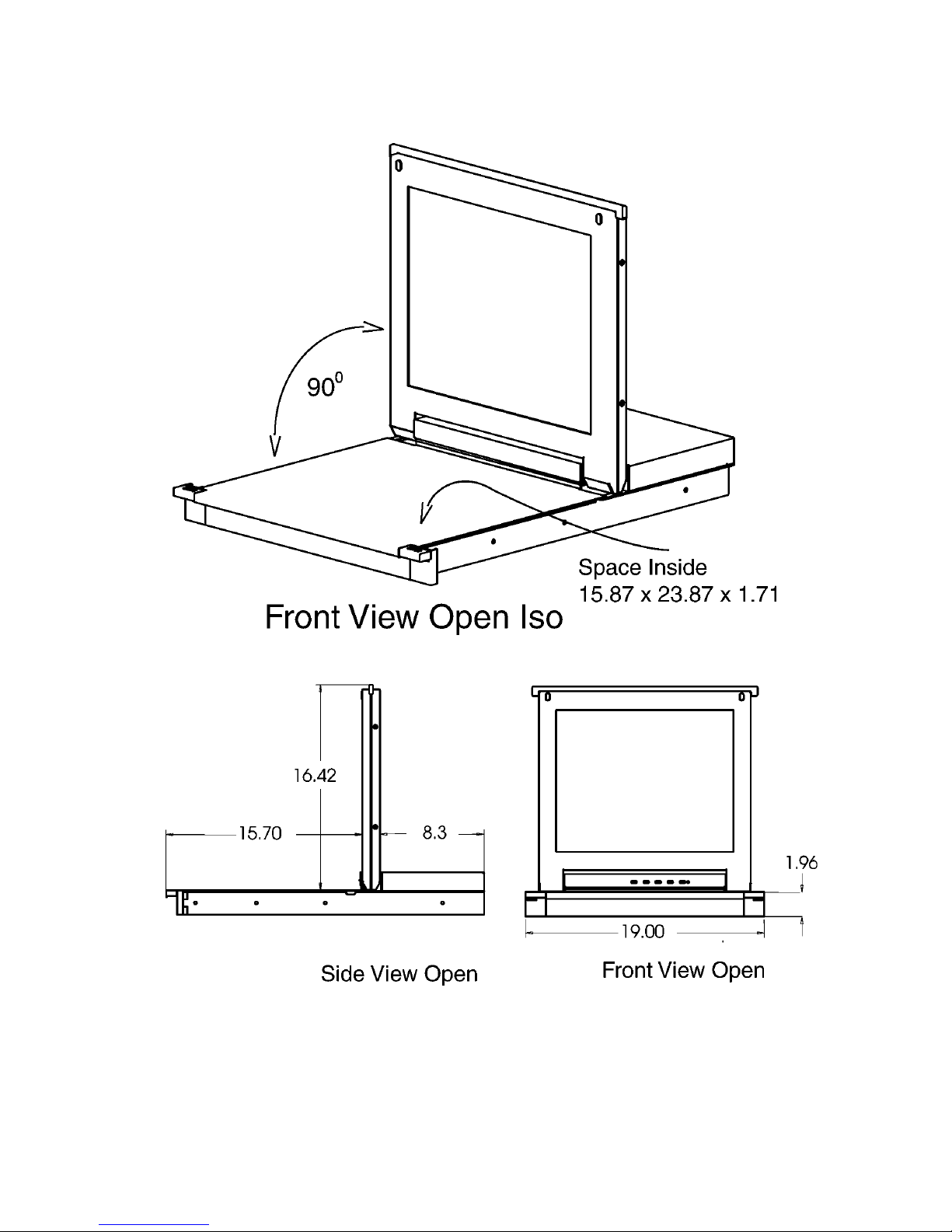

DRAWINGS 33
3
Contents
Doc# 27-0002UM Issued 7/99 Rev. 1.2
The User Manual comes in two
formats: printed hardcopy or CDROM. This Manual is also available
on the Z Microsystems website
(www.zmicro.com).
We recommend you read this manual
as follows:
Carefully follow the instructions in the
Installation and Testing chapter for
hookup and initial control settings.
Refer to the Operation chapter for a
complete description of all the user
controls, and the Maintenance and
Troubleshooting chapters for care and
correcting any unforeseen problems
with the system. The Appendices and
References chapters are provided for
quickly finding technical information
about the Command Console.
SYSTEM REQUIREMENTS
The Command Console works with
any computer system that provides
industry standard screen formats from
640 x 480 to 1280 x 1024, with up to
75 Hz vertical sync. See the Specifications Table of this Manual for a
complete listing of all resolutions
supported.
The Command Console requires a
computer with a suitable onboard
subsystems for Video Adapter Card
that can support XGA 1024 x 768,
SVGA 800 x 600, or VGA 640 x 480
at 60 Hz
The Command Console shipping box
contains the following:
The Command Console Unit
Video Signal Cable
AC/DC Power Supply Brick with
attached DC cable
AC Power Cable
Setup Diskette
User Manual
Remember to save your original
shipping container and packing
material to transport or ship the
Command Console.
USER MANUALSHIPMENT CONTENTS
4
Doc# 27-0002UM Issued 7/99 Rev. 1.2
PRODUCT DESCRIPTION
The Command
Console provides
a liquid crystal
display, a desk
work surface and
storage for any
size keyboard
and mouse in a
3.5" high (2U)
standard 19"
rack or transit
case.
Specially designed locks on
each side of the
Command
Console hold the
compact folded
unit securely in
place during
storage.
Release of the
two Z-Locks on
the front sides of
the Console
allow it to slide
out and the LCD
display to quickly
swing up into a
reading position
By lifting up the
desktop, the
keyboard and
mouse can be
easily removed
and set on top.
The lightweight and durable aluminum construction provides exceptional
strength in field applications.
The high quality LCD screen provides
full color and features up to 1280 x
1024 pixel resolution.
The LCD screen has a backlight
control that reduces power and
extends the life of the monitor.
The side-viewing angle is up to 160
degrees. It can be easily adjusted to
any vertical-viewing angle up to 100
degrees. The display works effectively
with any workstation.
An electrostatically-applied and
baked-on finish is used for extreme
durability for shipboard, airborne,
field deployments, and industrial or
lab applications where weight and
size are very critical.
5
Doc# 27-0002UM Issued 7/99 Rev. 1.2
TOOLS REQUIRED
PRECAUTIONS
Required Tools and Equipment
Flathead screwdriver with about 10"
shaft.
Phillips screwdriver with about 10"
shaft.
Computer Setup Diskette
In preparation to install the Command Console, take the following
precautionary steps:
Turn off the electrical power to your
computer.
Verify the Command Console power
switch is off. If the Console is off, the
light will not be illuminated.
DANGER: To avoid shock hazard:
Do not remove the covers around
the Command Console.
Do not connect or disconnect the
Command Console during an
electrical storm.
The power cord plug must be
connected to a properly wired
and grounded power outlet.
Any equipment to which the
Command Console will be
attached must also be connected
to properly wired and grounded
power outlets.
NOTE: For the fastest and easiest
installation of the
Command Console, follow
these steps in the sequence
they are presented.
Starting Point
6
Doc# 27-0002UM Issued 7/99 Rev. 1.2
SLIDE REMOVAL
With the Console sitting
on a workbench with the
front facing towards
you, press down to
release the Z-Locks on
each side of the front of
the Console to slide the
side rails back.
The slide rail will reach
a stop about half way
back.
This is a safety stop to
prevent the Console
sliding out too far while
mounted to the rack.
Simultaneously press in
the safety catches on
each slide rail and slide
the side rails all the way
off the back of the
Console.
The slides should now
be separated from the
Console.
Each slide unit includes
the slide rail, with the
front Z-lock mount and
the rear mount.
On the front of the
cabinet frame, use three
Phillips screws on each
side to secure the right
and left Z-Lock mounts.
DO NOT tighten these
screws to allow for
adjustment of the
Console within the
cabinet frame.
On the rear of the
cabinet frame, use the
two Phillips screws to
loosely secure the right
and left rear slide mount
to the cabinet frame.
DO NOT tighten these
screws fully at this time.
On the slide rails, using
a slot screwdriver,
loosen off the screw.
Repeat on each side.
INSTALL THE SLIDES IN THE CABINET FRAME
7
Install Rails
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Install Rails
Go back on the rear of
the cabinet frame, and
tighten the slide mount
to the cabinet frame.
Make sure you hold the
slide mounts hard
against the rack rail.
8
Doc# 27-0002UM Issued 7/99 Rev. 1.2
INSTALL THE COMMAND CONSOLE IN THE SLIDES
Pull the two Console
slides out until they lock.
Hold the Console by
each side, with the front
toward you.
Feed the four cables
coming out of the
Console back through
the cabinet frame.
Guide the Console into
the slides and slide the
Console in until it stops.
Simultaneously press in
the catches on each
slide and slide the
Console all the way into
the cabinet frame.
The Console should
slide in and out easily.
Slide the Console in
and out several times.
The Console should
easily close completely.
To be sure the slide and
mount assembly are
aligned properly, slide
the Console in and out
several times.
If the Console binds
during sliding, do the
following:
Because of variances in
cabinet frames, there
may need to be some
adjustments of the
Console slide system for
best fit and movement
of the Console in and
out.
TEST INSTALLATION AND MAKE ADJUSTMENTS
Install Console
9
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Loosen the screws on
each of the front Z-Lock
mounts.
FINAL ADJUSTMENTS OF THE COMMAND CONSOLE
Slide the Console
partially out.
Use a flathead screw
driver to slightly move
the Z-Locks out away
from the Console.
Tighten all the screws on
the front Z-Lock mounts.
Slide the Console in and
out to see if it moves
smoothly.
Go back to the rear of
the rack and fully
tighten the side rail
screws.
Note: A wrench may be
necessary to hold the
nut on the other side.
Install Console
10
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Close the storage tray
top, then place the
keyboard and mouse on
top of the tray door.
Using both hands,
gently lift the Console
screen by the top bar.
Open the storage tray
top.
Remove the keyboard
and mouse.
Align the Keyboard and
Mouse cable to pass
through the recessed
access notch.
With both hands, press
both the Z-Locks down
and
SETTING UP MONITOR KEYBOARD AND MOUSE
Slide the Console all
the way out.
The storage tray door
now becomes a
workstation for the
keyboard and mouse.
There should be ample
cable to both units for
movement around the
workstation.
11
Install Console
