Z Microsystems COMMAND CONSOLE 14 User Manual
Doc# 27-0001UM Issued 7/99 Rev. 1.2
Z Microsystems
COMMAND
CONSOLE
14
User Manual
FIELD-READY
Doc# 27-0001UM Issued 7/99 Rev. 1.2
1. Use the power and
video cables supplied
with the Command
Console to help
prevent interference
with radio and
television reception.
The use of cables
and adapters may
cause interference
with electronic
equipment in the
vicinity of this unit.
2. This equipment has
been tested and
found to comply with
the limits for Class
A digital devices,
pursuant to certain
limits imposed by
Part 15 of the FCC
rules. These limits are designed to provide
reasonable protection against harmful
interference in when equipment is operated in
commercial
environments. This
equipment generates,
uses and can radiate
radio frequency
energy, and, if not
installed and used in
accordance with the
instruction manual,
may cause harmful
interference to radio
communications.
3. Operation of this
equipment in a
residential area is
likely to cause
interference in which
case the user will be
required to correct the
interference at his
own expense.
Changes or modifications not expressly
approved by Z Microsystems could void
users authority to operate the equipment
FCC INFORMATION
Regulatory
2
COMMAND
CONSOLE
14
Doc# 27-0001UM Issued 7/99 Rev. 1.2
STARTING POINT 4
Shipment Contents 4
User Manual 4
System Requirements 4
Product Description 5
PREPARATION 6
INSTALL RAILS 7
INSTALL CONSOLE 8
FINAL ADJUSTMENTS 9
CABLES 9
SETUP 11
Closing Console 12
OPERATION 13
MONITOR ADJUSTMENTS 14
REFERENCE 18
TROUBLESHOOTING 20
SPECIFICATIONS 22
APPENDICES 23
SUPPORT 24
Further Help 24
Replacing Parts 25
Providing Feedback 25
Y2K Compliance 26
DRAWINGS 27
HARDWARE INSTALLATION 29
Contents
3
Doc# 27-0001UM Issued 7/99 Rev. 1.2
The User Manual comes in two
formats: printed hardcopy or CDROM. This Manual is also available
on the Z Microsystems website
(www.zmicro.com).
We recommend you read this manual
as follows:
Carefully follow the instructions in the
Installation and Testing chapter for
hookup and initial control settings.
Refer to the Operation chapter for a
complete description of all the user
controls, and the Maintenance and
Troubleshooting chapters for care and
correcting any unforeseen problems
with the system. The Appendices and
References chapters are provided for
quickly finding technical information
about the Command Console.
SYSTEM REQUIREMENTS
The Command Console works with
any computer system that provides
industry standard screen formats from
640 x 480 to 1024 x 768, with up to
75 Hz vertical sync. See the Specifications Table of this Manual for a
complete listing of all resolutions
supported.
The Command Console requires a
computer with a suitable onboard
subsystems for Video Adapter Card
that can support XGA 1024 x 768,
SVGA 800 x 600, or VGA 640 x 480
at 60 Hz
The Command Console shipping box
contains the following:
The Command Console Unit
Video Signal Cable
AC/DC Power Supply Brick with
attached DC cable
AC Power Cable
Setup Diskette
User Manual
Remember to save your original
shipping container and packing
material to transport or ship the
Command Console.
SHIPMENT CONTENTS
4
Doc# 27-0001UM Issued 7/99 Rev. 1.2

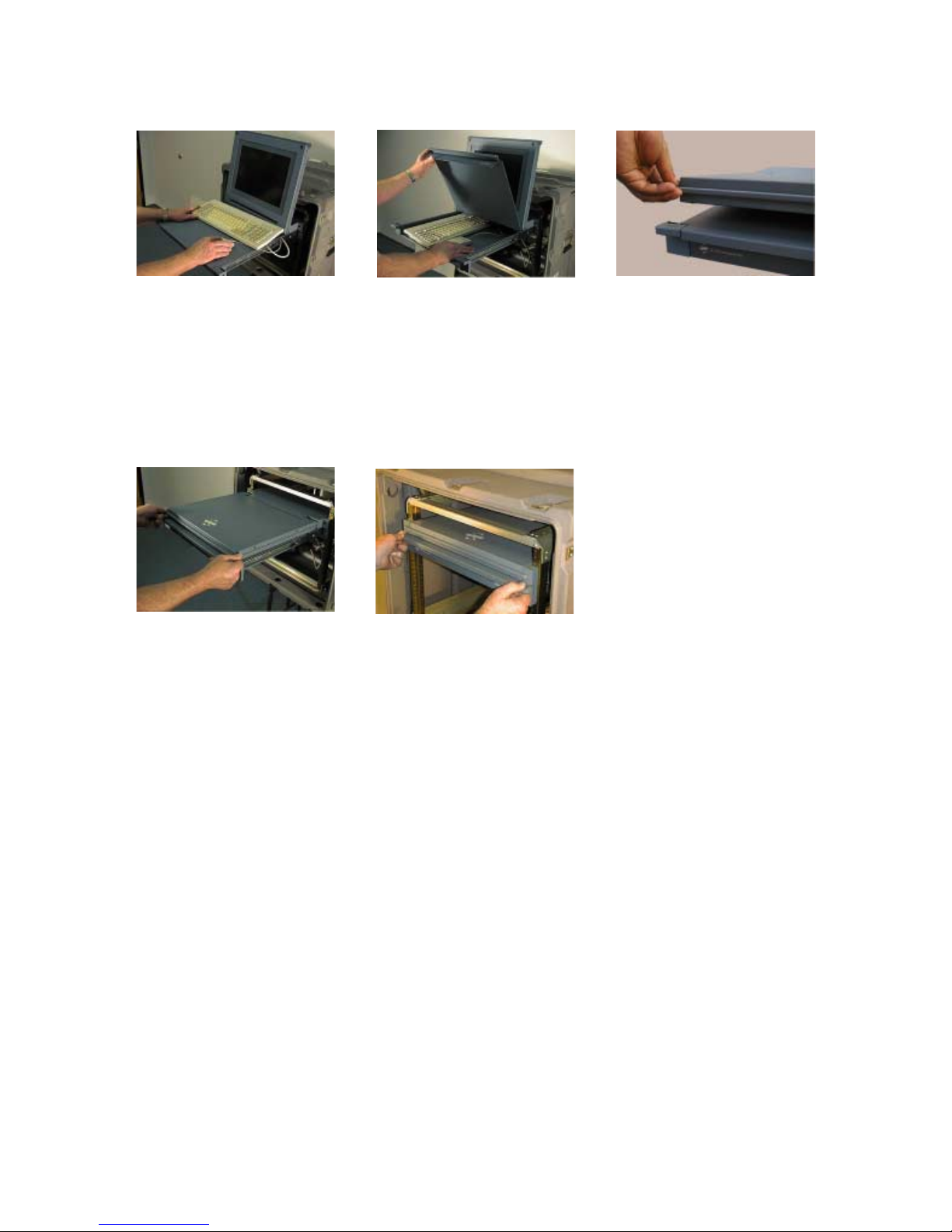

PRODUCT DESCRIPTION
The Command
Console provides
a liquid crystal
display, a desk
work surface and
storage for any
size keyboard
and mouse in a
3.5" high (2U)
standard 19"
rack or transit
case.
Specially designed locks on
each side of the
Command
Console hold the
compact folded
unit securely in
place during
storage.
Release of the
two Z-Locks on
the front sides of
the Console
allow it to slide
out and the LCD
display to quickly
swing up into a
reading position
By lifting up the
desktop, the
keyboard and
mouse can be
easily removed
and set on top.
The lightweight and durable aluminum construction provides exceptional
strength in field applications.
The high quality LCD screen provides
full color and features up to 1024 x
768 pixel resolution.
The LCD screen has a backlight
control that reduces power and
extends the life of the monitor.
The side-viewing angle is up to 160
degrees. It can be easily adjusted to
any vertical-viewing angle up to 100
degrees. The display works effectively
with any workstation.
An electrostatically-applied and
baked-on finish is used for extreme
durability for shipboard, airborne,
field deployments, and industrial or
lab applications where weight and
size are very critical.
5
Doc# 27-0001UM Issued 7/99 Rev. 1.2
TOOLS REQUIRED
PRECAUTIONS
Required Tools and Equipment
Flathead screwdriver with about 10"
shaft.
Phillips screwdriver with about 10"
shaft.
Computer Setup Diskette
In preparation to install the Command Console, take the following
precautionary steps:
Turn off the electrical power to your
computer.
Verify the Command Console power
switch is off. If the Console is off, the
light will not be illuminated.
DANGER: To avoid shock hazard:
Do not remove the covers around
the Command Console.
Do not connect or disconnect the
Command Console during an
electrical storm.
The power cord plug must be
connected to a properly wired
and grounded power outlet.
Any equipment to which the
Command Console will be
attached must also be connected
to properly wired and grounded
power outlets.
NOTE: For the fastest and easiest
installation of the
Command Console, follow
these steps in the sequence
they are presented.
Starting Point
6
Doc# 27-0001UM Issued 7/99 Rev. 1.2
SLIDE REMOVAL
With the Console sitting
on a workbench with the
front facing towards
you, press down to
release the Z-Locks on
each side of the front of
the Console to slide the
side rails back.
The slide rail will reach
a stop about half way
back.
This is a safety stop to
prevent the Console
sliding out too far while
mounted to the rack.
Simultaneously press in
the safety catches on
each slide rail and slide
the side rails all the way
off the back of the
Console.
The slides should now
be separated from the
Console.
Each slide unit includes
the slide rail, with the
front Z-lock mount and
the rear mount.
On the front of the
cabinet frame, use three
Phillips screws ((V) see
page 30 - Install
hardware ) on each side
to secure the right and
left Z-Lock mounts.
DO NOT tighten these
screws to allow for
adjustment of the
Console within the
cabinet frame.
On the rear of the
cabinet frame, use the
three Phillips screws ((W)
see page 30 - Install
hardware) to loosely
secure the right and left
rear slide mount to the
cabinet frame.
DO NOT tighten these
screws fully at this time.
On the slide rails, using
a slot screwdriver,
loosen off the slide
extension rail screw ((U)
see page 30 - Install
hardware ). Repeat on
each side.
INSTALL THE SLIDES IN THE CABINET FRAME
Install Rails
7
Doc# 27-0001UM Issued 7/99 Rev. 1.2
Install Rails
Go back on the rear of
the cabinet frame, and
fully tighten the three
Phillips screws ((W) see
page 30 - Install
hardware) holding the
slide extension rail to
the cabinet frame.
Make sure you hold the
slide mounts hard
against the rack rail.
8
Doc# 27-0001UM Issued 7/99 Rev. 1.2
INSTALL THE COMMAND CONSOLE IN THE SLIDES
Pull the two Console
slides out until they lock.
Hold the Console by
each side, with the front
toward you.
Feed the four cables
coming out of the
Console back through
the cabinet frame.
Guide the Console into
the slides and slide the
Console in until it stops.
Simultaneously press in
the catches on each
slide and slide the
Console all the way into
the cabinet frame.
The Console should
slide in and out easily.
Slide the Console in
and out several times.
The Console should
easily close completely.
To be sure the slide and
mount assembly are
aligned properly, slide
the Console in and out
several times.
If the Console binds
during sliding, do the
following:
Because of variances in
cabinet frames, there
may need to be some
adjustments of the
Console slide system for
best fit and movement
of the Console in and
out.
TEST INSTALLATION AND MAKE ADJUSTMENTS
Install Console
9
Doc# 27-0001UM Issued 7/99 Rev. 1.2
Loosen the screws on
each of the front Z-Lock
mounts.
FINAL ADJUSTMENTS OF THE COMMAND CONSOLE
Slide the Console
partially out.
Use a flathead screw
driver to slightly move
the Z-Locks out away
from the Console.
Tighten all the screws on
the front Z-Lock mounts.
Slide the Console in and
out to see if it moves
smoothly.
Go back to the rear of
the rack and fully
tighten the slide
extension rail screw ((U)
see page 30 - Install
hardware ).screws.
Note: A wrench may be
necessary to hold the
nut on the other side.
Install Console
10
