COMMAND
CONSOLE
FIELD-READY
FIELD-READY
15
User Manual
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Z Microsystems
Z Microsystems
Regulatory
FCC INFORMATION
1. Use the power
and video
cables supplied
with the
Command
Console to help
prevent
interference
with radio and
television
reception. The
use of cables
and adapters
may cause
interference
with electronic
equipment in
the vicinity of
this unit.
2. This equipment
is pending
approval for a
Class A digital device,
pursuant to certain limits
imposed by Part 15 of the
FCC rules. These limits are
designed to provide
reasonable protection
against harmful interference
in a residential installation.
This equipment generates,
uses and can radiate radio
frequency energy, and, if not
installed and used in
COMMAND
CONSOLE
15
accordance with the
instructions, may cause
harmful interference to radio
communications. However
there is no guarantee that
interference will not occur in
a particular installation. If
this equipment does cause
harmful interference, to
radio or television reception,
which can be determined by
turning the equipment off
and on, the user is
encouraged to try to correct
the interference by one or
more of the following
measures:
Reorient or relocate the
receiving antenna.
Increase the separation
between the equipment and
receiver.
Connect the equipment into
an outlet on a circuit
different from that to which
the receiver is connected.
Consult your dealer or an
experienced radio/TV
technician for help.
3. If necessary, the user should
contact the dealer or an
experienced radio/television
technician for additional
suggestions. The user may
find the following booklet,
prepared to be the FCC,
helpful: How to Identify
and Resolve Radio-TV
Interference Problems. This
booklet is available from the
U.S. Government Printing
Office, Washington, DC,
20402, Stock No. 00400345-4.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
2
Contents
STARTING POINT 4
Shipment Contents 4
User Manual 4
System Requirements 4
Product Description 5
PREPARATION 6
INSTALL RAILS 7
INSTALL CONSOLE 9
FINAL ADJUSTMENTS 10
SETUP 11
CLOSING CONSOLE 12
OPERATION 13
CONFIGURE MONITOR 14
Setup For Windows 95 or 98 14
Auto Setup 15
Auto Setup for DOS 15
Auto Setup for Windows 3.1
95, 98 or NT 16
ADJUSTMENTS 18

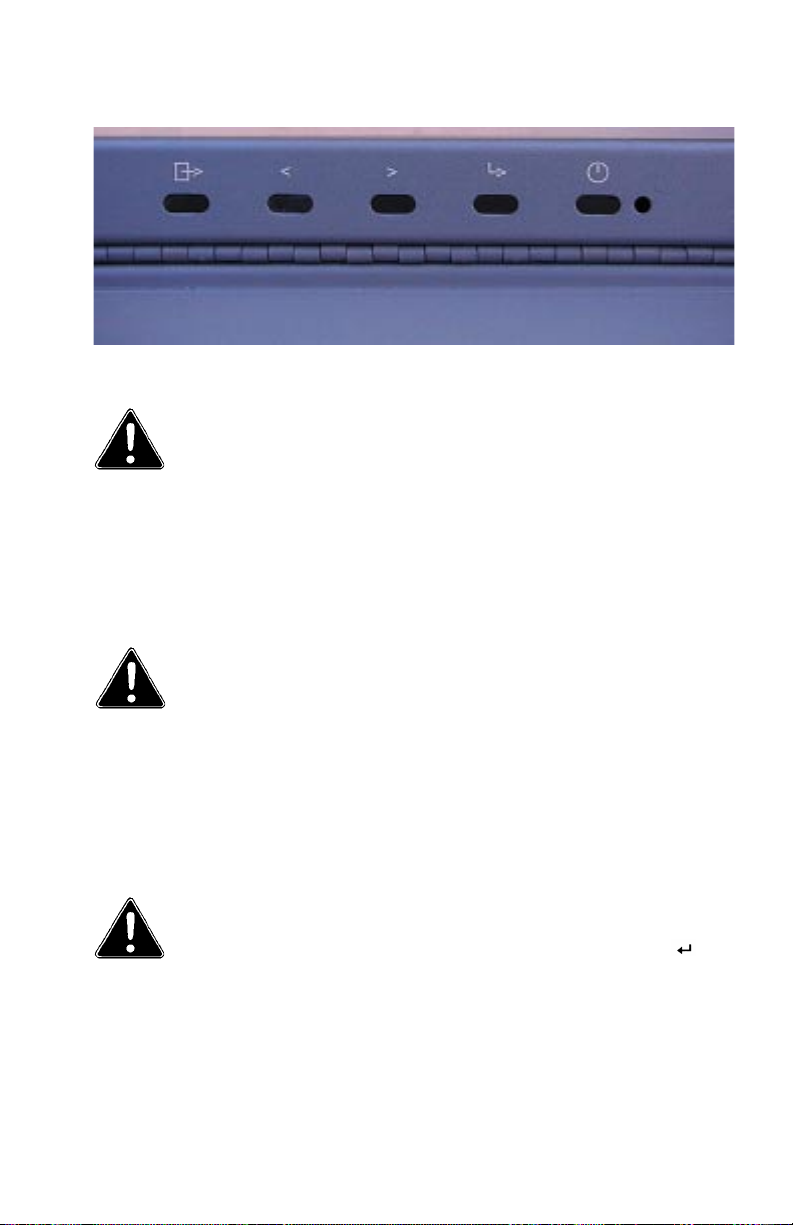

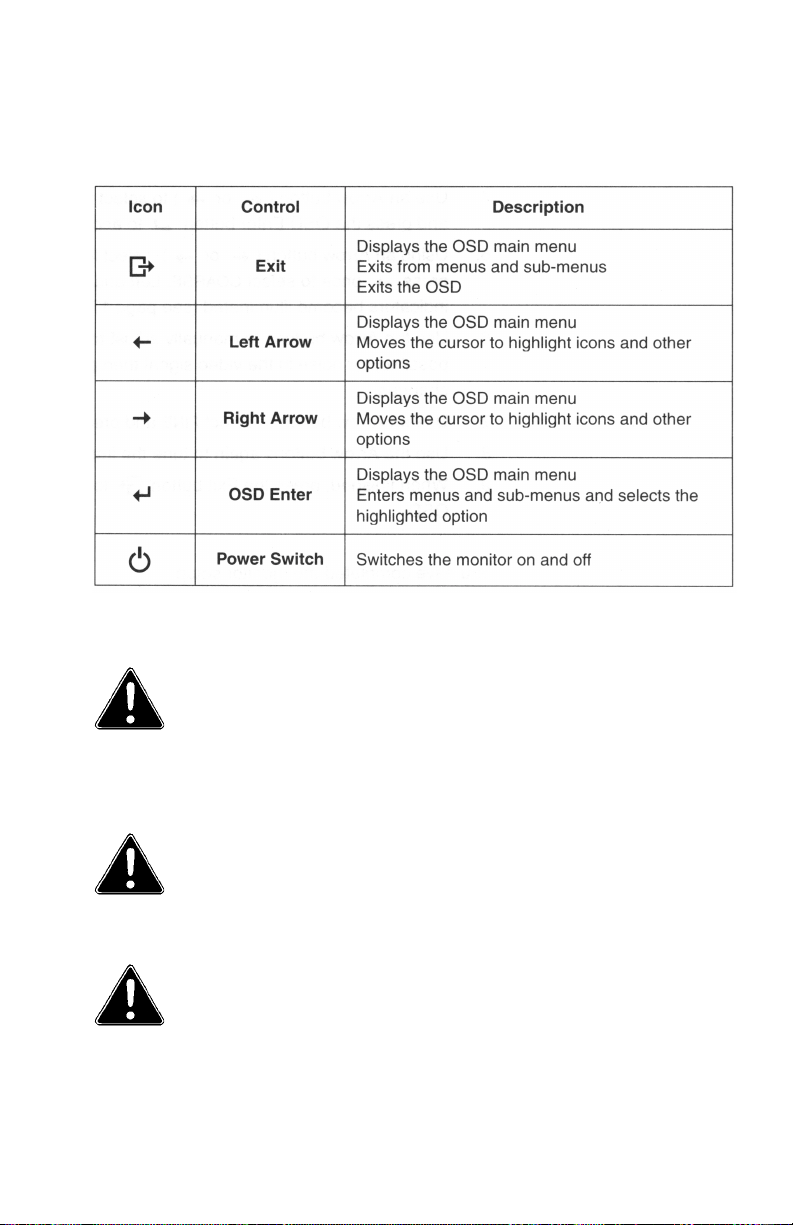

User Control Features 18
Operation 18
OSD Lock/Unlock 19

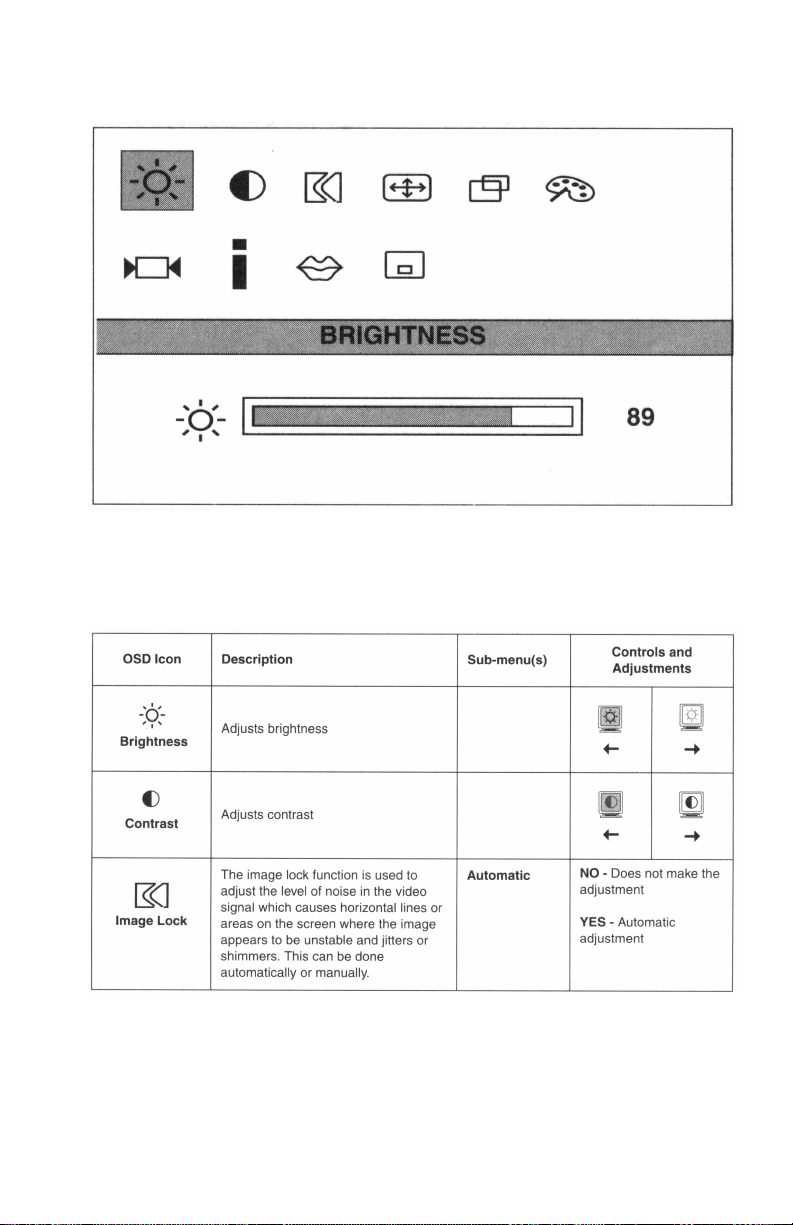

On-Screen Display (OSD) 19

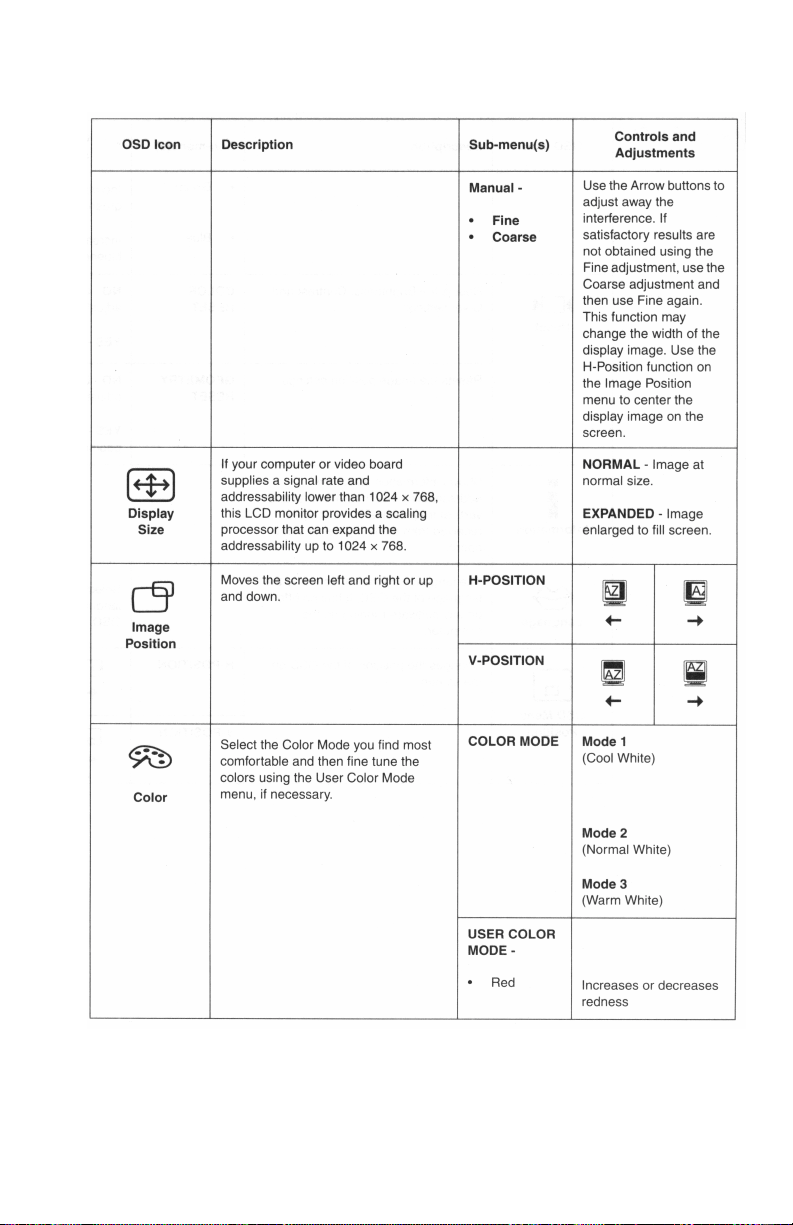

OSD Functions 20
MAINTENANCE 23
TROUBLESHOOTING 24
Causes and Corrective Action 24
APPENDICES 26
Display Modes 26
Power Management 27
SPECIFICATIONS 28
Display Specifications 28
Supported Display Modes 28
Communications 28
Power Input 28
Power Consumption 28
Performance Tested 28
Environmental Specifications 28
Regulatory 29
Reliability Specifications 29
Developmental Options 29
SUPPORT 30
Further Help 30
Replacing Parts 31
Providing Feedback 31
Y2K COMPLIANCE 32

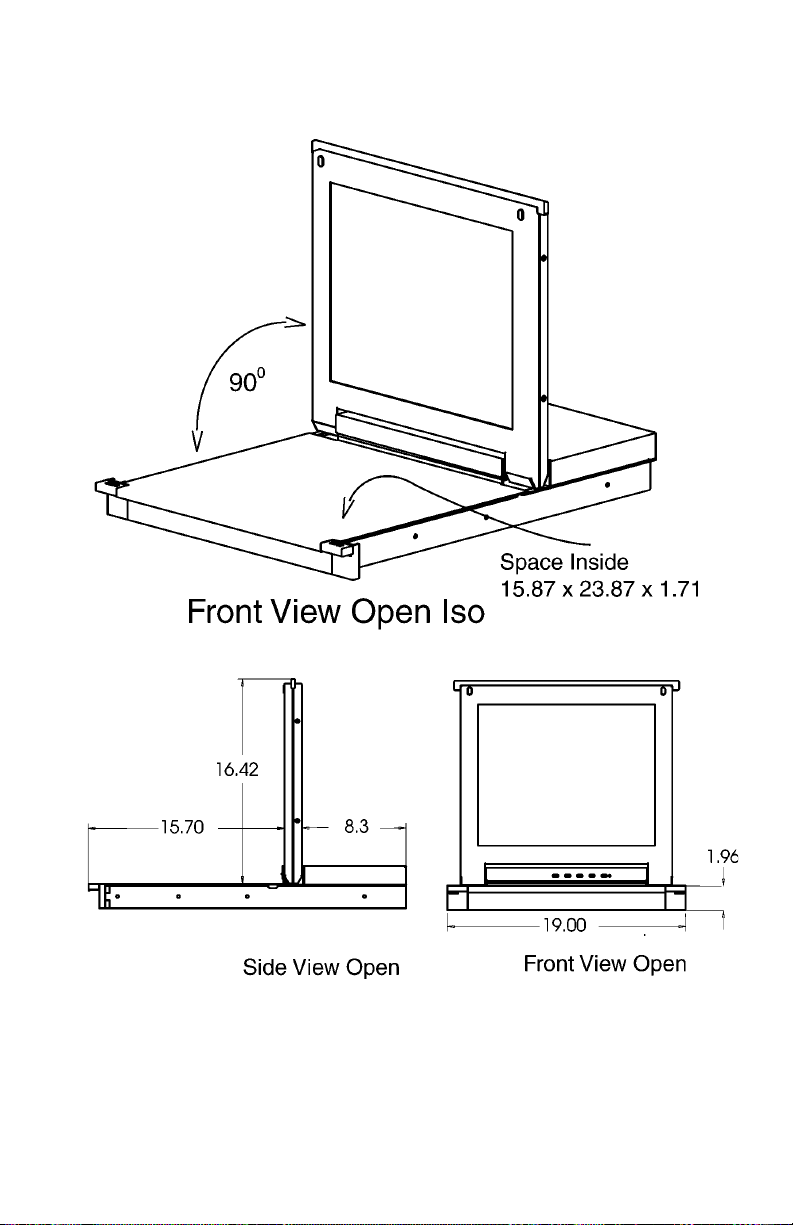

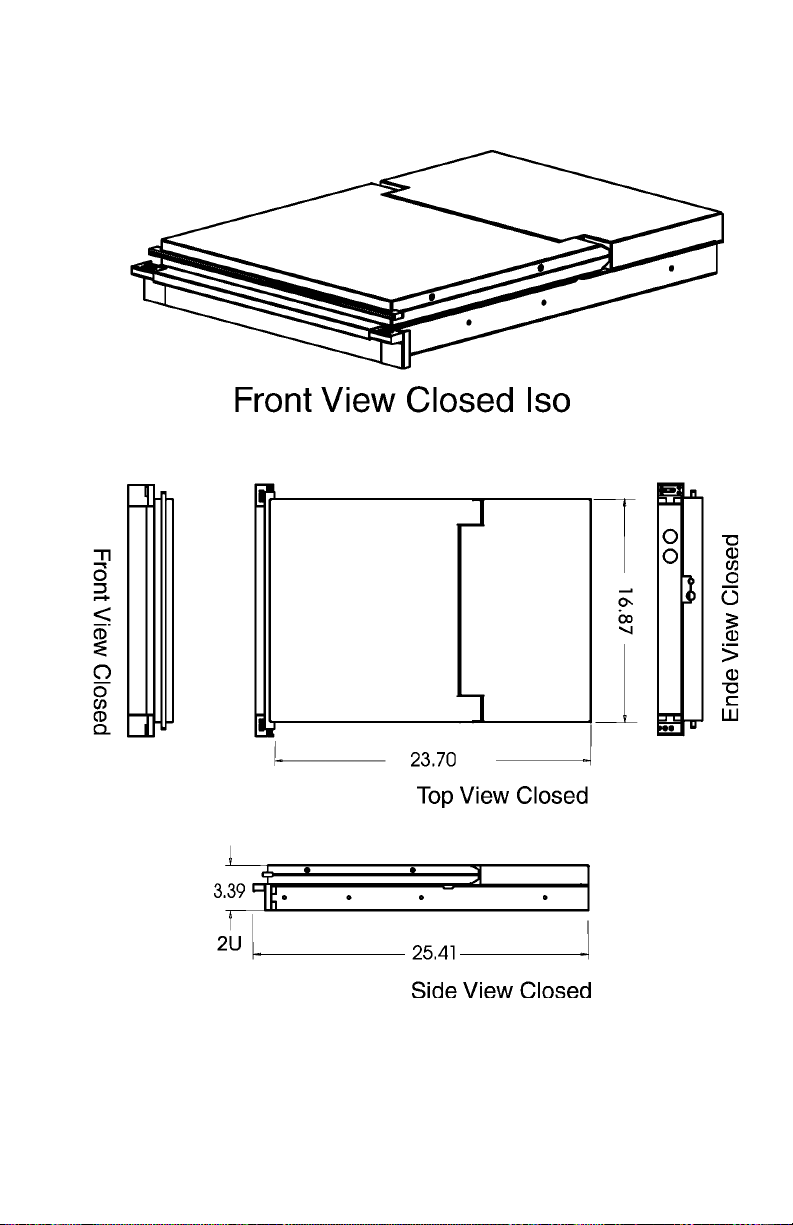

DRAWINGS 33
Doc# 27-0002UM Issued 7/99 Rev. 1.2
3
The Command Console shipping box
contains the following:
The Command Console Unit
Video Signal Cable
AC/DC Power Supply Brick with
attached DC cable
AC Power Cable
Setup Diskette
User Manual
Remember to save your original
shipping container and packing
material to transport or ship the
Command Console.
USER MANUALSHIPMENT CONTENTS
The User Manual comes in two
formats: printed hardcopy or CDROM. This Manual is also available
on the Z Microsystems website
(www.zmicro.com).
We recommend you read this manual
as follows:
Carefully follow the instructions in the
Installation and Testing chapter for
hookup and initial control settings.
Refer to the Operation chapter for a
complete description of all the user
controls, and the Maintenance and
Troubleshooting chapters for care and
correcting any unforeseen problems
with the system. The Appendices and
References chapters are provided for
quickly finding technical information
about the Command Console.
SYSTEM REQUIREMENTS
The Command Console works with
any computer system that provides
industry standard screen formats from
640 x 480 to 1280 x 1024, with up to
75 Hz vertical sync. See the Specifications Table of this Manual for a
complete listing of all resolutions
supported.
The Command Console requires a
computer with a suitable onboard
subsystems for Video Adapter Card
that can support XGA 1024 x 768,
SVGA 800 x 600, or VGA 640 x 480
at 60 Hz
Doc# 27-0002UM Issued 7/99 Rev. 1.2
4
PRODUCT DESCRIPTION
The Command
Console provides
a liquid crystal
display, a desk
work surface and
storage for any
size keyboard
and mouse in a
3.5" high (2U)
standard 19"
rack or transit
case.
The lightweight and durable aluminum construction provides exceptional
strength in field applications.
The high quality LCD screen provides
full color and features up to 1280 x
1024 pixel resolution.
The LCD screen has a backlight
control that reduces power and
extends the life of the monitor.
The side-viewing angle is up to 160
degrees. It can be easily adjusted to
Specially designed locks on
each side of the
Command
Console hold the
compact folded
unit securely in
place during
storage.
Release of the
two Z-Locks on
the front sides of
the Console
allow it to slide
out and the LCD
display to quickly
swing up into a
reading position
any vertical-viewing angle up to 100
degrees. The display works effectively
with any workstation.
An electrostatically-applied and
baked-on finish is used for extreme
durability for shipboard, airborne,
field deployments, and industrial or
lab applications where weight and
size are very critical.
By lifting up the
desktop, the
keyboard and
mouse can be
easily removed
and set on top.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
5
Starting Point
TOOLS REQUIRED
Required Tools and Equipment
Flathead screwdriver with about 10"
shaft.
Phillips screwdriver with about 10"
shaft.
Computer Setup Diskette
DANGER: To avoid shock hazard:
Do not remove the covers around
the Command Console.
Do not connect or disconnect the
Command Console during an
electrical storm.
The power cord plug must be
connected to a properly wired
and grounded power outlet.
Any equipment to which the
Command Console will be
attached must also be connected
to properly wired and grounded
power outlets.
PRECAUTIONS
NOTE: For the fastest and easiest
installation of the
Command Console, follow
these steps in the sequence
they are presented.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
In preparation to install the Command Console, take the following
precautionary steps:
Turn off the electrical power to your
computer.
Verify the Command Console power
switch is off. If the Console is off, the
light will not be illuminated.
6
SLIDE REMOVAL
Install Rails
With the Console sitting
on a workbench with the
front facing towards
you, press down to
release the Z-Locks on
each side of the front of
the Console to slide the
side rails back.
The slide rail will reach
a stop about half way
back.
This is a safety stop to
prevent the Console
sliding out too far while
mounted to the rack.
Simultaneously press in
the safety catches on
each slide rail and slide
the side rails all the way
off the back of the
Console.
The slides should now
be separated from the
Console.
Each slide unit includes
the slide rail, with the
front Z-lock mount and
the rear mount.
INSTALL THE SLIDES IN THE CABINET FRAME
On the front of the
cabinet frame, use three
Phillips screws on each
side to secure the right
and left Z-Lock mounts.
DO NOT tighten these
screws to allow for
adjustment of the
Console within the
cabinet frame.
On the rear of the
cabinet frame, use the
two Phillips screws to
loosely secure the right
and left rear slide mount
to the cabinet frame.
DO NOT tighten these
screws fully at this time.
On the slide rails, using
a slot screwdriver,
loosen off the screw.
Repeat on each side.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
7
Install Rails
Go back on the rear of
the cabinet frame, and
tighten the slide mount
to the cabinet frame.
Make sure you hold the
slide mounts hard
against the rack rail.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
8
Install Console
INSTALL THE COMMAND CONSOLE IN THE SLIDES
Pull the two Console
slides out until they lock.
Hold the Console by
each side, with the front
toward you.
Feed the four cables
coming out of the
Console back through
the cabinet frame.
Guide the Console into
the slides and slide the
Console in until it stops.
Simultaneously press in
the catches on each
slide and slide the
Console all the way into
the cabinet frame.
The Console should
slide in and out easily.
TEST INSTALLATION AND MAKE ADJUSTMENTS
Slide the Console in
and out several times.
The Console should
easily close completely.
Because of variances in
cabinet frames, there
may need to be some
adjustments of the
Console slide system for
best fit and movement
of the Console in and
out.
To be sure the slide and
mount assembly are
aligned properly, slide
the Console in and out
several times.
If the Console binds
during sliding, do the
following:
Doc# 27-0002UM Issued 7/99 Rev. 1.2
9
Install Console
FINAL ADJUSTMENTS OF THE COMMAND CONSOLE
Loosen the screws on
each of the front Z-Lock
mounts.
Slide the Console
partially out.
Use a flathead screw
driver to slightly move
the Z-Locks out away
from the Console.
Tighten all the screws on
the front Z-Lock mounts.
Slide the Console in and
out to see if it moves
smoothly.
Go back to the rear of
the rack and fully
tighten the side rail
screws.
Note: A wrench may be
necessary to hold the
nut on the other side.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
10
Install Console
SETTING UP MONITOR KEYBOARD AND MOUSE
With both hands, press
both the Z-Locks down
and
Open the storage tray
top.
Remove the keyboard
and mouse.
Slide the Console all
the way out.
Align the Keyboard and
Mouse cable to pass
through the recessed
access notch.
Using both hands,
gently lift the Console
screen by the top bar.
Close the storage tray
top, then place the
keyboard and mouse on
top of the tray door.
The storage tray door
now becomes a
workstation for the
keyboard and mouse.
There should be ample
cable to both units for
movement around the
workstation.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
11
Closing Console
CLOSING DOWN THE MONITOR
Remove the keyboard
and mouse from top.
Open the storage tray
top.
Slide the Console in
with both hands.
Place the keyboard and
mouse inside the tray
along with all cables
and close door.
Press both the Z-Locks
down and and slide in
the console untill you
hear the positive click
from the lock.
Using both hands,
gently drop the Console
screen by the top bar
until it lays flat.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
12
INSTALLING CABLES
WARNING: Be sure all electrical
power to the cabinet is off
before connecting any of the
cables.
WARNING: There is a key guide for
alignment on all the cables.
Be sure the cable plug and
receptacles are aligned
properly using the key
guide. Misalignment can
cause short circuiting.
Operation
4 cables connect the back of the
Console to the computer.
Power cable
Video cable
Keyboard cable
Mouse cable
To connect the four cables:
Turn off the computer and all
attached devices.
Connect the video cable to the
video port on the back of the
computer.
Insert the power plug into a properly
grounded electrical outlet.
POWERING UP
Switch the Console
monitor on by pushing
and releasing the power
switch marked.
Turn on the monitor and
then the computer.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
13
Configure Monitor
The Command Console offers several methods to set up the monitor, depending on the operating system used for your computer. Use the Setup Diskette
and select the setup that is best for your computer operating system.
When first used, you must perform Automatic Setup (AUTO SETUP). This
procedures sets up the monitor to process the video signals from the computer
without image discoloration or smearing. After performing AUTO SETUP, the
settings are stored and used each time the monitor is turned on.
The Setup Utility included on the Setup Diskette is for display dot patterns.
They do not replace or modify the display driver.
The Automatic Setup instructions require the monitor to be warmed up for 15
minutes. However, this is not required for normal operation.
SETUP FOR WINDOWS 95 OR WINDOWS 98
NOTE: This section must be
completed before
continuing with the
Windows 95 or Windows
98 Auto Setup for the
computer.
To use the Plug and Play feature in
Windows 95 or Windows 98, files
should be loaded from the Setup
Diskette as follows:
1. Turn the computer off and attach
devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the
computer. Allow the computer to
boot into Windows 95 or Windows
98. The computers Plug and Play
code may display a warning that
the system hardware has changed.
This probably means that it has
detected the new monitor for the
first time.
4. Open the DISPLAY PROPERTIES
window by clicking on START,
SETTINGS, CONTROL PANEL and
then double clicking on the
DISPLAY icon.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
5. Select the SETTINGS tab.
6. Select the CHANGE DISPLAY TYPE
button.
7. Select the CHANGE MONITOR
TYPE button.
8. Insert the Setup Diskette into drive
A: and select the Have Diskette
button.
9. Select OK.
10. Choose IBM T55A monitor and
select OK. The files will be copied
from the diskette to the computer
hard drive.
11. Close all open windows and
remove the diskette.
12. Reboot the computer system. The
system will automatically select the
maximum refresh rate and corresponding Color Matching Profiles.
14
Configure Monitor
AUTO SETUP
NOTE: After making changes in
the Setup, the computer
must be Rebooted to
insure proper changes to
the CONFIG.SYS and
AUTOEXEC.BAT files.
NOTE: Before proceeding with
the next section, it is very
important that The Setup
Diskette for Windows 95
or Windows 98 has been
run.
Locate the operating system installed
on the computer in the Table below
and follow the appropriate instructions. You may choose to run Auto
Setup for each operating system that
is used. This means that if sometimes
the monitor is used while running any
version of Windows and sometimes it
is also used within DOS (not a DOS
window), you must run Auto Setup for
both Windows and DOS. You may run
versions of Auto Setup in any order.
NOTE: If your computer does
not run with the Setup
Diskette shipped with the
monitor, refer to Manual
Setup.
NOTE: The Auto Setup process
only applies to the
current screen mode.
When a new mode is
selected, repeat this
section to reset the
monitor.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Before beginning Auto Setup for the
computer:
Make a backup copy of the Setup
Diskettes supplied with the monitor.
Make sure the computers video
mode is set in the range of the
supported screen resolution shown
in the table in the Reference section.
Perform Auto Setup for each screen
mode used.
15
Configure Monitor
AUTO SETUP FOR WINDOWS 3.1, 95, 98 OR NT
NOTE: If the monitor is in
standby mode (STANDBY
ON), it may automatically turn off while you
are waiting for it to
warm up.
NOTE: The size and diversity of
the dot pattern varies with
the screen resolution.
NOTE: Position the mouse
pointer at the bottom
center of the screen. This
allows Auto Setup to run
properly.
1. Turn the monitor on first, then the
computer. If the message CHECK
SIGNAL CABLE is displayed. If
nothing is displayed check:
that the video interface cable is
connected properly.
the correct video adapter card is
installed.
the correct support display mode is
selected for the computer.
2. Wait approximately 15 minutes,
until the monitor warms up.
3. Drag the icon bar and tool bar, if
they are displayed, to the bottom of
the screen.
4. Insert the Setup Diskette into the
diskette drive.
5. Check the operation system
installed on your computer and
follow the instructions from the
table above.
6. When the test pattern appears,
press the OSD Enter button
the bottom of the monitor to
display the initial OSD menu.
at
Doc# 27-0002UM Issued 7/99 Rev. 1.2
16
Configure Monitor
7. Use an Arrow button ( ) to
select the Image Lock icon (symbol
of Image Lock) and press OSD
Enter button
function.
8. Using an Arrow button (
select Automatic and press the
OSD Enter button
vates the Auto Setup procedure,
which will optimize the display
settings with the provided test
pattern. The screen will dim, blink
on and off several times, and you
may notice small changes to the
test pattern. To abort the Auto
Setup function, press the Esc key.
9. When finished, the OSD main
menu returns. Press the Exit button
once to exit from the OSD.
10. Press the Esc key to return to
Windows. You have completed the
monitor setup for Windows.
to access the
),
. This acti-
Doc# 27-0002UM Issued 7/99 Rev. 1.2
You have completed the monitor
setup for Windows. If you use other
operating systems, perform the
appropriate AUTO SETUP for those
systems.
17
Monitor Adjustments
User Control Features
Making adjustments to the Command Console screen is a matter of performing the following easy On-Screen Display steps:
Operation
NOTE: The image is already
optimized for many
display modes, however
the user controls can be
used to adjust the image
to your liking.
NOTE: The settings saved after
adjustment and when
existing the OSD and will
be effective thereafter.
NOTE: After making adjust-
ments, the Power
indicator LED will
briefly turn amber to
indicate that the new
value has been saved.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Press any of the OSD control
buttons to display the main OSD
menu.
Use the Arrow buttons to move
among the icons. Select an icon
and press OSD Enter to access that
function. If there is a submenu,
you can move between options
using the Arrow buttons, then press
OSD Enter to select that function.
Use the Arrow buttons to make
adjustments.
Press the Exit button to move
backwards through the submenus
and exit from the OSD.
18
Monitor Adjustments
OSD Lock/Unlock
This feature allows you to secure
the current control settings, while
allowing the user to adjust Brightness and Contrast, so that they
cannot be inadvertently changed,
you can unlock the OSD controls at
any time by using the same
procedure.
Push and hold the button 10
seconds to Lock or to Unlock.
When locked, a LOCKED
message will be displayed.
On-Screen Display (OSD) Controls
NOTE: The LCD monitor needs time
to become thermally stable
the first time you turn it on
each day. Thus, to achieve
more accurate adjustments
for parameters. Allow the
LCD monitor to warm up
(be On) for at least 15
minutes before making any
screen adjustments.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
19
Monitor Adjustments
Initial Appearance of OSD
OSD Functions
Doc# 27-0002UM Issued 7/99 Rev. 1.2
20
Monitor Adjustments
OSD Functions
Doc# 27-0002UM Issued 7/99 Rev. 1.2
21
Monitor Adjustments
OSD Functions
Doc# 27-0002UM Issued 7/99 Rev. 1.2
22
Maintenance
CLEAN MONITOR
• Gently wipe the covers and the
screen with a soft cloth.
• Remove finger marks and grease
with a damp cloth and mild
detergent. DO NOT use solvents
or abrasives.
WARNING: To avoid risk of electric
shock, do not disassemble the
monitor cabinet. Users cannot
service the monitor. User
maintenance is restricted to
cleaning as explained below.
Be sure to turn off the power before you perform any maintenance on the
monitor.
• Never use flammable cleaning
material to clean the monitor or
other electrical apparatus.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
23
Troubleshooting
WARNING: Be sure to turn off the
power before you perform
any maintenance on the
monitor.
CAUSES AND CORRECTIVE ACTION
NOTE: For image problems, you
may want to run AUTO
SETUP again before
consulting to this section. In
most cases, AUTO SETUP can
fix the problems.
Doc# 27-0002UM Issued 7/99 Rev. 1.2
24
Troubleshooting
Doc# 27-0002UM Issued 7/99 Rev. 1.2
25
Display Modes
The display mode the monitor uses is
controlled by the computer. Refer to
the computer documentation for
details on how to change display
modes.
The image size, position and shape
may change when the display mode
changes. This is normal and the
image can be readjusted using AUTO
SETUP and the monitor controls.
Unlike CRT monitors, which require a
high refresh rate to minimize flicker,
TFT technology is inherently flickerfree. If possible, configure the
computer for 1024 x 768
addressablility at 60 Hz vertical
refresh rate.
For the Factor Set Display Modes listed
below, the screen image has been
optimized during manufacture.
FACTORY SET DISPLAY MODES
Doc# 27-0002UM Issued 7/99 Rev. 1.2
26
Display Modes
POWER MANAGEMENT
NOTE: If the computer has
previously been used with a
CRT monitor and is
currently configured to a
display mode outside the
range that the Flat Panel
monitor can display,
reattach the CRT monitor
temporarily until the
computer is reconfigured,
preferably to 1024 x 768 at
60 Hz.
To benefit from power management,
the monitor must be used in conjunction with a computer that implements
the Video Electronics Standards
Association (VESA) Display Power
Management Signaling (DPMS)
Standard.
The power management feature is
invoked when the computer recognizes that the mouse and keyboard
have not been used for a userdefinable period. There are several
states as described in the table
below.
It is recommended that the monitor
be switched off at the end of each
working day, or whenever it is
expected to be unused for long
periods during the day.
The following is the Power Management Table:
Doc# 27-0002UM Issued 7/99 Rev. 1.2
27
Specifications
Display Specifications
Display Type AMLCD
Display Area Diagonal 15.0 (381 mm)
Viewing Area 11.97 (304 mm) x 8.97 (228 mm)
Viewing Angle 160 degrees (horizontal/vertical)
Resolution 1024 x 768, RGB Vertical Strip
Color Pixel Size Hor. - 0.297 mm, Ver. - 0.297 mm
Colors Full Color (millions)
Contrast Ratio 220:1 (typ)
Luminance 180 cd/m2 (typ)
Screen Refresh 75 Hz
Input Signal Analog VGA, SVA, XGA, SXGA
Sync Types Separate, Composite (on H Sync),
Sync on Green
Video Connectors BNC, 13W3, HD15
Response Time 58ms (type) black to white
Clock Frequency 80 MHz
Supported Display Modes
VESA Standard modes between
Horiz. Frequency 30 kHz - 61 kHz
Vert. Frequency 56 Hz - 75 Hz
Communications
VESA DDC 2 B
Power Input
Supply Voltage 90 260 Vac 60/50+/- 3hZ
Max. Supply Current 1.0 A at 120 Vac
Power Consumption
Normal Operation < 40 W
DPMS Standby < 5 W
DPMS Suspend < 5 W
DPMS off < 5 W
Performance Tested
Acoustic signal data, (taped and generated), electron-optical live video.
Cold soak and display photometric/radiometric characteristics
Environmental Specifications
Temperature -10 to +35 C Operating
-20 C to +60 C Nonoperating
-20 C to +60 C Shipping
Humidity 10% to +80% Operating
5% to +95% Noncondensing
5% to +95% Shipping
Altitude 0 to 15,000 ft. Operating
0 to 40,000 Nonoperating
28
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Specifications
Shock 15 G, 11 mS Operating 30 G,
11mS Nonoperating Bench handing
per MIL-STD-810E
Vibration, Random 3.0G RMS, 20-2,000 Hz Operating
4.0G HMS, 20-2,000Hz Nonoperating
Enclosure NEMA 4/12 at front panel
Weight 24 lb.
Sand and Dust 5.5 M.P.H. for 25 minutes
Rain Per MIL-STD-810E, method 506.3,
procedure II
Fungus Non Nutrients/contaminants
Regulatory
EM/RFI FCC Class A, MIL-STD-401 (optional)
Safety (Pending Approval) FCC Class A: UL
1950
Reliability Specifications
Mean-time-between-failure (MTBF) 20,000 hours (Bellcore)
Operating Life 10 years without major overhaul
Quality Assurance Complies with MIL-1-45208 and MIL-
Q-9858
Maintainability MTTR <30 minutes or less
Developmental Options
Touch panel
28 VDC operation
Elapsed time meter
Customer specified mounting
Interchangeably power supply
Doc# 27-0002UM Issued 7/99 Rev. 1.2
29
Support
FURTHER HELP
NOTE: For image problems, run
AUTO SETUP again before
consulting this section. In
most cases, AUTO SETUP can
fix the problems. See the
Auto Setup section for
details.
NOTE: If possible, stay by the
computer. The Z
Microsystems Technical
Support Representative may
wish to go through the
problem over the telephone.
If you are unable to correct the
problem yourself, contact:
Z Microsystems at:
(858) 657-1000
Fax: (858) 657-1001
Website: www.zmicro.com
Before calling, please have available
as much of the following information
as possible:
1. Model and serial number from the
label on the monitor.
2. Purchase P.O.
3. Description of problem.
4. Computer type and model.
5. System configuration (hardware
fitted, etc.).
6. System BIOS version number.
7. Operating System and version
number.
8. Display driver version number.
9. Video Adapter Type.
NOTE: More help, late-breaking
news and details of the latest
accessories for these products
may be found on the
worldwide web at: http://
www.zmicro.com
Doc# 27-0002UM Issued 7/99 Rev. 1.2
30
Support
If the Z Microsystems Technical
Support Engineer determines that the
product needs to be replaced, a
Customer Service representative will
issue a Return Material Authorization
(RMA) number and return address.
An RMA number is required to return
a product to Z Microsystems, regardless of the reason for the return.
The following information is required
when returning Z Microsystems
products:
1. Model number
2. Serial number
3. Date of purchase
4. Proof of purchase (use the invoice
or packing slip)
5. Customer ship-to address and any
special shipping requirements
6. Specific and detailed description of
the problem
PROVIDING FEEDBACK
Doc# 27-0002UM Issued 7/99 Rev. 1.2
We value feedback on our products,
their performance, any problems and
constructive suggestions. Please send
such productive information in writing
to:
Customer Service
Z Microsystems
5945 Pacific Center Blvd., Suite 509
San Diego, CA 92121-4309
or www.zmicro.com
31
Compliance
Y2K COMPLIANCE
Z Microsystems has achieved full Y2K Compliance.
In late 1997, the companys senior management assigned a Y2K Project Team
that consists of a cross-functional representation from information technology,
procurement, manufacturing, test and development, finance, general affairs,
engineering, marketing and facilities organizations to address the Year 2000
issues.
The Assessment/Rectification Phase of the Year 2000 efforts and full compliance
for all mission critical internal systems were accomplished as scheduled by the
end of Q1, 1999. Contingency development and validation of the companys
overall Year 2000 readiness will continue through 1999.
The following strategically important categories have been assessed for Year
2000 readiness:
Suppliers and Service Providers Readiness.
All major strategic suppliers are assessed to
be Year 2000 compliant. Most of the
companys service providers compliance
efforts will continue through 1999.
Major concerns and efforts will be focused
on the companys shipping companies in
1999.
Z Microsystems Internal Systems
All mission critical internal systems are
determined to be fully Year 2000 Compliant. A few minor Year 2000 Related issues
need to be addressed in 1999.
Z Microsystems Products
All Z Microsystems products are in full
compliance.
The company MIS has taken the lead and worked with the Finance Department
to develop comprehensive Year 2000 Contingency Plans for the company
mission critical application systems to assure the continuity of daily business.
32
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Drawings
Doc# 27-0002UM Issued 7/99 Rev. 1.2
33
Drawings
Doc# 27-0002UM Issued 7/99 Rev. 1.2
34
Doc# 27-0002UM Issued 7/99 Rev. 1.2
Z Microsystems, Inc.
5945 Pacific Center Blvd., Suite 509
San Diego, CA 92121
Phone: (858) 657-1000
Fax; (858) 657-1001
Website: www.zmicro.com
Copyright 1999 Z Microsystems, Inc. All Rights Reserved
Loading...
